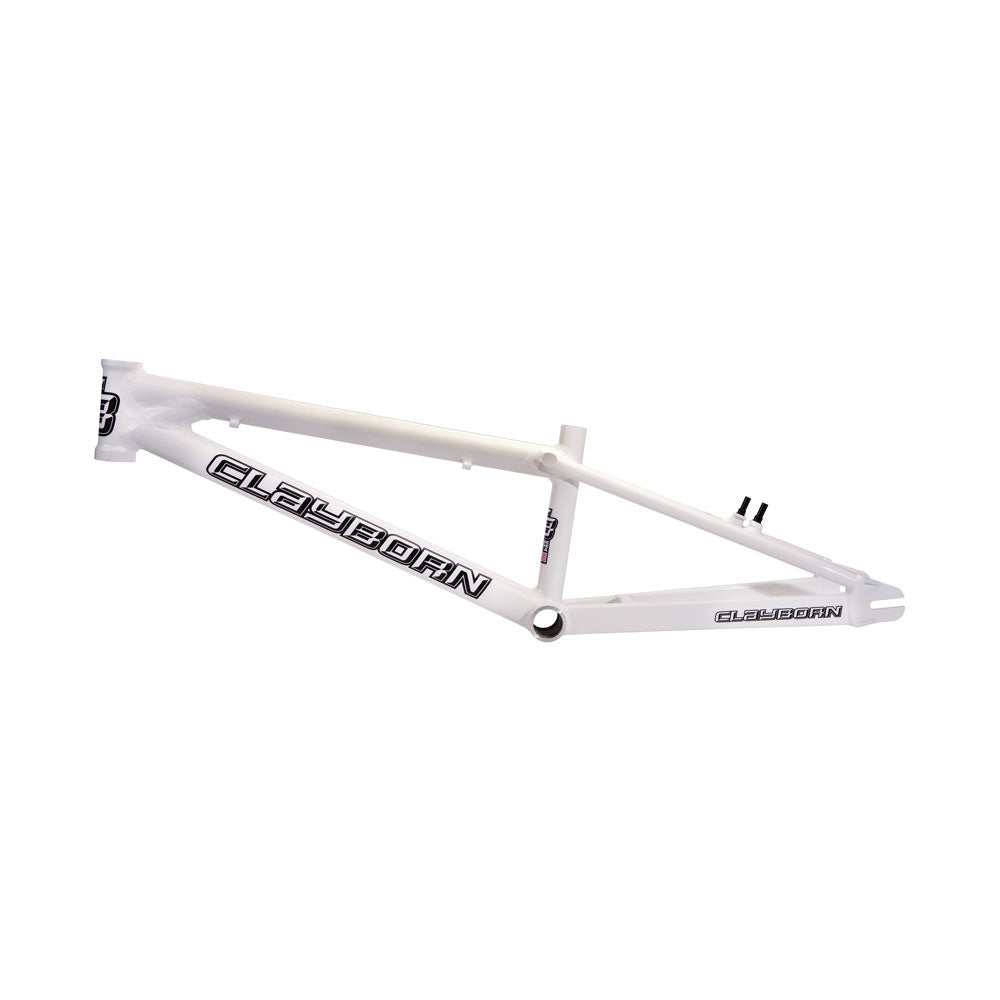

Clayborn BMX Race Frame - White

American Made Speed Machine.

Frame Specs:

Junior, Expert, Junior Cruiser, Expert Cruiser
– 1″ integrated headtube
– 22.2mm seat tube (requires 25.4mm seat clamp)
– 68mm euro bottom bracket
– 3/16″ thick 3/8″ (10mm) dropouts

Expert XL, Pro, Pro XL, Pro XXL, Pro XXXL, Pro XL Cruiser, Pro XXL Cruiser
– 1-1/8″ integrated headtube
– 26.8mm seat tube (requires 31.8mm seat clamp)
– 65mm euro bottom bracket
– 5/16″ thick 3/8″ (10mm) dropouts

Frame Geometry

Frame Size	Top Tube	Head Angle	Chainstay	Seat Tube	Head Tube	Seat Angle	BB Height*	Rider Area	Weight**
Junior 20"	18.25	72.5	12.5 / 13.75	22.2	1	69	10-7/8"	20	2.5
Expert 20"	19.25	73	13.25 / 14.5	22.2	1	70	11.0"	20.5	2.7
Expert XL 20"	20.25	73	13.25 / 14.5	26.8	1-1/8	71	11.0" - 11.2"	21.5	3.0
Pro 20"	20.75	74	14 / 15.25	26.8	1-1/8	72	11.5" - 11.7"	22.5	3.7
Pro XL 20"	21.25	74	14.5 / 15.75	26.8	1-1/8	72	11.5" - 11.7"	22.75	3.7
Pro XXL 20"	21.5	74	14.5 / 15.75	26.8	1-1/8	72.5	11.5" - 11.7"	23	3.8
Pro XXXL 20"	22	74	14.5 / 15.75	26.8	1-1/8	72.5	11.5" - 11.7"	23.5	3.85
Junior Cruiser 24"	18.4	72.5	14.4 / 15.74	22.2	1	70	11.1"	21	2.55
Expert Cruiser 24"	20	73	14.4 / 15.74	22.2	1	70	11.5"	22.5	2.8
Pro XL Cruiser 24"	21.5	73.5	14.5 / 15.75	26.8	1-1/8	71	11.5" - 11.7"	24	3.85
Pro XXL Cruiser 24"	22	73.5	14.5 / 15.75	26.8	1-1/8	71	11.5" - 11.7"	24.5	3.9
