Inspyre Concord V3 Alloy BMX Race Frame-Black Rainbow
Description

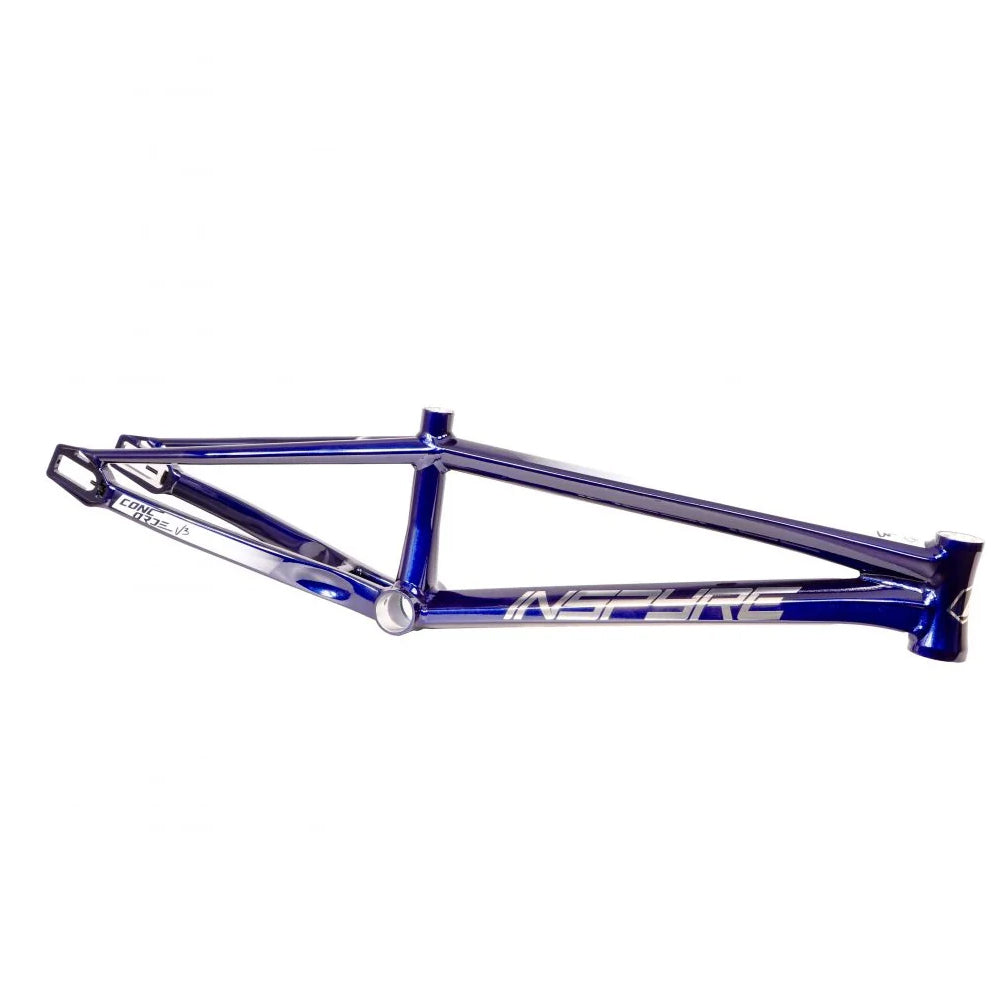

CONCORDE V3 FRAME
Introducing the Concorde V3: meticulously crafted with brand-new hydroformed tubes for optimal lightweight, strength, and aerodynamics. Prioritizing rigidity, enhancing pedaling efficiency and energy return while reducing weight by 15% compared to its predecessor. Aesthetic details like flat welds and refined paintwork elevate its premium finish, combining performance with visual appeal. With oversized rear stays and a wide bottom bracket assembly, the Concorde V3 ensures maximum rigidity.
SPECIFICATIONS :
- Frame 100% aluminum 6061-T6
- Hydroformed tubes with multiple thicknesses
- Compatible only with "Post Mount" hydraulic brakes
- Bottom bracket BSA 68 or BB86 depending on sizes - see the table below
- Compatible with Inspyre's ADS chain tensioners
- Compatible with a 15mm thru-axle for the rear wheel - Sold separately
GEOMETRY
|
CONCORDE V3 |
RIDER AREA | DOWNTUBE | TOP TUBE | CHAINSTAYS | HEAD ANGLE | SEAT ANGLE | BB DROP | HEADTUBE LENGTH | FORK HEIGHT | FORK RAKE | WHEELBASE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | |||
| mm | mm | Inches | mm |
Inches (min / max) |
mm (min / max) |
° | ° | mm | ° | mm | mm |
mm (min / max) |
|
|
Junior |
526 |
480 |
18,45 |
469 |
13.3 / 14.3 |
337 / 362 |
73° |
70° |
3,7 |
110 |
309 |
30 |
845 / 870 |
|
Expert |
544 |
505 |
19,50 |
495 |
13.3 / 14.3 |
337 / 362 |
73° |
71° |
16,4 |
110 |
309 |
30 |
883 / 908 |
|
Expert XL |
559 |
520 |
20,20 |
513 |
13.3 / 14.3 |
337 / 362 |
73° |
71° |
16,4 |
110 |
309 |
30 |
901 / 926 |
|
Pro |
563 |
528 |
20,65 |
525 |
14.2 / 15.2 |
360 / 385 |
74° |
72° |
45,4 |
115 |
309 |
30 |
940 / 965 |
|
Pro XL |
575 |
542 |
21,25 |
540 |
14.4 / 15.4 |
365 / 390 |
74° |
72° |
45,4 |
115 |
309 |
30 |
961 / 986 |
|
Pro 2XL |
585 |
553 |
21,75 |
552 |
14.7 / 15.7 |
373 / 398 |
74° |
72° |
45,4 |
115 |
309 |
30 |
981 / 1006 |
|
Pro 3XL |
596 |
566 |
22,25 |
565 |
15.3 / 16.3 |
389 / 414 |
74° |
72° |
45,4 |
115 |
309 |
30 |
1012 / 1037 |
|
Pro 4XL |
611 |
584 |
23,00 |
584 |
15.3 / 16.3 |
390 / 415 |
74° |
72° |
45,4 |
115 |
309 |
30 |
1033 / 1058 |
|
Cruiser |
617 |
572 |
21,85 |
555 |
15 / 16 |
380 / 405 |
73.5° |
70° |
5 |
115 |
359 |
30 |
971 / 996 |
SPECIFICATIONS
|
|
SEAT TUBE DIAMETER | SEAT CLAMP DIAMETER | BOTTOM BRACKET STYLE | SHIS | HEADTUBE STYLE | SPROCKET SIZE (MAX) | TIRE SIZE (MAX) | DISC BRAKE STYLE | AXLE | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| Junior |
22.2mm |
25.4mm |
Euro BSA - 1.375’’ BC 24T - 68MM |
IS42 | IS42 - 45° ø Bearing 41.8mm |
Integrated 1’’-1/8 110mm |
44T | 20 x 1-3/8 |
Disc only Post Mount 120MM |
10mm or 15mm |
NC |
| Expert |
1345 g |
|||||||||
| Expert XL |
NC |
|||||||||
| Pro | 31.6mm | 34.9mm |
PRESS FIT BB86 |
IS42 | IS52 - 45° ø Upper bearing 41.8mm ø Lower bearing 51.9mm |
Integrated Tapered 115mm |
50T | 20 x 1,85 |
NC |
||
| Pro XL |
NC |
|||||||||
| Pro 2XL |
NC |
|||||||||
| Pro 3XL |
1550 g |
|||||||||
| Pro 4XL |
NC |
|||||||||
| Cruiser | 44T | 24 x 1,75 |
1713 g |
