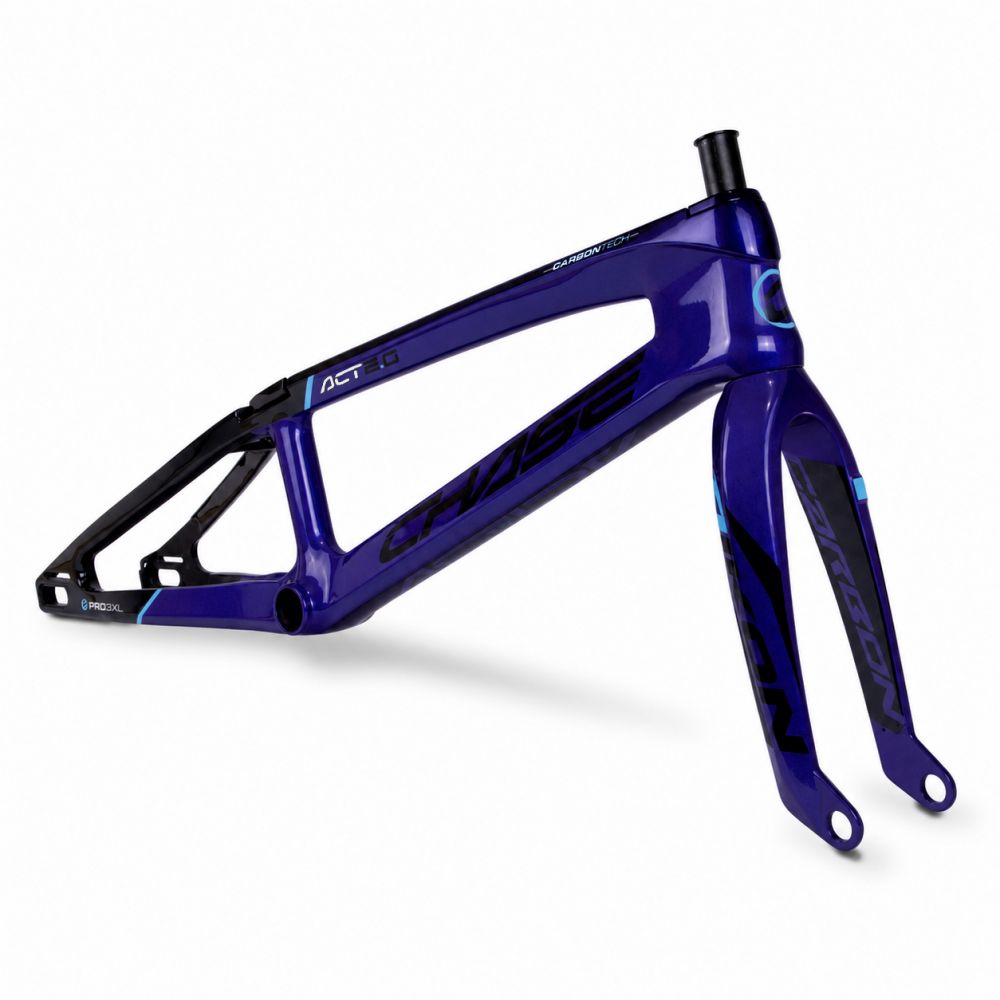

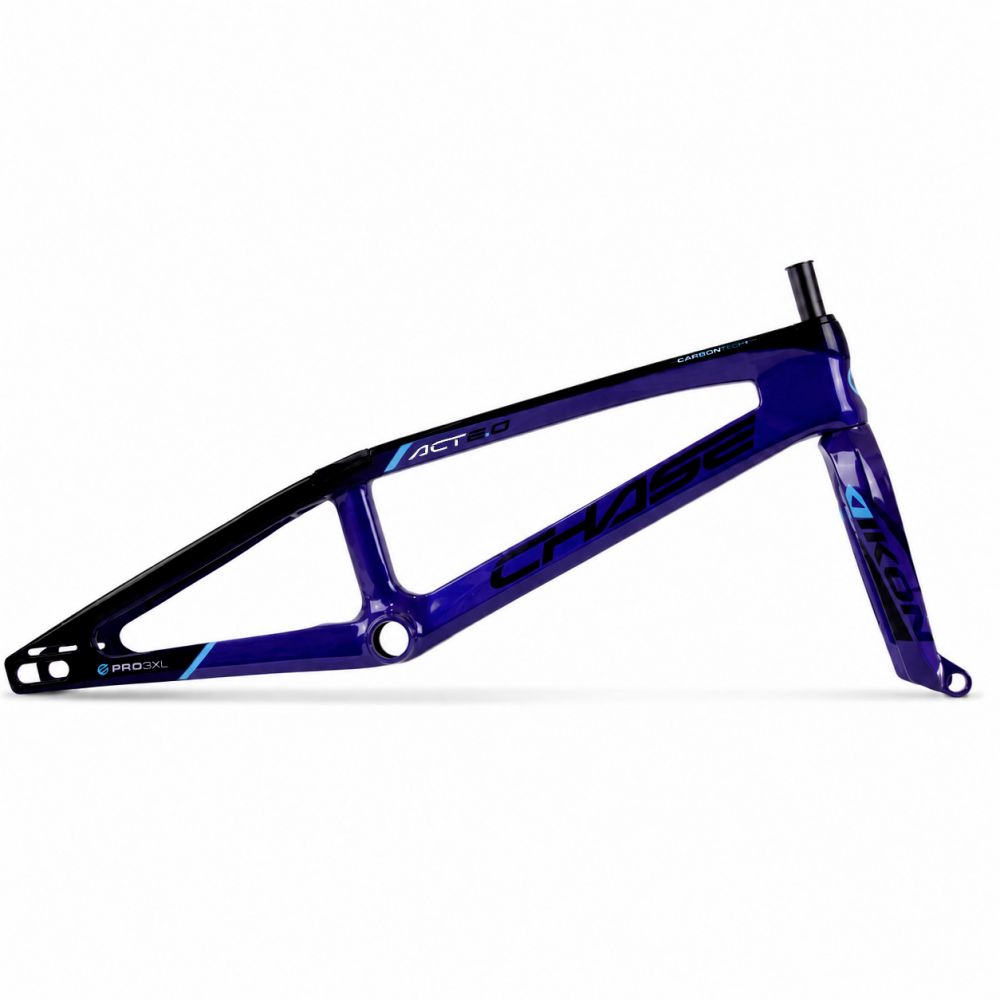

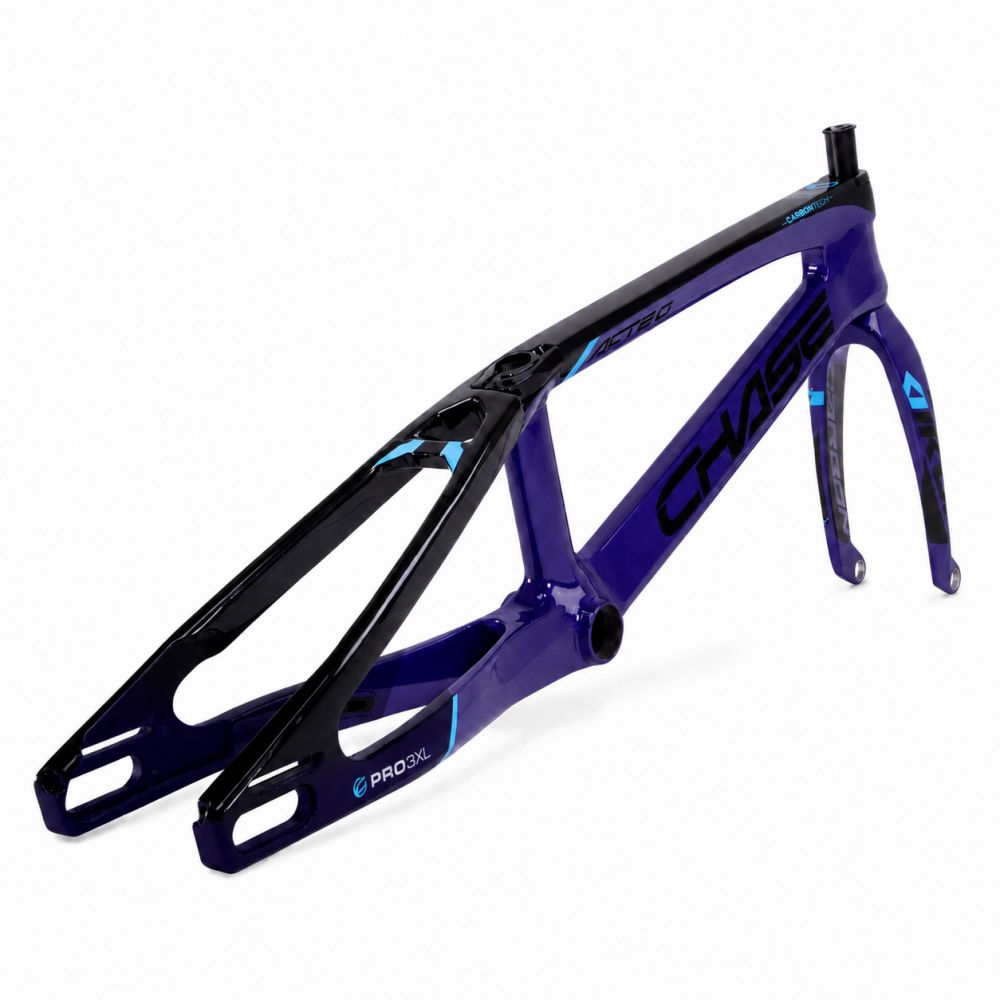

Chase ACT2.0 Purple / Black / Cyan Frame & Fork Kit

$1,899.99

Shipping calculated at checkout.

Color

Purple / Black / Cyan

Frame Size

Pro Pro XL Pro XXL Pro XXXL Pro XXXXXL Pro XXXXL

Product variants

Final sale — large items can’t be returned or exchanged once they ship. Arrived damaged or wrong? We’ll make it right. Returns policy

Description

— New ACT 2.0 and RSP 6.0 needed additional parts for Frame —

CHASE RSP6.0 - ACT2.0 POST MOUNT DISC CALIBER ADAPTERS

CHASE RSP6.0 - ACT2.0 FLAT MOUNT DISC CALIBER ADAPTERS

CHASE REAR HUB TAPERED CONE WASHER AND BOLT - 10MM / 3/8 AXLE

— GEOMETRY —

SIZE	TT	CS min	LR	FORK INFO	AF	SA	BBD	HT	HT TYPE	SPL	SP	BB TYPE	DROPOUT	TIRES MAXI	BRAKE	WEIGHT
PRO	20.50″ 520.7mm	14.25″ 361.95mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XL	21.00″ 533.4mm	14.30″ 361.95mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXL	21.50″ 546.1mm	14.50″ 368.5mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXL	22.00″ 558.8mm	14.50″ 368.5mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXXL	22.50″ 571.5mm	14.50″ 368.5mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-
PRO XXXXXL	23.00″ 584.2mm	14.50″ 368.5mm	1.6″ 40mm	12.1″ 307mm	74.0°	72.5°	1.7" 42.5mm	4.7" 120mm	Integrated IS 42/52	8.4″ 212.25mm	Aero 27.2mm	Press Fit BB86	Enclosed 20mm	20"x2.10"	Mount or Flat 120 / 140mm	-

Note : HT, Top Cap not in dimension
