Chase Edge Micro

Product Overview

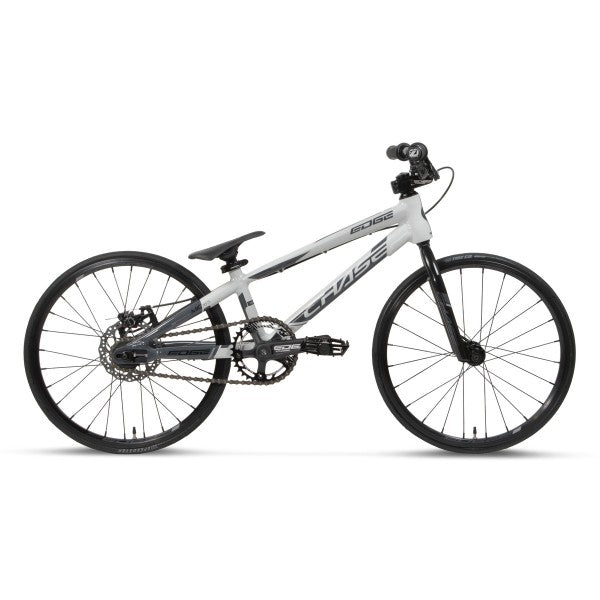

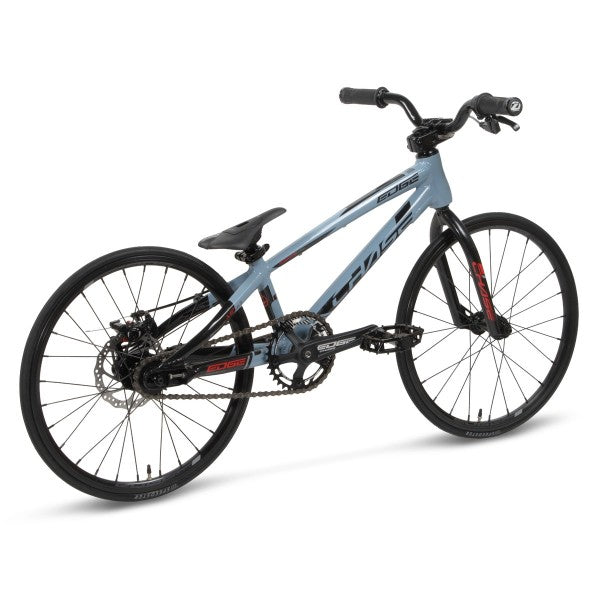

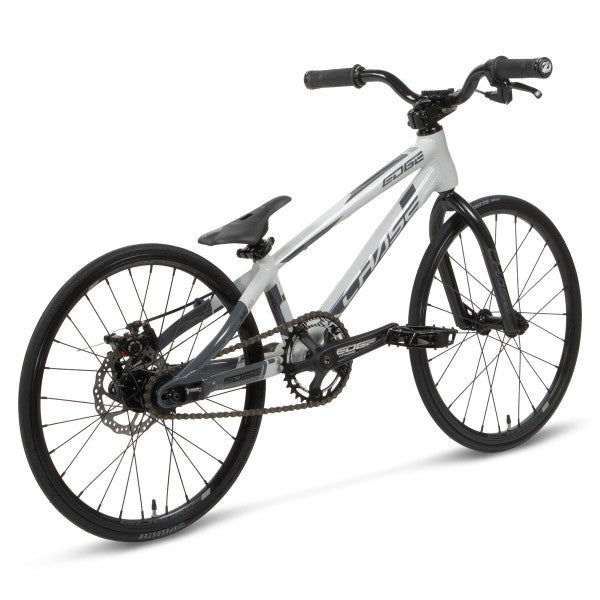

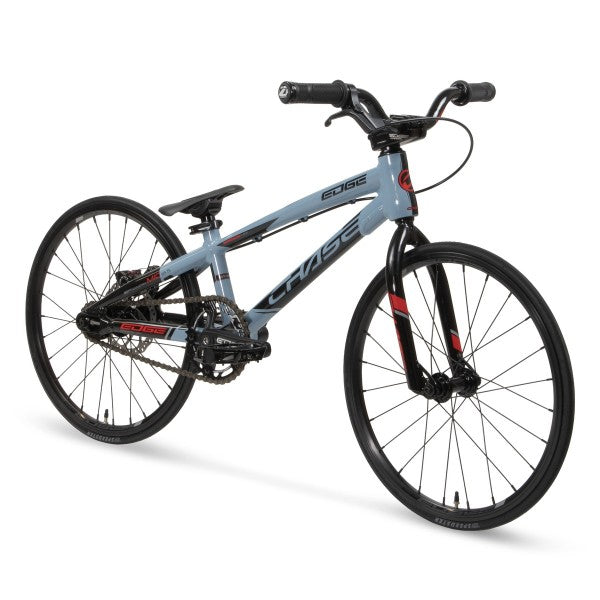

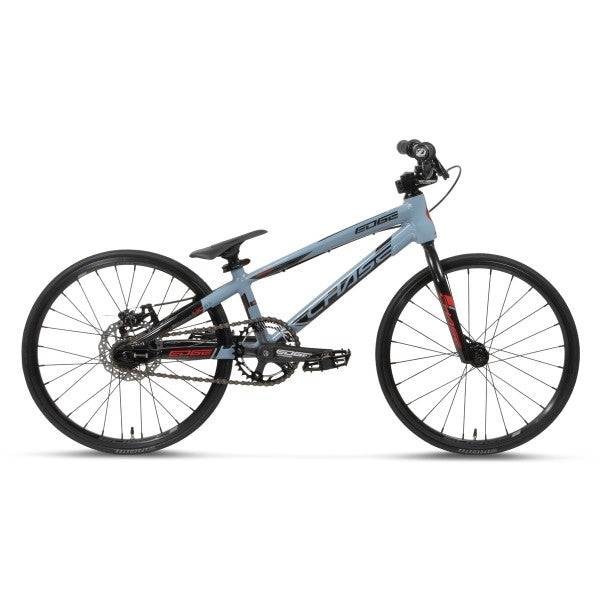

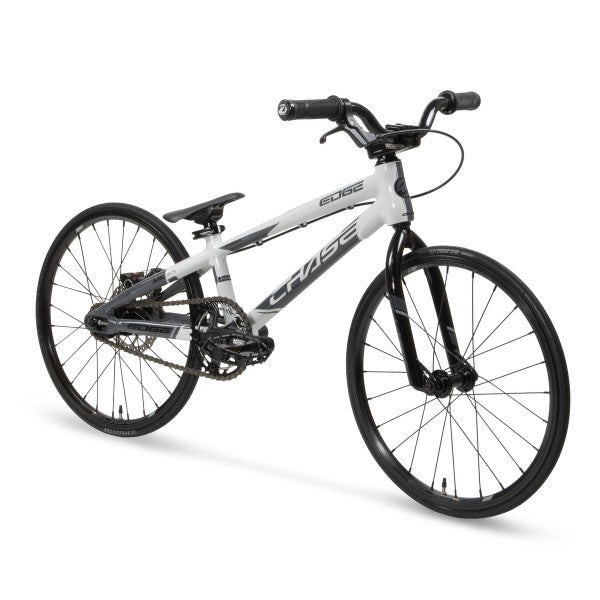

The Chase Edge Micro is a race-ready BMX bike designed for young riders serious about competitive racing. Built on the updated Edge platform with triple-butted hydroformed 6061-T6 aluminum frame, full chromoly fork, mechanical disc brakes, and quality drivetrain components, it delivers responsive handling and reliable performance for micro-category racing. At 6.99kg, it's lightweight and nimble for smaller riders developing racing skills.

Key Features

• Triple-butted hydroformed 6061-T6 aluminum frame – Multi-stage wall thickness tubing maximizes strength at stress points while minimizing weight for responsive acceleration
• Integrated 1" headtube – Standard micro headset interface compatible with sealed bearing systems and allows quick stem adjustments
• Enclosed rear dropouts with integrated chain tensioner system – Built-in tensioners eliminate separate devices and maintain rear wheel position without play or movement
• Full chromoly fork – 4130 steel construction provides durability and precise steering geometry for responsive racing performance
• 1" steerer tube – Standard micro fork compatibility integrates seamlessly with integrated headset system
• Sealed bearing headset – Protected internal bearings provide smooth, low-friction steering with minimal maintenance requirements
• 40mm stem – Compact length optimized for micro frame proportions and developing rider control
• 2.25" handlebars – Micro-sized bars designed for smaller hand positions and proportionally correct leverage
• Insight 35-tooth chainring – 5-bolt, 110mm BCD ring sized for micro drivetrain and appropriate gearing for lighter riders
• Chase Edge alloy cranks – 130mm arms with 113mm squared axle bottom bracket deliver appropriate leverage and power transfer for micro riders
• Triple engagement rear hub – 3-pawl triple-angle engagement with 24-tooth ratchet provides responsive, precise power delivery during acceleration
• ISO disc brake standard hub – Rear hub equipped for modern disc brake systems with secure rotor mounting
• Sealed bearing hubs – Double-contact seals protect internal bearings from dirt and moisture during outdoor riding
• Double-wall alloy rims – Chase Edge 100 rims with 18"x1" sizing provide strength and spoke tension consistency for reliable wheel performance
• 24-hole front / 28-hole rear spoke count – Optimized spoke patterns for weight distribution and wheel strength specific to micro sizing
• Vee Rubber Speedster tires – Quality 18"x1" tires provide proven traction and rolling characteristics for racing

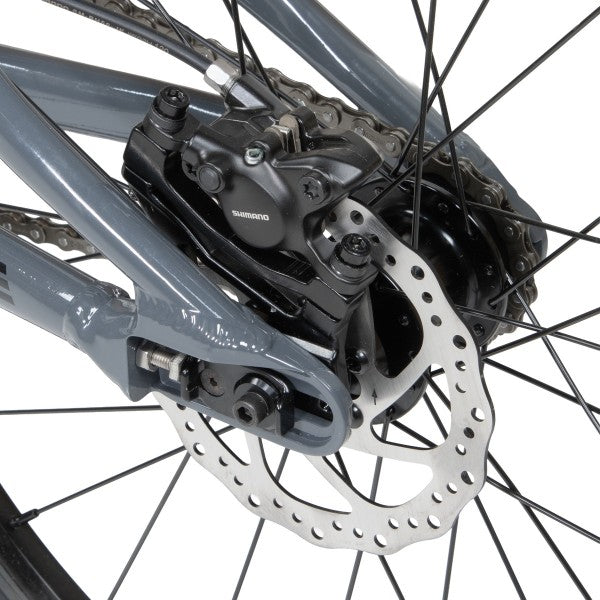

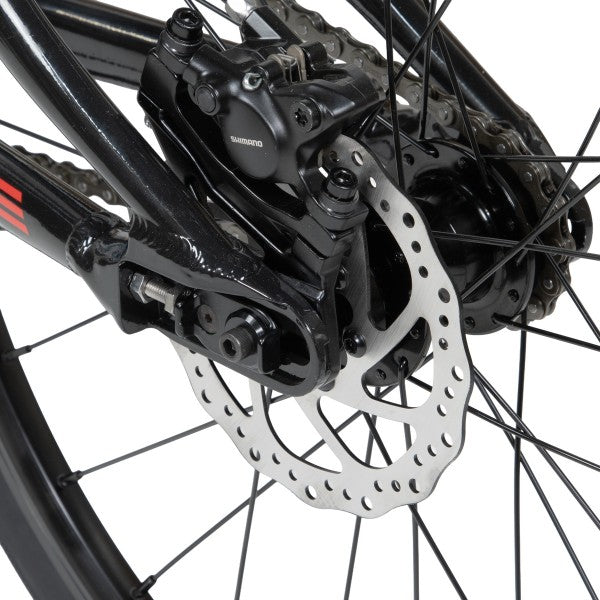

• Mechanical disc brakes – Reliable 140mm rotor system with Shimano B01S compatible pads and lock disc adaptor for secure rotor mounting
• Integrated disc brake adaptor system – Frame includes lock disc adaptor for straightforward brake installation without additional hardware

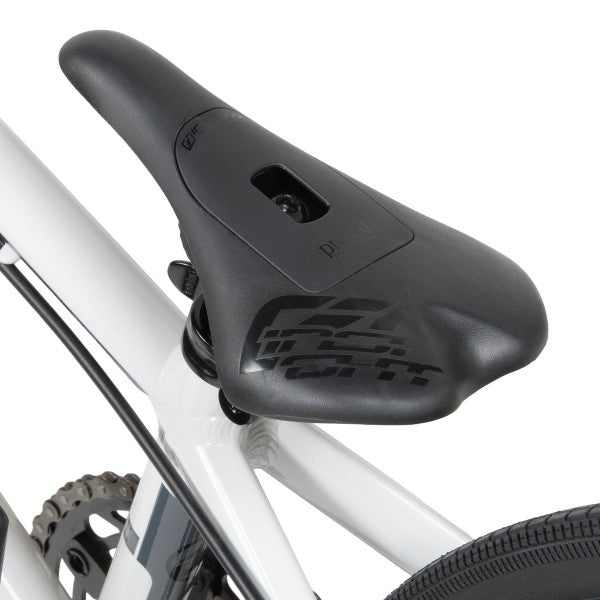

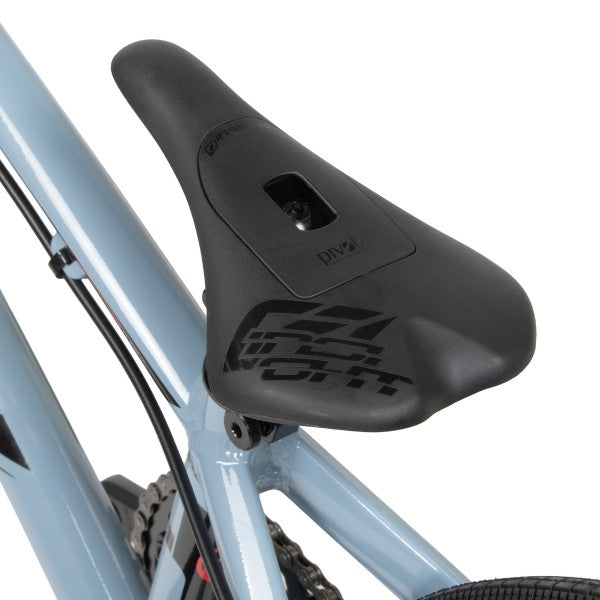

• Insight mini pivotal seat – Quality seat designed for micro frame geometry and proportional riding position
• 2-tone paint and graphics design – Professional finish with updated graphic styling
• Micro-category focused design – All components sized and proportioned specifically for younger, smaller riders developing racing skills

Technical Specifications

• Frame: Chase Edge Micro 16.25" top tube, 6061-T6 hydroformed aluminum, triple-butted tubing, integrated 1" headtube, enclosed rear dropouts
• Fork: Chase Edge Micro full chromoly, 1" steerer tube
• Headset: Integrated sealed bearing, 1"
• Handlebars: Chase Edge 2.25" (micro sizing)
• Stem: Chase Edge 40mm, micro-sized
• Bottom bracket: 113mm squared axle (micro standard)
• Chainring: Insight 35-tooth, 5-bolt, 110mm BCD
• Crankset: Chase Edge alloy, 130mm arms
• Pedals: Not included
• Chain: Standard BMX 1/2"x3/32"
• Cog: 16-tooth freewheel
• Front hub: Chase Edge mini, 3/8" axle, sealed bearing, 24-hole
• Rear hub: Chase Edge mini, 3/8" axle, sealed bearing, ISO disc brake standard, triple-angle engagement 24-tooth ratchet, steel cassette body
• Spokes: Appropriate gauge for micro wheel sizing
• Rims: Chase Edge 100 double-wall, 18"x1", 24-hole front / 28-hole rear
• Tires: Vee Rubber Speedster 18"x1" (front and rear)

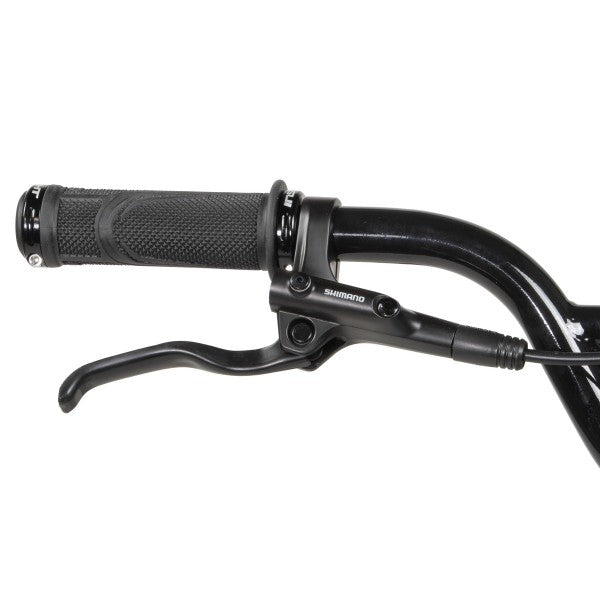

• Brakes: Mechanical disc, 140mm rotor, Shimano B01S compatible pads, lock disc adaptor
• Saddle: Insight mini pivotal
• Seat post: Micro-sized pivotal
• Chain tensioner: Integrated built-in system
• Weight: 6.99kg (15.4 lbs) without pedals
• Recommended rider height: 3'3" – 3'9" (1.00m – 1.15m)

Compatibility & Ideal Use Cases

The Chase Edge Micro is designed for young BMX racers between 3'3" and 3'9" in height, typically in the micro age category (ages 4–6). It's ideal for first-time racers and riders ready to progress from balance bikes to pedal-powered racing machines. The micro-specific geometry and component sizing provide proportionally correct handling and control for developing riders. The sealed bearing system and mechanical disc brakes require minimal maintenance during regular training and racing. Compatible with standard micro BMX frames, 18" wheels, and 3/8" rear axle hubs. The integrated chain tensioner system and enclosed dropouts eliminate the need for separate tensioning devices. Not compatible with full-size or junior components; all sizing is micro-category specific.

RIDERS SIZES CHART

GEOMETRIES

TECHNOLOGIES

Chase has designed and added the new Enclosed Rear dropout on the Element frame was developed to add strength to the frame for usage of the Disc Brake mount, as well as the easy of having an integrated chain tensioner system built into the frame. We use this same technology on our flagship BMX racing frame, the Chase ACT 1.0 Carbon Fiber frame.

It doesn’t matter how much you can squat, if your rear hub ins’t worth squat. But with the new Chase Element Triple Precise Rear hub clutch system, all you will have to worry about is how to where to put you trophies instead of if your hub can take all the power you can dish out. The 3 pawls clutch system gives you a direct link to power, while keeping the rear hub light and easy to maintain. With 72 points of engagement, the drag is also minimal, while being secure enough for Champions riders like Connor Fields and Joris Daudet to ride on with confidence.

Chase utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the Edge and Element frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our complete bikes. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.

Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

While each rider is unique, Chase Bicycles has developed Bio Fit sizing for our frames to offer riders the ultimate size options for BMX racing. The sizing used for the Chase line has been carefully designed to give riders the optimum power output in the size range offered. Our commitment to details and offering many size options, gives you a custom fit BMX frame, that you can buy right at your local Chase BMX Dealer.

Born from some of the best alloys for building BMX race bikes, our special 6061-T6 SpeedLite alloy is the perfect blend for our Hydro-forming process, giving the Element frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase utilizes the triple butting on our line of Element bikes. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the Element frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the Element frame and against the completion.

Chase incorperates the Integrated headset system on all of our frames. Simply put, It is a bicycle frame, fork and bearing system designed to eliminate the need for a headset cup. To integrate means to combine and hopefully to simplify. What has been integrated by the integrated headset? The bearings now rest inside the frame instead of inside pressed-in cups, making it easier for headset installation, helping create less maintenance on your race bike, all while making the front end stiffer and the overall bike lighter.

BSA or more commonly know as a “Euro” Bottom Bracket refers to the tread in type of BB, using either a Internal or External Bottom Bracket with a 68 or 73mm BB shell with 1.370/1.375″ x 24 TPI threads and a left hand thread on the drive side cup. This is now considered to be a standard threaded bottom bracket shell or bottom bracket. We use the BSA Threaded BB on both the Edge and Element bikes, where a PF or Press Fit BB, with no treads is used on our ACT Carbon Frame.
