Full specs

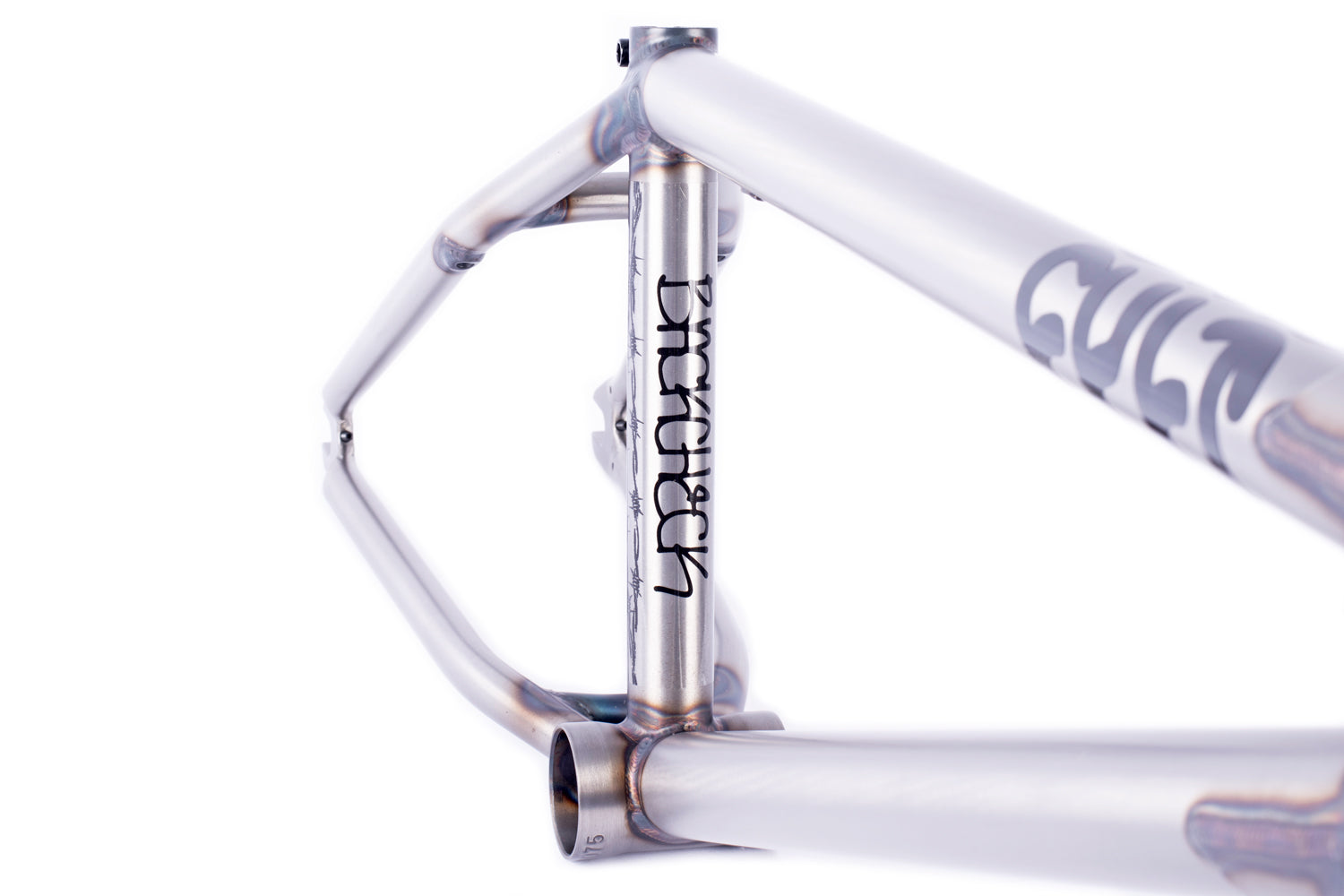

Cult Crew Dehart Frame Backcheck Edition Clear Coat Raw Chase Dehart Signature
Product Overview

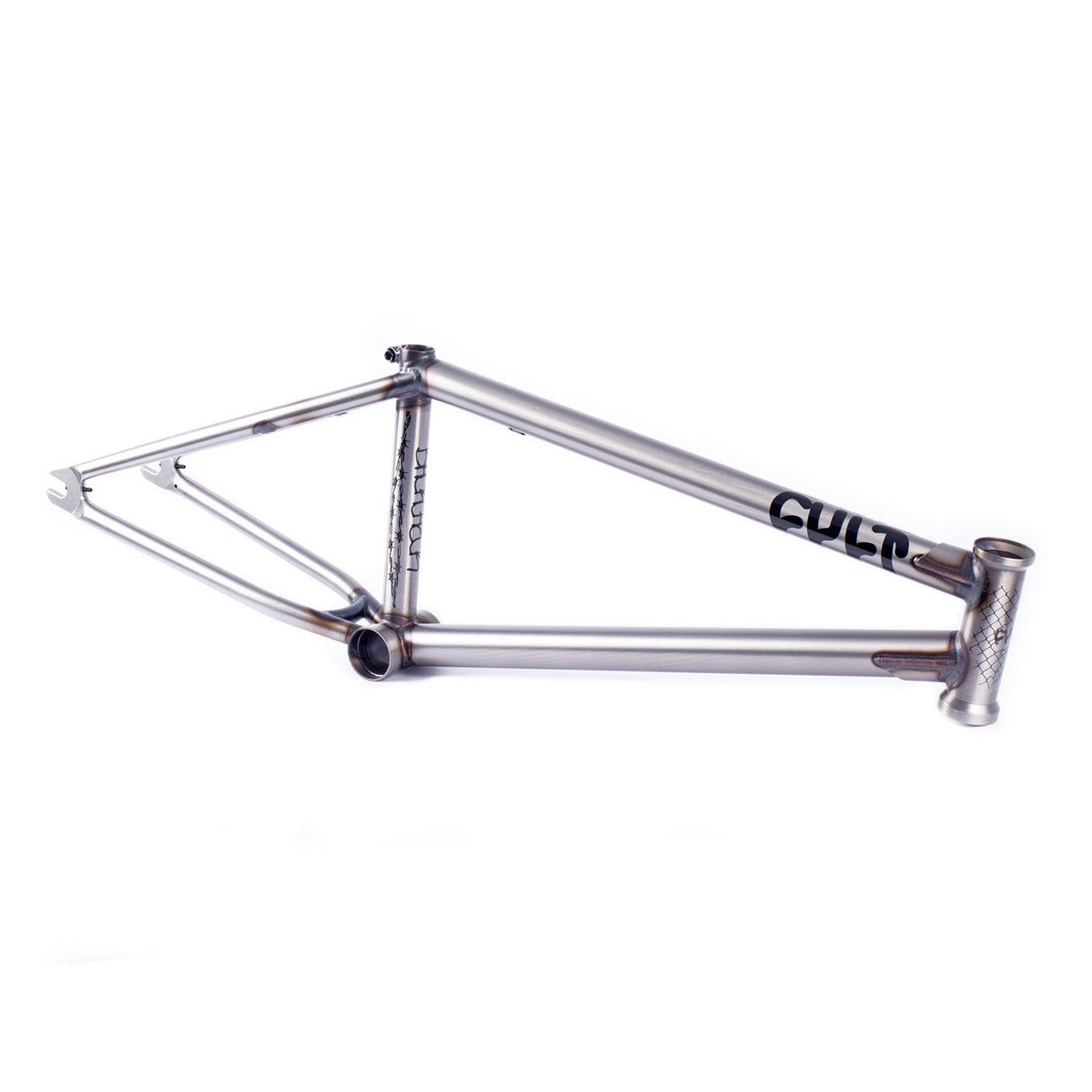

The Cult Crew Dehart is a Chase Dehart signature chromoly race frame featuring premium tubing, dual gussets, and integrated geometry. Available in clear coat raw finish with five top tube size options, it delivers professional-grade performance optimized for competitive BMX racing with modern tire clearance and integrated components.
Key Features
- Chase Dehart Signature Design — Professional race frame engineered by accomplished BMX racer; Backcheck Edition reflects competitive-level geometry and performance optimization
- 100% Cult Classic Tubing — Premium chromoly construction provides increased strength and durability; proprietary Cult tubing offers superior material properties

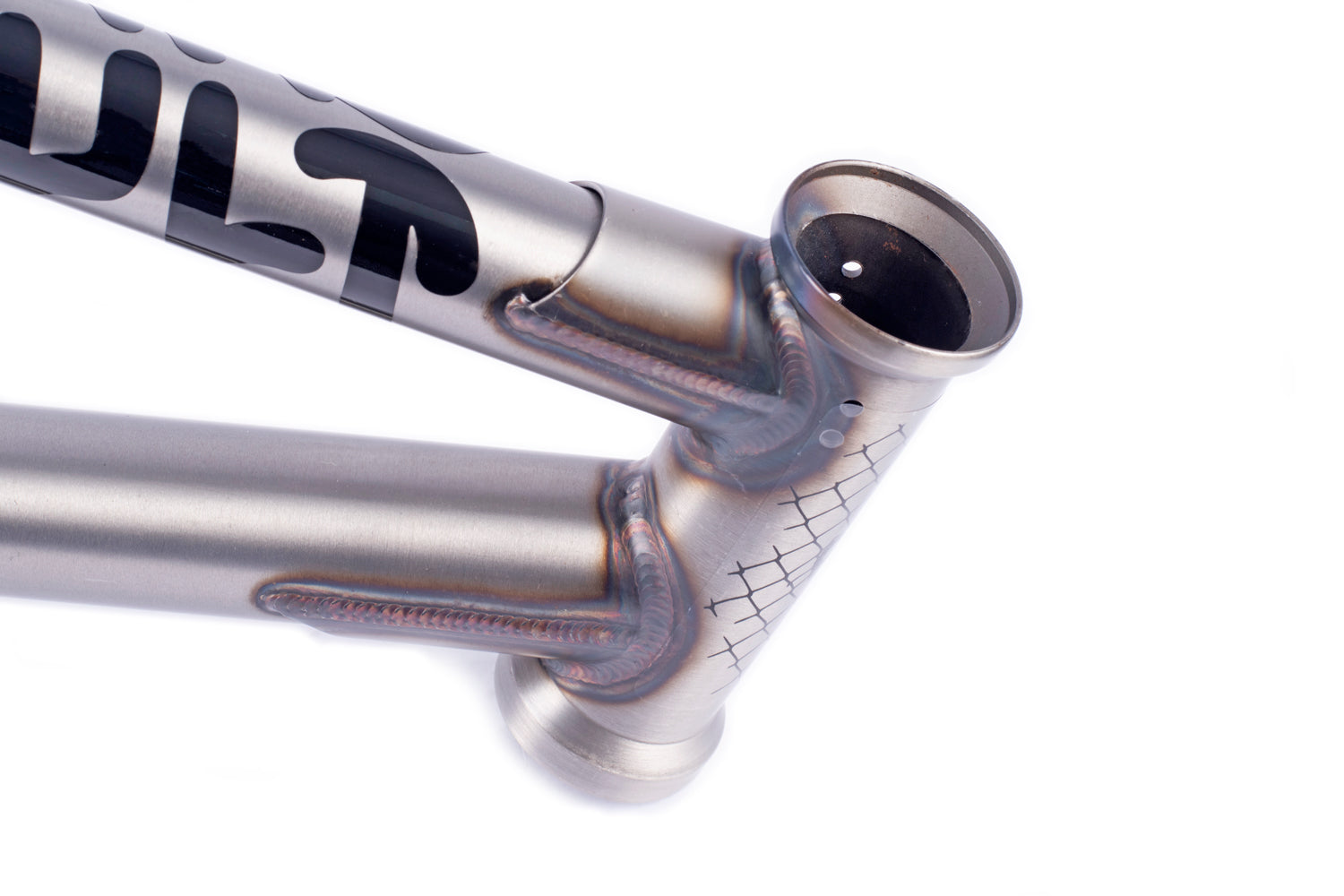

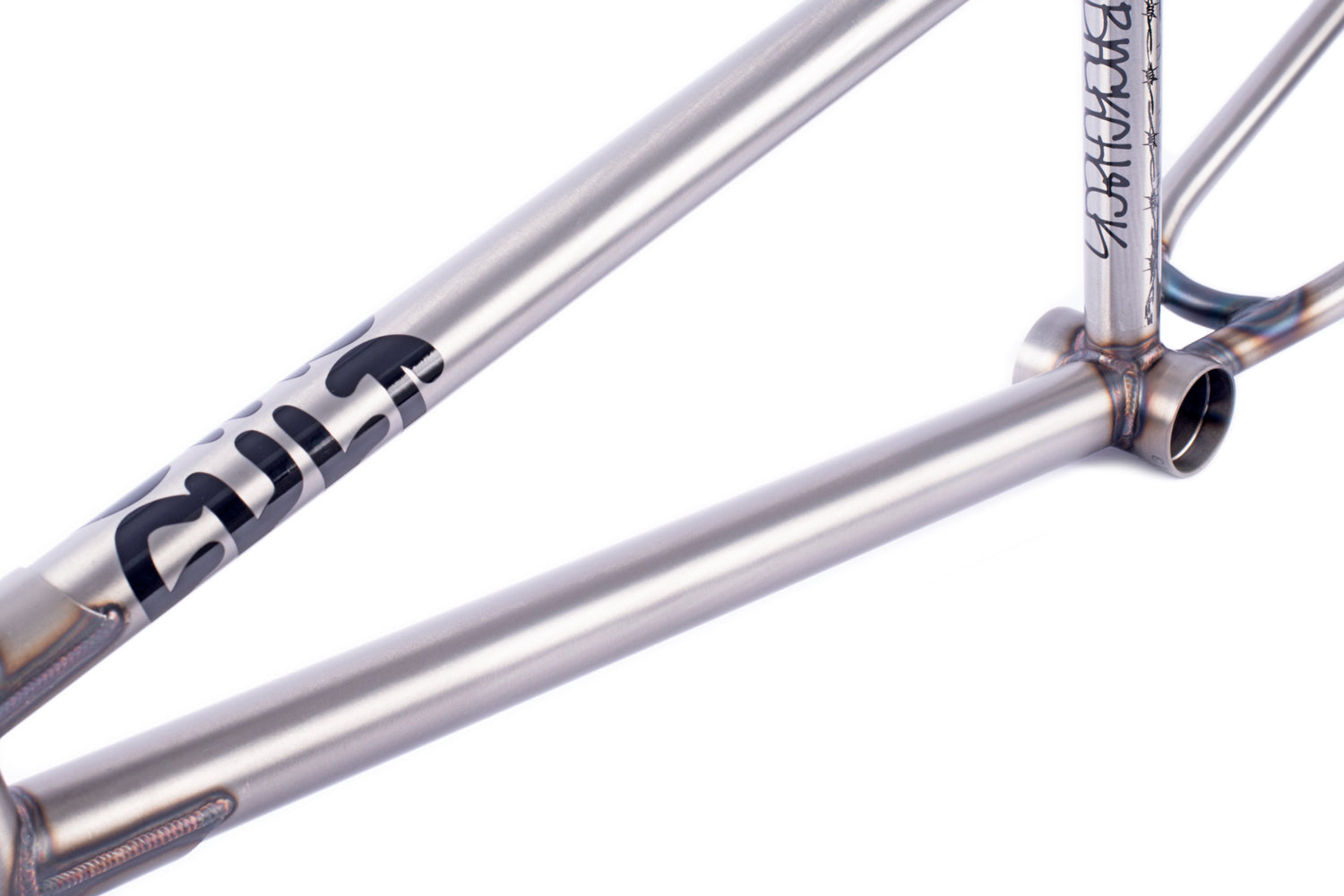

- Top and Down Tube Gussets — Dual reinforced junctions improve frame stiffness and reduce flex; enhanced power transfer and handling precision throughout frame

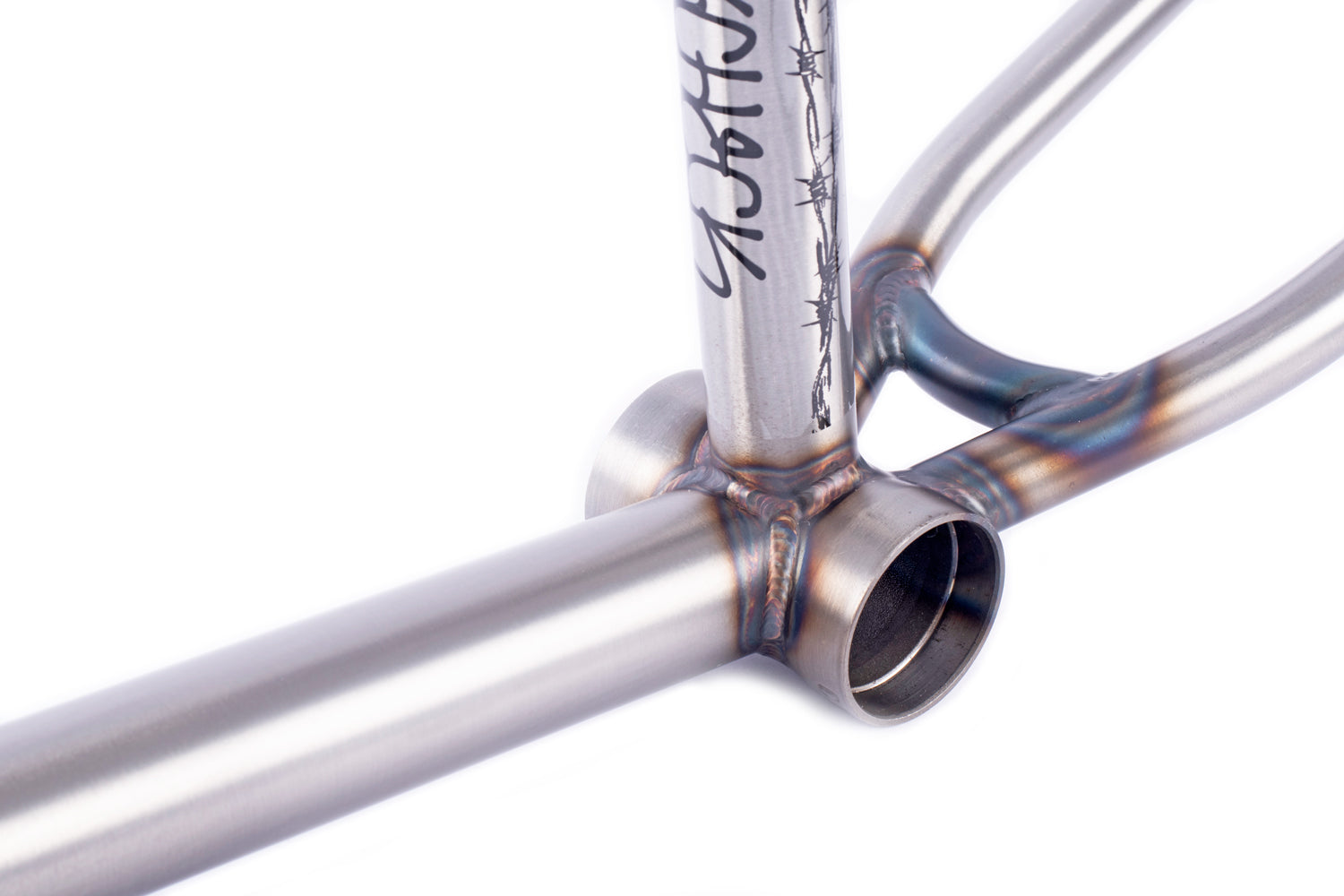

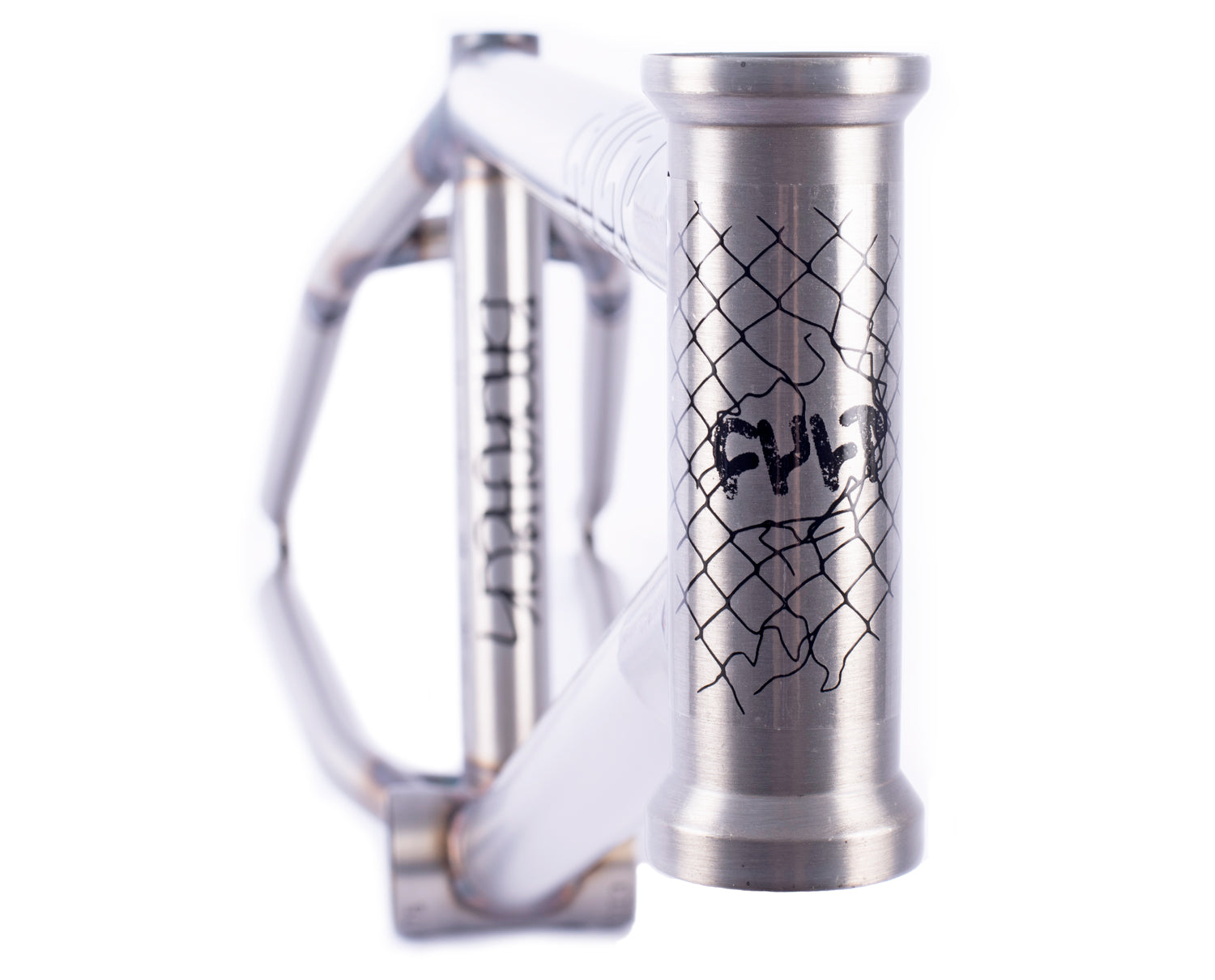

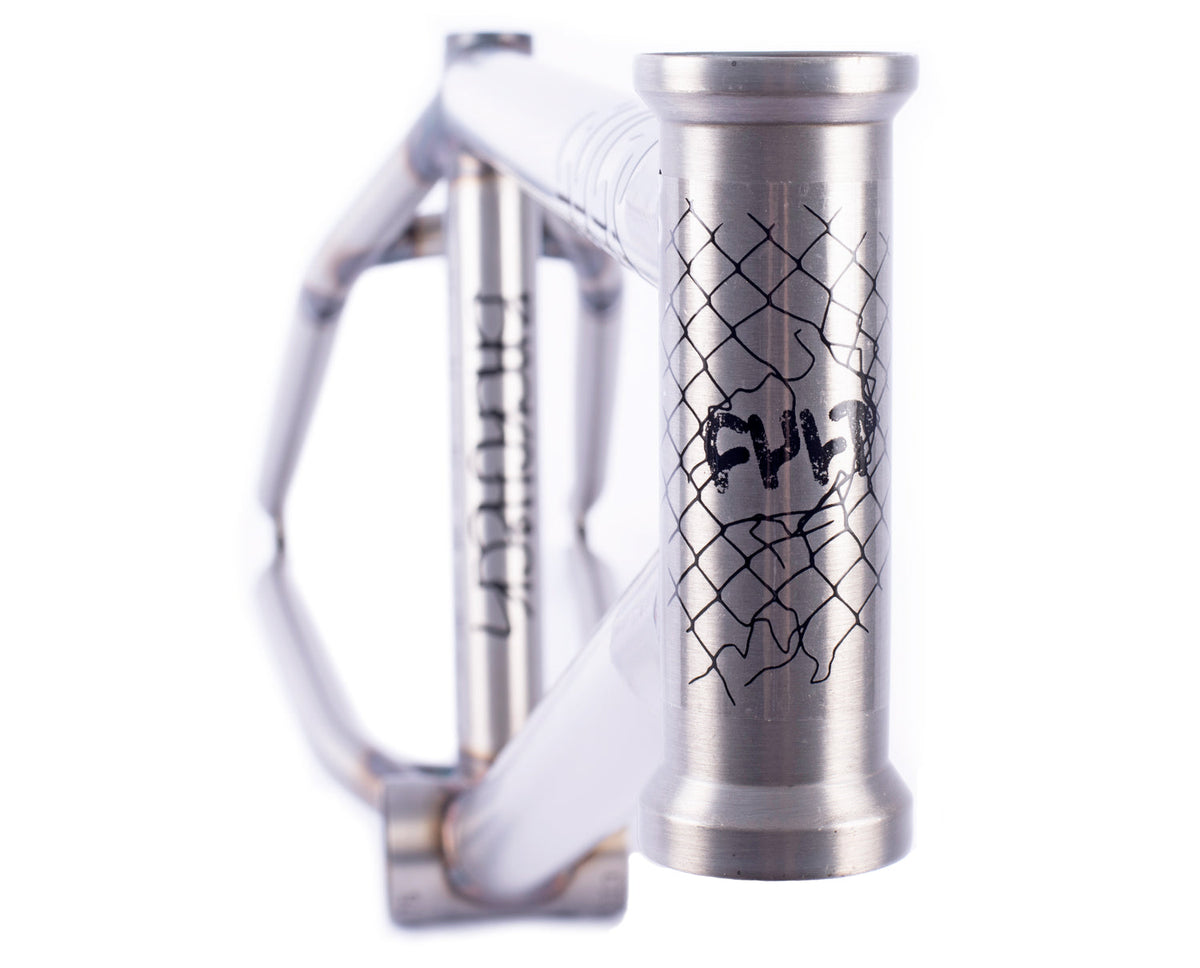

- 5" Integrated Headtube — Longer integrated headtube provides secure headset interface and improved steering stability; externally machined mid BB shell

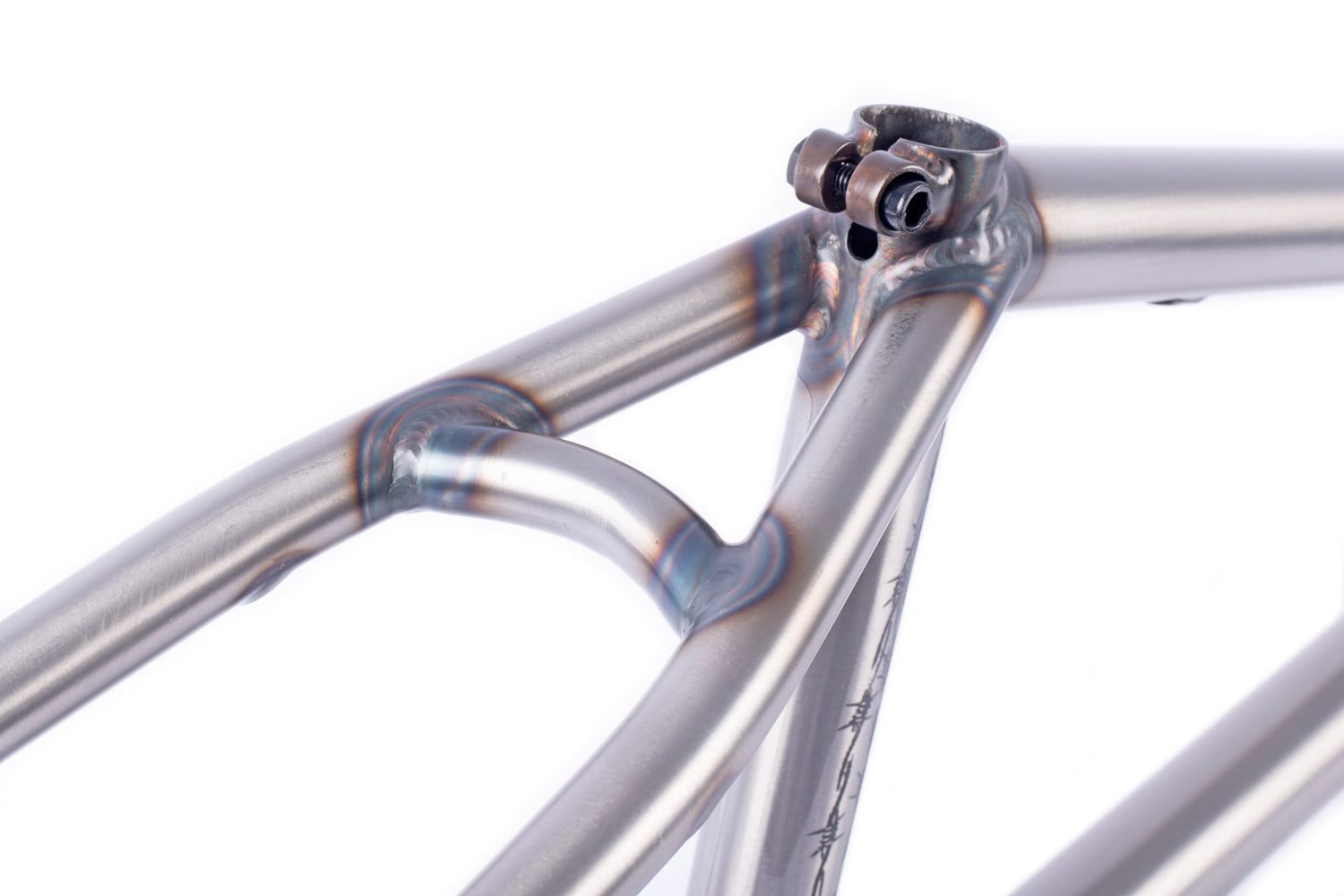

- Built-In Seatpost Clamp — Integrated seat clamp eliminates separate hardware; simplifies setup and provides consistent seat tube interface
- Tapered Seatstays — Classic tapered design reduces weight while maintaining stiffness; improves ride compliance

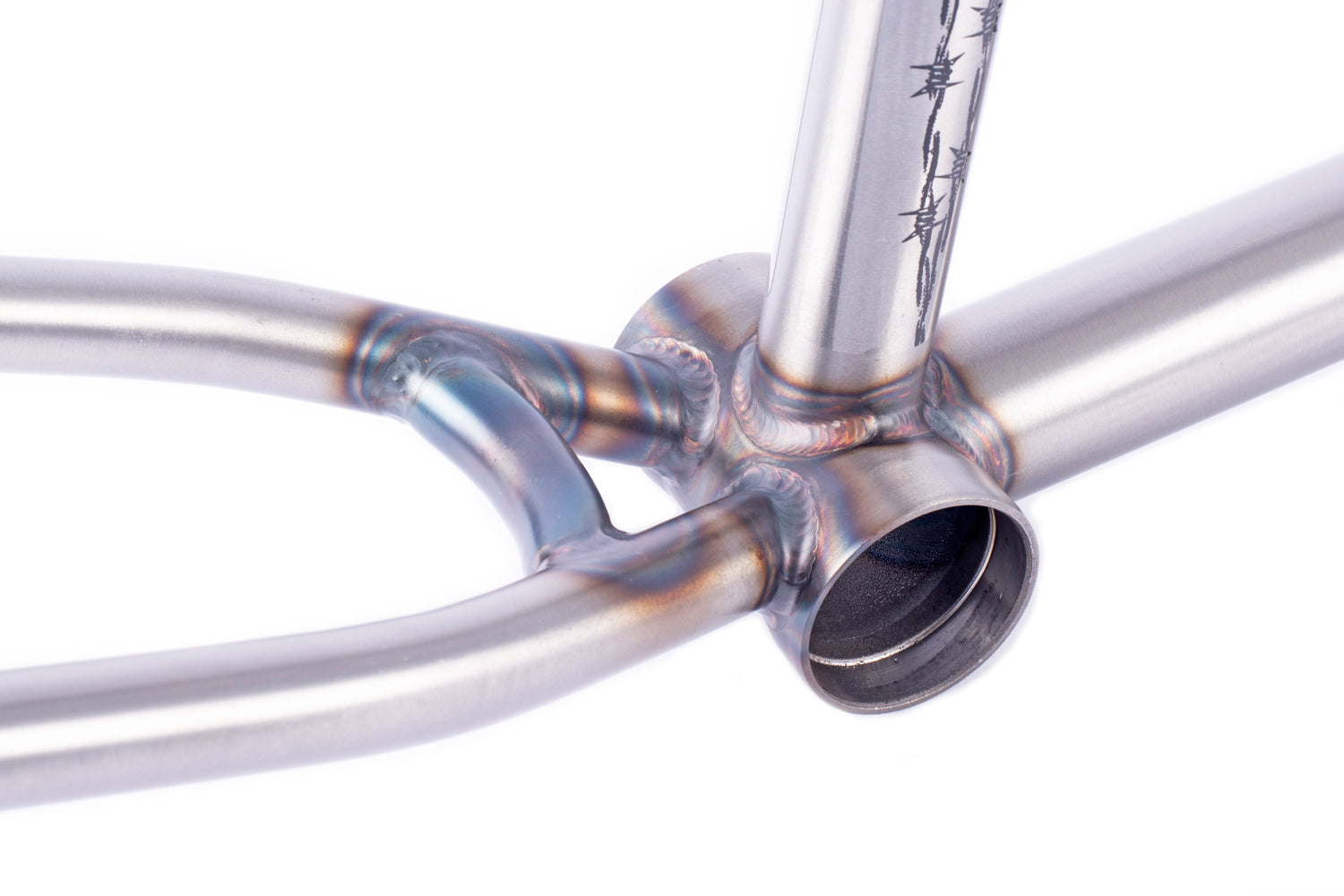

- Tapered Chainstays — Curved rear triangle geometry accommodates 2.40" tire clearance; provides comfortable ride feel and modern tire option flexibility

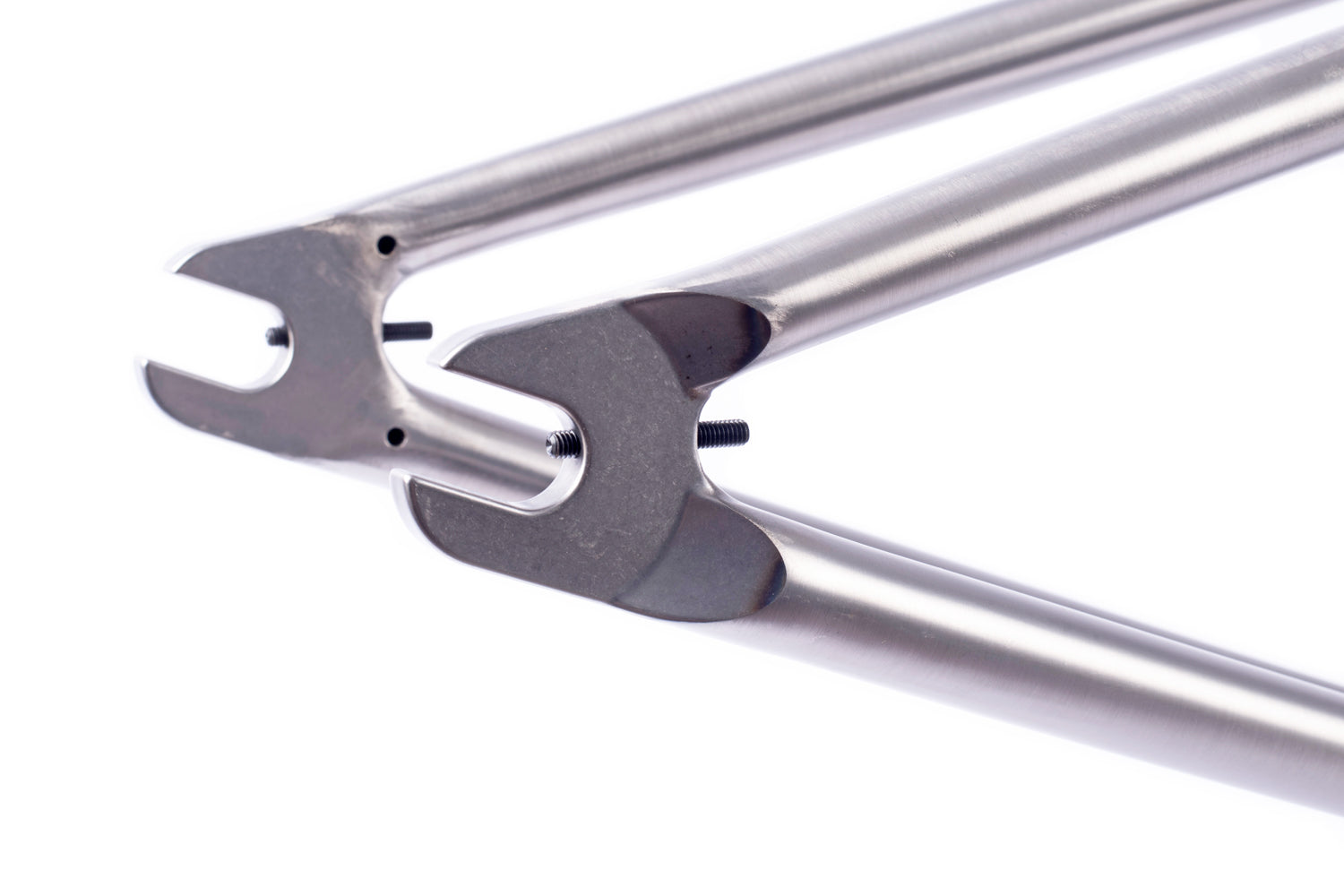

- Investment Cast Heat-Treated Dropouts — Precision-cast dropouts with integral chain tensioner; superior strength and consistency
- Multiple Size Options — Five top tube sizes (20" to 21.25") accommodate various rider heights and proportions
- Race-Focused Geometry — 75.5° head tube, 70° seat tube angle deliver aggressive handling optimized for competitive racing
- Clear Coat Raw Finish — Bare chromoly with protective clear coat reveals natural metal aesthetic; provides classic BMX look while protecting against oxidation
Technical Specifications
- Material — 100% chromoly (Cult classic tubing)
- Top Tube Options — 20", 20.5", 20.75", 21", 21.25"
- Head Tube Angle — 75.5°
- Seat Tube Angle — 70°
- Chain Stays — 13.25" to 13.55" (tapered geometry)
- Bottom Bracket — 11.7" height (mid BB shell, externally machined)
- Standover Height — 8.75"
- Integrated Headtube — 5" length
- Seat Clamp — Built-in integrated design
- Brake Compatibility — Standard U-brake mounts; disc brake conversion possible with adapters
- Tire Clearance — Room for 2.40" tires
- Dropouts — Investment cast heat-treated with chain tensioner
- Seat Post Diameter — Standard 27.2mm (typical for Cult frames)
- Color — Clear coat raw
- Finish — Bare chromoly with protective clear coat
Compatibility and Ideal Use Cases
- Wheel Size — 20" wheels; standard BMX racing wheel size
- Tire Compatibility — Supports up to 2.40" tire width; modern tire option flexibility with increased volume
- Brake Compatibility — Standard U-brake mounts; disc brake conversion possible with frame adapters
- Headset Compatibility — 5" integrated headtube requires integrated headset (1-1/8" standard or tapered options)
- Bottom Bracket — Mid BB shell externally machined; accepts standard threaded or press-fit BB components
- Seatpost Clamp — Integrated design; verify seat tube diameter (typically 27.2mm)
- Sizing Guide — Five size options accommodate riders from youth to adult; verify rider height against top tube length
- Ideal For — Competitive BMX racing, UCI-sanctioned events, freestyle tricks, and riders seeking pro-level frame geometry
- Rider Level — Engineered for competitive racers and experienced riders; aggressive geometry suits racing priorities
- Component Integration — Integrated chain tensioner and built-in seatpost clamp reduce external component requirements
- Customization — Frame-only package allows complete component selection and personalization; compatible with Cult and aftermarket BMX parts
- Geometry Performance — 75.5° head tube and 70° seat tube angles deliver responsive steering and efficient pedaling position optimized for racing
- Aesthetic Appeal — Clear coat raw finish with natural metal aesthetic provides distinctive, classic BMX look; pairs well with black or colored components
- Not Recommended For — Casual or beginner riders; cruiser-focused builds; riders prioritizing painted finishes over raw aesthetics
- Setup Consideration — Requires separate fork, wheels, drivetrain, brakes, and components for complete bike assembly
- Value — Pro-level race frame with premium tubing, dual gussets, and signature design; multiple sizing and tire clearance options justify investment for serious racers
