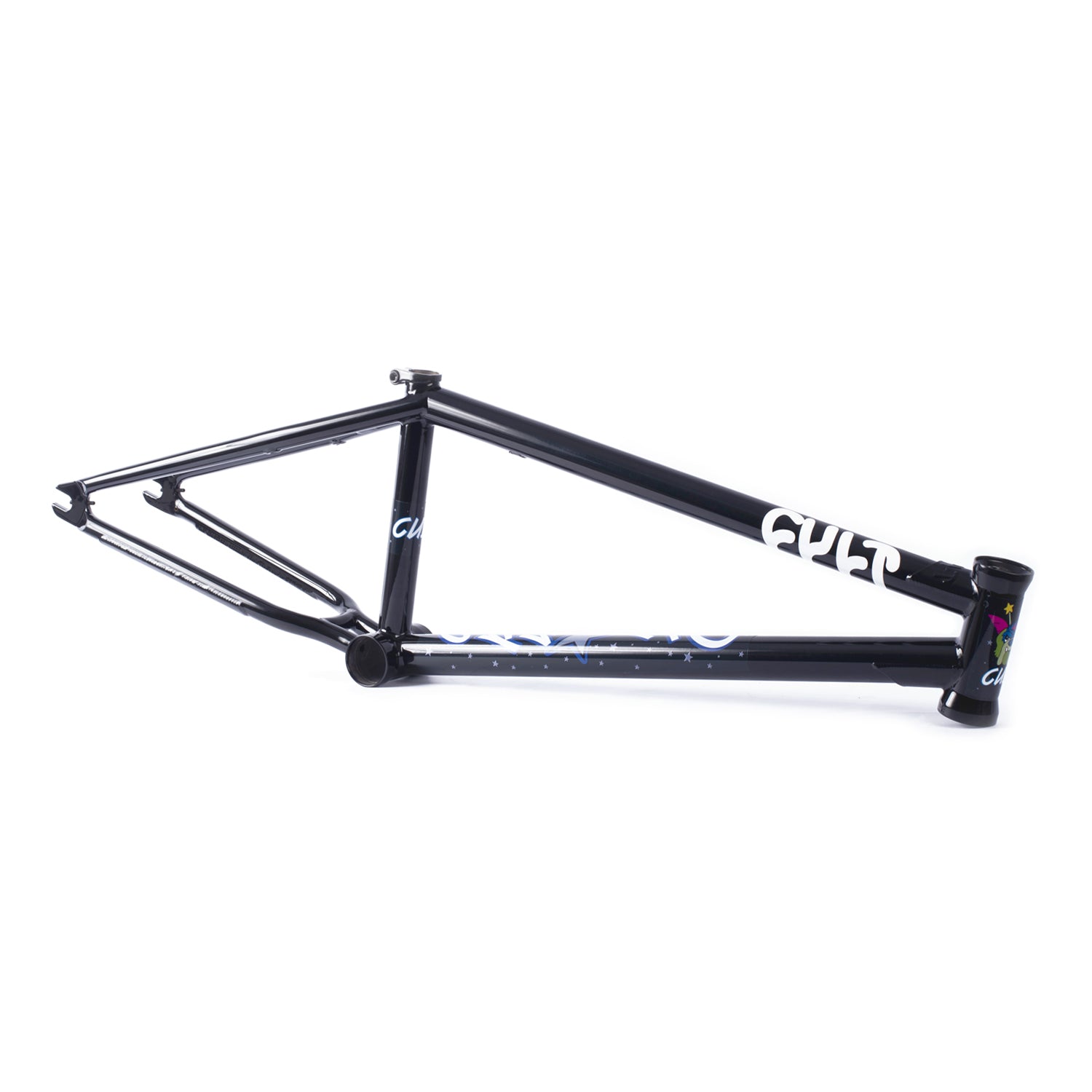

Trey Jones Magic Frame Cult Crew BMX

Product Overview

The Trey Jones Magic Frame is a Cult Crew race frame featuring new geometry and premium construction. It delivers professional-grade performance with investment cast components, integrated features, and modern tire clearance optimized for competitive BMX racing.

Key Features

  • Trey Jones Signature Design — Professional race frame engineered with new geometry reflecting current competitive standards and rider feedback
  • 100% Cult Classic Tubing — Premium chromoly construction provides increased strength and durability; proprietary Cult tubing offers superior material properties

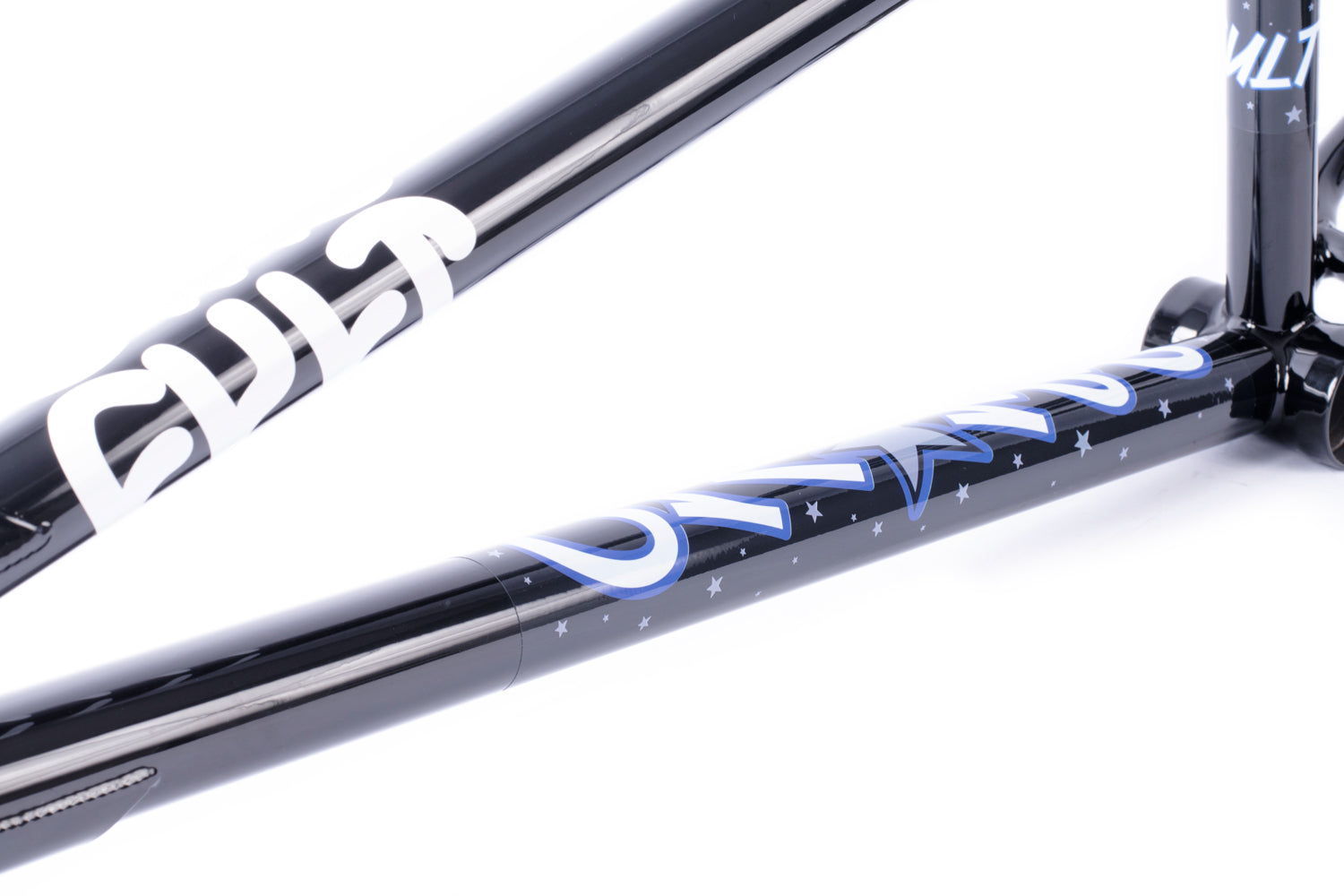

  • Top and Down Tube Gussets — Dual reinforced junctions improve frame stiffness and reduce flex; enhanced power transfer and handling precision throughout frame

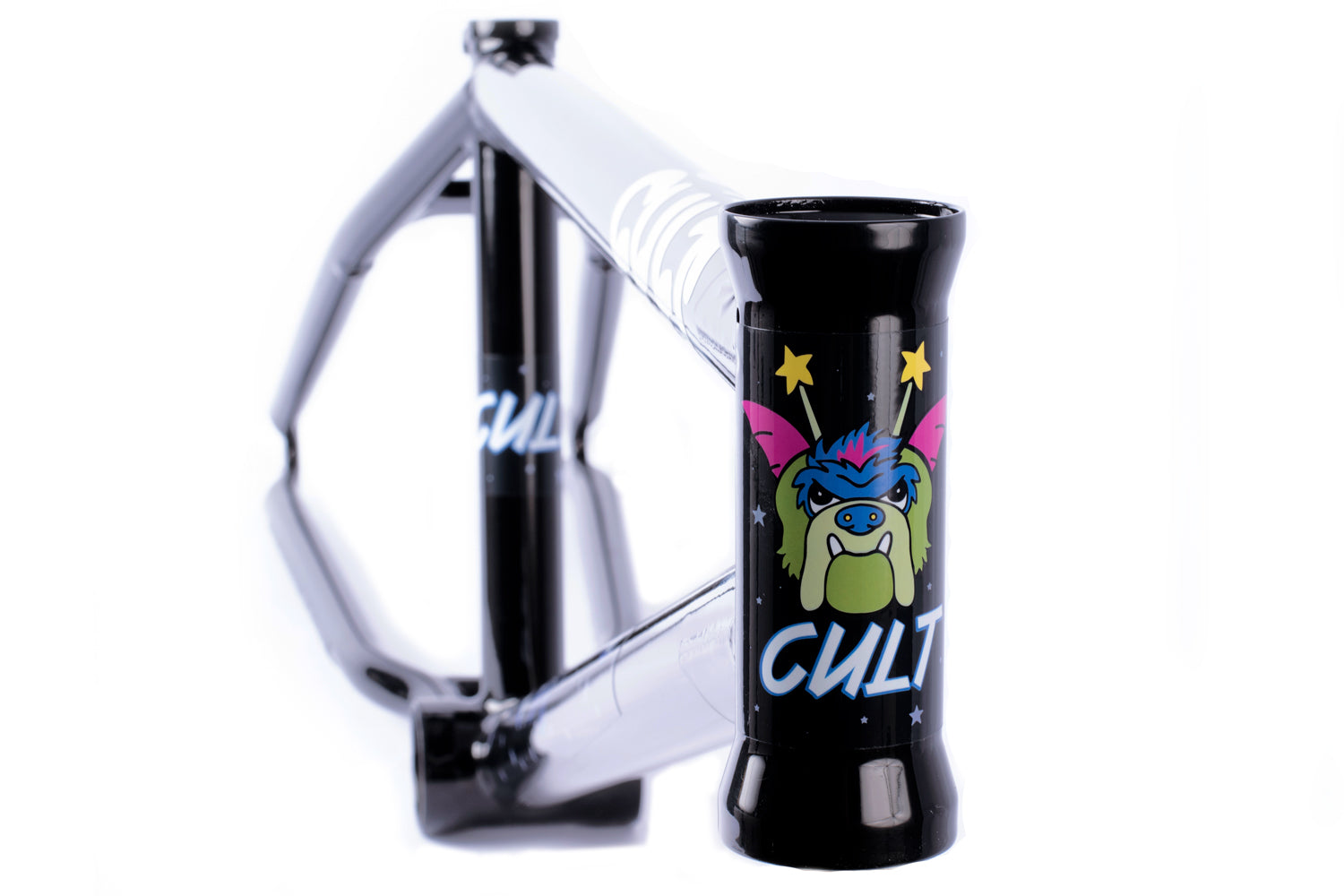

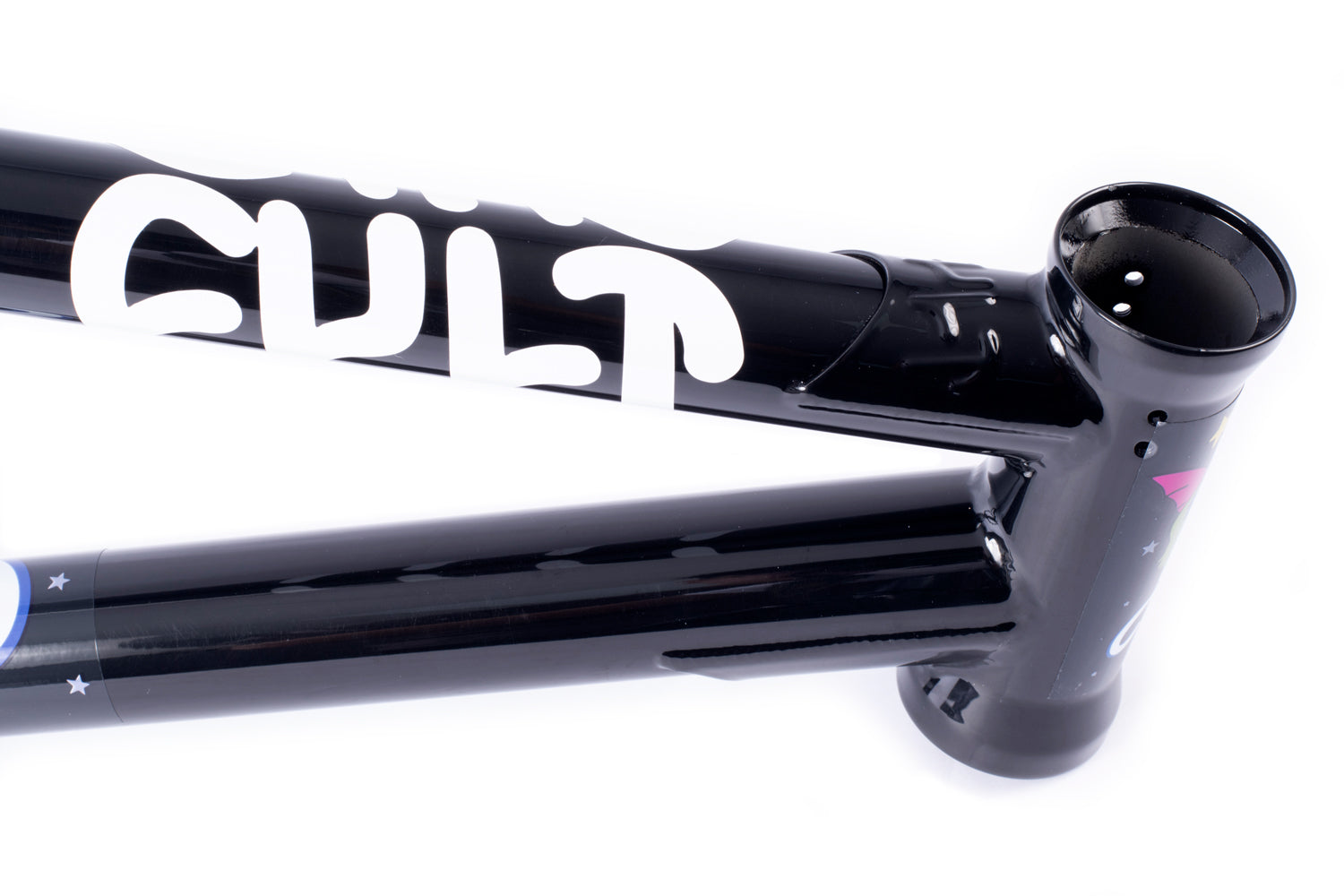

  • 5" Integrated Headtube — Longer integrated headtube provides secure headset interface and improved steering stability; externally machined mid BB shell
  • Investment Cast Seatpost Clamp — Precision-cast integrated seat clamp eliminates separate hardware; superior strength and finish compared to standard clamps

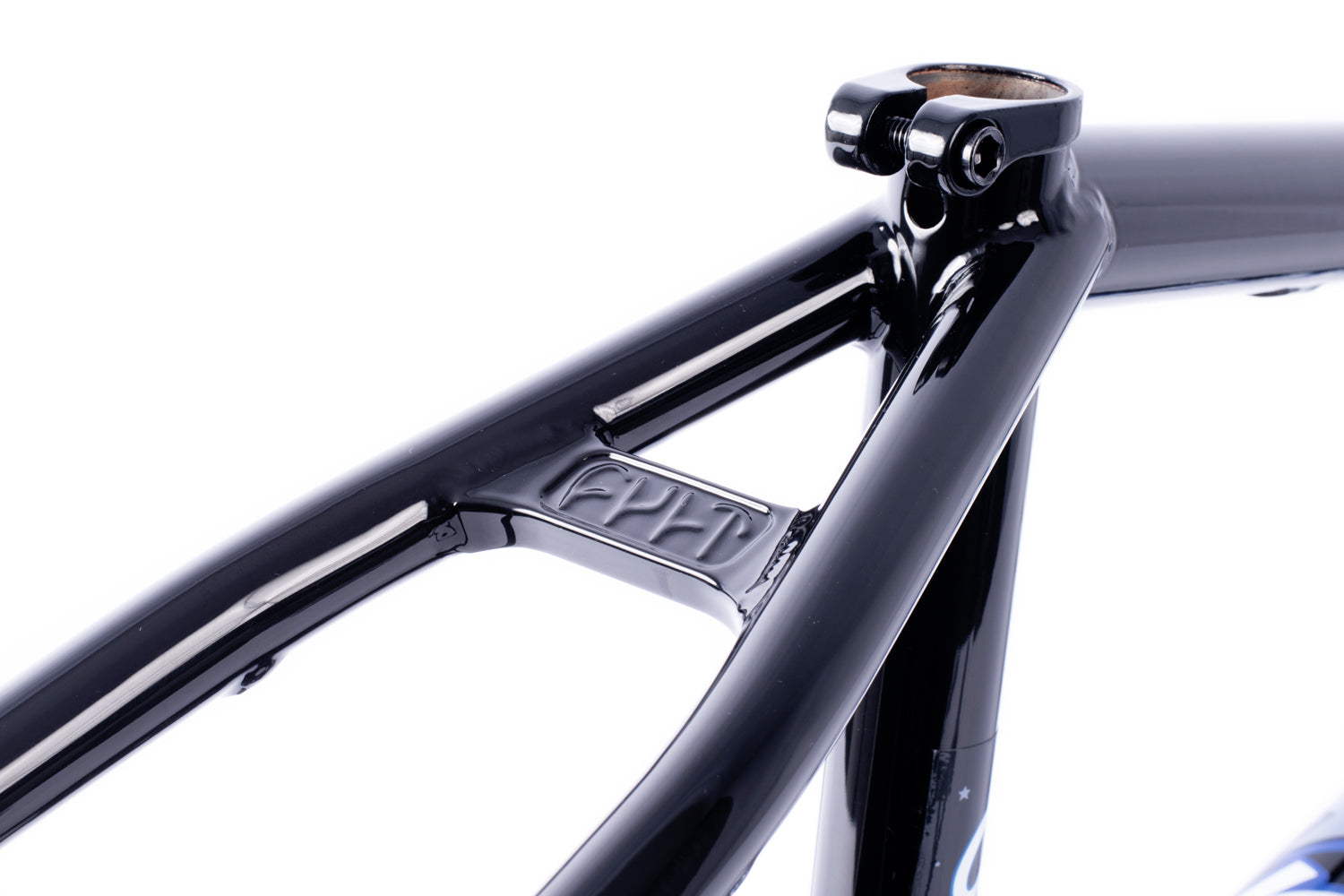

  • Investment Cast Seatstay Bridge — Reinforced rear triangle junction improves frame rigidity and ride compliance

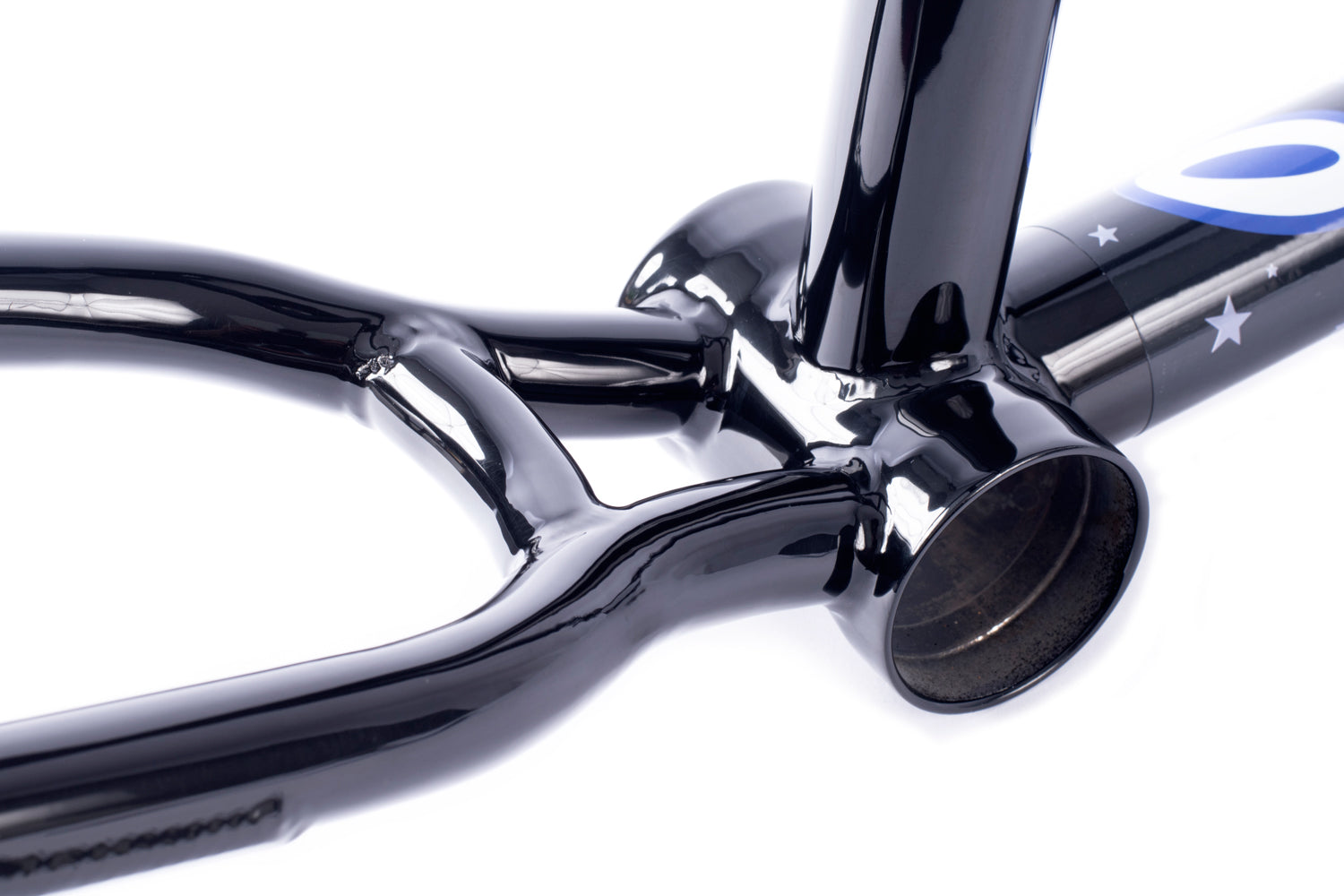

  • Investment Cast Chainstay Yoke — Precision-cast rear dropouts with integral chain tensioner; accommodates 2.40" tire clearance for modern tire options
  • Tapered Seatstays — Classic tapered design reduces weight while maintaining stiffness; improves ride feel

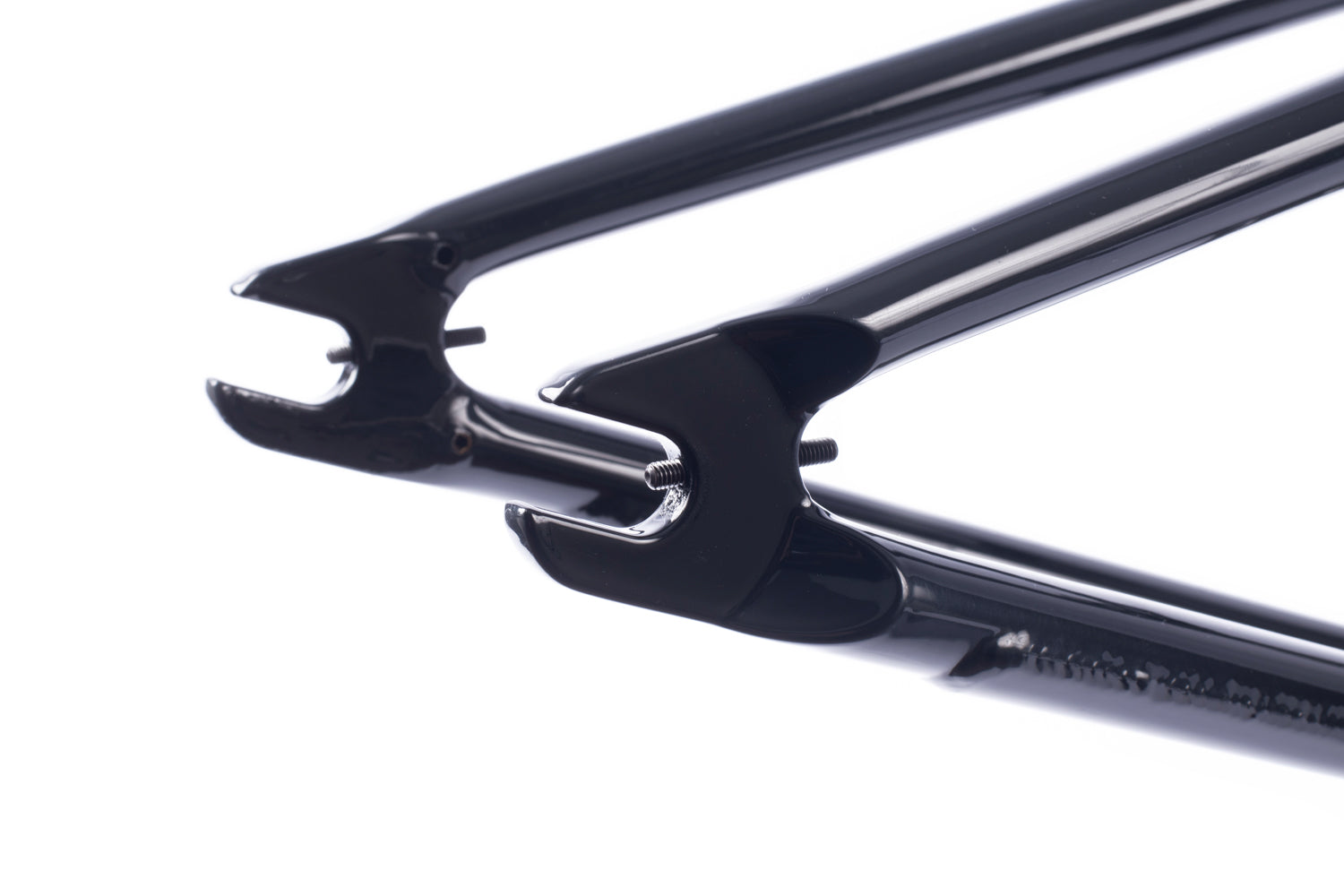

  • Investment Cast Heat-Treated Dropouts — Precision-cast dropouts with superior strength and consistency; integral chain tensioner
  • Short, Quick, Responsive Back End — Compact 13"-13.3" chain stays deliver aggressive acceleration and maneuverability
  • Multiple Size Options — Seven top tube sizes (20" to 21.8") accommodate various rider heights and proportions
  • Race-Focused Geometry — 75° head tube, 71° seat tube angle deliver aggressive handling optimized for competitive racing

Technical Specifications

  • Material — 100% chromoly (Cult classic tubing)
  • Top Tube Options — 20", 20.5", 20.75", 21", 21.25", 21.5", 21.8"
  • Head Tube Angle — 75°
  • Seat Tube Angle — 71°
  • Chain Stays — 13" to 13.3" (short, responsive geometry)

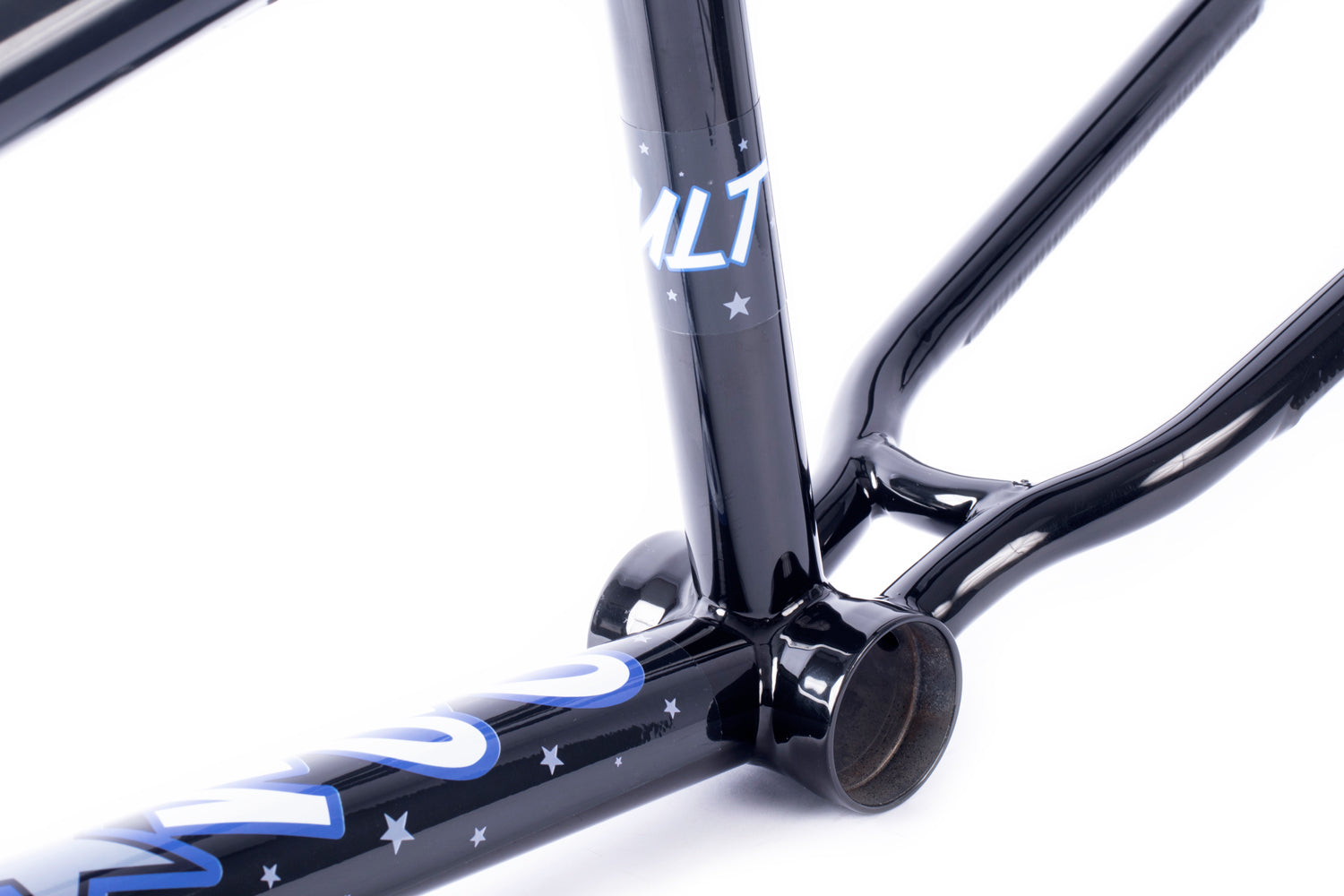

  • Bottom Bracket — 11.8" height (mid BB shell, externally machined)
  • Standover Height — 8.1"
  • Integrated Headtube — 5" length
  • Seat Clamp — Investment cast integrated design
  • Seatstay Bridge — Investment cast reinforced
  • Chainstay Yoke — Investment cast with chain tensioner
  • Brake Compatibility — Standard U-brake mounts; disc brake conversion possible with adapters
  • Tire Clearance — Room for 2.40" tires
  • Dropouts — Investment cast heat-treated with chain tensioner
  • Seat Post Diameter — Standard 27.2mm (typical for Cult frames)
  • Finish — Premium chromoly (color/finish details not specified)

Compatibility and Ideal Use Cases

  • Wheel Size — 20" wheels; standard BMX racing wheel size
  • Tire Compatibility — Supports up to 2.40" tire width; modern tire option flexibility with increased volume
  • Brake Compatibility — Standard U-brake mounts; disc brake conversion possible with frame adapters
  • Headset Compatibility — 5" integrated headtube requires integrated headset (1-1/8" standard or tapered options)
  • Bottom Bracket — Mid BB shell externally machined; accepts standard threaded or press-fit BB components
  • Seatpost Clamp — Integrated investment cast design; verify seat tube diameter (typically 27.2mm)
  • Sizing Guide — Seven size options accommodate riders from youth to adult; verify rider height against top tube length
  • Ideal For — Competitive BMX racing, UCI-sanctioned events, freestyle tricks, and riders seeking pro-level frame geometry
  • Rider Level — Engineered for competitive racers and experienced riders; aggressive geometry suits racing priorities
  • Component Integration — Integrated chain tensioner, seatpost clamp, and investment cast components reduce external hardware; premium construction throughout
  • Customization — Frame-only package allows complete component selection and personalization; compatible with Cult and aftermarket BMX parts
  • Geometry Performance — 75° head tube and 71° seat tube angles deliver responsive steering and efficient pedaling position; short 13"-13.3" chain stays emphasize quick, aggressive handling
  • Not Recommended For — Casual or beginner riders; cruiser-focused builds; riders seeking entry-level alternatives
  • Setup Consideration — Requires separate fork, wheels, drivetrain, brakes, and components for complete bike assembly
  • Value — Pro-level race frame with premium tubing, investment cast components, and signature design; justifies investment for serious racers seeking competitive equipment
