ELEVN 22.2MM OVERBITE STEM 1"

Product Overview

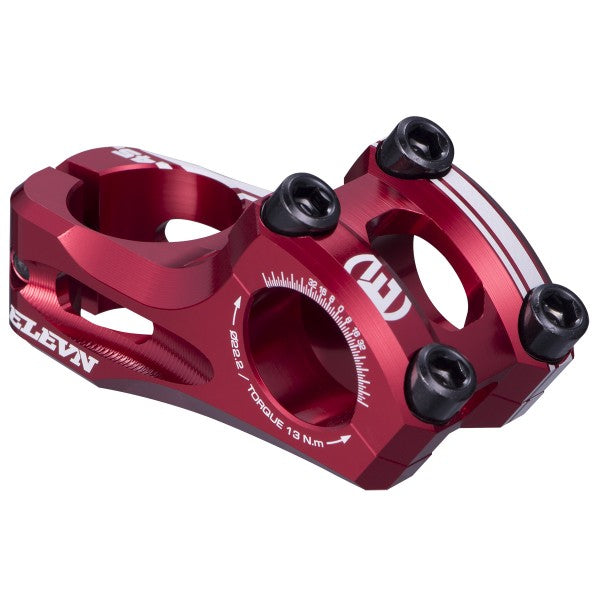

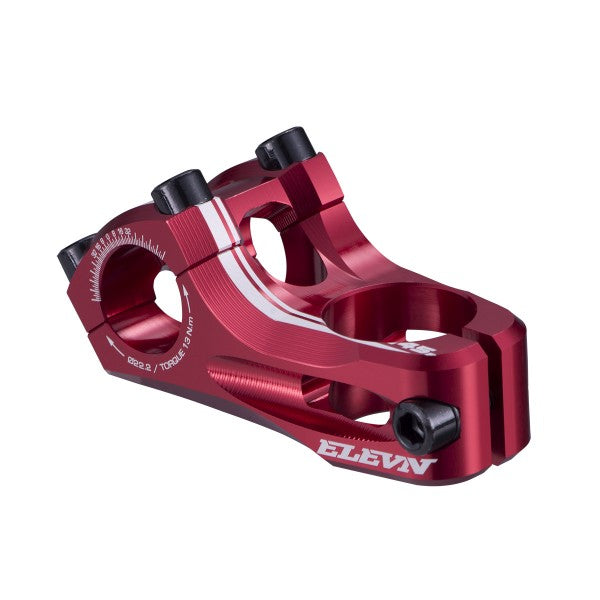

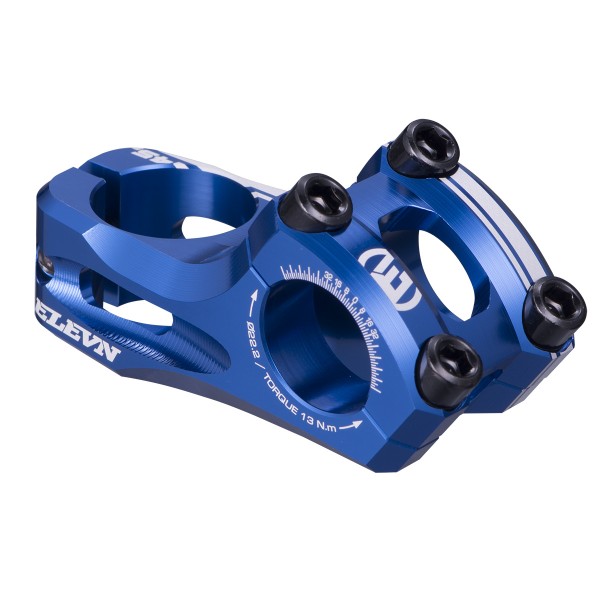

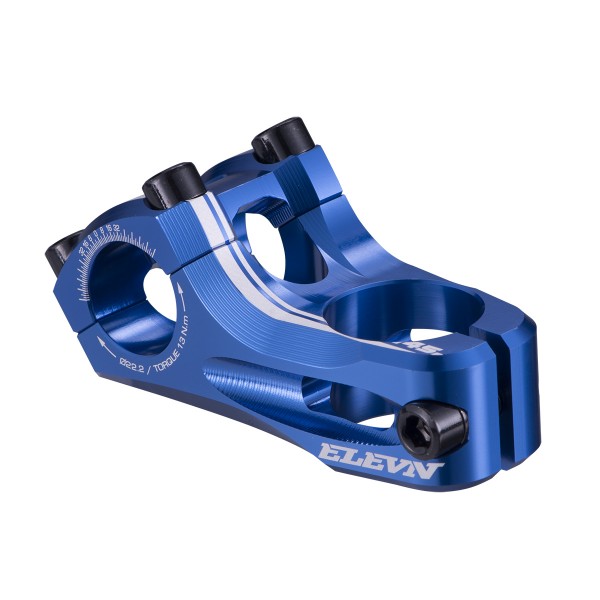

The Elevn 22.2mm Overbite Stem is a CNC-machined 6061-T6 aluminum stem designed for 1" steerer tubes and standard 22.2mm handlebars. Featuring a single-bolt steerer clamp, handlebar adjustment gauges, and top-load design, it provides a lightweight, compact option for smaller frames. Available in 35mm, 40mm, and 45mm reach options with weights ranging from 110g to 130g.

Key Features

• CNC-machined 6061-T6 aluminum – Precision machining creates smooth rounded edges with beveled sides for a clean appearance and optimized material distribution
• Single-bolt steerer clamp – One-bolt steerer tube clamping system reduces weight compared to multi-bolt designs while maintaining secure attachment on 1" steerer tubes
• Handlebar adjustment gauges – Built-in alignment marks help position handlebars accurately and consistently
• Minimal weight-saving top cap mounting system – Integrated top cap design reduces hardware and overall weight
• 10.9 grade M6 bolts – High-strength 5mm Allen bolts provide secure clamping force; M6 x 1.0 x 20mm specification
• Laser-etched graphics – Permanent graphics resist wear and fading compared to printed or anodized logos
• Maximum clamping power in minimal size – Compact design maintains strong clamping force on handlebars while reducing overall stem dimensions and weight

Technical Specifications

• Material: 6061-T6 aluminum alloy, CNC-machined
• Clamping Type: Top load
• Steerer Tube Diameter: 1"
• Steerer Clamp: Single bolt
• Handlebar Clamp Diameter: 22.2mm
• Rise: 22.6mm
• Stack Height: 24mm
• Reach Options: 35mm, 40mm, 45mm
• Bolts: M6 x 1.0 x 20mm, 10.9 grade
• Weight: 110g (35mm), 120g (40mm), 130g (45mm)
• Color Options: 4 colors available

Compatibility and Ideal Use Cases

This stem is compatible with 1" threadless steerer tubes and standard 22.2mm BMX handlebars. Not compatible with 1-1/8", 1.5", or tapered steerer tubes, or oversized handlebars (25.4mm, 31.8mm). Works with headsets designed for 1" steerer tubes, typically found on Mini and Junior-size frames. Ideal for younger or smaller riders using 1" steerer tube frames who want a lightweight, high-quality stem with accurate handlebar alignment features. The single-bolt steerer clamp reduces weight while the compact design suits smaller frame setups. Choose reach based on rider size and handlebar positioning preference—35mm for the shortest reach, 45mm for more extended positioning.
