Eastern Bikes

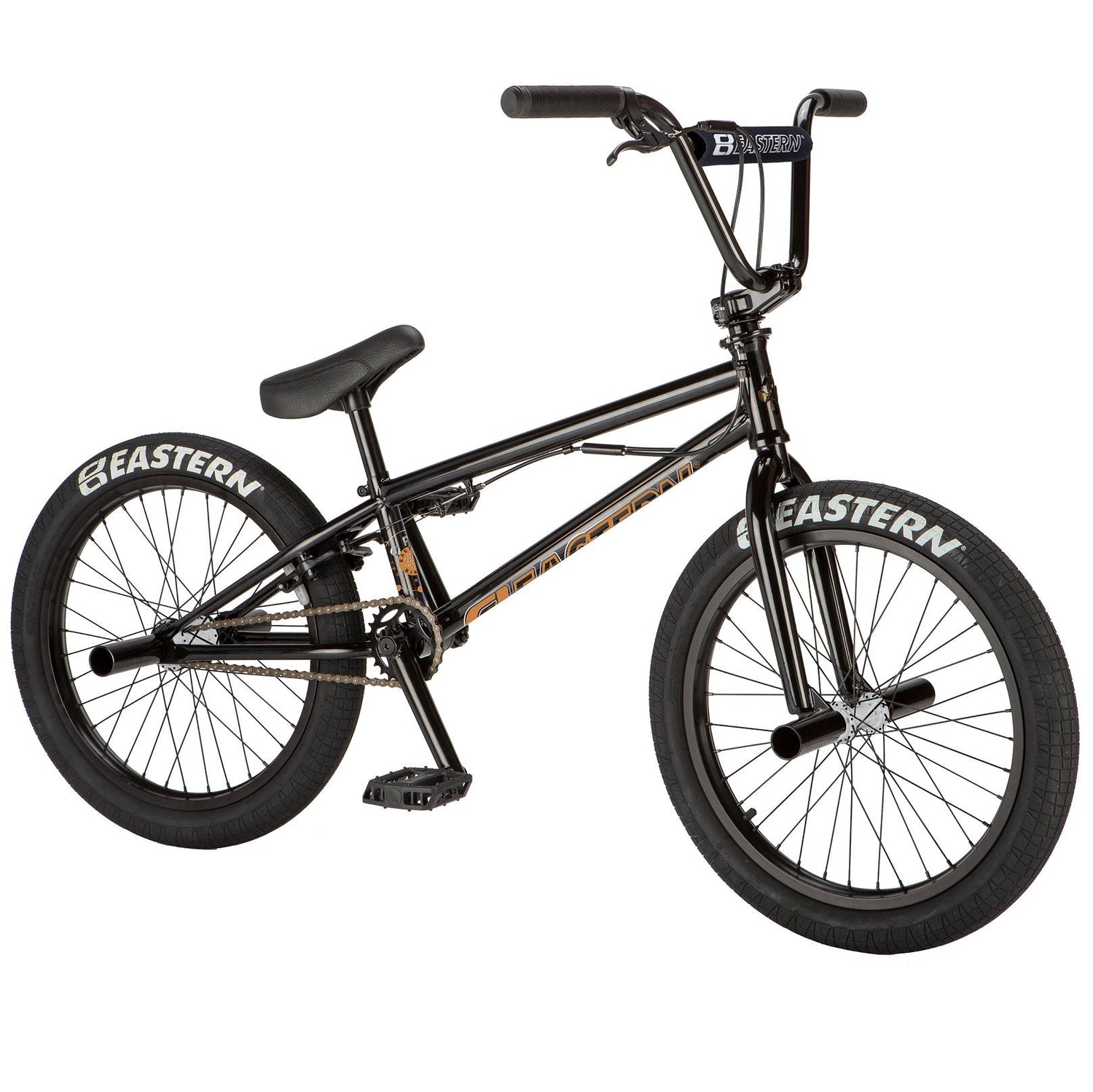

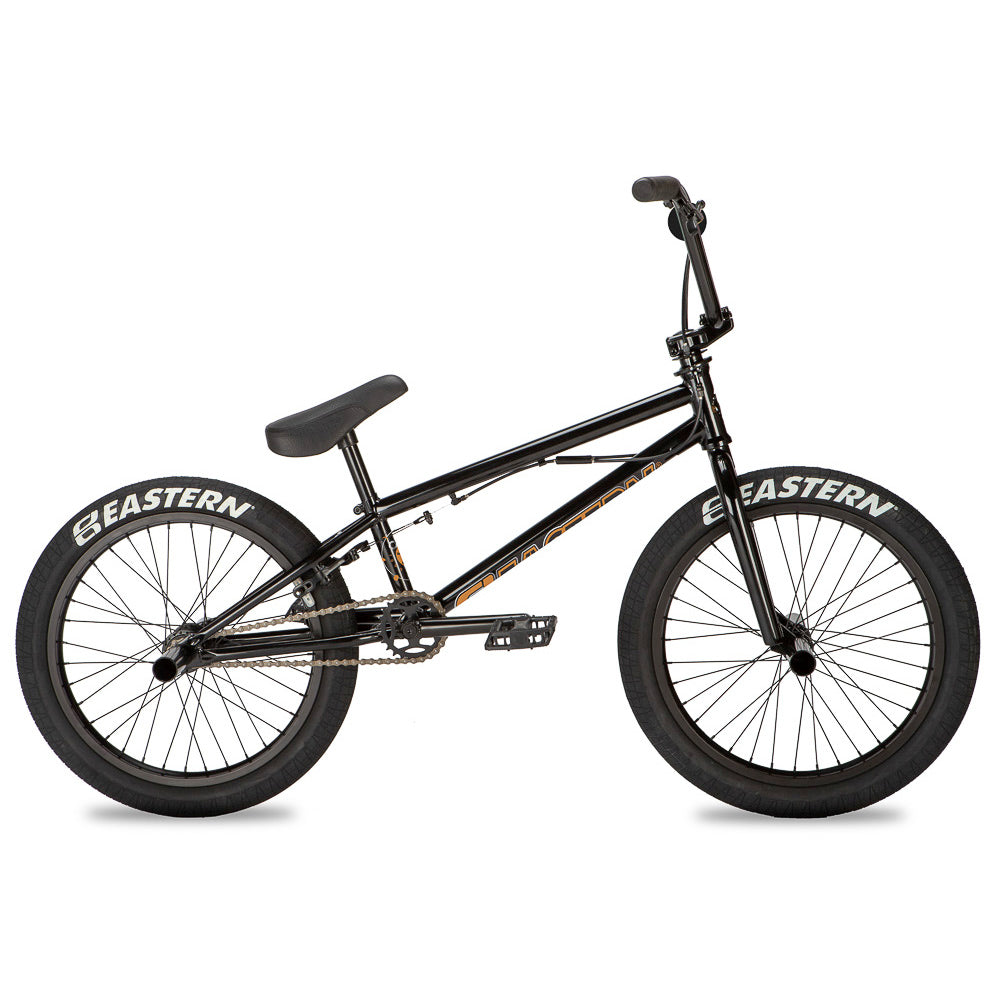

Orbit - Black

$438.70
Shipping calculated at checkout.
Color
{}

Description

The Orbit is just as solid as last years. This beginner's BMX bike is built with gyro and a chromoly down tube, sealed front and rear hubs for a long-lasting smooth ride. Rotor, sealed bearing integrated headset, a 3-piece chromoly cranks, 4 pegs, Eastern grips, pedals, sprocket and tires.

chromo-dt-logo-1 logo-int-headset-1 logo-double-rim-1 mid-bb-logo-1 3pc-cranks-logo-1 Eastern Riblet Grips

26.0 Lbs

  • Chromoly Down Tube
  • Chromoly Steerer Tube
  • Rotor included
  • Sealed Front and Rear Hubs
  • 3 Piece Tubular Chromoly Cranks
  • Mid BB
  • Integrated Headset
  • Eastern Riblet Grips
  • Eastern Atom Pedals
  • Eastern Sprocket
  • Double Wall Rims
  • 2.3" Tires

*NOTICE: Once a bike ships the order can not be refunded

FRAME

Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset

Top Tube Size: 20.25″

BB: Mid

Headtube: Integrated

Chainstay Length: 13.38″

Clamp: Integrated with Frame

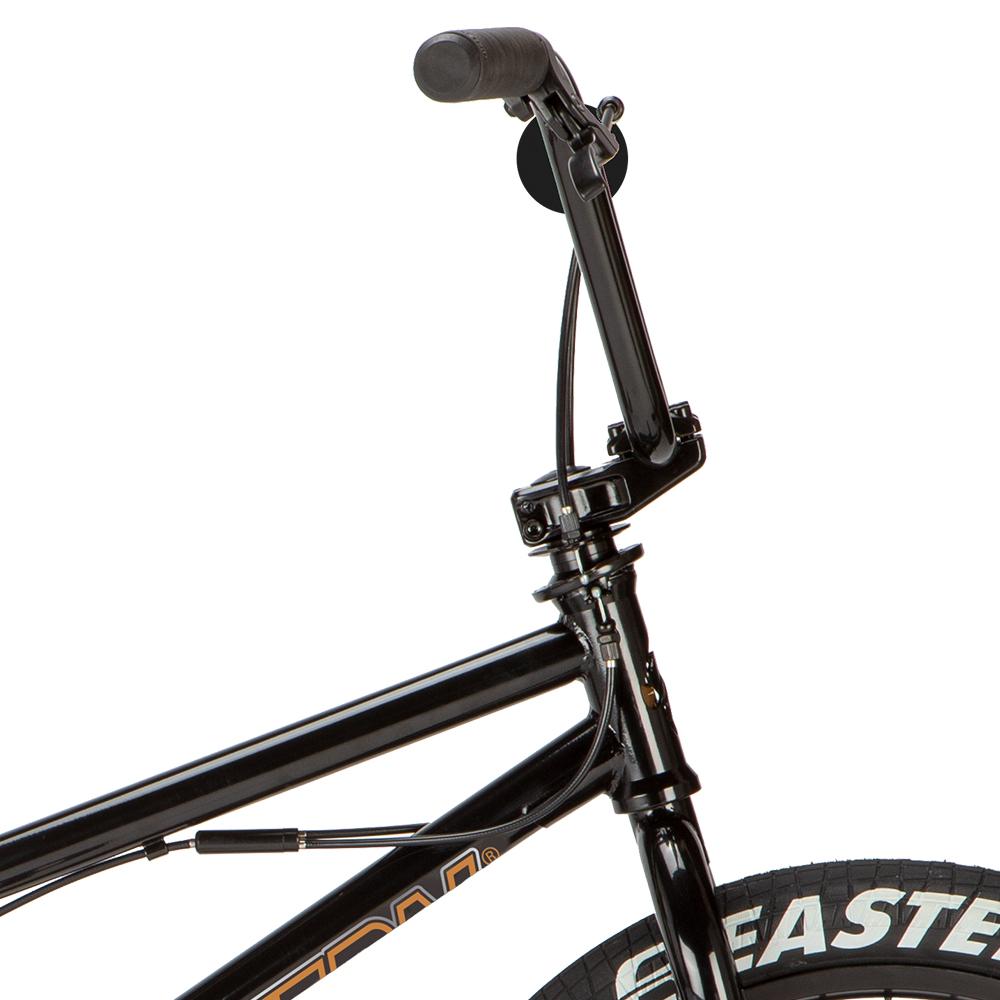

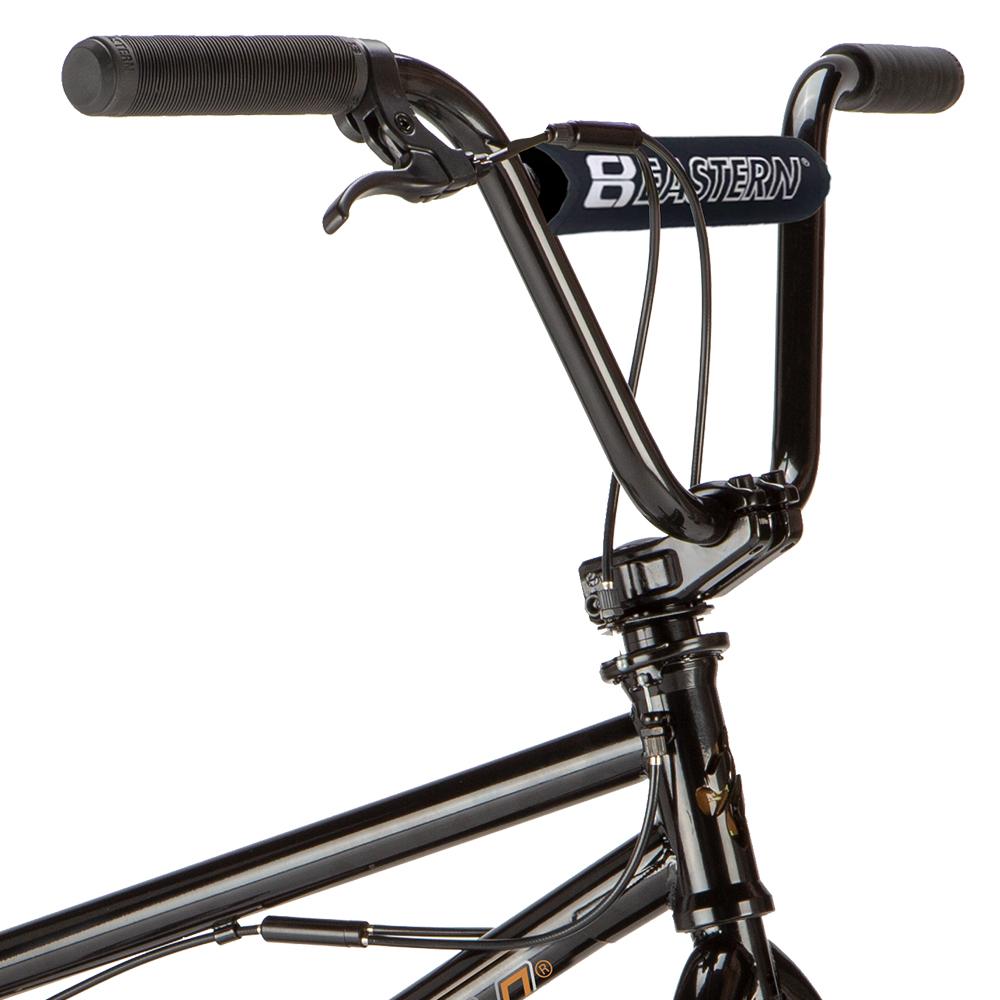

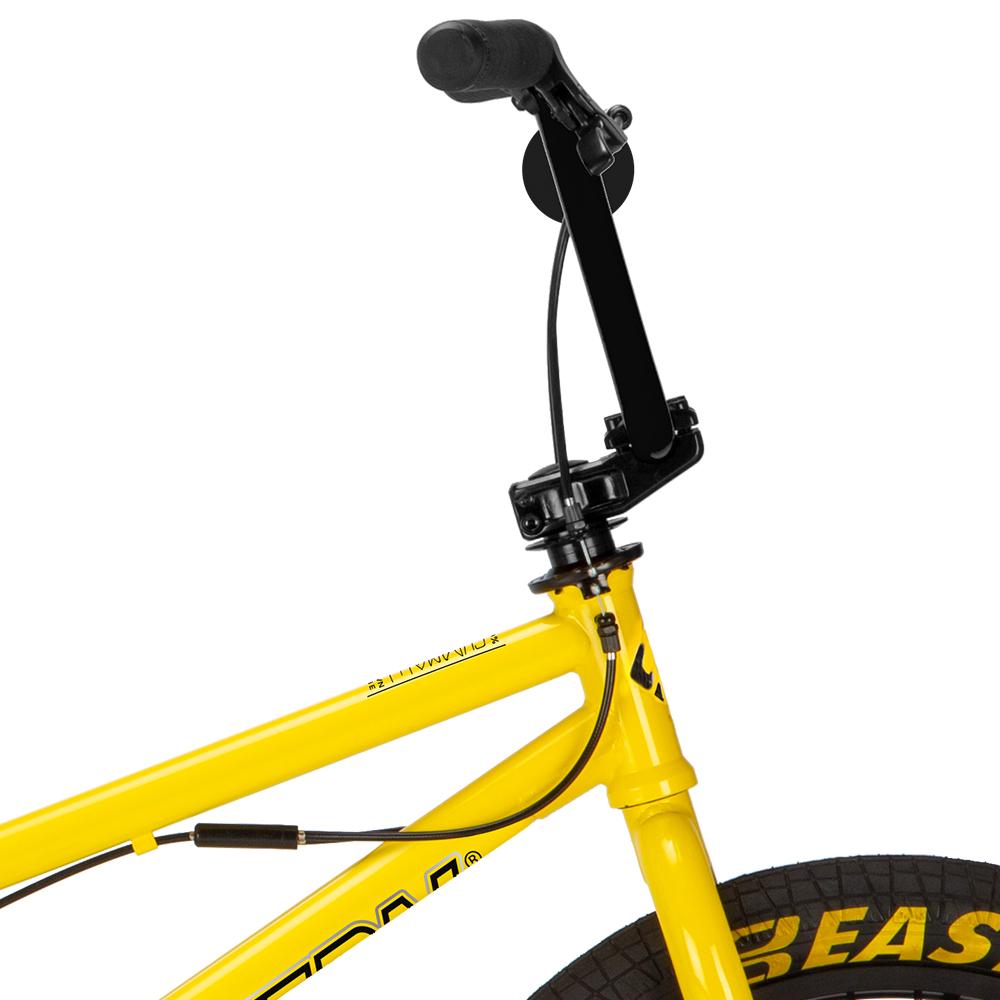

BARS

Hi-Ten 8.5"

Upsweep/Backsweep 12⁰/1⁰


FORK

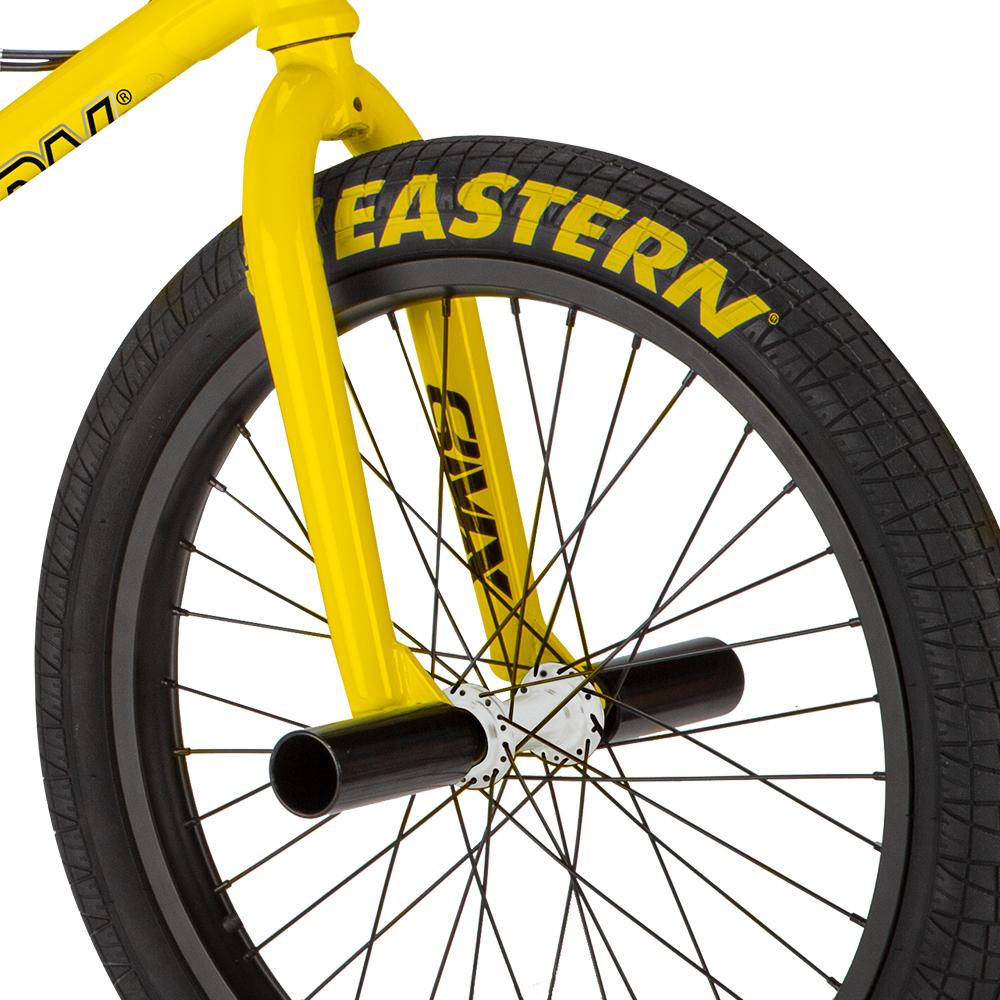

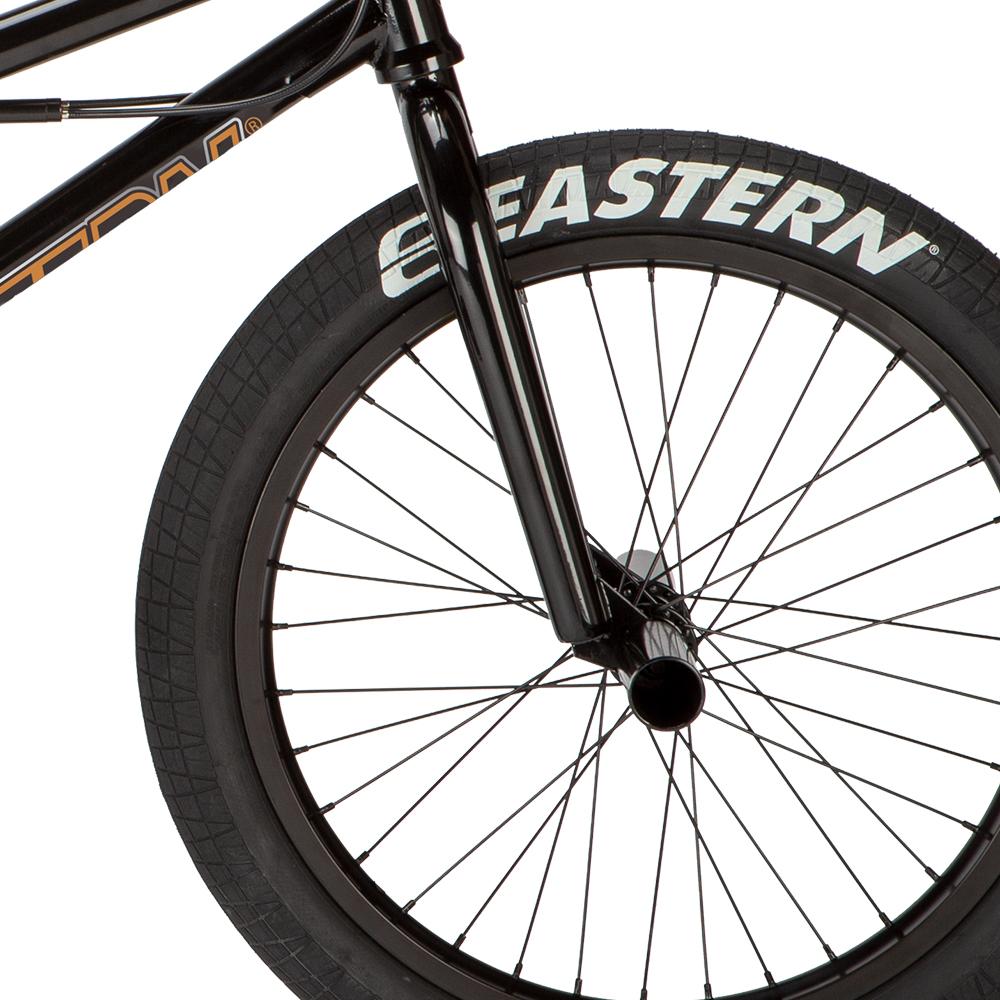

Orbit 20”, Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm

Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

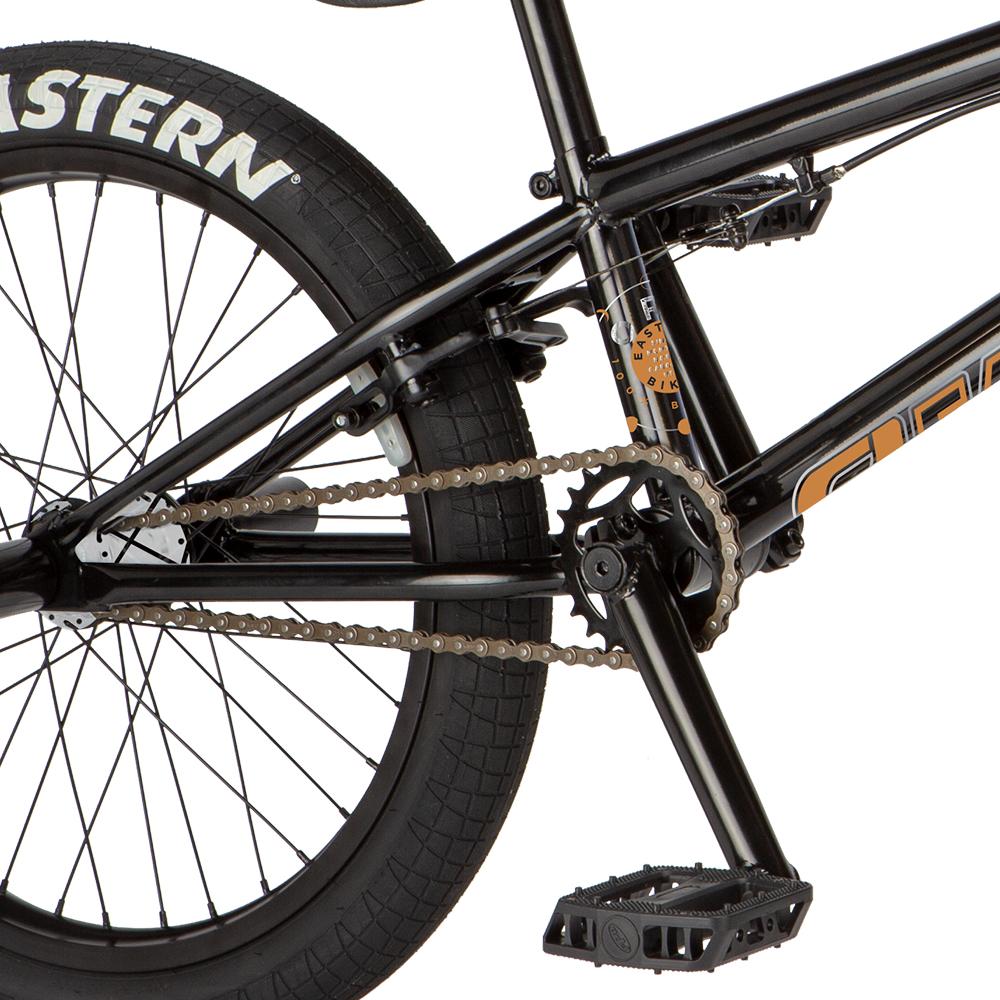

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

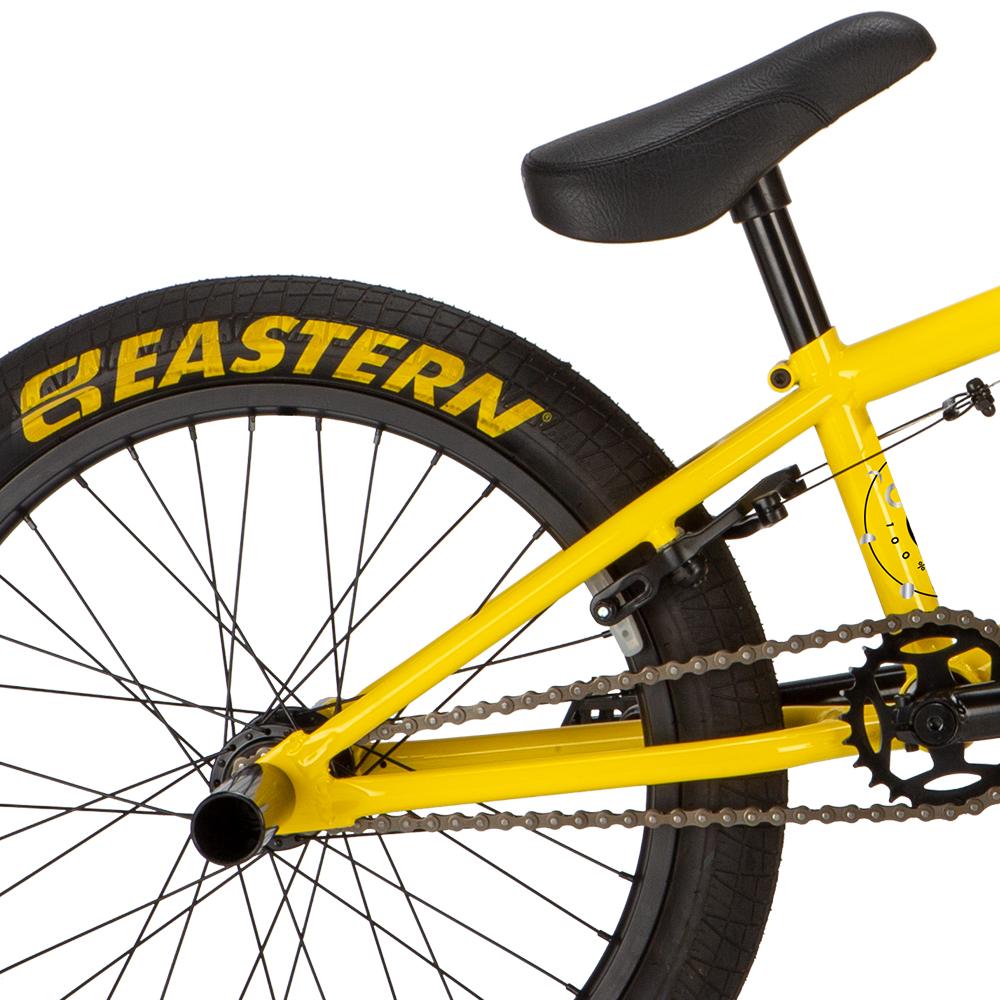

SADDLE Medium Width Seat/ Post Combo

POST Comes with seat

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes

REAR RIM Alloy, Double Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE 20 x 2.3 *Specs subject to change

REAR TIRE 20 x 2.3 *Specs subject to change

PEG 2 Pair

ROTOR Yes

*Specs & pricing subject to change

*Bikes are designed for riders 13 years old and up.

*This pricing valid in USA only.

*NOTICE: Once a bike ships the order can not be refunded

*NOTICE: Once a complete bike ships the order can not be refunded or returned. ALL Sales of Complete Bikes are FINAL.*
