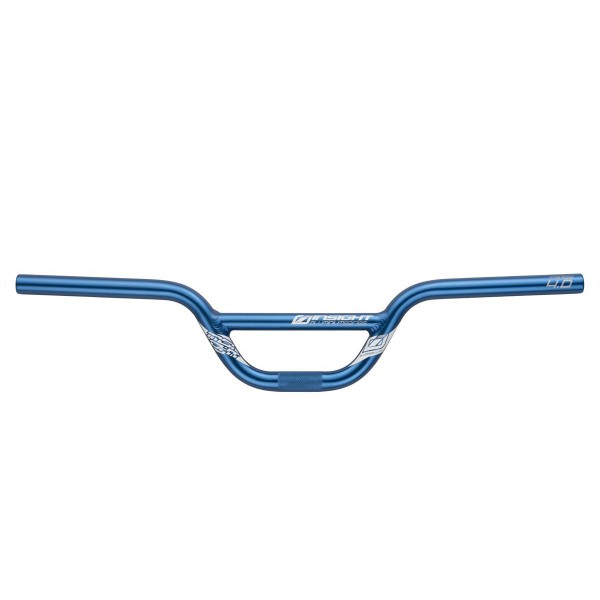

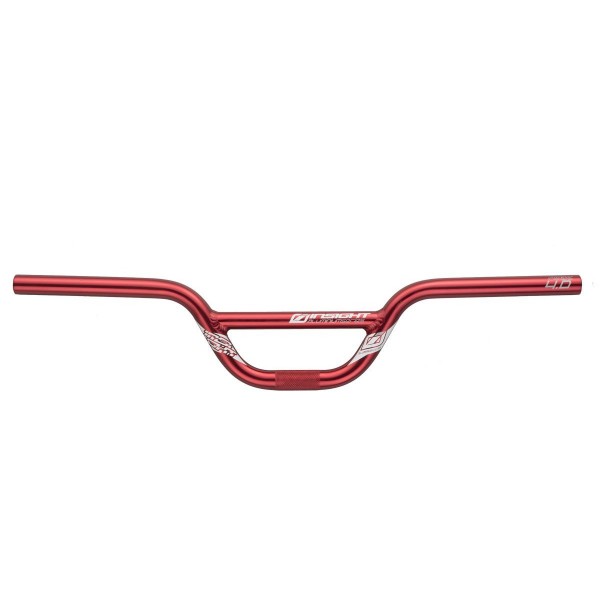

Insight 4" Alloy Handlebar

Product Overview

The Insight 4" Alloy Handlebar is a full-size handlebar designed for BMX racing. Machined from anodized 6061 aluminum with 4-inch rise, it provides upright positioning suitable for Expert, Junior, and Pro class riders. Features 8-degree back sweep and 2-degree up sweep for natural wrist and hand positioning.

Key Features

• 6061 aluminum construction – Lightweight aluminum alloy provides sufficient strength for race applications while maintaining manageable handlebar weight

• Anodized finish – Surface treatment increases corrosion resistance and provides durable color finish that resists wear from grips and brake levers

• 8-degree back sweep – Rearward bar angle positions grips closer to rider's body for more comfortable wrist alignment and reduced reach

• 2-degree up sweep – Slight upward angle at grip area reduces wrist extension for neutral hand position during standing pedaling

• 4-inch rise – Taller handlebar height suits older or taller riders who need more upright positioning for comfort and control

Technical Specifications

• Weight: 327 g
• Material: 6061 aluminum, anodized
• Clamp diameter: 22.2mm (standard)
• Handlebar height (rise): 4.0" (101.6mm)
• Handlebar width: 24" (610mm)
• Back sweep: 8 degrees
• Up sweep: 2 degrees

Compatibility and Ideal Use Cases

Designed for BMX race bikes with standard 22.2mm stem clamps. Best suited for Expert, Junior, and Pro class racing where higher handlebar rise matches taller riders' proportions and provides more upright positioning. The 24-inch width provides adequate control leverage and stability for full-size riders. 8-degree back sweep and 2-degree up sweep create comfortable hand positioning for standing pedaling common in BMX racing. Can be trimmed to narrower width if needed. Not compatible with 31.8mm oversize stem clamps—verify stem clamp diameter is 22.2mm before ordering.
