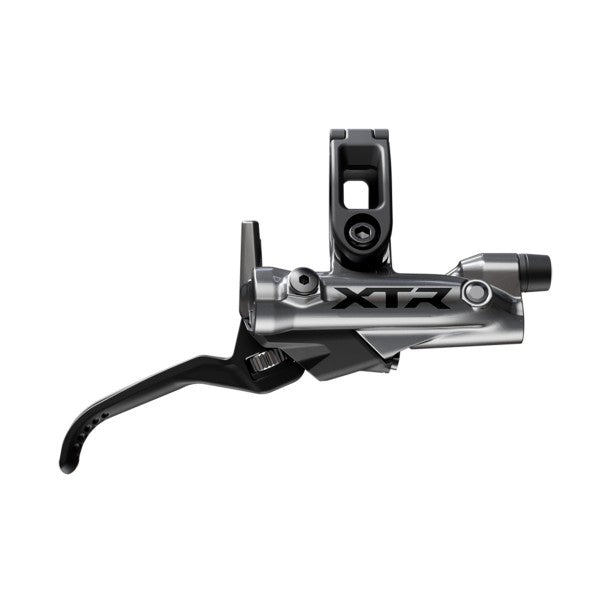

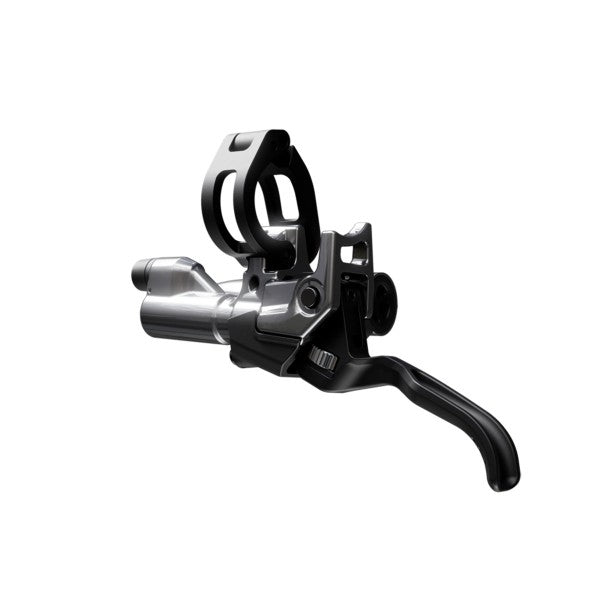

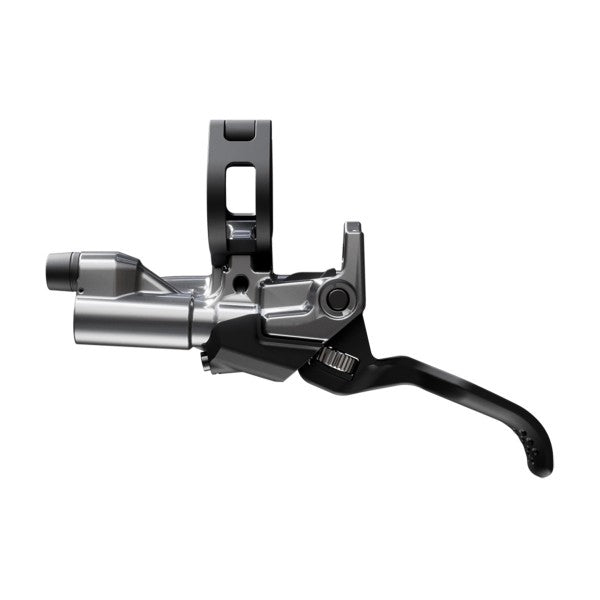

Shimano XTR Brake Lever BL-M9220 Right Hydraulic Disc

Overview

The Shimano XTR BL-M9220 is a premium hydraulic disc brake lever designed for the right hand with evolved ergonomics and ultimate precision control. Featuring a refined forged alloy blade, optimized pivot point, and 5-degree upswept design, this lever delivers consistent braking modulation and comfortable hand positioning across enduro and trail riding.

Key Features

• Evolved Ergonomic Design — New lever shapes with closer pivot point follow the natural arc of the finger; delivers powerful, intuitive pulling motion with superior modulation and reduced hand fatigue
• 5-Degree Upswept Lever Blade — Angled design positions hand naturally for attacking technical trail sections; improves control and reduces wrist strain during extended riding
• Adjustable Reach — Dialed reach adjustment positions the lever within natural reach distance; allows riders to maintain efficient hand position across varied terrain
• Forged Alloy Lever Blade — Premium forged aluminum construction combines exceptional strength with refined feel; represents pinnacle of Shimano lever engineering
• Redesigned SERVO WAVE — Optimized power curve manages pad-to-rotor friction without additional friction losses; delivers better balanced braking and improved modulation control
• Advanced Low-Viscosity Mineral Oil — New formulation maintains consistent power and bite point across all temperatures and terrain types; improves performance in extreme conditions
• I-Spec EV Compatible — 22.2mm clamp diameter ensures compatibility with I-Spec EV shifter mounts; enables integrated bar setup with minimal clutter
• Updated Cable Routing — Redesigned hose routing creates clean aesthetic and reduces snagging on terrain or obstacles
• Right-Hand Configuration — Designed specifically for right-hand operation; pairs with left-hand lever for complete hydraulic disc brake system
• Premium XTR Series — Top-tier component engineered for competitive and serious trail riders demanding peak performance

Technical Specifications

• Brake type: Hydraulic disc
• Position: Right hand
• Brake fluid: Low-viscosity SM-LVOIL mineral oil (required)
• Lever clamp: I-Spec EV compatible (22.2mm diameter)
• Lever blade material: Forged alloy
• Lever blade angle: 5-degree upswept
• Pivot design: Optimized closer position
• Reach adjustment: Dialed adjustable
• Color: Black
• Series: Shimano XTR (premium top-tier)

Compatibility & Ideal Use Cases

Compatible exclusively with hydraulic disc brake calipers paired with low-viscosity SM-LVOIL mineral oil; incompatible with mechanical brakes or DOT fluid systems. I-Spec EV clamp allows integration with matching Shimano shifters and bar-mounted accessories. Designed primarily for mountain biking, not BMX use. Ideal for enduro and trail riders demanding refined ergonomic control, ultimate modulation, and premium performance. The 5-degree upswept design and optimized pivot make this lever well-suited for riders attacking technical terrain and prioritizing hand comfort during extended efforts. Pair with BR-M9220 (Enduro) or BR-M9200 (XC) calipers for customized braking performance across varied terrain. The premium forging and SERVO WAVE technology represent top-tier engineering for serious mountain bikers. Not suitable for BMX, road, or cross-country applications where premium enduro performance is unnecessary.
