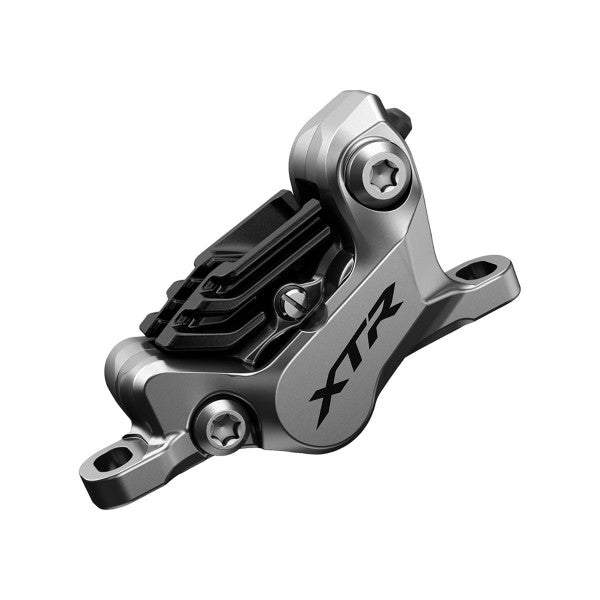

Shimano BR-M9120 XTR Hydraulic Disc Brake

Product Overview

The Shimano BR-M9120 XTR is a premium 4-piston hydraulic disc brake caliper engineered for maximum stopping power and precision control. This caliper features a mono-body design machined from a single cold-forged aluminum block, four ceramic pistons, and banjo hose connections for superior rigidity and response. At 385g with radiator fin, it delivers 10% increased braking power compared to M9020 while maintaining refined modulation across all terrain and conditions.

Key Features

• Mono-body cold-forged design – Single-piece aluminum construction maximizes structural rigidity and eliminates assembly joints; improves power transfer and eliminates flex under heavy braking
• Four ceramic pistons (4-piston) – Advanced material resists heat buildup and maintains consistent pressure; delivers predictable feel and maximum stopping force without fade across extended braking
• 30% reduced time lag and input force – Optimized piston geometry and hose routing reduce brake engagement delay compared to M9000; requires minimal finger pressure for maximum stopping power
• 10% increased braking power vs. M9020 – Enhanced piston configuration and caliper design deliver superior stopping force for gravity-focused riding and extreme conditions
• Low-profile 4-piston design – Compact piston arrangement maximizes clearance while distributing braking force evenly across the rotor; improves modulation and reduces pad wear variation
• Banjo hose connection – Fast-connect fitting reduces connection points and improves hydraulic efficiency; simplifies installation and field hose repositioning
• Inside hose routing compatibility – Frame-integrated hose channels reduce drag, improve aesthetics, and protect hose from external damage
• ICE Technology insulation – Insulated pad and piston design resists water intrusion and maintains consistent performance in wet, muddy, and extreme weather conditions
• Highly linear response – Braking power scales smoothly with lever input; no on/off characteristics across the full modulation range
• Radiator fin construction – Integrated cooling fins enhance heat dissipation during sustained braking on long descents

Technical Specifications

• Brake type: Hydraulic disc, 4-piston
• Mount type: Post-mount
• Series: XTR M9120
• Weight: 385g (caliper with radiator fin)
• Caliper design: Mono-body, cold-forged aluminum
• Piston count: 4 ceramic
• Piston material: Ceramic with ICE Technology insulation
• Hose connection: Banjo (fast-connect)
• Hydraulic fluid: Shimano Mineral Oil
• Pad specification: N04C Metal
• Caliper material: Aluminum alloy (mono-body construction)
• Cooling design: Radiator fin integrated
• Mounting bolt tool size: 5mm hex (estimated)
• Finish: Black anodized
• Performance improvement vs. M9000: 30% reduction in time lag, stroke, and input force
• Performance improvement vs. M9020: 10% increase in braking power

Compatibility and Ideal Use Cases

• Compatible levers: BL-M9120 (Shimano recommended); works with XTR mineral oil hydraulic levers
• Compatible rotors: 160mm–203mm standard rotors; larger rotors recommended to fully utilize 4-piston power; Shimano XTR rotors (SM-RT99, SM-RT86) optimized for performance
• Frame requirement: Post-mount brake mounts (modern mountain bike standard)
• Hose requirement: Shimano brake hose (sold separately); banjo connection type for inside frame routing
• Fluid type: Shimano Mineral Oil only; do not mix with DOT fluid systems
• Pad type: N04C Metal; compatible with other XTR metal pad options
• Best for: Downhill racers, enduro competitors, gravity riders, and performance athletes requiring maximum stopping power and precision control
• Ideal conditions: Steep descents, sustained braking, technical terrain, racing applications, and extreme conditions demanding split-second braking adjustments
• Rotor size recommendation: 180mm–203mm rotors strongly recommended to match 4-piston power output and prevent rotor overheating on extended descents
• Installation: Requires advanced mechanical skill and proper bleeding with Shimano mineral oil; banjo hose fitting requires precision frame routing planning
• Note: 4-piston design delivers maximum power—pair with larger rotors (180mm minimum, 203mm recommended) to prevent heat-induced fade; metal pads offer superior modulation but produce more noise—normal for N04C material; radiator fin critical for heat dissipation on gravity terrain; 10% power increase over M9020 most noticeable on steep terrain and extended descents; ceramic pistons and ICE Technology maintain consistent feel across temperature extremes; monitor pad wear regularly and replace only with compatible N04C metal pads
