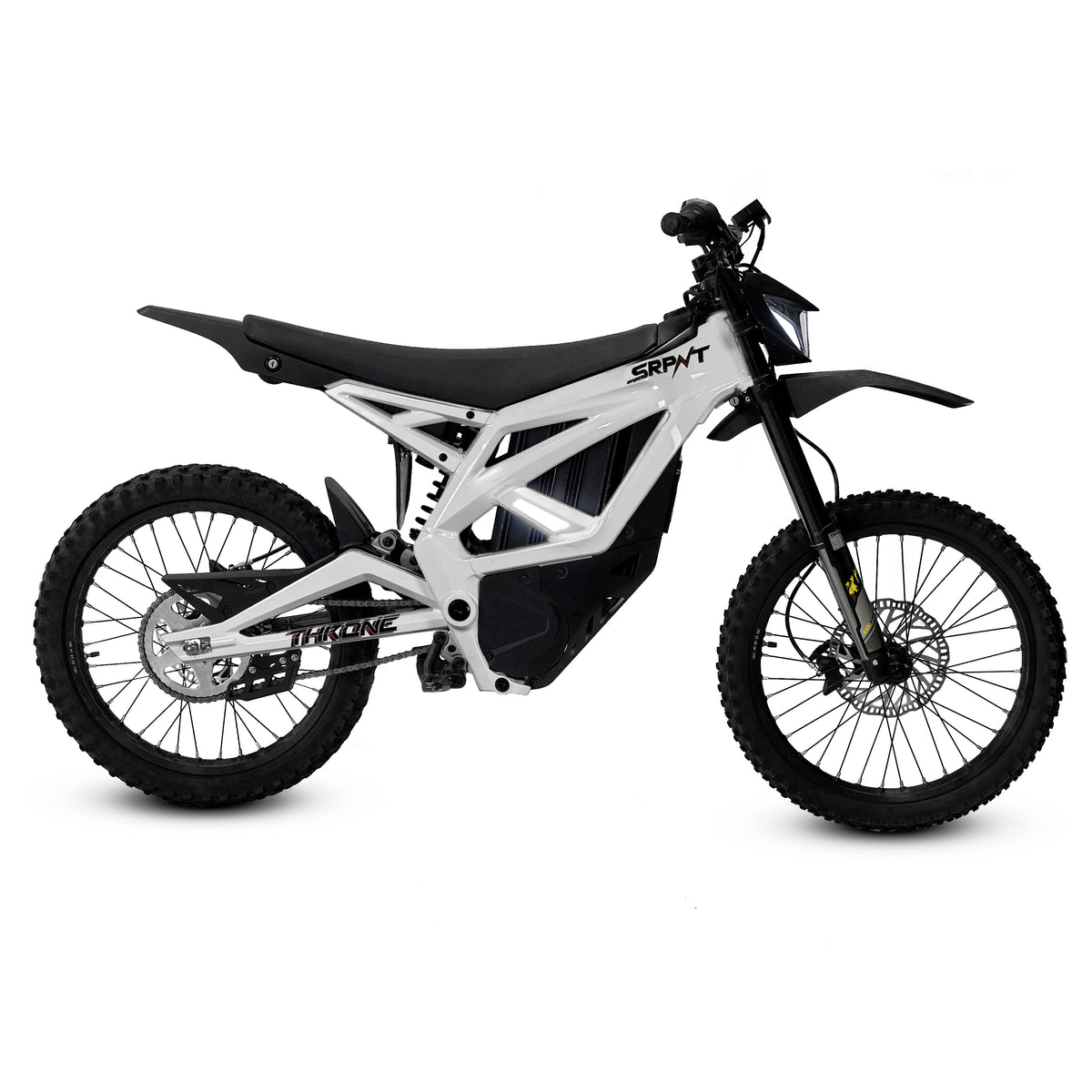

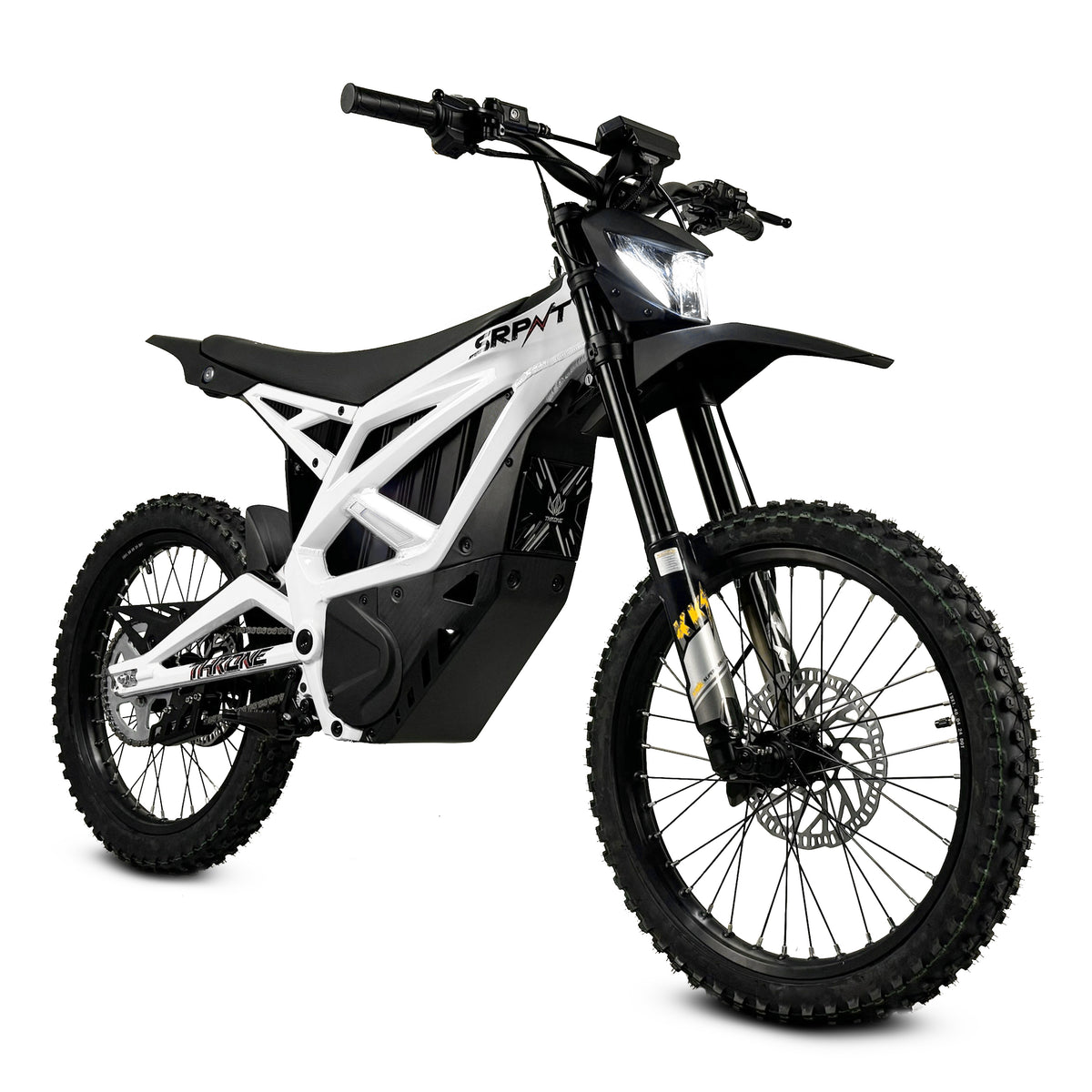

Srpnt X3 E-Moto — White Savage

Overview

The Srpnt X3 is a high-performance electric motorcycle powered by Throne Cycles, delivering 72V and 13,000W of peak power for serious off-road riding. The custom 6061 aluminum alloy frame, forged under 3000 lbs of pressure, combines lightweight construction with durability. Advanced PMSM motor and FOC controller technology, dual kill switches, and integrated lighting provide performance and safety for advanced riders. Not street-legal; designed for off-road use only.

Critical Safety Notice

This e-moto is not street-legal and is designed exclusively for off-road use on private property or designated off-road trails. Verify local regulations before operating. Two integrated kill switches and integrated lights enhance safety during off-road riding.

Key Features

• 72V 13,000W PMSM motor — Permanent magnet synchronous motor delivers 115Nm peak torque for aggressive acceleration and sustained climbing power on technical terrain
• Mid-mount motor positioning — Centralized weight distribution improves handling balance and traction control
• 72V 40Ah lithium battery (176 LG cells) — High-capacity energy storage with 500-cycle life; integrated LCD display shows battery charge level and remaining range
• FOC controller (98.5% efficiency) — Field-oriented control system optimizes motor performance across power modes (Eco, High, Sport)
• Three power modes — Eco extends range; High and Sport unlock full acceleration and climbing capability
• Primary belt and 420 drive chain transmission — German Continental CXA belt with 13:51 gear ratio balances torque and top speed

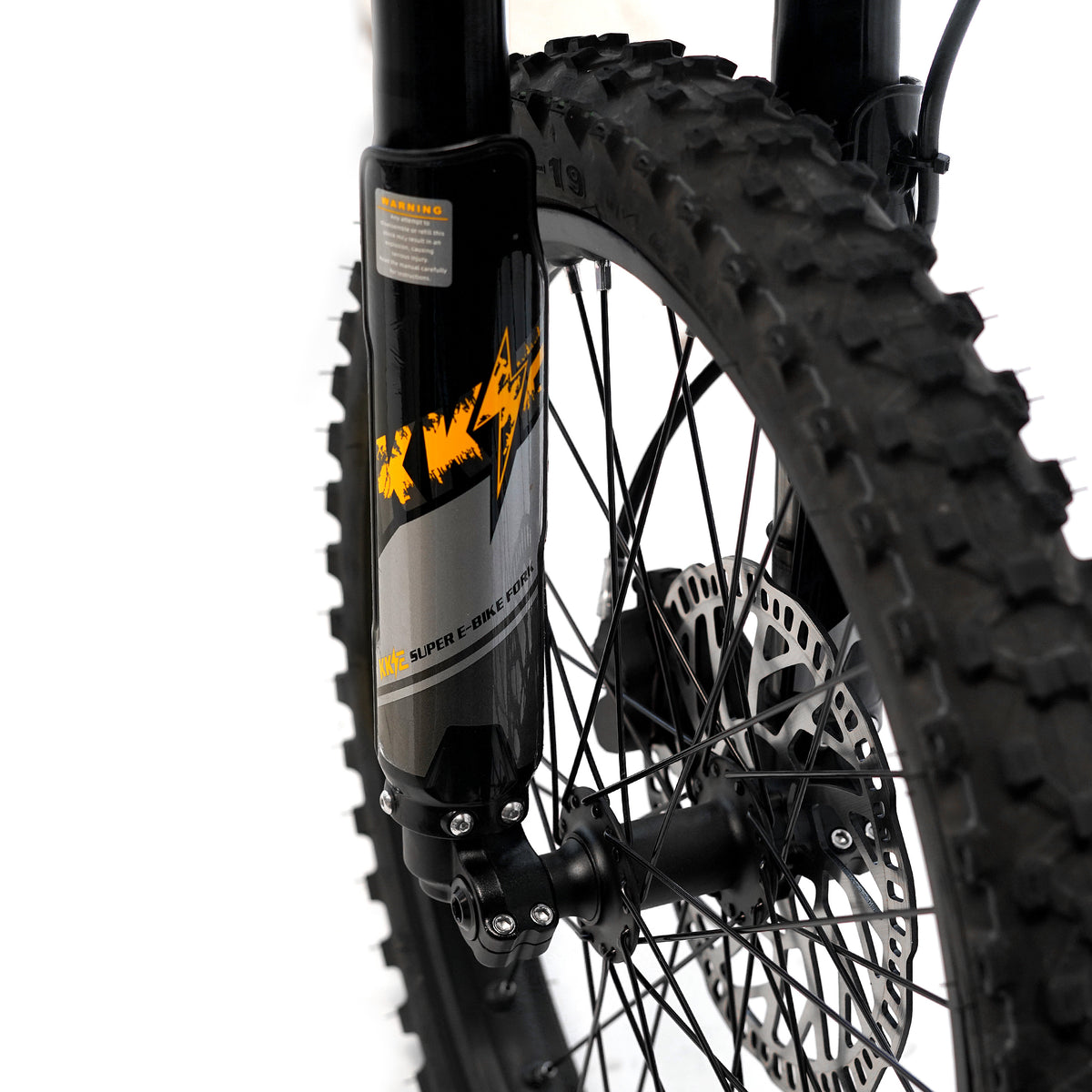

• Inverted suspension fork (200mm travel) — Advanced front suspension absorbs impacts on rough terrain; KKE rear shock system provides full-suspension control
• 19" alloy wheels — 1.4-19" front and 1.6-19" rear sizing optimized for dirt and technical terrain
• Dual integrated kill switches — Safety-critical switches on side stand and handlebar
• LED headlight and rear light — Integrated visibility lighting for trail safety
• 9A charger — Fast 3.5-hour charge time enables multiple rides per day

Technical Specifications

• Motor type: PMSM (permanent magnet synchronous)
• Motor mounting: Mid-frame
• Motor weight/diameter: 9.55kg / 155mm
• Peak torque: 115Nm
• Rated torque: 95Nm
• Motor output @ 1000 RPM: 49Nm
• Rated rotation speed: 5400 RPM
• Peak efficiency: 94%
• Controller type: FOC (field-oriented control)
• Controller efficiency: 98.5%
• Rated voltage: 72V DC
• Battery: 72V 40Ah lithium-ion (176 LG cells)
• Battery cycles: 500 estimated
• Charger: 9A (3.5-hour full charge)
• Charging port: USB Type C
• Transmission: Primary belt (German Continental 8M CXA) + 420 drive chain
• Gear ratio: 13:51
• Rear sprocket: 51T
• Frame material: 6061 T4&T6 aluminum alloy
• Frame construction: Forged under 3000 tons pressure
• Frame finish: Baked paint
• Front suspension: Inverted fork, 200mm travel
• Rear suspension: KKE suspension link system
• Wheels: 19" alloy hubs (1.4-19" front, 1.6-19" rear)
• Top speed: 90 km/h (56 mph)
• Ground clearance: 270mm
• Wheelbase: 1250mm
• Seat height: 85cm
• Overall dimensions: 1880mm x 805mm x 1130mm
• Net weight: 73kg (161 lbs)
• Carry/rider capacity: 280 lbs

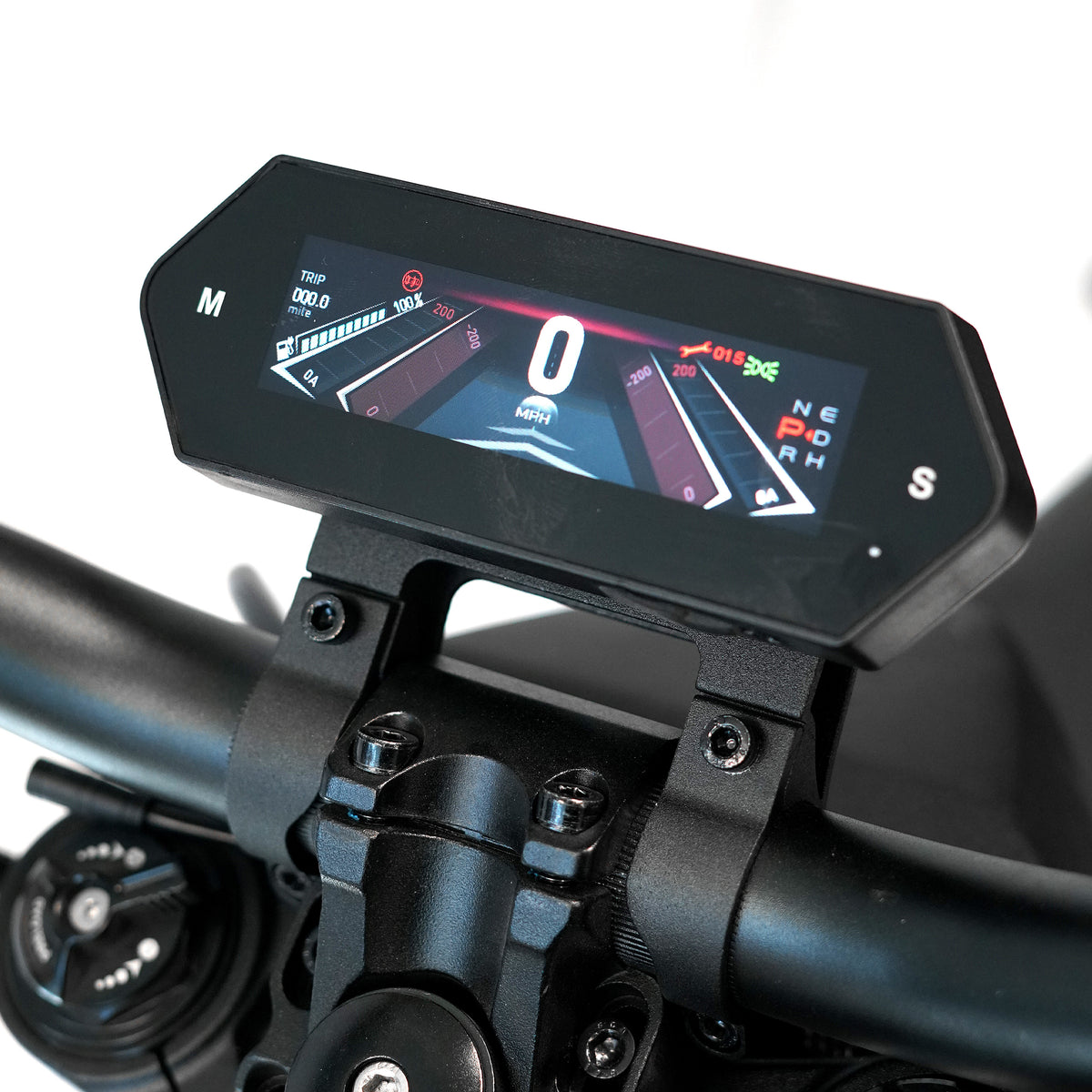

• Display: TFT speedometer
• Lights: LED headlight and rear light
• Side stand: Yes, with integrated kill switch
• Color: White savage

Compatibility & Ideal Use Cases

• User type: Advanced off-road riders; experienced e-moto enthusiasts
• Best for: Off-road trails; dirt terrain; rocky and technical riding; aggressive acceleration and hill climbing
• Riding surface: Off-road only (not street-legal); dirt trails, rocky terrain, technical terrain, elevation changes
• Distance: Multiple rides per day with 3.5-hour fast charging
• Ideal use: Off-road dirt riding; trail exploration; technical terrain; performance-oriented off-road adventures
• Rider weight limit: Up to 280 lbs

Critical Operating Notes

This e-moto is not street-legal and must not be used on public roads, highways, or any street-legal surfaces. Operate only on private property or designated off-road trails with permission. Verify local regulations and obtain proper insurance before operating. Both kill switches—side stand and handlebar emergency—are critical safety devices; use both. Always wear full protective gear: helmet, gloves, protective jacket, and boots. Charge battery fully (3.5 hours) before extended riding sessions. Battery life expectancy is approximately 500 charge cycles. Dual suspension system requires periodic inspection; consult manual for maintenance intervals on inverted fork and KKE rear shock.
