Credence C.C.R. 14mm Dropout Frame

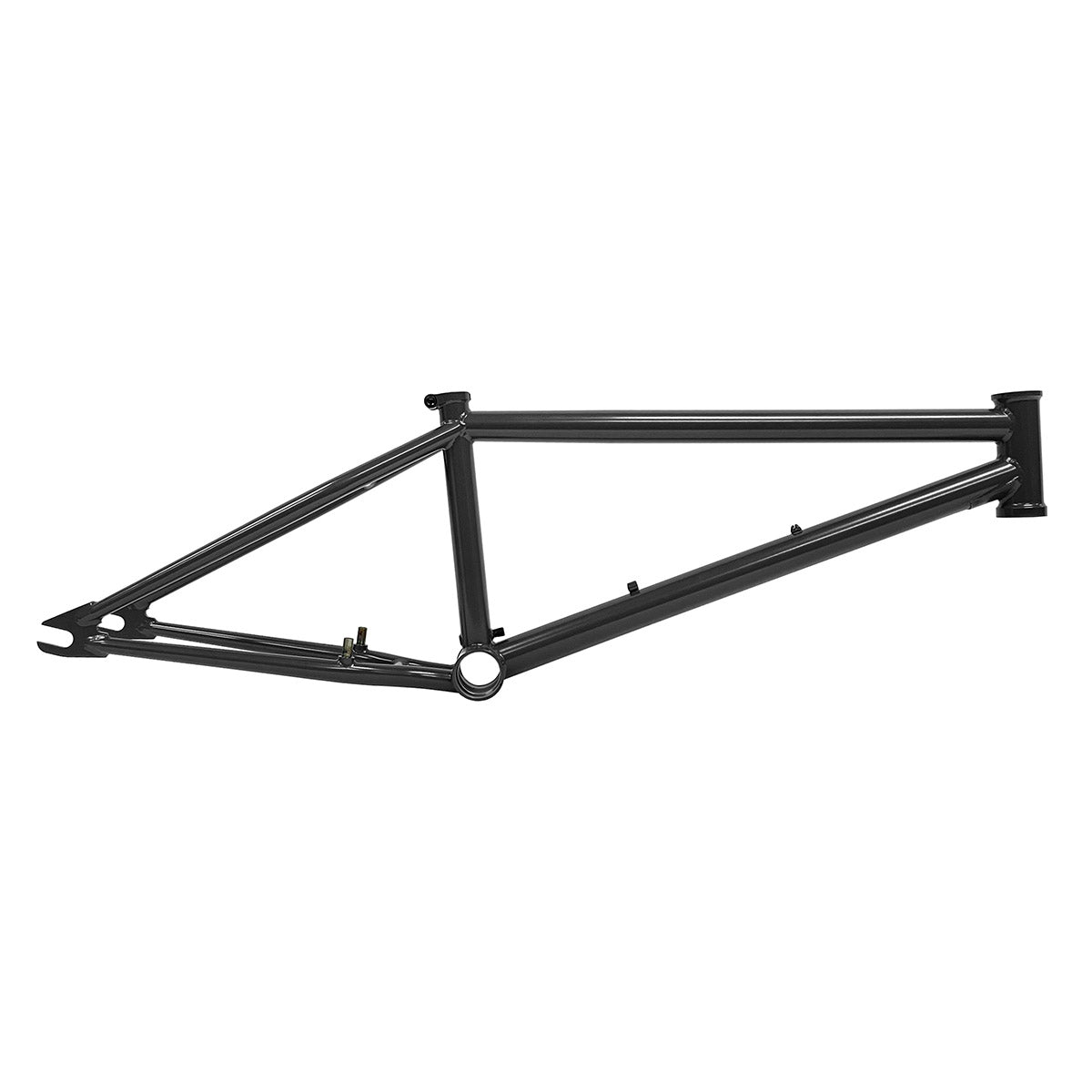

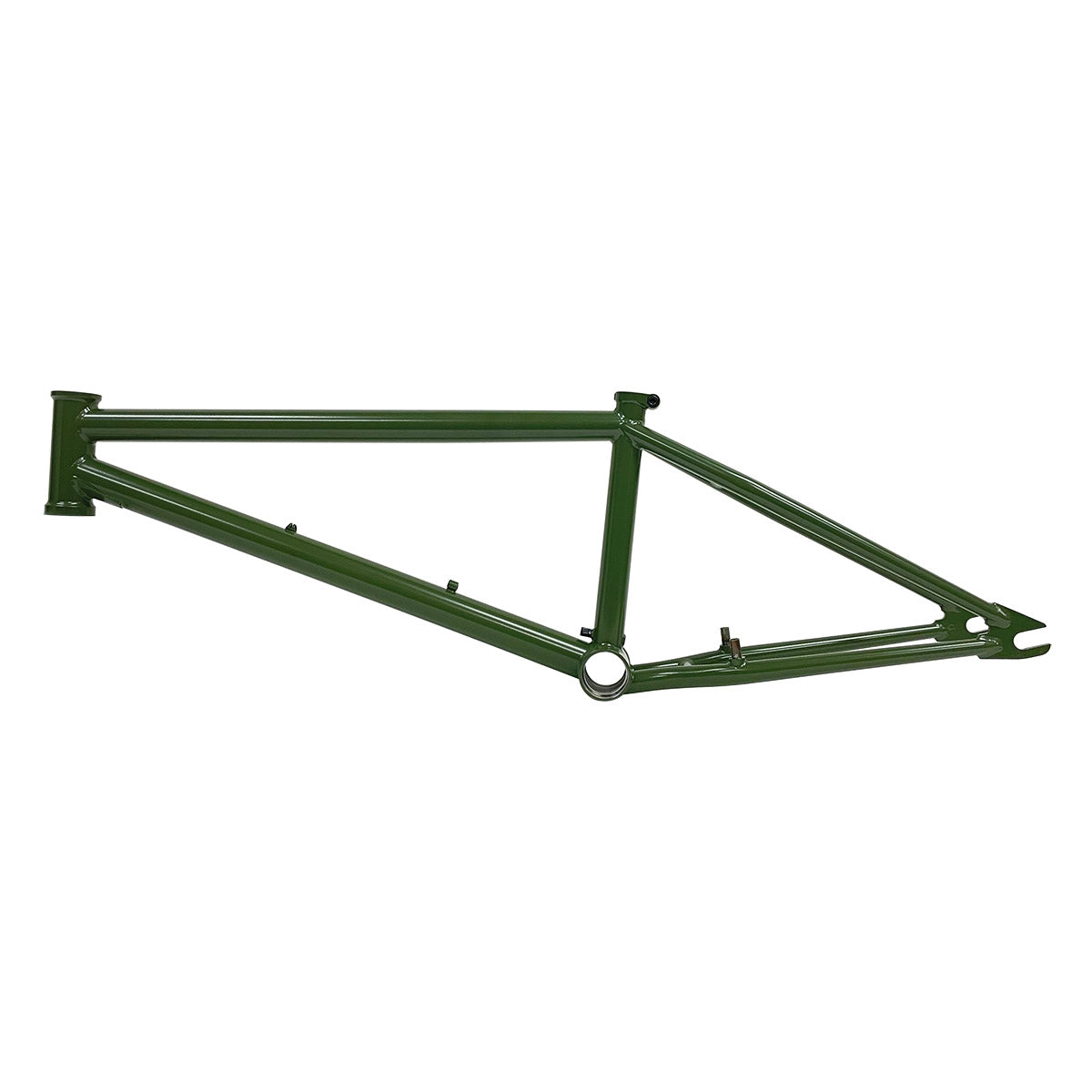

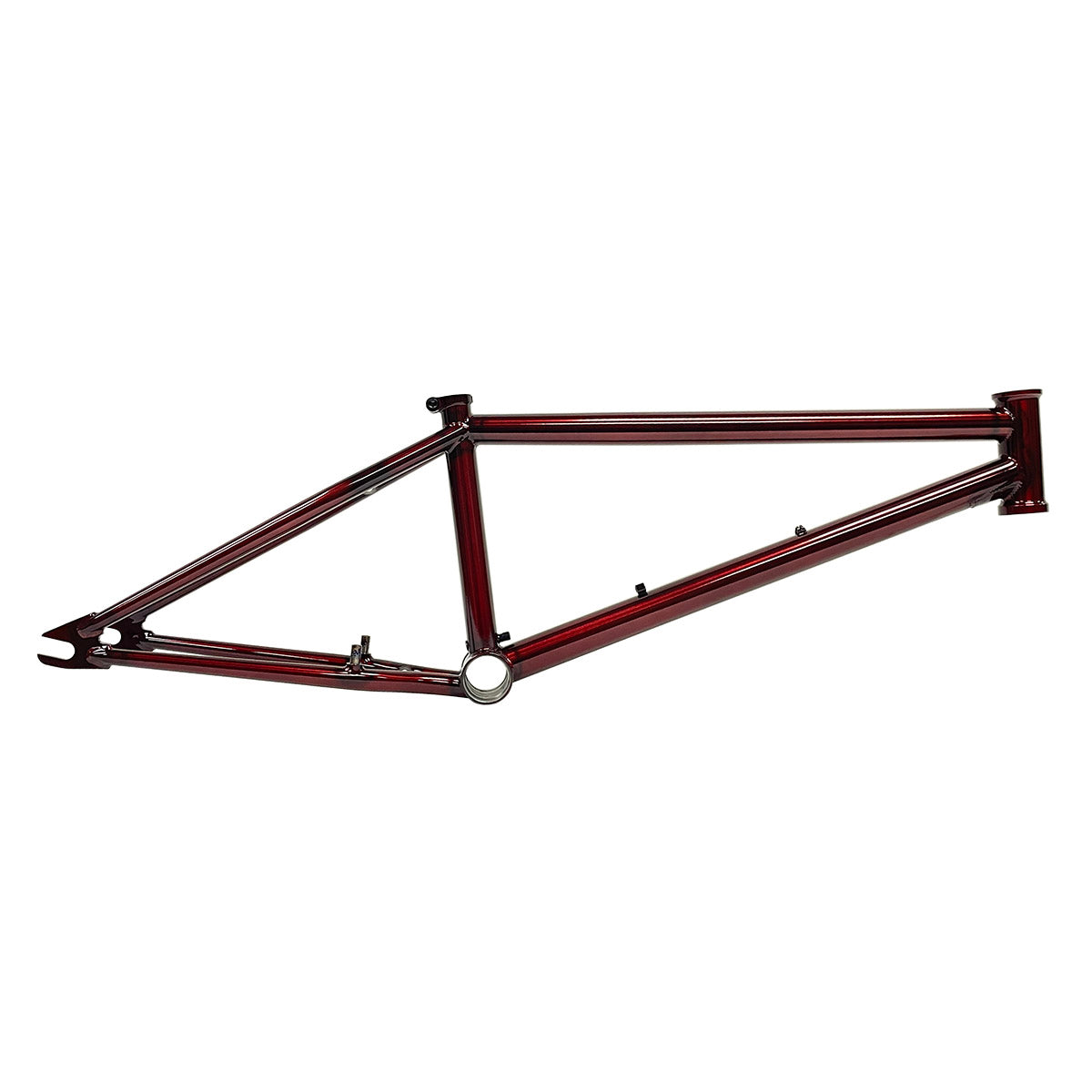

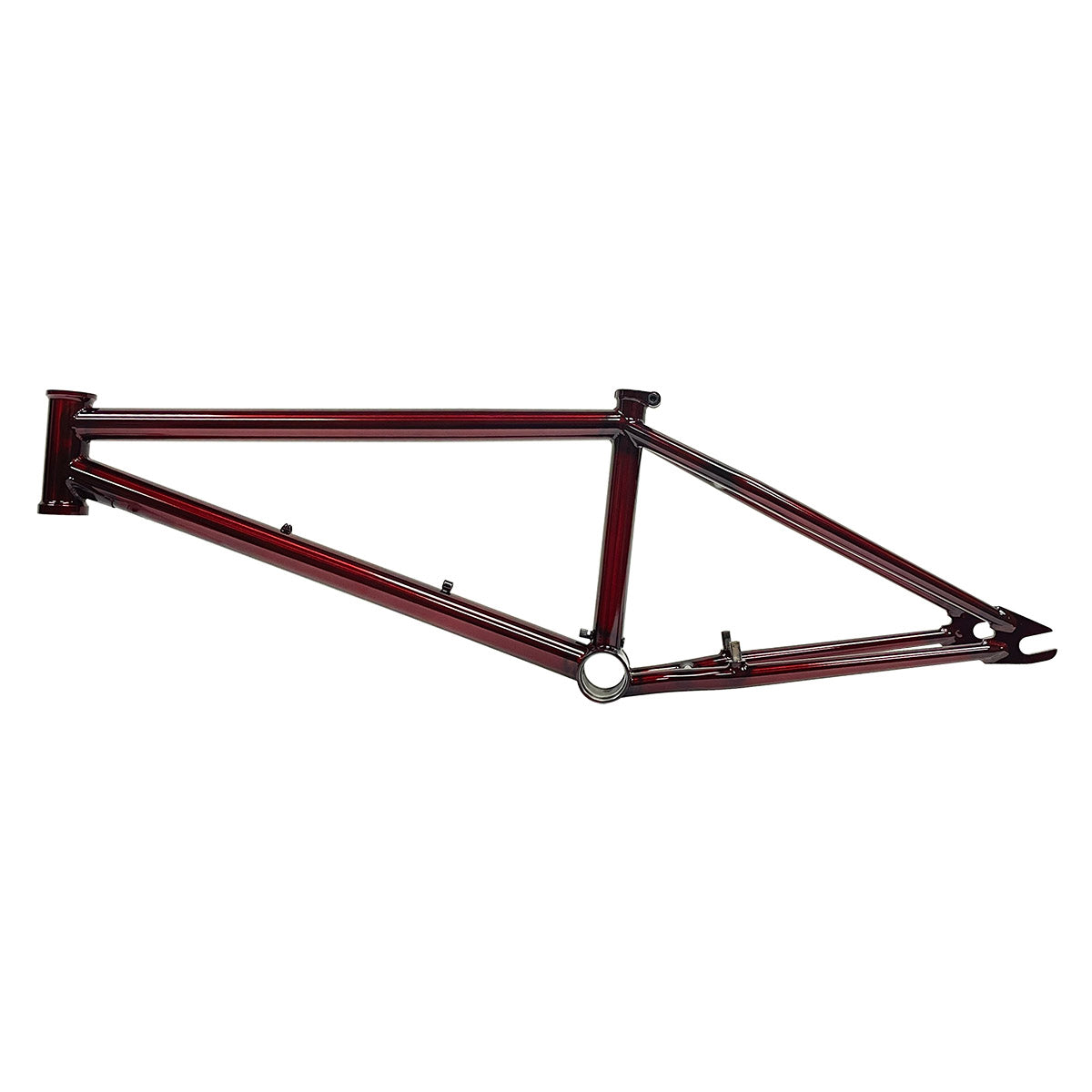

The Credence C.C.R. (Clint Reynolds signature frame) is a USA-made BMX frame built to Clint Reynolds' specifications for street and park riding. Featuring a long and stable geometry with 14mm dropouts, it prioritizes predictable handling and durability for aggressive riding. The frame's longer backend (13.9″) and relaxed angles create a planted feel suitable for technical street tricks, gap transfers, and high-speed riding.

Key Features

• USA-manufactured construction – Domestic production ensures quality control and manufacturing standards, built to professional rider specifications
• Long, stable geometry – 13.9″ rear end length and 74.25° head tube angle create a longer wheelbase for increased stability during landings and at speed

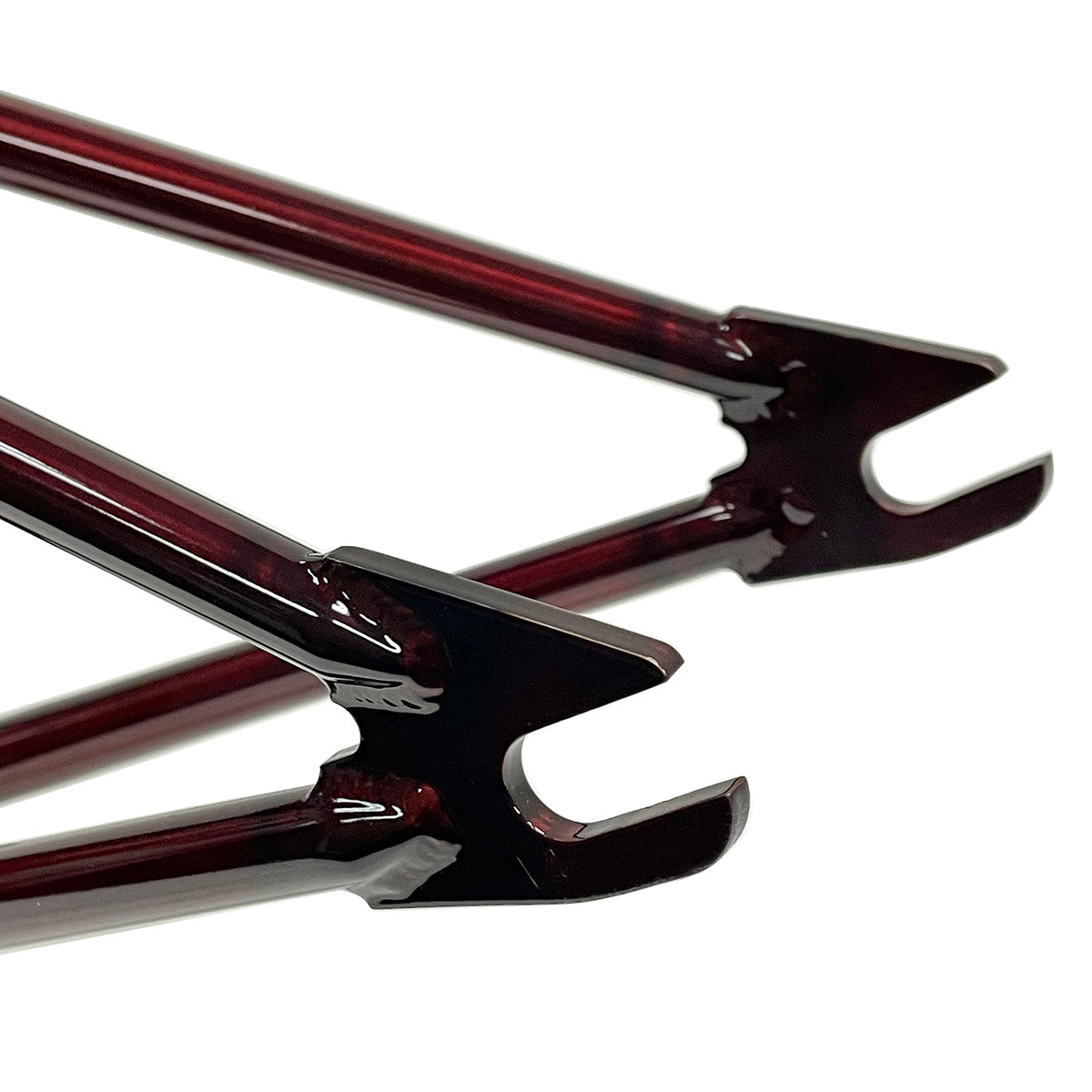

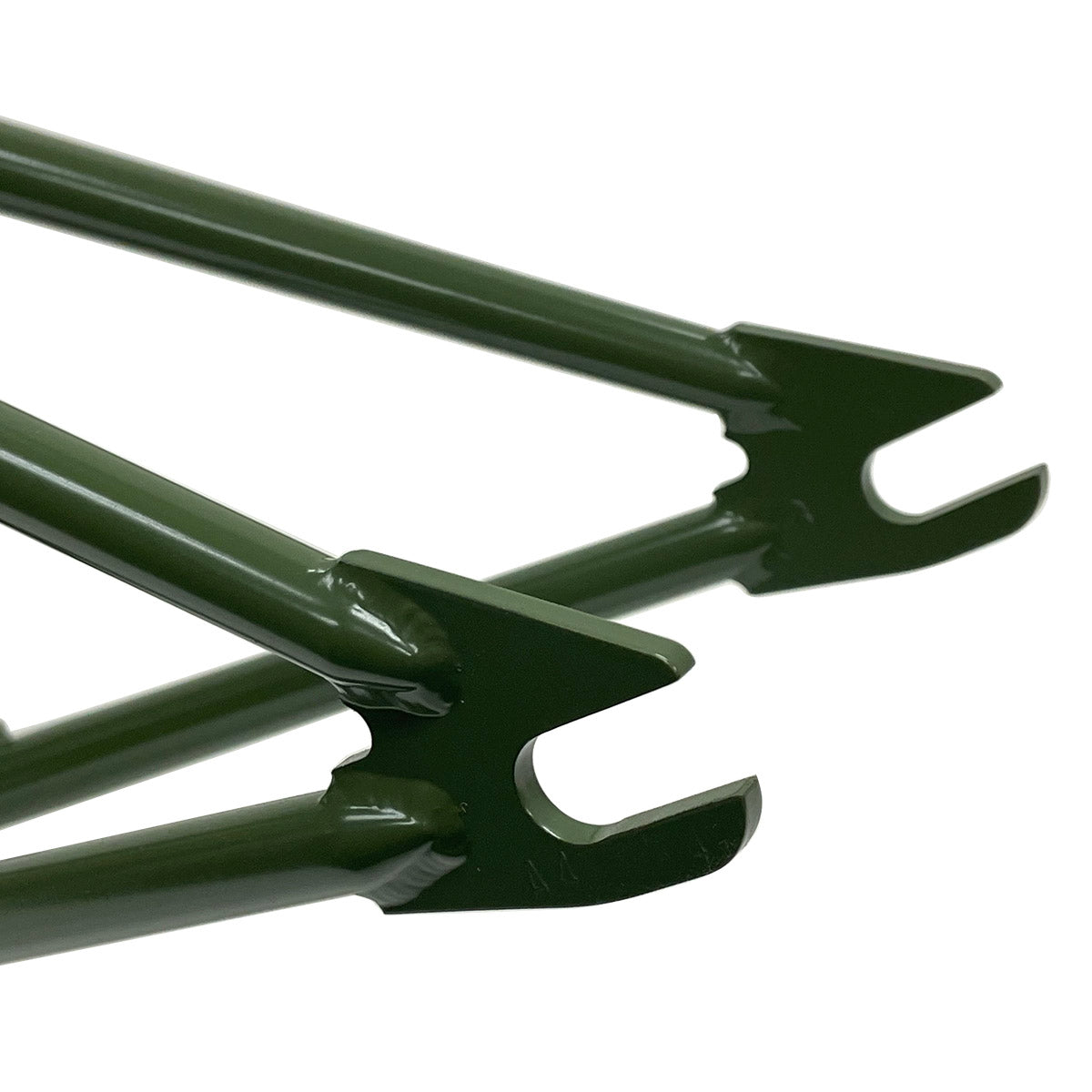

• 14mm dropouts – Heavy-duty dropout design accommodates 14mm rear axles for increased strength and rigidity, reducing flex under hard pedaling or impacts

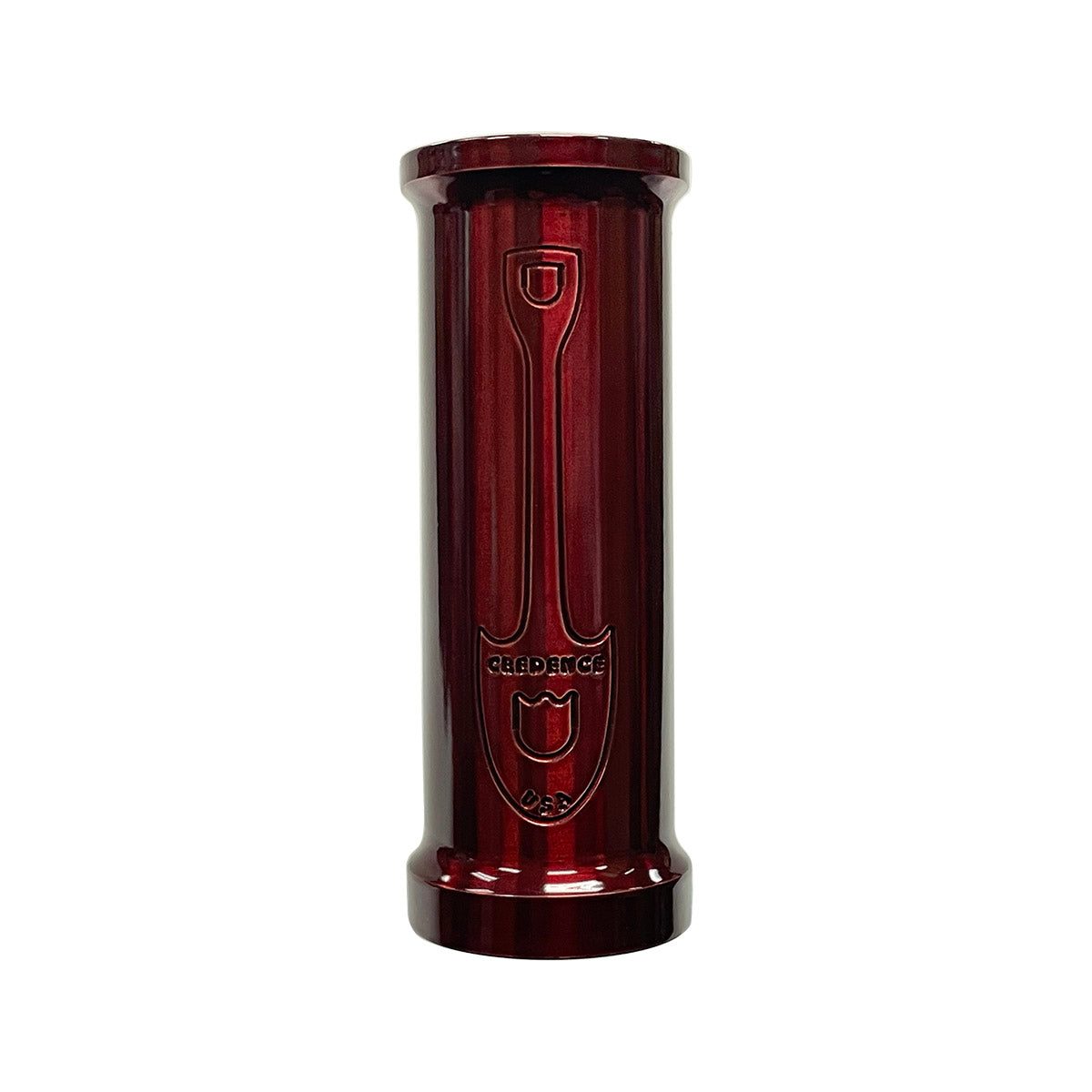

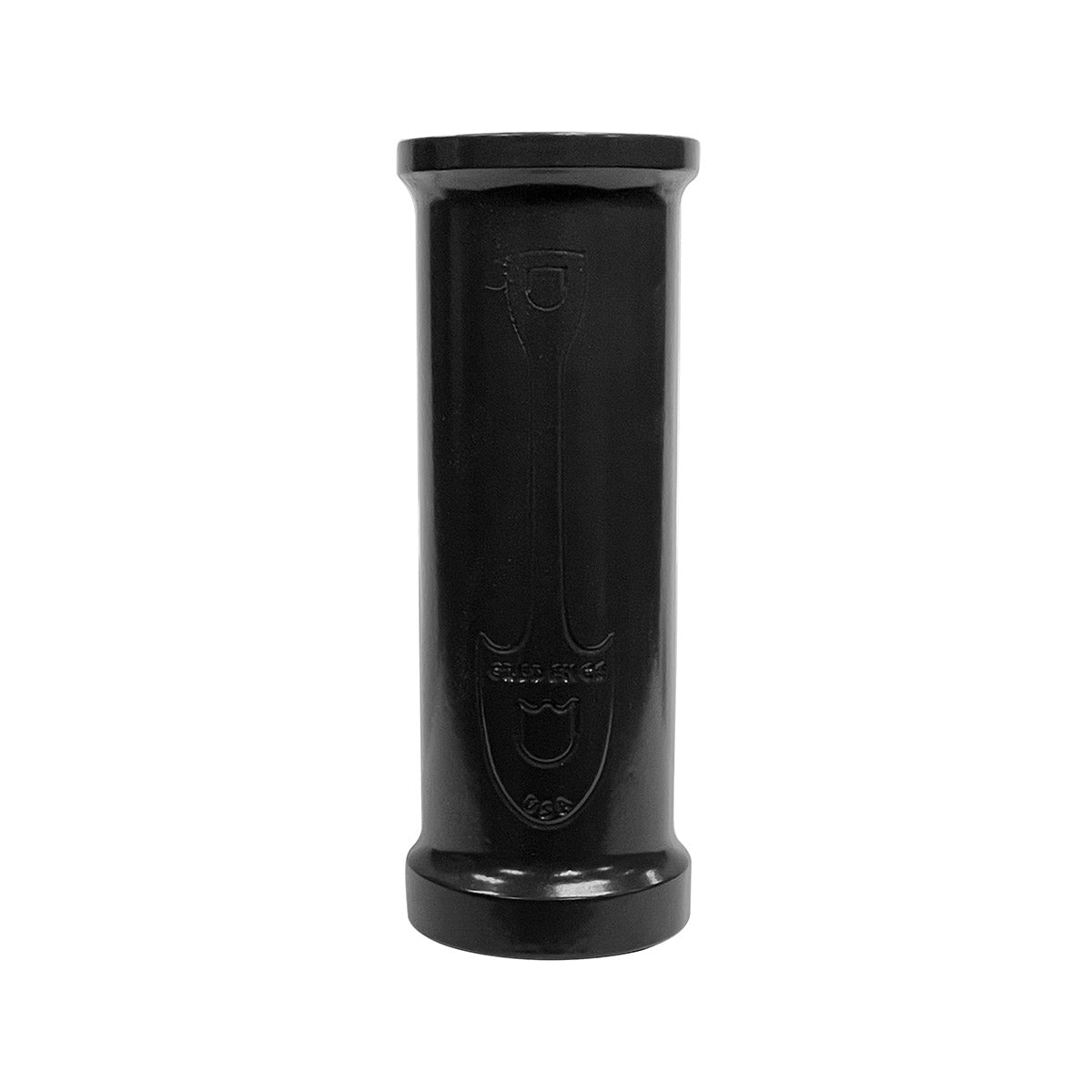

• Integrated Campy-style head tube – Internal headset cups integrate into the frame for clean aesthetics and reduced stack height

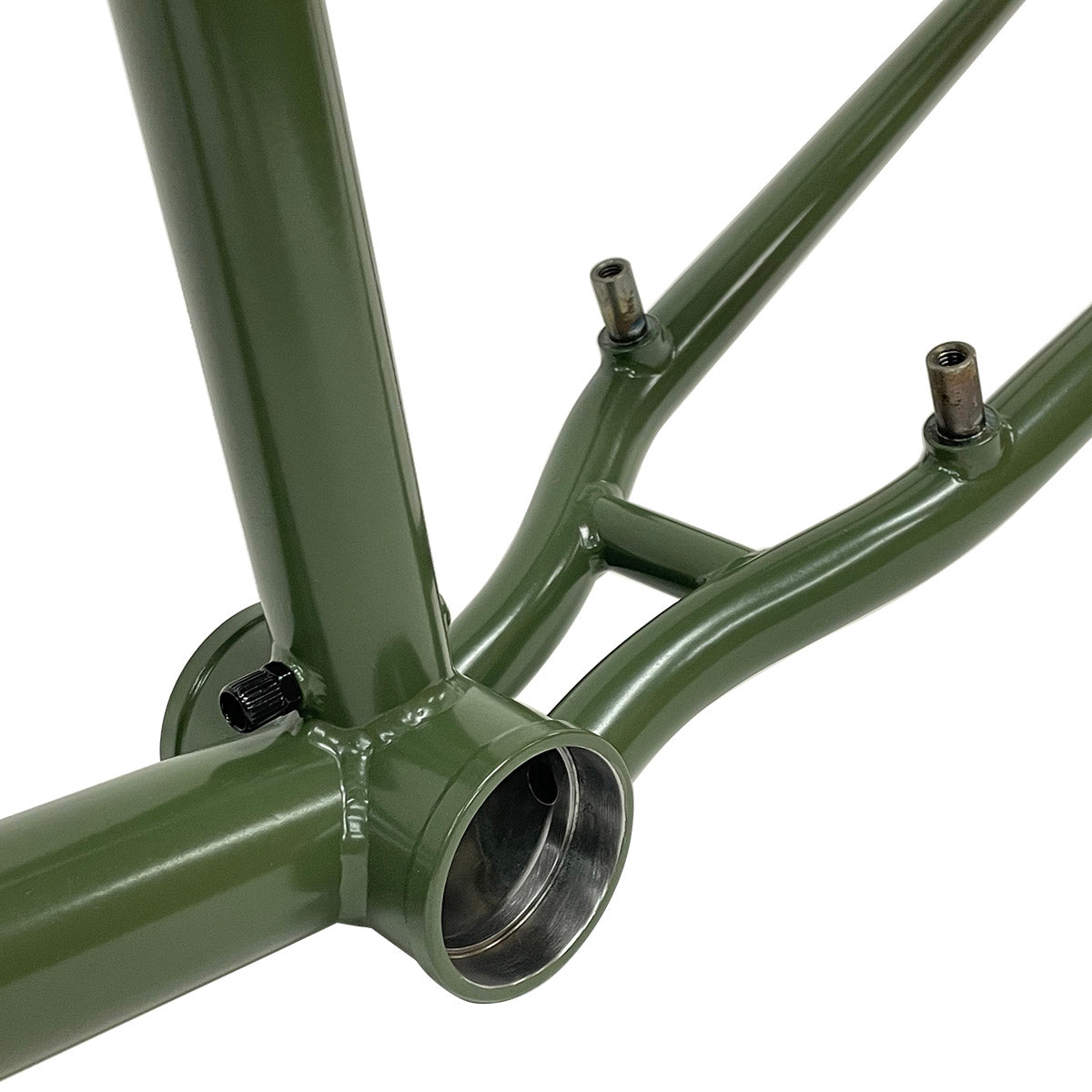

• Mid bottom bracket – 11.6″ BB height balances grind clearance with stability, suitable for street riding where ledge clearance and low center of gravity both matter

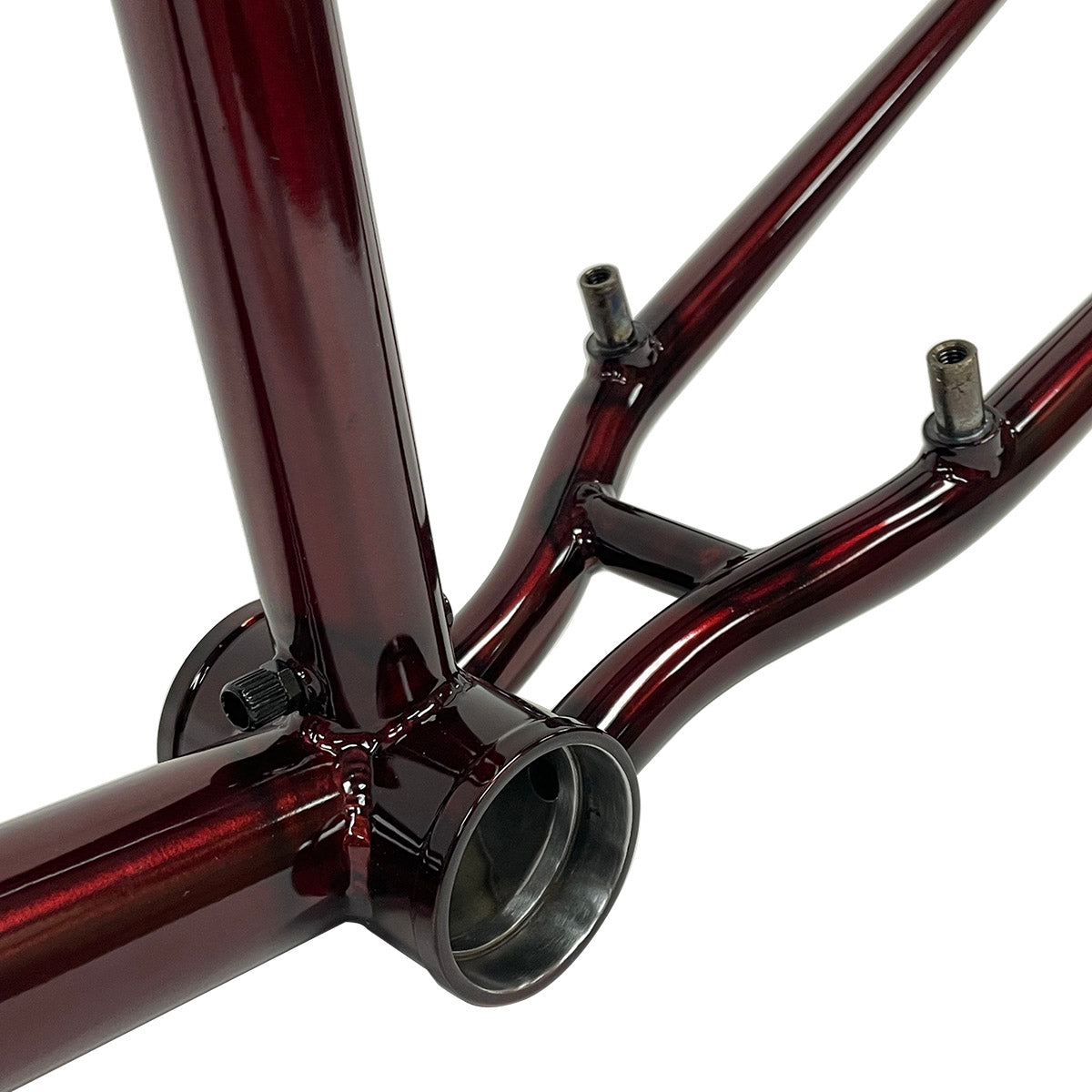

• Chainstay welded-on brake mounts – Integrated brake tabs provide reliable brake mounting without frame drilling; allows U-brake or other chainstay-mounted brake systems
• Multiple top tube lengths – Five size options (21″, 21.125″, 21.25″, 21.5″, 22″) accommodate different rider heights and preferences

Technical Specifications

• Model: Credence C.C.R. (Clint Reynolds signature)
• Available top tube lengths: 21″, 21.125″, 21.25″, 21.5″, 22″
• Rear end length: 13.9″ (chainstay length)
• Head tube angle: 74.25°
• Seat tube angle: 71°
• Standover height: 9″
• Bottom bracket height: 11.6″
• Bottom bracket type: Mid
• Head tube: Integrated, Campy-style
• Dropouts: 14mm
• Brake mounts: Chainstay welded-on

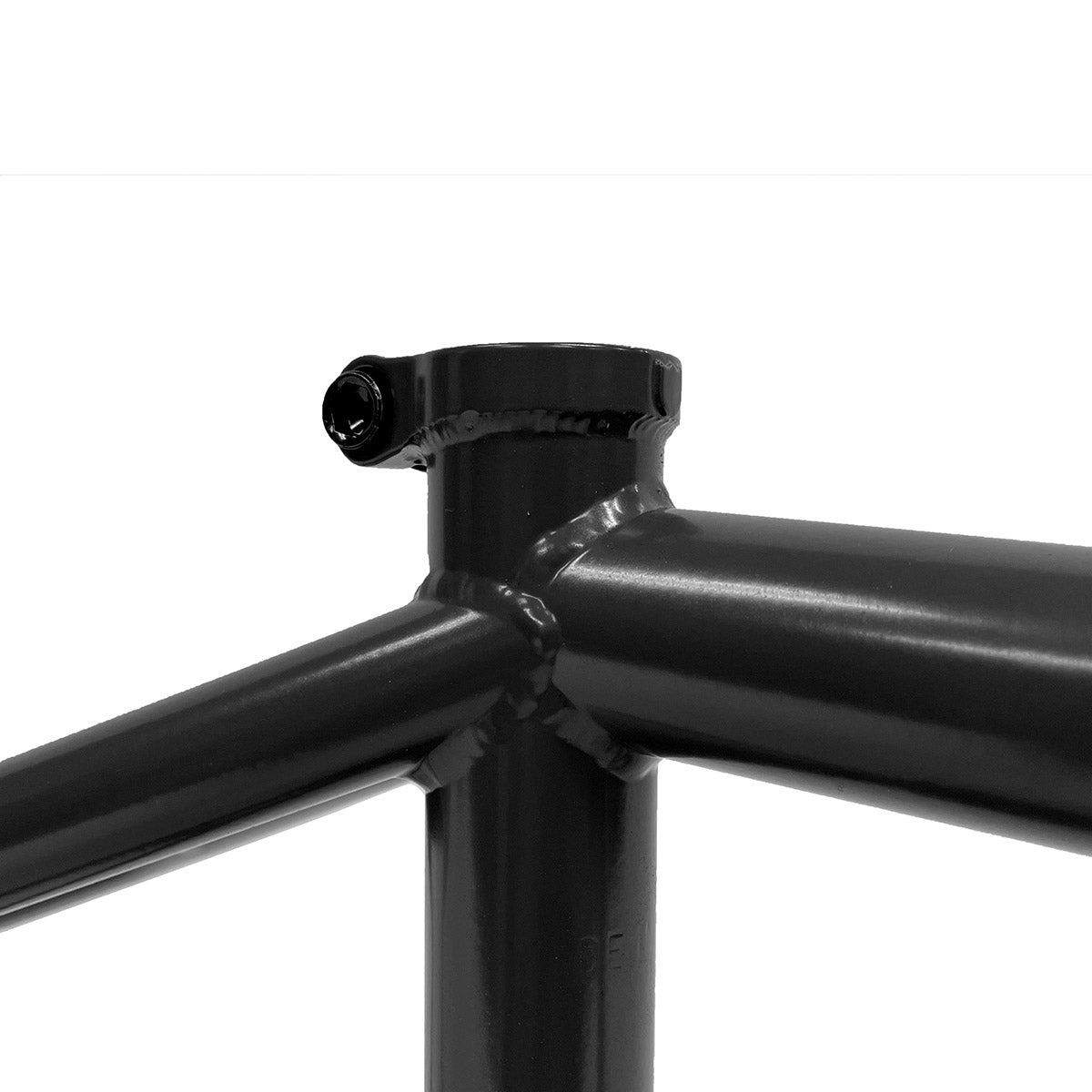

• Seat post size: 1″ / 25.4mm
• Weight: 5.25 lbs
• Material: Not specified (likely chromoly)
• Manufactured: USA

Compatibility and Ideal Use Cases

The C.C.R. frame requires components compatible with its specifications: integrated Campy headset, mid bottom bracket, 14mm rear axle hub, and 25.4mm (1″) seat post. The longer 13.9″ backend and relaxed angles suit riders who prioritize stability—technical street riding, gap-to-gap transfers, and riding at speed where predictable handling matters more than quick maneuverability. The 14mm dropouts add strength for riders who pedal hard or land with significant impact. Choose top tube length based on your height: 21″-21.25″ for riders around 5'6″-5'9″, 21.5″ for 5'9″-6'0″, and 22″ for 6'0″ and taller—adjust based on personal preference and riding style. The 9″ standover height provides adequate clearance for most riders. Weight of 5.25 lbs is typical for a durable street frame. Chainstay brake mounts accommodate U-brakes or detangler systems for riders running brakes.
