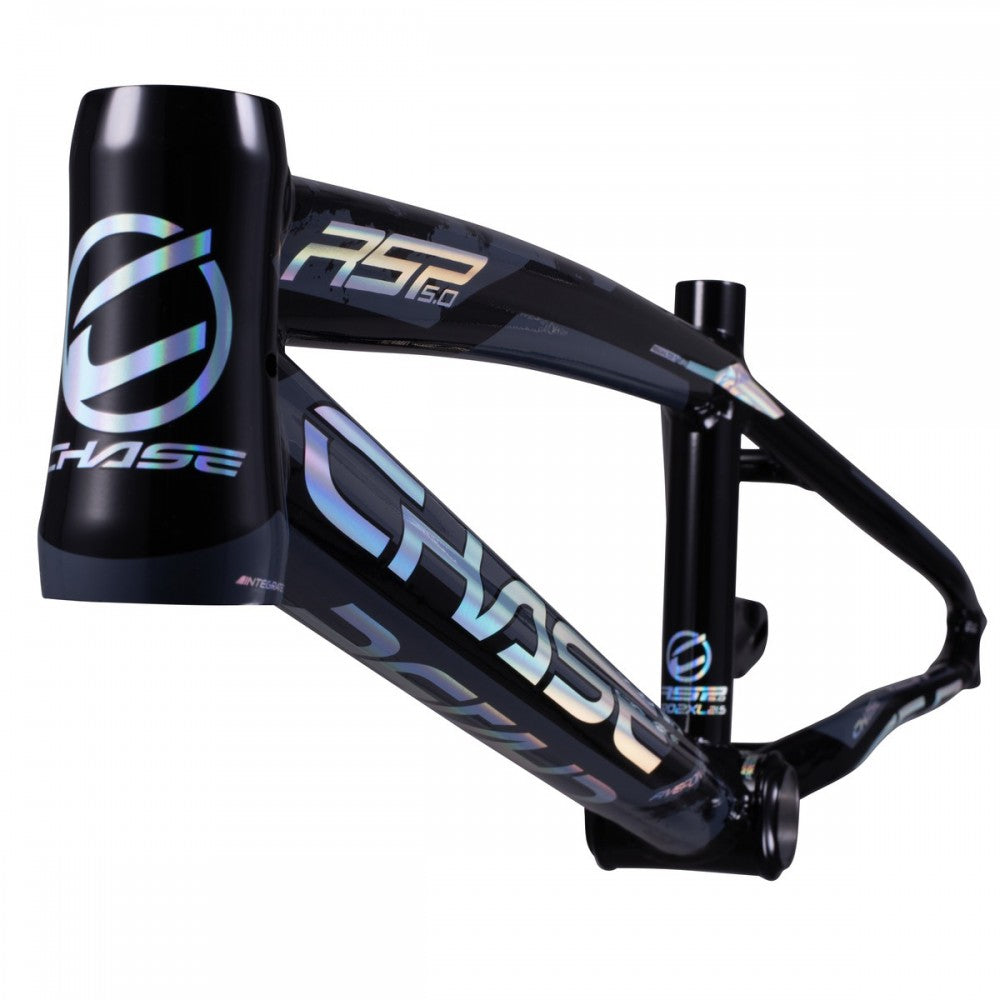

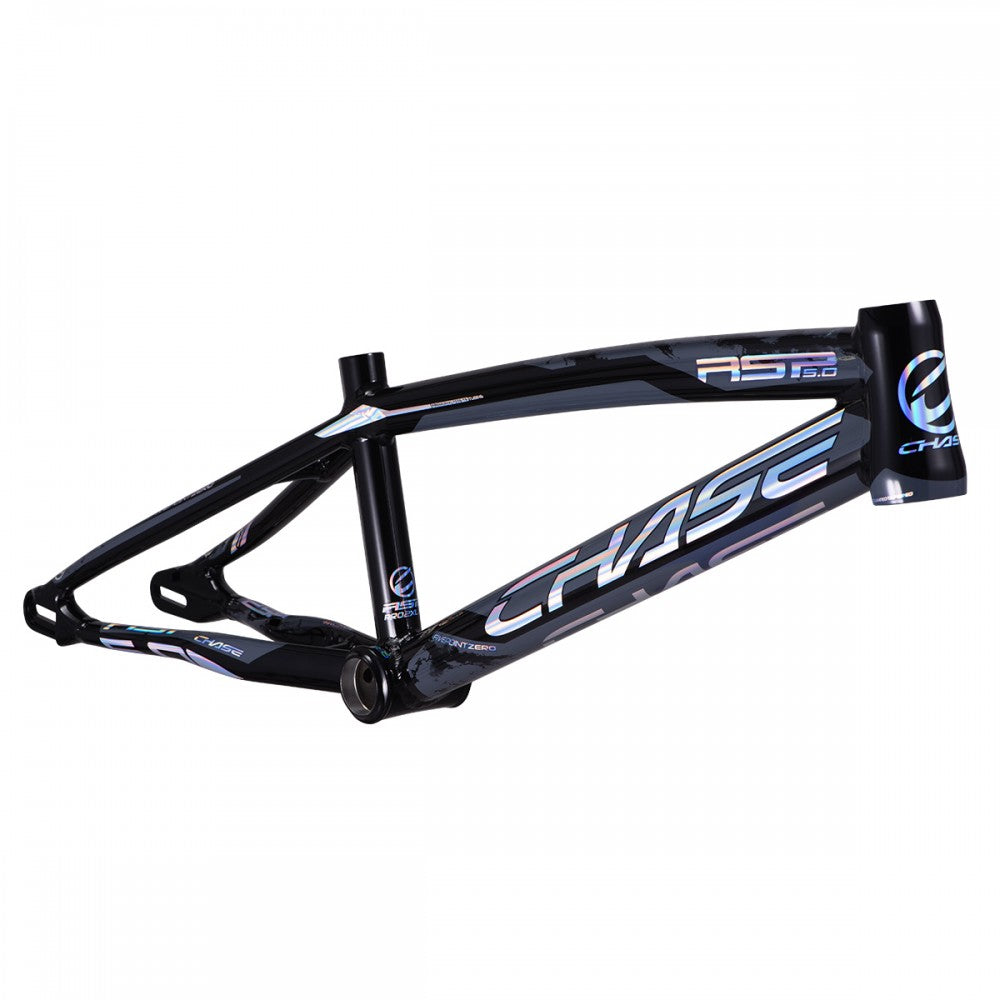

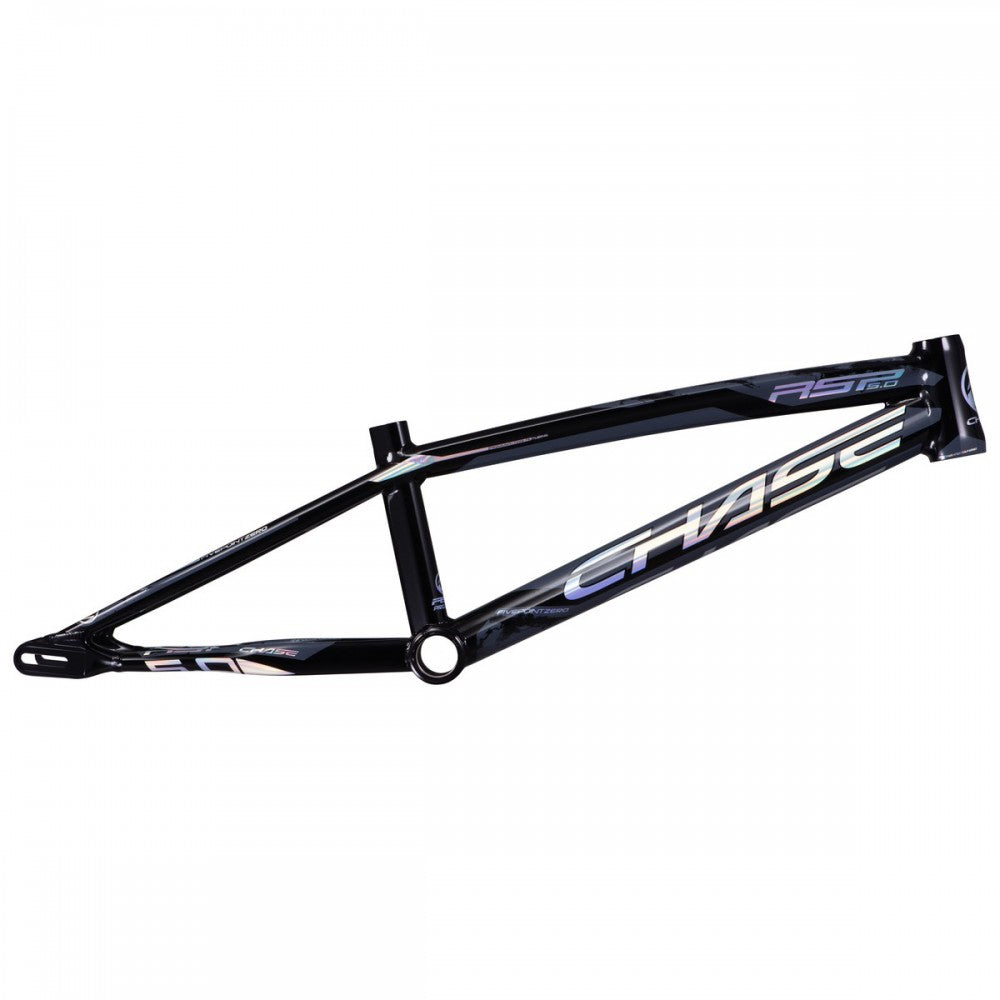

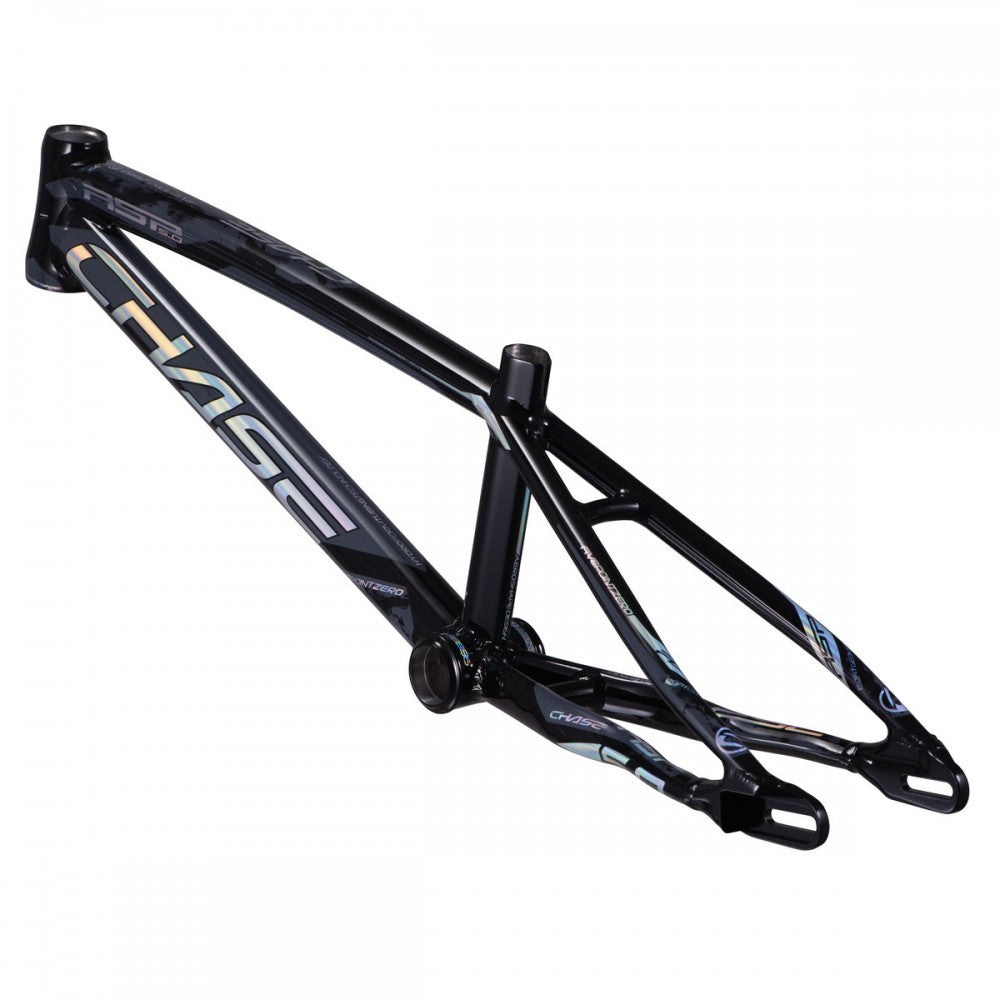

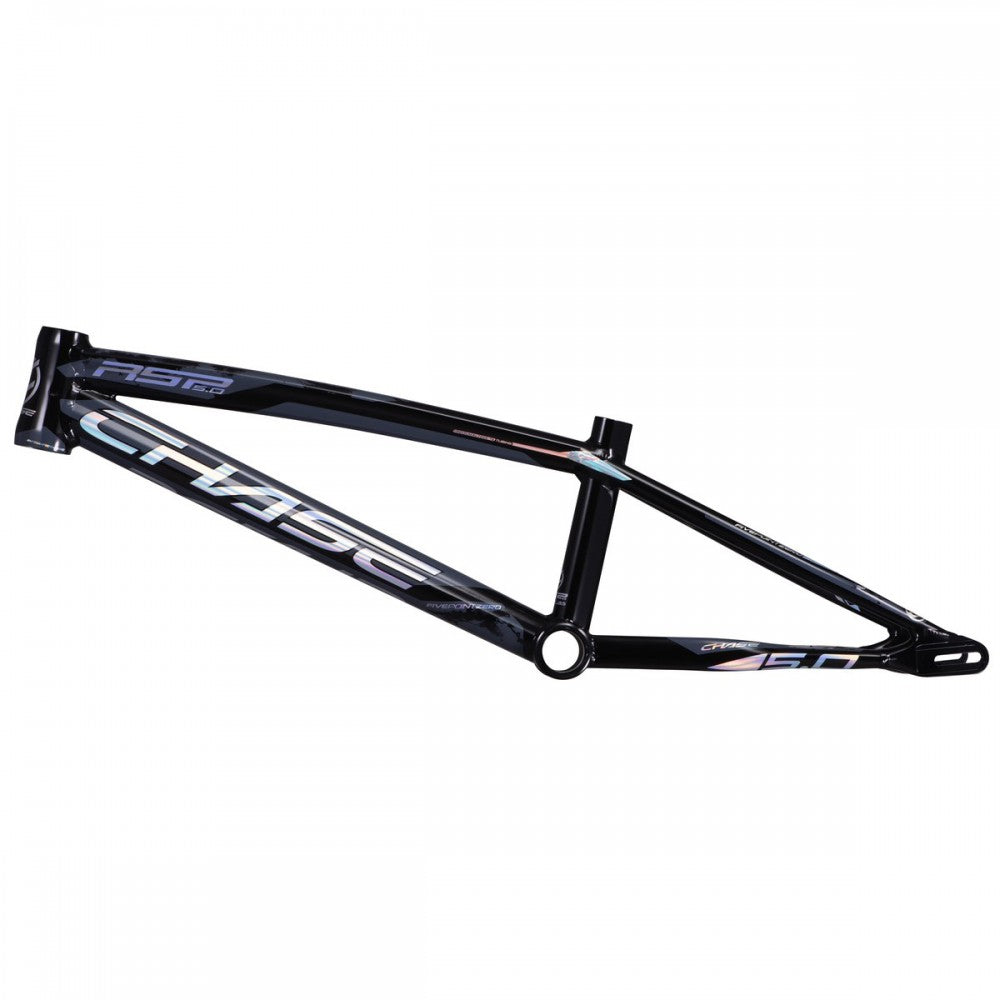

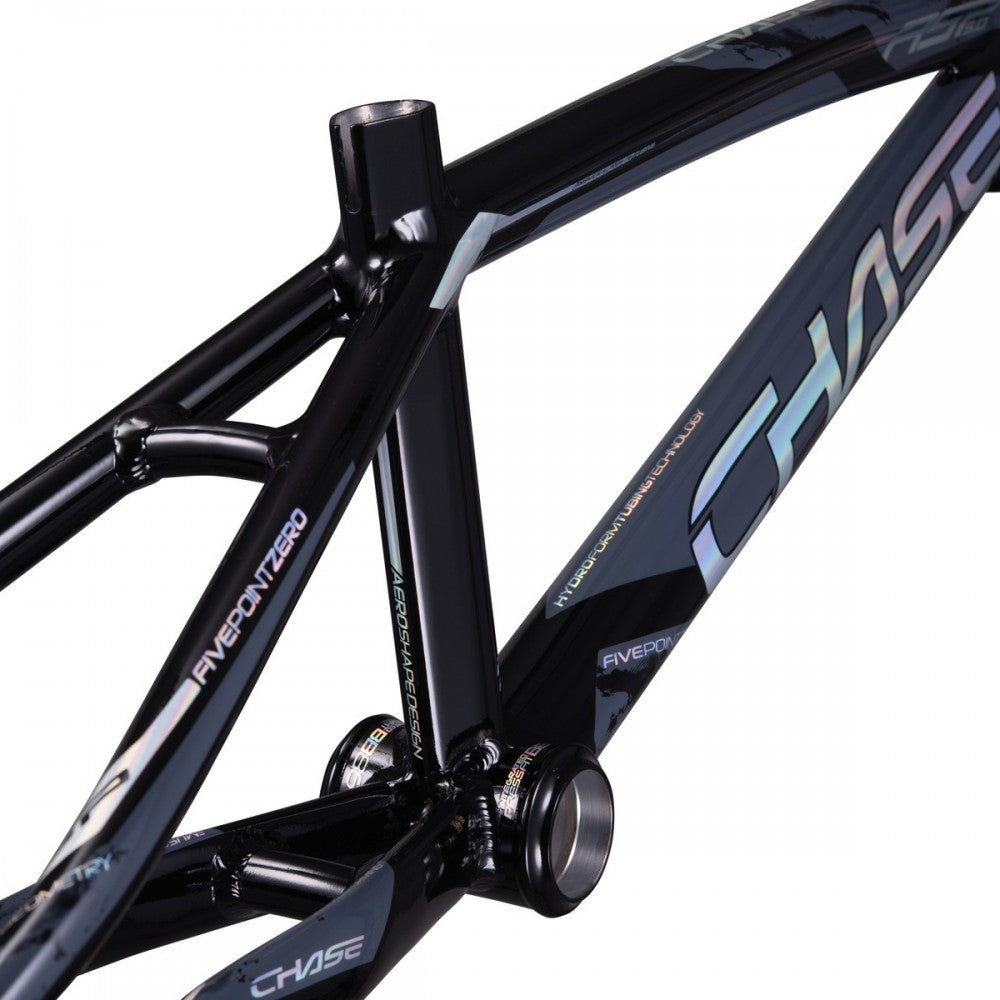

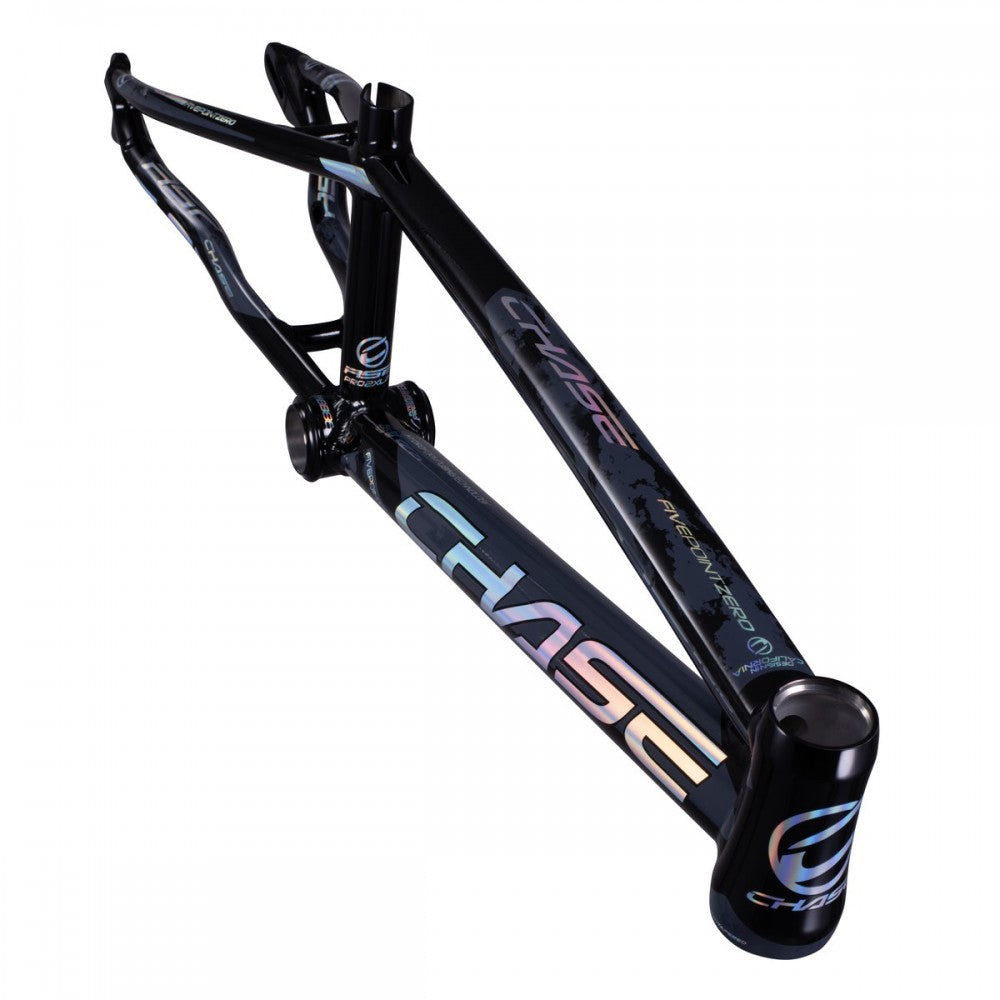

Chase RSP 5.0 Frame Black / Holographic

The Chase RSP 5.0 in Black / Holographic is a 7005-T6 aluminum BMX race frame with high gloss black paint and limited edition holographic graphics. Hydroformed, butted tubing, internal brake routing and enclosed 10mm dropouts make it a light, stiff, disc-brake-only platform, offered in 20" sizes from Mini to Pro XXXL plus 24" Cruiser Pro and Cruiser Pro +.

Features

• 7005-T6 SpeedLite aluminum: double-butted hydroformed top tube, triple-butted hydroformed down tube, muscle-formed rear stays
• Integrated tapered 1-1/8" to 1.5" head tube on Expert XL and larger; integrated 1-1/8" on Mini, Junior and Expert
• Internal brake housing routing through the head tube, down tube and bottom bracket, exiting at the chain stay (Expert XL and larger) or the bottom of the down tube (Mini to Expert)
• CNC-machined enclosed 3/8" (10mm) dropouts with integrated chain tensioners; axle bolts are removed and threaded into the hub after the axle goes through the dropout
• Disc brake only, with clearance for post mount and flat mount calipers (adapter sold separately); rim brakes are not compatible
• Press Fit BB86 on Expert XL and larger; Euro BSA 68mm threaded on Mini, Junior and Expert
• Aero seat tube for an aero seat post and clamp
• OS20 versions (OS Pro XXL, OS Pro XXXL) are built around oversized 20" wheels and tires and need an OS20-specific fork
• High gloss black finish with limited edition holographic graphics

Specs

• Material: 7005 T6 aluminum
• Head tube: integrated 1-1/8" (Mini, Junior, Expert) / integrated tapered 1-1/8" to 1.5" (Expert XL and larger)
• Bottom bracket: Euro BSA 68mm (Mini, Junior, Expert) / Press Fit BB86 (Expert XL and larger)
• Dropouts: enclosed 3/8" (10mm), 2.3" (60mm) axle slot
• Brake: disc only, post or flat mount
• Wheel sizes: 20", OS20 and 24" cruiser
• Colour: Black / Holographic

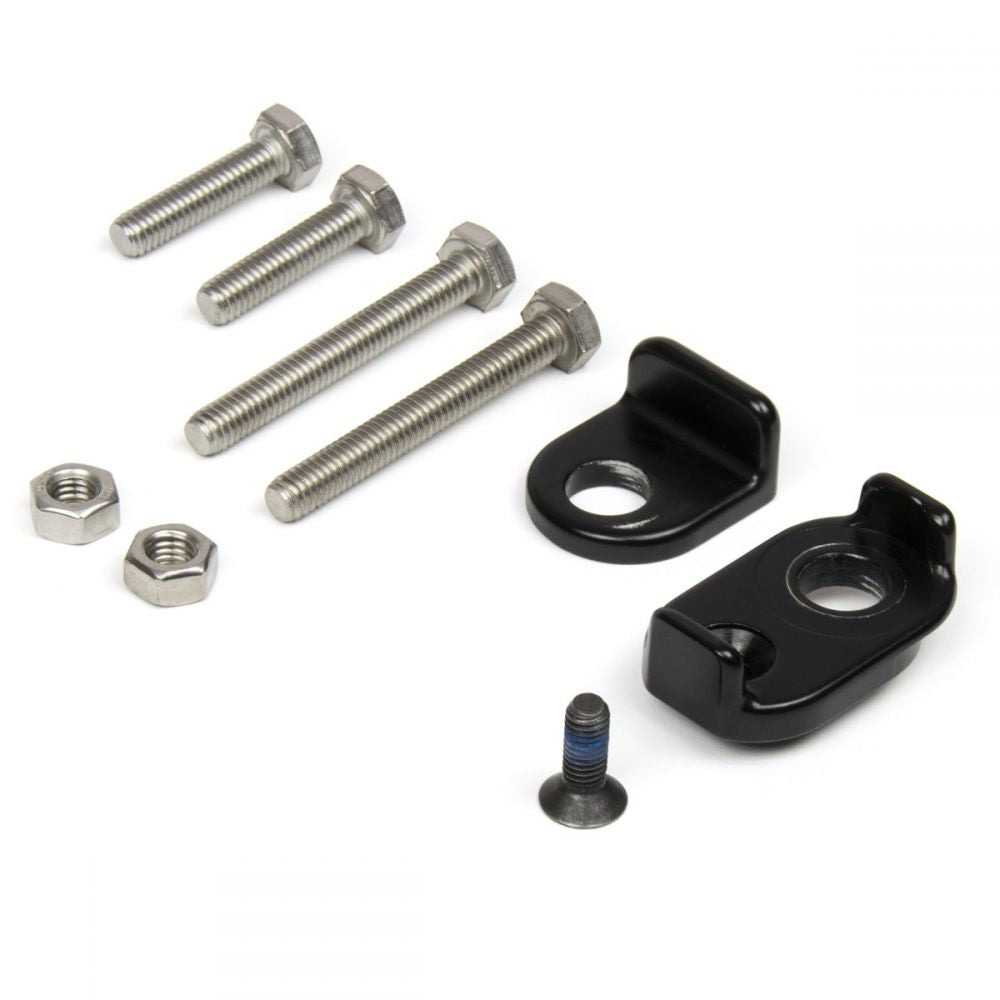

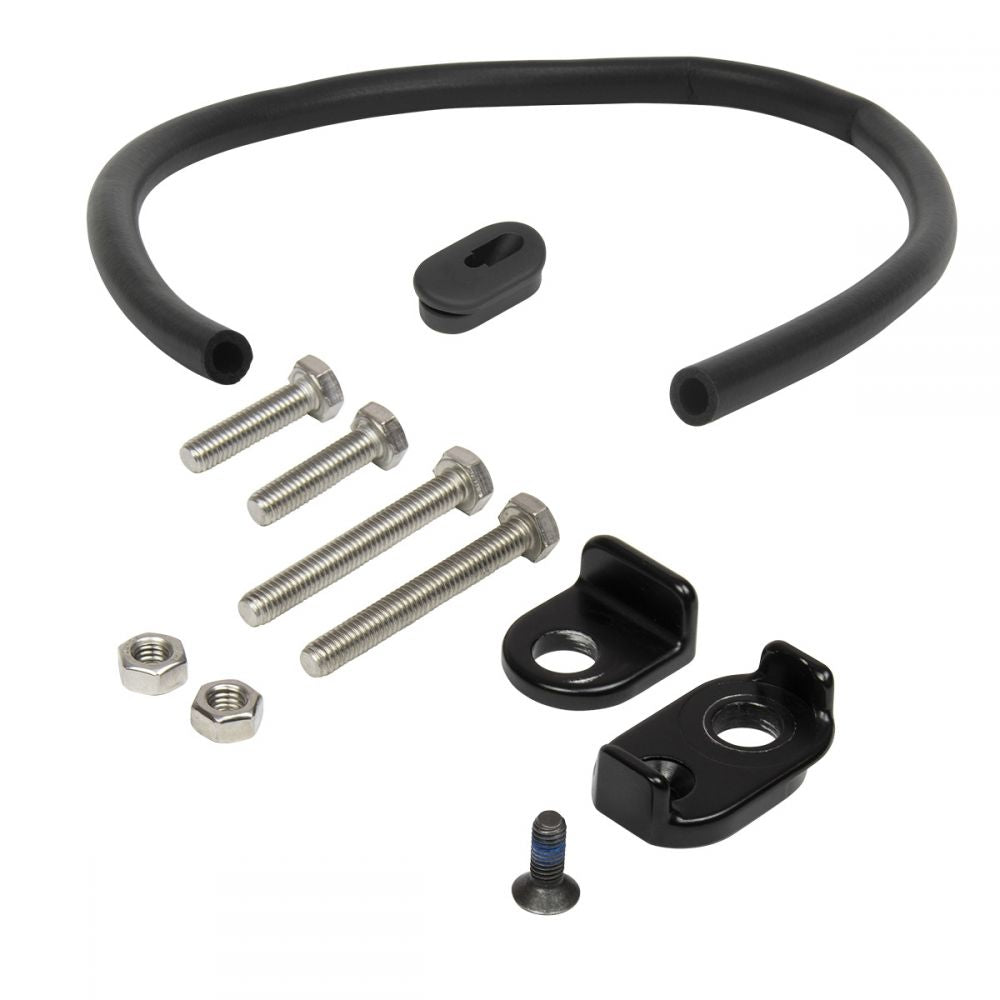

• Included: chain tensioners and mounting bolts, housing damper foam
• Sold separately: aero seat post, aero seat post clamp, disc brake adapter, brake housing (Elevn disc brake adapters recommended)

DOWNLOAD RSP 5.0 FRAME BRAKE SETUP NOTICE

Integrated tapered head tube for a stiffer tapered steerer fork.

Integrated cable routing from the head tube to the chain stays.

Restructured enclosed dropouts with internal built-in tensioners, giving clearance for a wide range of disc brakes.

Aero system shape for improved aerodynamics and a slightly stiffer feel.

Press Fit integrated BB86 bottom bracket.

SpeedLite 7005-T6 alloy, used with Chase's hydroforming process to keep strength up and frame weight down.

Triple-butted tubes have three wall thicknesses along their length. On the RSP 5.0 this cuts tube weight by 15% compared to the previous year's frame tubes.

Tapered tubing uses several wall thicknesses in one tube: reinforced at stress points, lighter where extra material is not needed.

Hydroformed main tubes are oval in both directions in the main flex areas, reducing flex both ways.

Aero seat tube, built for the aero seat post and seat post clamp, for small aerodynamic gains and a slightly stiffer feel.

Muscle-formed chain stays and seat stays give the back end its stiffness and shape.

Restructured dropouts for better disc brake caliper clearance. Like the RSP 4.0, they are built to take the extra force of a disc brake and mount, and are compatible with post mount and flat mount systems.

Bio Fit sizing: a wide size range designed around rider power output.

Integrated tapered head tube, 1-1/8" upper to 1.5" lower. Runs a tapered steerer fork, or a 1-1/8" steerer with a headset that offers a 1-1/8" to 1.5" fork race.

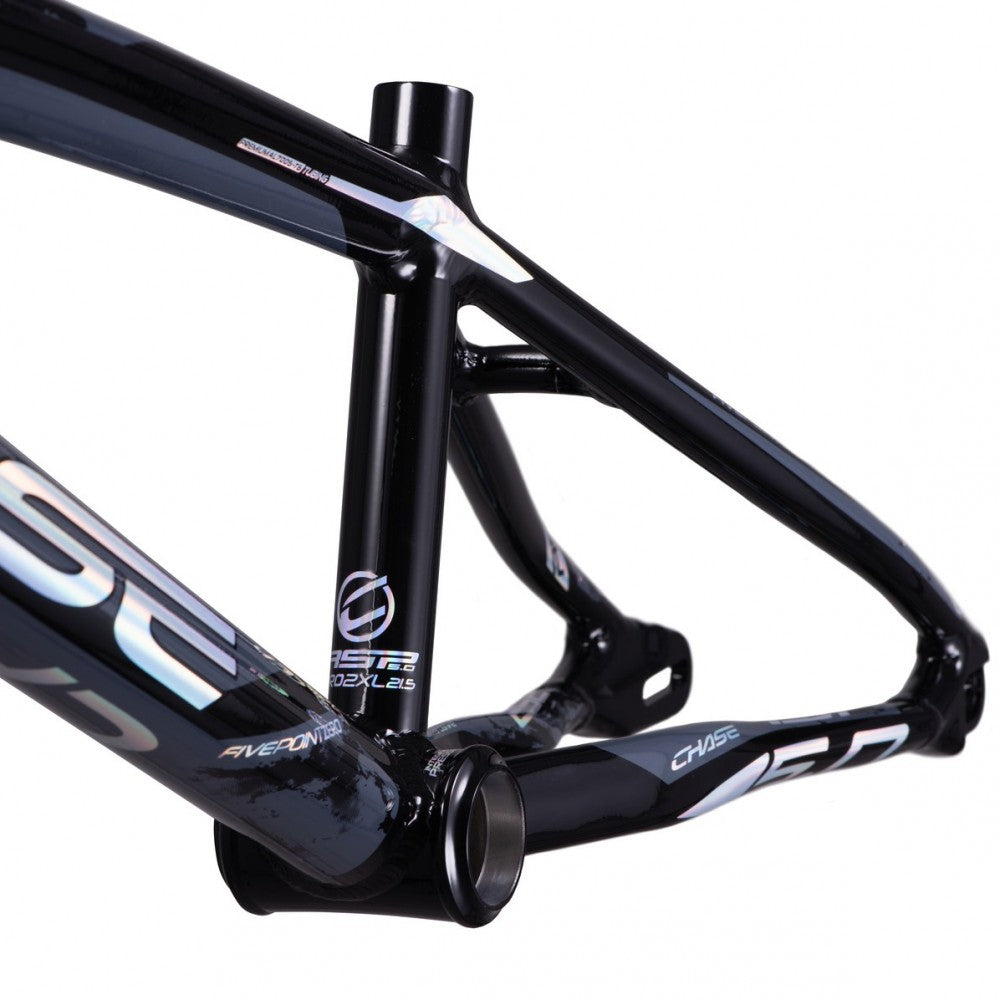

Press Fit bottom bracket shell: the bearings sit in cups that press into the frame, so there are no BB threads to damage.

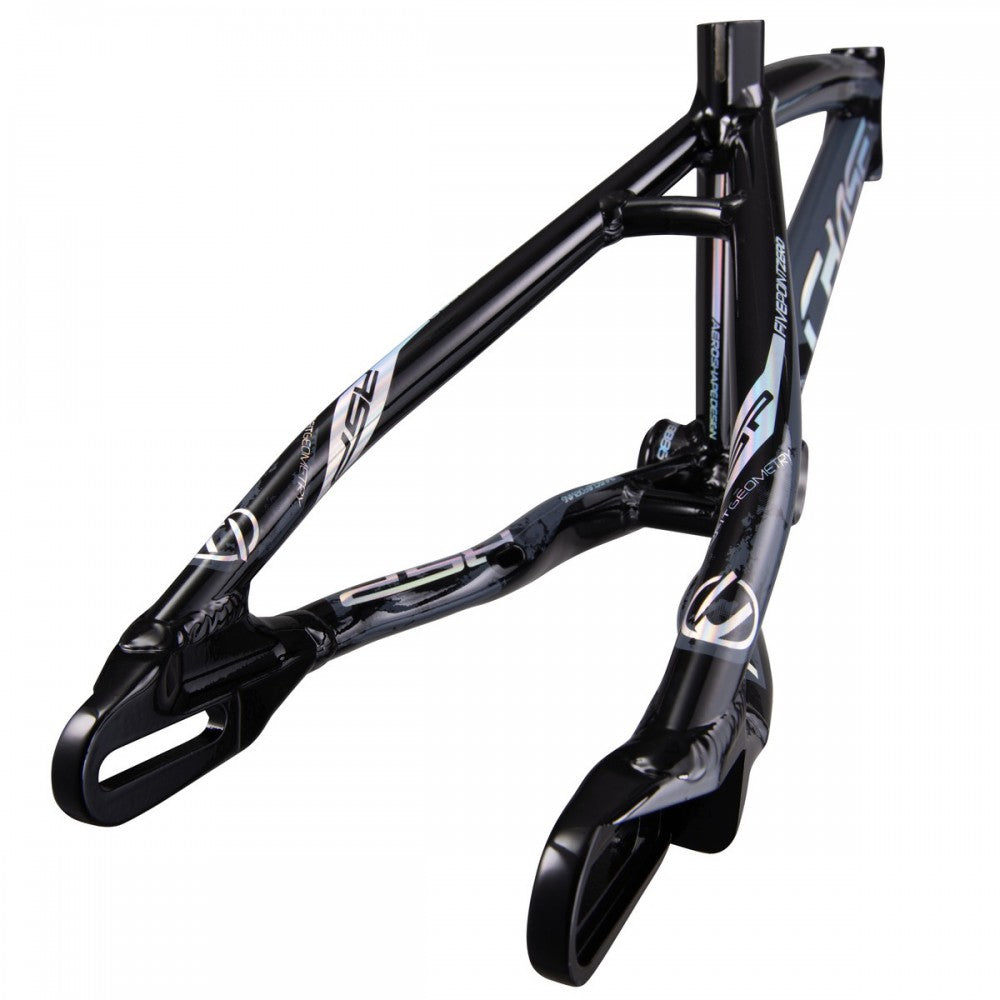

Fully enclosed, extra long (2.3" or 60mm) 10mm dropout slot with a built-in alloy tensioner, so you can use the full length of the dropout.

Internal cable routing from the head tube, through the down tube and bottom bracket, exiting the chain stay (bottom of the down tube on small sizes). Protects the brake line and graphics from rub.

Geometry

Frame weights are measured exactly as the frame arrives: with paint, decals and clear coat.

Please note: non-silicone-based brake fluid acts like paint thinner and can make paint and decals peel. Do not let brake fluid touch any part of the bike.

Chase RSP 5.0 Hydraulic Brake Housing Routing Visual Guide - Standard Housing

How to insert and route hydraulic brake housing into the RSP 5.0 frame using an old brake cable, housing and some lube.

Chase RSP 5.0 Hydraulic Brake Housing Routing Visual Guide - Housing with Banjo

How to insert and route hydraulic brake housing with a banjo into the RSP 5.0 frame.
