Product Description

Overview

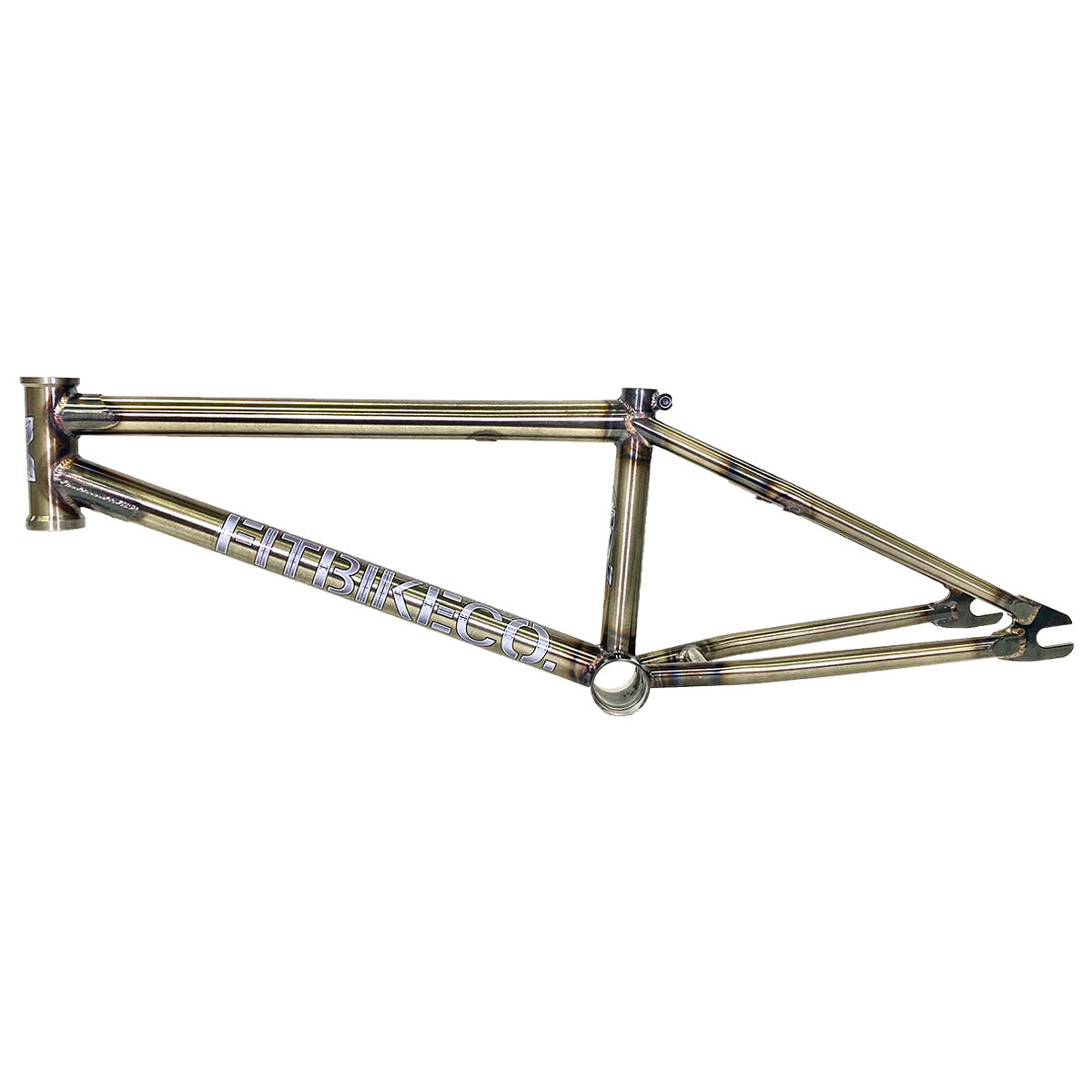

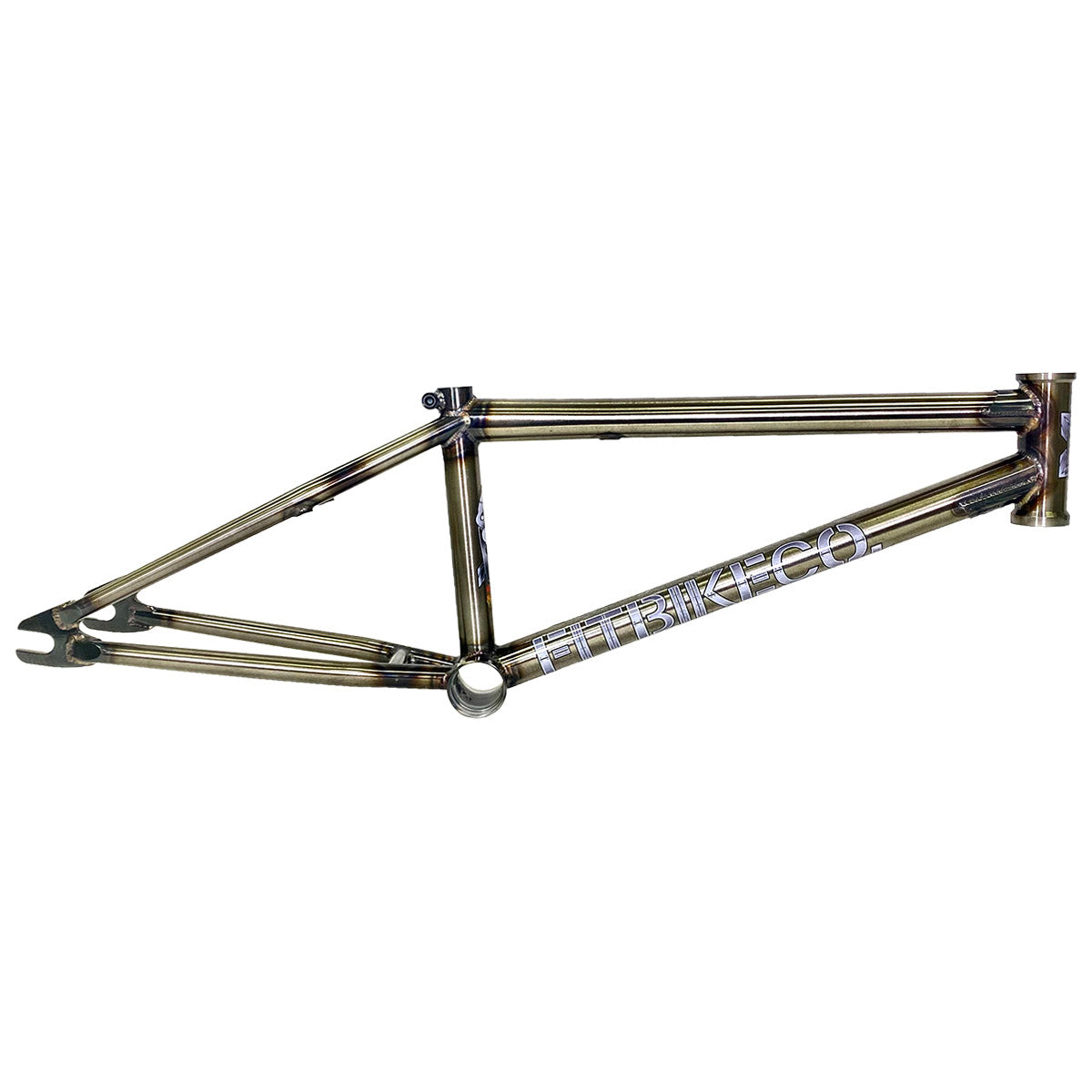

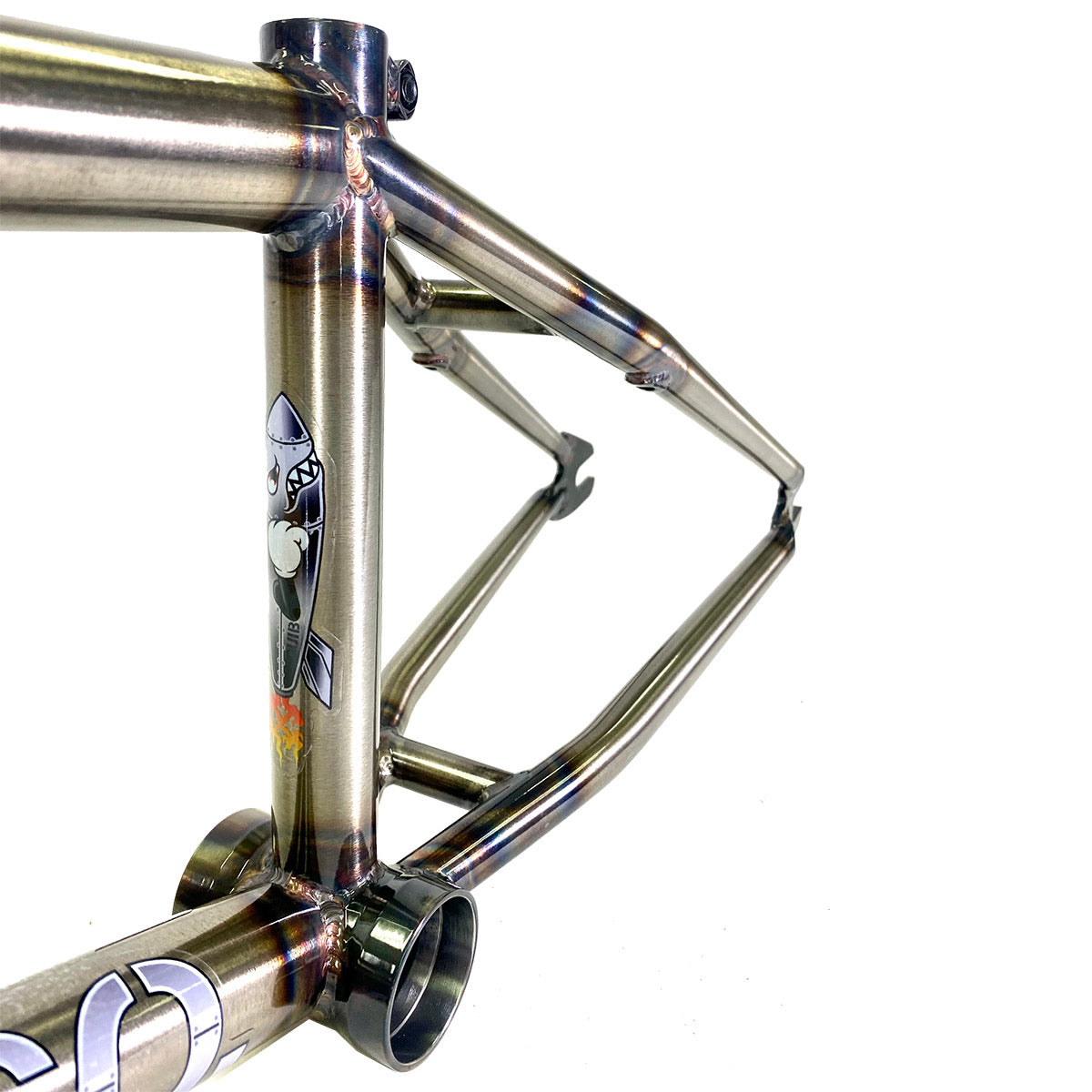

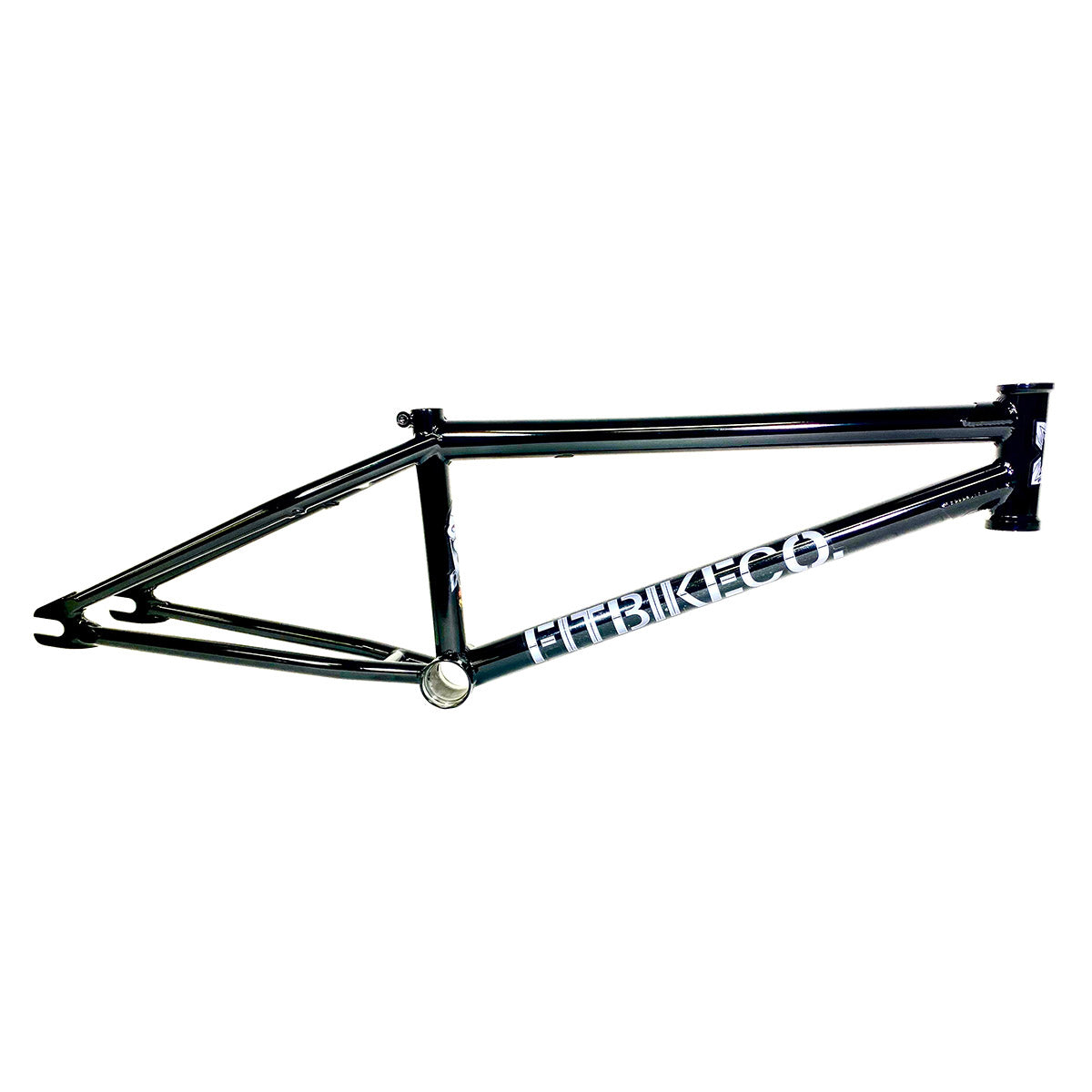

The Fit Squib 18" is a scaled-down version of Shane Halahan's signature frame, designed specifically for younger riders tackling trails, bowls, and high-speed riding. Built with all-chromoly construction and made in the USA, this frame features relaxed geometry with a 74.5° head tube angle for stable handling and control. The integrated seat clamp and mid bottom bracket setup provide a clean, durable platform for aggressive riding.

Key Features

• All-chromoly construction – Full chromoly tubing throughout the frame provides strength and impact resistance while keeping weight manageable for smaller riders
• Relaxed geometry – 74.5° head tube angle and stable dimensions make the bike predictable and easy to control at speed or in the air

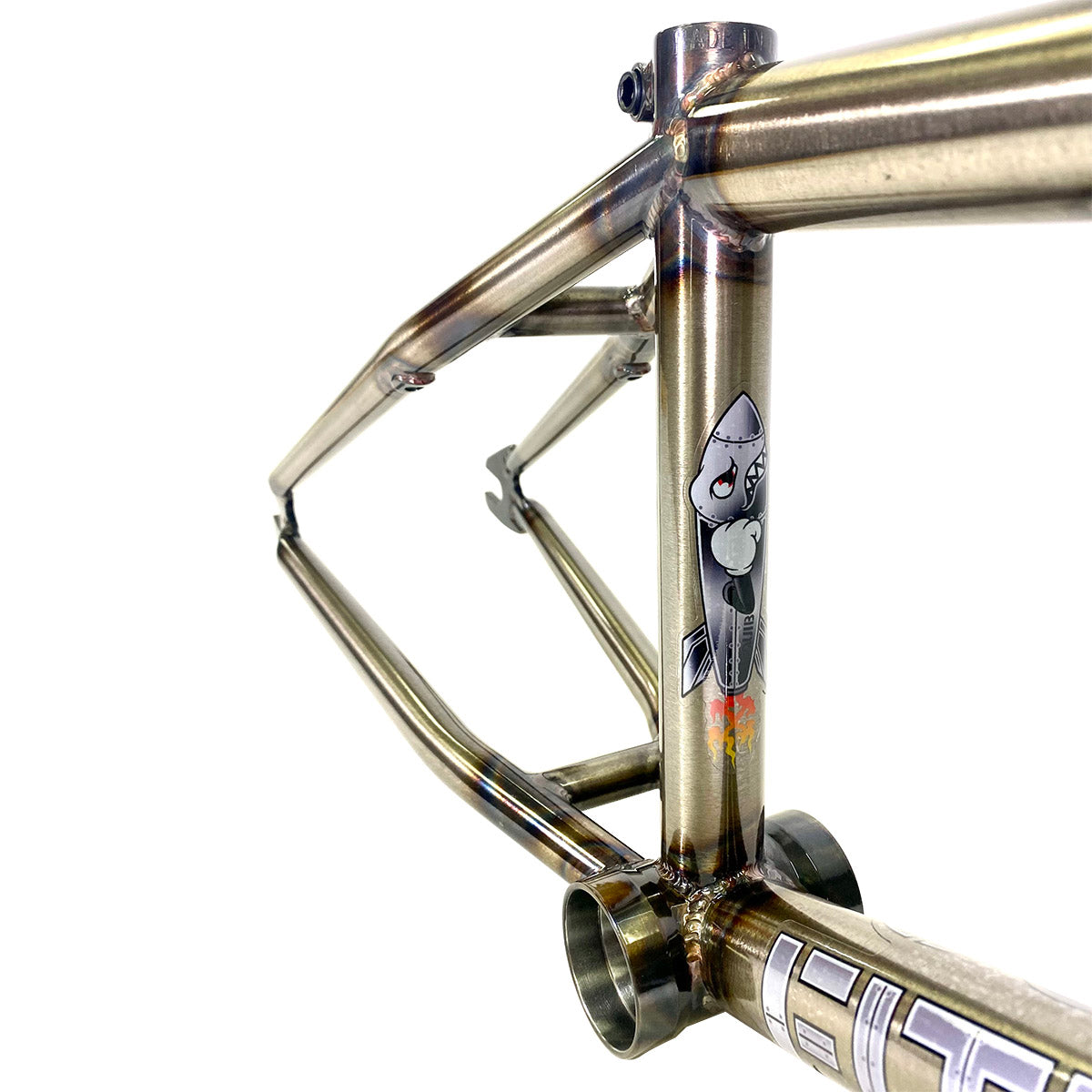

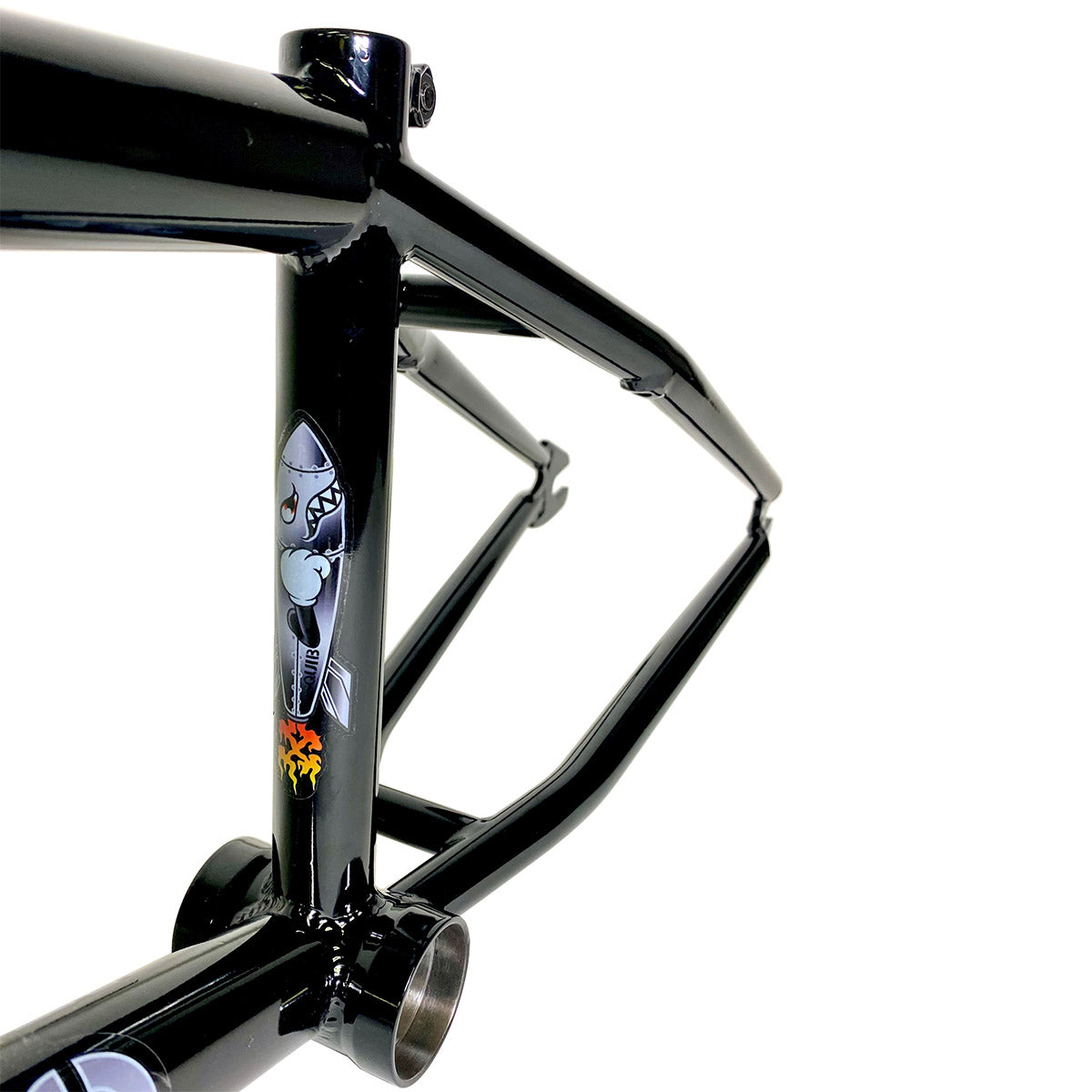

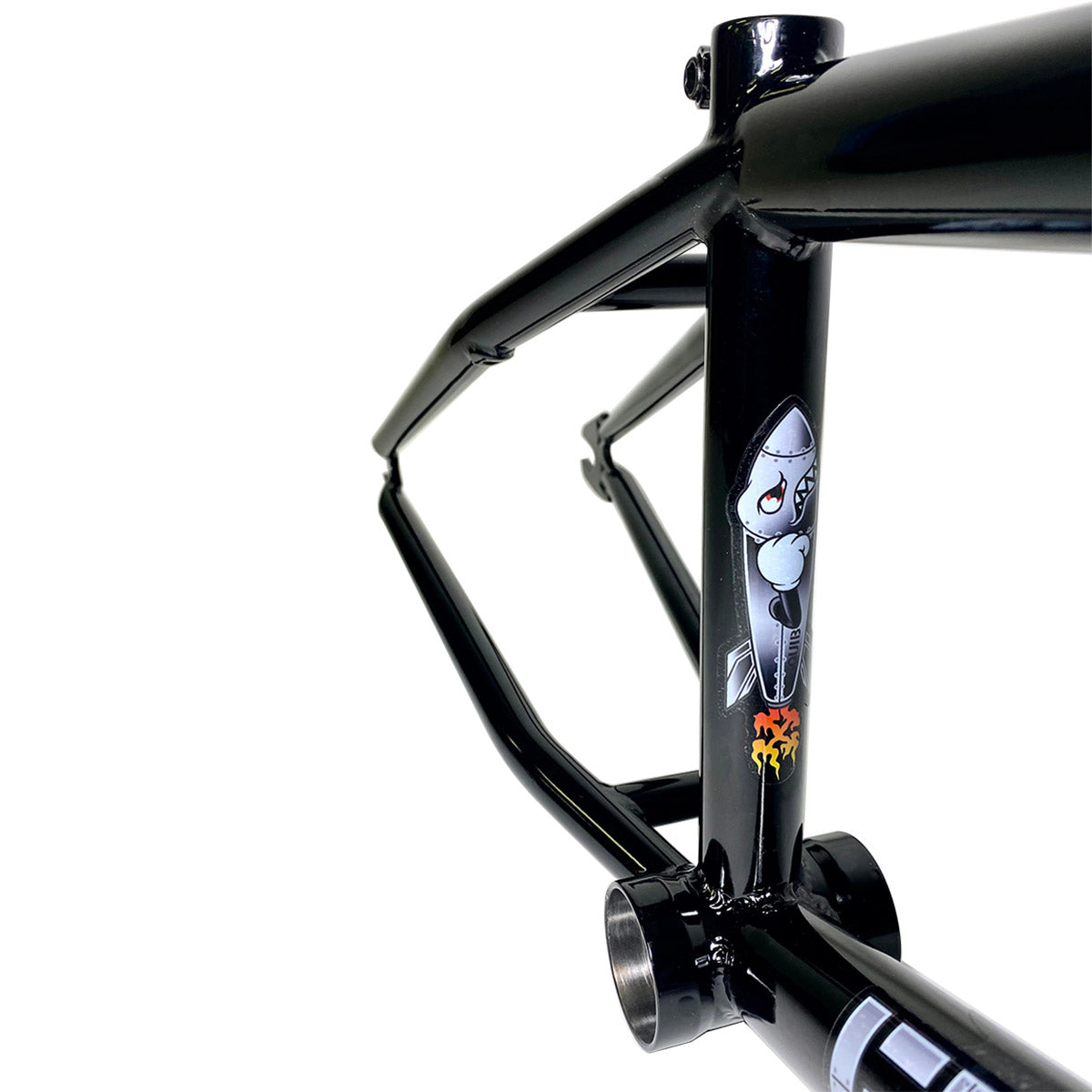

• Integrated seat clamp – Built-in clamp eliminates separate hardware for cleaner lines and reduced weight
• Mid bottom bracket – Lower center of gravity improves stability and makes pedaling more efficient for younger riders
• 14mm dropouts with 4Q baking – Heat-treated dropouts increase hardness and durability to withstand repeated impacts and prevent axle indentation
• Removable seat stay 990 brake mounts – Allows riders to run rear brakes or remove mounts for a cleaner brakeless setup
• Made in the USA – Domestic manufacturing ensures consistent quality control and frame construction standards

Technical Specifications

• Size: 18" top tube
• Rear end length: 12.4"
• Head tube angle: 74.5°
• Seat tube angle: 71°
• Seat clamp: Integrated
• Bottom bracket height: 10.5"
• Standover height: 8"

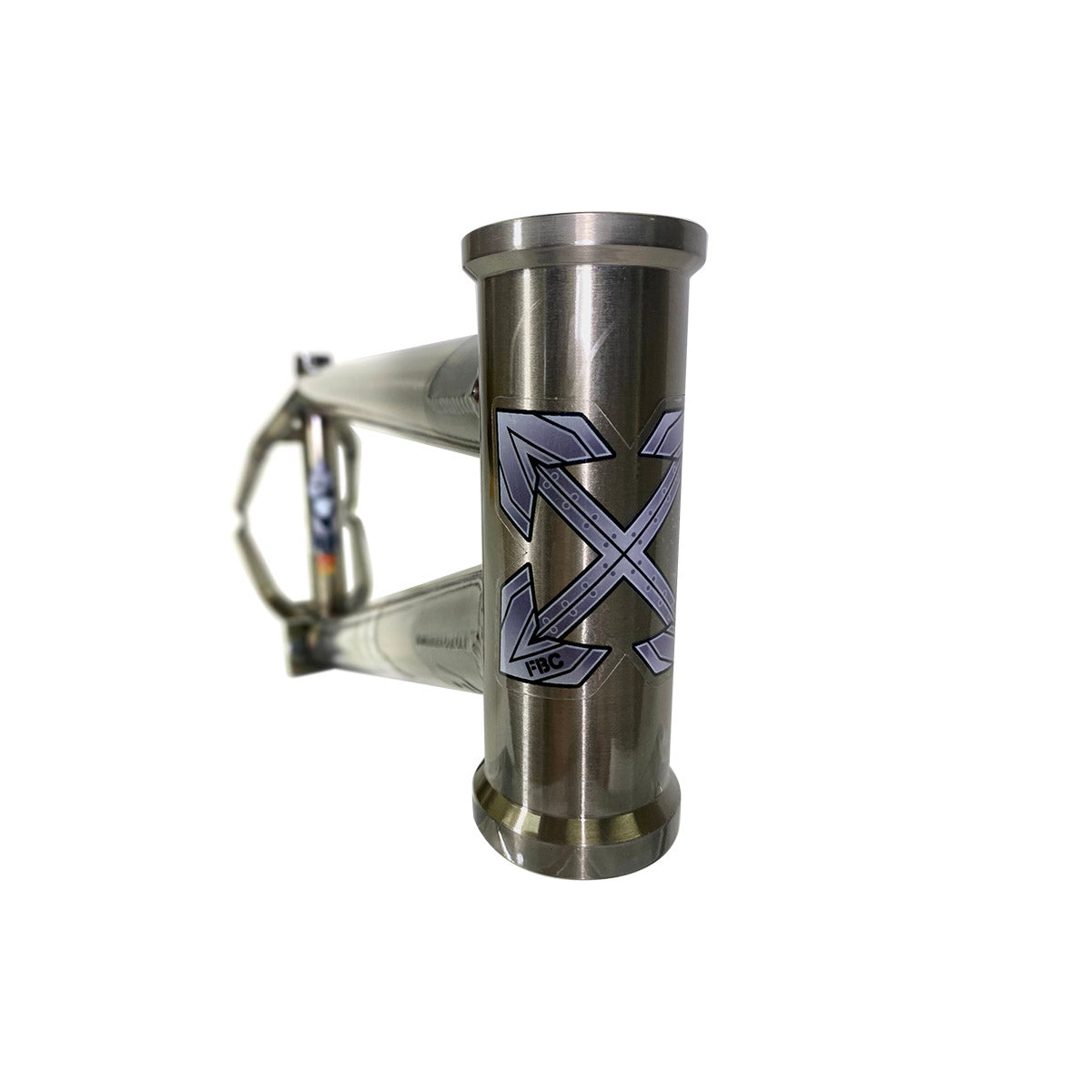

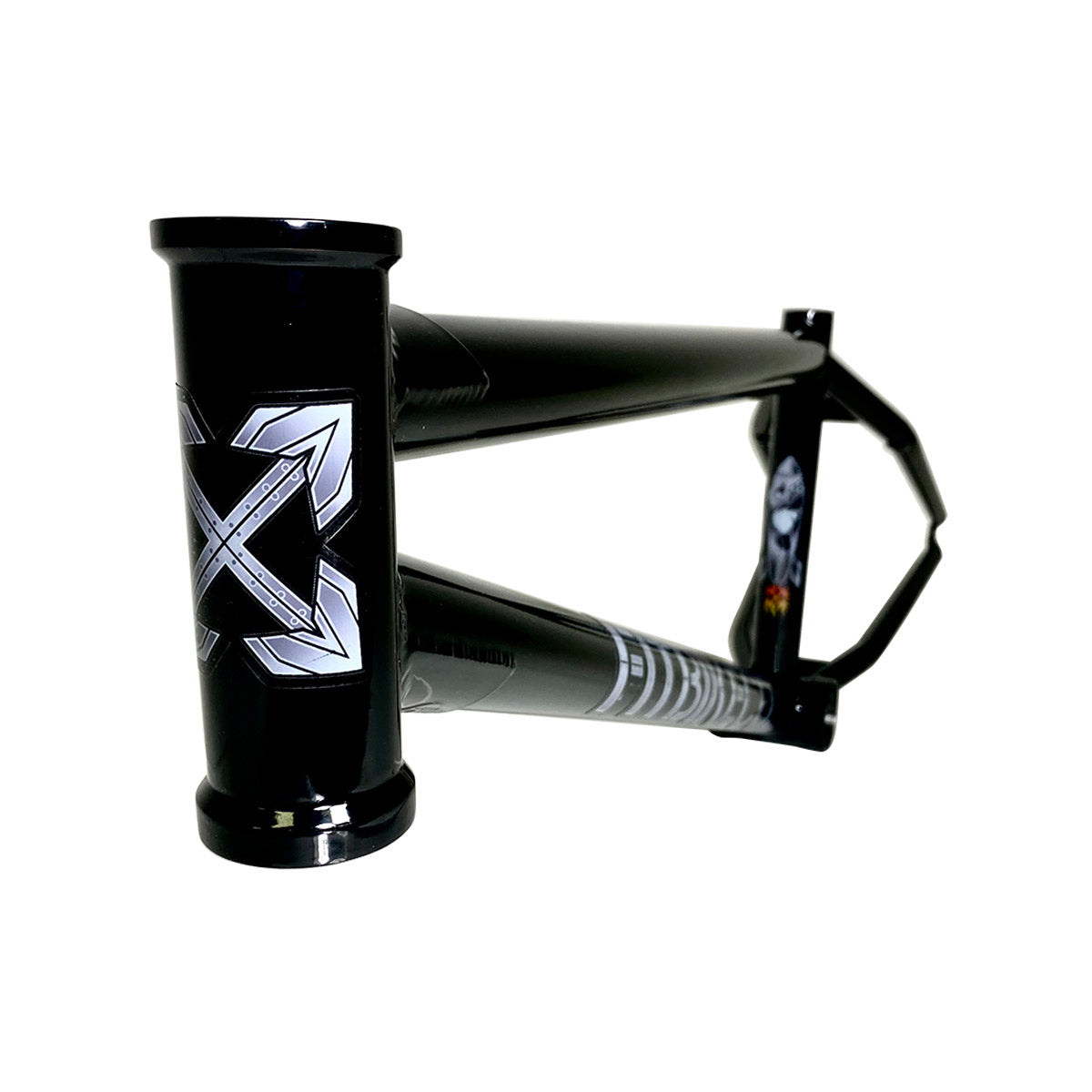

• Head tube: Integrated
• Bottom bracket type: Mid
• Dropouts: 14mm, 4Q baked
• Brake mounts: Removable seat stay 990
• Gyro tabs: None
• Weight: 4.55 lbs (2.06 kg)
• Material: 100% chromoly

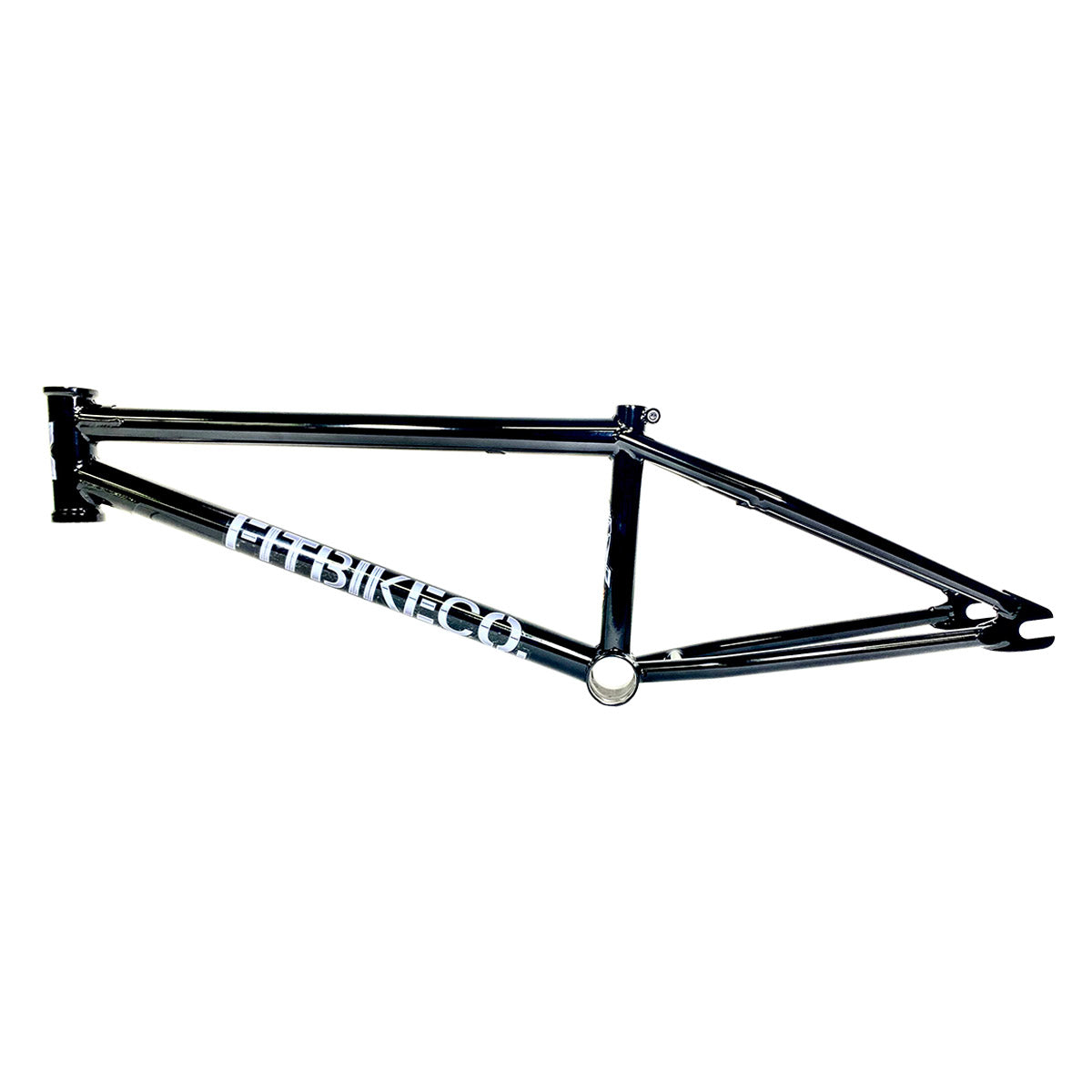

• Color: Jet Black

Compatibility and Ideal Use Cases

This frame is designed for younger or smaller riders typically between 6-10 years old, depending on height and riding ability. Requires an integrated headset, mid bottom bracket, and 14mm rear axle. Compatible with 990-style rear brakes (mounts are removable). Not compatible with gyro brake systems. Best suited for kids progressing beyond beginner bikes who are ready for trails, pump tracks, dirt jumps, and bowl riding. The stable geometry and durable construction make it ideal for riders learning to jump and ride more aggressively while still developing bike control skills.
