1 4
INSPYRE

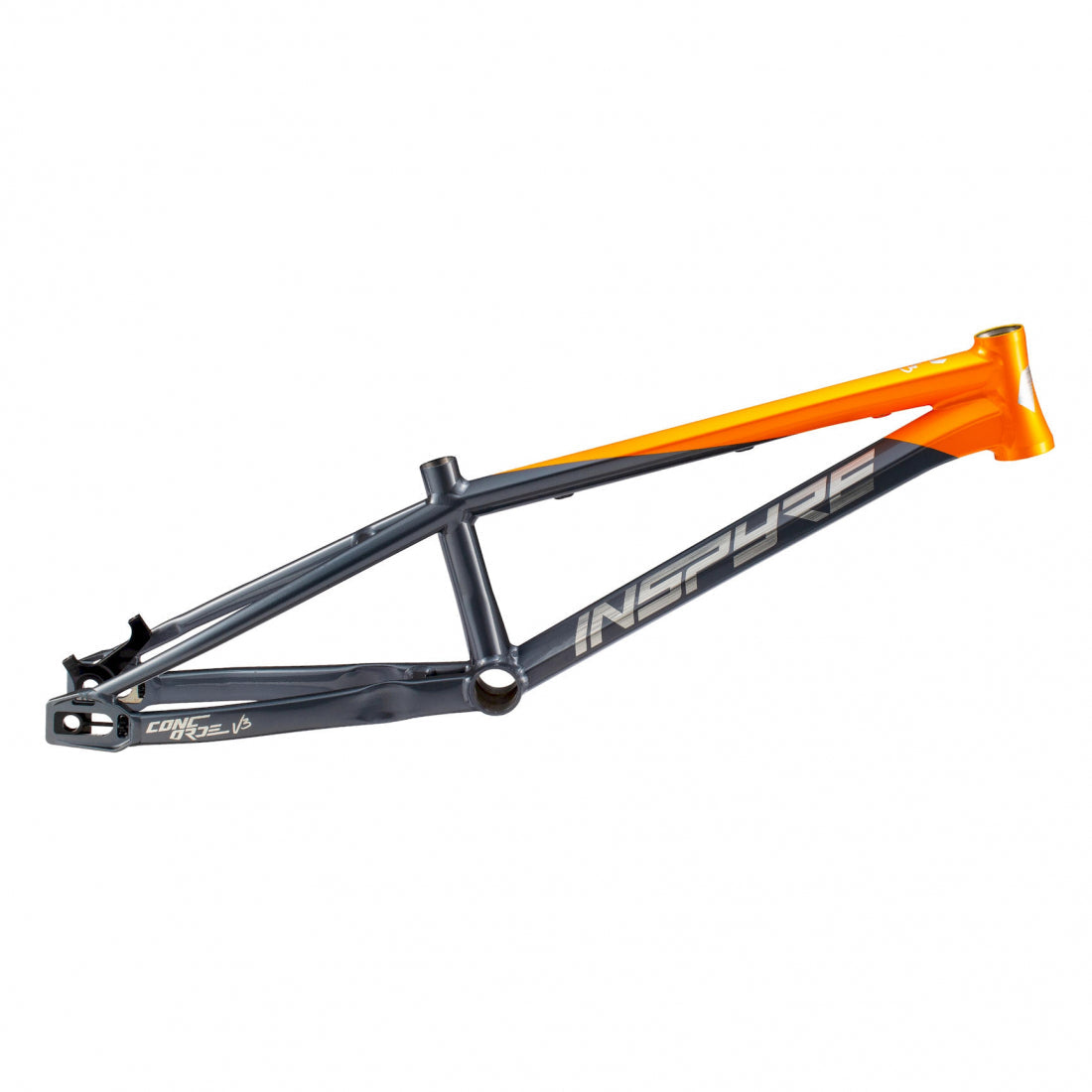

Inspyre Concord V3 Alloy Bmx Race Frame-orange/Gun Metal

$724.95
Shipping calculated at checkout.
Size
{}

Description

Inspyre Concord V3 Alloy BMX Race Frame-Orange/Gun Metal is engineered for competitive track performance. Its hydroformed construction with strategically varied wall thickness minimizes weight while maximizing lateral and torsional rigidity translating to responsive acceleration and predictable cornering. The frame's size-specific geometry and precision welding ensure consistent power transfer and handling characteristics across multiple laps. Designed for riders demanding reliability and speed, this frame delivers the stiffness necessary for competitive gate drops and technical line execution.

Fork sold separately.

Image for reference only. Your order will be fulfilled with the selected size.

FEATURES

  • AL66 aluminum frame
  • Hydroformed multi-thickness tubing
  • IS 45x45 headset compatibility
  • Oversized rear stays
  • SWELL V2 adjustable dropouts
  • Post Mount disc brake compatible
  • 15 mm thru-axle ready (sold separately)
  • Fork sold separately

GEOMETRY

CONCORDE V3 RIDER AREA DOWNTUBE TOP TUBE CHAINSTAYS HEAD ANGLE SEAT ANGLE BB DROP HEADTUBE LENGTH FORK HEIGHT FORK RAKE WHEELBASE
A B C D E F G H I J K
mm mm Inches mm Inches
(min / max)		 mm
(min / max)		 ° ° mm ° mm mm mm
(min / max)

Junior
526
480
18,45
469
13.3 / 14.3
337 / 362
73°
70°
3,7
110
309
30
845 / 870

Expert
544
505
19,50
495
13.3 / 14.3
337 / 362
73°
71°
16,4
110
309
30
883 / 908

Expert XL
559
520
20,20
513
13.3 / 14.3
337 / 362
73°
71°
16,4
110
309
30
901 / 926

Pro
563
528
20,65
525
14.2 / 15.2
360 / 385
74°
72°
45,4
115
309
30
940 / 965

Pro XL
575
542
21,25
540
14.4 / 15.4
365 / 390
74°
72°
45,4
115
309
30
961 / 986

Pro 2XL
585
553
21,75
552
14.7 / 15.7
373 / 398
74°
72°
45,4
115
309
30
981 / 1006

Pro 3XL
596
566
22,25
565
15.3 / 16.3
389 / 414
74°
72°
45,4
115
309
30
1012 / 1037

Pro 4XL
611
584
23,00
584
15.3 / 16.3
390 / 415
74°
72°
45,4
115
309
30
1033 / 1058

Pro XLCruiser
617
572
21,85
555
15 / 16
380 / 405
73.5°
70°
5
115
359
30
971 / 996
Pro XXL Cruiser 639 593 22.85 580
15.3 / 16.3
390 / 415
73.5°
70°
5
115
359
30
971 / 996



SPECIFICATIONS



 SEAT TUBE DIAMETER SEAT CLAMP DIAMETER BOTTOM BRACKET STYLE SHIS HEADTUBE STYLE SPROCKET SIZE (MAX) TIRE SIZE (MAX) DISC BRAKE STYLE AXLE WEIGHT
Junior
22.2mm
25.4mm
Euro BSA - 1.375’’ BC 24T - 68MM		 IS42 | IS42 - 45°
ø Bearing 41.8mm		 Integrated 1’’-1/8
110mm		 44T 20 x 1-3/8
Disc only

Post Mount

120MM
10mm or 15mm
1315g
Expert
1345g
Expert XL
1390g
Pro 31.6mm 34.9mm
PRESS FIT BB86		 IS42 | IS52 - 45°
ø Upper bearing 41.8mm
ø Lower bearing 51.9mm		 Integrated Tapered
115mm		 50T 20 x 1,85
NC
Pro XL
NC
Pro 2XL
NC
Pro 3XL
1550g
Pro 4XL
1646g
Pro XL Cruiser 44T 24 x 1,75
1713g
Pro 2XL Cruiser
Product Data
UPC/EAN:
