S&M BMX “Rea” Levenson Signature Frame

S&M BMX "Rea" Levenson Signature Frame

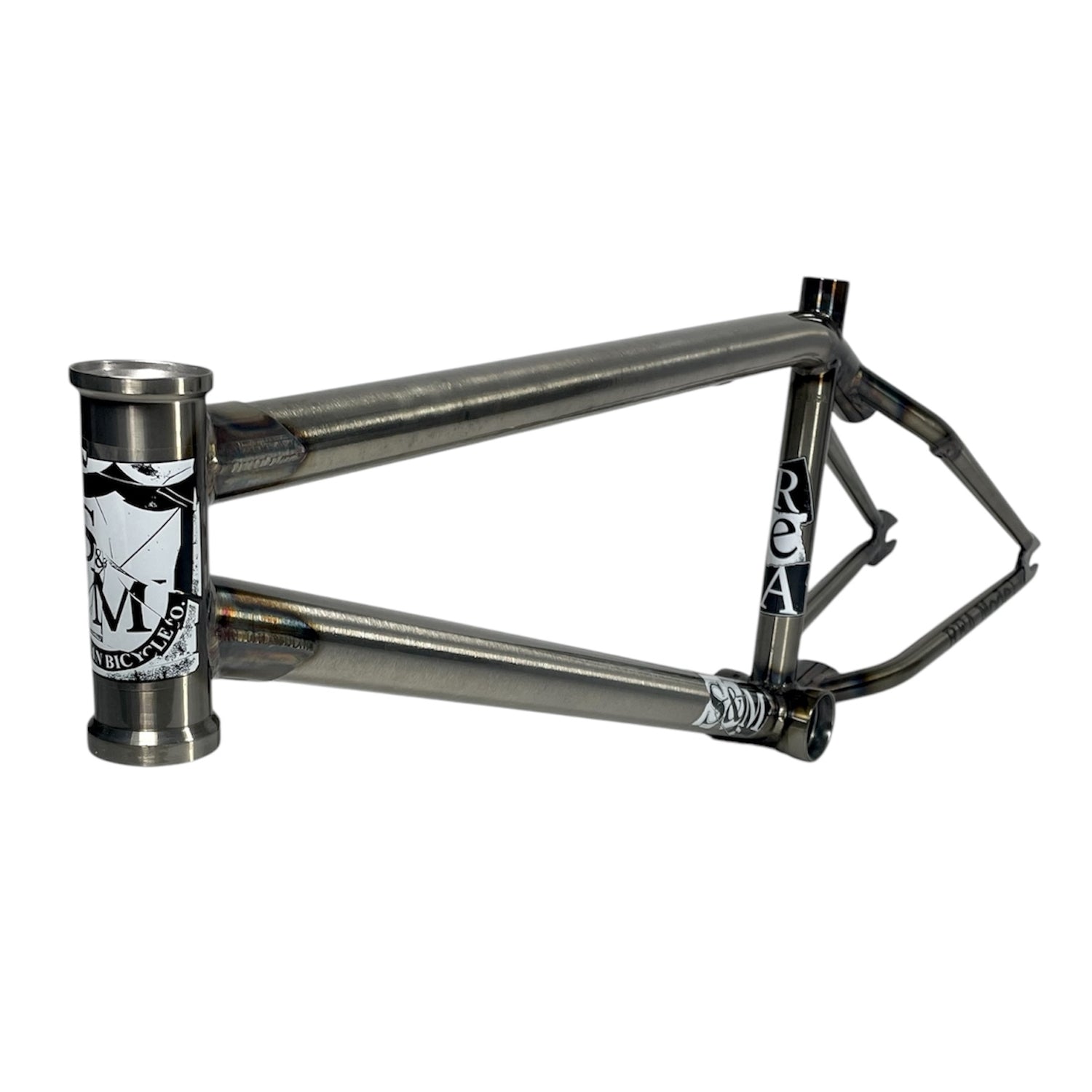

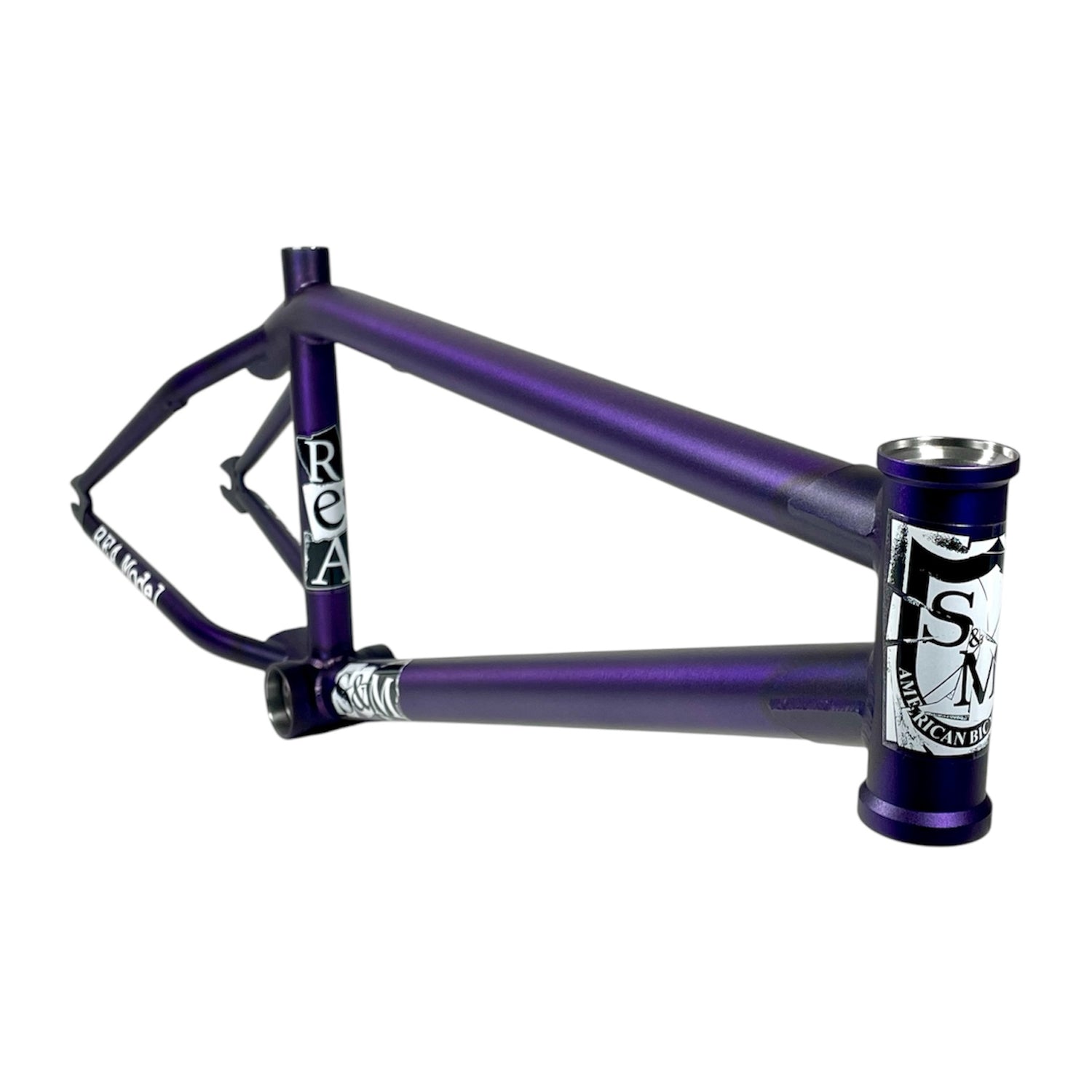

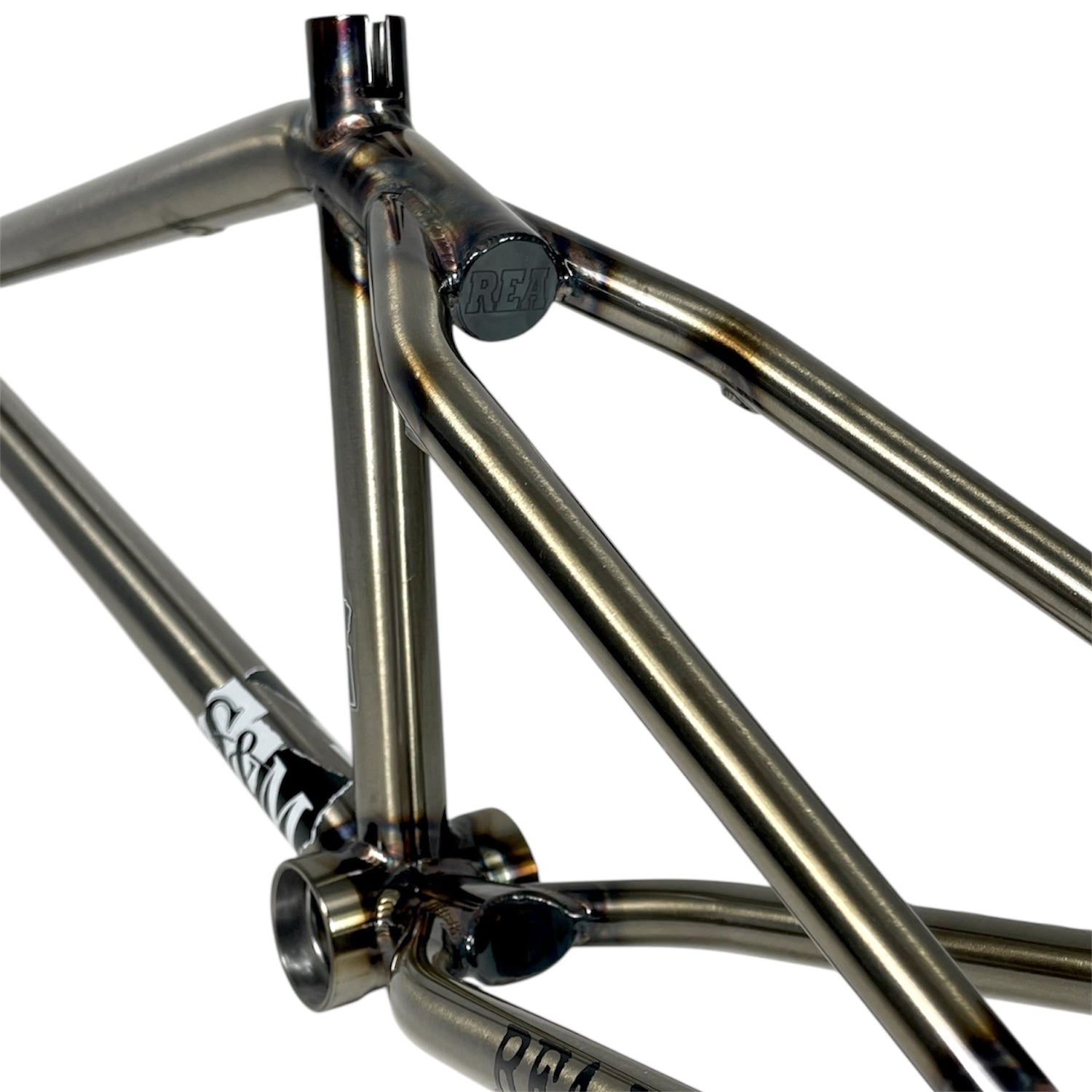

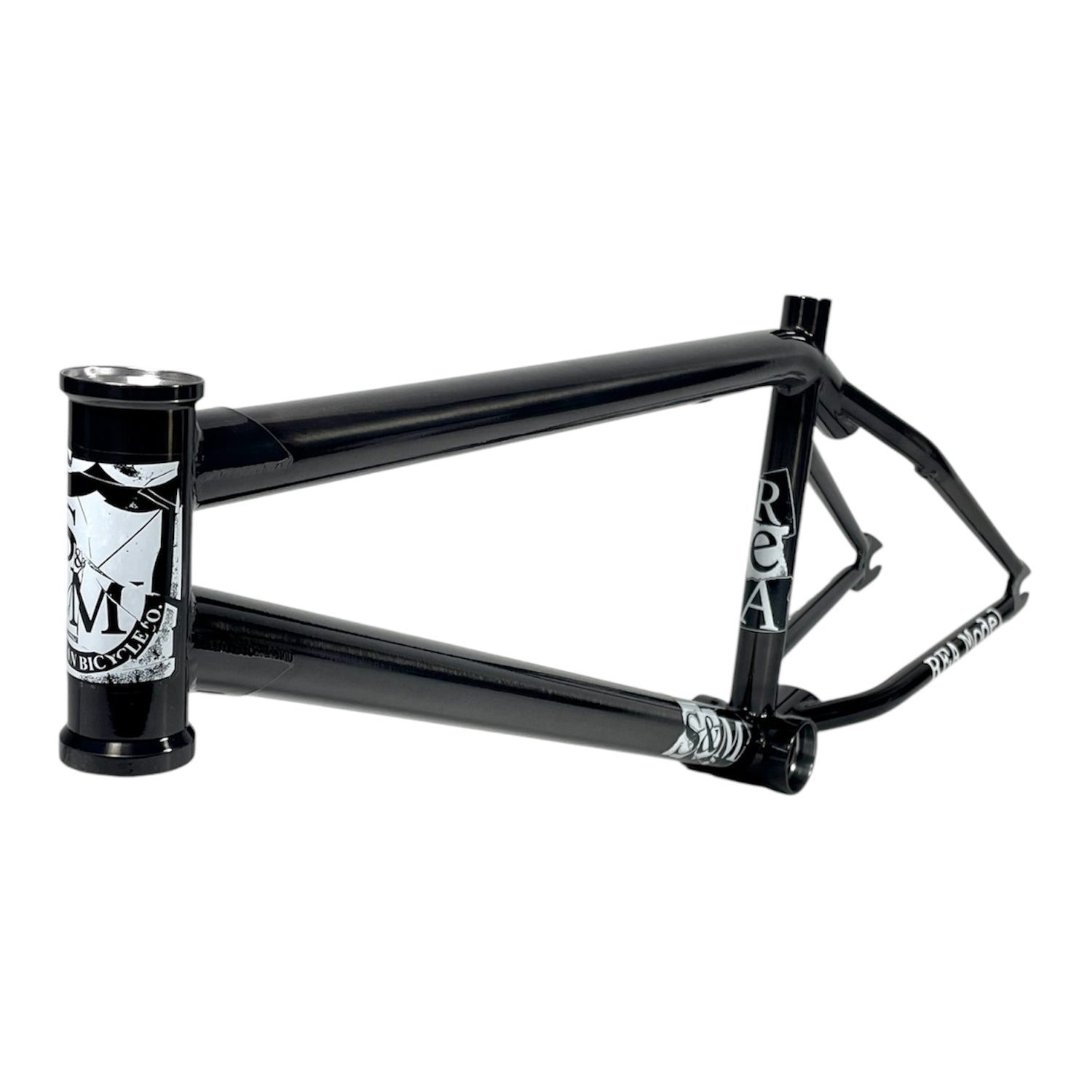

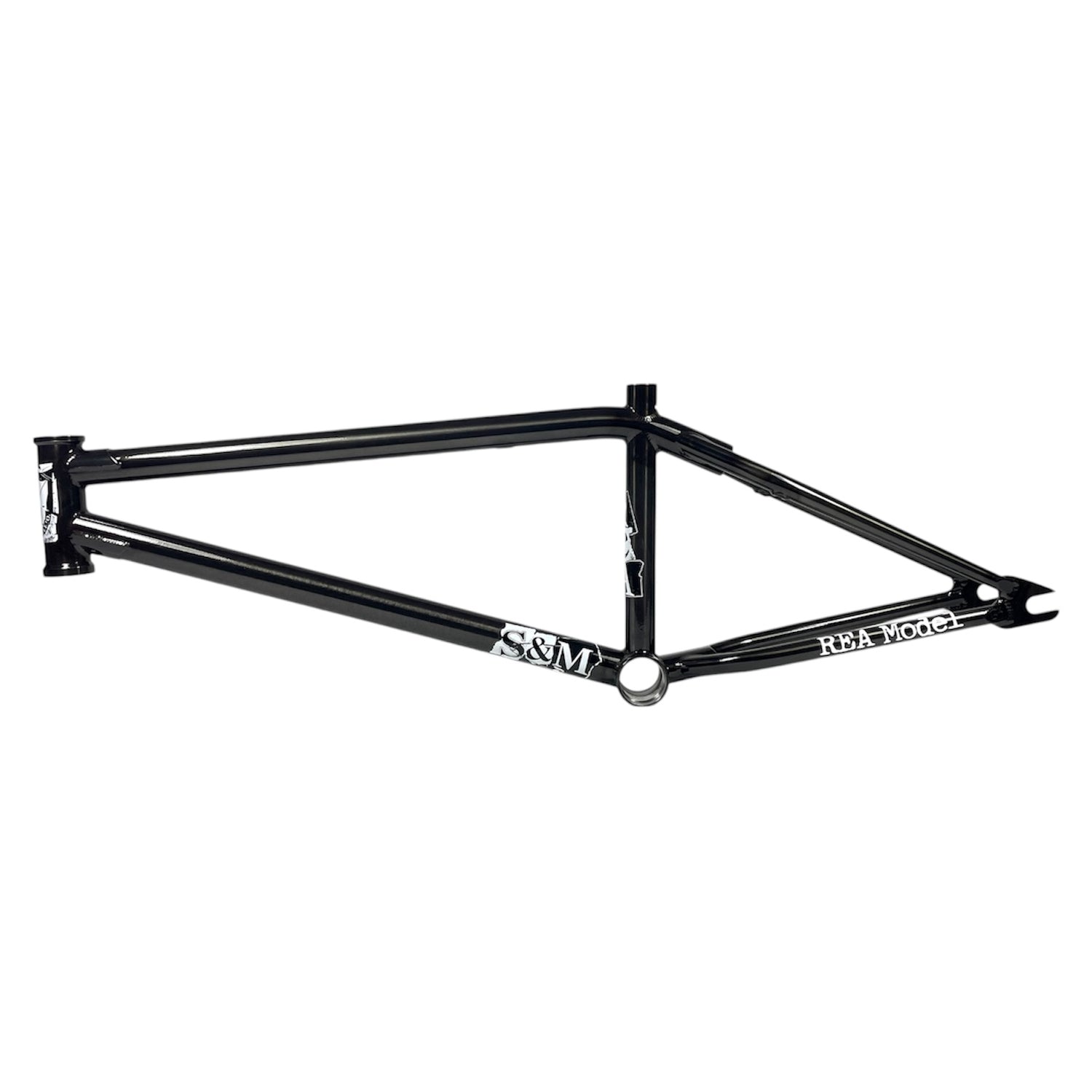

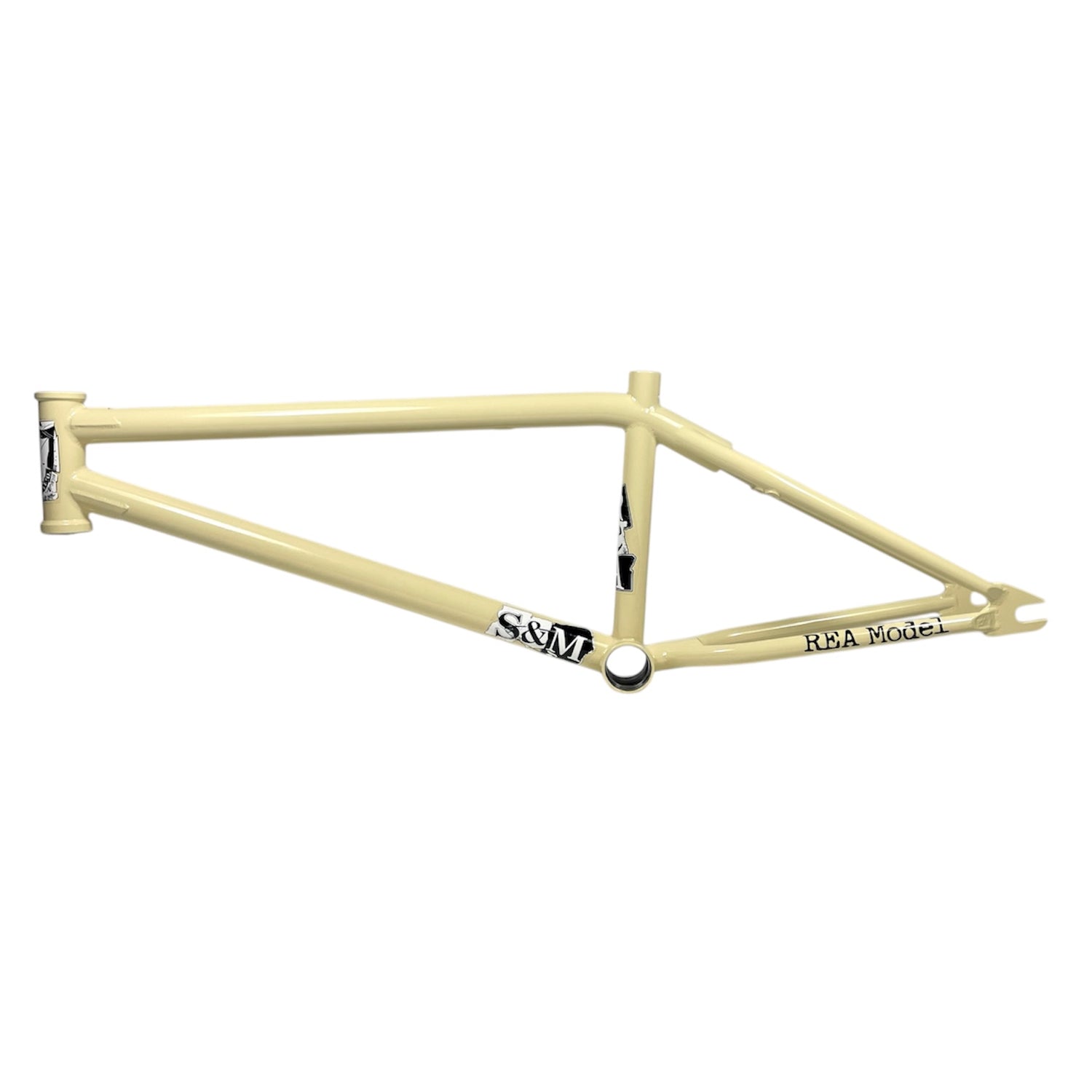

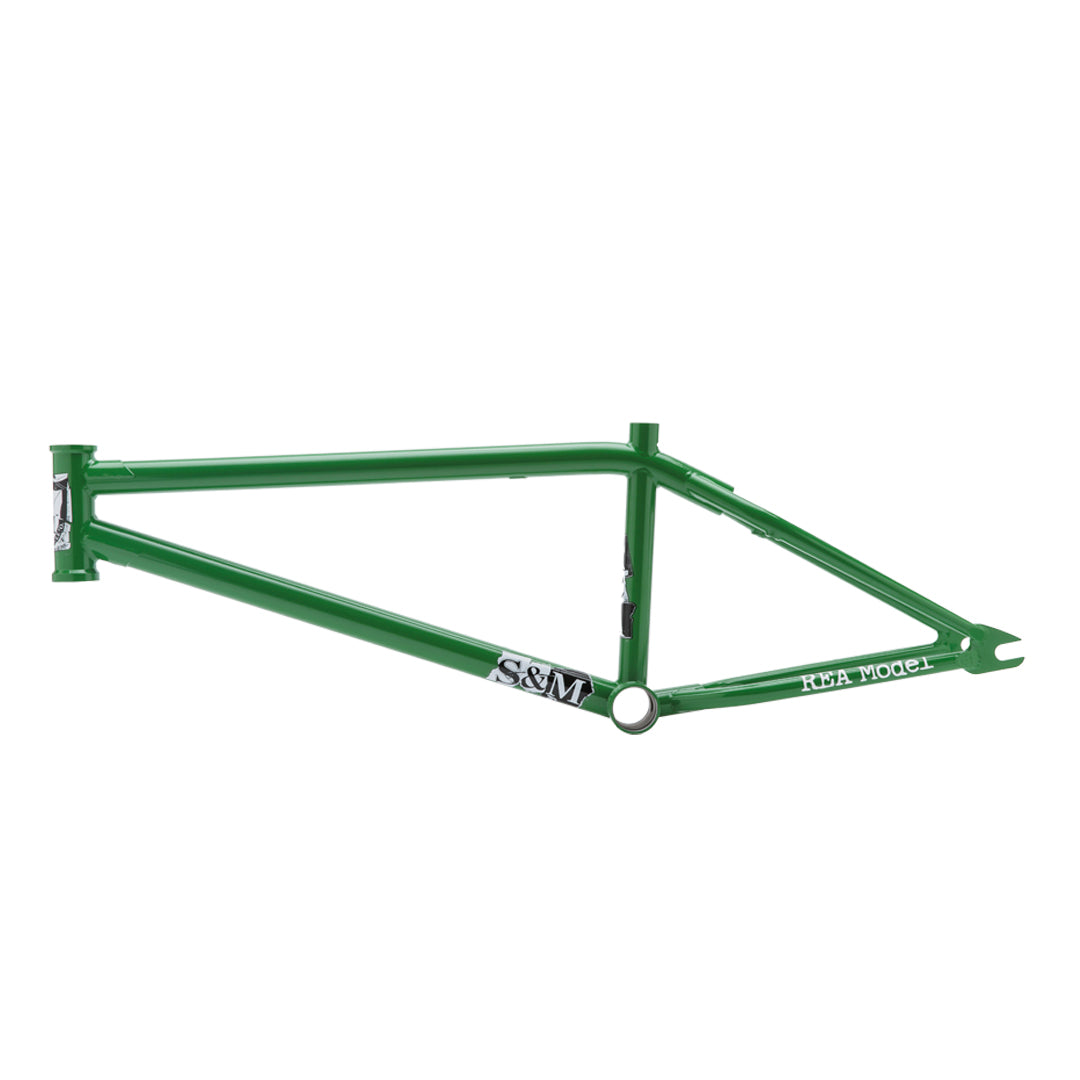

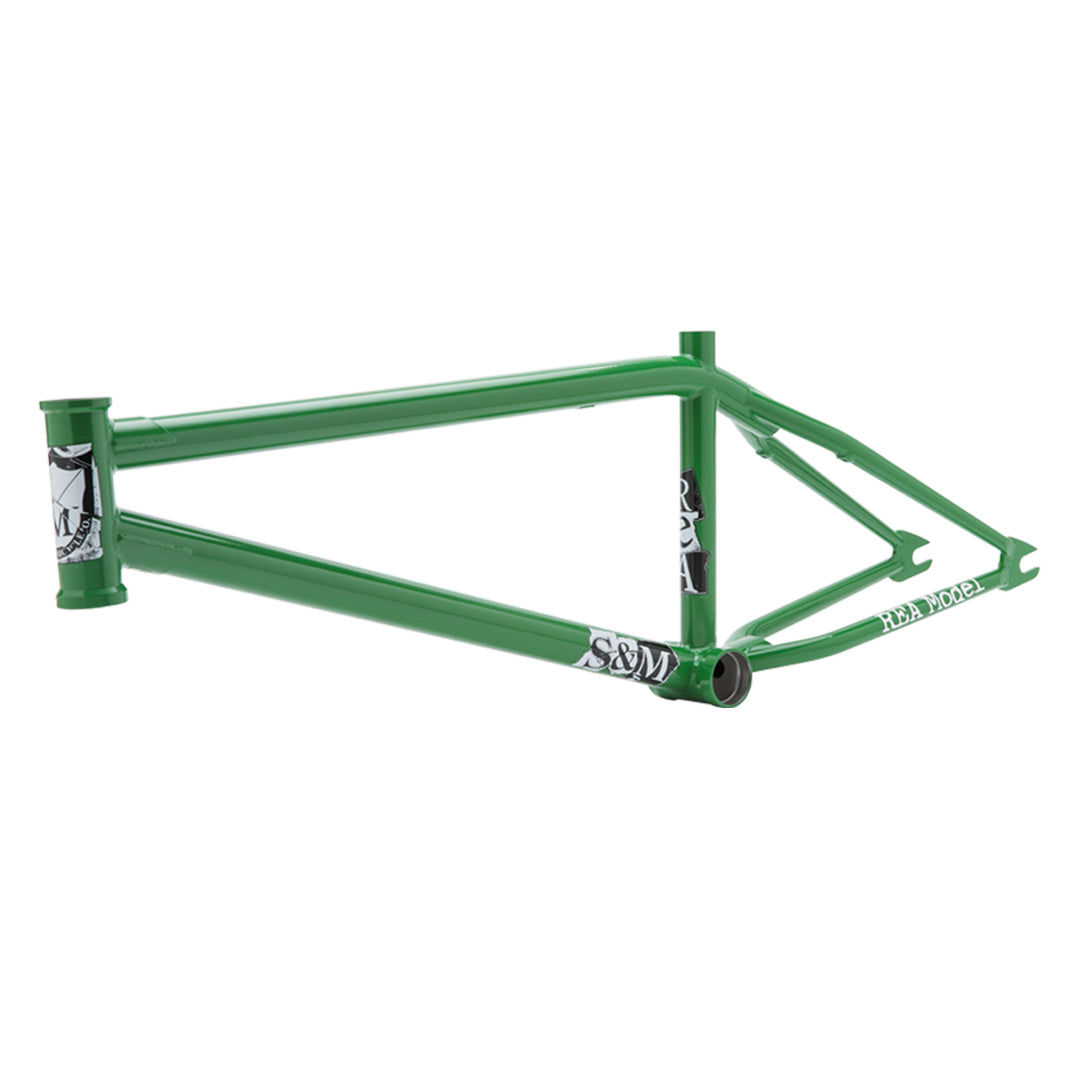

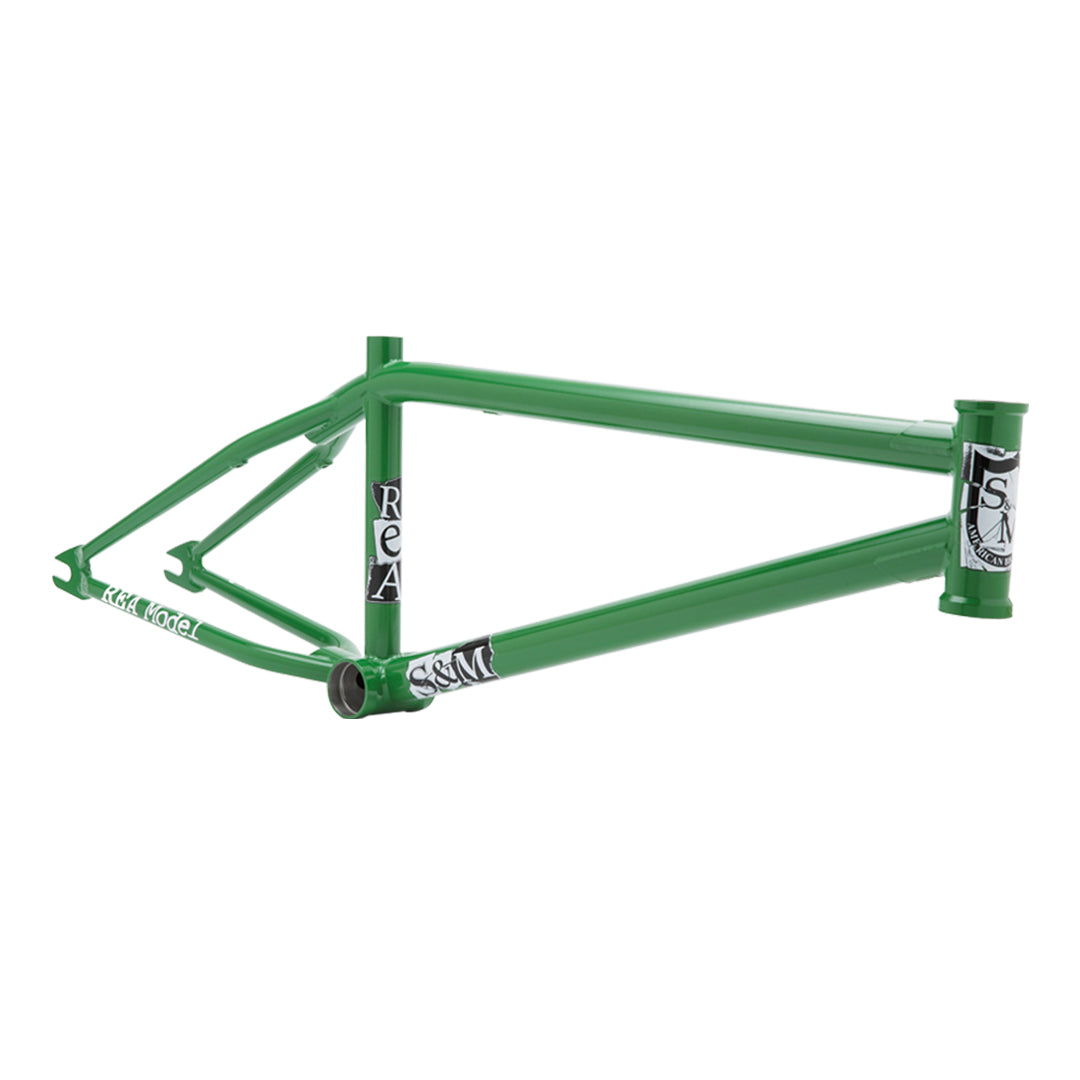

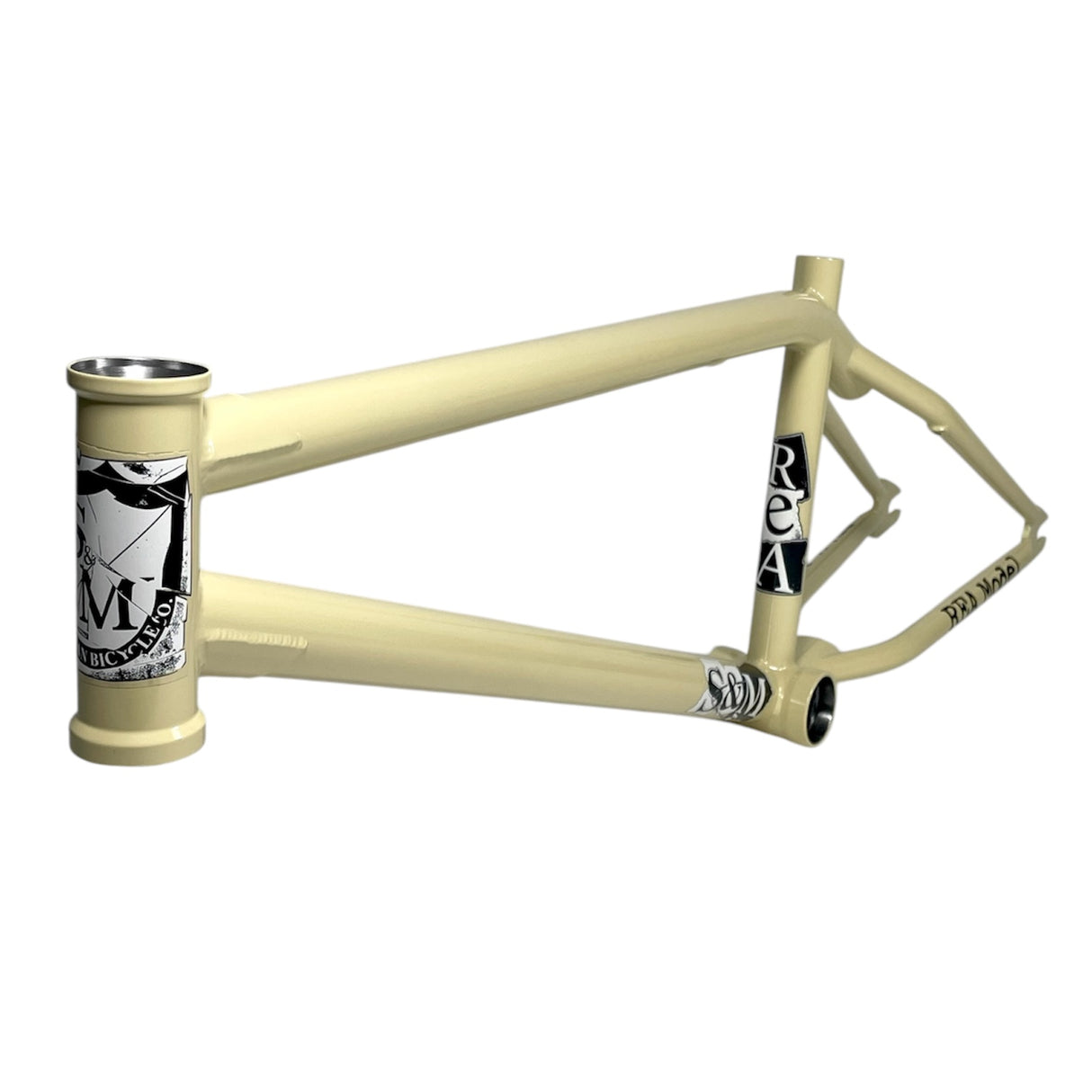

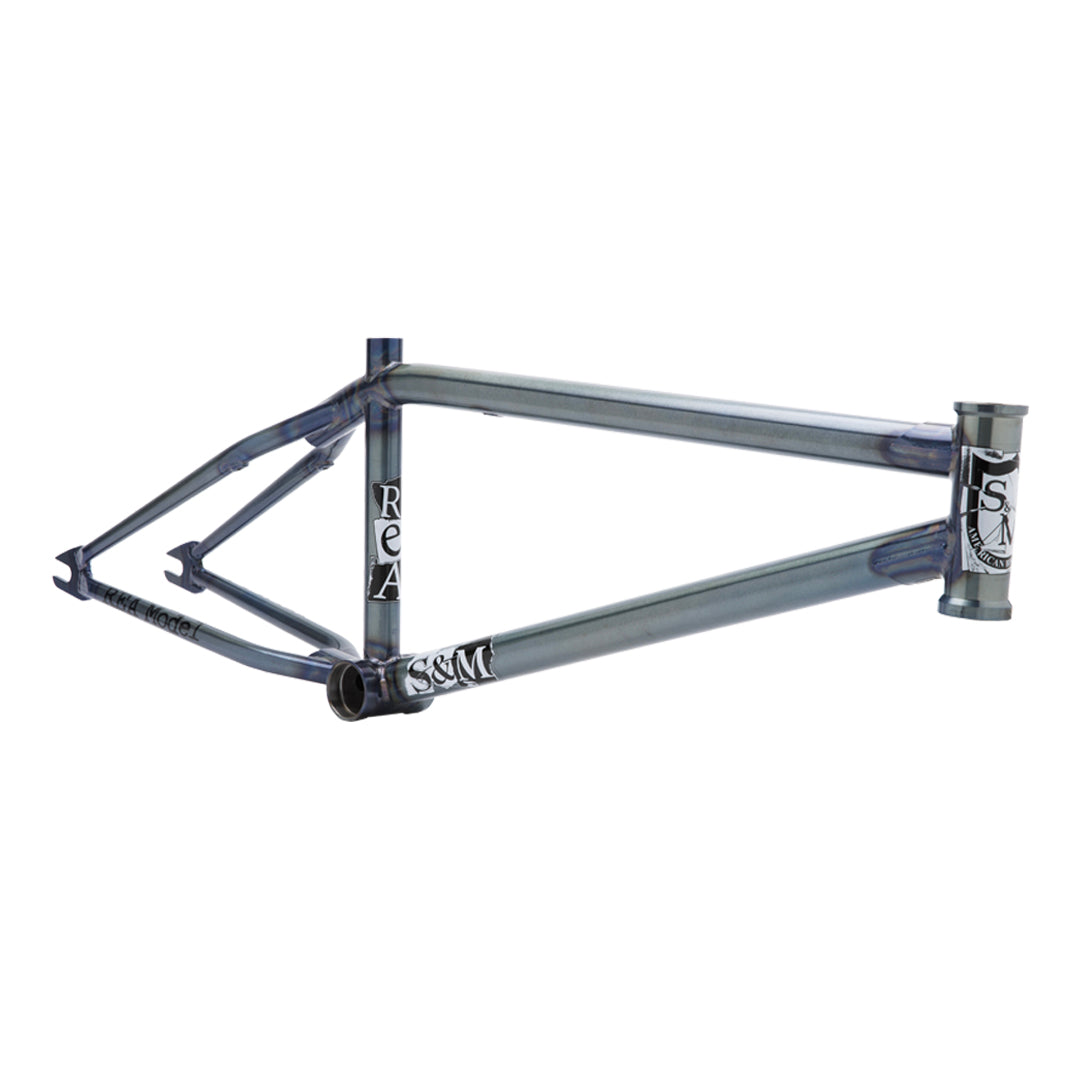

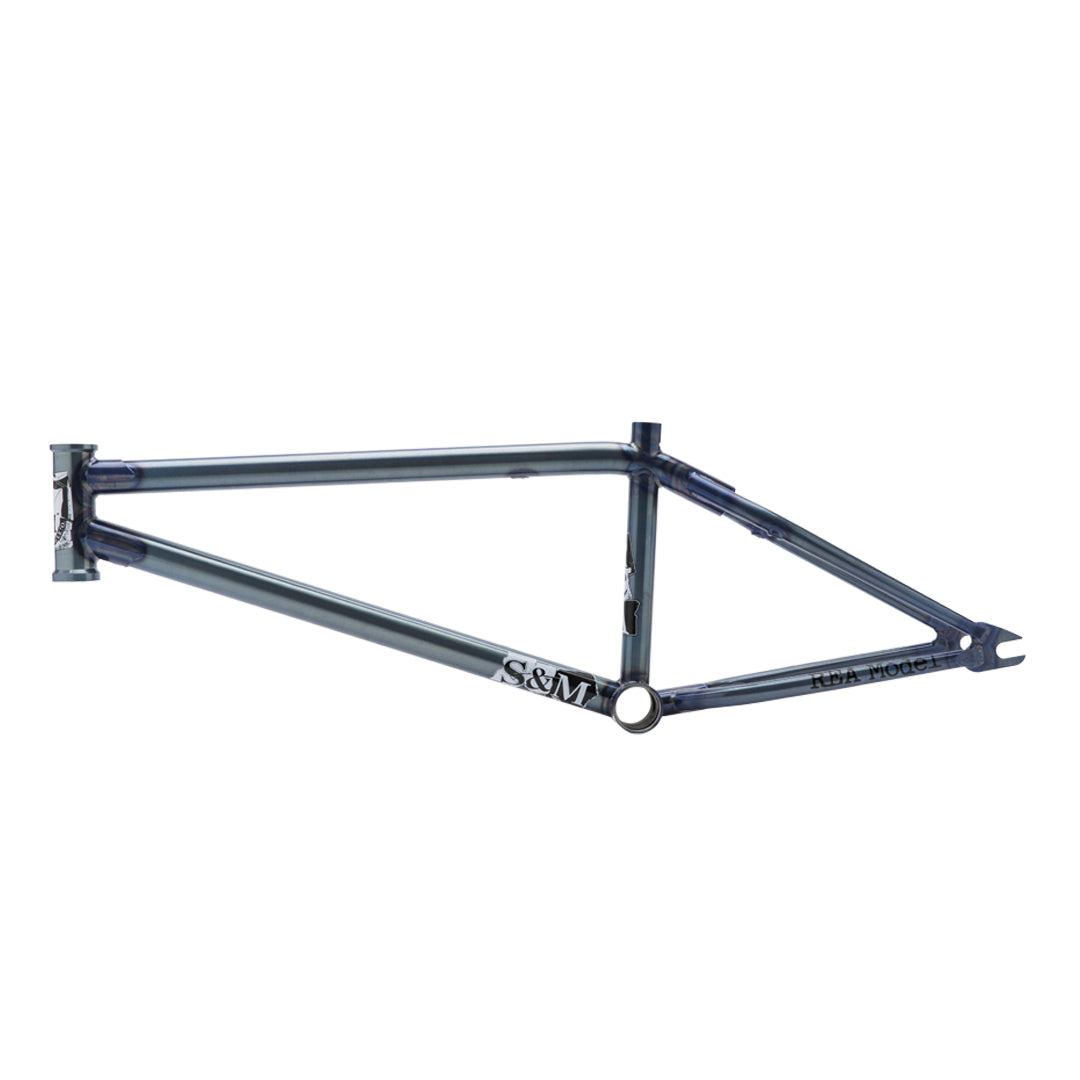

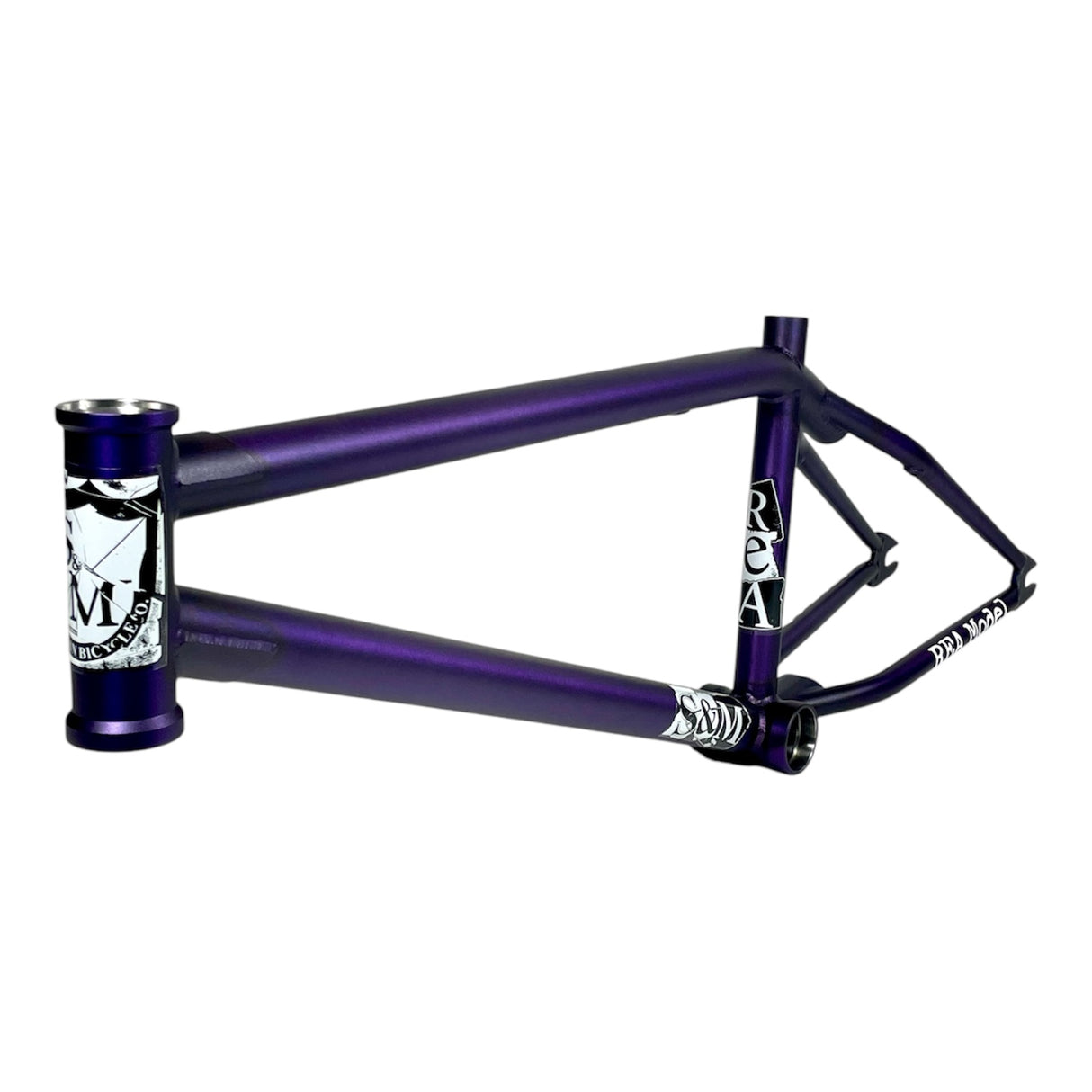

The S&M Rea frame is a versatile chromoly frame designed for street, park, and dirt riding. Designed by S&M team rider Aryei Levenson, it combines geometry from S&M's Black Magic and ATF frames with a double-wishbone rear end for strength and classic aesthetics. Made in the USA, this frame is built to handle varied terrain and riding styles.

Key Features

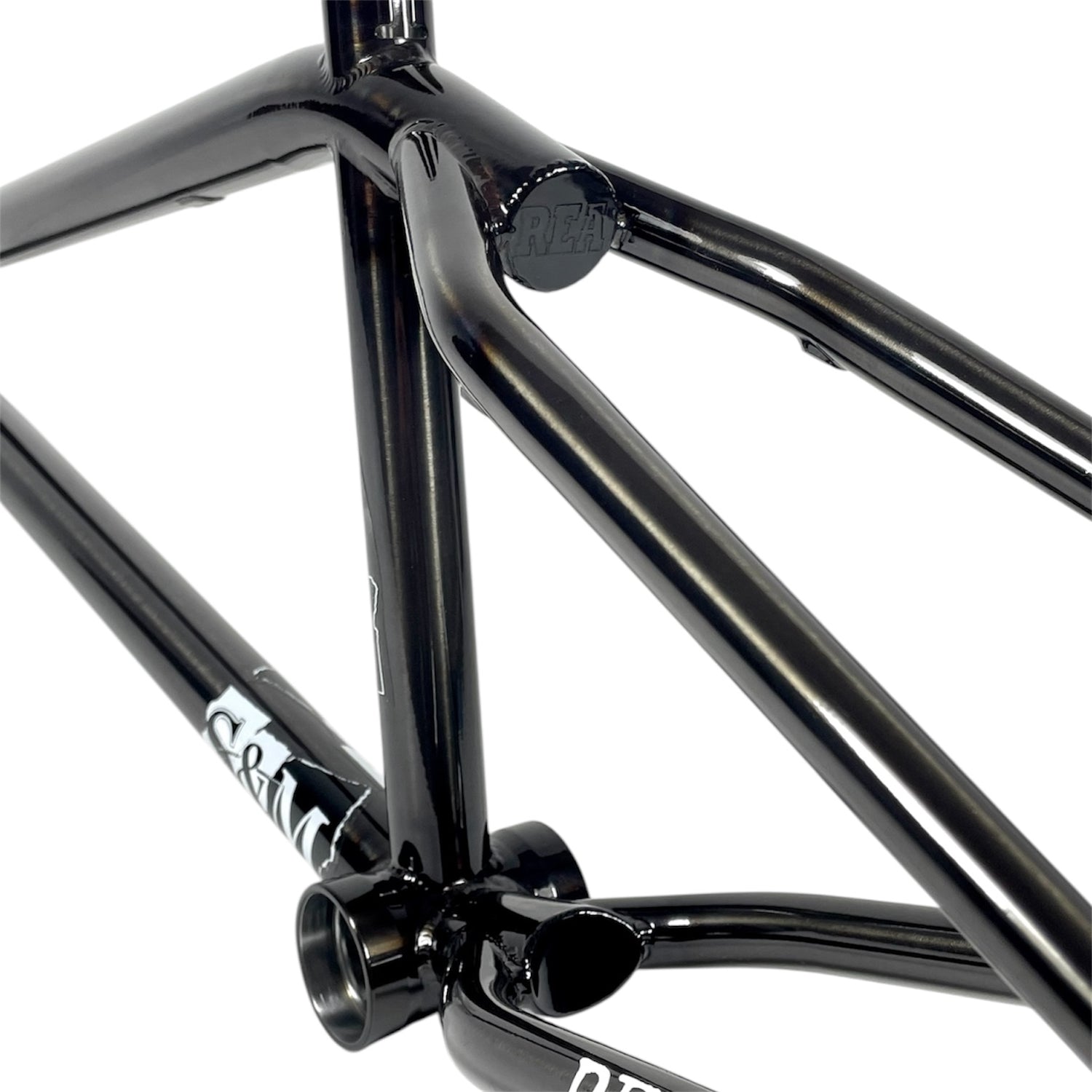

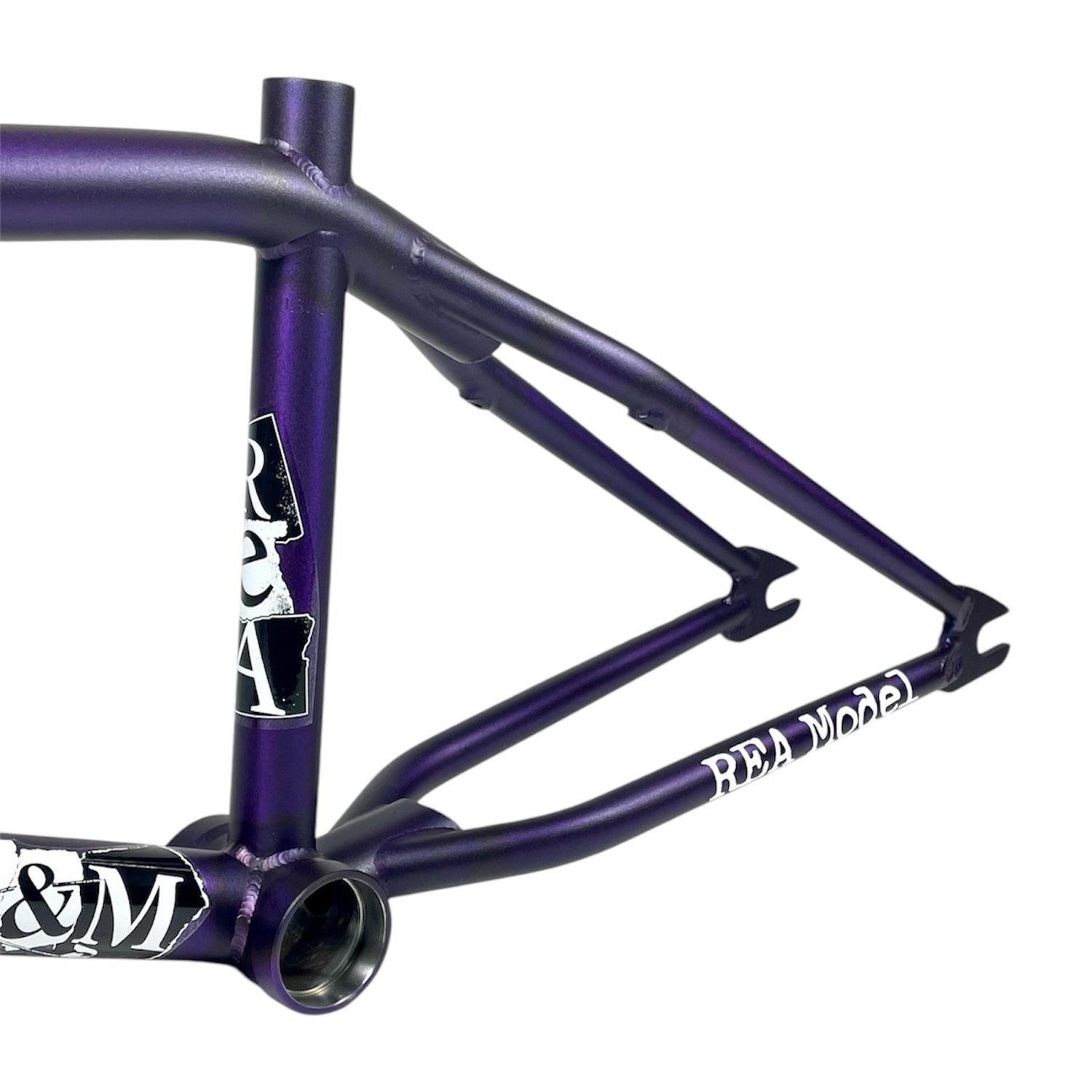

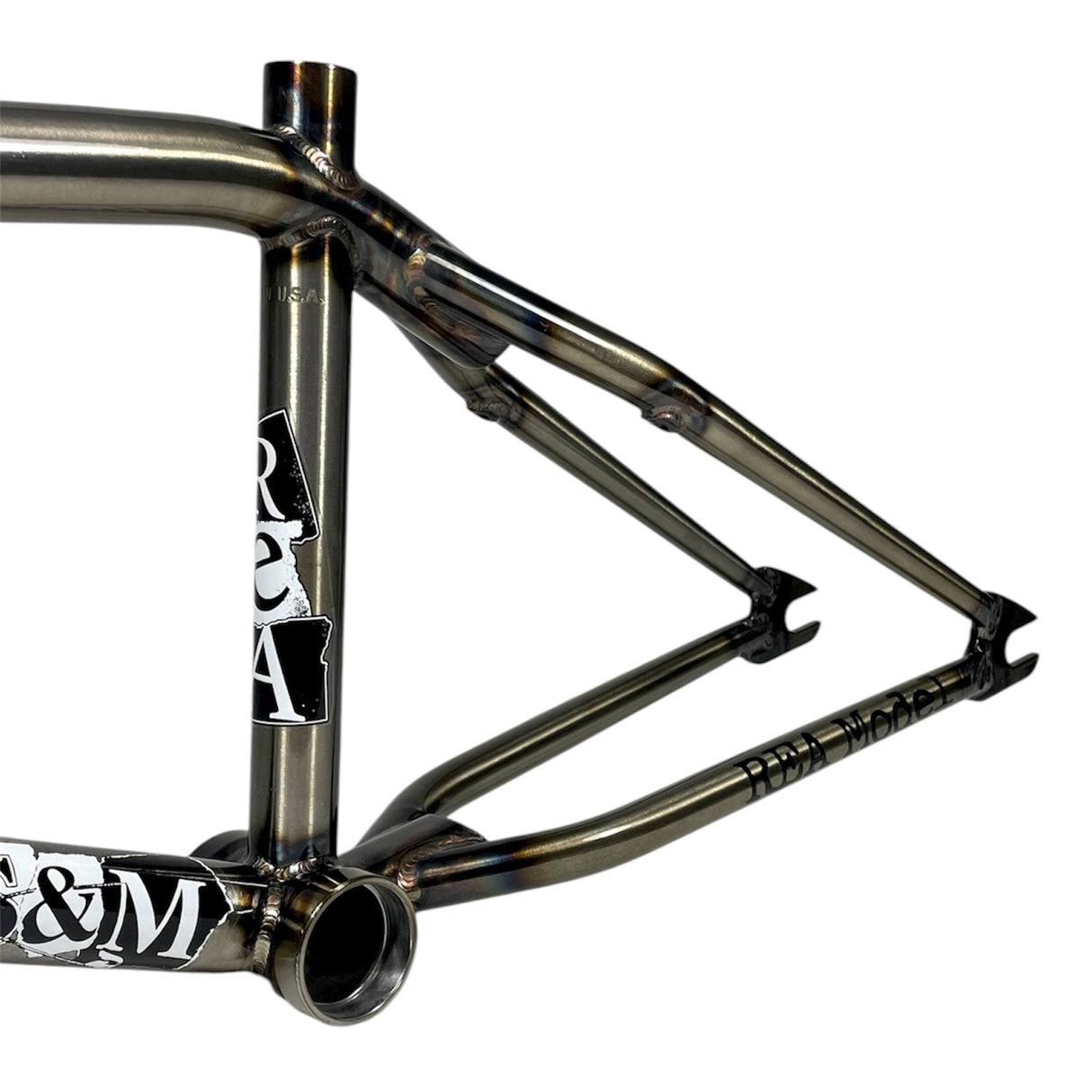

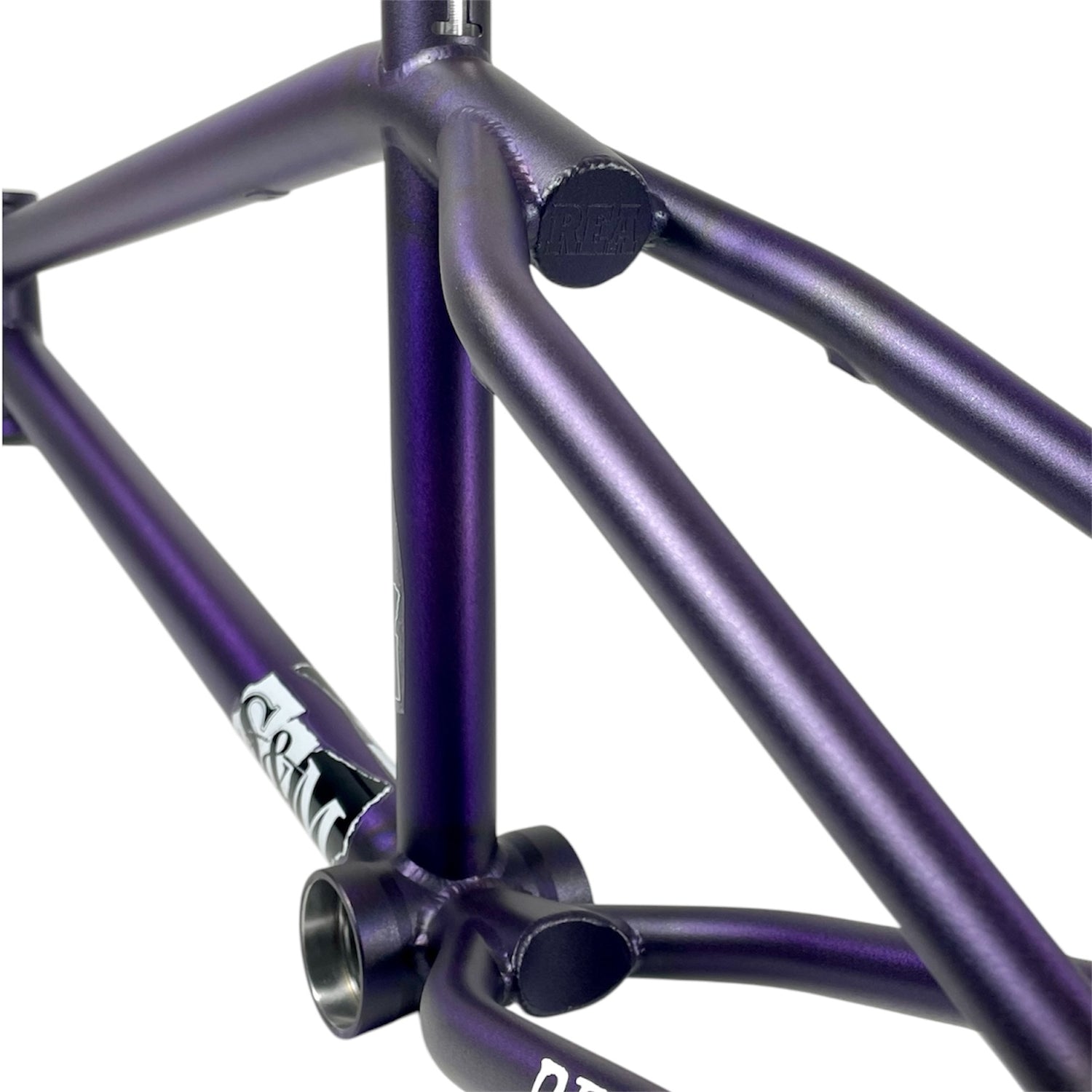

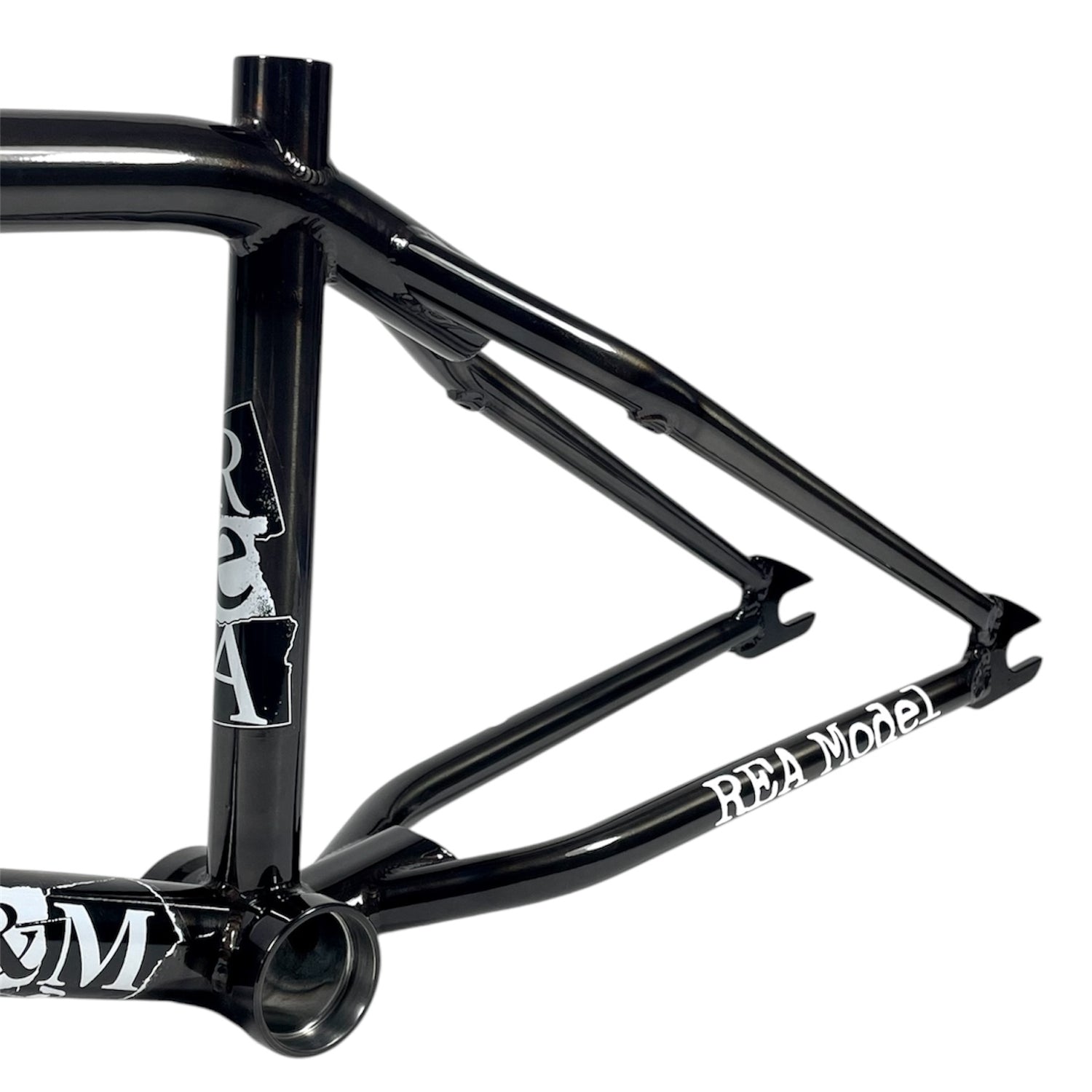

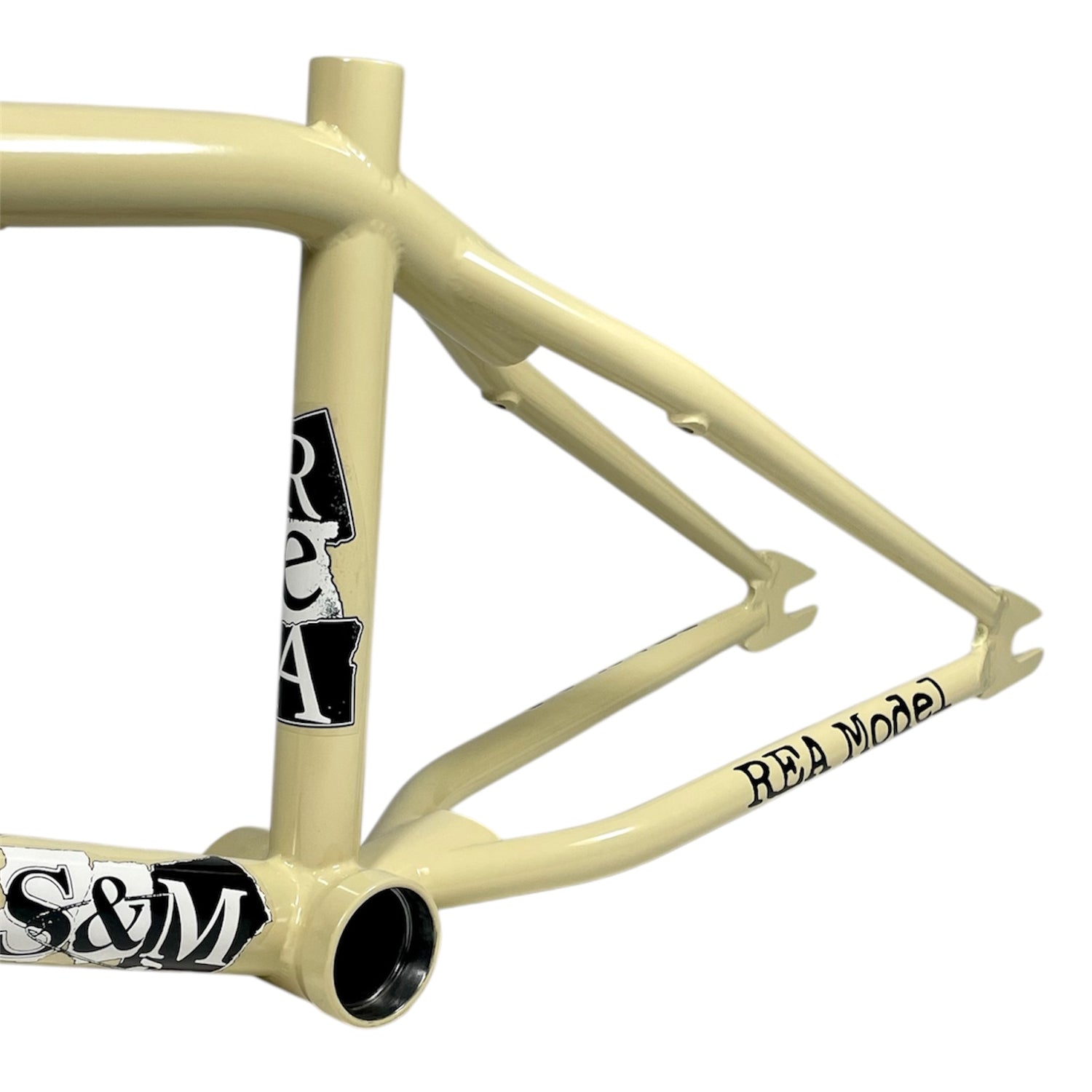

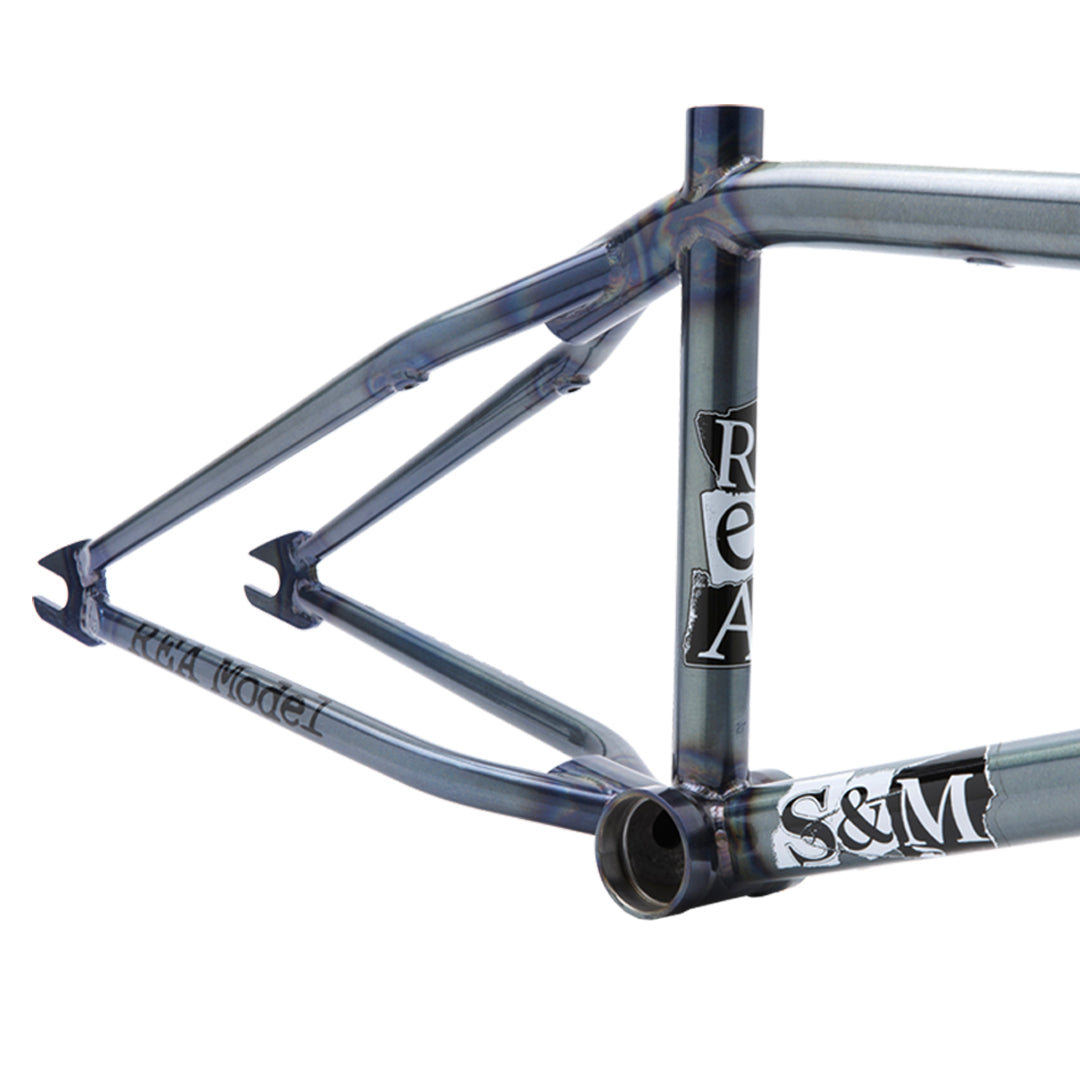

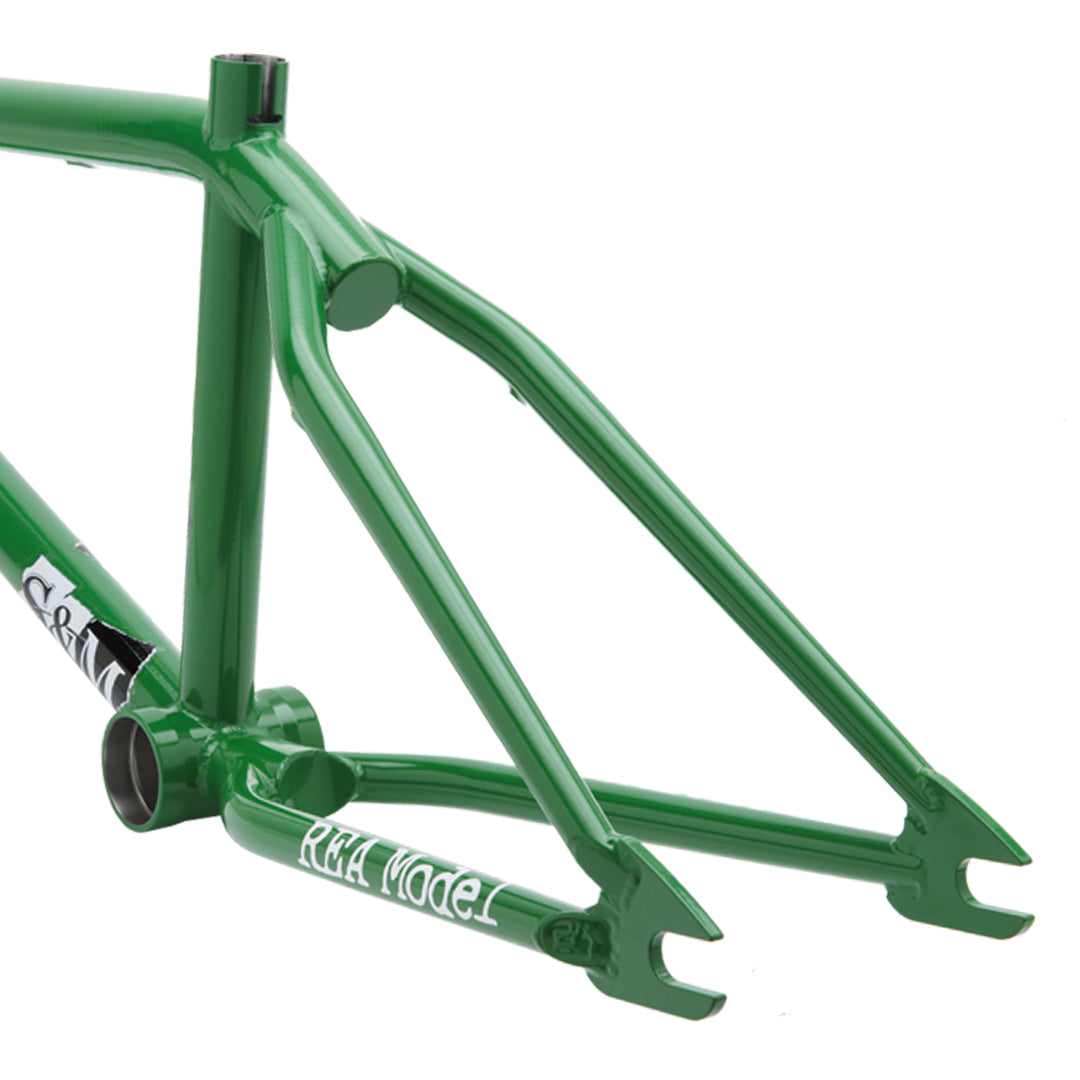

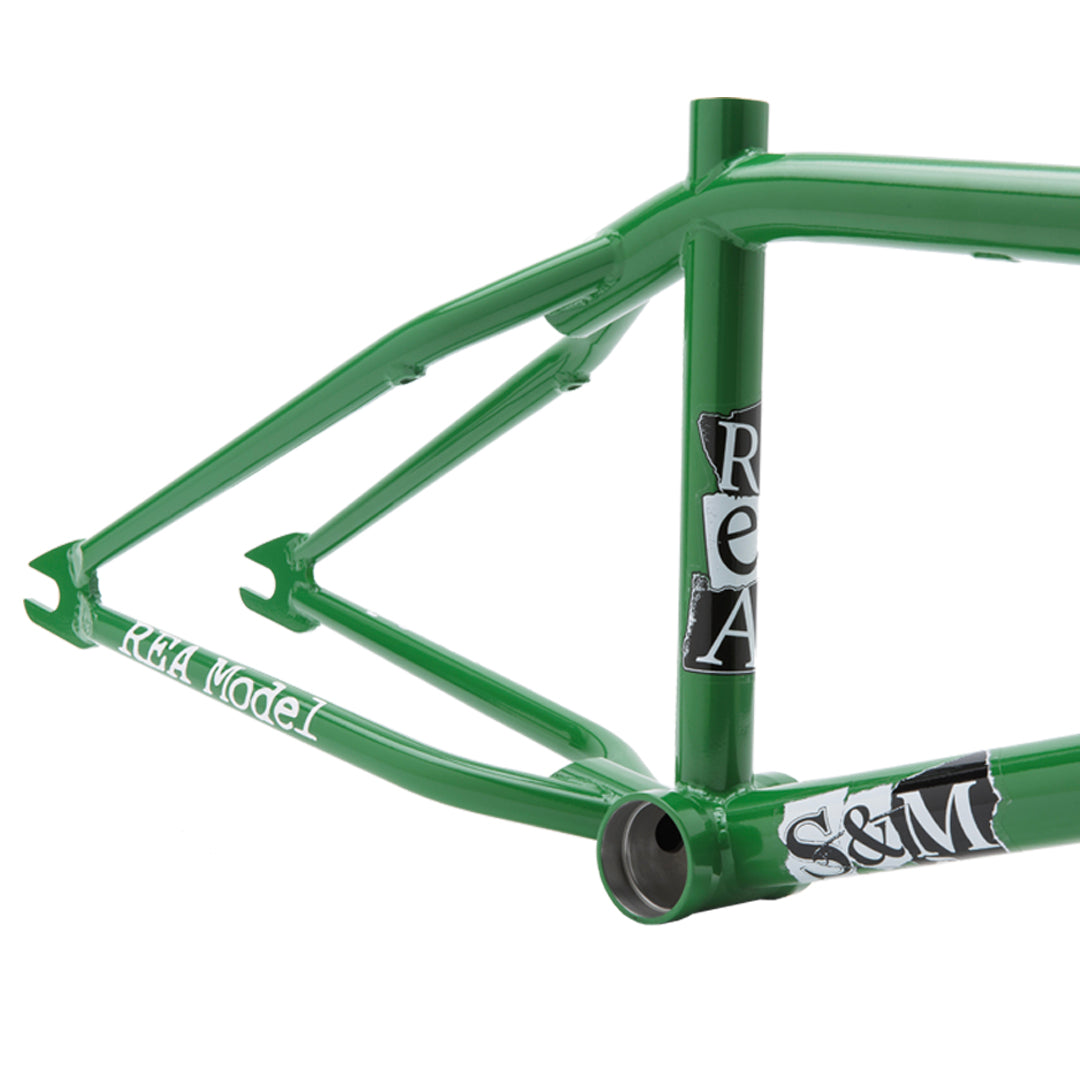

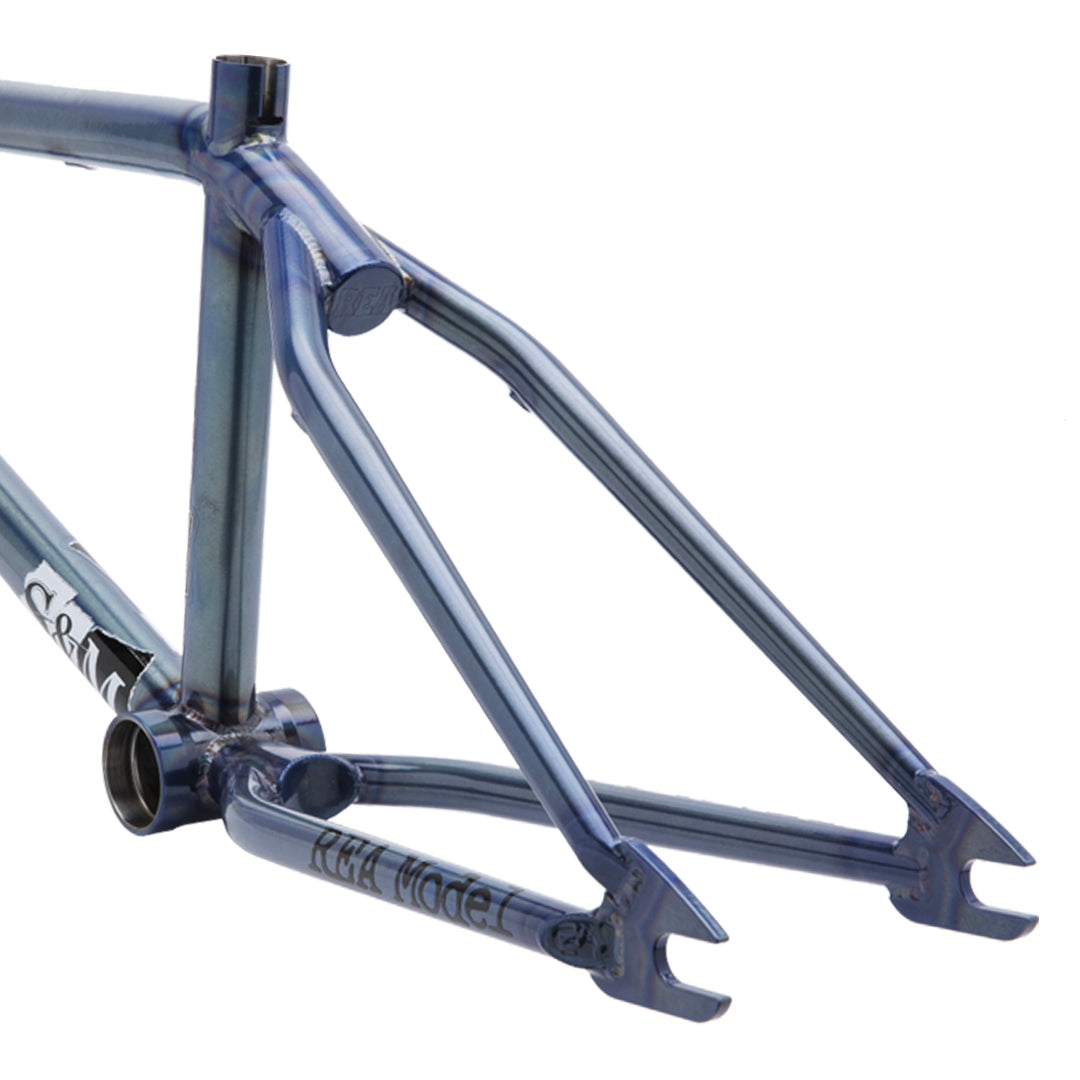

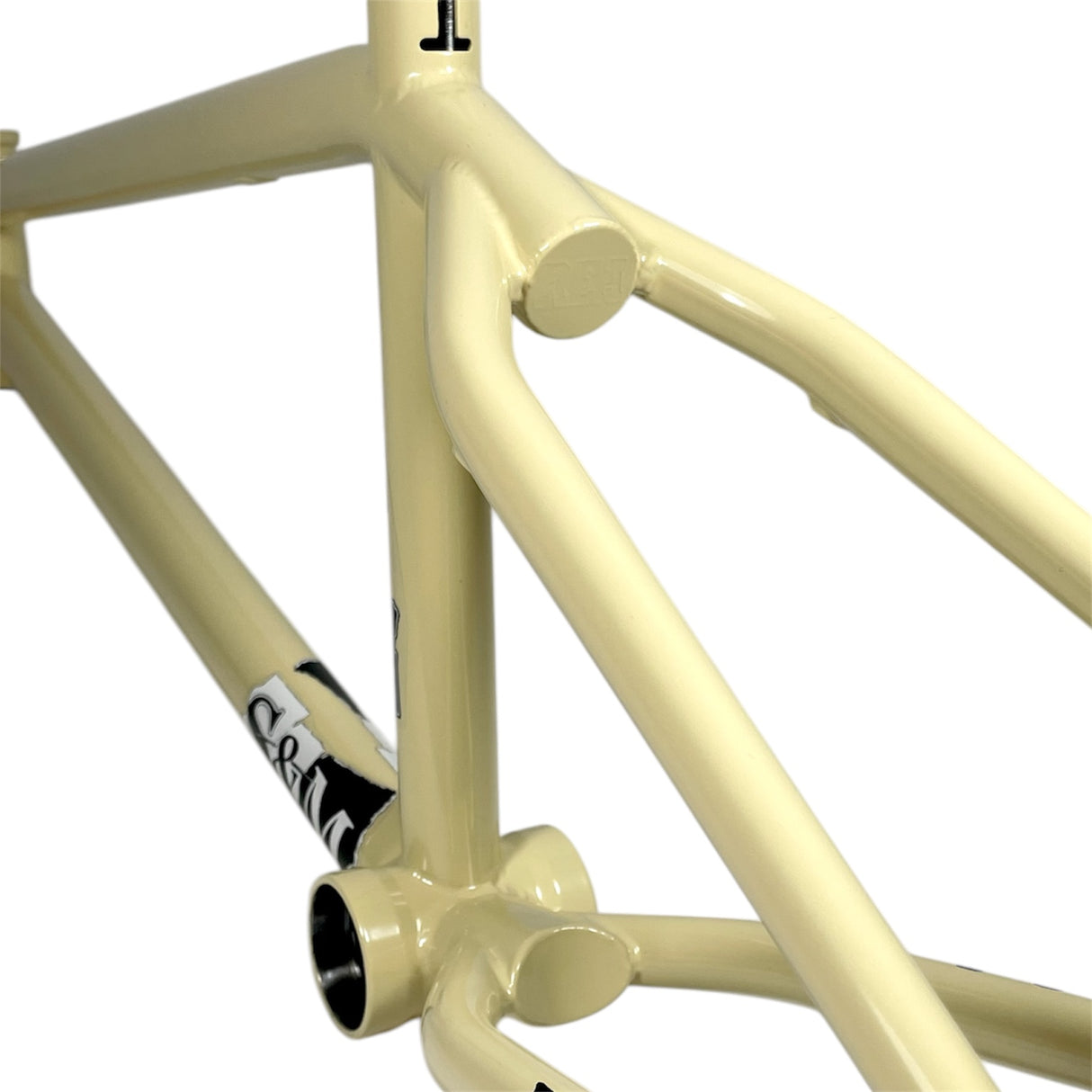

• Double Wishbone Rear End – Traditional twin-stay design provides lateral stiffness and impact resistance while distributing stress across two seatstays
• Adjustable Rear End Length – 13.5" to 14" spacing allows riders to tune chain tension and wheelbase for different handling characteristics (shorter for quick response, longer for stability)

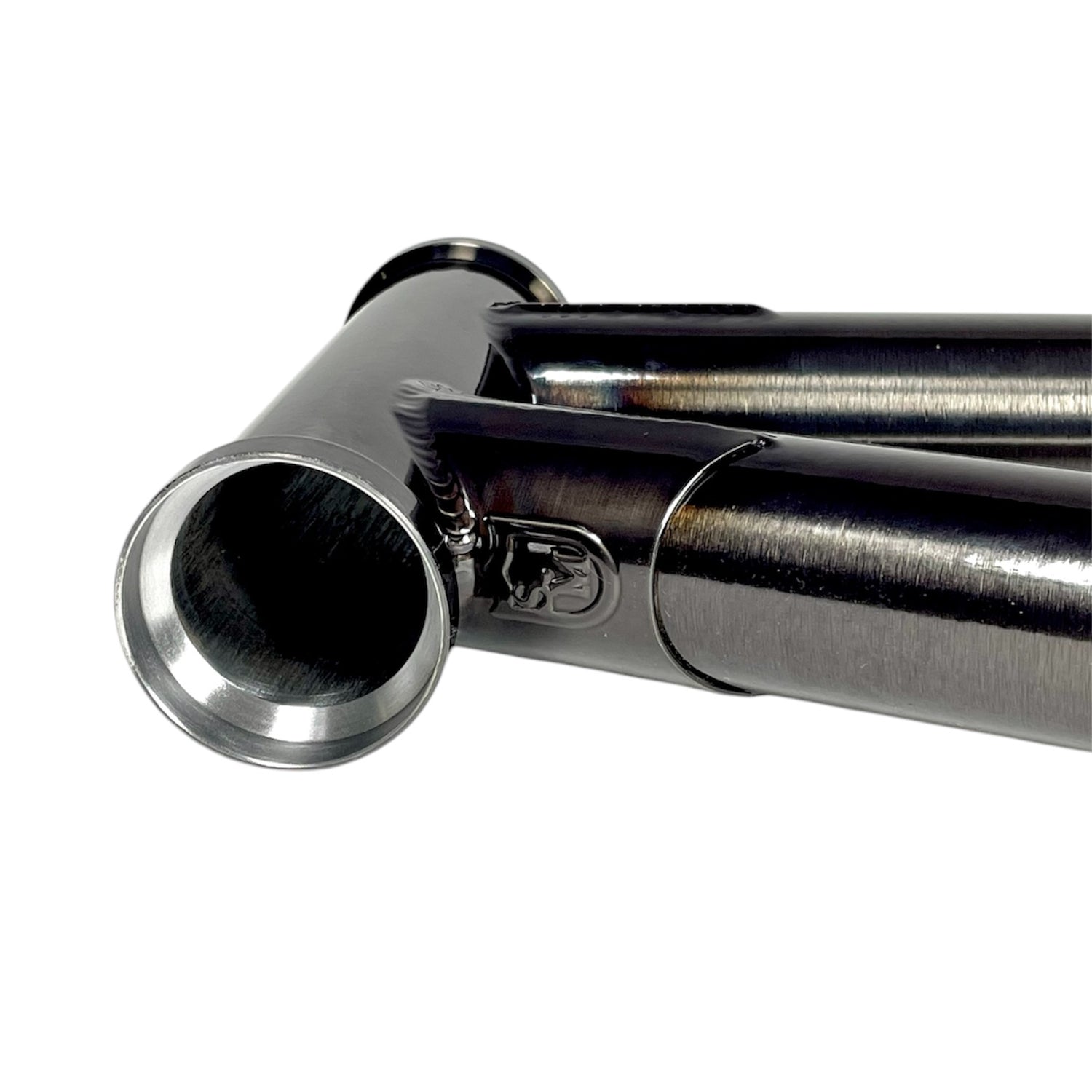

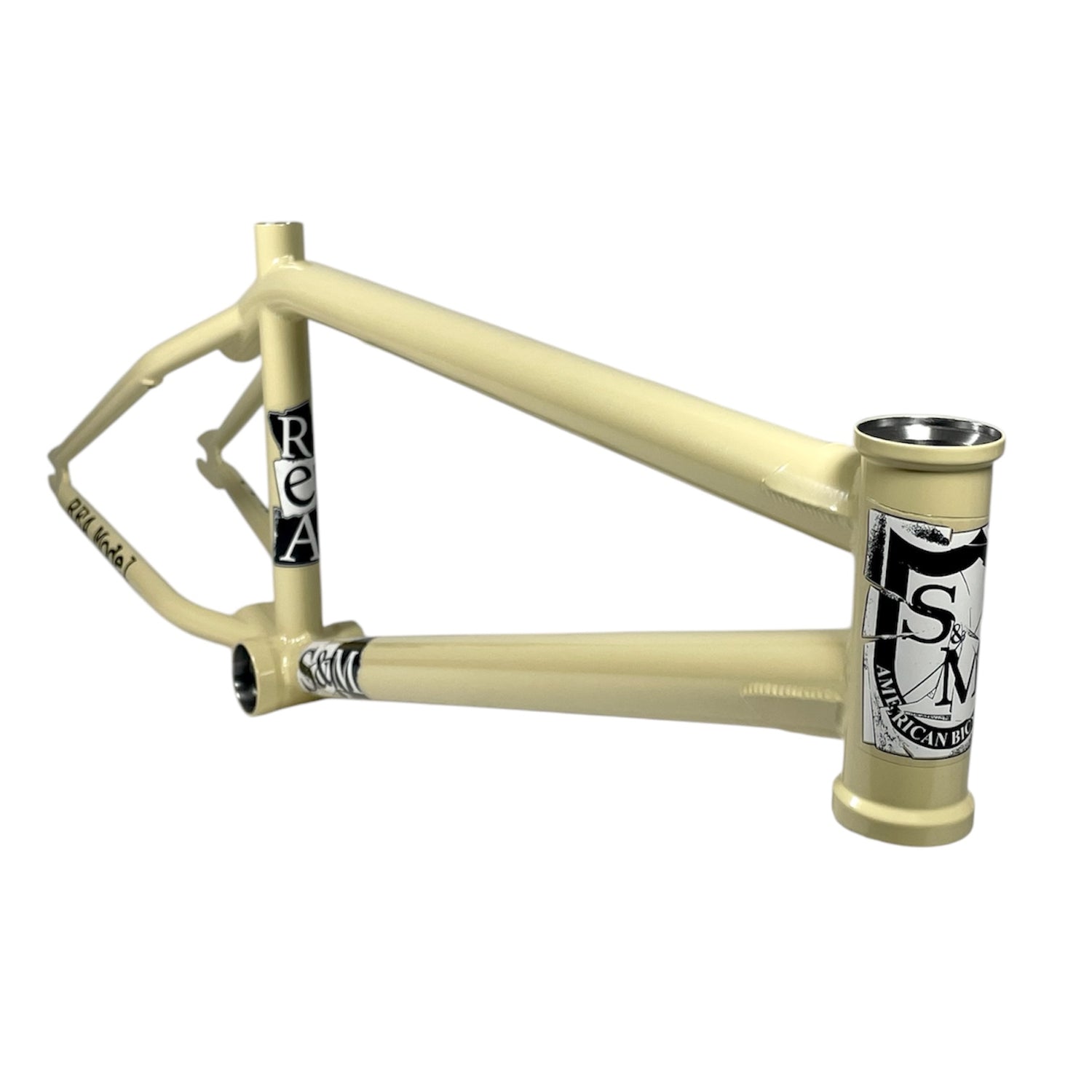

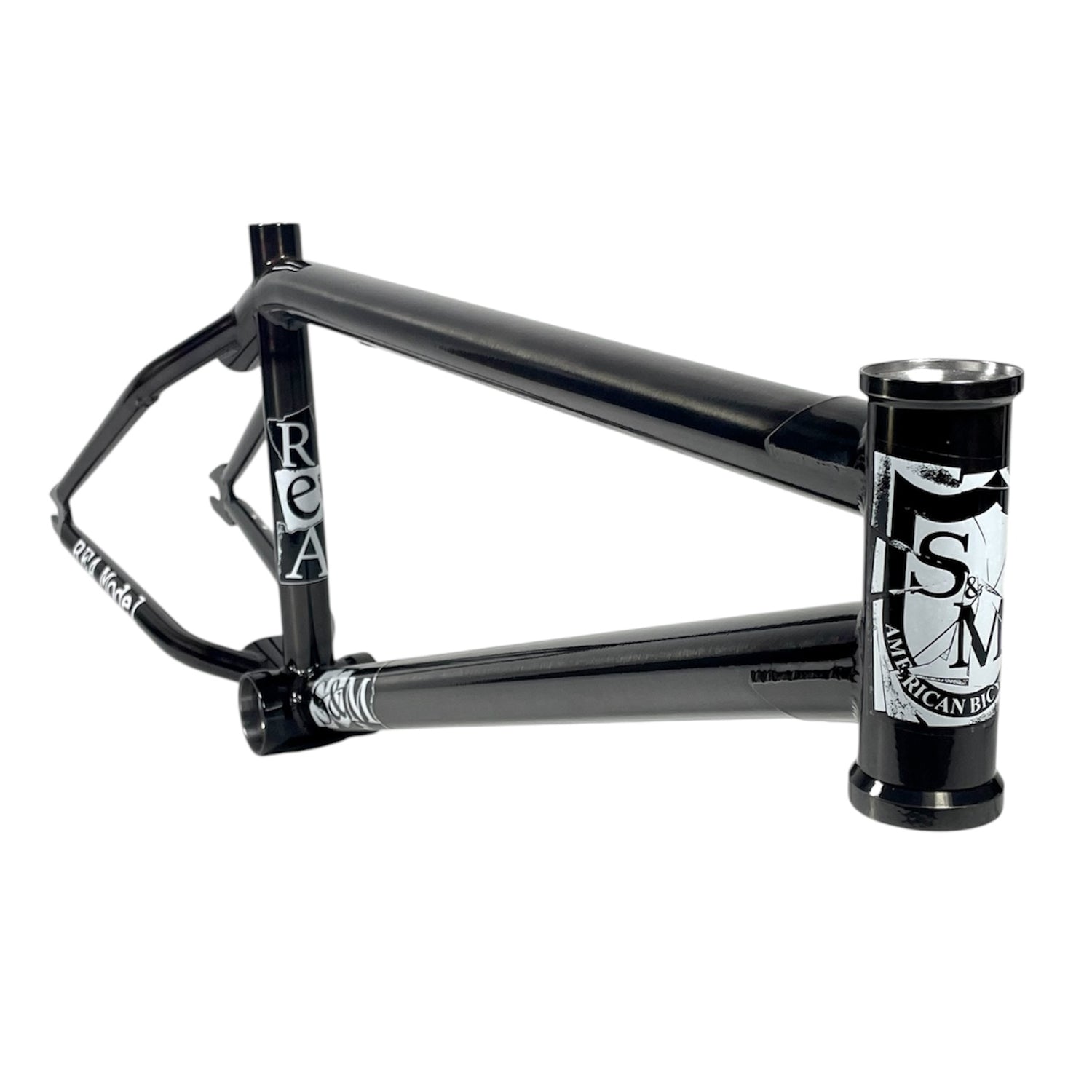

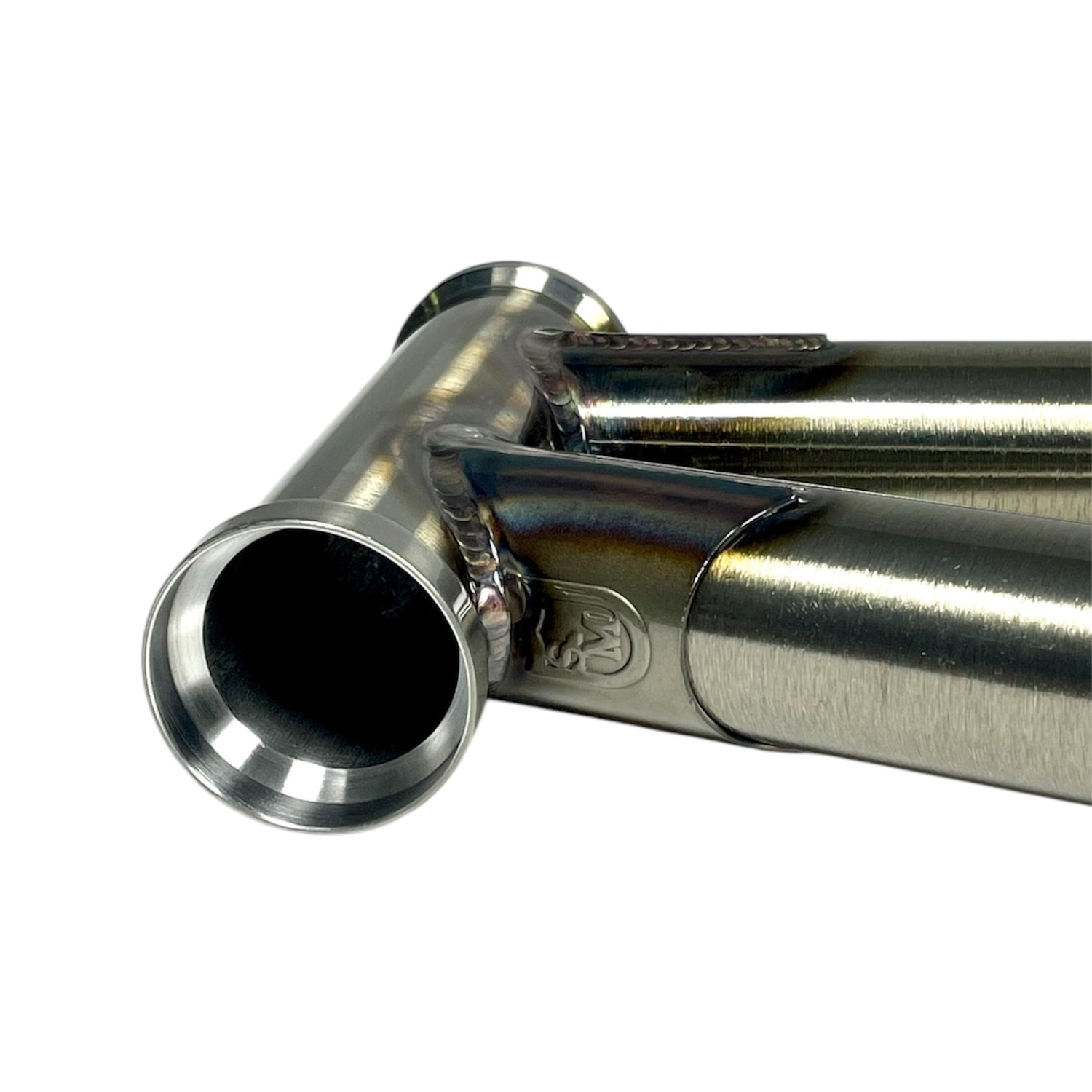

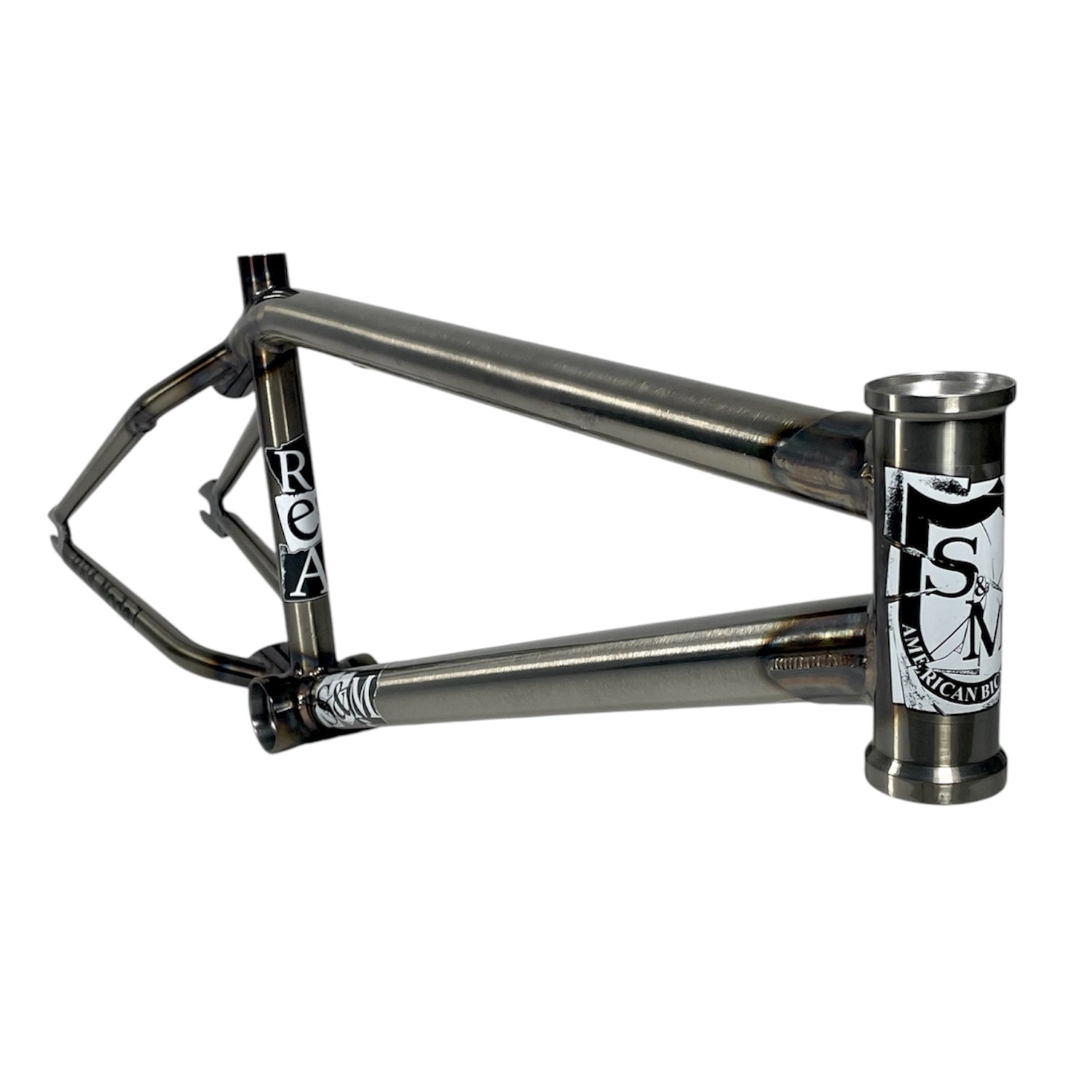

• Integrated Campy-Style Head Tube – 5" tall integrated headset design offers clean lines, reduced stack height, and compatibility with sealed bearing headsets
• Mid Bottom Bracket – Spanish or Mid BB shell accepts press-fit bottom brackets for wide crankset compatibility
• Thread-On Brake Mounts – Seatstay brake bosses accommodate U-brakes or gyro tabs without drilling or modifications
• Chromoly Construction – Heat-treated 4130 chromoly tubing provides strength and impact absorption at 5.30 lbs (21" top tube)

Technical Specifications

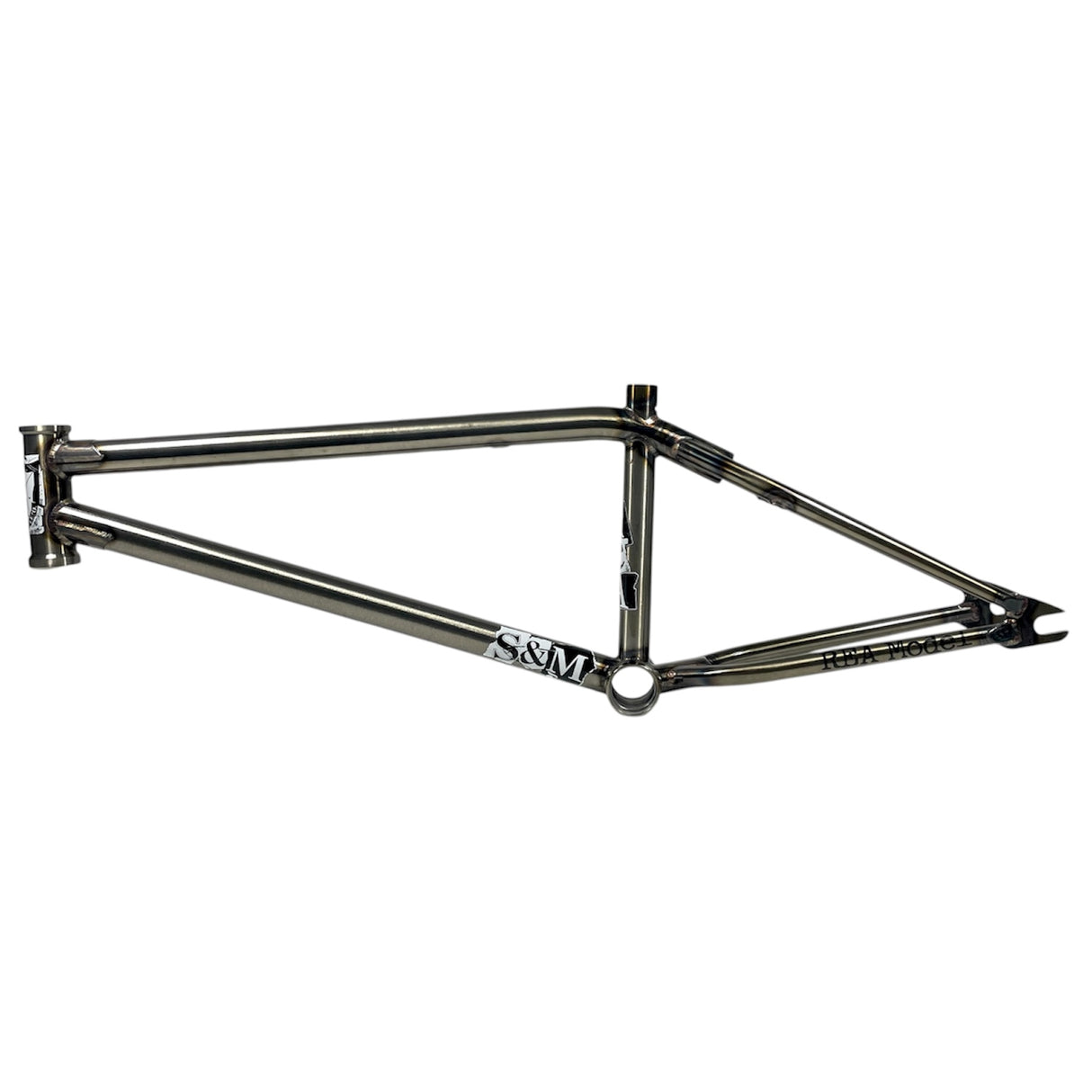

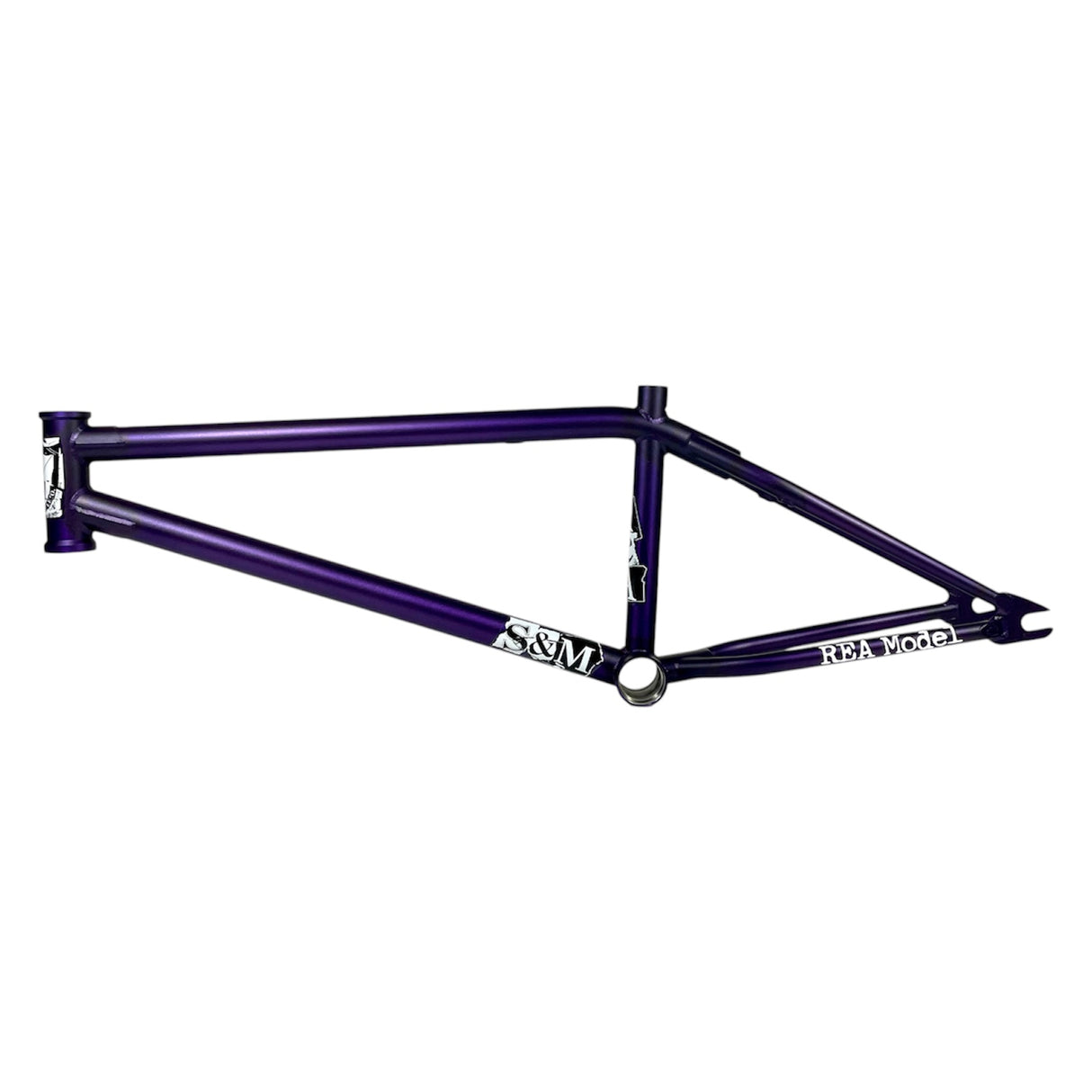

Geometry (Available in 20.75", 21", 21.25", 21.5" Top Tube):

• Top Tube Lengths: 20.75" / 21" / 21.25" / 21.5"
• Rear End Length: 13.5" – 14" (adjustable)
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Standover Height: 9.25"
• Bottom Bracket Height: 11.625"
• Head Tube: 5" integrated, Campy-style
• Bottom Bracket: Mid (Spanish/Mid compatible)
• Dropouts: 14mm
• Seat Post Size: 1" / 25.4mm (no clamp required)
• Weight: 5.30 lbs / 2.40 kg (21" top tube)

Compatibility and Ideal Use Cases

The Rea frame fits riders 5'6" to 6'2" depending on top tube length. The 75° head tube angle and 11.625" BB height create a balanced platform for technical street riding, park transitions, and dirt jumps. Riders who session multiple terrain types or prefer mid-school geometry will appreciate the combination of responsive handling and structural durability. The adjustable rear end works with standard 14mm axles, and the integrated headset requires a sealed bearing Campy-style headset (not included). Compatible with 20" wheels and tires up to approximately 2.4" width, depending on rim and tire combination.
