Syndyt SYB Alloy BMX Race Frame - Blue
Regular price
$699.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Syndyt SYB Alloy BMX Race Frame - Blue - Mini XL (18" TT) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Final sale — this item can’t be returned or exchanged once it ships. Arrived damaged or wrong? We’ll make it right. Returns policy
Complete your kit
Save 0% when you add items marked Ships together
Syndyt SYB Alloy BMX Race Frame - Blue
Regular price
$699.99
Unit price
/
Unavailable
Description

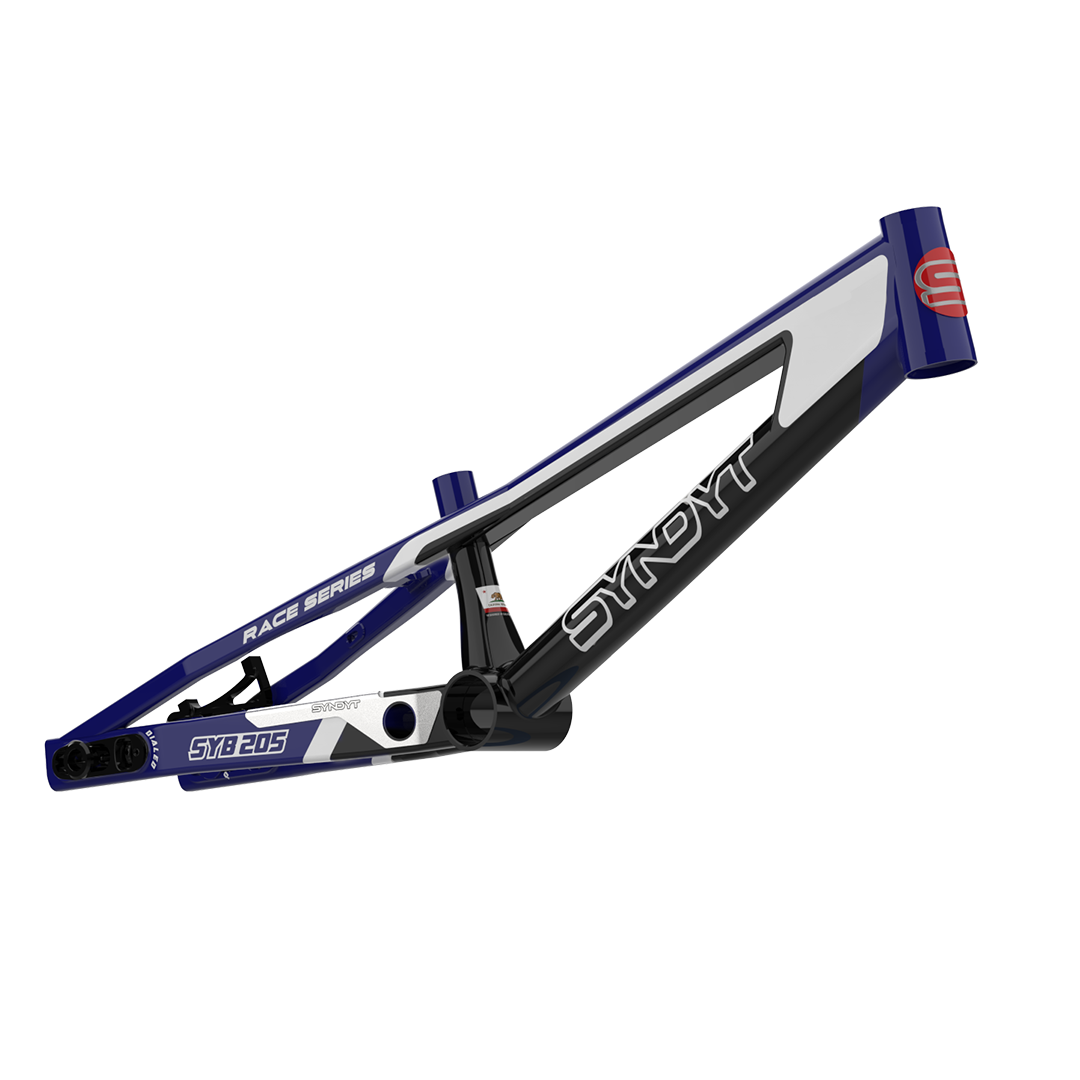

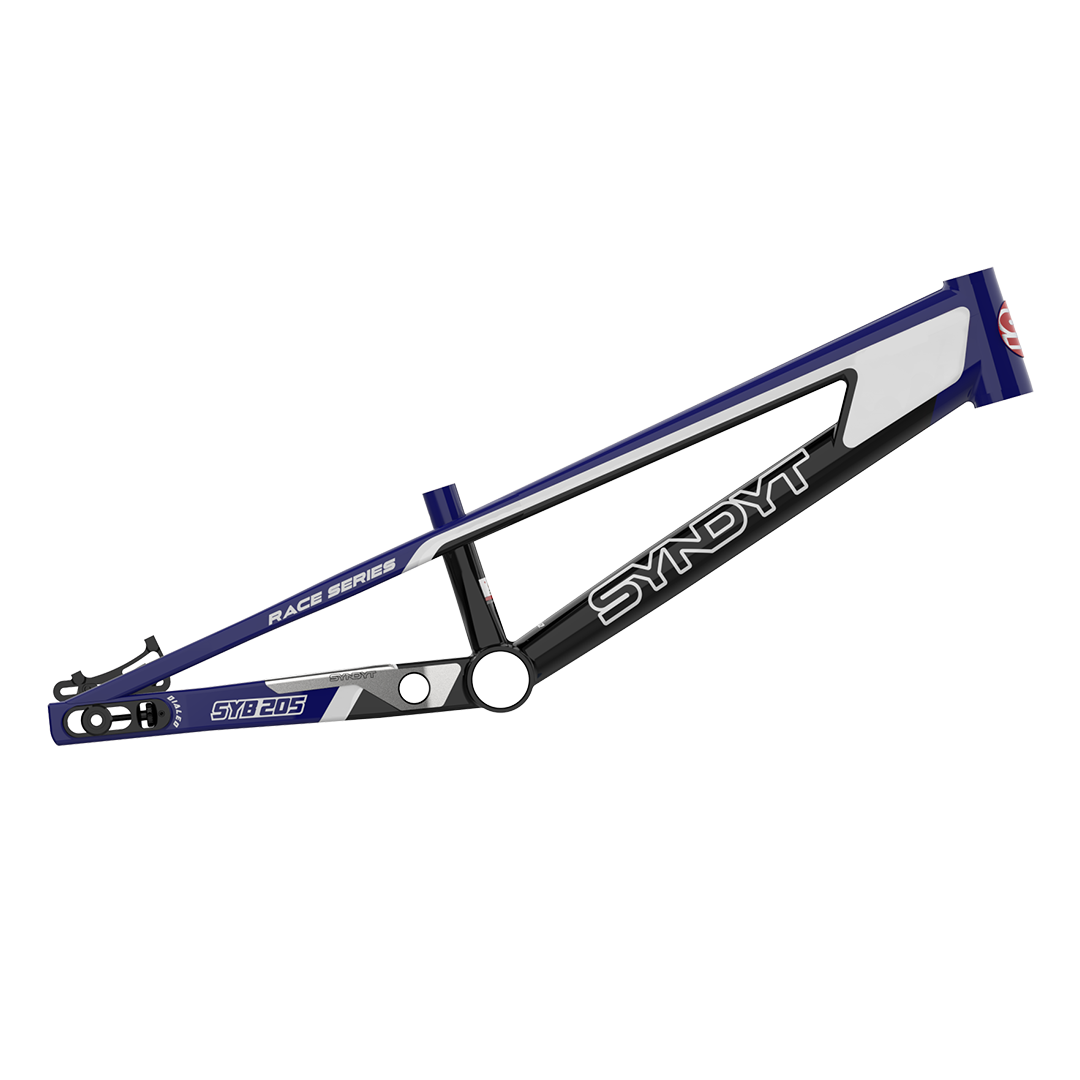

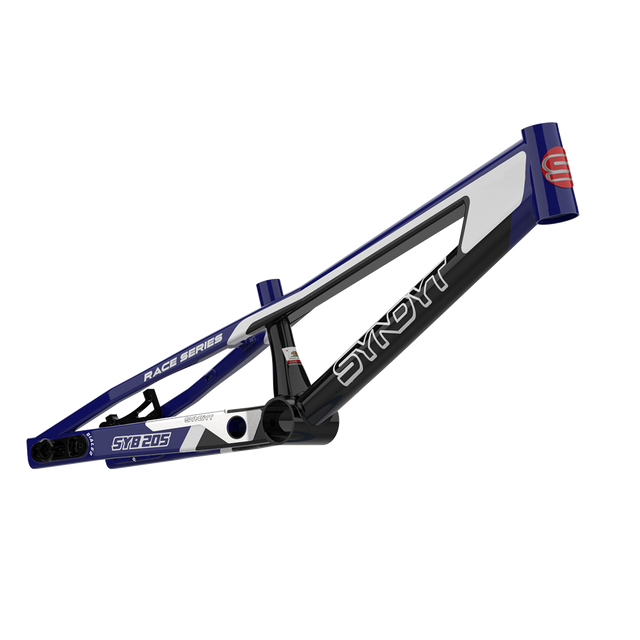

The Syndyt SYB is an aluminium BMX race frame built in fourteen sizes, from the 17.5" Mini to the 22.5" Pro 4XL, plus three 24" cruiser sizes. This listing is the blue frame; pick your size above.
Features
- 6061-T6 aluminium with hydroformed, triple-butted tubes
- Integrated chain tensioner with 38mm of adjustment
- Disc brake only: post mount for a 140mm rotor, with internal rear brake routing
- 110mm rear hub spacing, with axle hardware for a 10mm bolt-on or 15mm thru-axle on every size, and a 20mm thru-axle on the Pro-spec sizes
- Oversized bottom bracket: B52 on the Pro-spec sizes (adapter to Euro included; fitting it needs a BBT-18 tool, not included), 68mm Euro on the youth-spec sizes
Geometry
| Size | Top tube | Rider area | Chainstay | BB height | Seat angle | Head angle |
|---|---|---|---|---|---|---|
| Mini (SYB 175) | 17.5" | 18.93" | 12.25" | 10" | 70° | 73° |
| Mini XL (SYB 180) | 18" | 19.25" | 12.5" | 10.25" | 70° | 73° |
| Junior (SYB 185) | 18.5" | 19.57" | 12.75" | 10.5" | 71° | 73.5° |
| Junior XL (SYB 190) | 19" | 19.92" | 13" | 10.75" | 71° | 73.5° |
| Expert (SYB 195) | 19.5" | 20.35" | 13.25" | 11" | 72° | 73.5° |
| Expert XL (SYB 200) | 20" | 20.75" | 14" | 11.25" | 72° | 74° |
| Pro (SYB 205) | 20.5" | 21.18" | 14.5" | 11.25" | 72° | 74° |
| Pro XL (SYB 210) | 21" | 21.61" | 14.8" | 11.25" | 72° | 74° |
| Pro 2XL (SYB 215) | 21.5" | 22.09" | 15" | 11.25" | 72° | 74° |
| Pro 3XL (SYB 220) | 22" | 22.52" | 15.2" | 11.25" | 72° | 74° |
| Pro 4XL (SYB 225) | 22.5" | 22.95" | 15.5" | 11.25" | 72° | 74° |
| Junior 24 (SYB 194) | 19" | 20.91" | 14" | 11" | 69° | 72.5° |
| Pro 24 (SYB 204) | 20.5" | 22.4" | 15.25" | 11.5" | 70° | 73° |
| Pro 24 XL (SYB 224) | 22" | 23.58" | 15.5" | 11.5" | 70° | 73° |
