Insight 3" Alloy BMX Handlebar

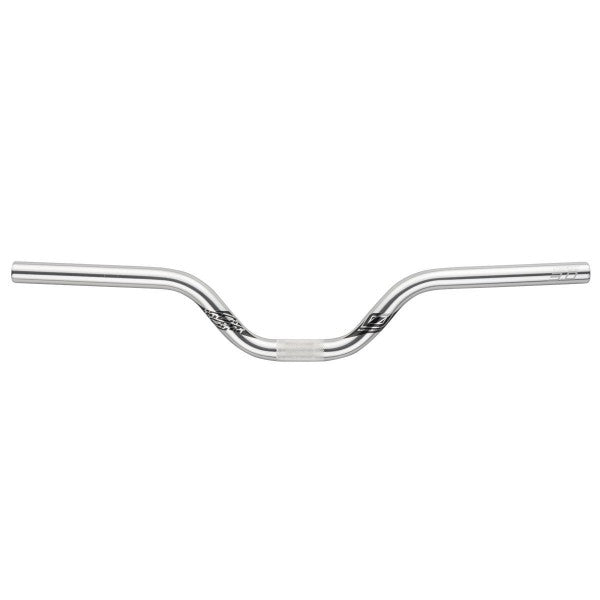

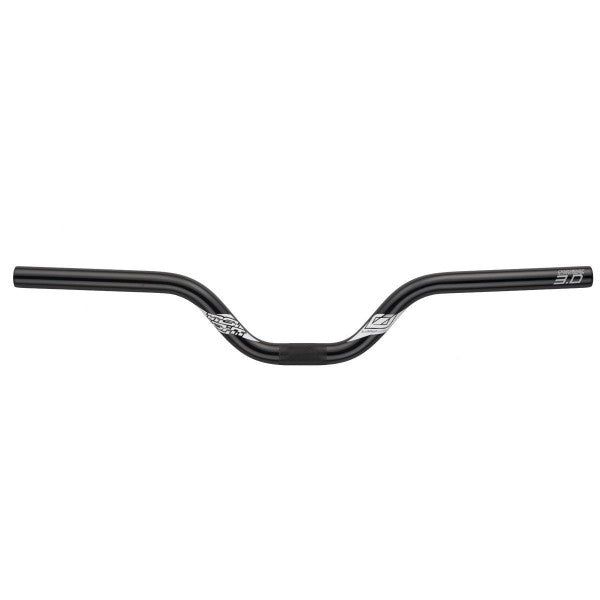

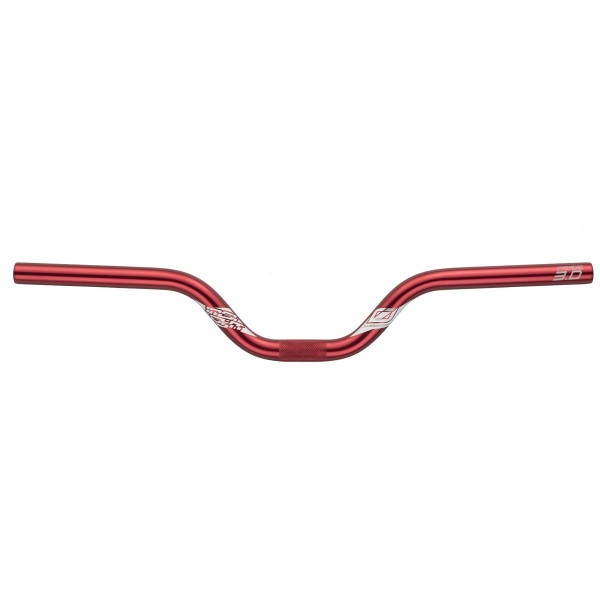

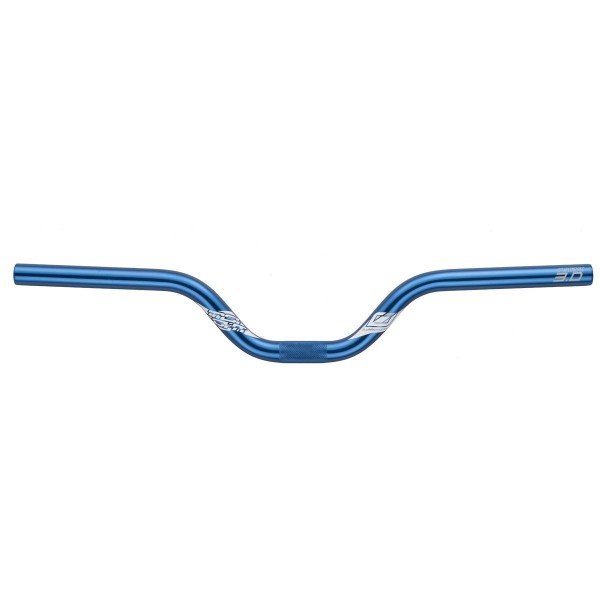

Insight 3″ Alloy Handlebar

The Insight 3″ handlebar is an ultra-lightweight aluminum BMX race bar designed for riders who need an extremely low, forward position for competitive racing. Machined from 6061 aluminum and anodized for corrosion resistance, this bar delivers minimal rise with race-proven geometry at just 245 grams. The 3″ rise and 22.5″ width provide compact positioning ideal for micro, mini, and junior-class racers prioritizing an aggressive, aerodynamic stance.

Key Features

• 6061 Aluminum Construction – Heat-treatable aluminum alloy provides strong strength-to-weight ratio; significantly lighter than chromoly or steel while maintaining the stiffness needed for sprint efforts and hard cornering
• Anodized Finish – Protective anodizing prevents corrosion and surface wear, extending the handlebar's lifespan in wet or muddy race conditions
• 3″ Rise (76mm) – Extremely low profile keeps the rider in a very aggressive, forward position ideal for BMX racing; minimizes frontal area and maximizes power transfer during gate starts
• 22.5″ Width (571.5mm) – Narrow width suits smaller riders and provides quick steering response; appropriate for micro, mini, and junior-class bikes
• 8° Back Sweep / 2° Up Sweep – Subtle sweep angles place the grips in a natural hand position without excessive wrist angle; back sweep reduces forearm strain during motos
• 245g Weight – Ultra-lightweight construction reduces overall bike weight and improves handling responsiveness for competitive racing

Technical Specifications

• Material: 6061 aluminum, anodized
• Rise: 3″ (76mm / 76.2mm)
• Width: 22.5″ (571.5mm)
• Stem Clamp Diameter: 22.2mm (standard)
• Back Sweep: 8°
• Up Sweep: 2°
• Weight: 245g

Compatibility and Ideal Use Cases

This handlebar fits stems with a 22.2mm clamp diameter, which is standard across BMX bikes. Best suited for BMX racers in micro, mini, and junior classes who need an extremely low, narrow bar for competitive racing. The 3″ rise is one of the lowest available and works well for younger racers, smaller-statured riders, or anyone who prefers a very aggressive forward position for maximum power transfer and aerodynamics. The 22.5″ width is narrower than standard race bars (typically 24″–29″), making this bar appropriate for smaller riders or those in lower age classes. Not recommended for street, park, or casual riding where taller bars (7″–9″+ rise) provide better leverage for tricks and a more comfortable upright position. The ultra-low rise also makes this bar unsuitable for riders who need more handlebar height for comfort or body positioning.
