Elevn V2 7.0 LT Pro 20" 10mm Fork

Product Overview

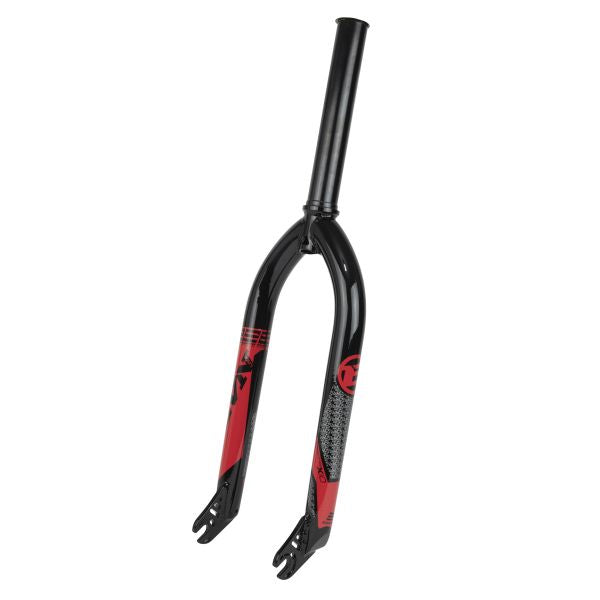

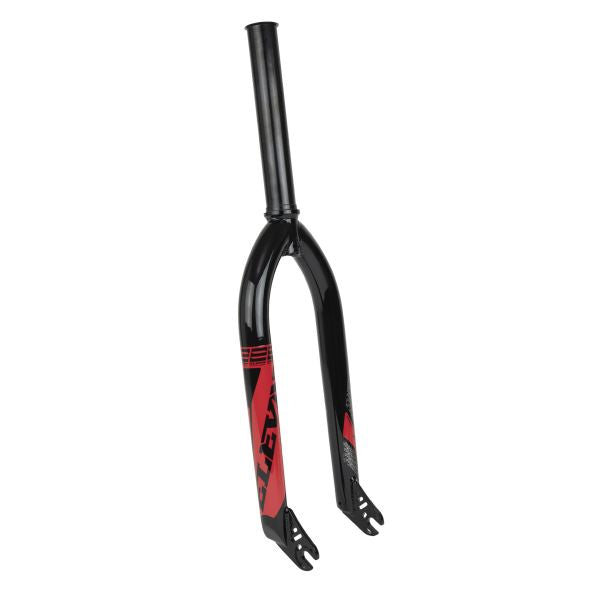

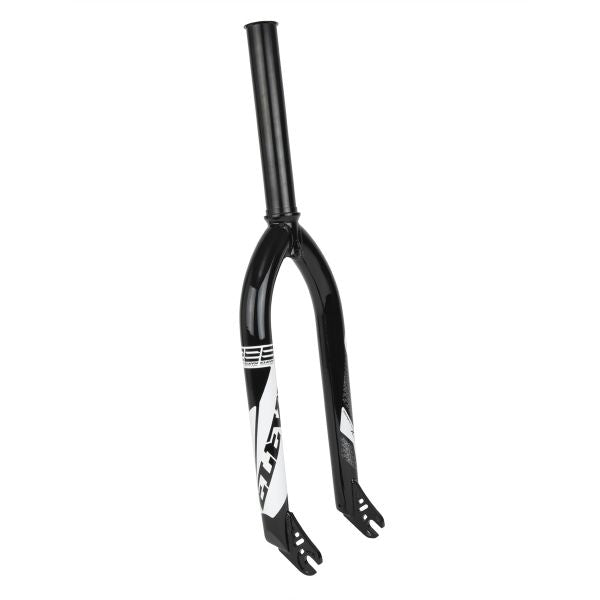

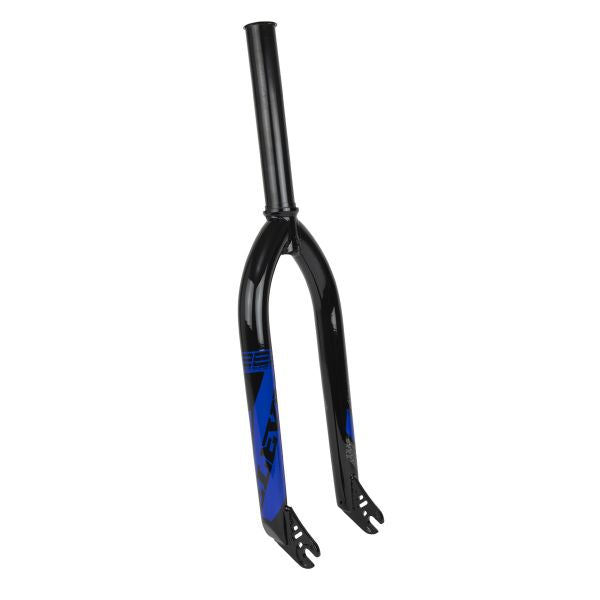

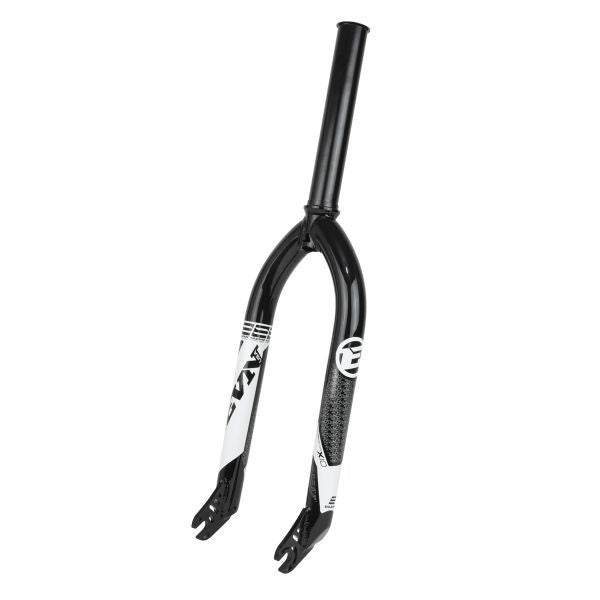

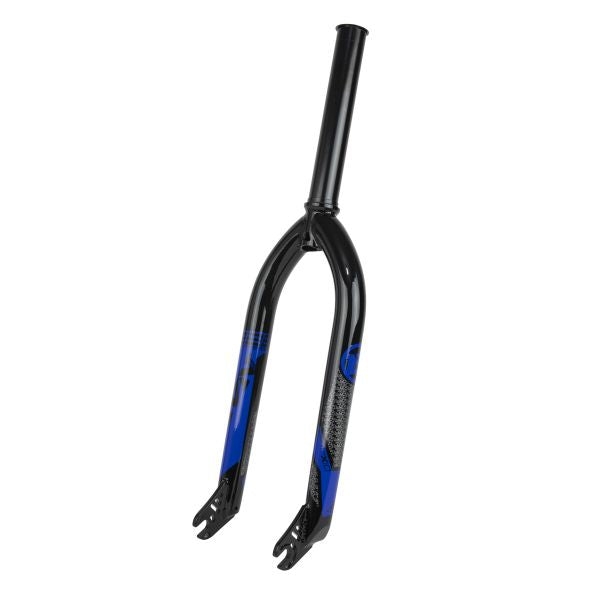

The Elevn V2 7.0 LT Pro is a 4130 chromoly BMX racing fork designed for 20" wheels. Built with double-butted tapered legs, triple-butted steerer tube, and CNC-machined dropouts, it delivers the precision and durability required for competitive BMX racing. The 31mm offset and optimized geometry provide responsive steering while maintaining the strength needed for high-impact racing applications.

Key Features

• 100% 4130 heat-treated chromoly – Aerospace-grade steel tubing withstands impact and stress better than aluminum, providing reliability and longevity in racing conditions

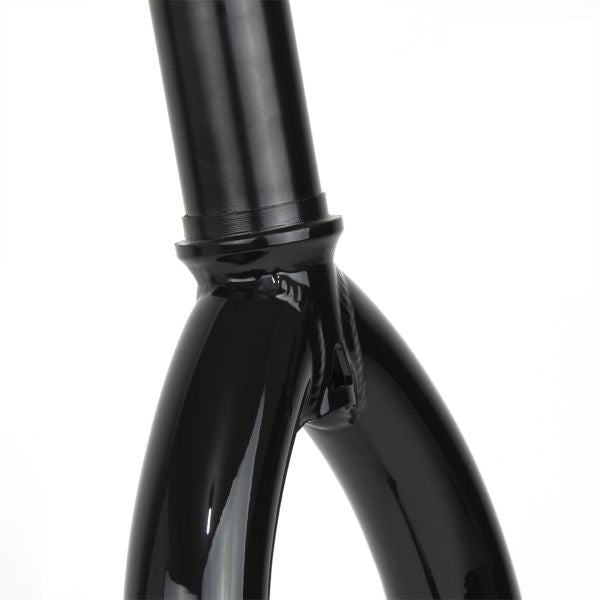

• Double-butted tapered legs – Variable wall thickness in the fork legs reduces weight while reinforcing high-stress zones near the crown and dropouts for optimal strength-to-weight ratio
• Triple-butted steerer tube – Three-stage wall thickness in the steerer tube improves strength at critical stress points while minimizing overall weight

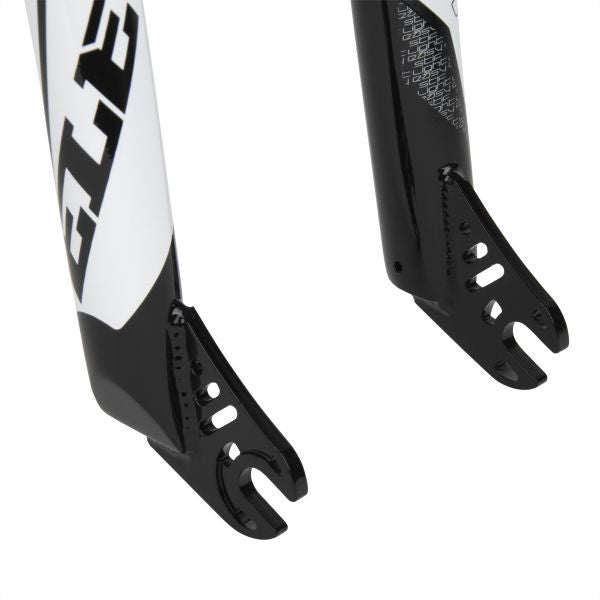

• CNC-machined dropouts – Precision-cut axle slots ensure consistent wheel alignment and secure 10mm axle retention without play or movement
• Heat treatment – Post-weld heat treatment strengthens chromoly welds and tubing for maximum durability under racing loads and impacts
• 1-1/8" steerer tube – Non-threaded (integrated) design compatible with modern integrated headsets and eliminates threaded interfaces that can loosen
• 31mm offset (rake) – Moderate fork geometry provides responsive steering while maintaining stability through turns and technical sections
• Flexible steerer tube length – Available in 172mm or 185mm to accommodate different frame sizing and headset stack heights

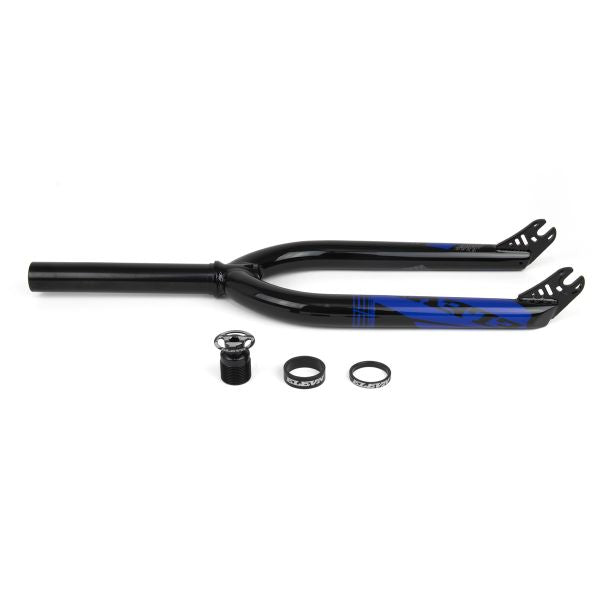

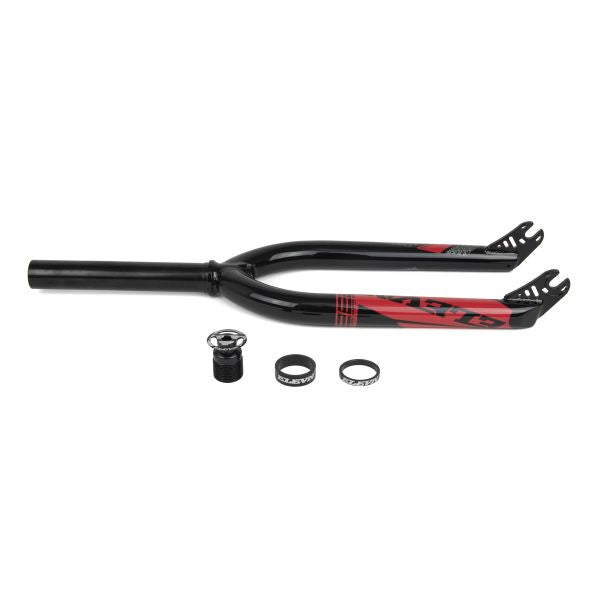

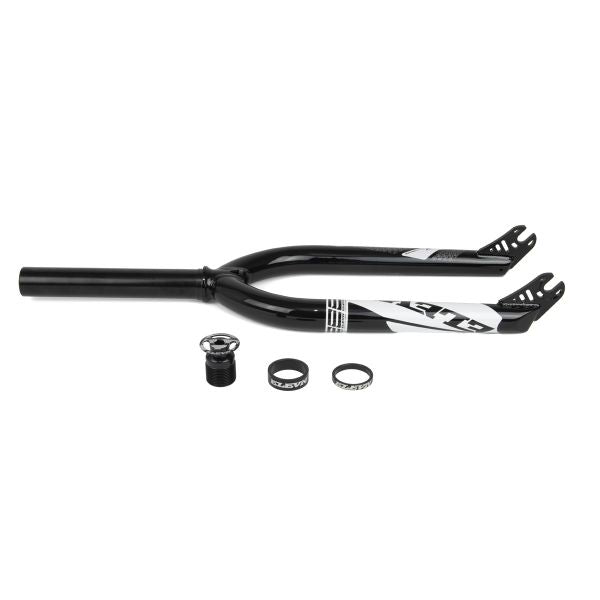

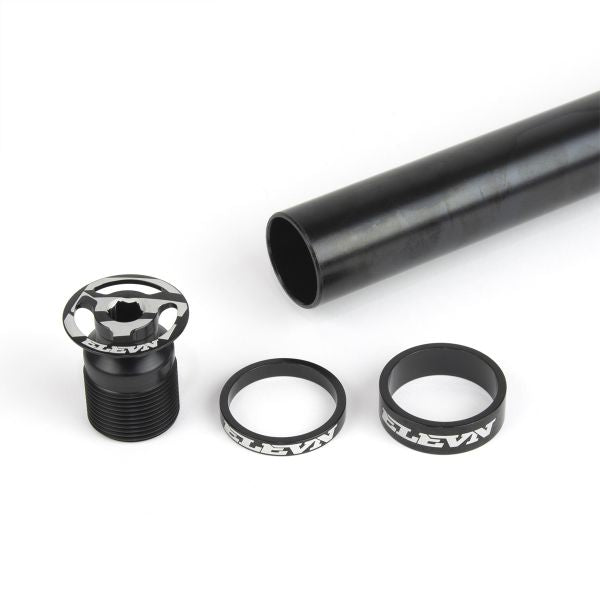

• Included hardware – Sold with top cap and washers for immediate installation into compatible 1-1/8" integrated headsets
• Lightweight at 739g – Optimized tubing construction minimizes fork weight without sacrificing strength or durability

Technical Specifications

• Material: 4130 heat-treated chromoly steel
• Wheel size: 20"
• Axle size: 10mm (standard BMX)
• Steerer tube: 1-1/8" non-threaded (integrated)
• Steerer tube length: 172mm or 185mm (select at purchase)
• Fork offset (rake): 31mm
• Leg construction: Double-butted tapered tubing
• Steerer tube construction: Triple-butted
• Dropouts: CNC-machined
• Weight: 739g
• Included components: Top cap and washers

Compatibility & Ideal Use Cases

This fork is designed for 20" BMX racing frames with 1-1/8" integrated headsets and 10mm axle spacing. It's ideal for competitive BMX racing where precision geometry, responsive steering, and proven durability are essential. The chromoly construction suits both lighter and heavier riders, and the triple-butted steerer tube provides extra reinforcement for demanding racing conditions. Choose the 172mm steerer length for standard frame sizing or 185mm for taller frames or additional headset stack height. Compatible with standard 20" wheels, 10mm axles, and any 1-1/8" integrated headset. Not compatible with threaded headsets or cruiser frames.
