Ikon Mini/Junior 20" 10mm Carbon Fork

Product Overview

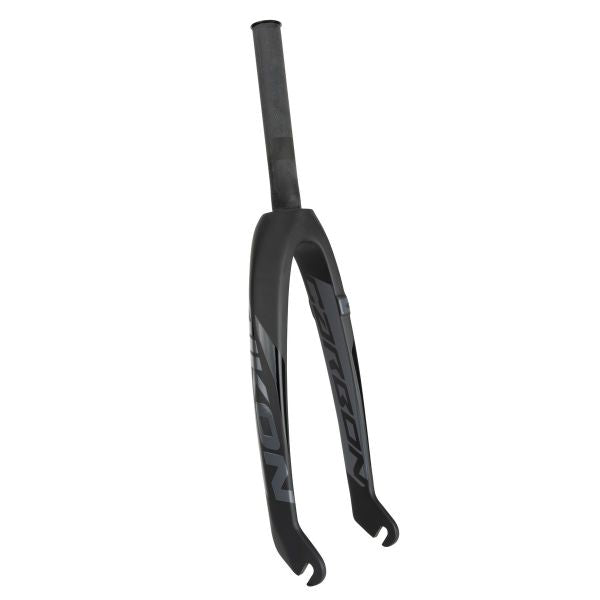

The Ikon 1" is a full-carbon fork designed for 20" BMX race bikes in Mini and Junior classes. Hand-laid from Toray UD carbon fiber with a carbon steerer tube and carbon dropouts, it weighs just 304 grams while maintaining structural integrity for riders up to 45 kg. Features integrated threaded aluminum insert in the steerer and 7075-T6 aluminum top cap.

Key Features

• Full Toray UD carbon construction – Hand-laid unidirectional carbon fibers in steerer tube, fork legs, and dropouts provide maximum weight reduction while maintaining strength for younger riders

• Carbon dropouts – 10mm carbon fiber dropouts reduce fork weight compared to aluminum inserts while providing sufficient strength for riders under the 45 kg weight limit

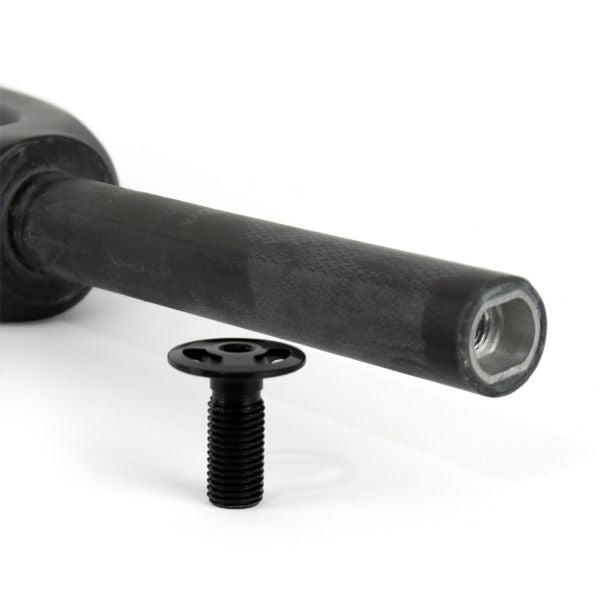

• Integrated threaded aluminum insert – Steerer tube features built-in threaded insert for top cap installation, eliminating need for separate star nut or compression plug

• Tapered fork legs with embossed features – Unique leg shaping and embossed details add structural rigidity and visual distinction

• Matte natural carbon finish – Hand-laid process creates unique non-uniform carbon pattern that varies between forks, providing distinctive visual appearance

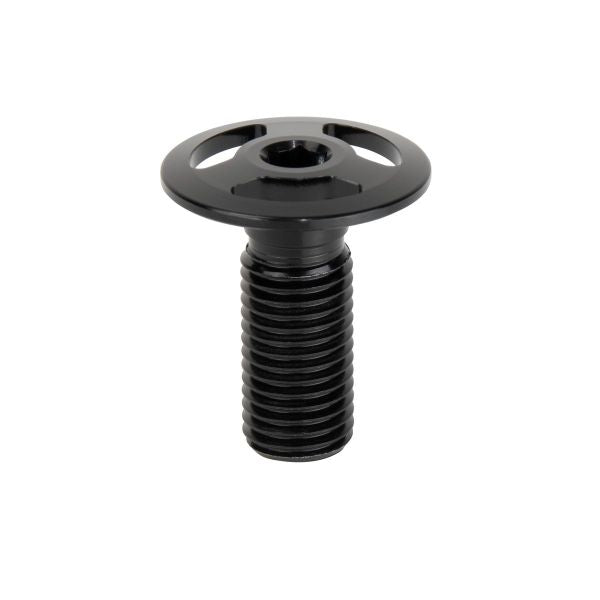

• 7075-T6 aluminum top cap – Lightweight anodized black cap weighs just 8 grams and provides compression adjustment interface

Technical Specifications

• Weight: 304 g (10.7 oz) fork only; 8 g (0.3 oz) top cap
• Material: Toray UD carbon fiber (steerer, legs, dropouts), 7075-T6 aluminum (top cap, threaded insert)
• Fork size: 20" (Mini/Junior)
• Steerer tube: 1" full carbon
• Steerer tube length: 165mm
• Axle to crown: 305mm
• Dropout offset: 28mm
• Axle type: 10mm
• Dropout material: Carbon fiber
• Rider weight limit: 45 kg (99 lbs)
• Maximum axle torque: 6 N·m
• Stem installation torque: 5 N·m (recommended)
• Finish: Matte natural carbon with gloss graphics

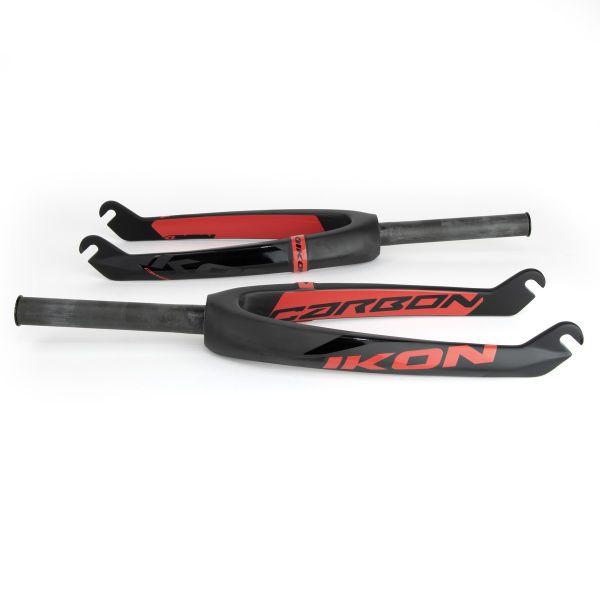

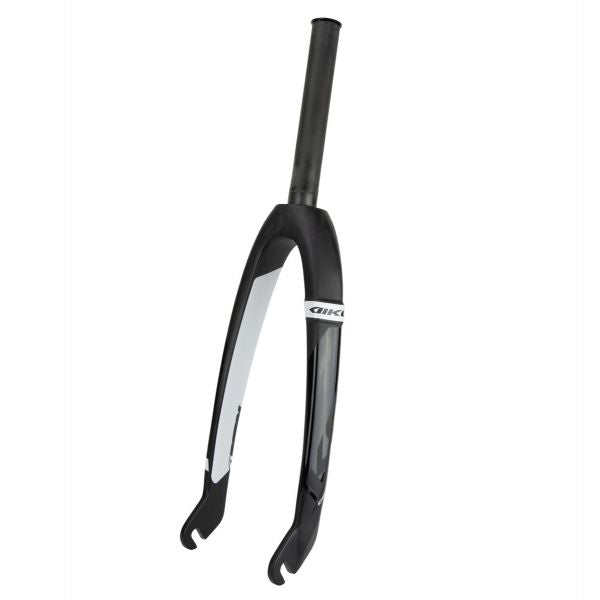

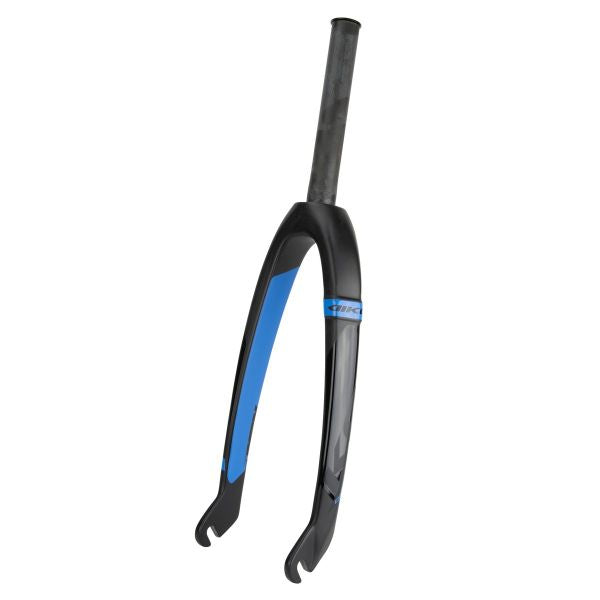

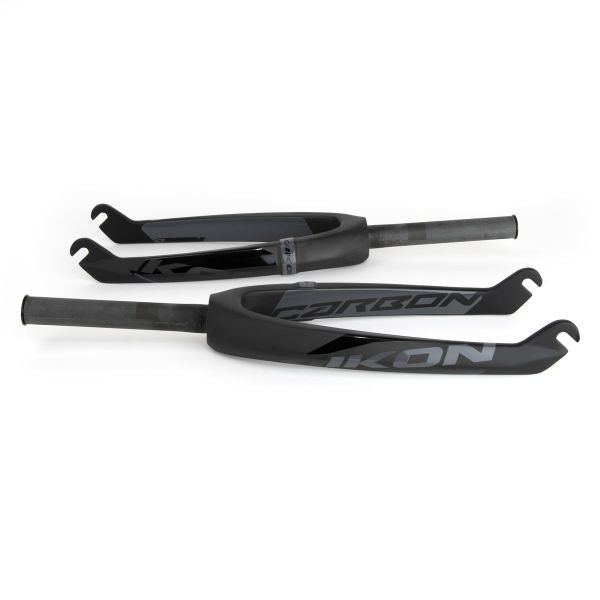

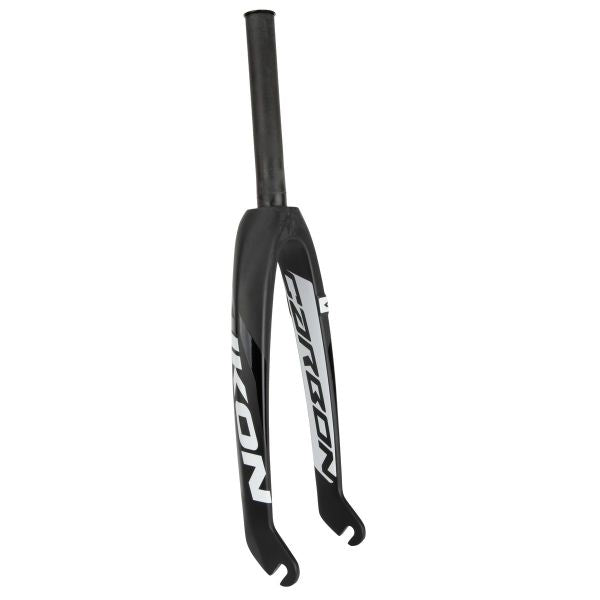

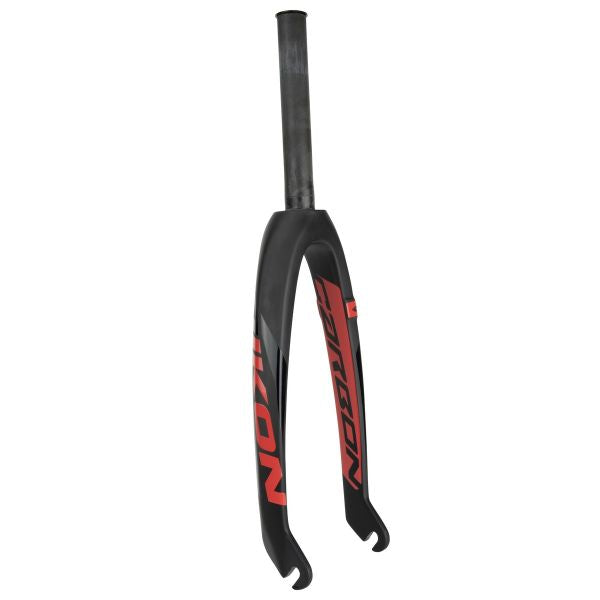

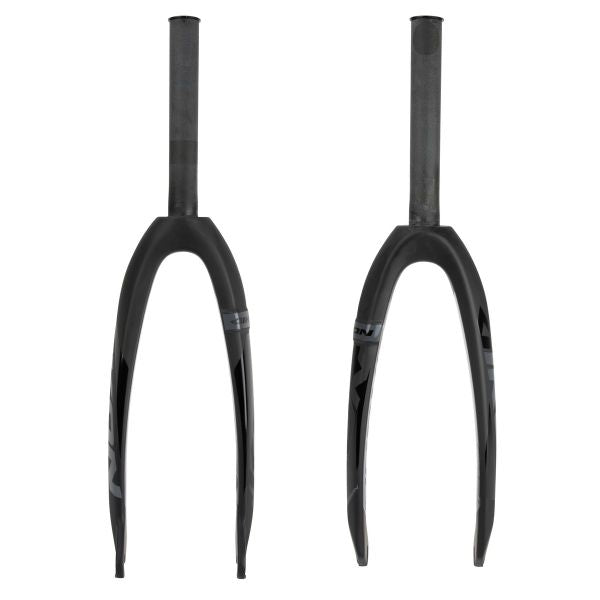

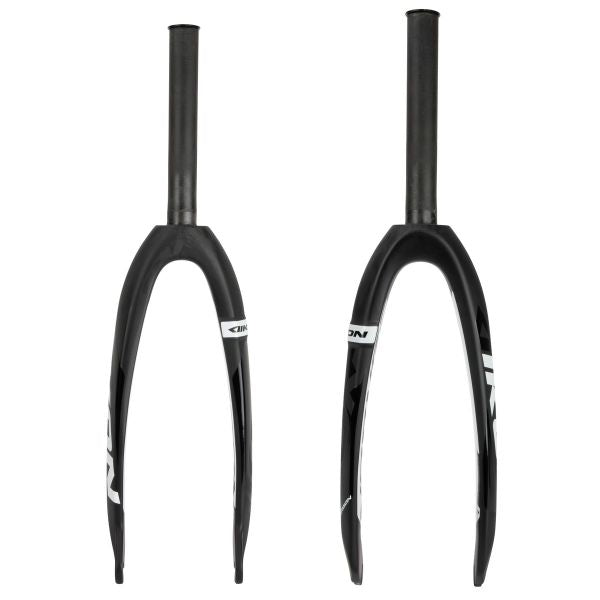

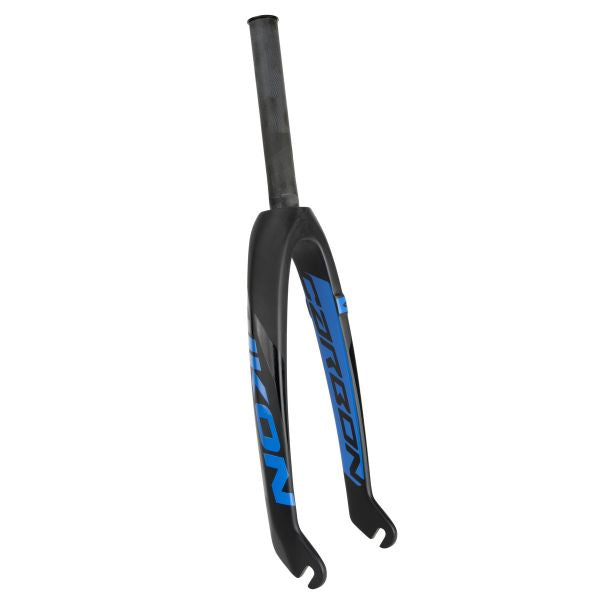

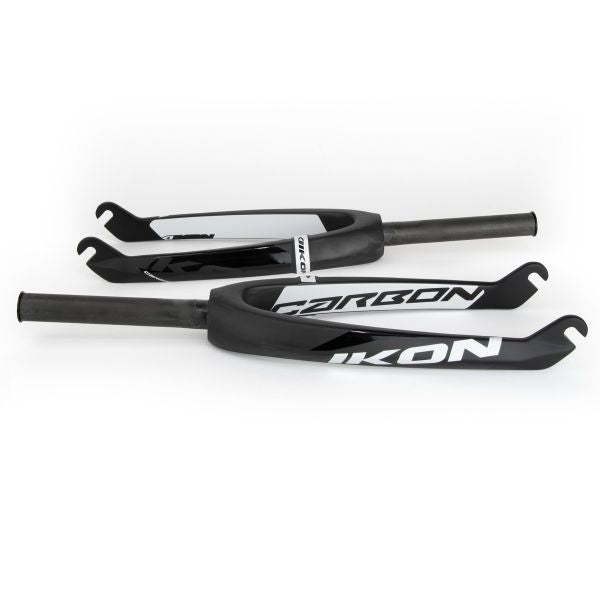

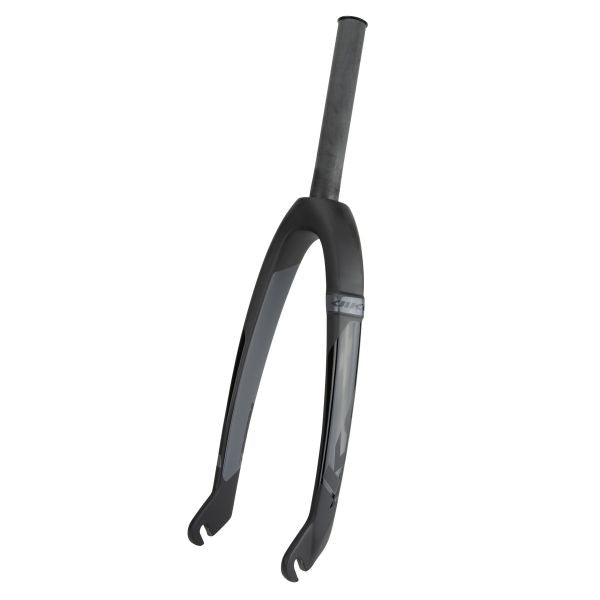

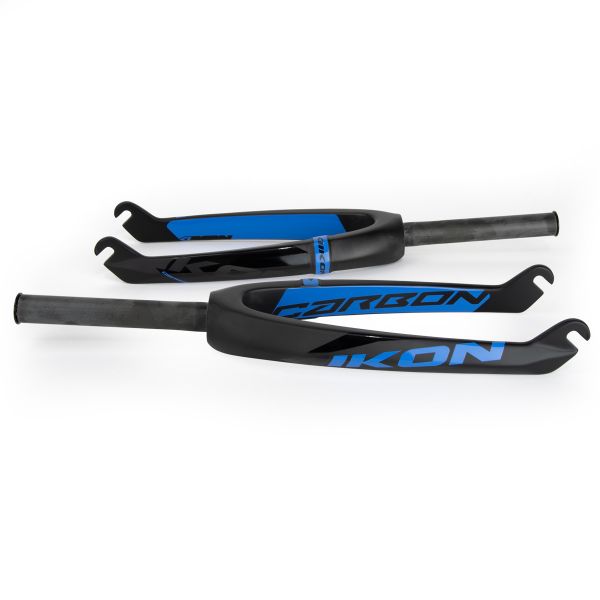

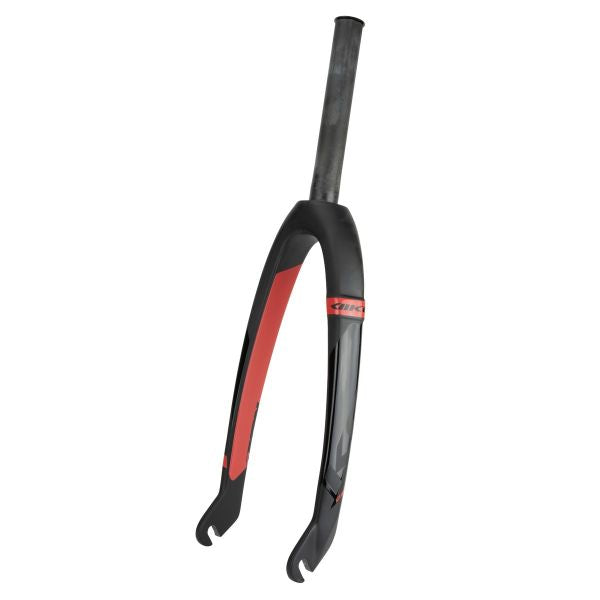

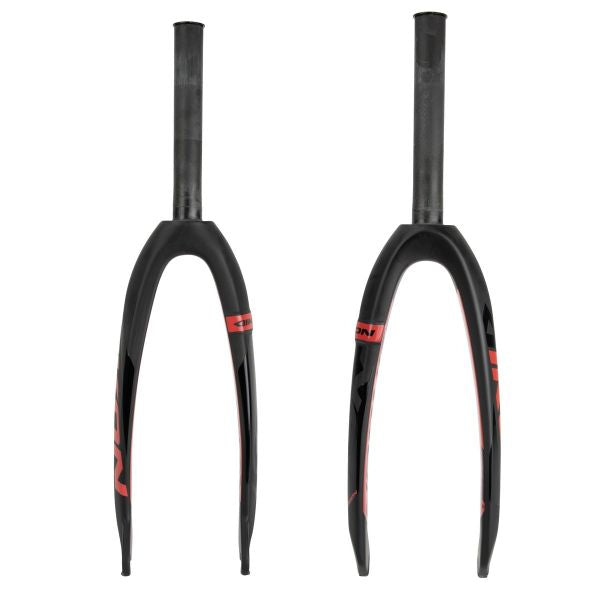

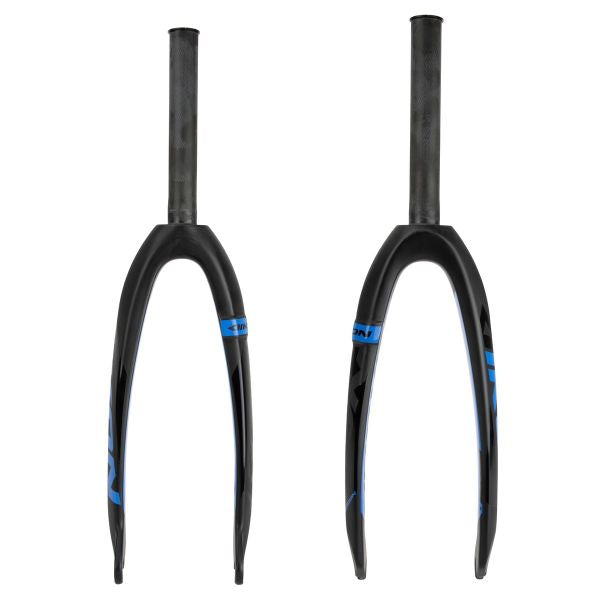

• Color options: Grey/white, Black/white, Red/white, Blue/white

Compatibility and Ideal Use Cases

Designed for 20" BMX race frames with 1" internal diameter headsets. Compatible with both 1" and 1-1/8" head tube frames when using appropriate headset—verify frame specifications and headset compatibility before ordering. Requires lower bearing race (sold separately) for headset installation. Best suited for Mini and Junior class competitive racing where minimal fork weight provides competitive advantage for riders under 45 kg (99 lbs). Not recommended for riders exceeding weight limit or for aggressive riding styles beyond typical racing applications. Requires torque wrench for proper installation—stem bolts must be torqued to 5 N·m to prevent carbon steerer damage; over-tightening will compromise structural integrity. Axle must not exceed 6 N·m torque specification.

Note: Lower bearing race required (sold separately). Use torque wrench for installation—stem: 5 N·m, axle: 6 N·m maximum.

.
