S&M 29" Pitchfork with Integrated Race BMX Fork
Description

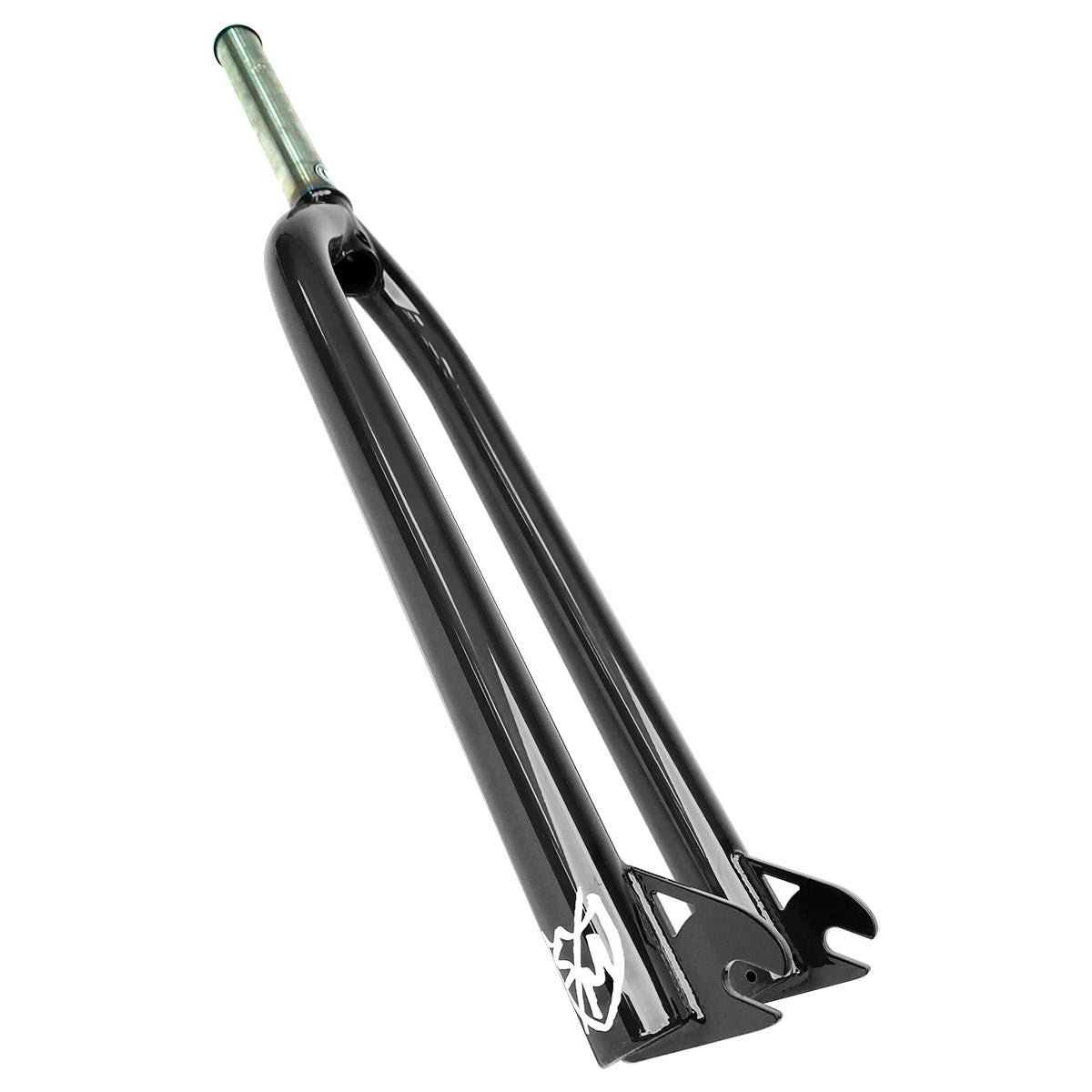

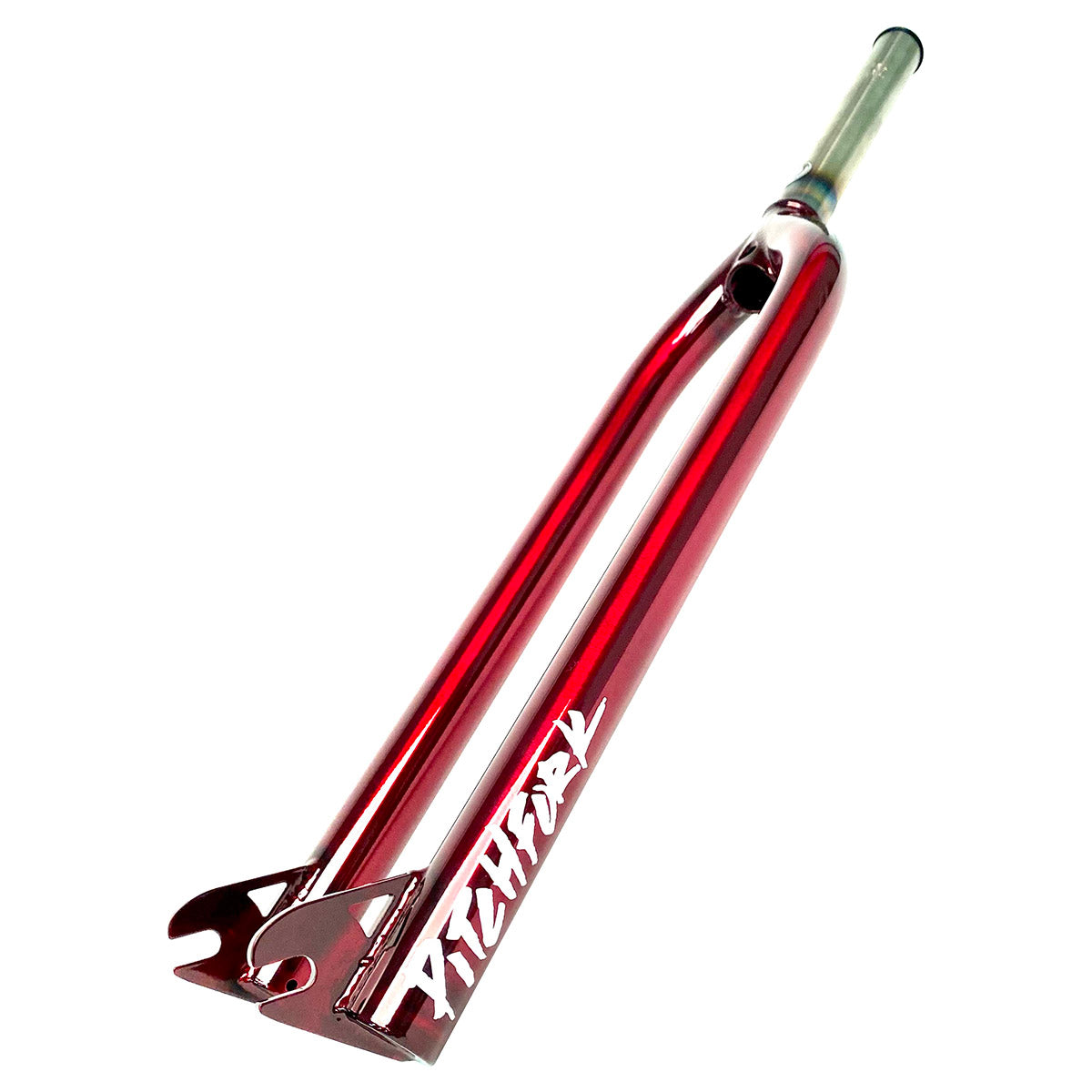

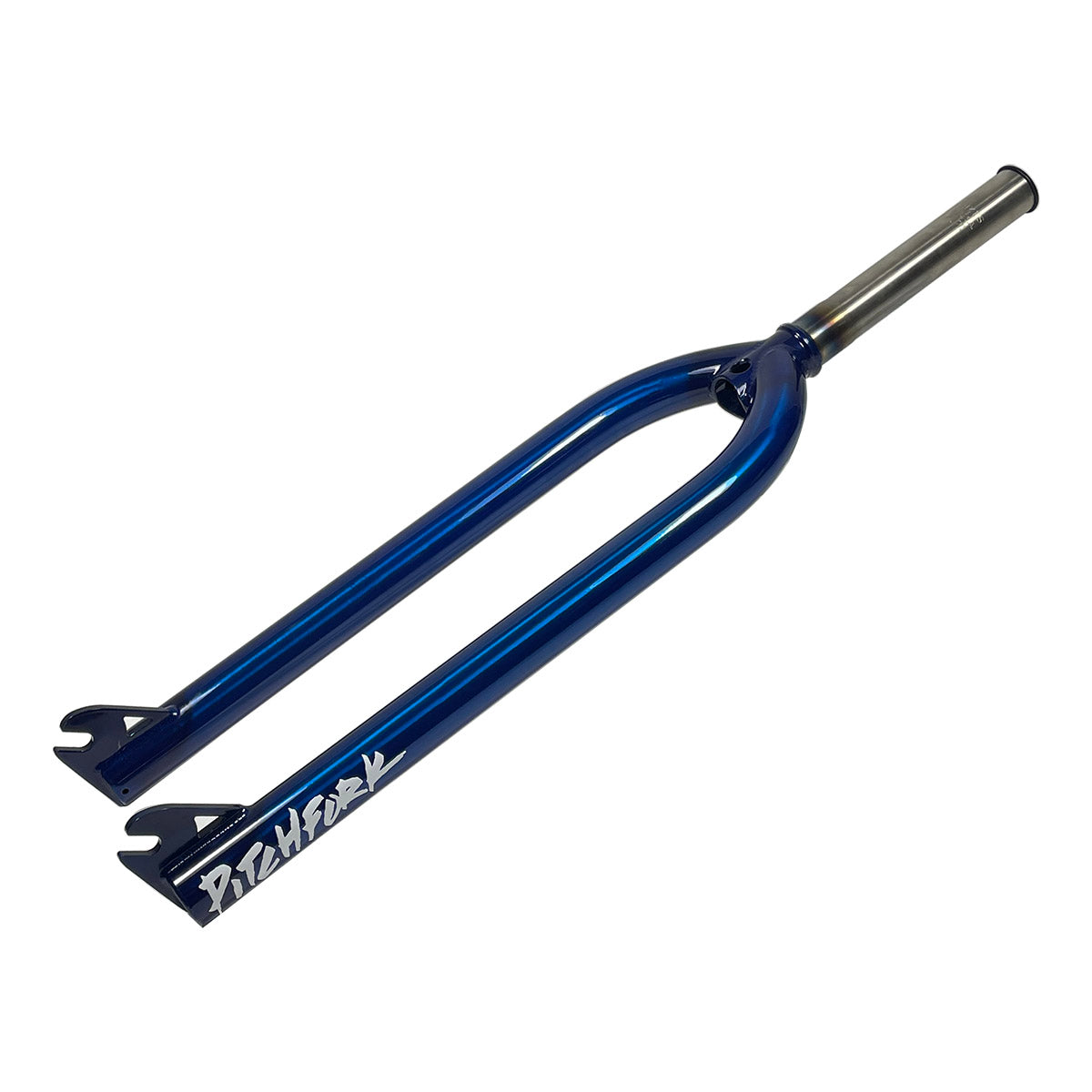

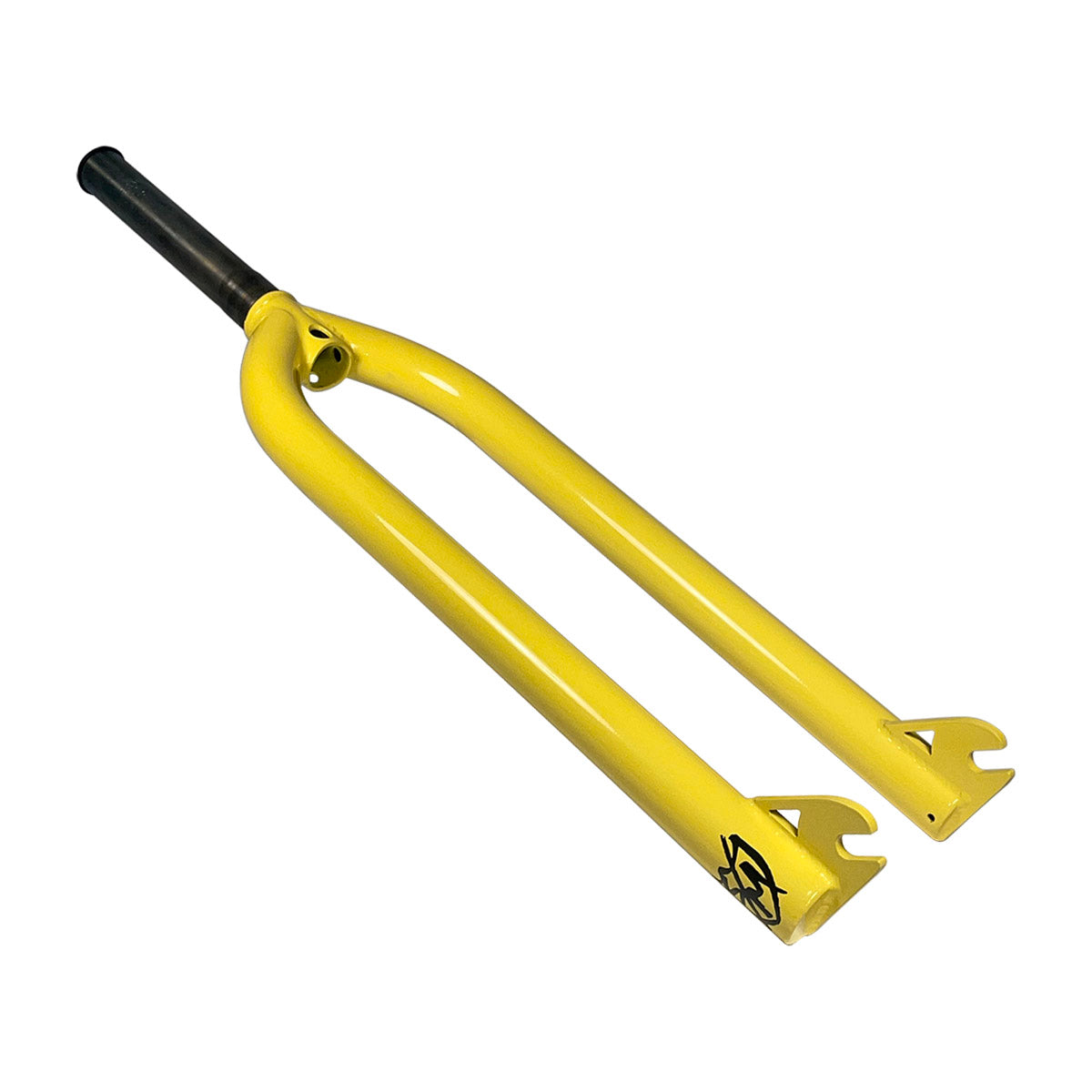

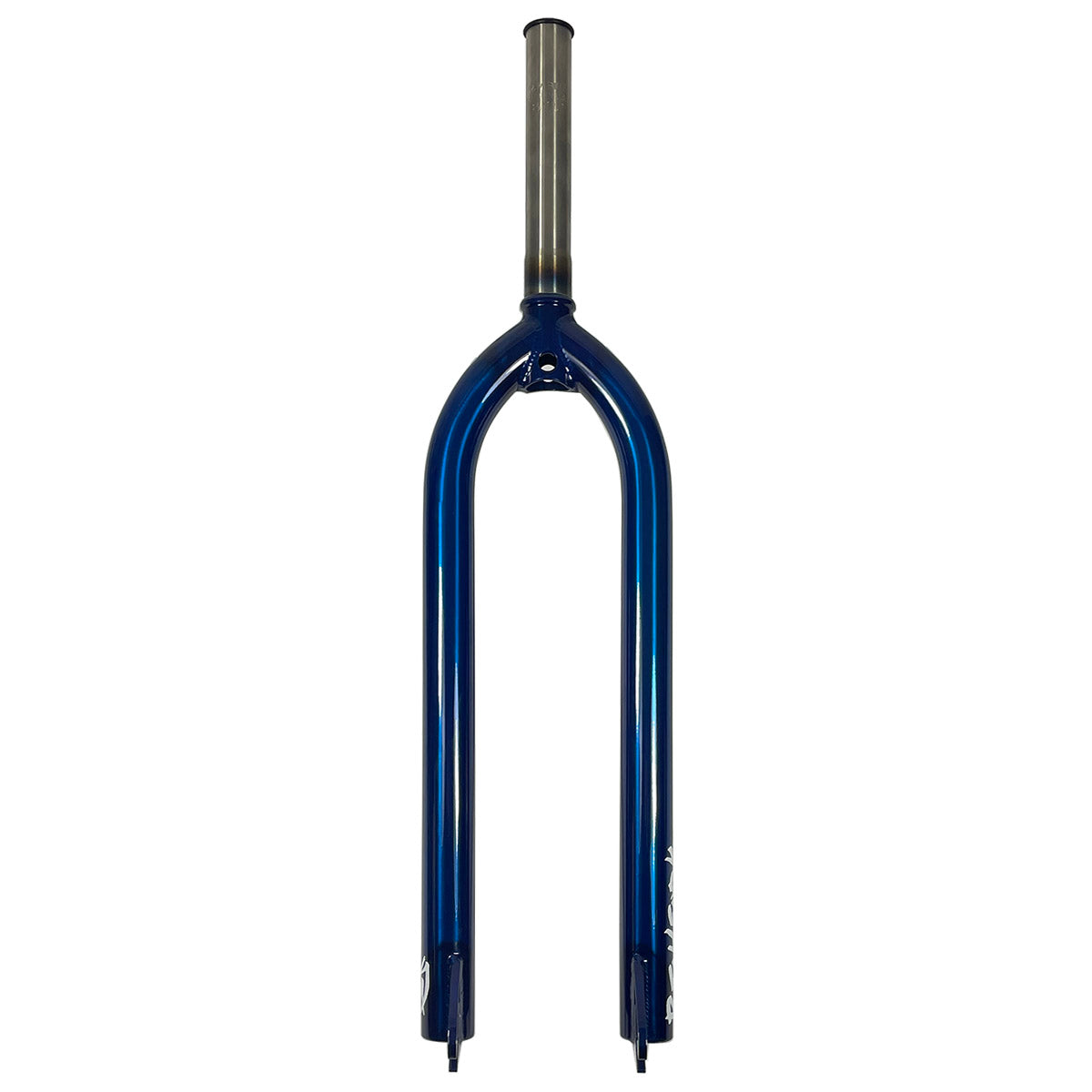

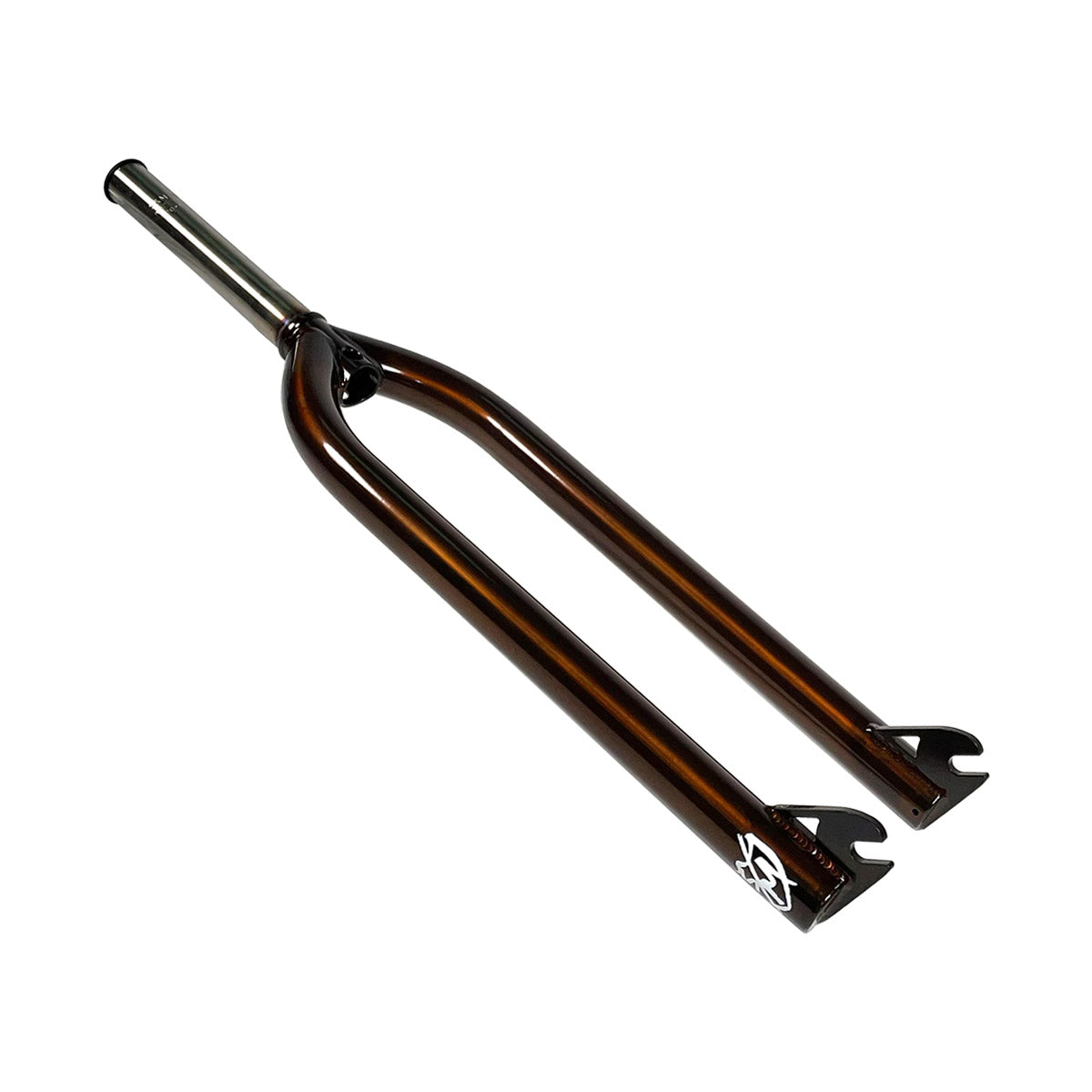

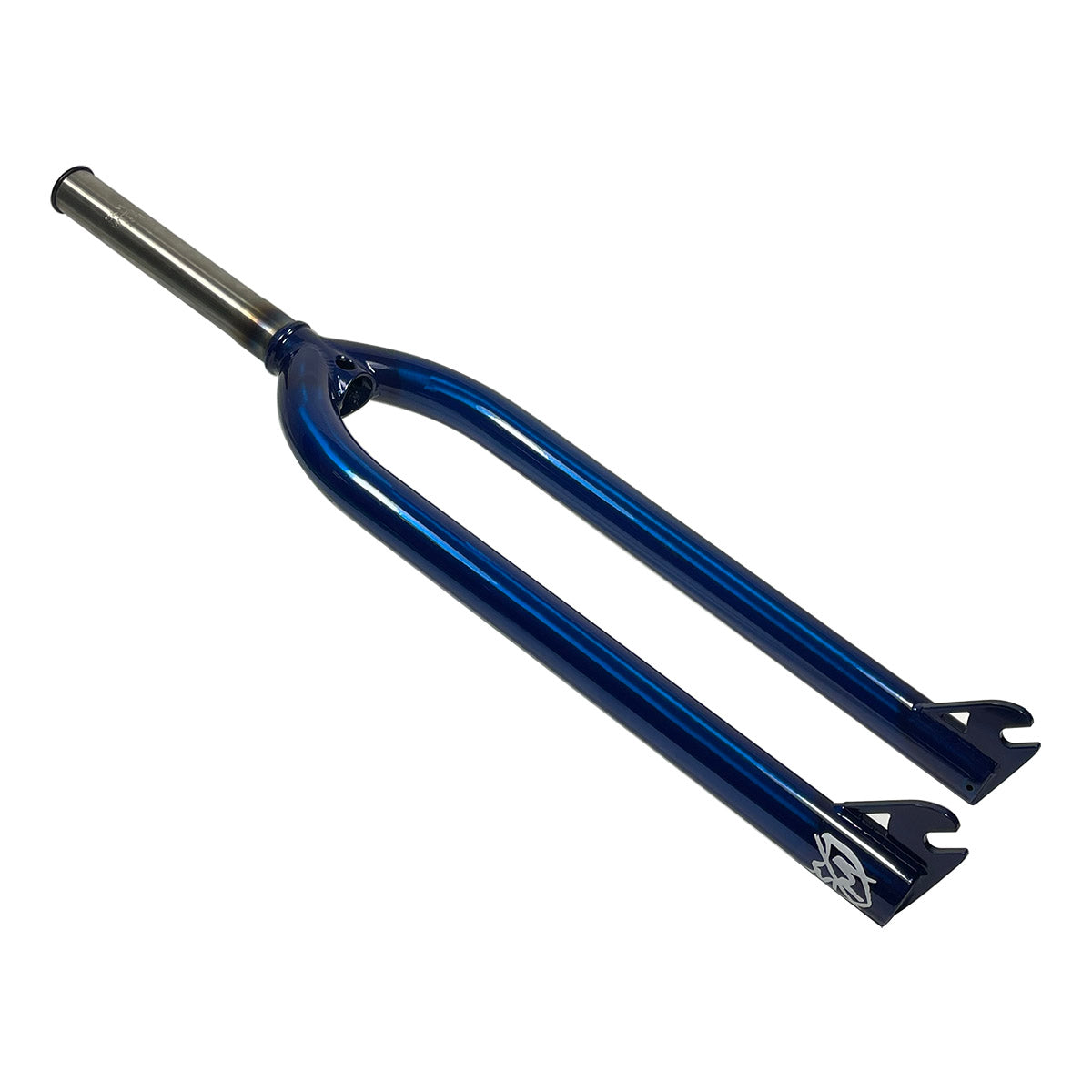

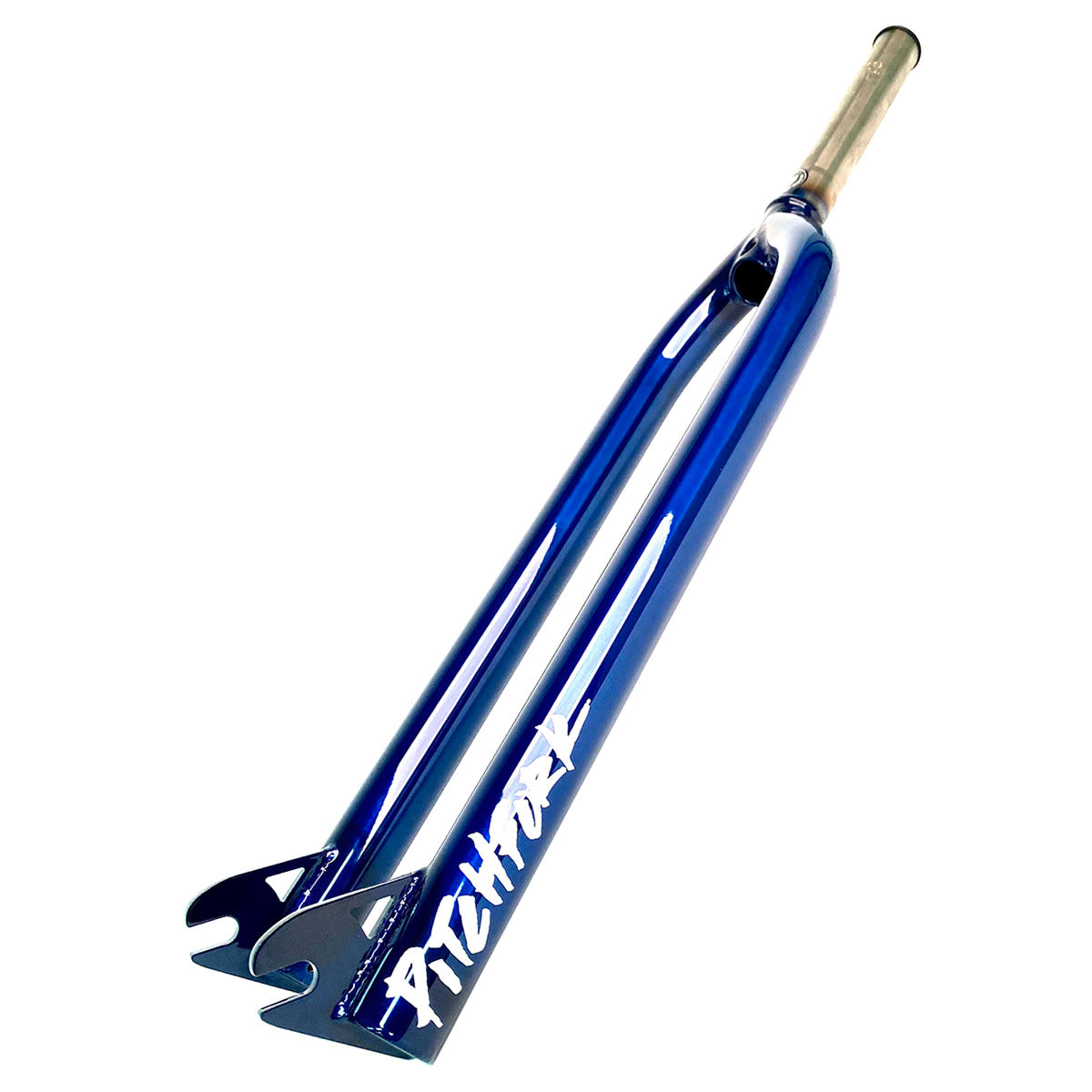

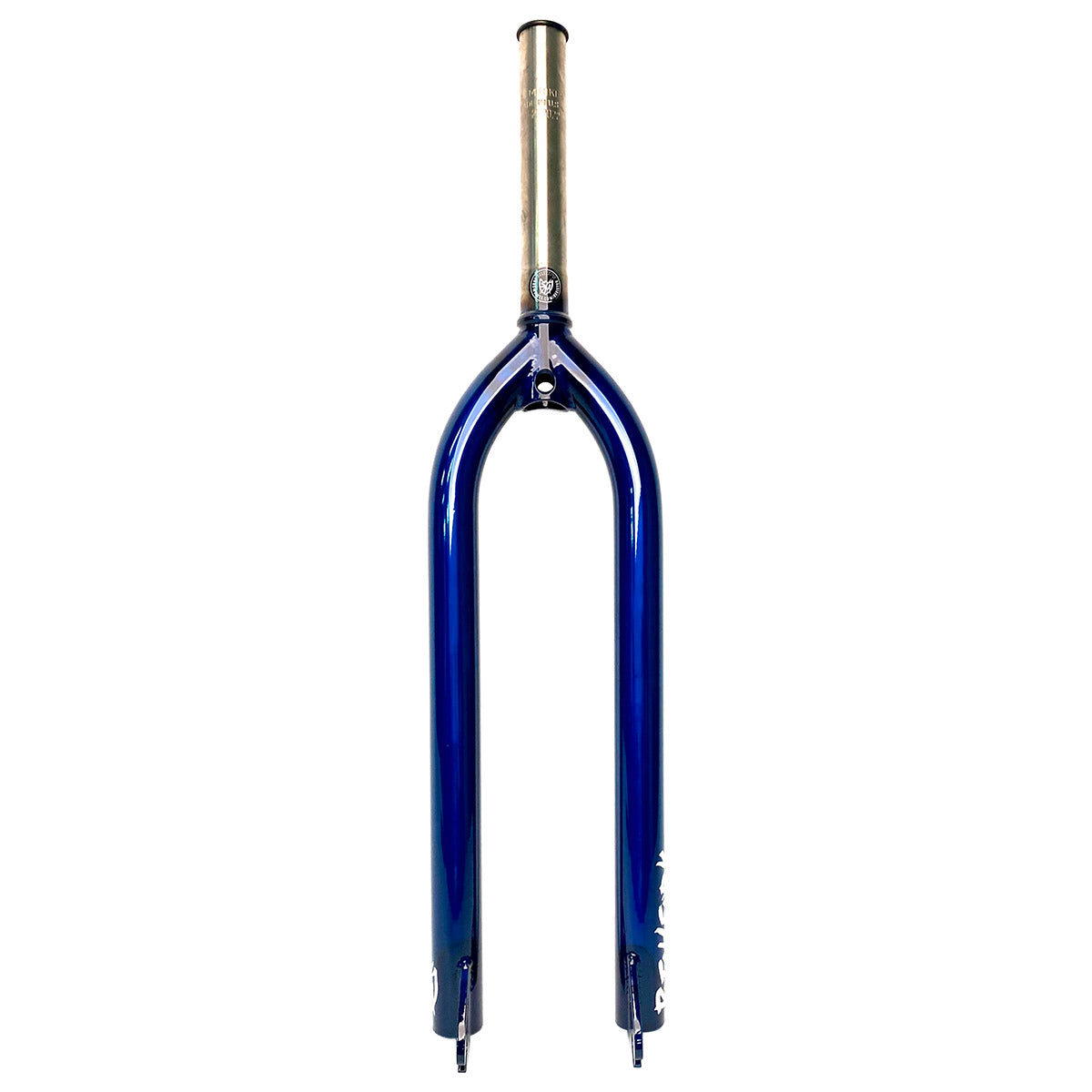

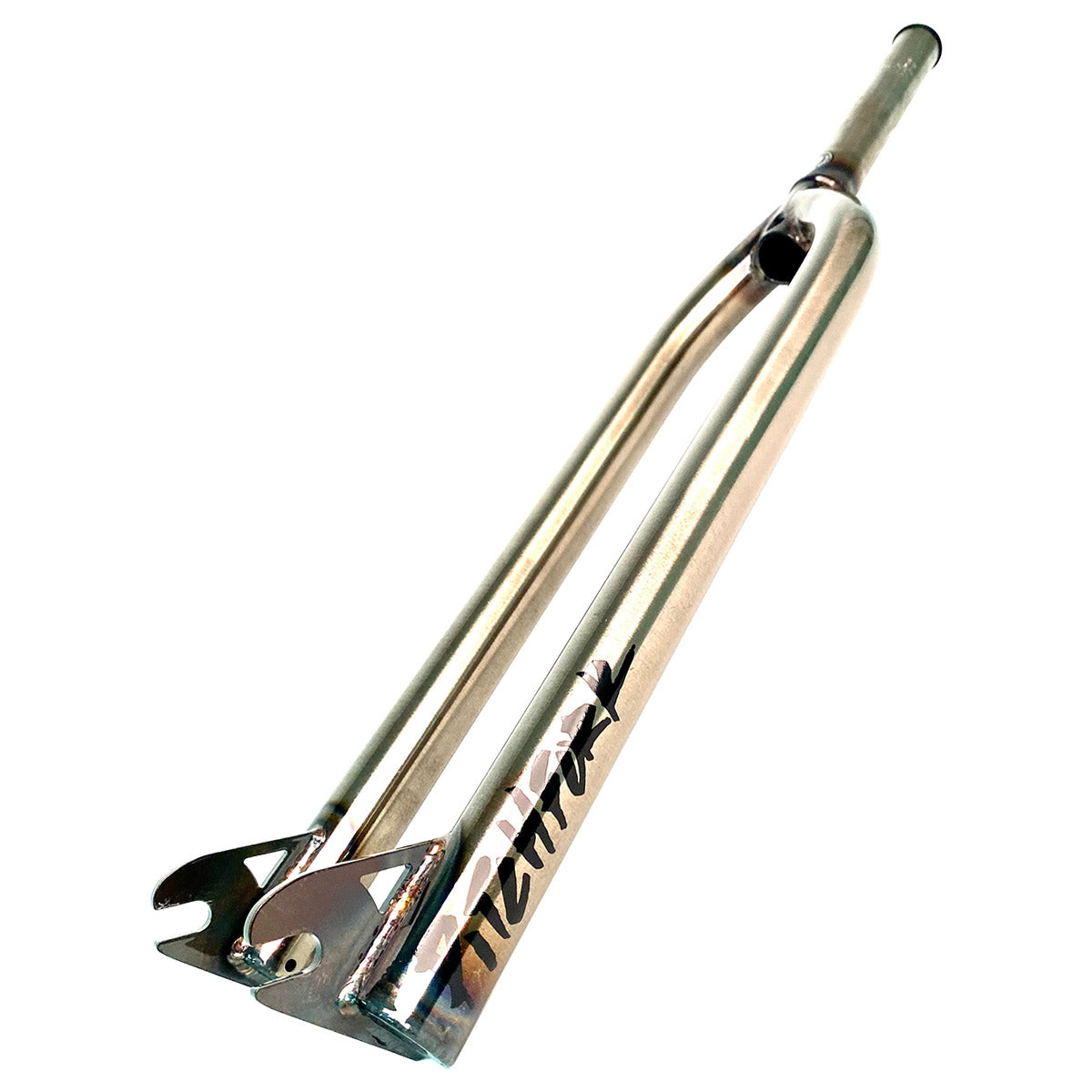

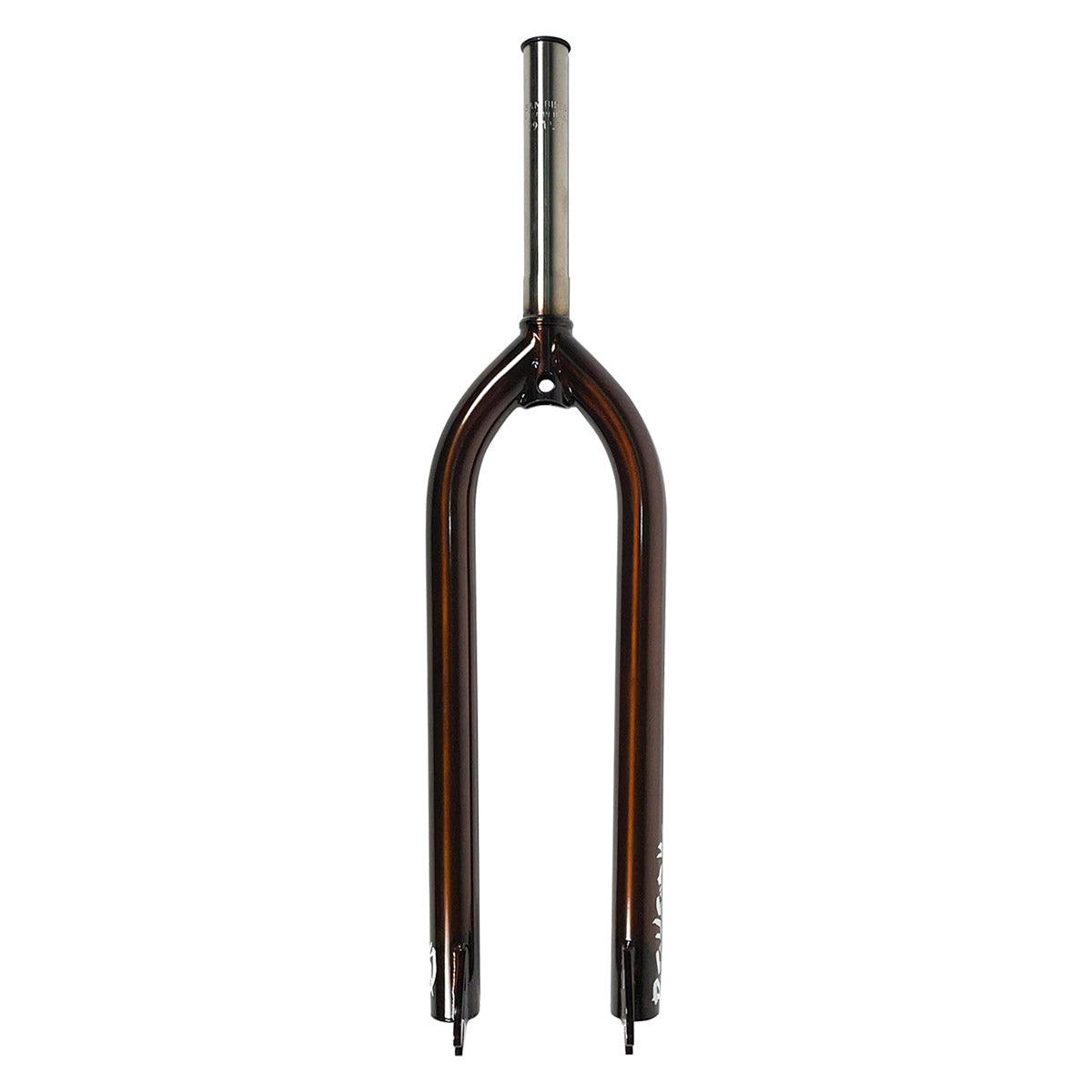

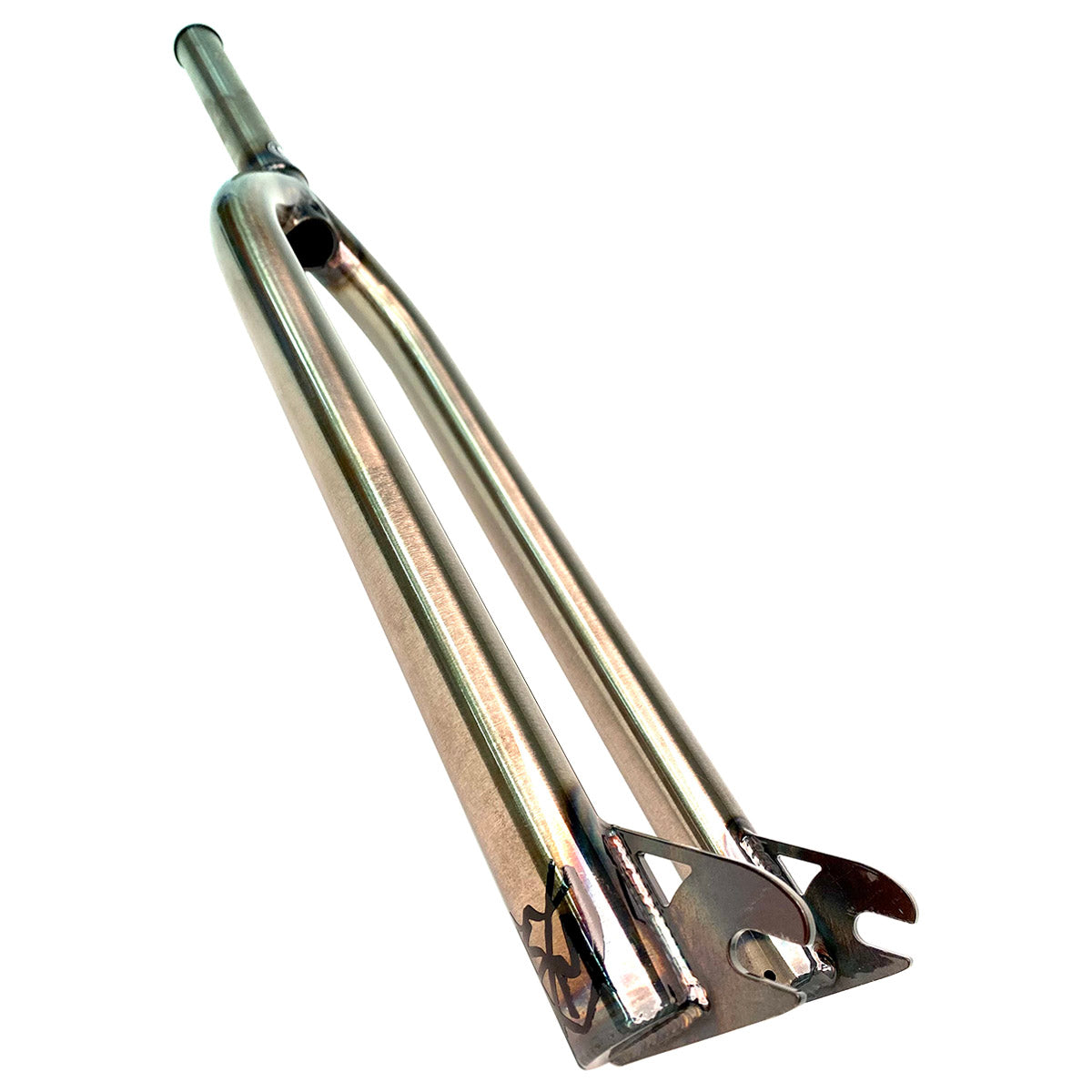

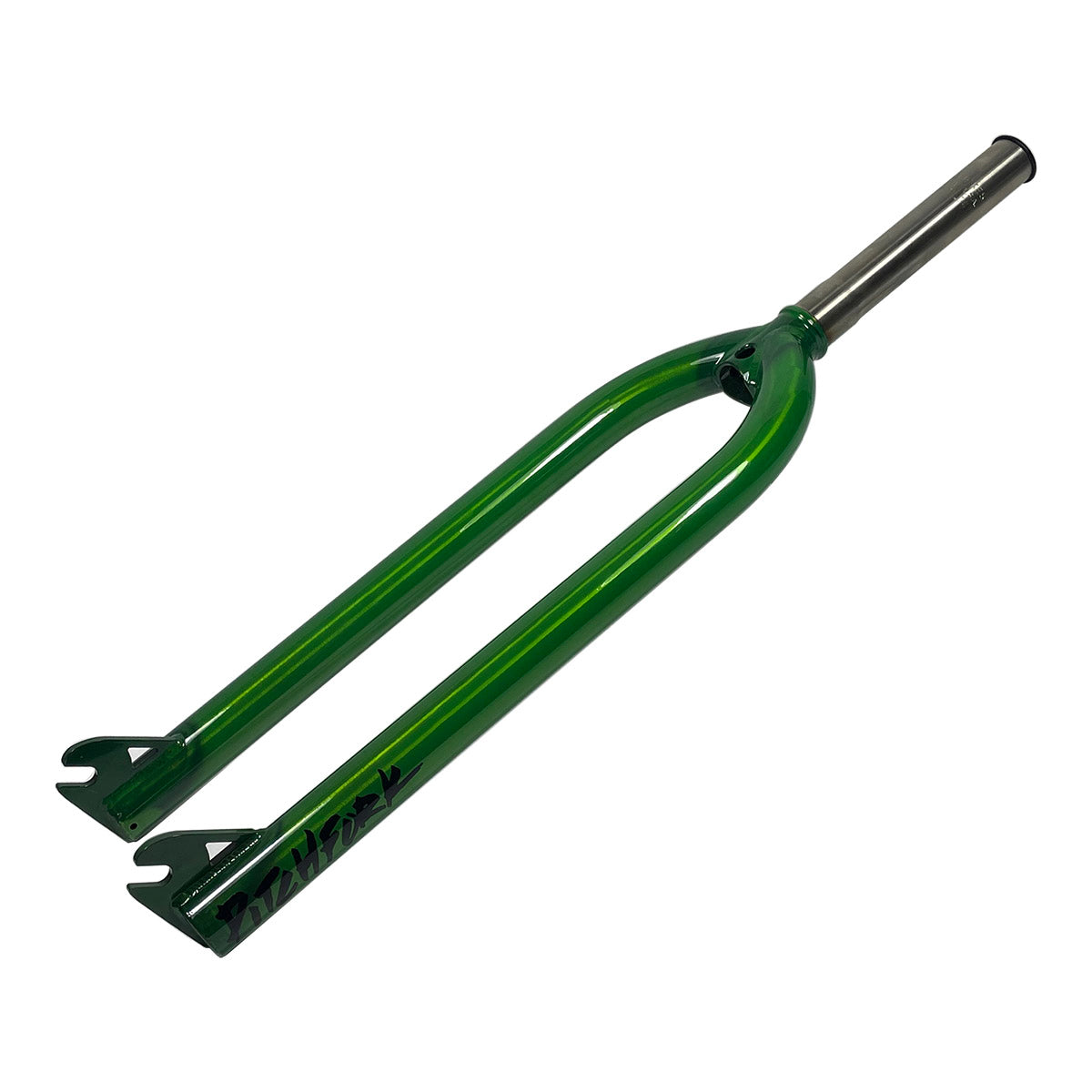

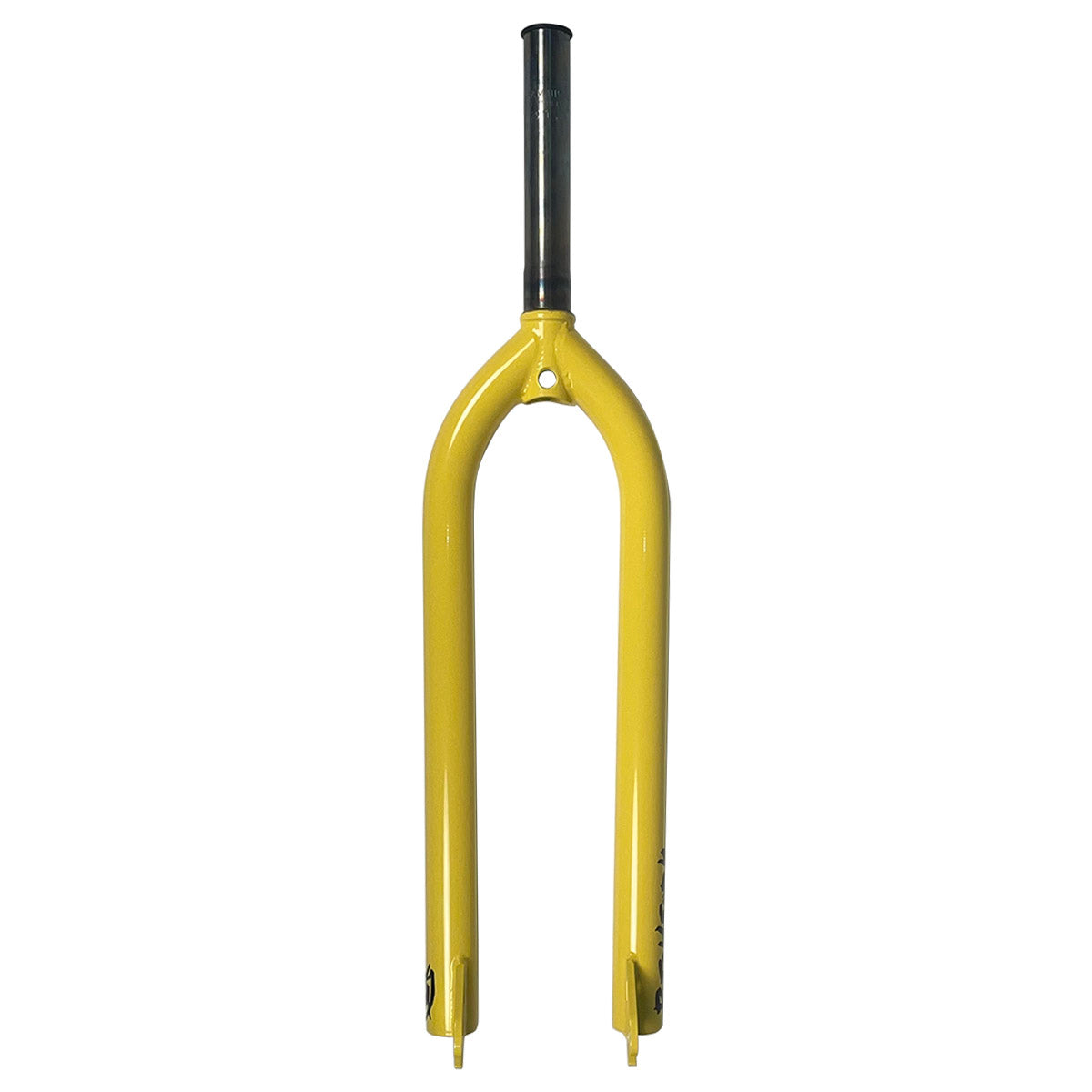

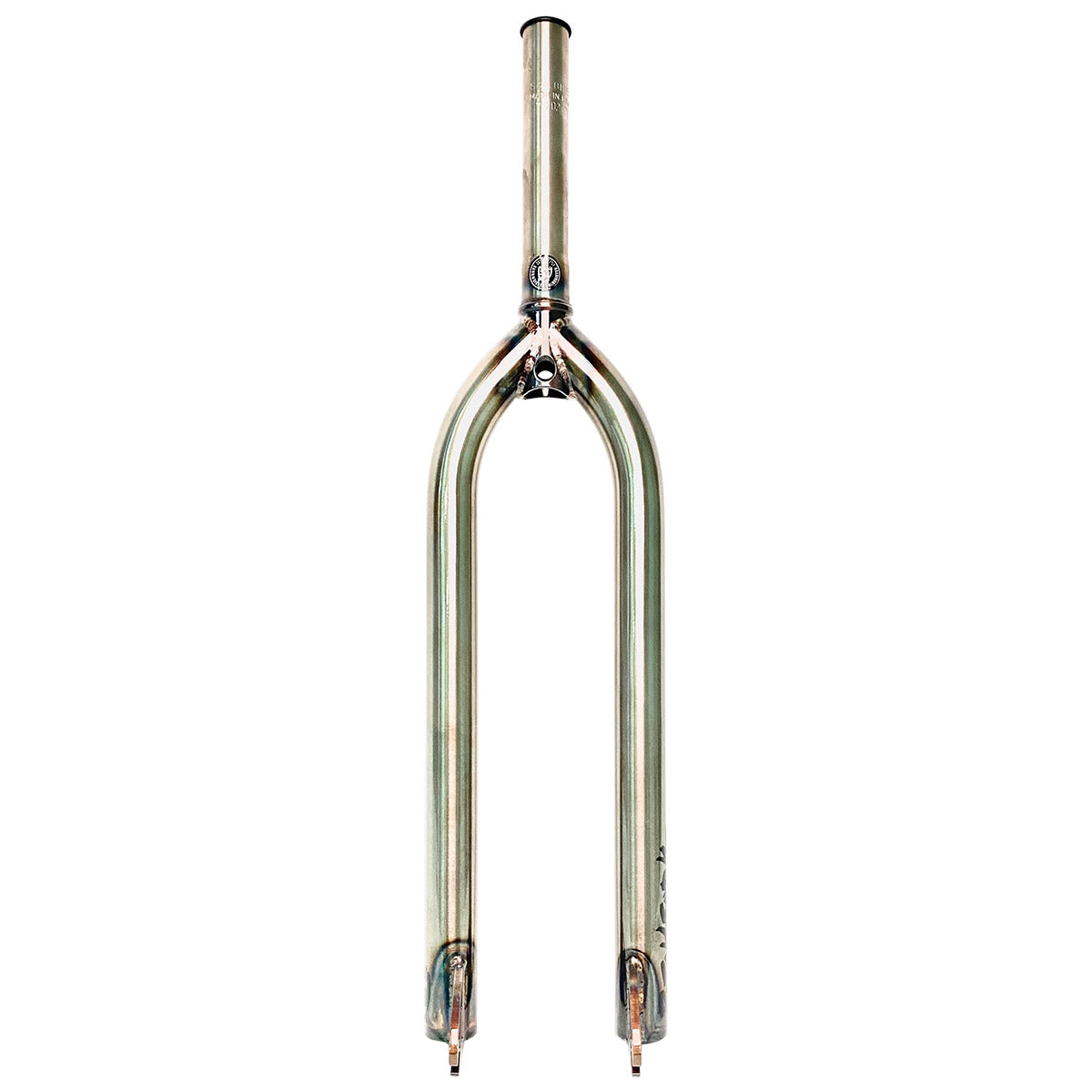

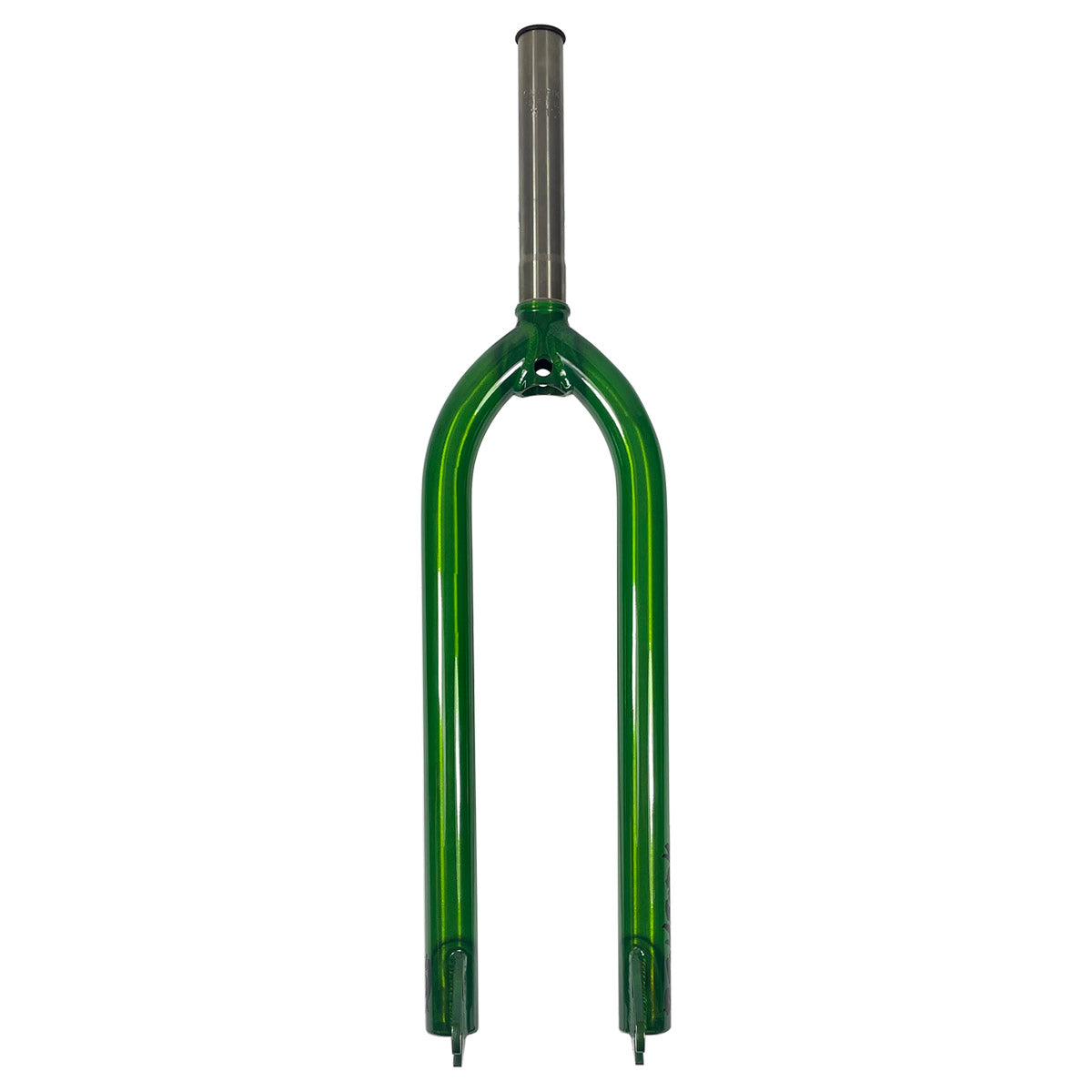

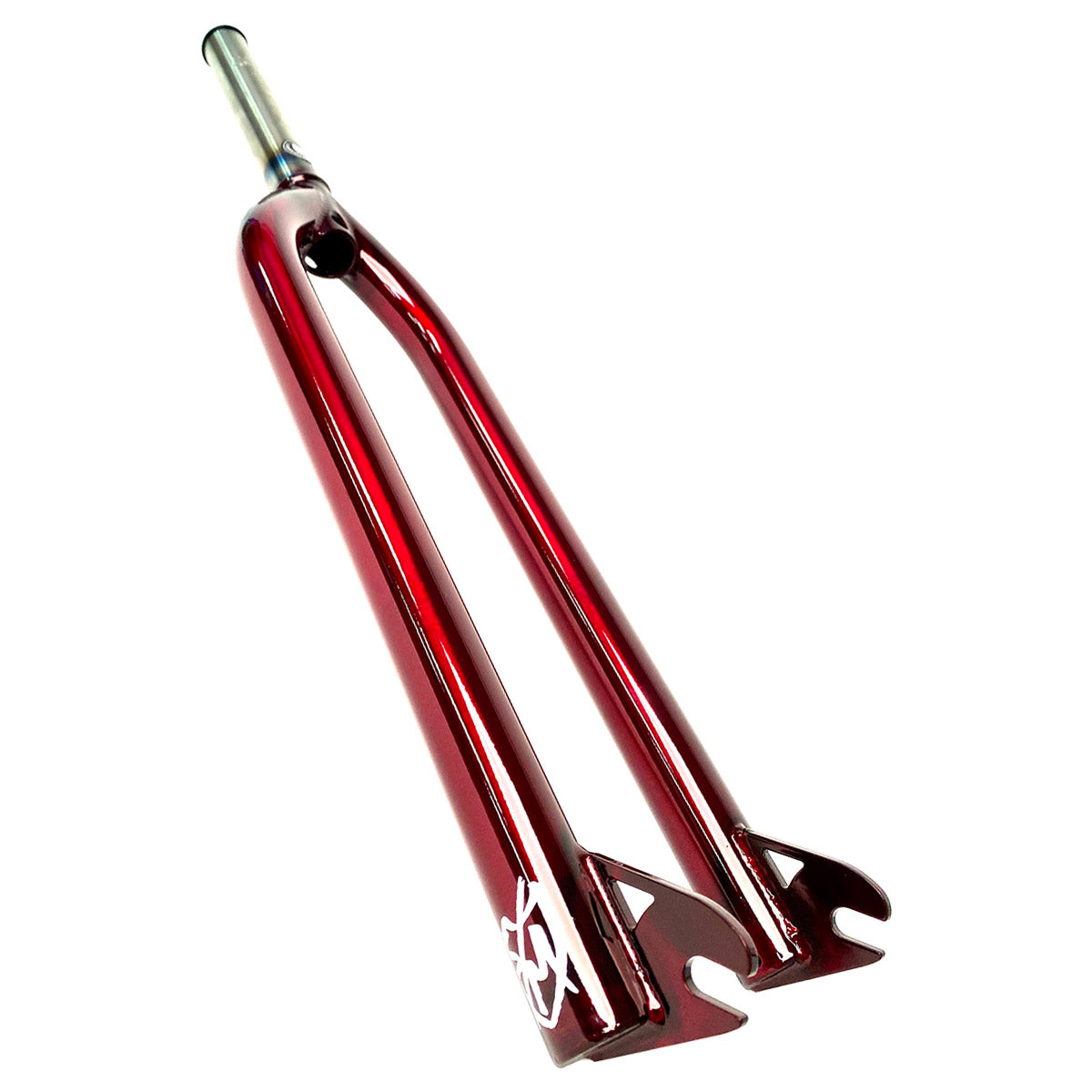

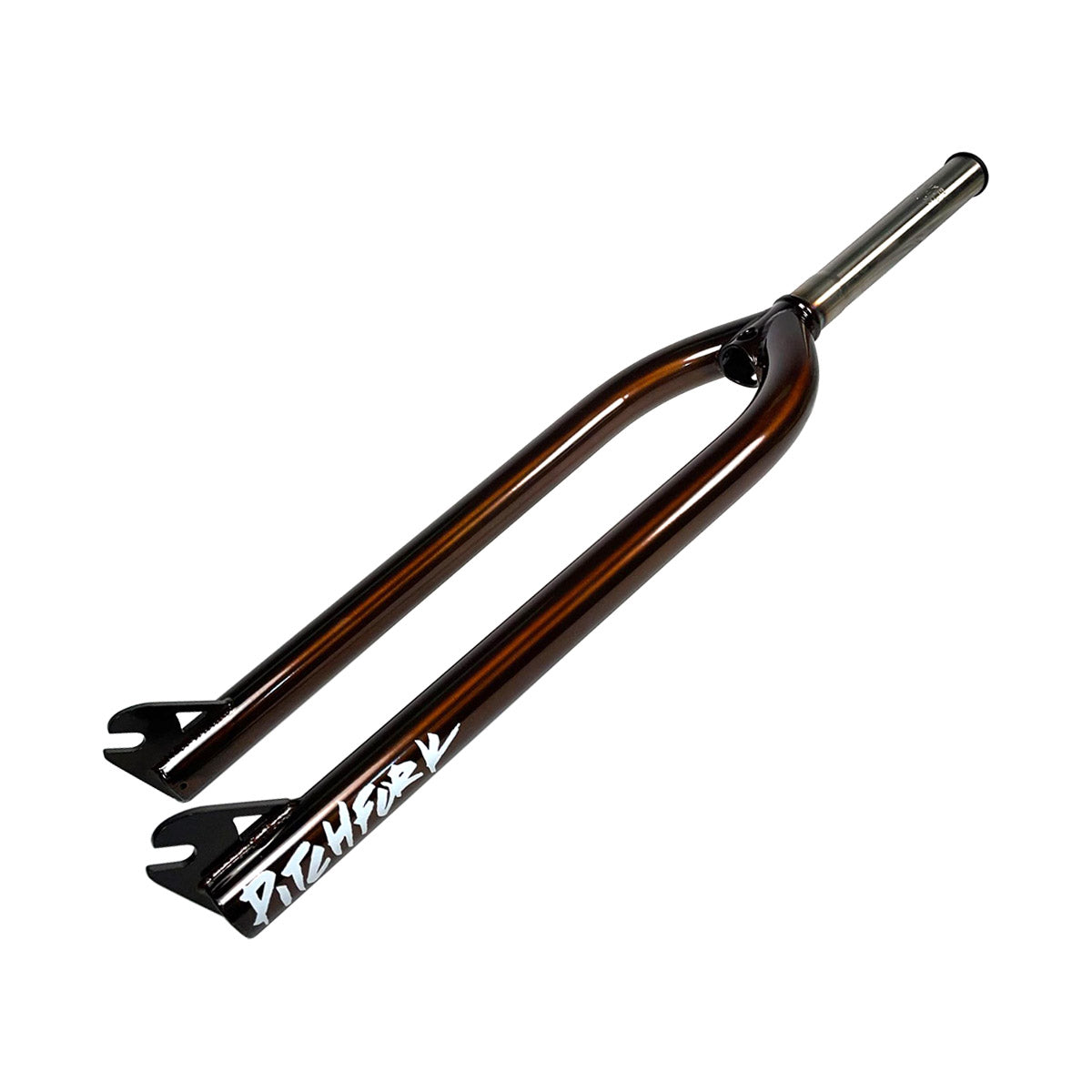

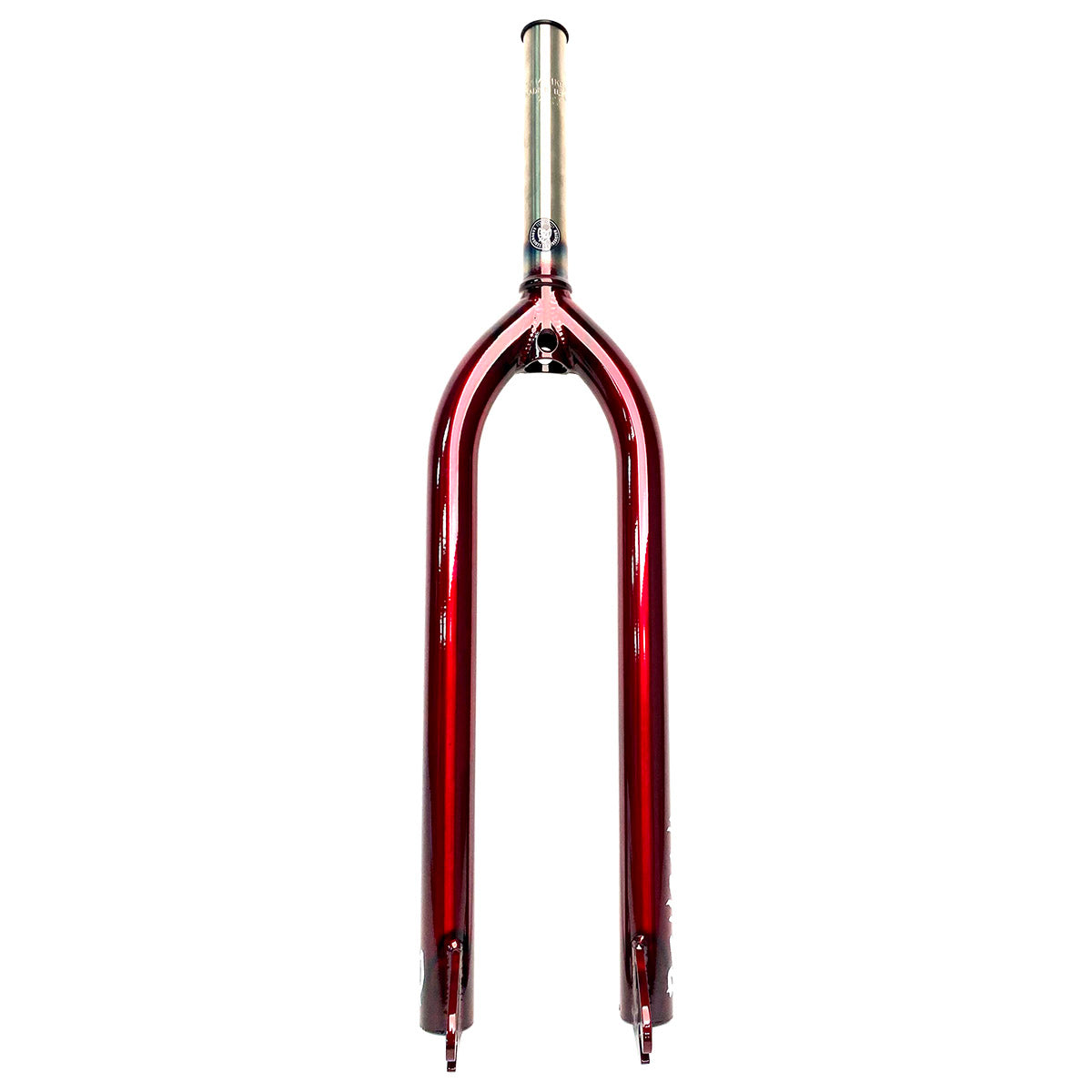

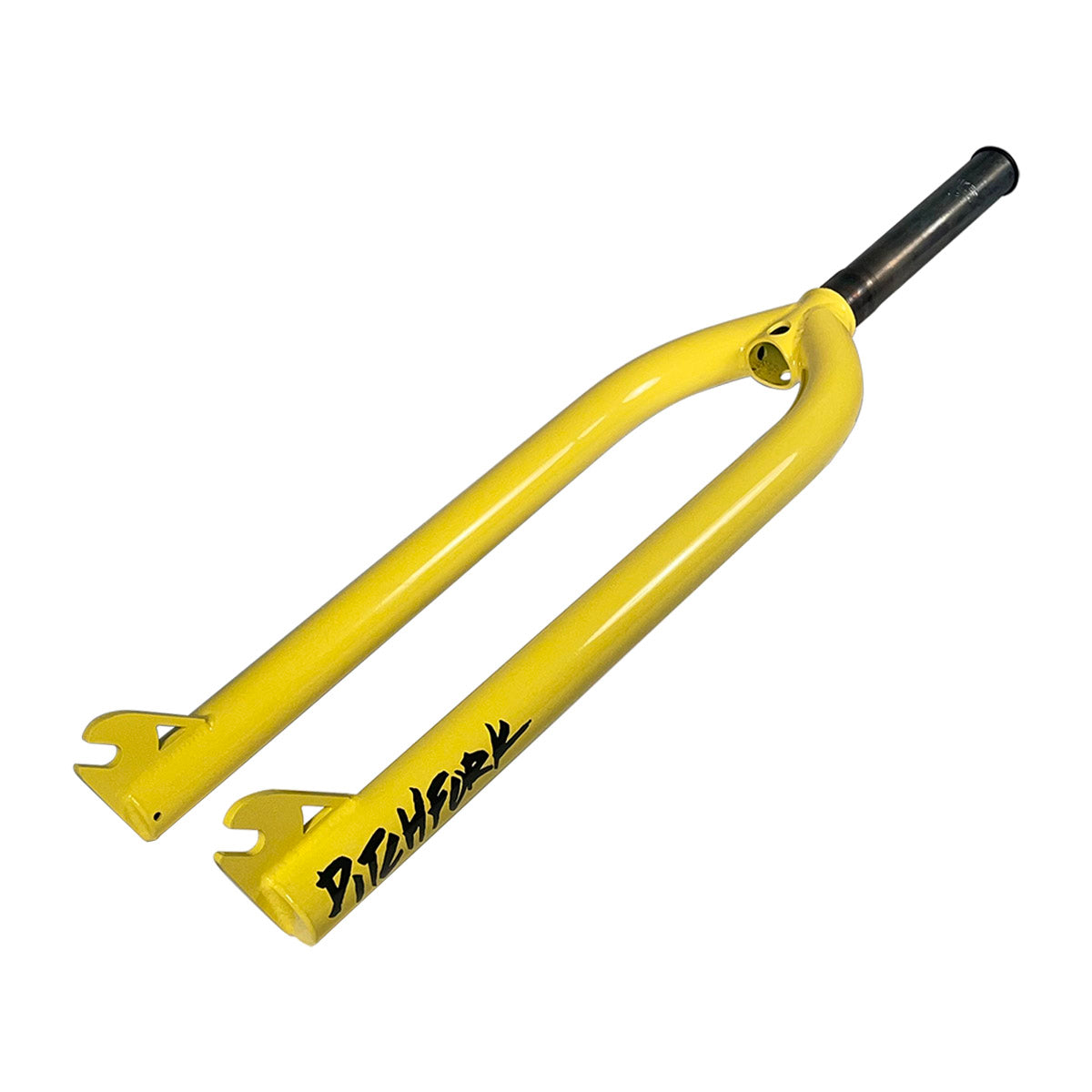

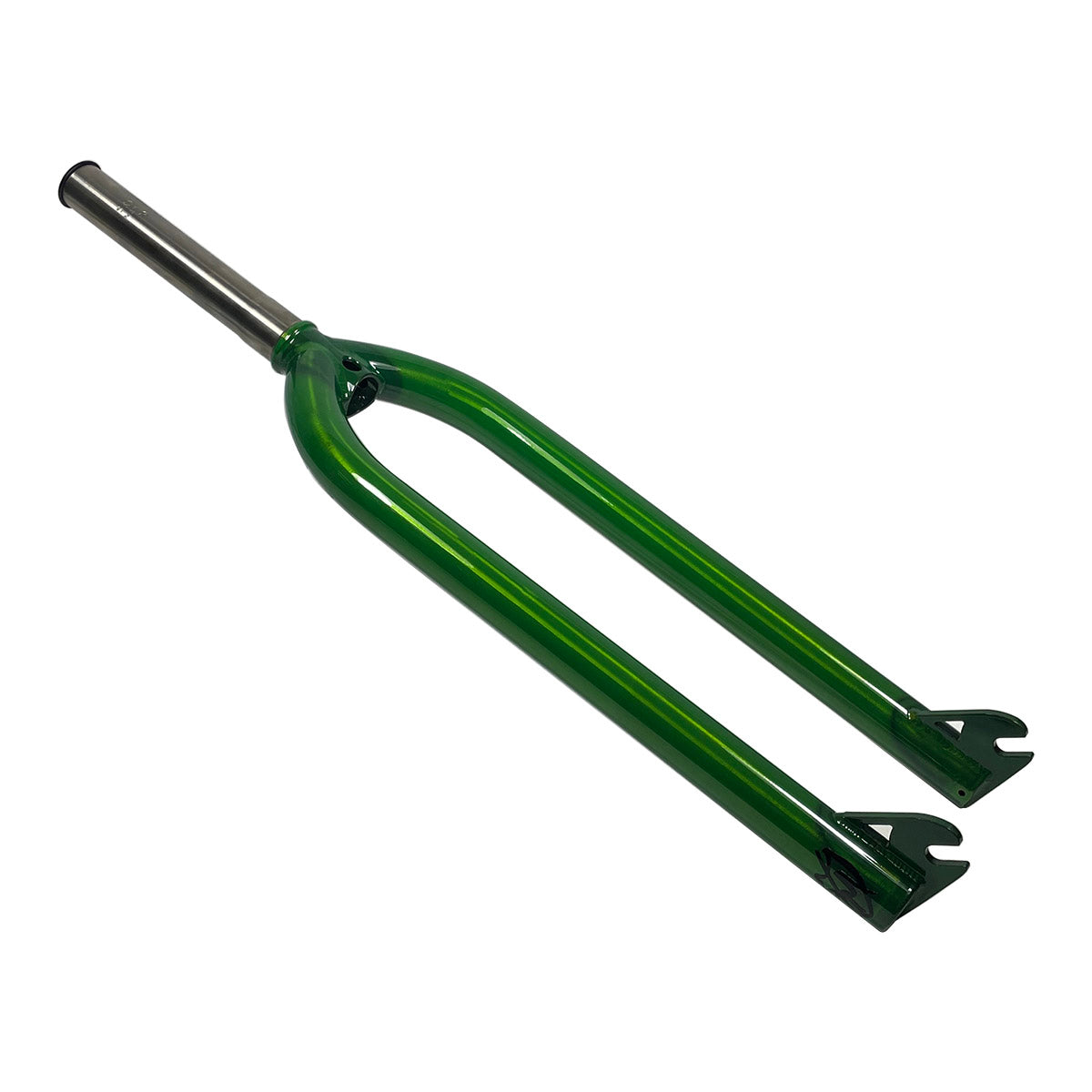

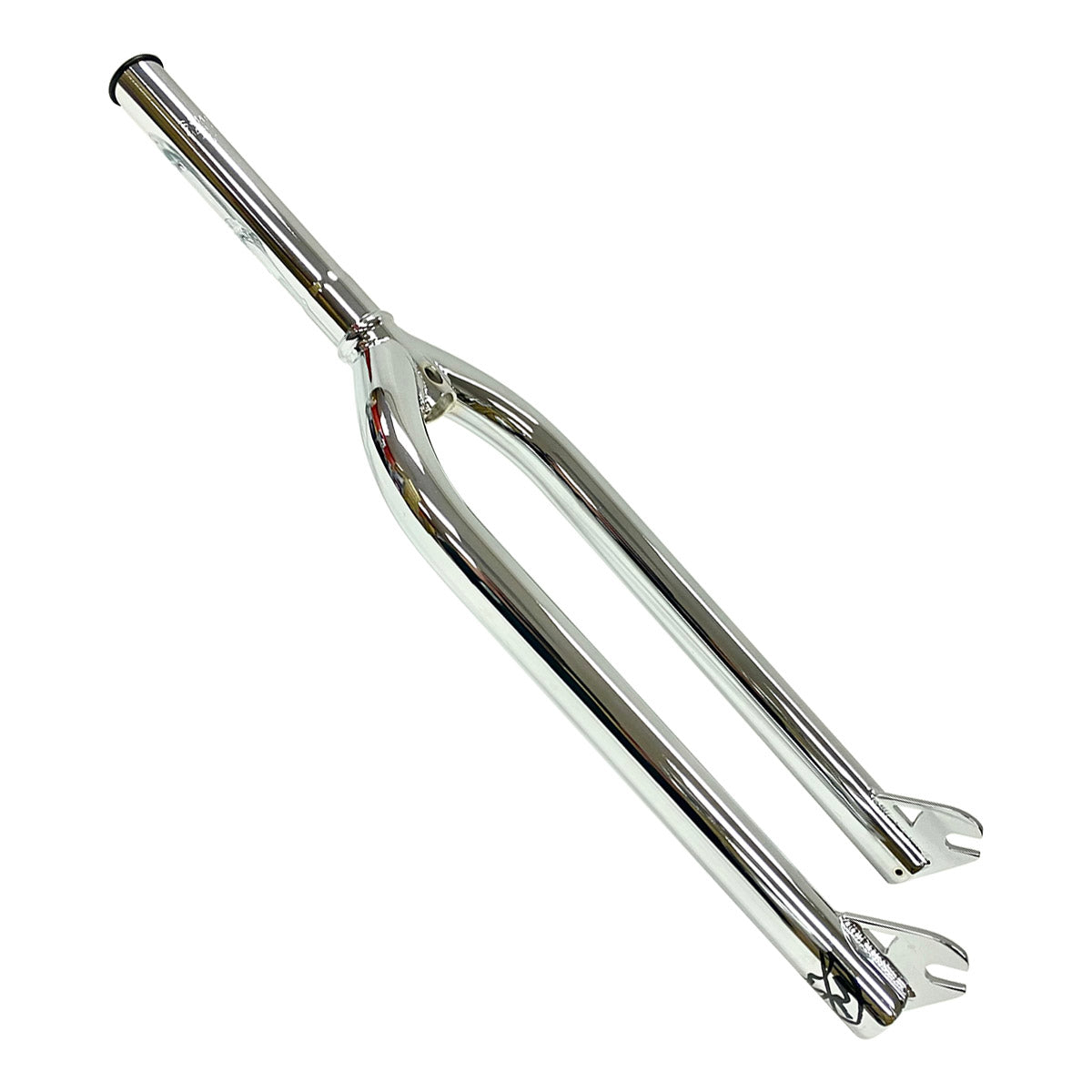

The S&M 29" Pitchfork is a 4130 chromoly BMX fork for 29" wheel builds. Its one-piece CNC-machined steerer has a built-in bearing race, and an extruded 6061 aluminum insert cuts weight. Available in Black, Bombay Blue, Chrome, Gloss Clear, Sour Apple, Trans Blue, Trans Brown, Trans Red and Yellow Pils.
Features
- Steerer machined from solid 4130 bar stock, so no pressed race and no welded joint there
- Aluminum steerer insert keeps weight down
- Laser-cut dropouts for accurate wheel alignment
- Threaded compression with a top cap, no star nut needed
- Tall axle to crown height clears 29" wheels
Specs
- Legs: 4130 chromoly
- Dropouts: Laser-cut 3/8" slot
- Steerer tube: One-piece CNC-machined 4130 chromoly with integrated race, extruded 6061 aluminum insert
- Steerer tube length: 172mm
- Compression: M24 x 1.5 thread with 6mm allen slot
- Axle to crown height: 435mm
- Offset: 33mm
- Weight: 3.15 lbs (1.43 kg)
Fitment
For 29" wheels. Needs an integrated headset that works with the built-in bearing race, 3/8" axle hubs and M24 x 1.5 threaded top caps.
