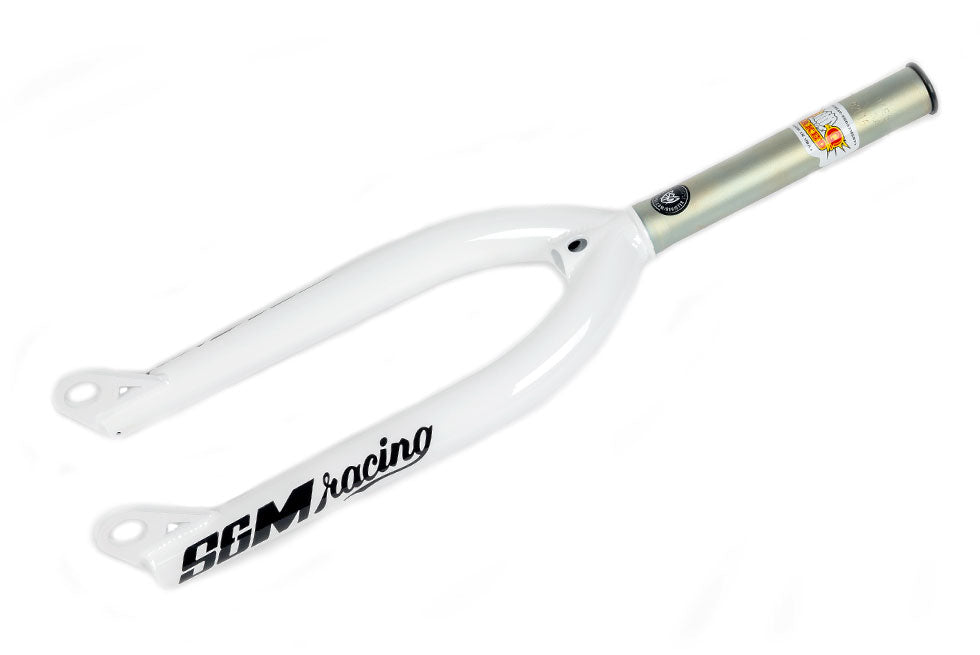

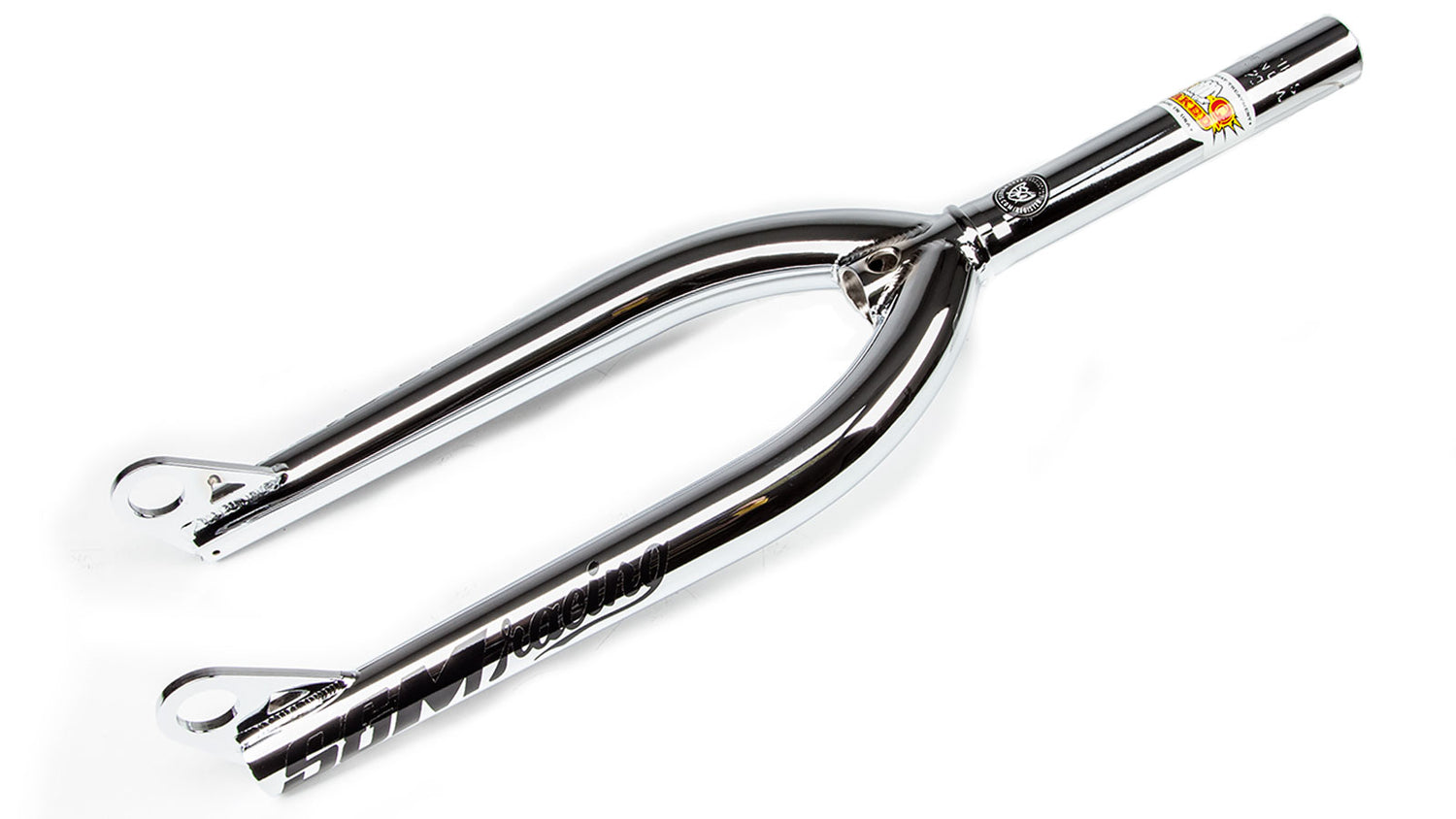

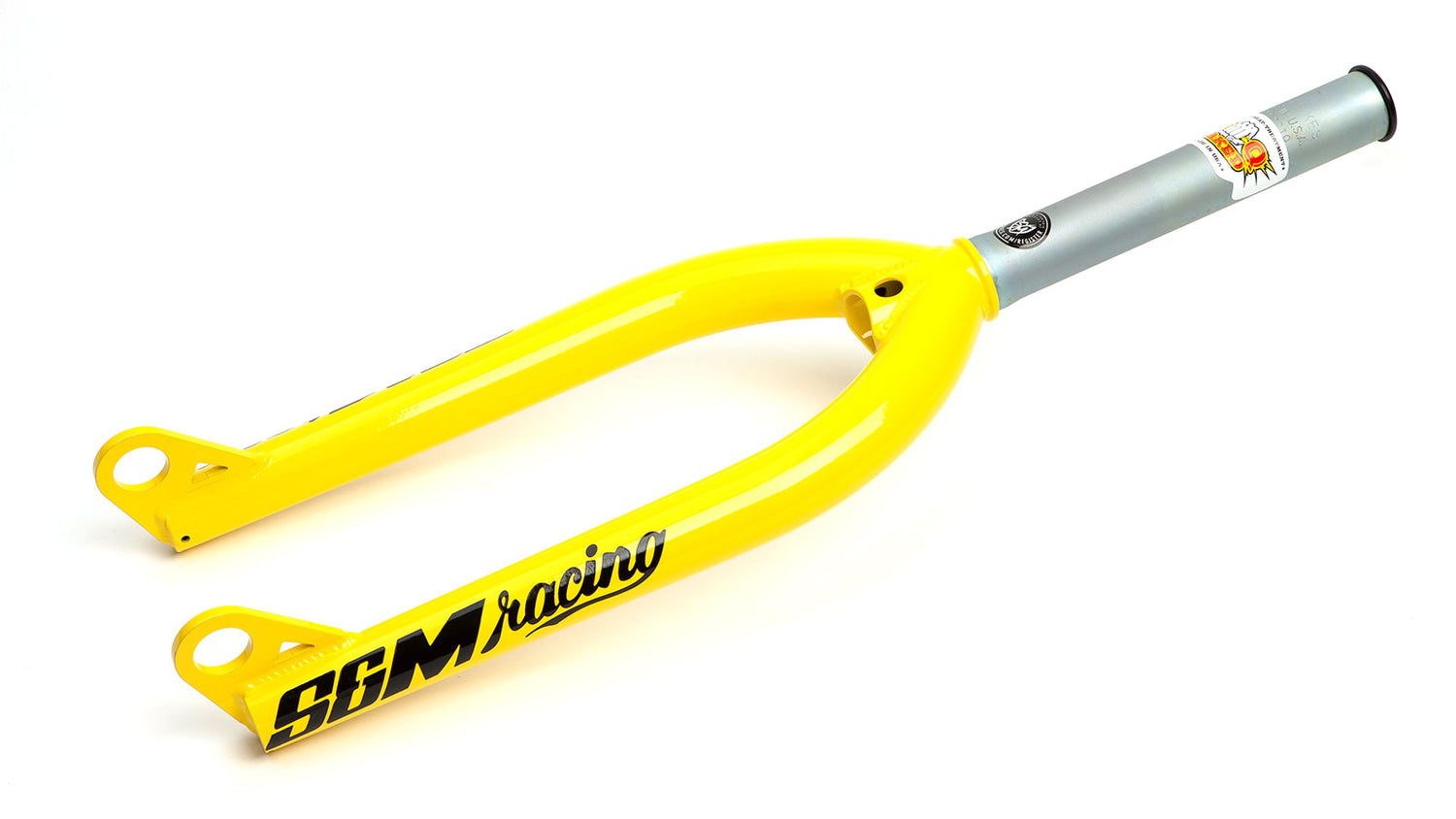

S&M Race XLT Dub BMX Fork

Product Overview

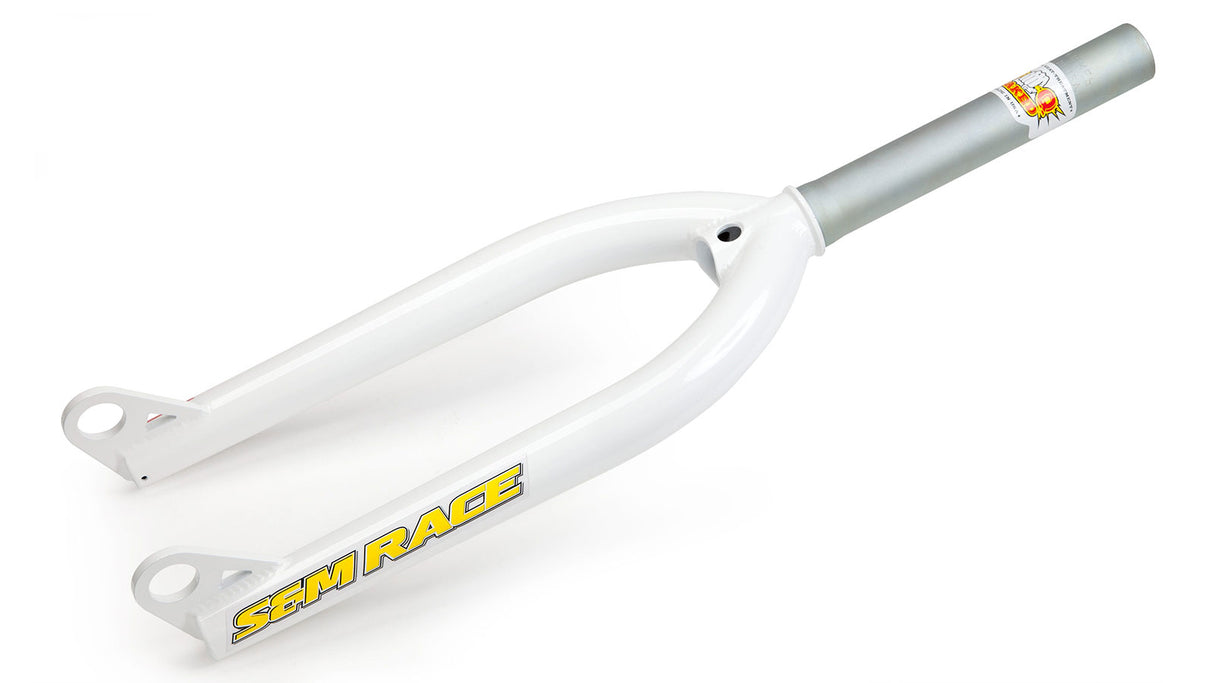

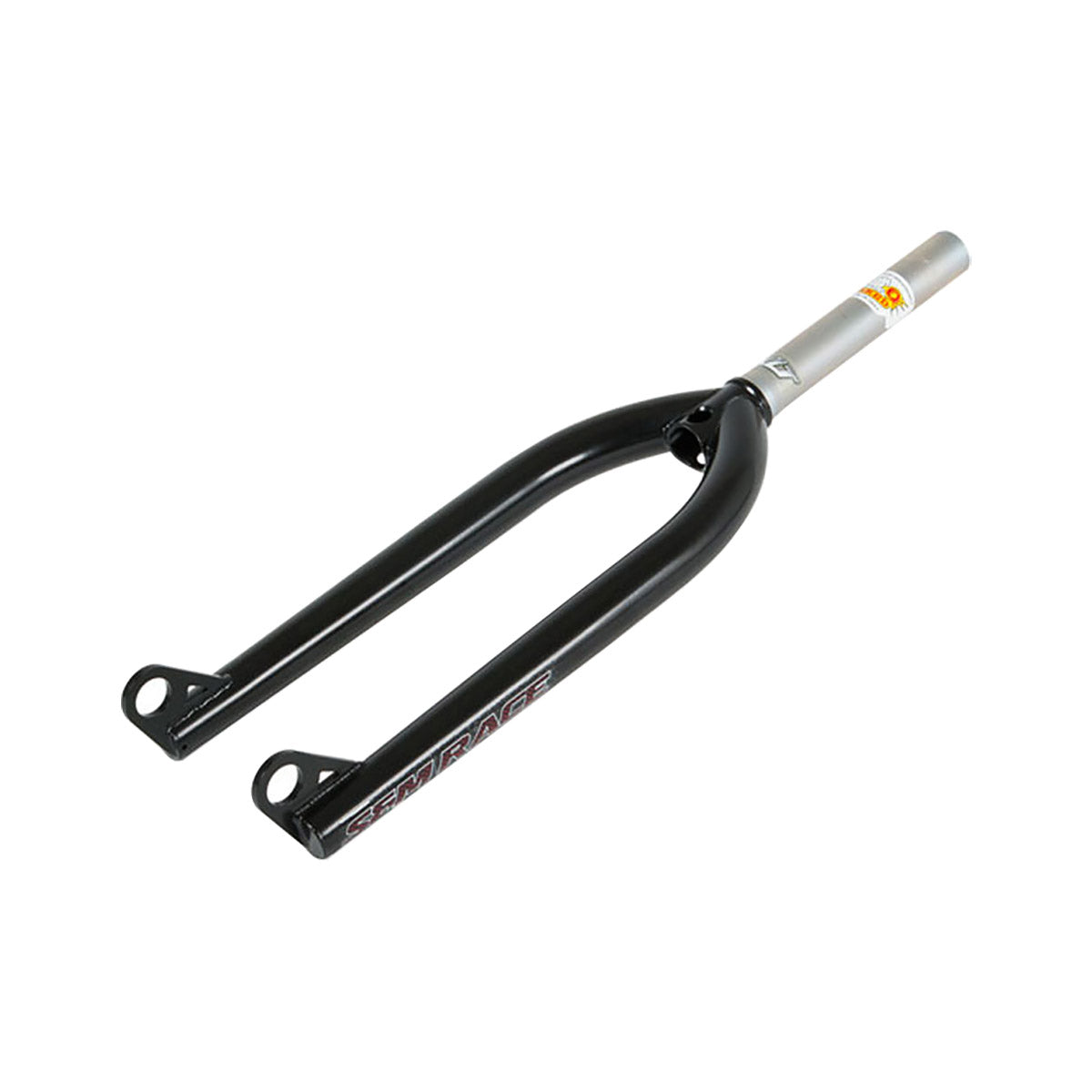

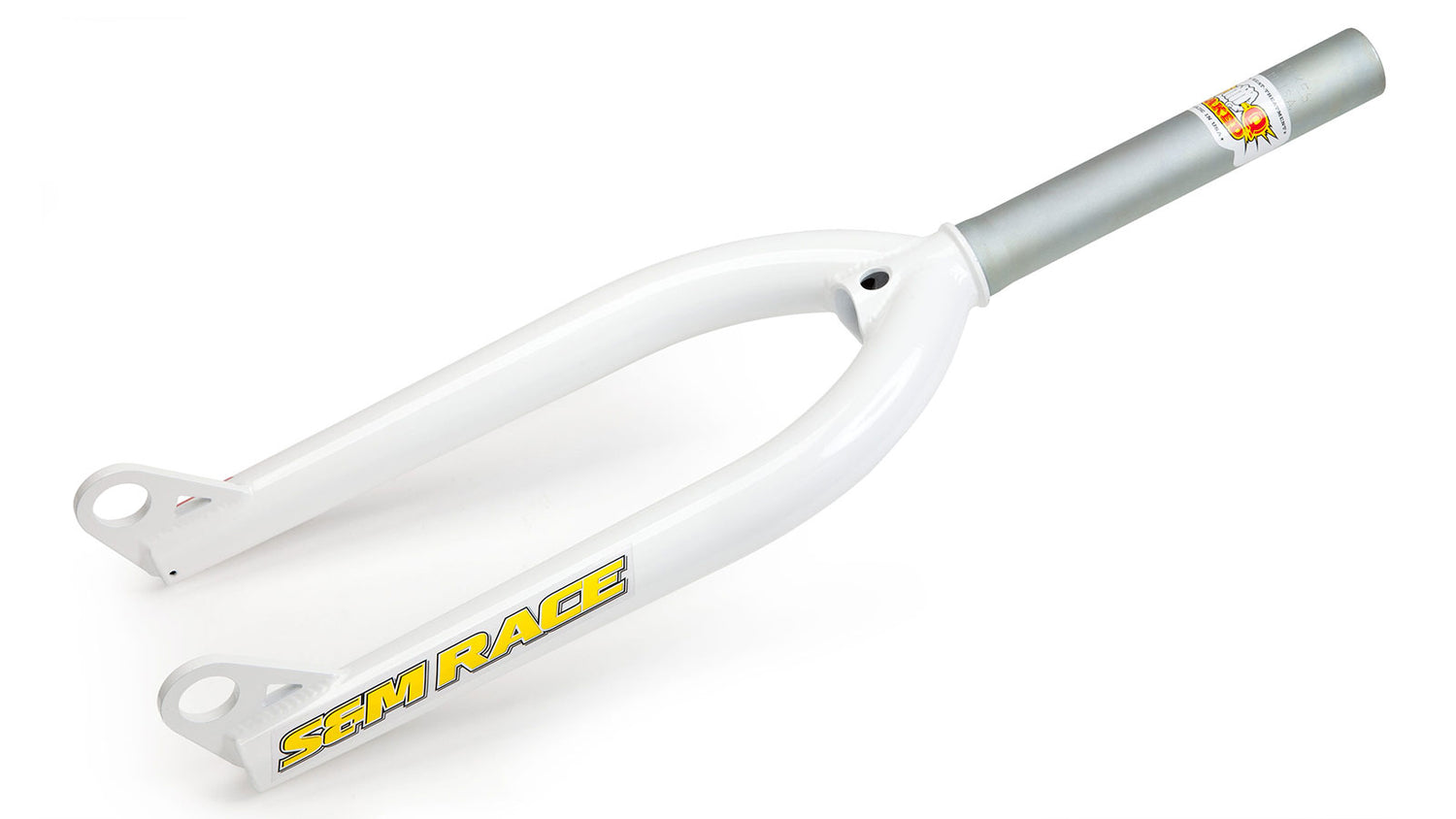

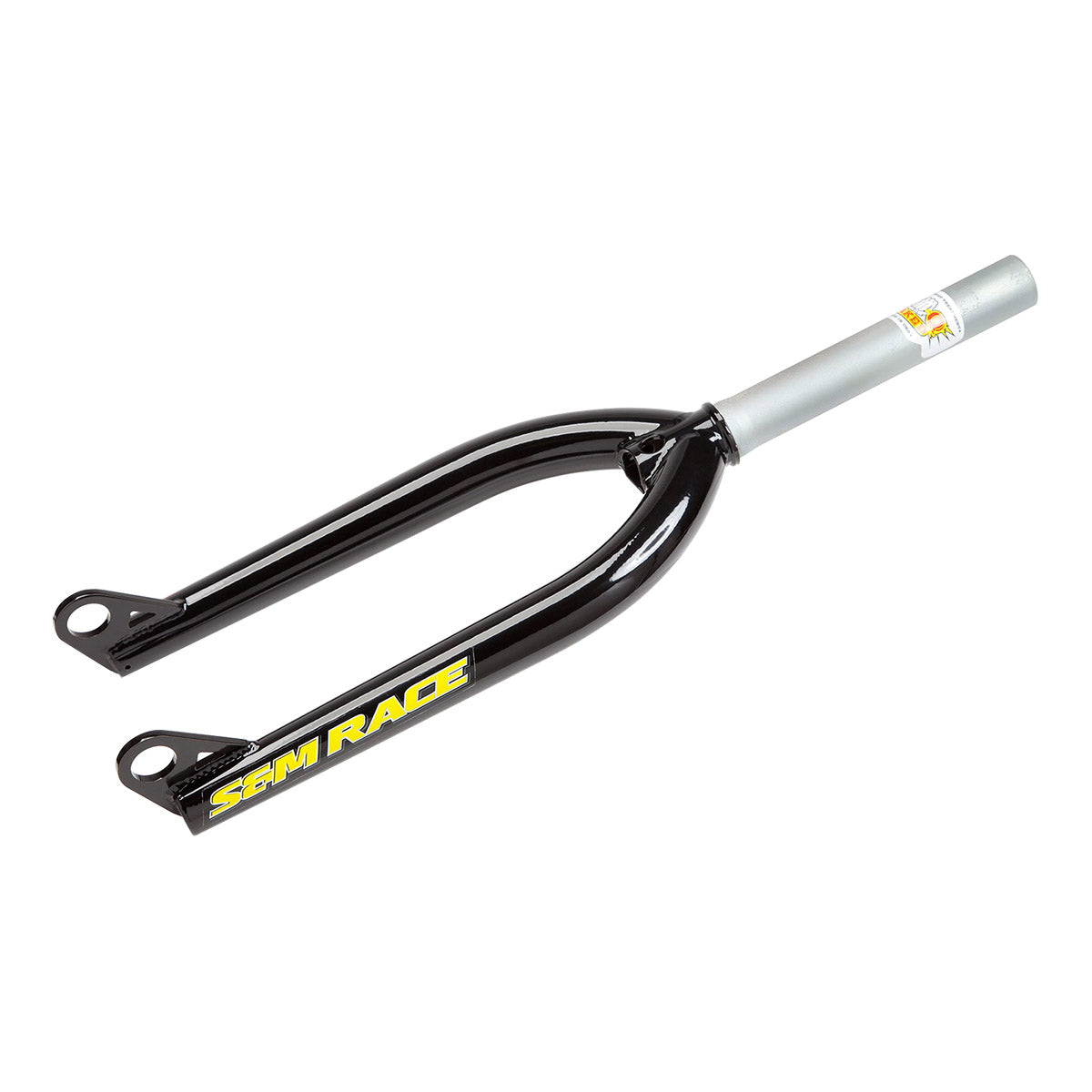

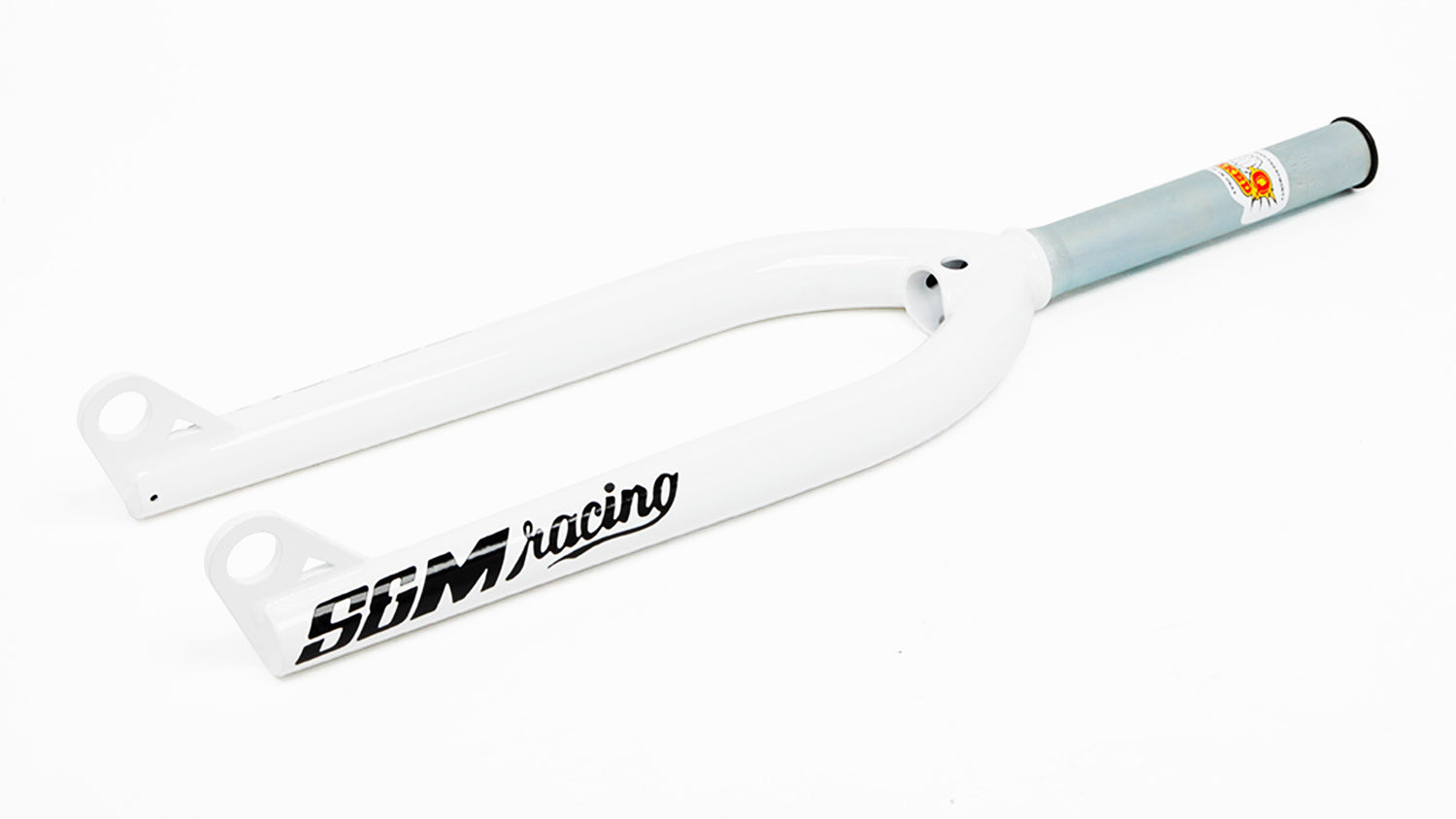

The S&M Race XLT Dub is a racing-specific BMX fork engineered for use with 20mm thru-axle hubs. Built from double-butted, tapered chromoly with a one-piece CNC-machined steerer tube, it's designed for riders who need the strength and stiffness benefits of a thru-axle system. Heat-treated after welding for maximum durability.

Key Features

• 20mm thru-axle design – Requires 20mm thru-axle hubs; provides increased stiffness and more secure wheel retention compared to traditional bolt-on or quick-release systems
• Double-butted tapered legs – Chromoly legs are thicker at high-stress areas (dropouts and crown) and thinner in the middle to reduce weight; taper improves lateral stiffness and tire clearance

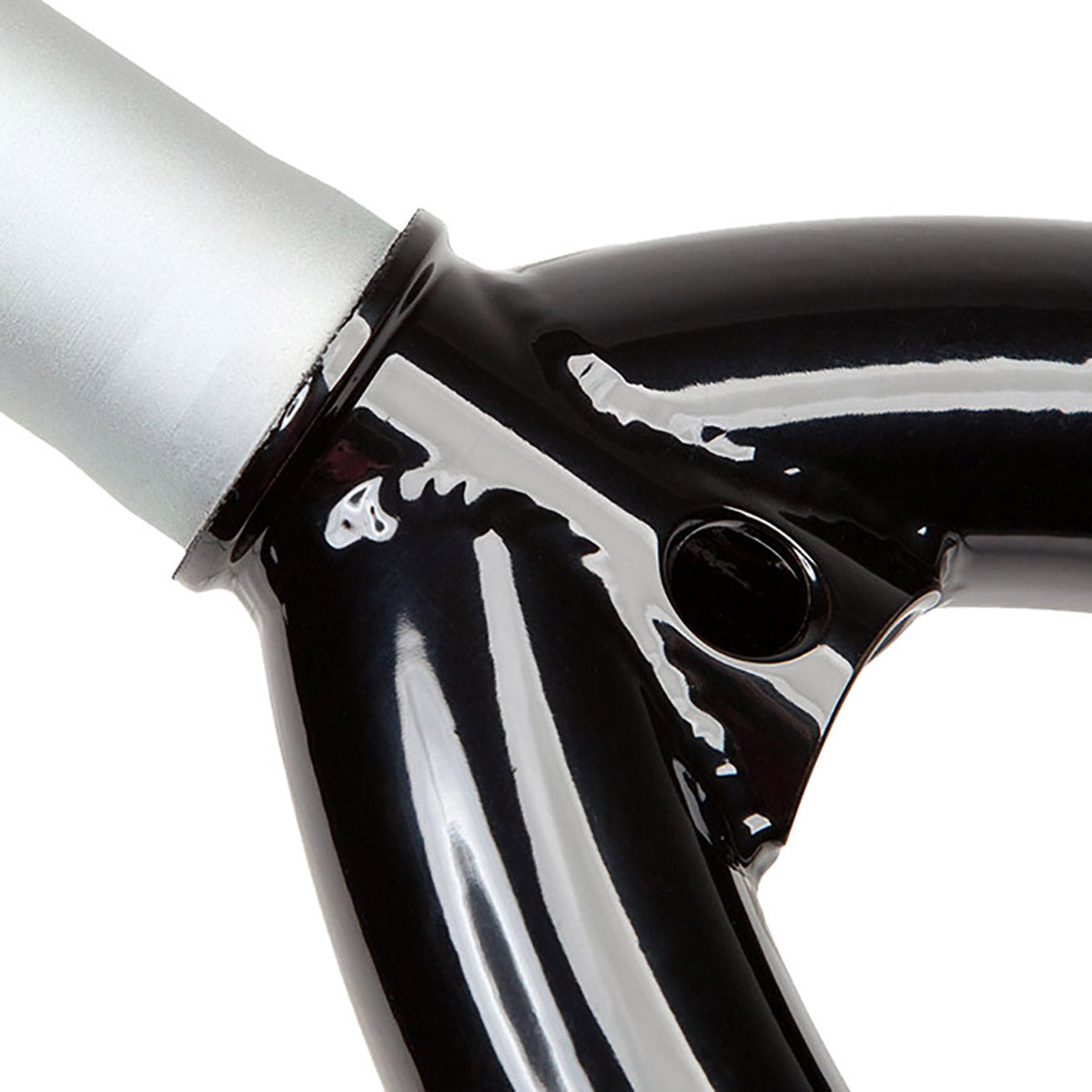

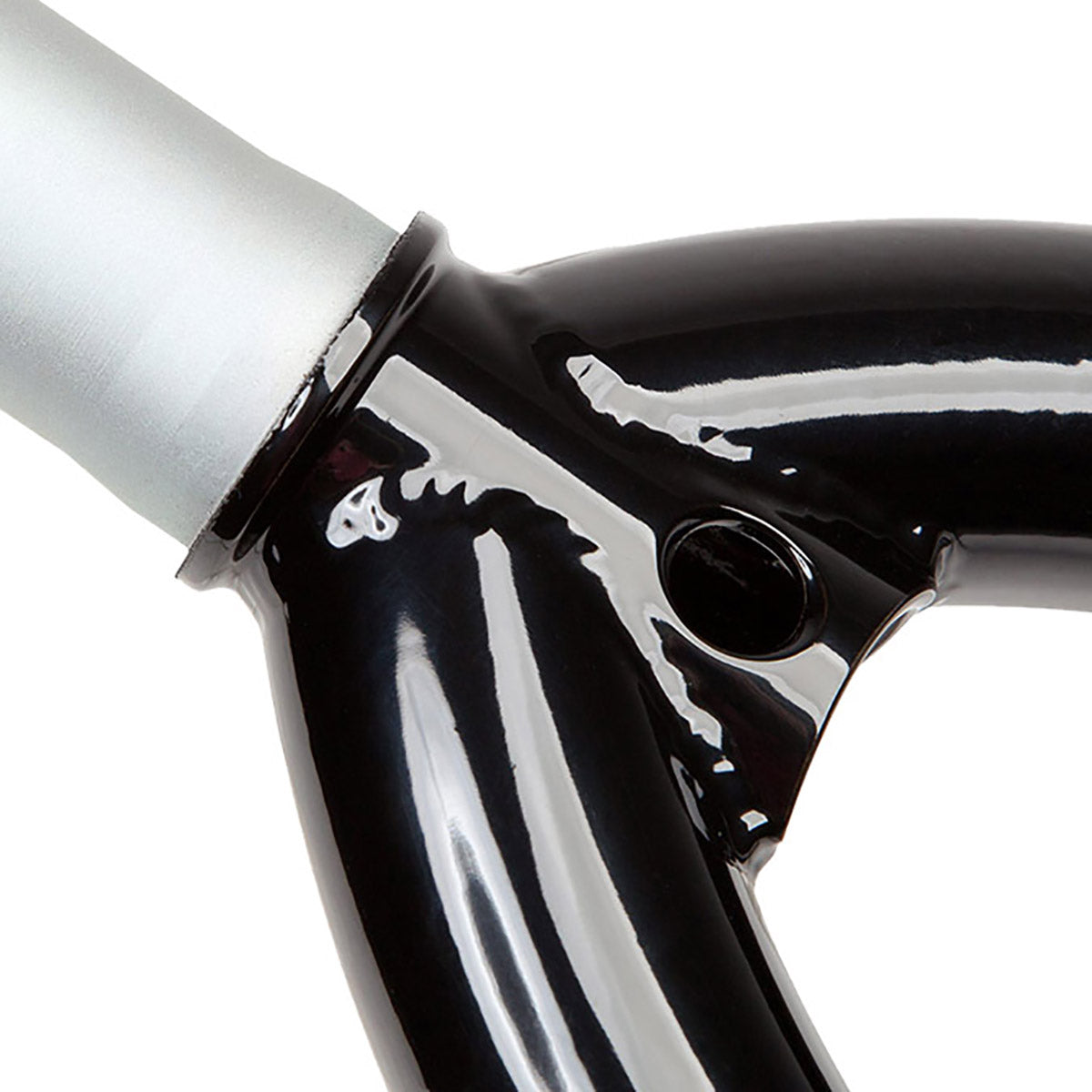

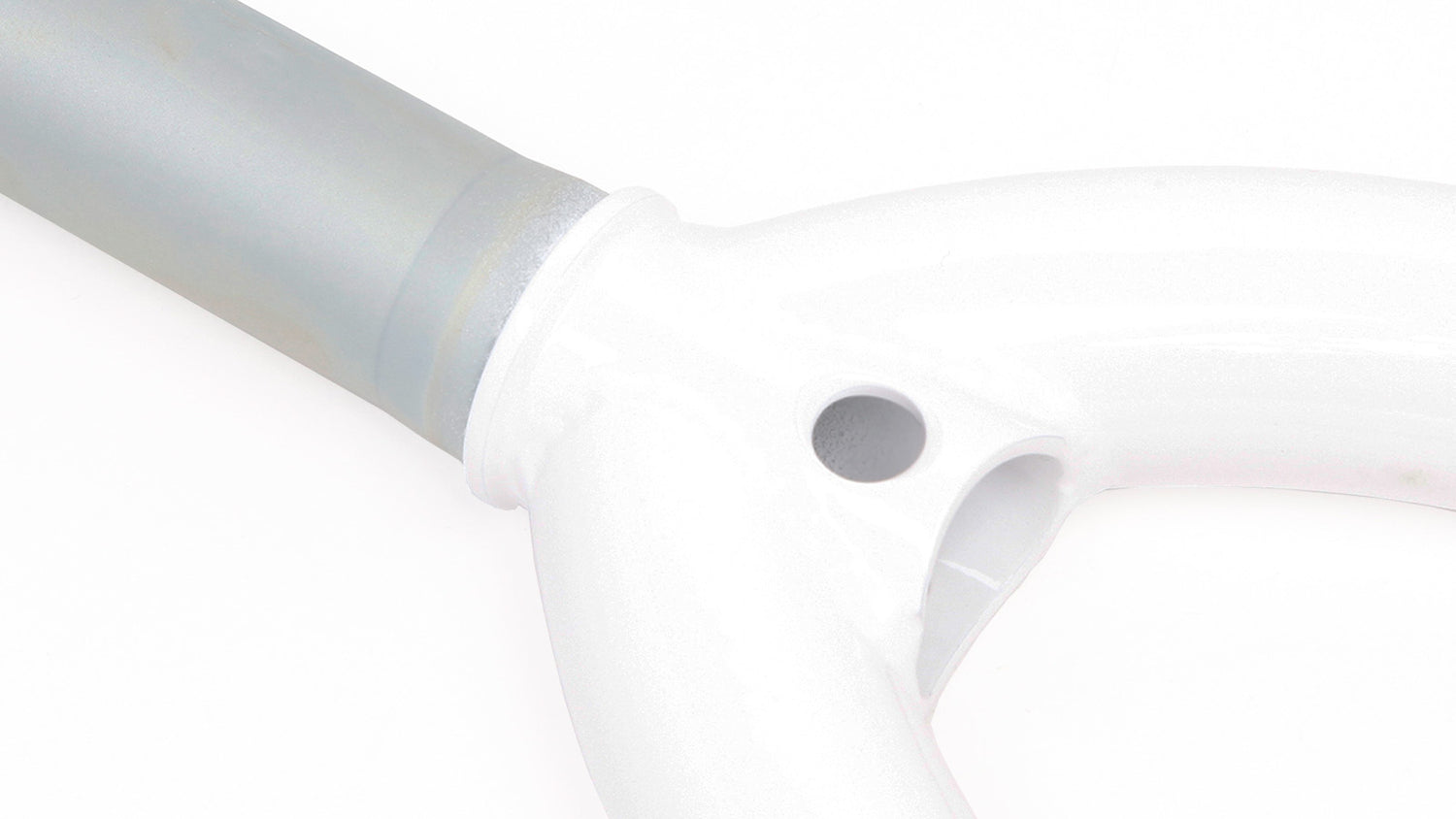

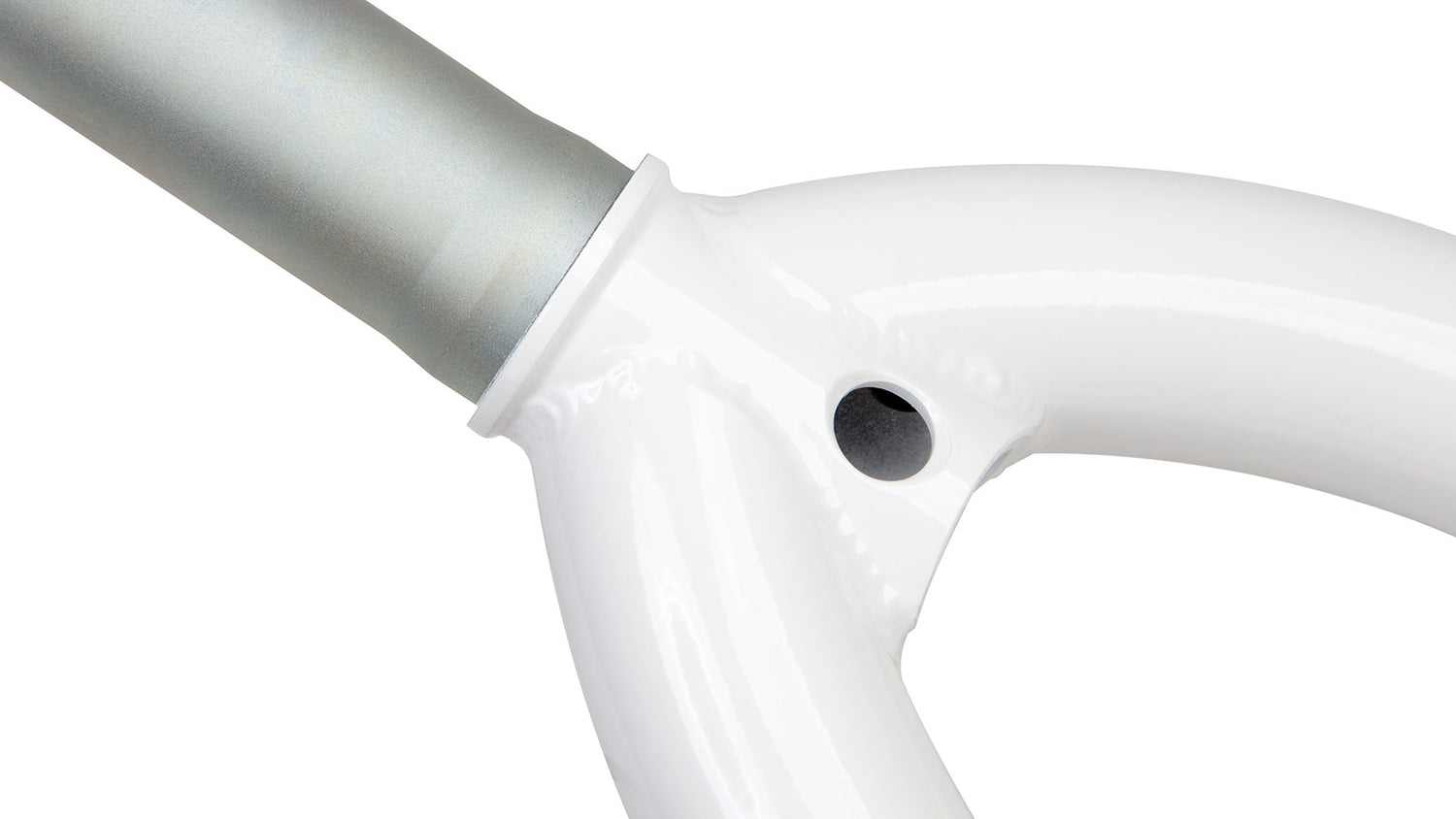

• One-piece CNC-machined steerer tube – Machined from solid 4130 chromoly bar stock eliminates welded joints in a critical stress area, improving strength and longevity
• 4Q baked post-weld heat treatment – Heat treatment process after welding restores material strength lost during fabrication, increasing overall fork durability and resistance to bending

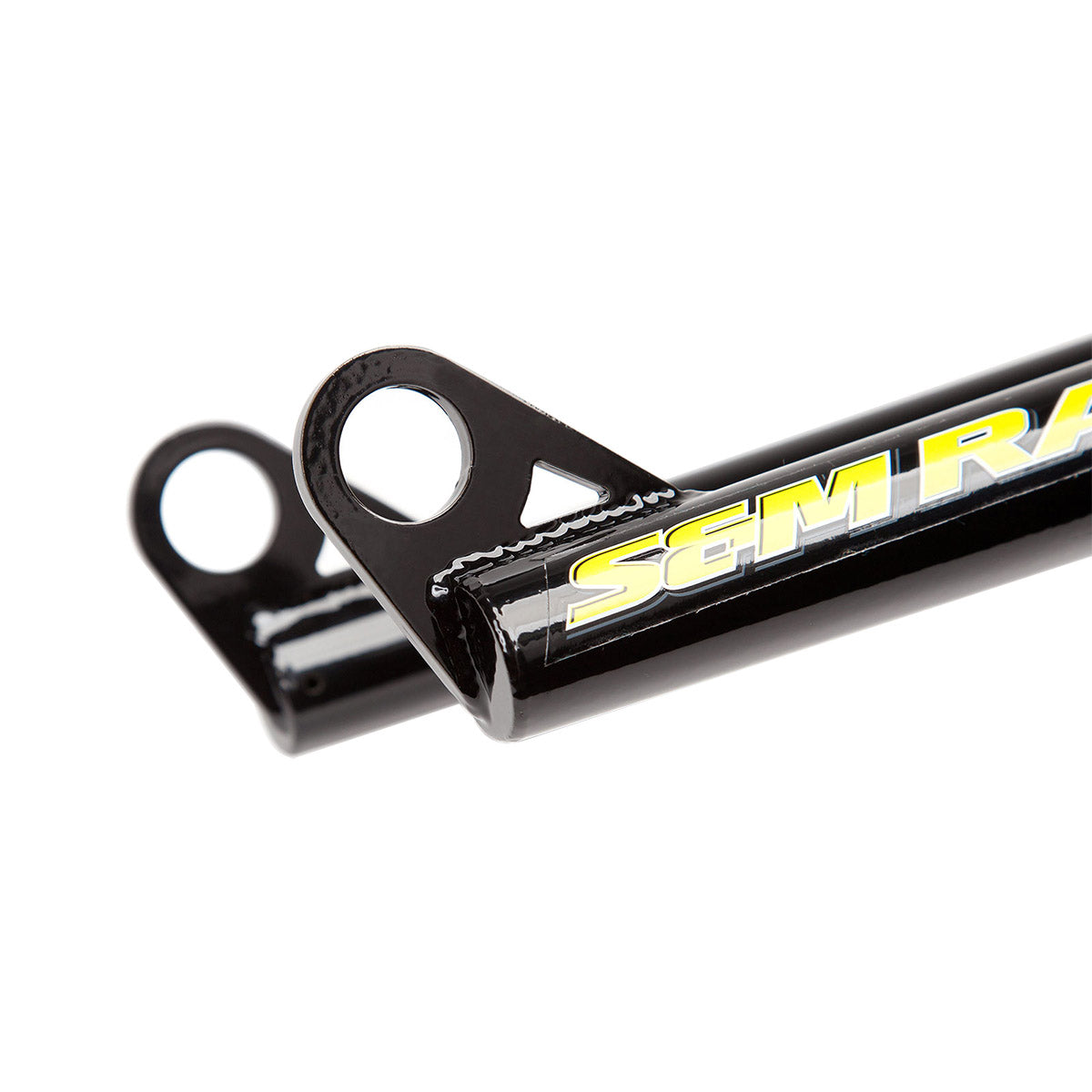

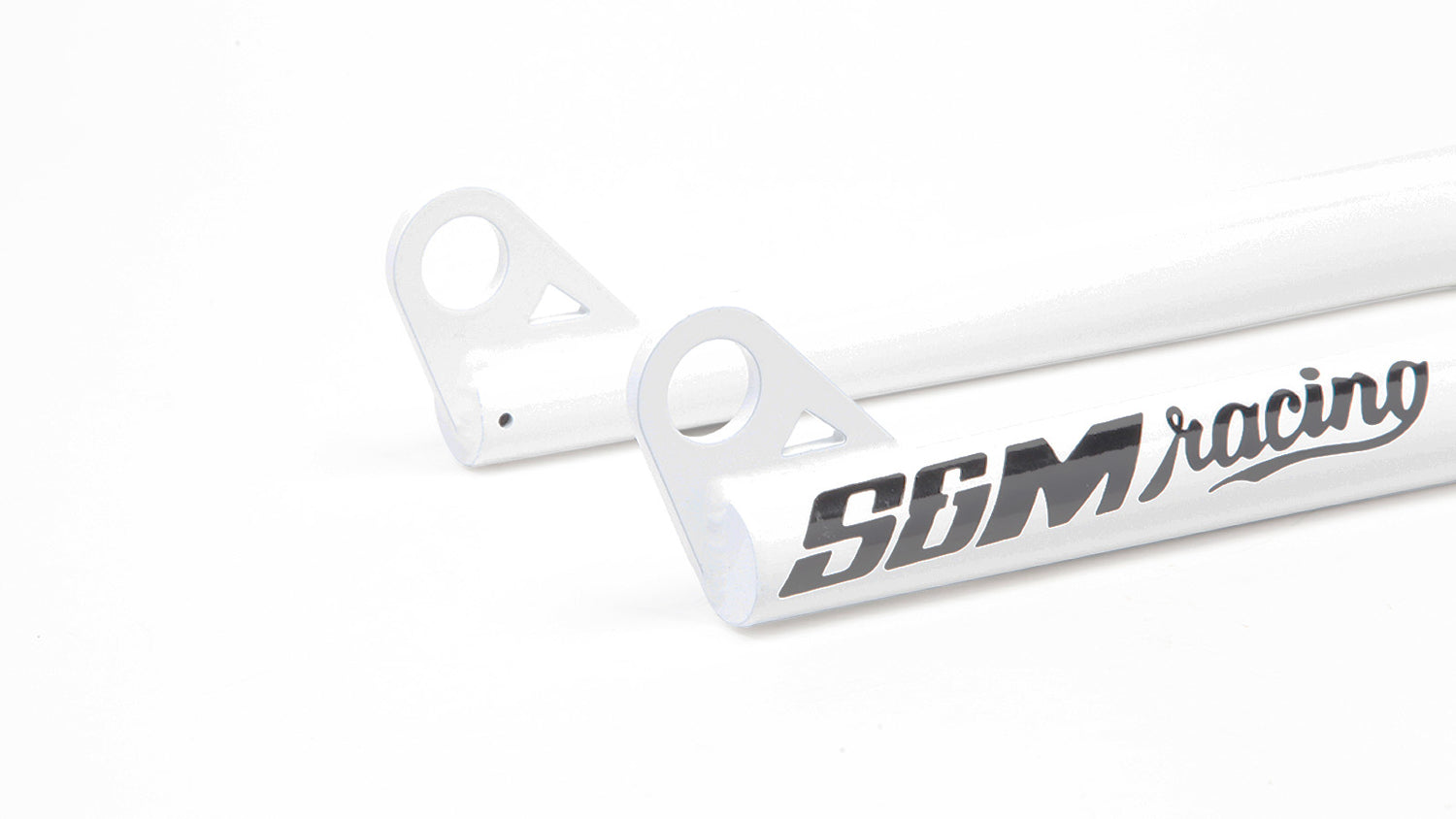

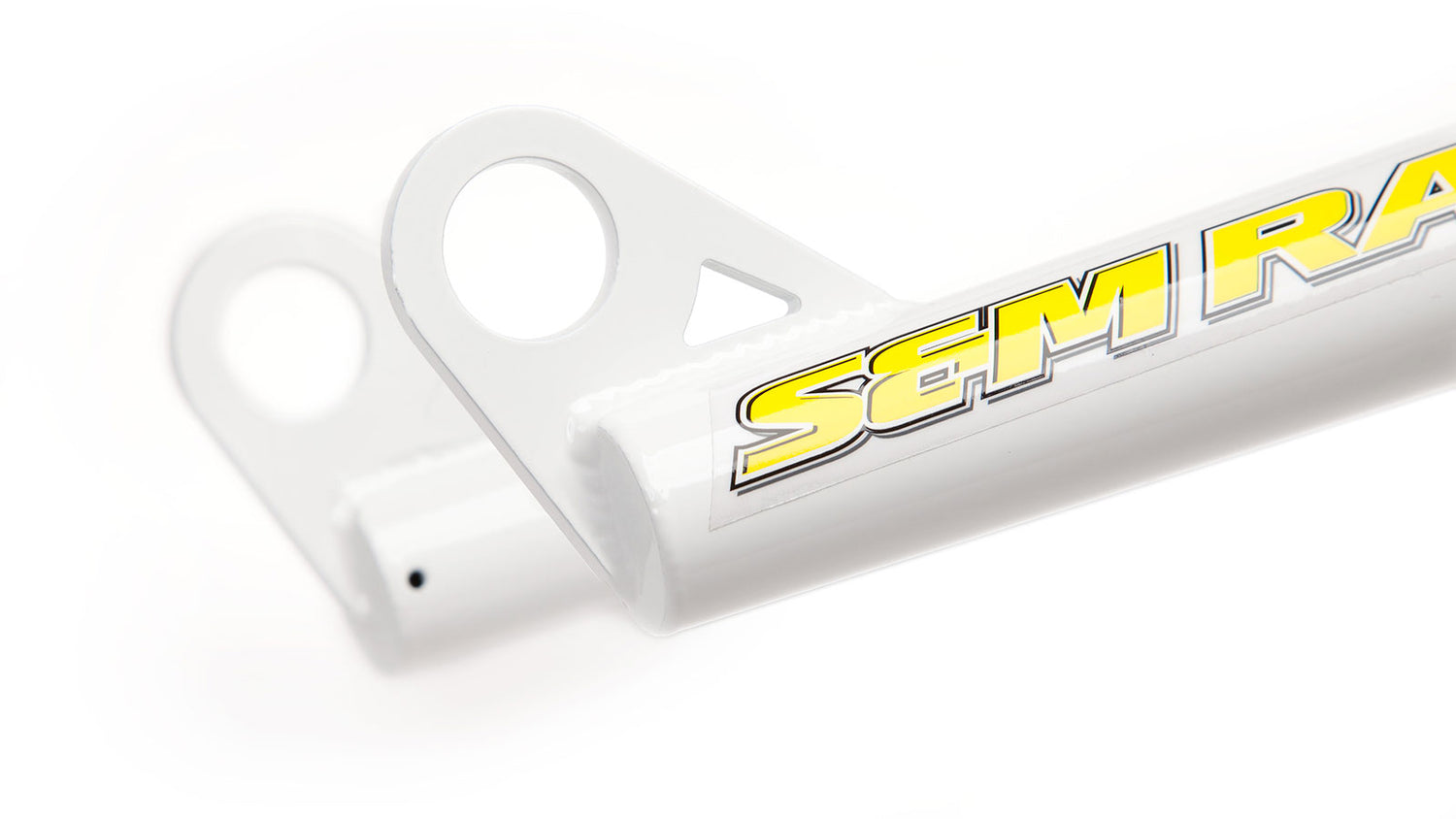

• Laser-cut dropouts – Precision-cut dropout slots ensure accurate wheel alignment and consistent tolerances

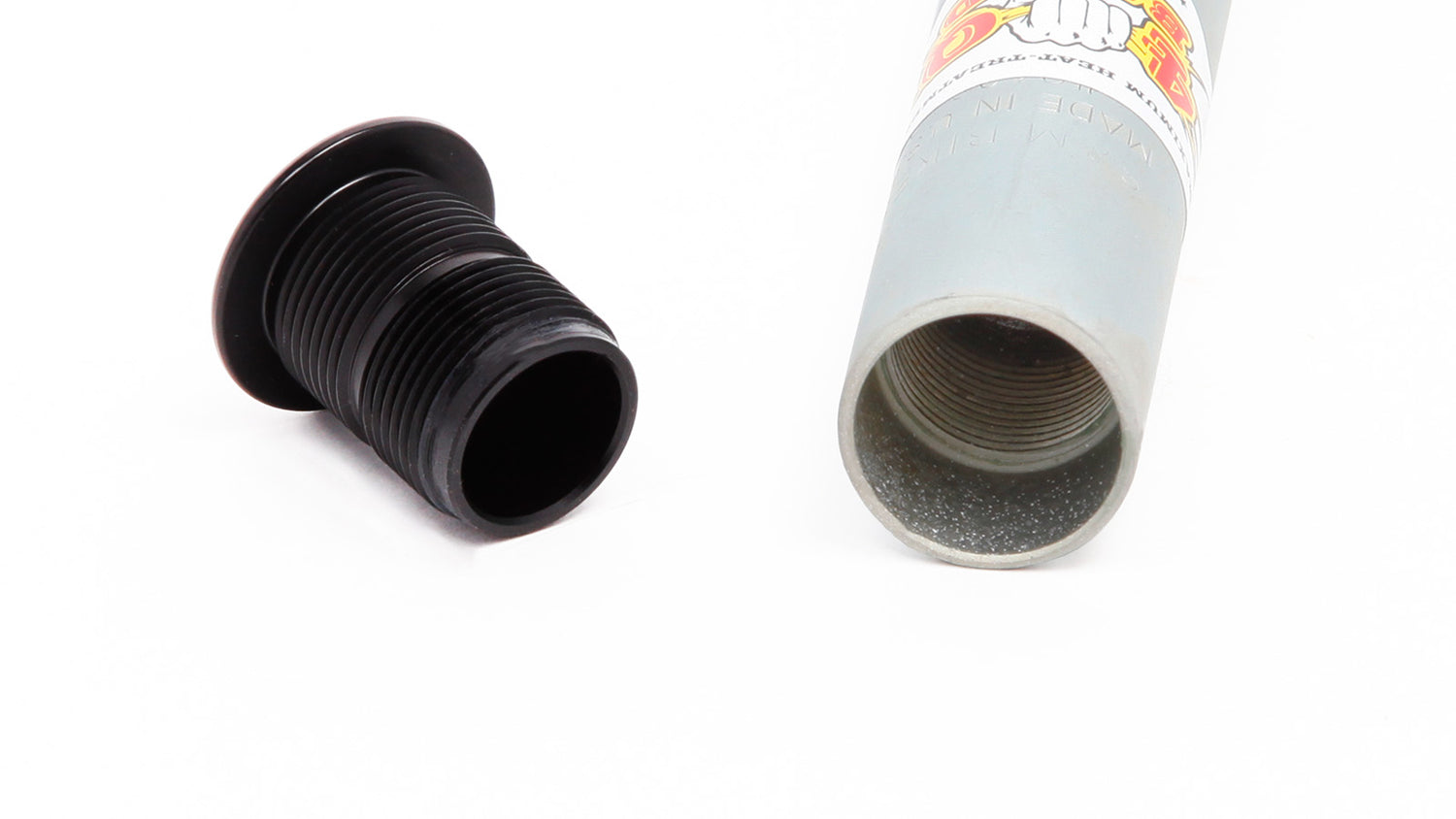

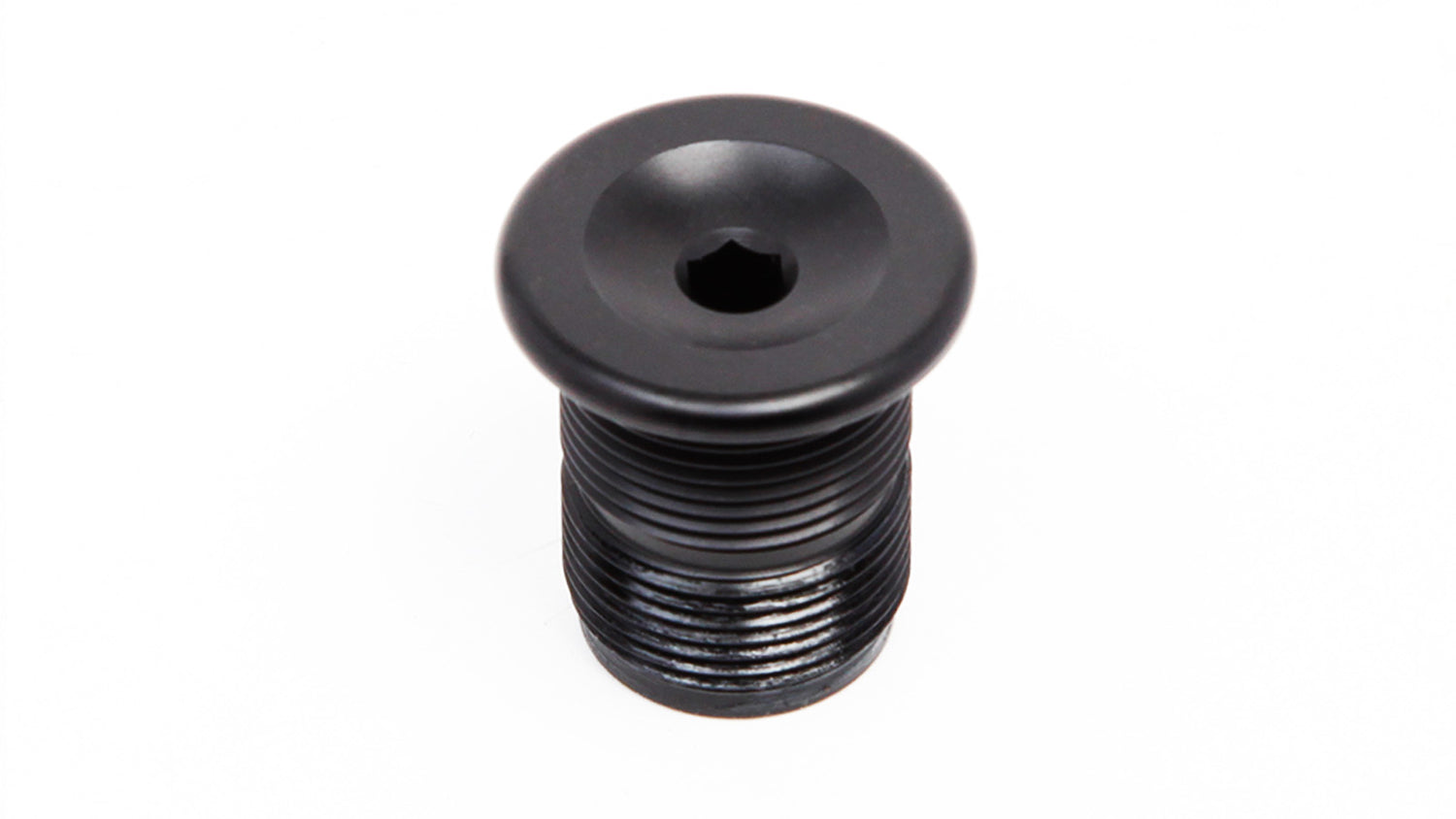

• M24 x 1.5 threaded compression – Uses threaded top cap with 6mm allen key adjustment for secure stem preload without requiring a star nut
• 33mm offset – Standard offset provides predictable steering response and stable handling characteristics

Technical Specifications

• Legs: Double-butted, tapered, 4130 chromoly
• Dropouts: Laser-cut with 20mm thru-axle holes
• Steerer tube: Non-integrated race, one-piece CNC-machined 4130 chromoly
• Steerer tube length: 172mm
• Compression: M24 x 1.5 thread with 6mm allen adjustment
• Axle to crown height: 315.5mm (20"), 366mm (24")
• Offset: 33mm
• Heat treatment: 4Q baked post-weld
• Weight: 2.14 lbs (0.97 kg) for 20", 2.45 lbs (1.11 kg) for 24"
• Bearing race: Requires standard bearing race (included with headset)

Compatibility and Ideal Use Cases

Designed specifically for BMX racing and requires 20mm thru-axle front hubs. Works with non-integrated (external cup) headsets that include a standard bearing race. The M24 x 1.5 threaded compression system requires a compatible top cap. Available in both 20" and 24" wheel sizes to match different racing classes. The increased stiffness from the thru-axle design benefits riders who need maximum power transfer and precise handling through gates, berms, and jumps.
