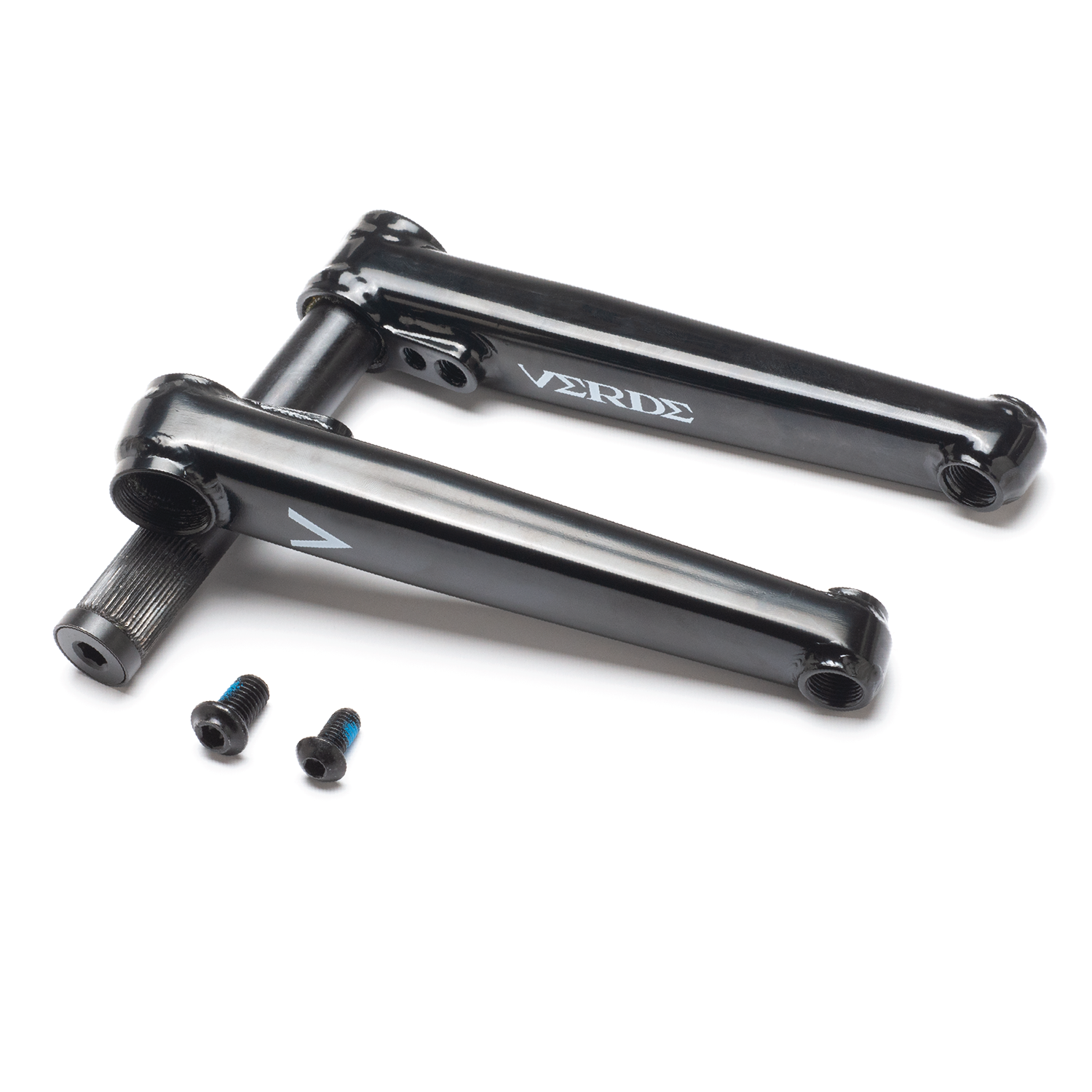

Verde Neutra Crank

Product Overview

The Verde Neutra Crank is a 2.5-piece crankset built from 4130 heat-treated chromoly with a 22mm 48-spline spindle. RHD/LHD compatible and available in 160mm only, it delivers reliable power transfer and durability across street, park, and trick riding.

Key Features

• 2.5-Piece Design – Two separate arms with a removable spindle and one-piece bottom bracket assembly. Hybrid construction combines field-serviceability of 3-piece cranks with the integrated strength of 2-piece designs. Easy pedal and arm replacement without full crankset disassembly.

• 4130 Heat-Treated Chromoly Arms – Hollow-core chromoly tubing reduces weight while maintaining strength. Heat treatment increases hardness and impact resistance without brittleness, critical for absorbing shock from tricks and landings.

• 22mm Hollow Chromoly 48-Spline Spindle – 22mm diameter provides superior stiffness compared to 19mm spindles, reducing flex and improving direct power transfer. 48-spline configuration increases engagement points and reduces spindle slippage under high torque or trick load. Hollow construction minimizes excess weight.

• RHD/LHD Compatible – Works with right-hand drive (RHD) or left-hand drive (LHD) bottom brackets, offering flexibility across different frame setups and rider preferences.

• 160mm Crank Arm Length – Shorter arm length reduces rotational weight and improves maneuverability for technical tricks and quick cadence riding. 160mm is ideal for lighter riders or those prioritizing agility over leverage.

• Lightweight – At 32 oz without bottom bracket, minimal rotating mass reduces fatigue and improves acceleration and trick responsiveness.

Technical Specifications

• Design: 2.5-piece (two arms, removable spindle)
• Material: 4130 heat-treated chromoly (arms and spindle)
• Spindle Diameter: 22mm
• Spindle Type: Hollow chromoly, 48-spline
• Crank Arm Length: 160mm
• Drive Compatibility: RHD/LHD (right-hand or left-hand drive)
• Weight: 32 oz (without bottom bracket)
• Bottom Bracket: Sold separately – requires compatible BB system

Compatibility and Ideal Use Cases

Compatible With: Any BMX frame using standard bottom bracket systems compatible with 22mm spindles (RHD or LHD). Confirm your frame's bottom bracket type before purchasing.

Best For:

• Street and plaza riding
• Park and transition tricks
• Technical trick riding requiring agility and responsiveness
• Lighter riders or those preferring shorter arm length
• Riders seeking superior spindle stiffness and 48-spline engagement
• General all-around BMX use

Spindle Note: 22mm spindle delivers increased stiffness and reduced flex compared to 19mm spindles. 48-spline configuration provides enhanced power transfer and reduced slip under high-torque applications.

Drive Orientation: Confirm your frame's bottom bracket type (RHD or LHD) before purchasing to ensure compatibility.
