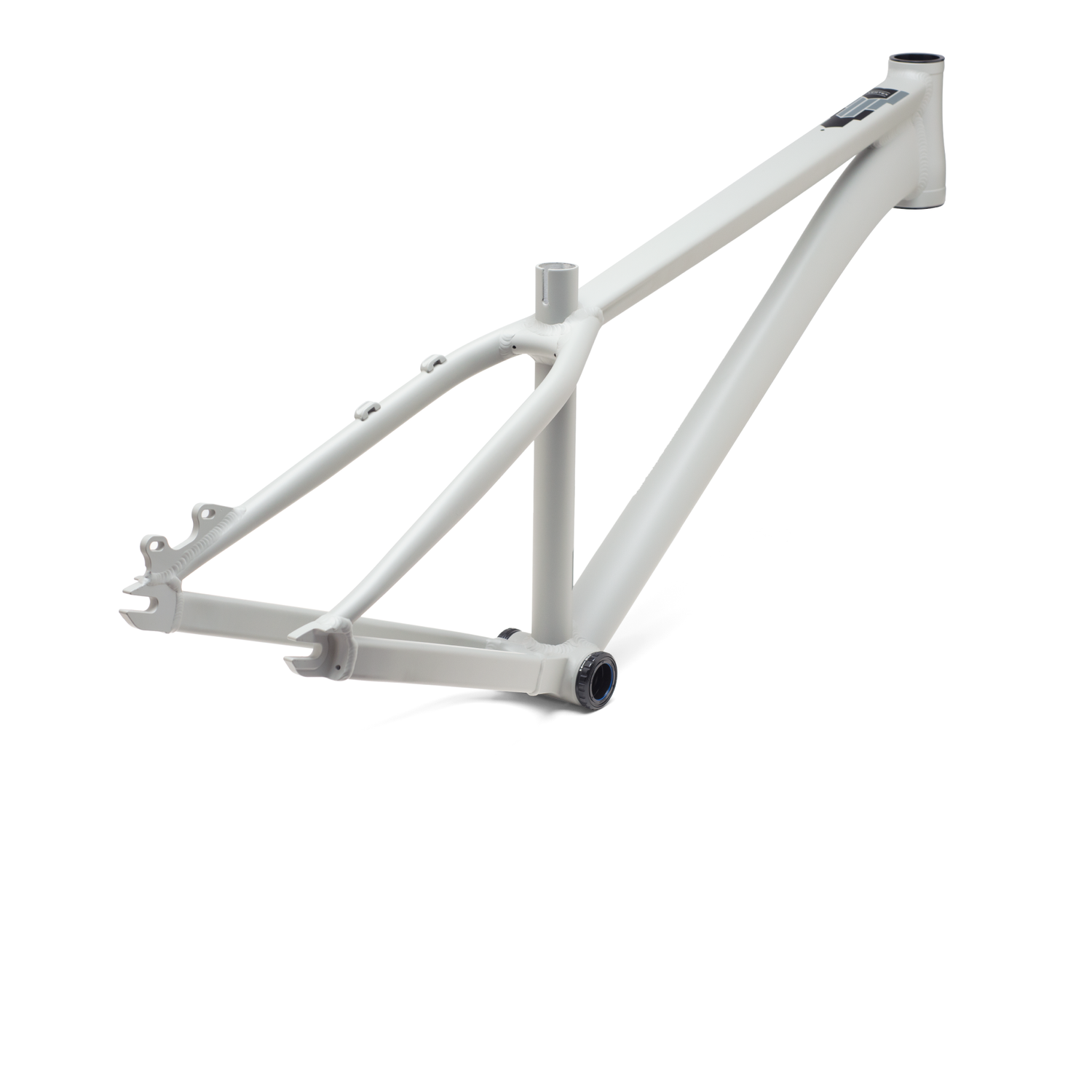

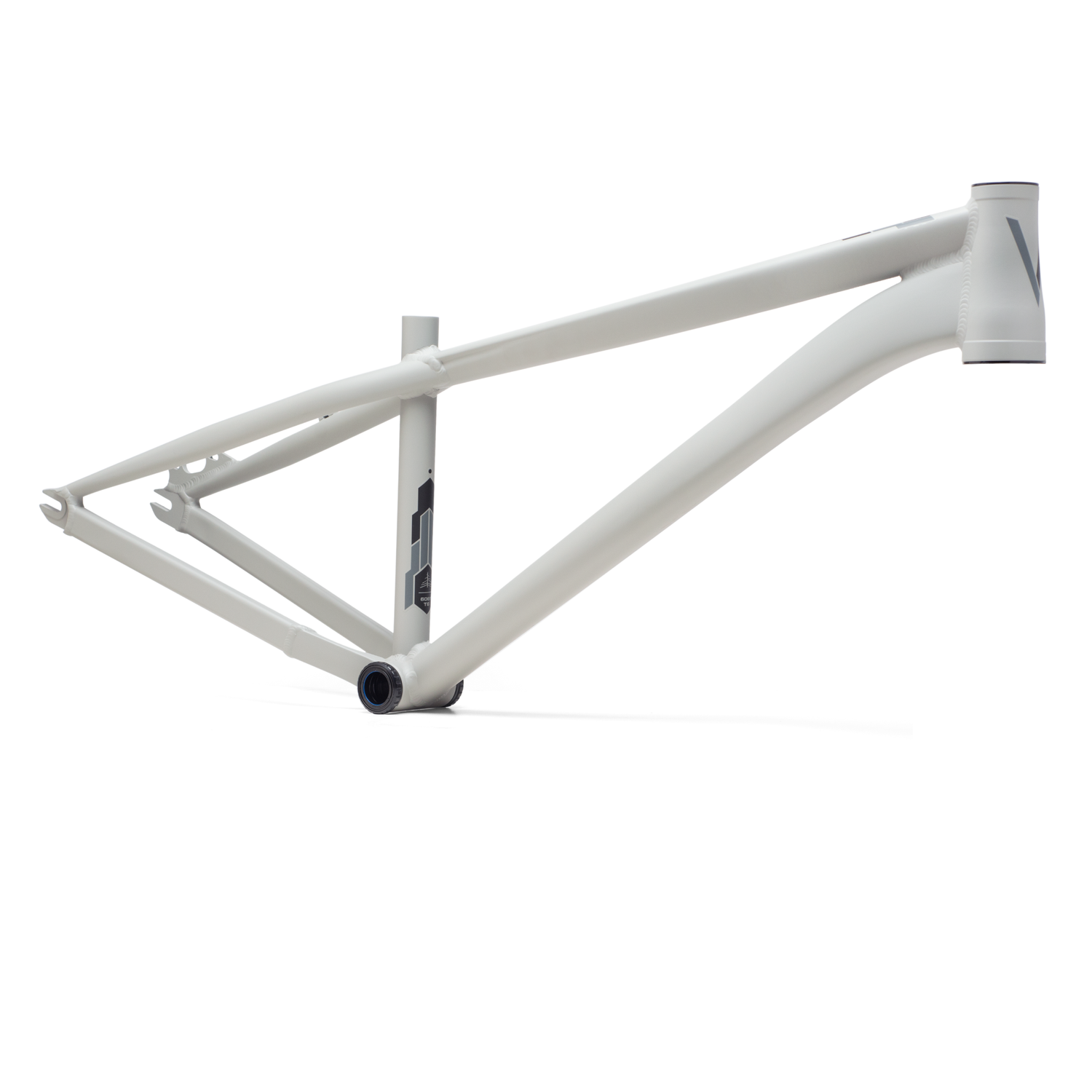

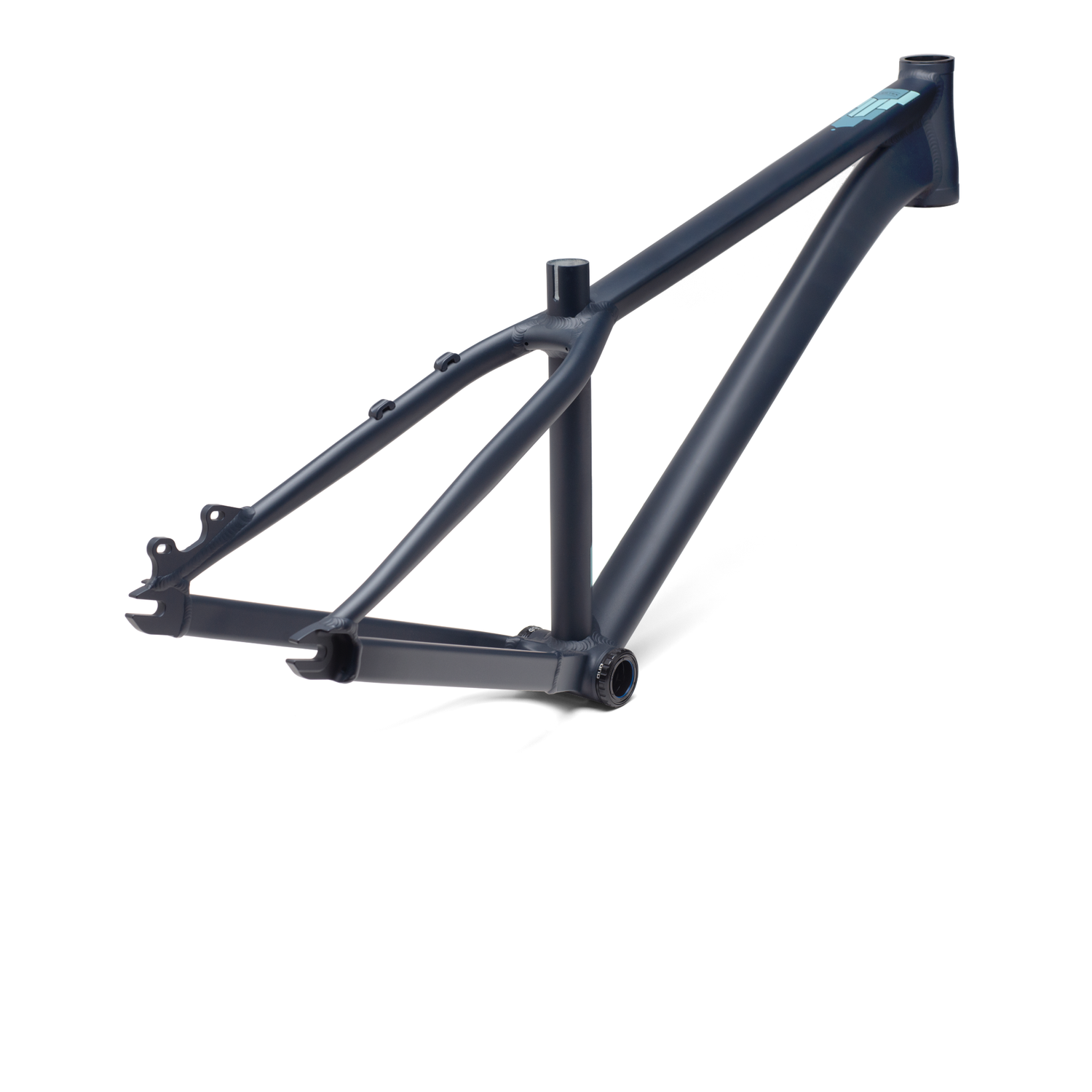

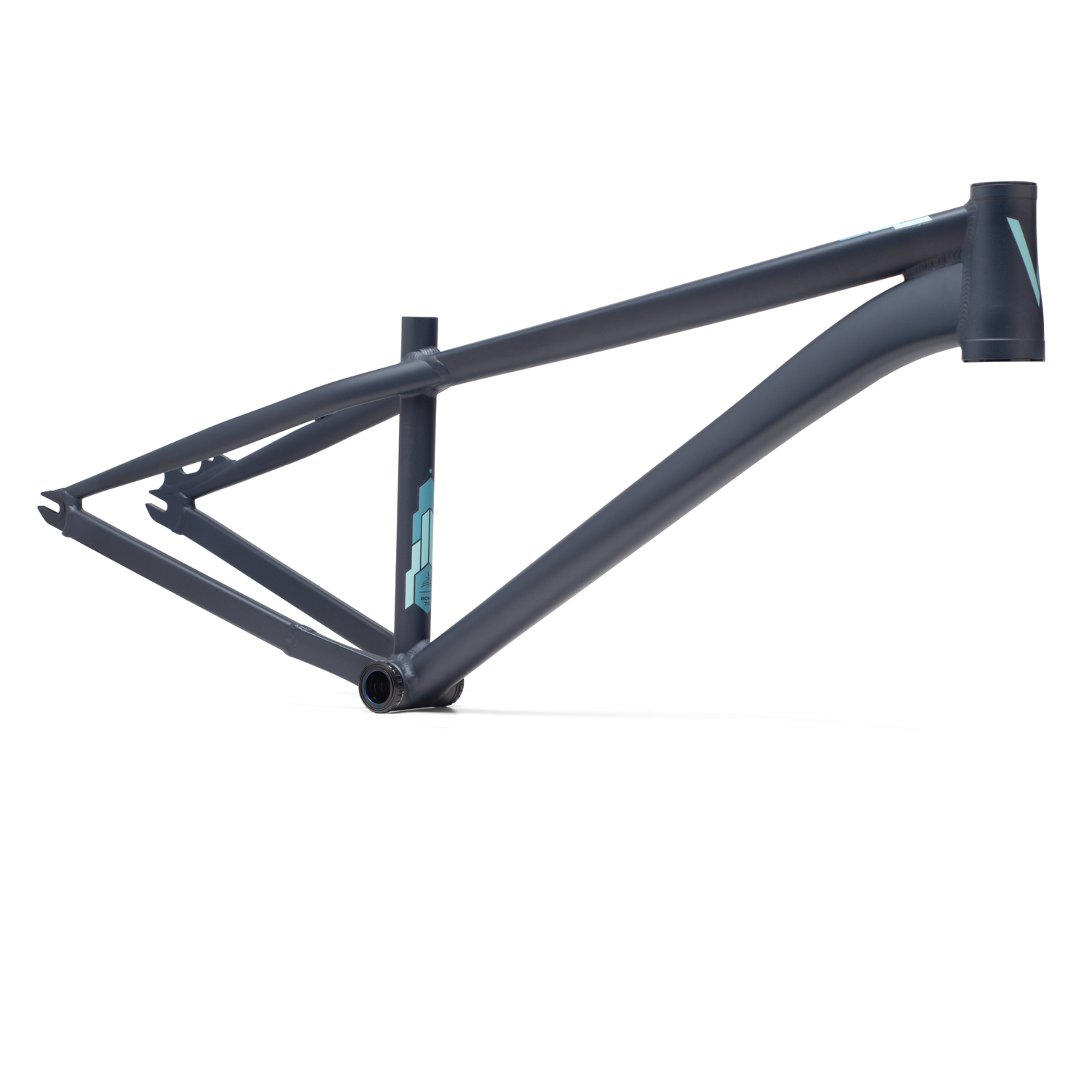

Verde Vertex DJ Frame

Introducing the all new Vertex DJ frame by Verde. Dreamt, drawn, prototyped, tested, perfected, and true. Crafted with 6061 aluminum tubing with internal cable routing. Custom made seat tube with wider stance to stiffen the bottom bracket. Asymmetrical BB yoke to allow sprocket clearance and shorter chain stays. Streamlined seat stays that taper to CNC machined micro dropouts. Vertex by definition means the highest point. Parks, pump tracks, or dirt. Take this frame to new heights.

Spec:

• Top Tube Length: 22.25” (22.97” effective)
• Chain Stay Length 15.25”
• Head Tube Angle 69º
• Seat Tube Angle 72º
• Bottom Bracket Height 12.6”
• Standover Height: 12.5”
• Weight: 4 lbs 3 oz
• 6061 series aluminum construction
• CNC machined 1.5” tapered head tube
• Sealed internal, Zero Stack 44/56, 1-1/8” to 1-1/2” tapered headset included
• Internal rear brake cable routing
• Custom made seat tube
• Asymmetrical BB yoke
• Euro bottom bracket shell
• SRAM DUB BSA 73mm bottom bracket included
• CNC machined micro dropouts
• Tapered seat stays
• Post mount disc
