Verde Vertex DJ Frame

Product Overview

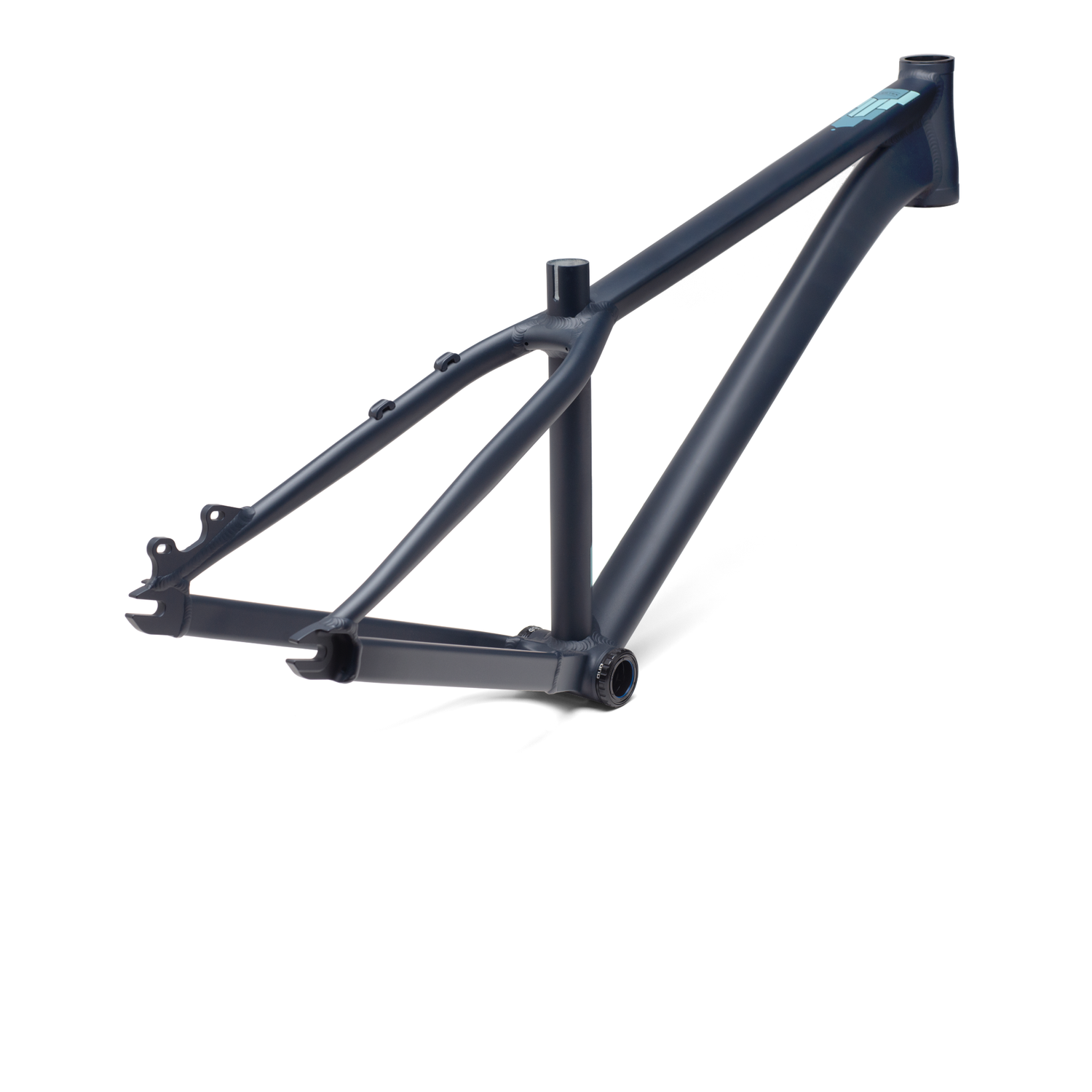

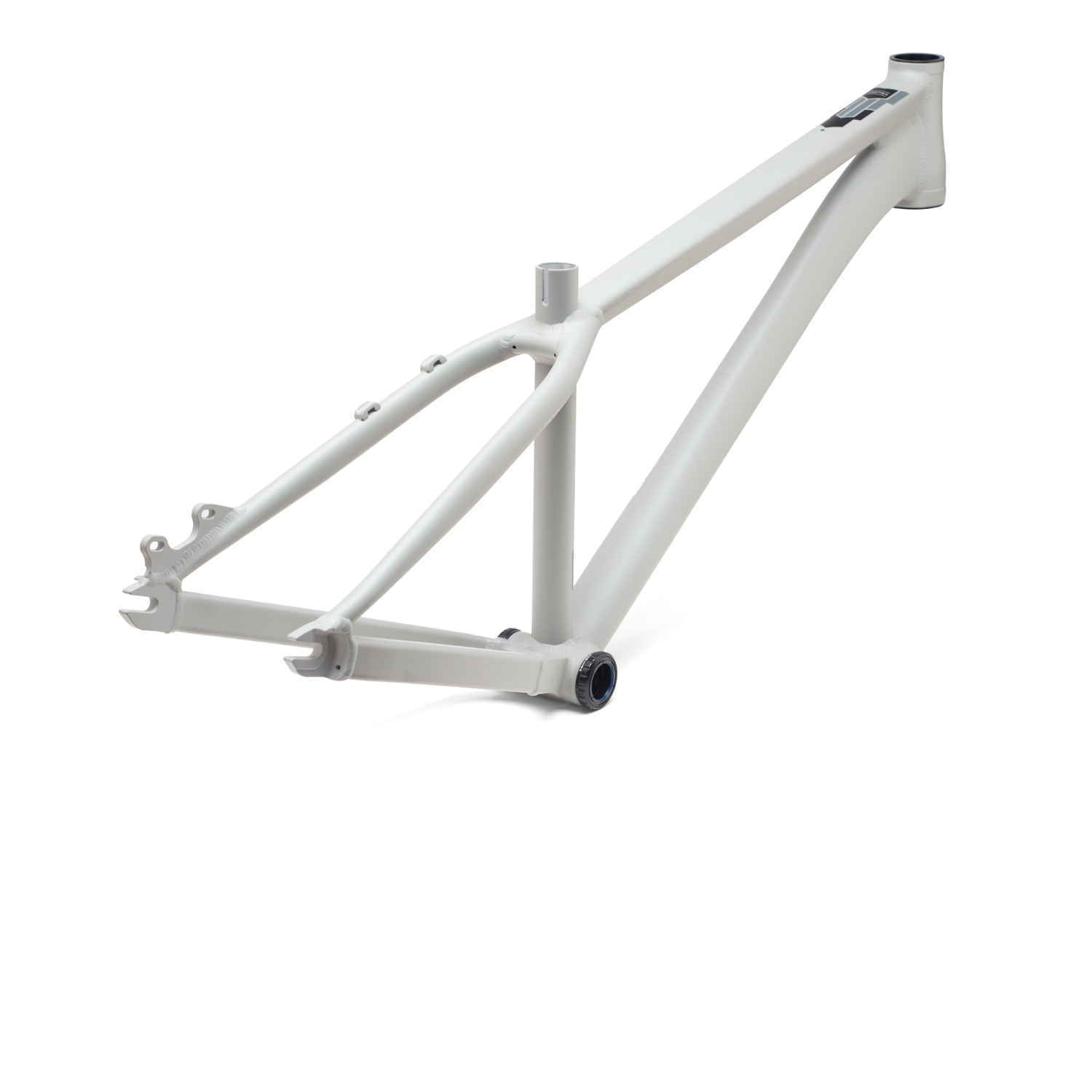

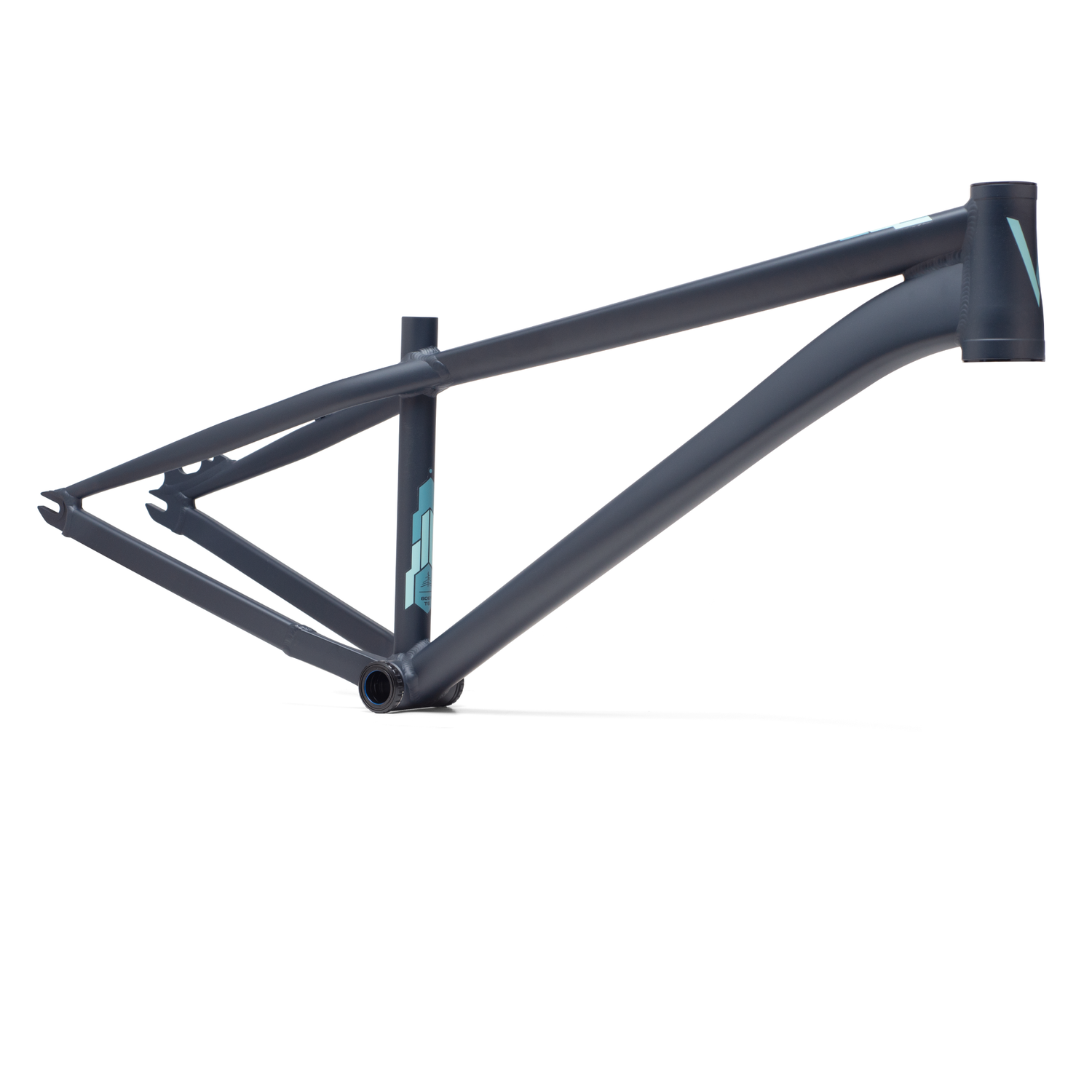

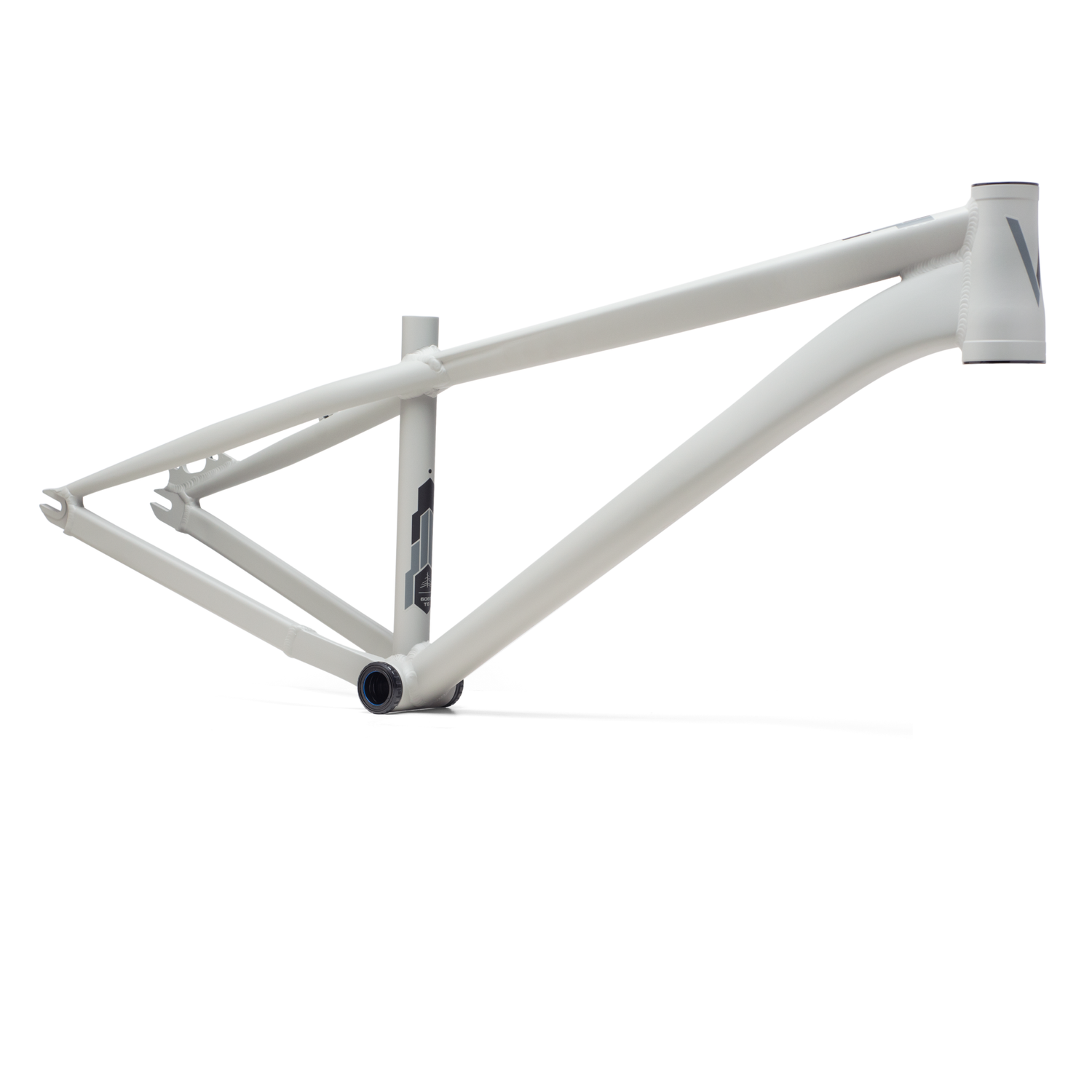

The Verde Vertex DJ is a 6061 aluminum dirt jump frame featuring internal cable routing, asymmetrical BB yoke, and CNC-machined micro dropouts. Designed for parks, pump tracks, and dirt riding, it delivers stiffness, clearance, and responsive geometry across technical terrain and trick execution.

Key Features

• 6061 Aluminum Tubing Construction – Lightweight, durable aluminum resists impact damage and fatigue through jumps, landings, and technical riding. 6061 alloy balances strength-to-weight efficiency without excess material or weight penalty.

• Custom Seat Tube with Wider Stance – Increased seat tube spacing stiffens the bottom bracket area, reducing flex and improving power transfer during pedaling and tricks. Wider stance maintains rigidity through impacts and sustained load.

• Asymmetrical BB Yoke – Offset bottom bracket yoke allows sprocket clearance and enables shorter chain stays without compromising sprocket-to-frame contact. Design optimization reduces overall chain length while maintaining chain line and engagement.

• Shorter Chain Stays (15.25") – Compact rear end improves maneuverability and trick responsiveness. Shorter stays reduce wheelbase and allow quicker directional changes and technical terrain navigation.

• CNC-Machined 1.5" Tapered Head Tube – Precision-machined tapered head tube increases stiffness and improves steering precision. Eliminates weak points and ensures consistent headset function and fork compatibility.

• Internal Cable Routing – Rear brake cable routes internally through the frame, eliminating snag points and exterior hang-ups on obstacles and terrain. Cleaner aesthetic and improved cable protection.

• Tapered Seat Stays with CNC-Machined Micro Dropouts – Streamlined seat stay design reduces weight while maintaining rigidity. Precision-machined micro dropouts ensure accurate wheel alignment and secure axle clamping.

• Slack 69° Head Tube Angle – Slack geometry delivers stability through high-speed descents and technical terrain. Longer wheelbase improves predictability and control while maintaining maneuverability for tricks and park features.

• Optimized BB Height (12.6") – Raised bottom bracket provides ample ground clearance for technical tricks, jumps, and obstacle clearance without pedal strike.

• Compact Standover Height (12.5") – Low standover clearance allows quick dismount and remount transitions, essential for technical terrain and trick progression.

• Lightweight (4 lbs 3 oz) – Minimal weight improves acceleration and reduces rider fatigue through extended sessions without sacrificing frame durability.

• Sealed Zero Stack 44/56 Headset Included – High-quality sealed headset eliminates maintenance and provides smooth, responsive steering. Zero-stack design allows direct fork-to-frame connection for improved stiffness.

• SRAM DUB BSA 73mm Bottom Bracket Included – Premium sealed bearing bottom bracket delivers smooth, low-friction cranking. Included component ready-to-ride without additional purchases.

• Post Mount Disc Brake Compatibility – Allows modern hydraulic or mechanical disc brake systems for powerful, responsive stopping.

• Euro Bottom Bracket Shell – Standard 68mm shell accommodates common crankset and drivetrain options.

Technical Specifications

Frame & Geometry:

• Material: 6061 series aluminum
• Top Tube Length: 22.25" (22.97" effective)
• Chain Stay Length: 15.25"
• Head Tube Angle: 69°
• Seat Tube Angle: 72°
• Bottom Bracket Height: 12.6"
• Standover Height: 12.5"
• Weight: 4 lbs 3 oz

Head Tube & Headset:

• Head Tube: CNC-machined 1.5" tapered
• Headset: Sealed internal Zero Stack 44/56, 1-1/8" to 1-1/2" tapered (included)

Bottom Bracket:

• Shell: Euro BB (68mm BSA)
• Bottom Bracket: SRAM DUB BSA 73mm sealed (included)
• BB Yoke: Asymmetrical for sprocket clearance

Seat & Dropouts:

• Seat Stays: Tapered, streamlined
• Dropouts: CNC-machined micro (rear)
• Seat Tube: Custom-made with wider stance for BB stiffness

Braking & Routing:

• Brake Mount: Post mount disc
• Cable Routing: Internal rear brake cable routing

Compatibility:

• Fork: 1.5" tapered steerer
• Bottom Bracket: Euro BB (68mm) with SRAM DUB compatibility
• Crankset: Standard SRAM DUB BSA-compatible cranks
• Brakes: Post mount disc (hydraulic or mechanical)
• Drivetrain: Standard BMX/DJ chain and sprocket

Ideal Use Cases

Best For:

• Dirt jump and park riding
• Pump track progression
• Technical terrain and obstacle navigation
• Jump progression and air tricks
• Riders seeking lightweight, responsive DJ geometry
• Riders prioritizing stiffness and precision over pure weight savings

Geometry Summary: The 69° slack head tube delivers stability at speed. The 72° seat tube angle maintains responsive pedaling and control. Asymmetrical BB yoke and shorter chain stays improve maneuverability and trick execution. Compact 12.5" standover allows efficient rider positioning and quick transitions.

Frame Setup: Arrives with sealed headset and bottom bracket included—ready to install fork and crankset. Internal cable routing and post mount disc compatibility allow clean, modern build configurations. Custom seat tube and asymmetrical BB yoke optimize stiffness and performance specific to DJ and park riding demands.
