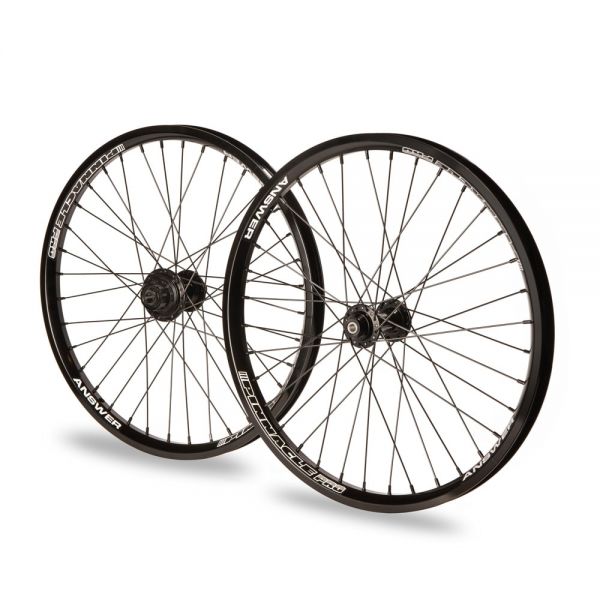

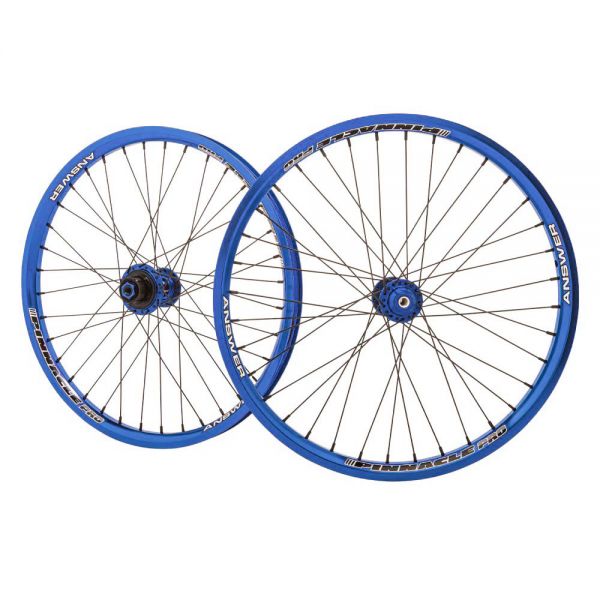

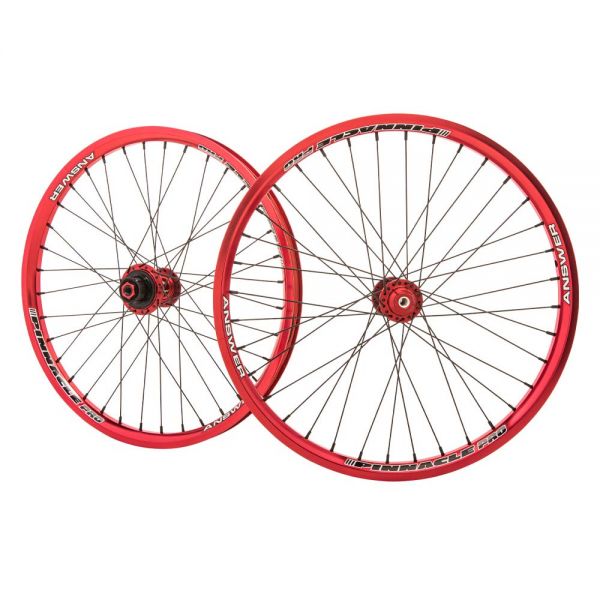

Answer Pinnacle Pro V2 20"×1.75" Wheelset

Product Overview

The Answer Pinnacle Pro V2 is a complete wheelset designed for 20" BMX racing. Hand-built in the USA with 36-hole double-wall rims laced to Holeshot Pro cassette hubs, it features high-engagement 6-pawl drivers and sealed bearings throughout. Built with 15-gauge spokes in a 3-cross pattern for strength and durability.

Key Features

• High-engagement 6-pawl driver – Each pawl has 3 individual teeth that engage every 3 degrees, providing near-instant drivetrain response for explosive gate starts

• Answer Pinnacle double-wall rims – 36-hole reinforced rim construction improves impact resistance and allows higher spoke tension for stiffer wheels

• CNC-machined aluminum hubs – Precision-machined Holeshot Pro hub shells reduce weight while maintaining structural integrity under race loads

• 14mm hollow aluminum axles – Lightweight hollow center axles with 3/8" bolt interface reduce rotational weight compared to solid chromoly axles

• Sealed bearings throughout – Cartridge bearings in front and rear hubs protect internals from contamination and reduce friction for consistent rolling performance

• Hand-built in USA – Professional wheel assembly with 3-cross spoke pattern ensures proper spoke tension and wheel trueness out of the box

• 15-gauge spokes with brass nipples – Heavy-duty 15G spokes provide increased strength for aggressive riding, with brass nipples resisting corrosion

Technical Specifications

• Weight (wheelset): 1590 g
• Rim model: Answer Pinnacle double-wall, 36h
• Rim size: 20" × 1.75" (406mm BSD)
• Material: Aluminum (rims and hubs)
• Axle diameter: 10mm (front), 14mm hollow (rear center) with 3/8" bolts
• Axle material: Hollow aluminum
• Front hub: Holeshot Pro, CNC-machined aluminum, sealed bearings
• Rear hub: Holeshot Pro cassette, CNC-machined aluminum, sealed bearings
• Driver type: 6-pawl aluminum cassette driver (Shimano-compatible)
• Engagement system: 6 pawls with 3 teeth each, 3-degree engagement
• Cog included: 16T Shimano-style cassette cog
• Spoke count: 36h front and rear
• Spokes: 15-gauge (15G) black with brass nipples
• Spoke pattern: 3-cross (3X)
• Spoke lengths: Front 184mm, Rear drive side 180mm, Rear non-drive 183mm
• Disc brake compatible: No
• Assembly: Hand-built in USA

Compatibility and Ideal Use Cases

Designed for 20" BMX race bikes with 10mm front and 3/8" bolt-on rear dropouts. Accepts Shimano-compatible cassette cogs (16T included). Best suited for competitive racing in Expert, Junior, and Pro classes where high engagement, durable construction, and sealed bearings are valued. The 6-pawl, 3-degree engagement system provides near-instant power transfer for competitive gate starts. 406mm BSD rims fit standard 20" × 1.75" to 2.4" tires. 36-hole construction with 15G spokes provides strength for heavier riders and aggressive racing. Not compatible with disc brakes, freewheel hubs, or frames requiring thru-axle mounting—verify frame dropout type and drivetrain compatibility before ordering.
