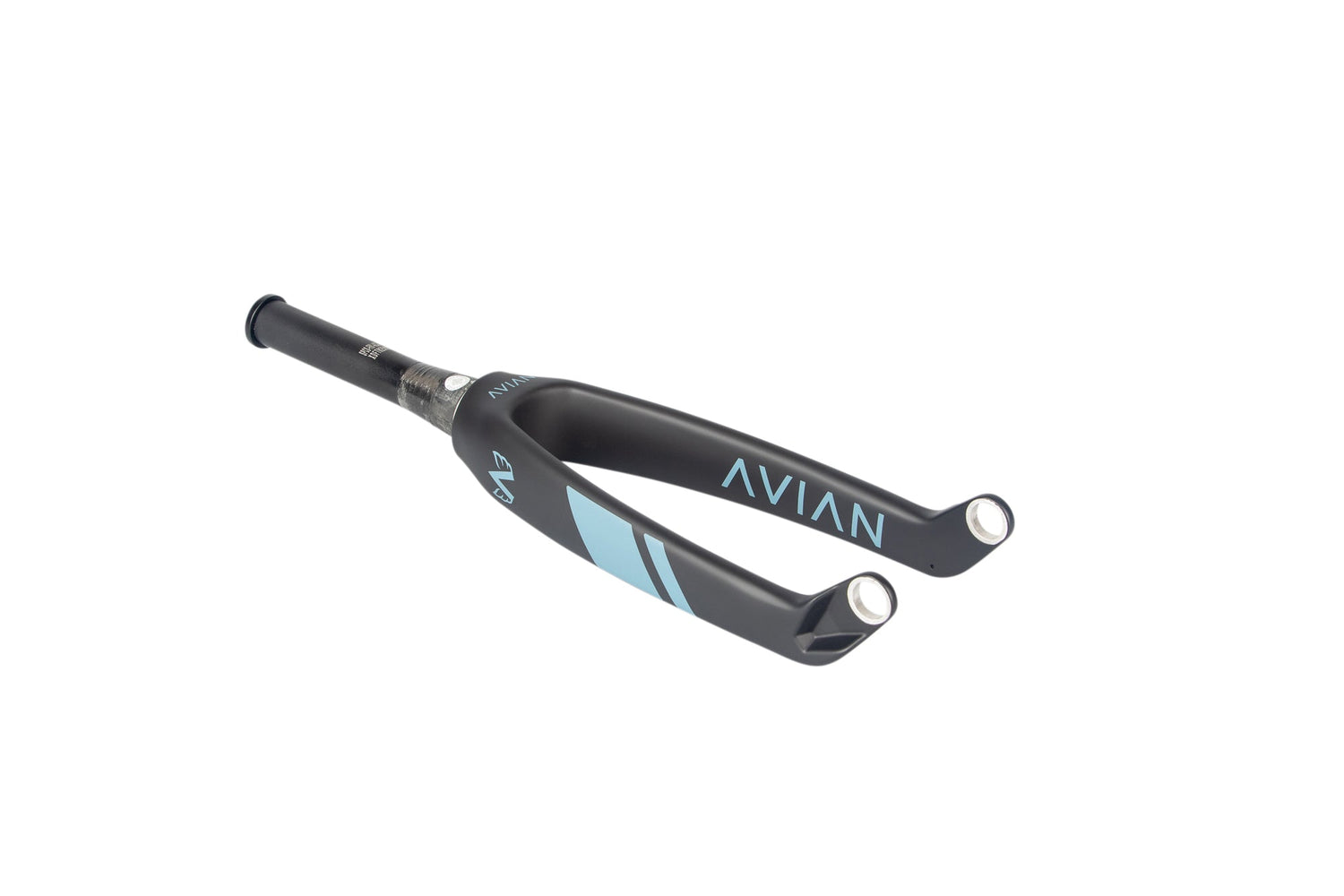

Avian Versus Tapered Carbon BMX Fork-20"X1 1/8-1.5"-Matte Blue Evo

Avian Versus Tapered Carbon BMX Fork (20", Matte Blue Evo): Toray carbon legs on a tapered 7005 aluminum steerer, for a stiffer front end than a straight-steerer fork of the same weight.

Specs

• Steerer: 4mm-wall 7005 aluminum, tapered 1-1/8" to 1.5"
• Legs: Toray carbon fiber
• Dropout: 20mm alloy
• Wheel size: 20"
• Integrated M10 locking system: the bolt threads directly into the steerer, so there is no star nut or expander plug
• Matte Blue Evo finish

Fits frames with a tapered 1-1/8" to 1.5" head tube only. Frames with a straight 1-1/8" head tube need the Pro straight version. Use a tapered 1-1/8" to 1.5" integrated headset.

Torque

• Locking bolt: 4–5 Nm recommended, 5.5 Nm maximum. Overtightening strips the threads inside the steerer, which cannot be repaired.
• Use a torque wrench.
