Avian Versus Tapered Carbon BMX Fork-20"X1 1/8-1.5"-Matte Green
Avian Versus Tapered Carbon BMX Fork-20"X1 1/8-1.5"-Matte Green - 20mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Final sale — this item can’t be returned or exchanged once it ships. Arrived damaged or wrong? We’ll make it right. Returns policy
Complete your kit
Save 0% when you add items marked Ships together
Avian Versus Tapered Carbon BMX Fork-20"X1 1/8-1.5"-Matte...
Description

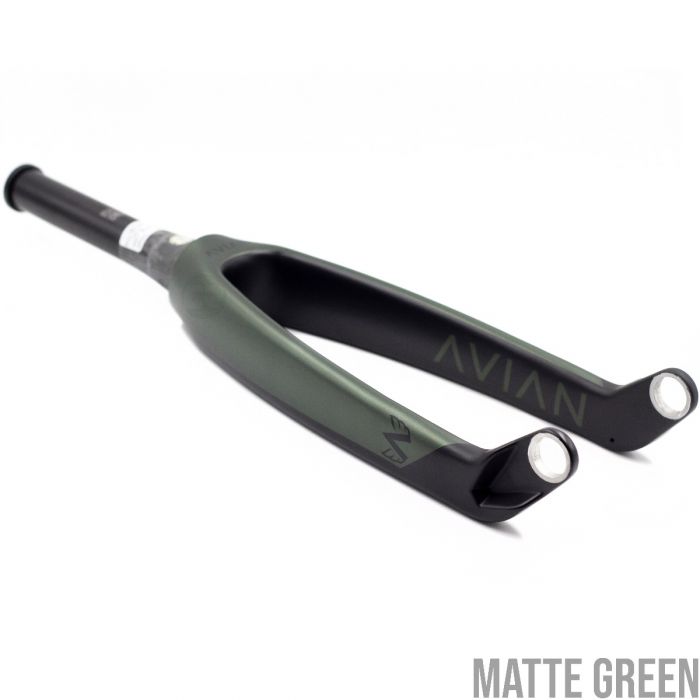

The Matte Green Avian Versus Tapered Carbon BMX Fork is the 20" tapered Versus, with a 20mm dropout and an integrated M10 locking bolt in place of a star nut or expander plug.
Specs
- Steerer: 4mm-wall 7005 aluminum, tapered 1-1/8" to 1.5"
- Legs: Toray carbon fiber
- Dropout: 20mm alloy
- Wheel size: 20"
- Integrated M10 locking system: the bolt threads directly into the steerer, so there is no star nut or expander plug
- Matte Green finish
Fits frames with a tapered 1-1/8" to 1.5" head tube only. Frames with a straight 1-1/8" head tube need the Pro straight version. Use a tapered 1-1/8" to 1.5" integrated headset.
Torque
- Locking bolt: 4–5 Nm recommended, 5.5 Nm maximum. Overtightening strips the threads inside the steerer, which cannot be repaired.
- Use a torque wrench.
