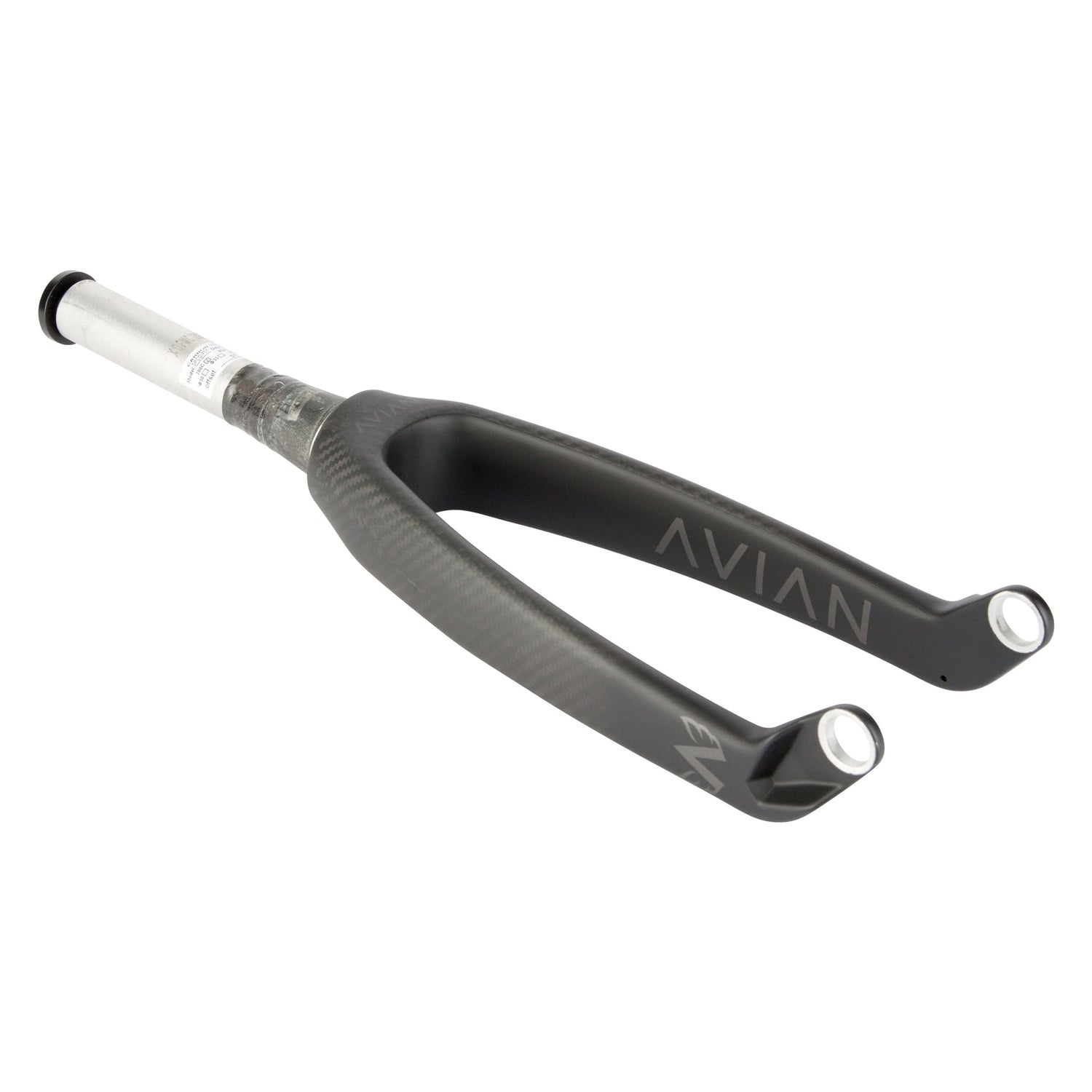

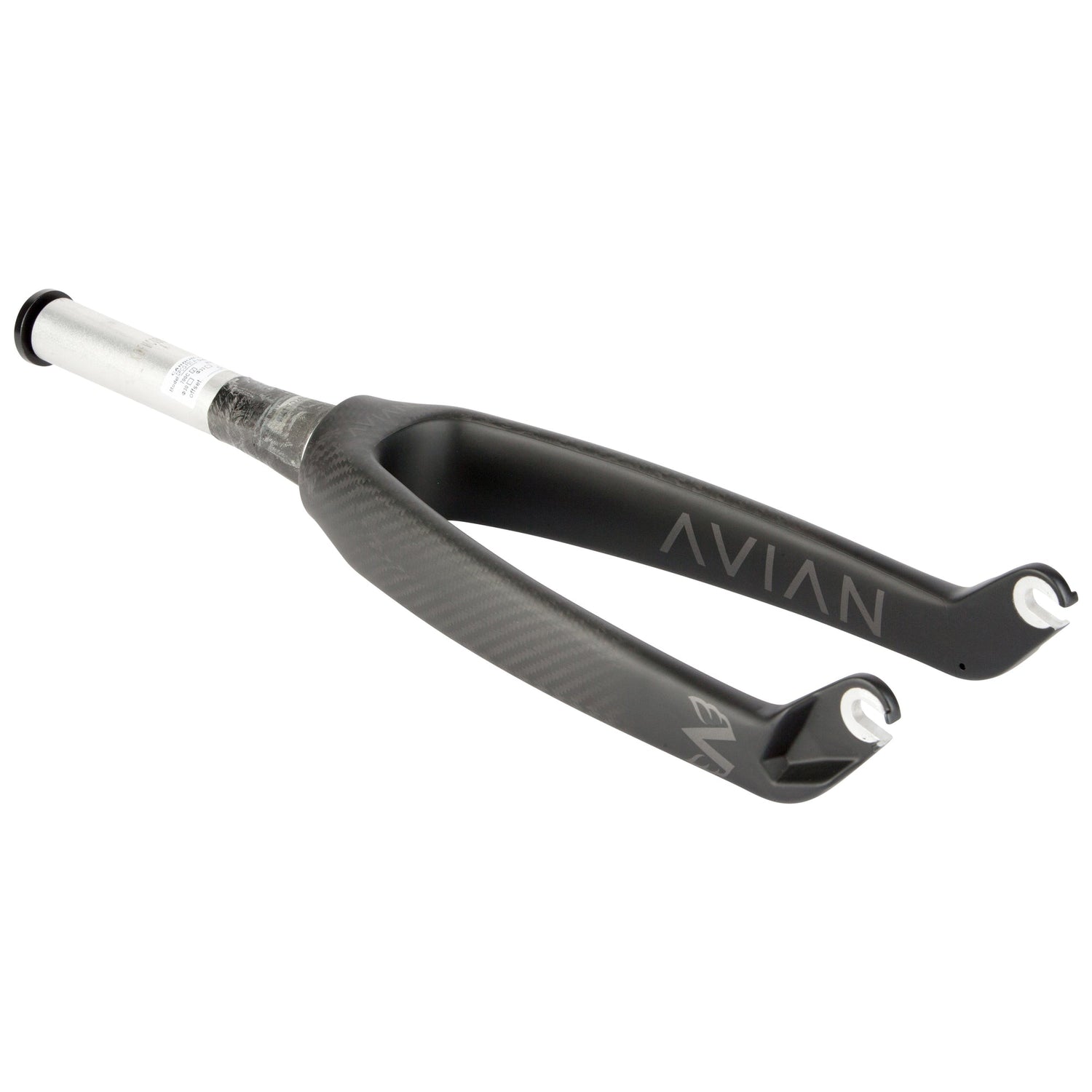

Avian Versus Tapered Carbon BMX Fork-24"X1 1/8-1.5"-Matte Black

The Avian Versus Tapered Carbon BMX Fork (24", Matte Black) is the Cruiser class Versus: the same tapered design, sized for 24" wheels.

Specs

• Steerer: 4mm-wall 7005 aluminum, tapered 1-1/8" to 1.5"
• Legs: Toray carbon fiber
• Dropout: 20mm alloy
• Wheel size: 24" (Cruiser class)
• Integrated M10 locking system: the bolt threads directly into the steerer, so there is no star nut or expander plug
• Matte Black finish

For Cruiser frames with a tapered 1-1/8" to 1.5" head tube. Use a tapered 1-1/8" to 1.5" integrated headset.

Torque

• Locking bolt: 4–5 Nm recommended, 5.5 Nm maximum. Overtightening strips the threads inside the steerer, which cannot be repaired.
• Use a torque wrench.
