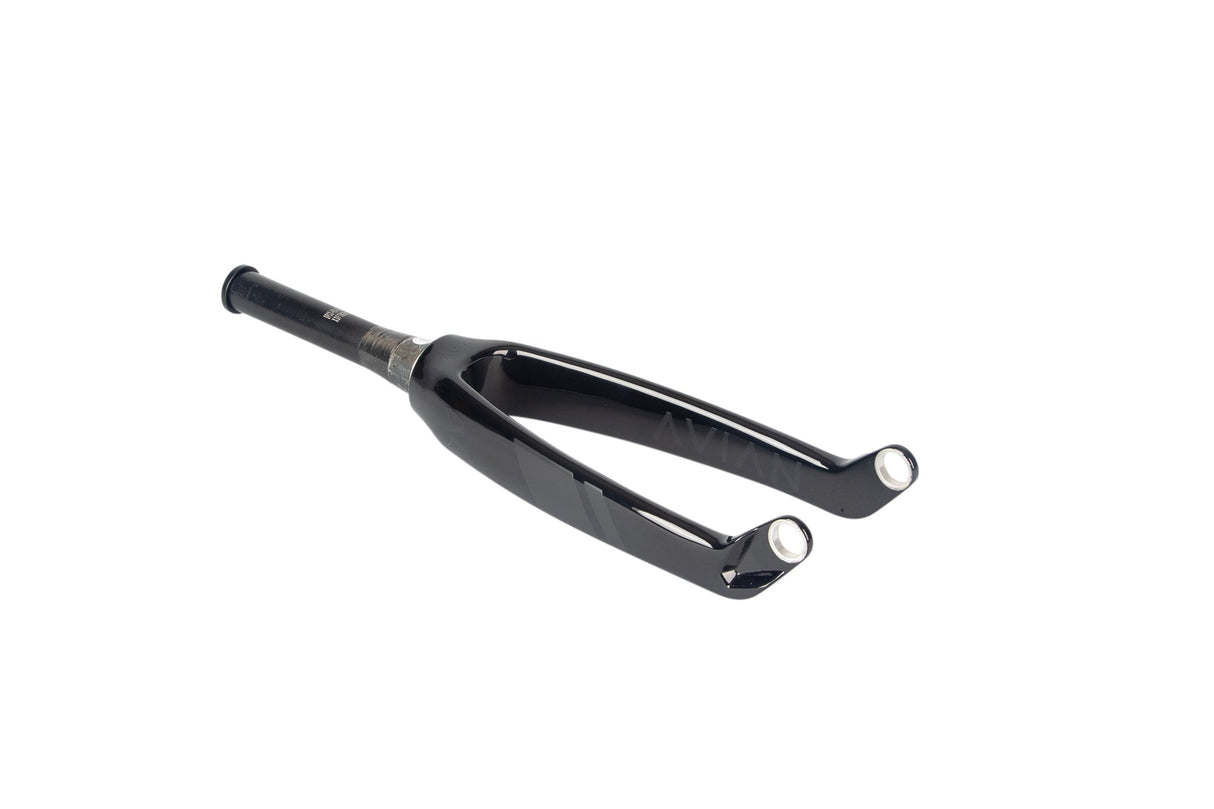

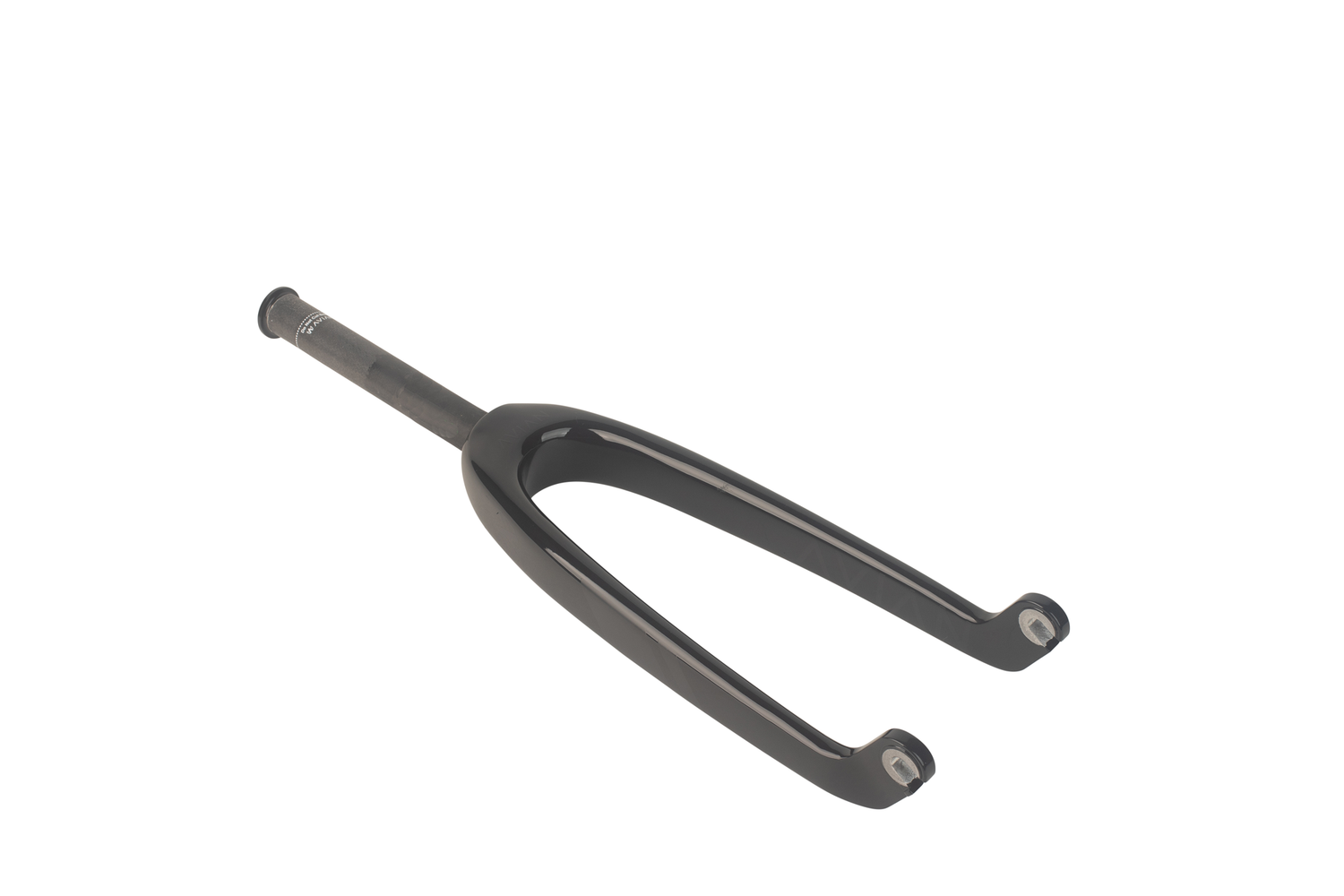

Avian Versus Youth Carbon BMX Fork-20"X1"-Stealth Black Evo

The Avian Versus Carbon BMX Fork in Stealth Black Evo is Avian's flagship race fork, offered in six configurations that cover every BMX class. Toray carbon legs meet an integrated M10 locking system that preloads the headset and locks the stem with a 5mm Allen key, with nothing pressed into or clamped around the steerer.

Configurations

• Youth 20x1", 10mm: full carbon steerer
• Youth Cruiser 24"x1-1/8", 10mm: full carbon steerer
• Pro 20x1-1/8", 10mm or 20mm: 4mm-wall 7005 aluminum steerer
• Pro Tapered 20"x1-1/8"–1.5", 20mm: 7005 aluminum steerer
• Cruiser Tapered 24"x1-1/8"–1.5", 20mm: 7005 aluminum steerer

Features

• Toray carbon fiber legs
• Integrated M10 locking system: the bolt threads directly into the steerer, so there is no star nut or expander plug
• Stealth Black Evo finish

Which version?

• Youth: Mini and Junior frames with a 1" integrated head tube
• Pro: Expert, Expert XL and Pro frames with a straight 1-1/8" head tube
• Pro Tapered: Pro frames with a tapered head tube
• Cruiser Tapered: Cruiser frames with a tapered head tube

Torque

• Locking bolt: 4–5 Nm recommended, 5.5 Nm maximum. Overtightening strips the threads inside the steerer, which cannot be repaired.
• Use a torque wrench.

Stem clamp torque

• Carbon steerer: 4–5 Nm
• Alloy steerer: 10–12 Nm

Headset

• Youth: 1" integrated
• Pro: 1-1/8" standard integrated
• Tapered versions: tapered 1-1/8" to 1.5" integrated
