Beringer Elite Race E2 Pro Crankset

Beringer Elite Race E2 Pro Crankset

Product Overview

The Beringer Elite Race E2 Pro is a professional-grade BMX racing crankset engineered in France with hollow 6082 aluminum cranks and hollow chromoly axle. Available in five lengths (170–180mm), it features optimized Q-factor (165mm), precision chain line geometry, and is designed for press-fit or euro BSA/BSC bottom brackets.

Key Features

• Hollow 6082 Forged Aluminum Cranks – CNC machined from aerospace-grade aluminum; hollow design reduces weight while maintaining rigidity and strength
• Hollow Chromoly Axle – 24mm hollow steel axle delivers precision fit and durability with minimal weight
• Reduced Q-Factor – 165mm Q-factor (crank spacing) optimizes power transfer, rigidity, and pedaling efficiency
• Professional Racing Design – Purpose-built for competitive BMX racing with precision engineering and aeronautical technology
• Color Anodized Finish – Protective coating resists corrosion and provides premium aesthetic
• Laser-Engraved Branding – Precision branding without added weight
• 104mm BCD 4-Point Crown – Compatible with standard BMX chainrings; enables straightforward gear changes
• Precision Chain Line – 42.5–43.5mm geometry ensures optimal drivetrain alignment and cog compatibility
• Multiple Crank Lengths – Available in 170mm, 172.5mm, 175mm, 177.5mm, and 180mm for different rider heights
• Lightweight Construction – Range 690–750g depending on length; minimal rotational weight for racing
• Made in France – European manufacturing ensures quality control and precision engineering
• Dual Bottom Bracket Compatibility – Works with both press-fit 86mm and euro BSA/BSC 68/73mm systems

Technical Specifications

• Crank type: 2-piece crankset
• Material: Hollow 6082 forged aluminum cranks, hollow 24mm chromoly axle
• BCD: 104mm
• Bolt pattern: 4-point crown
• Spindle diameter: 24mm (hollow chromoly)
• Q-factor: 165mm
• Chain line: 42.5–43.5mm
• Finish: Color anodization with laser engraving
• Crank length options and weights:
  • 170mm: 690g (684g without shims/screws)
  • 172.5mm: 705g
  • 175mm: 720g
  • 177.5mm: 735g
  • 180mm: 750g
• Bottom bracket compatibility: Press-fit 86mm or euro BSA/BSC 68/73mm with 24mm axle

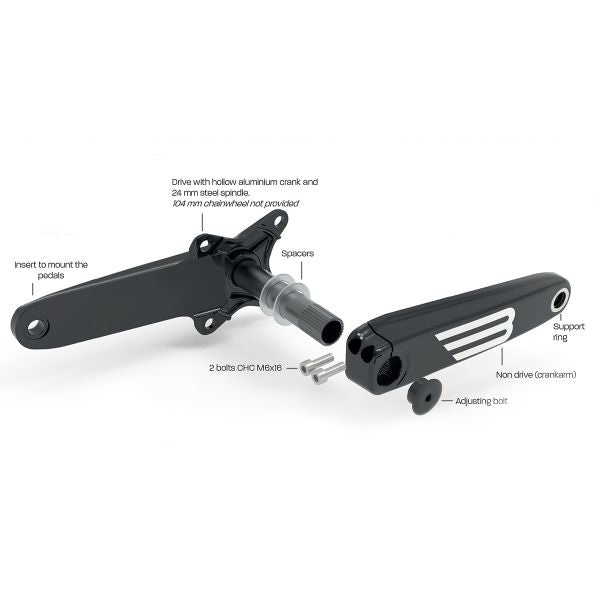

Included Components

• Left crank with M6 screws and support ring
• Right crank with assembled spindle, support ring, and aluminum adjustment screw
• Aluminum spacers for bottom bracket position adjustment
• Wedge for easy crankset mounting

Compatibility & Ideal Use Cases

• Professional BMX racing – Elite-grade component engineered for competitive racing
• Press-fit 86mm bottom brackets – Compatible with modern press-fit BB systems (24mm axle)
• Euro BSA/BSC 68/73mm bottom brackets – Works with traditional euro bottom bracket standards (24mm axle)
• 104 BCD chainrings – Compatible with standard 104mm BCD 4-bolt chainrings
• Crank length selection – Available in five lengths to accommodate different rider heights and preferences
• Racing-focused builds – Lightweight hollow construction ideal for competitive racing setups
• Professional riders – Purpose-built for serious racing applications

Build Requirements & Compatibility

• Bottom bracket selection – Choose press-fit 86mm or euro BSA/BSC 68/73mm based on your frame (BB not included)
• 104 BCD chainring – Select 104mm BCD 4-bolt chainring to match your gearing preference (sold separately)
• Pedals and installation – M6 screws included for left crank; use standard BMX crank bolts for pedal attachment
• Chain line verification – Adjust aluminum spacers to achieve 42.5–43.5mm chain line for optimal drivetrain performance
• Bottom bracket installation tools – May require specialized tools depending on your BB type

Important Notes

• Bottom bracket not included; purchase based on your frame's BB specification
• Crank length critical for proper rider ergonomics; verify height and preference before ordering
• Hollow construction provides weight savings while maintaining professional-grade strength
• 165mm Q-factor optimized for racing power transfer and pedaling efficiency
• Chain line 42.5–43.5mm requires spacer adjustment for precise cog alignment
• Made in France using aeronautical engineering standards; professional-grade component
• Dual BB compatibility accommodates both modern press-fit and traditional euro systems
• Lightweight design (690–750g depending on length) ideal for racing-focused builds
• Laser engraving ensures durable branding without weight penalty
• Includes mounting wedge for simplified crankset installation
