Box Hex Lab Mini Stem – 28.6mm, 1″

Box Hex Lab Mini Stem – 28.6mm, 1″

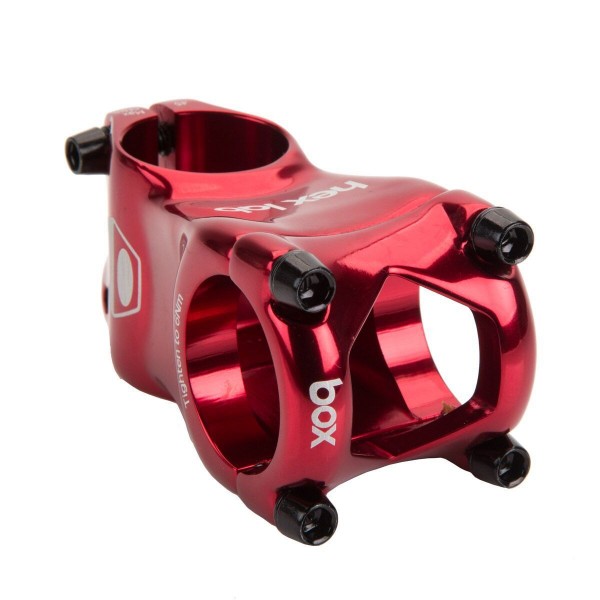

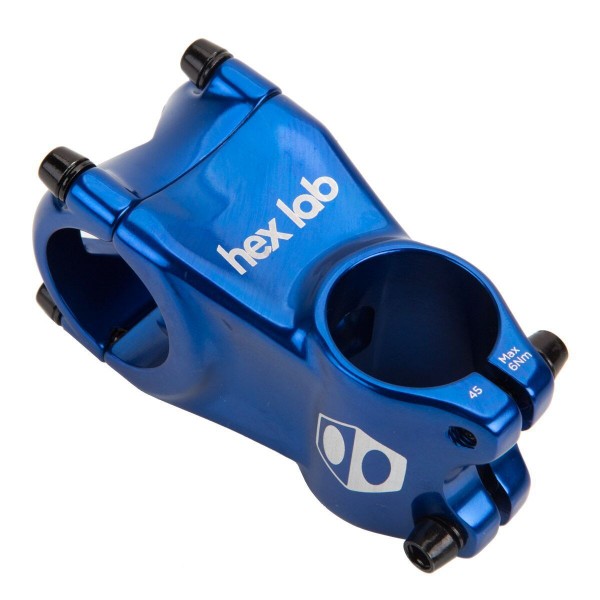

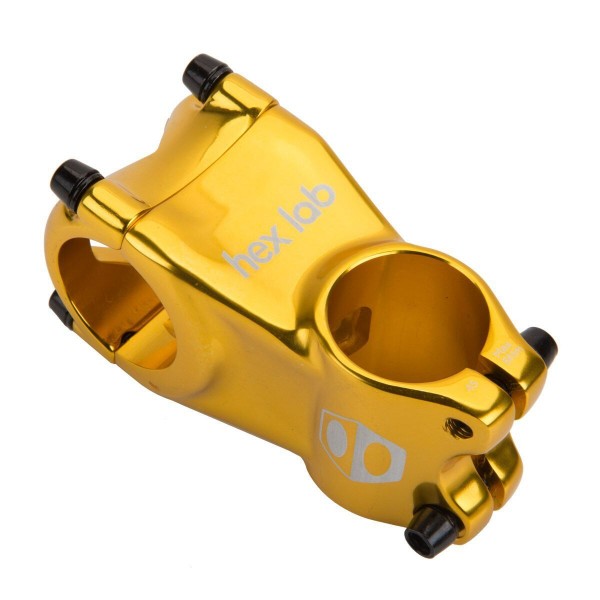

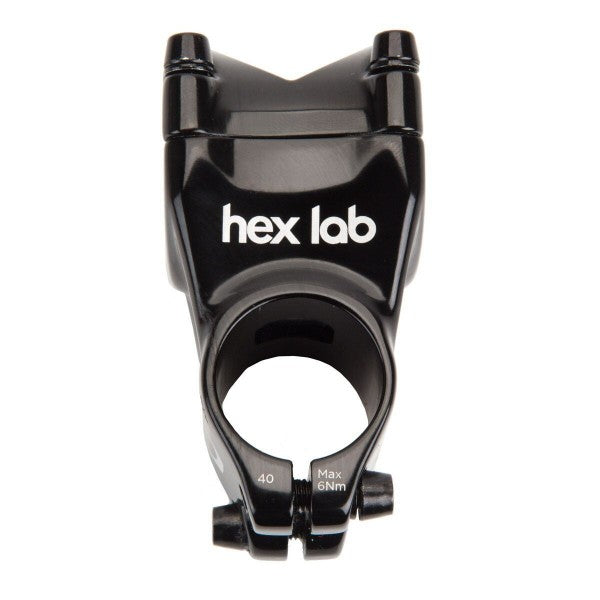

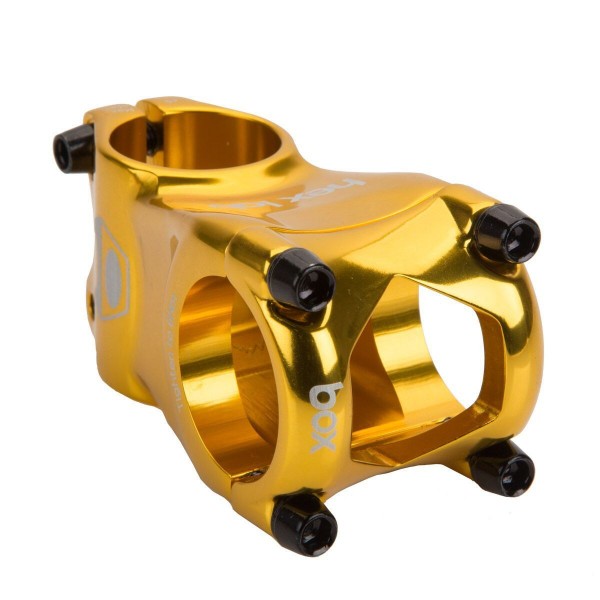

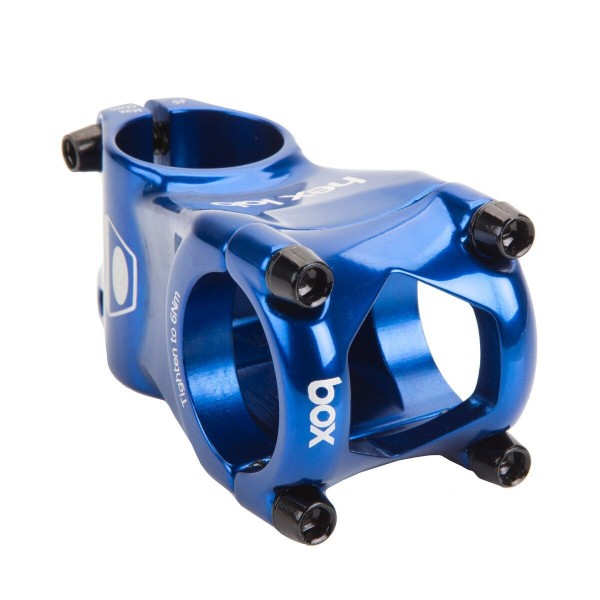

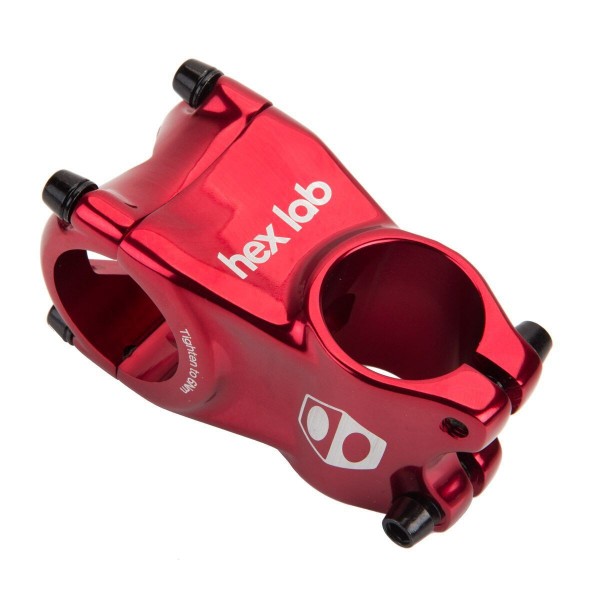

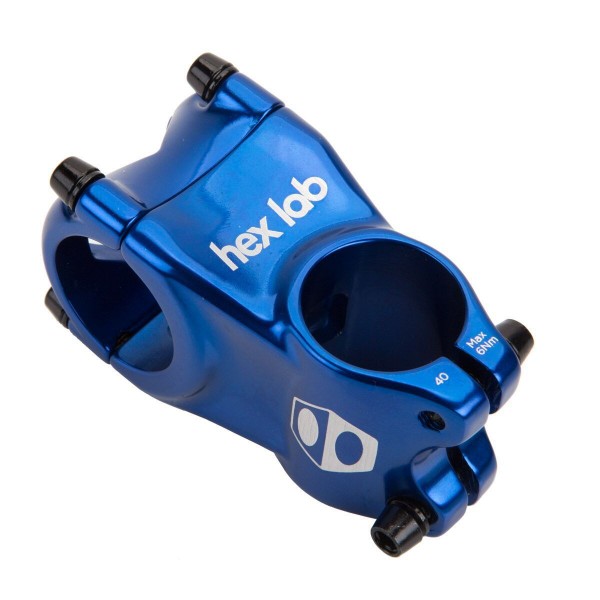

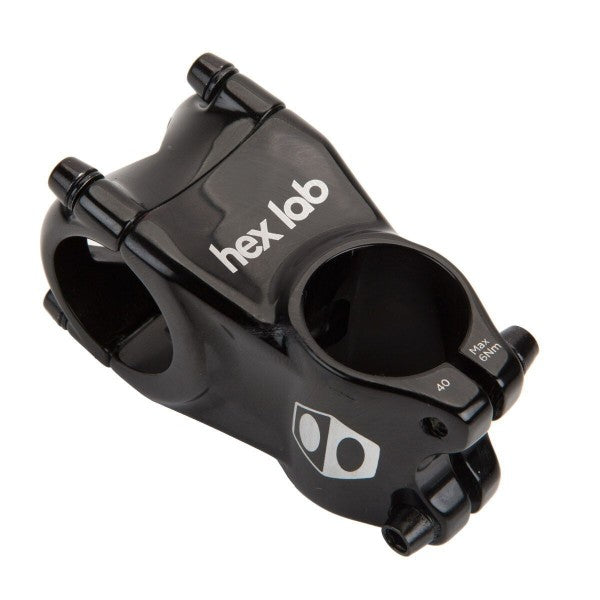

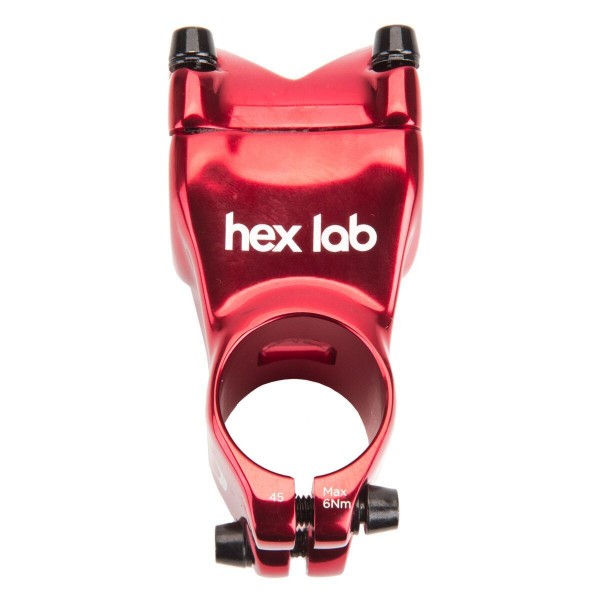

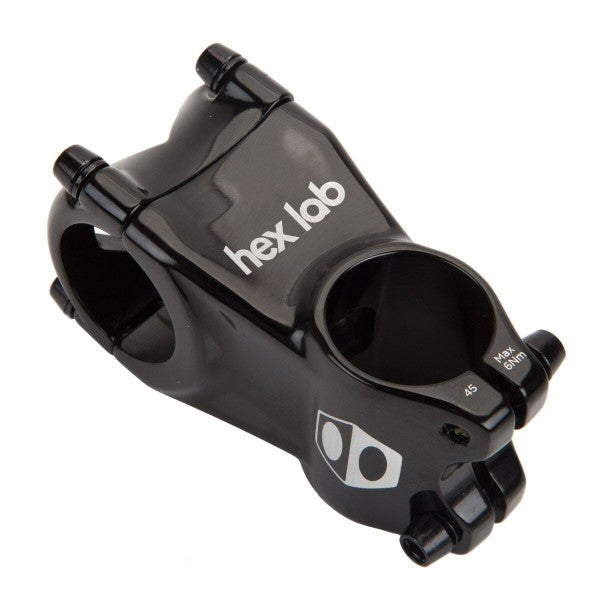

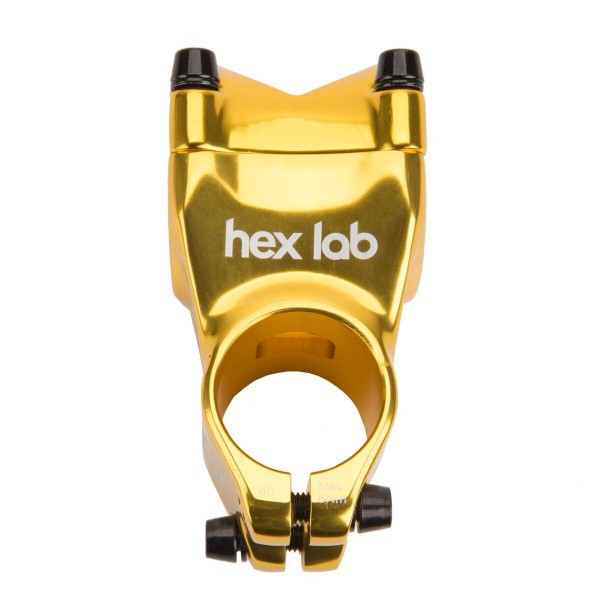

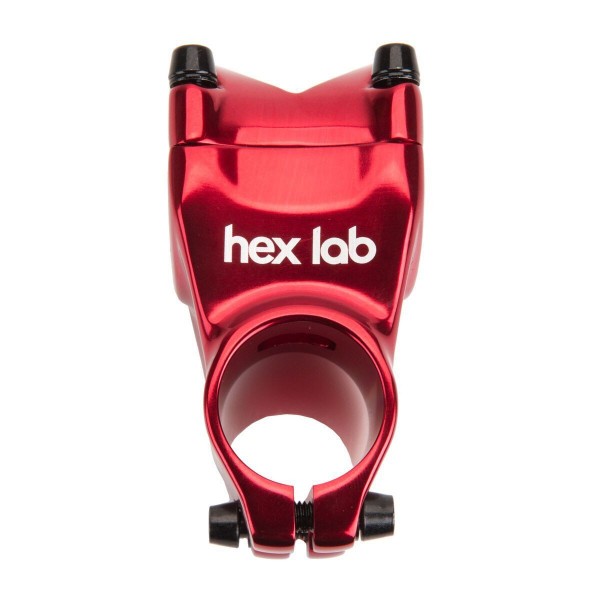

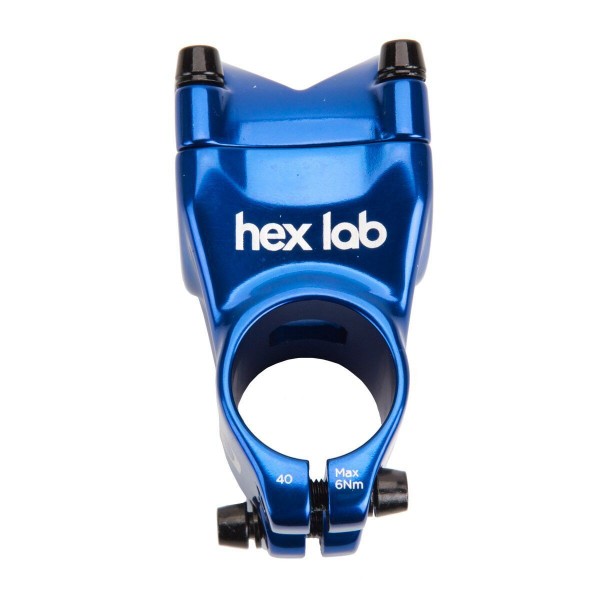

The Box Hex Lab Mini stem is a 3D cold-forged aluminum stem designed for BMX mini and micro bikes with 1″ steerer tubes and 28.6mm handlebar clamp diameter. Based on Box One's Trail Mountain stem design, the Hex Lab Mini uses 6061-T6 aluminum alloy cold forging to achieve an exceptional strength-to-weight ratio. Available in 40mm and 45mm reach options, this stem delivers lightweight stiffness for responsive handling on smaller-wheeled BMX bikes.

Key Features

• 3D Cold Forged 6061-T6 Aluminum – Cold forging process compresses the aluminum grain structure in three dimensions for superior strength compared to cast or machined stems; T6 heat treatment maximizes material hardness and stiffness
• Exceptional Strength-to-Weight Ratio – Engineering and material optimization create a stem that's both lightweight (106–115g) and strong enough to handle the forces of BMX riding
• 1″ Steerer Tube Compatibility – Designed specifically for mini and micro BMX bikes with 1″ threadless steerer tubes (not compatible with standard 1-1/8″ BMX stems)
• 28.6mm Handlebar Clamp – Specialized clamp diameter for smaller-diameter handlebars found on mini BMX bikes (not compatible with standard 22.2mm BMX bars)
• 5° Rise – Slight upward angle provides modest bar height increase while maintaining a low-profile stance appropriate for mini bikes

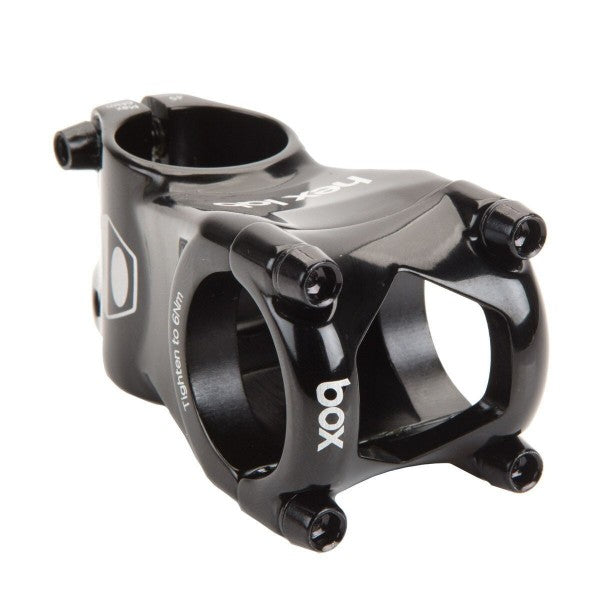

• Front Load Design – Handlebar clamps from the front for secure retention and clean appearance; allows for precise handlebar positioning

Technical Specifications

• Material: 6061-T6 aluminum, 3D cold forged
• Steerer Tube: 1″ threadless
• Handlebar Clamp Diameter: 28.6mm
• Clamping Type: Front load
• Rise: 5°
• Reach Options: 40mm, 45mm
• Weight:
  • 40mm: 106g (3.7 oz) ±5%
  • 45mm: 115g (3.8 oz) ±5%
• Stack Bolt: M5 × 16mm (P0.8)
• Clamp Bolt: M5 × 18mm (P0.8)

Compatibility and Ideal Use Cases

This stem fits BMX mini and micro bikes with 1″ threadless steerer tubes and requires handlebars with 28.6mm clamp diameter. Not compatible with standard 20″ BMX bikes that use 1-1/8″ steerer tubes or 22.2mm handlebar diameters. Best suited for riders upgrading mini BMX bikes who want a lightweight, high-quality stem that improves handling response and durability over stock components. The 40mm reach provides a shorter, more compact cockpit, while the 45mm reach offers slightly more extension for larger riders or those who prefer less cramped positioning. The cold-forged construction makes this stem appropriate for riders who session their mini bikes hard and need components that can withstand the forces of tricks, jumps, and aggressive riding. Ideal for performance-oriented mini BMX builds where weight and strength both matter.
