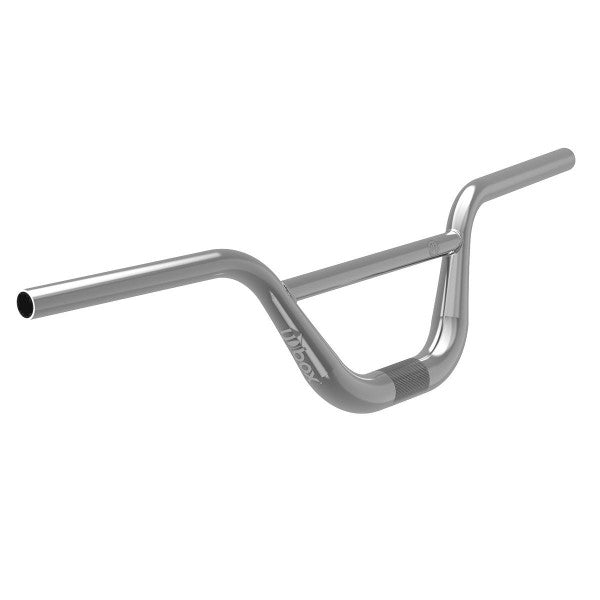

Box Hex Lab Oversized Titanium Handlebar — 5.5" (McKenzie Gayheart Limited Edition)

Overview

The Box Hex Lab Oversized Titanium is a premium 5.5" handlebar engineered from 3AL 2.5V titanium for racers seeking refined steering response with maximum stiffness. Titanium provides steel-level structural rigidity at significantly lower weight, with steering characteristics distinct from carbon fiber. The handlebar uses oversized technology with variable wall thickness to maximize both steering stiffness and pedaling power transfer.

Key Features

• Oversized Technology™ — Variable wall thicknesses and strategic tube diameter changes redistribute material from low-stress zones to high-load areas, minimizing twist and improving overall stiffness
• 3AL 2.5V titanium construction — Delivers strength-to-weight ratio superior to steel; provides refined, sensitive steering feel compared to carbon fiber's more aggressive response
• Pedaling stiffness optimization — Engineered to resist upward flex ("lifting phenomenon") during hard pedaling, providing a solid backstop so power isn't lost to handlebar deflection
• Steering stiffness enhancement — Massive 31.8mm clamp interface increases contact surface with stem clamp, reducing deflection and improving steering control
• Variable wall thickness — Reduces overall weight while maintaining critical structural zones
• Laser-etched graphics — Durable finish resistant to wear and corrosion
• Compact 5.5" height — Designed for specific rider preferences or frame geometries requiring lower bar heights

Technical Specifications

• Material: 3AL 2.5V titanium
• Process: Extruded and mandrel-formed
• Height: 5.5" (139.7mm)
• Width: 28.25" (717.5mm)
• Back sweep: 7°
• Up sweep: 2°
• Clamp diameter: 31.8mm
• Bar bore: 31.8mm
• Grip diameter: 22.2mm
• Weight limit: 115kg (253 lbs) — EN 16054:2012 Category 2 standard

Compatibility & Ideal Use Cases

• Stem compatibility: 31.8mm clamp diameter
• Grip compatibility: 22.2mm diameter grips
• Best for: Racers seeking compact bar height; riders requiring steeper back sweep (7°) for specific position preferences
• Ideal use: Competition BMX racing; riders prioritizing both steering precision and pedaling efficiency
• Not suitable for: Riders under 115kg should verify weight standard compliance before use

Pair with a compatible 31.8mm stem and 22.2mm grips. Titanium requires no special maintenance; the laser-etched finish is durable in standard riding conditions.
