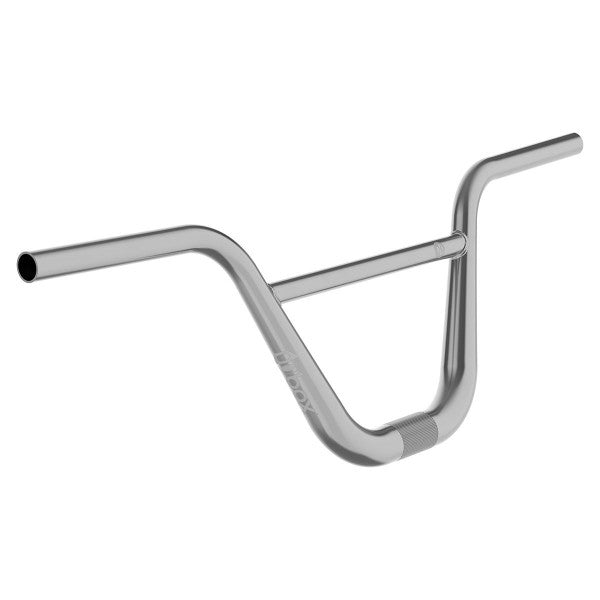

Box Hex Lab Oversized Titanium 8.0" Handlebar

Box Hex Lab Oversized Titanium 8.0" Handlebar

Product Overview

The Box Hex Lab Oversized Titanium is a premium 8.0" handlebar engineered with 3AL 2.5V titanium for refined steering response and exceptional stiffness-to-weight performance. Designed for larger-frame racers, it combines titanium's material advantages with Box's Oversized Technology for responsive, sensitive handling without carbon fiber's aggressive feel.

Key Features

• Oversized Technology™ — Strategic variation in wall thickness and tube diameter concentrates material in high-load zones while removing excess from low-stress areas, minimizing twist and maximizing responsiveness
• 3AL 2.5V Titanium Construction — Premium aerospace-grade titanium delivers steel-level strength without weight penalty, offering superior durability and refined steering characteristics compared to chromoly or aluminum alternatives
• Refined Steering Response — Titanium material properties provide highly sensitive, precise handling feel with greater refinement than carbon fiber, ideal for discerning racers seeking nuanced control
• Massive Clamp Interface — 31.8mm clamp diameter maximizes stem contact surface for locked-in steering precision and elimination of bar flex under load
• Pedaling Stiffness Optimization — Handlebar backstop design resists "lifting" phenomenon during hard pedaling, preventing power loss and maintaining consistent steering control
• Variable Wall Thickness — Mandrel-formed construction with optimized wall variation reduces overall weight while maintaining structural integrity across entire bar
• Extended Height Format — 8.0" rise provides elevated control point and extended leverage for varied trick progression and personal preference accommodation
• Laser-Etched Graphics — Premium finish treatment showcases material while providing durability and aesthetic refinement
• Professional Race Pedigree — Designed and inspired by elite racer McKenzie Gayheart for competitive performance validation

Technical Specifications

• Material: 3AL 2.5V Titanium
• Construction: Extruded and mandrel-formed with variable wall thickness
• Bar Bore (Grip Area): 22.2mm
• Clamp Diameter: 31.8mm
• Height: 8.0"
• Width: 28.25"
• Sweep Angle: 7° back, 2° up
• Finish: Laser-etched graphics on natural titanium
• Rider Weight Limit: 115kg (253 lbs) per EN 16054:2012 Standard, Category 2
• Installation: Tool-free with 31.8mm clamp stem

Compatibility and Ideal Use Cases

Compatible with any 31.8mm clamp stem. Designed specifically for larger-framed racers (up to 115kg/253 lbs) seeking premium material performance and refined steering response. Ideal for competitive riders, professional racers, and those prioritizing nuanced handling characteristics over aggressive steering feel. The extended 8.0" height suits riders preferring elevated bar geometry for varied trick progression and personal control preferences. Superior choice for riders seeking titanium's refined characteristics combined with Oversized Technology stiffness advantages.

Note: Rider weight limit strictly observed per EN 16054:2012 Standard Category 2 specifications. Exceeding weight limit may compromise structural integrity and rider safety.
