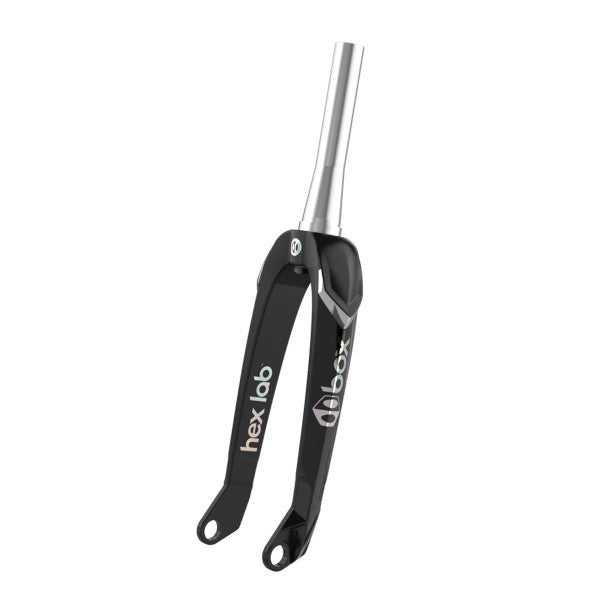

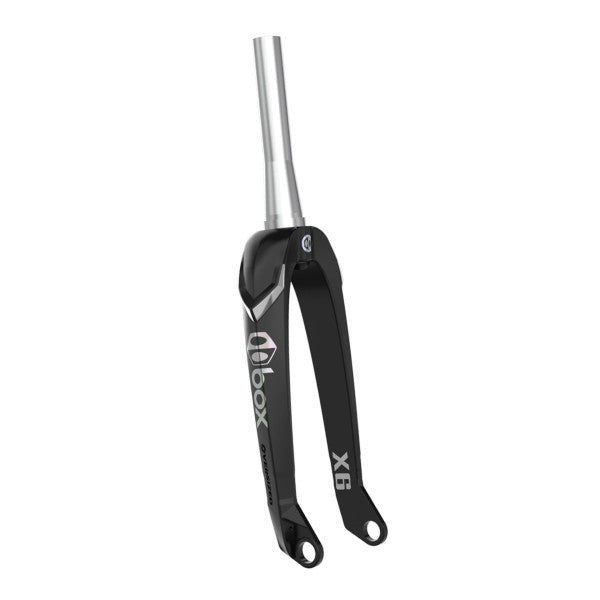

Box Hex Lab Oversized X6 20" BMX Fork

Product Overview The Box Hex Lab Oversized X6 is a 20" BMX fork engineered with oversized tubing geometry and carbon construction for maximum steering stiffness and control. Built with a tapered titanium steerer tube and 20mm thru-axle compatibility, this fork delivers the precision and durability demanded by serious BMX riders. The carbon-to-aluminum material strategy places strength where it's needed most—in the load-bearing areas that directly impact handling responsiveness.

Key Features

• High Modulus Unidirectional Carbon Fiber Legs – Carbon fiber is positioned in the leg sections where bending loads are highest, reducing weight while maintaining stiffness for consistent steering response
• Tapered Titanium Steerer (1-1/8" to 1.5") – Titanium offers superior strength-to-weight ratio and won't strip or crack under impact; tapered design increases stiffness in the headtube area without adding excess weight
• Oversized Dropouts (20mm Thru-Axle) – Cold-forged construction and oversized geometry eliminate flex during landing and tricks; 20mm axle standard provides rigid wheel retention
• Enlarged Hips and Shoulders – Strategically oversized tubing in high-stress zones increases lateral stiffness and reduces deflection during directional changes and lock-ins
• Vacuum-Molded Carbon Construction – Vacuum molding ensures consistent fiber orientation and density throughout the legs, eliminating weak points
• 6061-T6 Aluminum Hardware – Butterfly and dropouts use durable aluminum alloy for impact resistance and longevity
• 32mm Offset – Geometry designed specifically for 20" BMX wheelbase and handling characteristics

Technical Specifications

• Height: 20"
• Steerer Tube: 1-1/8" lower / 1.5" upper (tapered)
• Steerer Material: 6Al-4V Titanium (extruded and CNC-finished)
• Axle: 20mm thru-axle
• Fork Legs: High Modulus Unidirectional Carbon Fiber (vacuum-molded)
• Butterfly & Dropouts: 6061-T6 Aluminum (cold-forged)
• Offset: 32mm
• Weight: 615g (21.7 oz)
• Weight Limit: 115kg (253 lbs) – EN 16054:2012 Category 2 compliant
• Finish: Matte Black with Prizm decals
• Hardware: Stem lock included

Compatibility and Ideal Use Cases

• Fits: 20" BMX bikes with 1-1/8" to 1.5" tapered headtubes and 20mm thru-axle frames
• Best For: Riders prioritizing steering precision, lock-in consistency, and durability—particularly those performing tricks and stunts where fork stiffness directly impacts control
• Ideal Riders: Intermediate to advanced BMX riders looking for high-performance component upgrades
• Not Recommended For: Cruiser or freestyle setups requiring smaller axle standards; riders under 115kg weight limit must verify frame compatibility
