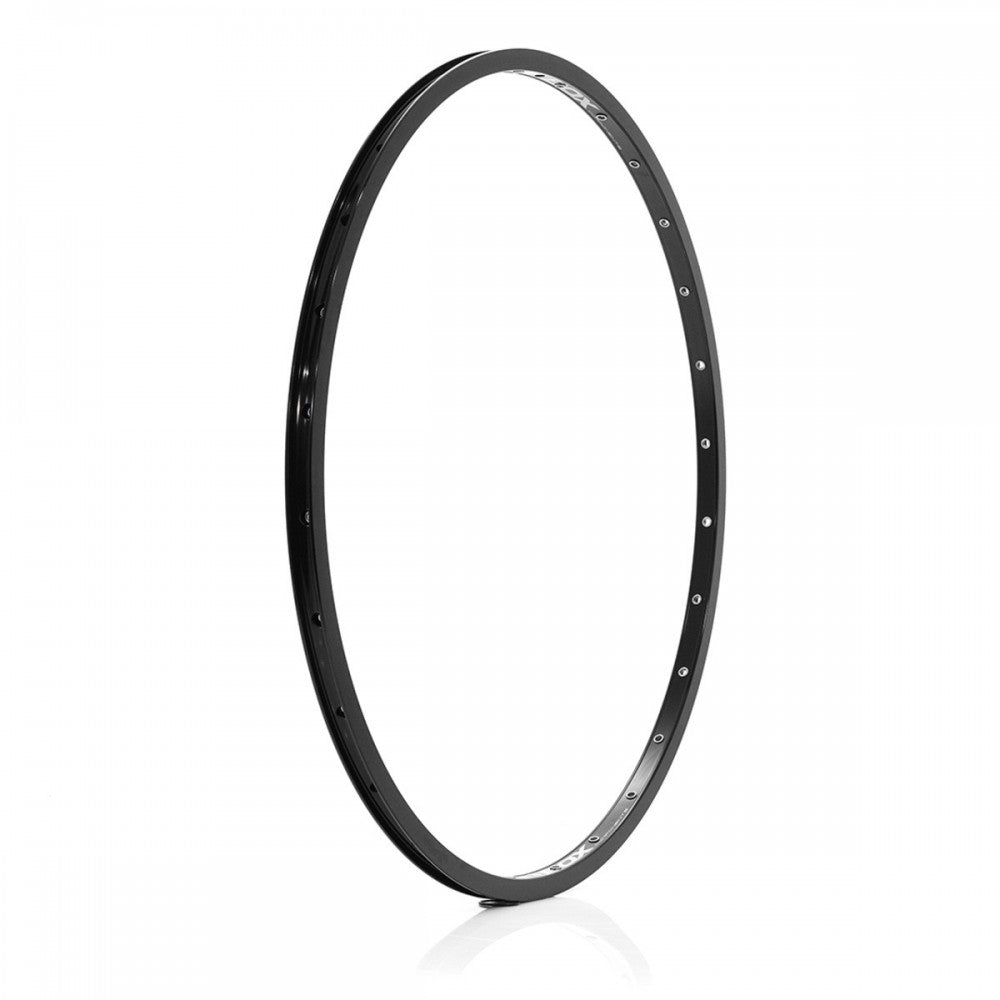

Box One 24" 520x12mm 28h Rims

Box One 24" 520x12mm 28H Rim

Product Overview

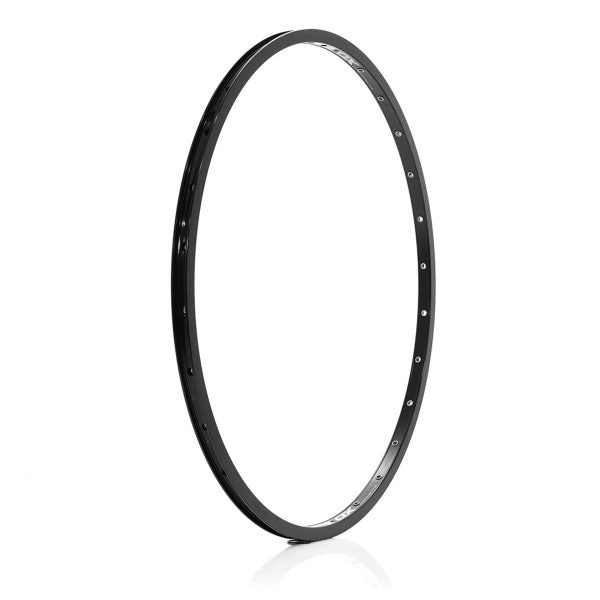

The Box One 24" is a low-profile double-wall aluminum rim with no-nonsense design that eliminates excess material. At 287g (10.1 oz) for the brakeless version, it's among the lightest weight 24" rims available and features a 28-spoke drilling pattern.

Key Features

• Lightweight Double-Wall Construction – Optimized geometry reduces weight without sacrificing structural integrity
• Low-Profile Design – Eliminates unnecessary material while maintaining strength for racing applications
• Brakeless Surface – Aerodynamic profile optimized for speed; not compatible with rim brakes
• 28-Spoke Drilling – Standard BMX spoke count for balanced strength-to-weight ratio
• 520mm Size – Standard 24" wheel diameter (ERD 512mm brakeless)
• Ultra-Lightweight – 287g (10.1 oz) ideal for weight-optimized racing builds
• Front or Rear Compatible – Versatile design suitable for both wheel positions
• Anodized Finish – Durable coating resists corrosion and wear
• Precise Manufacturing – Consistent quality ensures true wheel builds and reliable performance

Technical Specifications

• Material: Aluminum (double-wall construction)
• Size: 24" x 1-1/8" (520mm)
• Drilling: 28 holes
• Weight: 287g (10.1 oz) brakeless version
• ERD (Effective Rim Diameter): 512mm brakeless
• Width: 12mm
• Brake surface: None (brakeless profile)
• Application: Front or rear wheel
• Rider weight limit: 99 lbs maximum

Build Requirements & Compatibility

• Spoke Compatibility – Use with standard BMX spokes; verify spoke length based on hub flange geometry (approximately 260–280mm range depending on hub)
• Spoke Tensioning – Use calibrated spoke tension meter for consistent wheel building
• Lacing Patterns – Compatible with standard cross lacing and other non-radial patterns
• Tire Compatibility – Designed for 24" BMX tires; verify tire bead diameter matches 520mm standard
• Hub Compatibility – Works with any 28-hole hub (front or rear); verify ERD and spoke hole count
• Brake System – Not compatible with rim brakes; use with disc brake or brakeless setups only

Compatibility & Ideal Use Cases

• BMX racing – Lightweight brakeless design optimized for racing performance
• Weight-optimized builds – 287g weight ideal for competitive racing setups
• 24" wheel systems – Standard 24" BMX wheel size compatible with modern frames
• Disc brake systems – Works as front or rear wheel with hydraulic or mechanical disc brakes
• Light riders – 99 lb rider weight limit; verify rider weight before ordering
• Competitive riders – Purpose-built for serious racing applications

Important Notes

• Brakeless surface; not compatible with rim brakes of any type
• 99 lb maximum rider weight limit; heavier riders may exceed structural design limits
• Ships direct from manufacturer in USA; may ship separately from other orders
• 28-hole drilling standard for 24" BMX racing wheels
• ERD 512mm for spoke length calculation and wheel building
• Low-profile design optimizes aerodynamics and speed over durability for extreme abuse
• Double-wall construction provides strength despite minimal material usage
