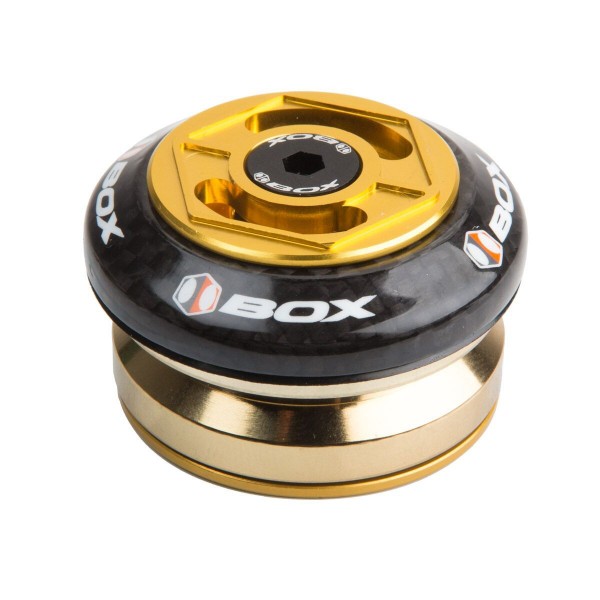

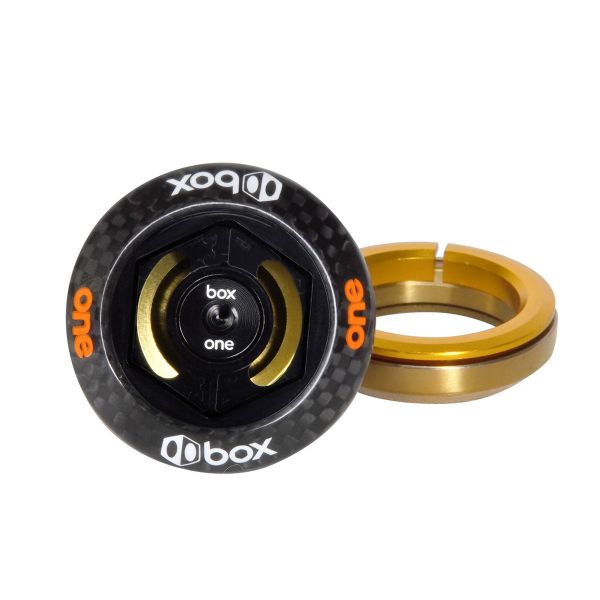

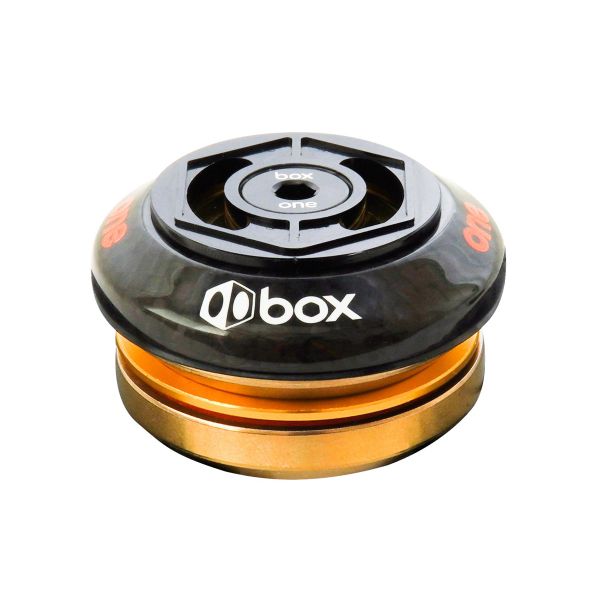

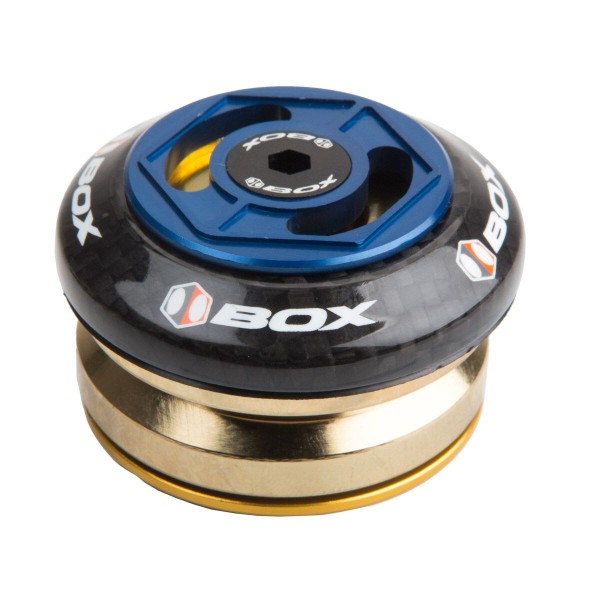

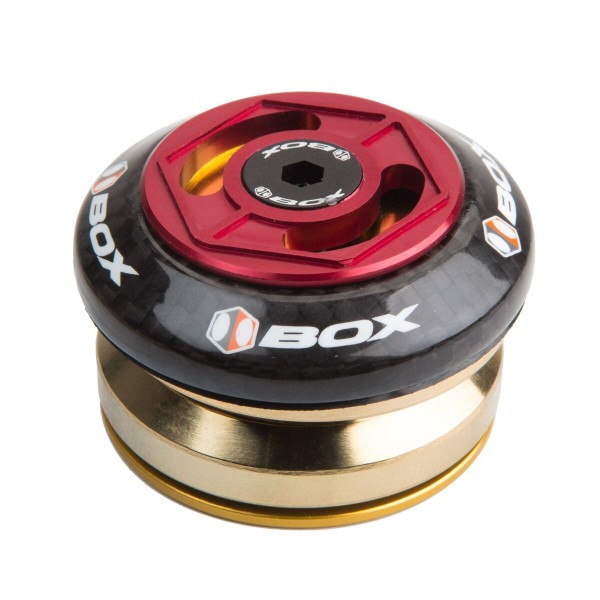

Box One Carbon Integrated Headset 1-1/8"

Box One Carbon Integrated Headset 1-1/8"

Product Overview

The Box One Carbon Integrated Headset is a precision-engineered 1-1/8" integrated headset designed for smooth steering and durability. Featuring titanium-nitride coated sealed bearings, a carbon fiber top cap, and an expander plug system, it combines performance engineering with lightweight construction for responsive fork control.

Key Features

• Titanium-Nitride Coated Bearings — Low-friction coating reduces rolling resistance, increases corrosion resistance, and extends bearing lifespan under varied riding conditions
• Sealed 45×45 Bearings — Precision sealed design prevents dirt, water, and debris intrusion while maintaining smooth rotation and reliable performance
• Carbon Fiber Top Cap — Lightweight bearing cover reduces overall headset weight while improving aesthetics and durability
• Expander Plug System — Threaded aluminum expander eliminates the need for traditional star nuts, works reliably with standard and carbon fiber steerer tubes, and simplifies installation
• CNC-Machined Alloy Top Cap — Custom Box logo design with cut-outs reduces weight while showcasing internal components
• Split Crown Race — Allows easy installation and removal from fork crowns without damage or complications
• Anodized Hardware — Gold anodized expander plug and aluminum bolt resist corrosion and provide visual polish

Technical Specifications

• Headset Type: Integrated (1-1/8" steerer tube compatible)
• Bearing Configuration: Two 45° × 45° sealed bearings
• Bearing Coating: Titanium-nitride for low friction and corrosion resistance
• Materials: Aluminum top cap, carbon fiber bearing cover, anodized hardware
• Crown Race: Split design for easy fork installation/removal
• Recommended Torque: 9-10 Nm (expander), 1.5 Nm (top cap)
• Weight: 94g (3.3 oz)
• Compatible Steerer Tubes: Standard 1-1/8" and carbon fiber 1-1/8"
• Bearing Standards: SHIS 42/28.6 or IS 42/30

Compatibility and Ideal Use Cases

Compatible with 1-1/8" integrated fork steerer tubes (both standard and carbon fiber). The expander plug system eliminates compatibility issues with carbon steerers where traditional star nuts can fail. Ideal for riders building complete bikes or replacing worn headsets, and for those using carbon fiber forks. Sealed bearing design suits all riding conditions from dry park sessions to variable weather environments.
