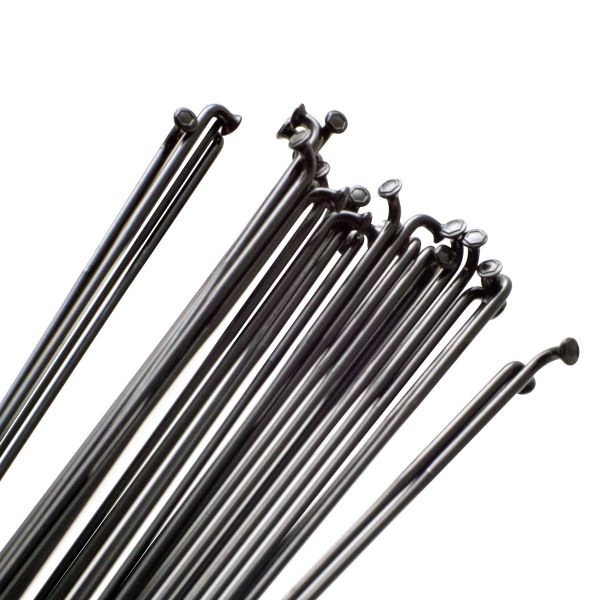

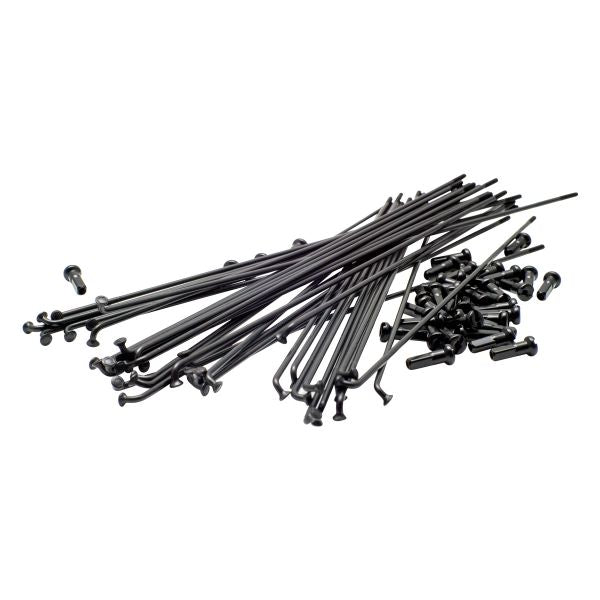

Box One Pro Spokes Kit

Overview

The Box One Pro Spokes Kit is engineered for BMX race wheel builds on 24" wheels with a focus on strength-to-weight optimization. The 40-spoke kit features double-butted steel spokes paired with lightweight aluminum nipples, delivering approximately 60g total weight savings per wheel compared to traditional straight-gauge spokes with brass nipples.

Key Features

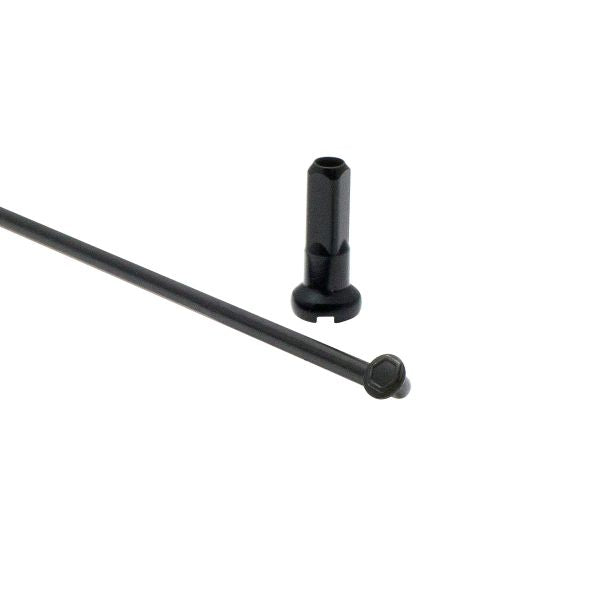

• Double-butted construction (2.0/1.8/2.0mm) — Thicker 14 gauge at spoke ends where bending loads concentrate; thinner 15 gauge in the middle section reduces unnecessary weight without sacrificing strength
• Superior strength-to-weight ratio — Double-butted design is lighter and stronger than traditional straight 14 gauge spokes; concentrates material where stress is highest

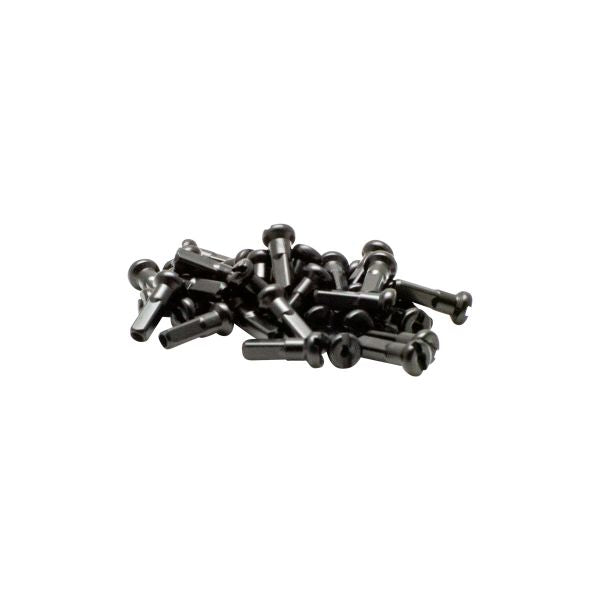

• Black anodized aluminum nipples — Lightweight nipples (0.35g each) reduce rotational weight compared to brass nipples; anodized finish resists corrosion
• Box Hex logo stamped spoke heads — Branded spoke identification with quality control marking
• Optimized for 406mm BMX race wheels — 188mm spoke length and 40-spoke count designed for standard 24" BMX wheel builds

Technical Specifications

• Spoke count: 40 spokes per kit
• Spoke gauge: 2.0/1.8/2.0mm double-butted (14g/15g/14g)
• Spoke length: 188mm
• Spoke weight: 4g each
• Material: Steel
• Nipple count: 40 per kit
• Nipple material: Black anodized aluminum
• Nipple weight: 0.35g each
• Total weight savings: Approximately 60g per wheel versus straight gauge spokes and brass nipples
• Wheel capacity: Builds one wheel with 36 holes or less

Compatibility & Ideal Use Cases

• Wheel size: 406mm (24") BMX wheels
• Hub compatibility: Any 24" hub with standard spoke hole spacing
• Rim compatibility: Any 24" rim with 28, 32, or 36 hole drilling (kit contains 40 spokes—select appropriate count for your rim)
• Best for: BMX racers; wheel builders prioritizing lightweight construction
• Ideal use: Race wheel builds; custom wheel builds; performance-focused 24" applications
• Spoke lacing: Compatible with 3X, 4X, or radial lacing patterns
