Chase Act 1.2 Carbon Frame Black/Sand
Chase Act 1.2 Carbon Frame Black/Sand - Black / Sand / Pro XL + is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Final sale — this item can’t be returned or exchanged once it ships. Arrived damaged or wrong? We’ll make it right. Returns policy
Description

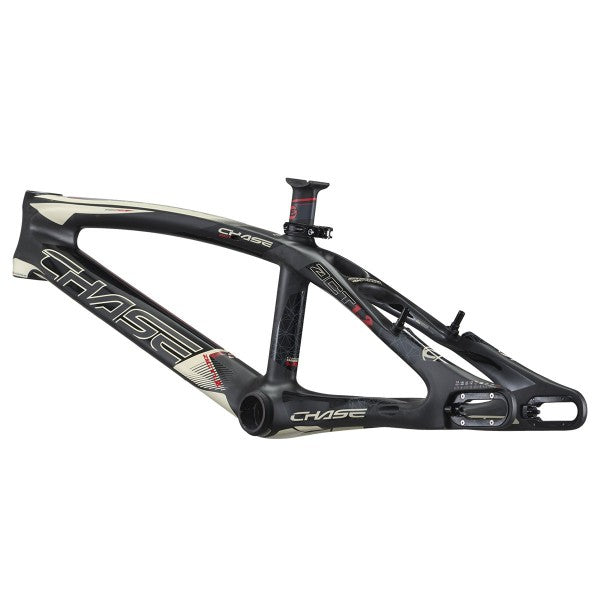

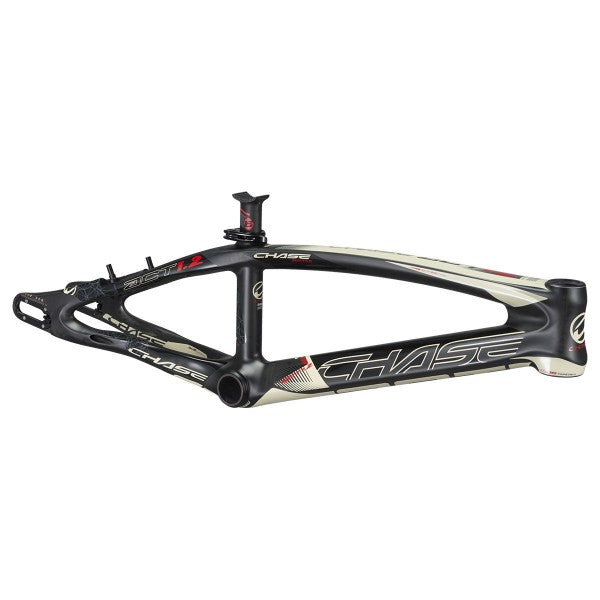

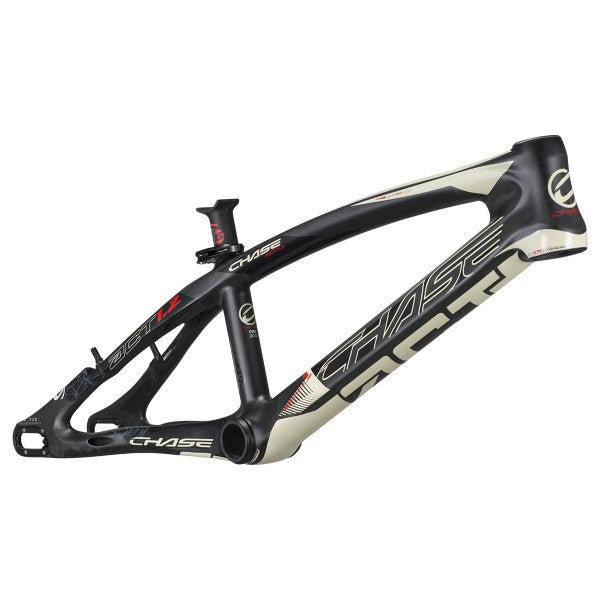

The Chase ACT 1.2 in Black/Sand is a carbon monocoque BMX race frame built from uni-directional (UD) carbon fiber, with a race record that includes UCI World Cup Championships and USA BMX Elite Pro wins. This colorway pairs a matte black finish with gloss sand graphics, on a frame with a tapered head tube, internal brake routing, an aero seat post and refined chain clearance.
Features
- UD carbon monocoque construction, chosen for high tensile strength at low weight
- Integrated tapered head tube, 1-1/8" to 1.5", with reinforced alloy cup
- Internal brake cable routing through the top tube with recessed brake bosses
- Aero seat post tube with integrated quick release seat clamp
- Press Fit BB86 bottom bracket with reinforced alloy cup

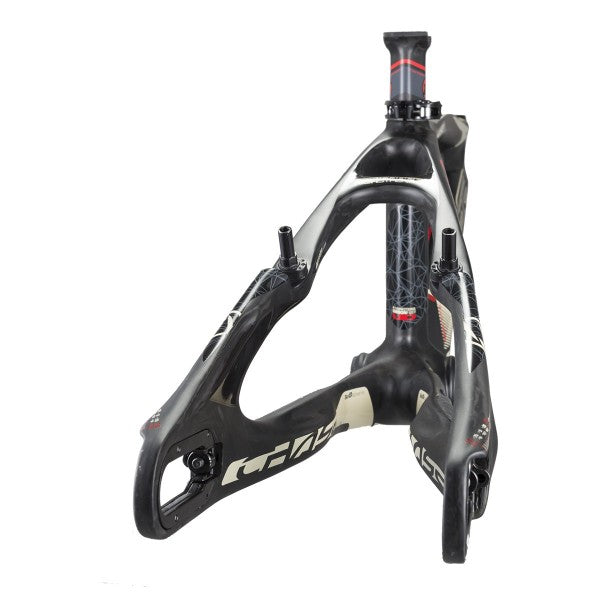

- 20mm reinforced stainless steel enclosed dropouts with integrated alloy chain tensioner, plus a 10mm (3/8") axle adapter
- 2 chain tensioner systems, internal and external, to use the full dropout length with the optional Elevn disc brake adapter
- Chain clearance for larger gear ratios and more disc brake caliper styles
Specs
- Head angle: 74°, seat angle: 72.5°, BB: 11.5" on all sizes
- Top tube: 20.5" (Pro), 20.75" (Pro+), 21" (Pro XL), 21.25" (Pro XL+), 21.5" (Pro XXL), 21.75" (Pro XXL+)
- Chainstay min: 14.25" (Pro, Pro+, Pro XL), 14.5" (Pro XL+, Pro XXL, Pro XXL+)
- Finish: Matte black with gloss sand graphics
- Sizes: Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+
Included with each frame
- Elevn monocoque carbon aero seat post, 27.2 diameter, 110mm length, in matching color

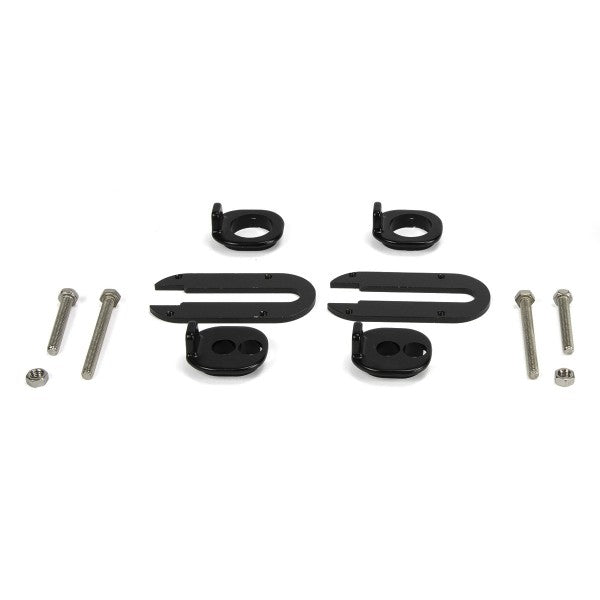

- 20mm dropout frame plates installed, plus a 10mm (3/8″) dropout frame plate set
- 20mm and 10mm (3/8″) chain tensioner blocks; 15mm blocks sold separately in Black Anodized only
- Outer chain tensioner bolts installed, internal chain tensioner bolts included
Geometry
| SIZES | TT | CS min | HA | OD HS | SA | AERO SP | BB | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| Pro | 20,5″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,039 Kg |
| Pro+ | 20,75″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,062 Kg |
| Pro XL | 21″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,085 Kg |
| Pro XL+ | 21,25″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,107 Kg |
| Pro XXL | 21,5″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,130 Kg |
| Pro XXL+ | 21,75″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,153 Kg |
Frame details

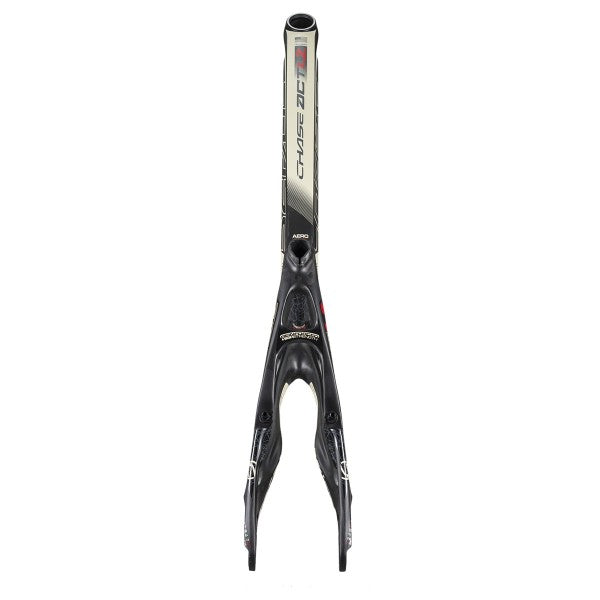

Aero seat post: the aero tube, post and clamp (also used on the Chase ACT 1.0 and RSP 4.0 frames) help gain fractions of a second on the track and give a slightly stiffer feel.
Press Fit bottom bracket: the bottom bracket you supply has its bearings in cups that press straight into the frame, with no BB threads to damage as on a traditional Euro BB.

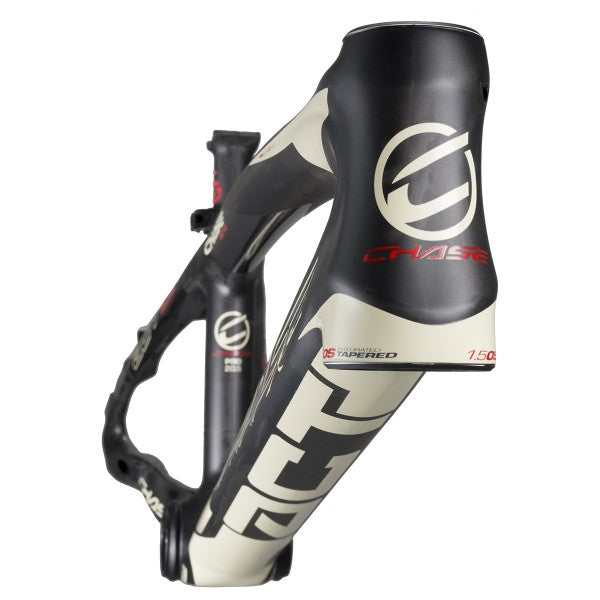

Tapered head tube: 1 1/8" upper to 1.5" lower diameter, so you can run a tapered steerer fork, or a full 1 1/8" steerer fork with the 1.5" lower bearing when the headset has an optional 1 1/8" to 1.5" fork race.
Internal cable routing: the brake cable runs through the top tube for a factory look and doesn't rub against the frame, protecting the cable and graphics.
Videos
ACT frame chain tensioner set up tutorial:
ACT frame disc brake mount tutorial:
Please note: brake fluid that is not silicone-based can act like paint thinner and make paint peel. Do not let brake fluid touch any part of the bike.
