CHASE ACT 1.2 CARBON FRAME BLACK/TEAL

Product Overview

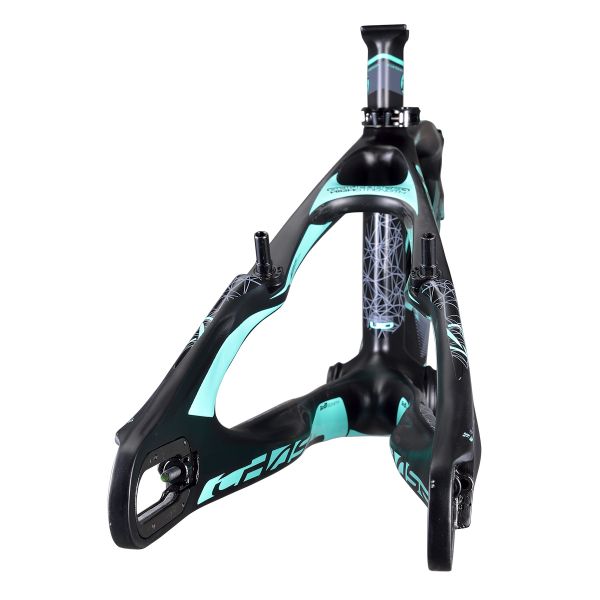

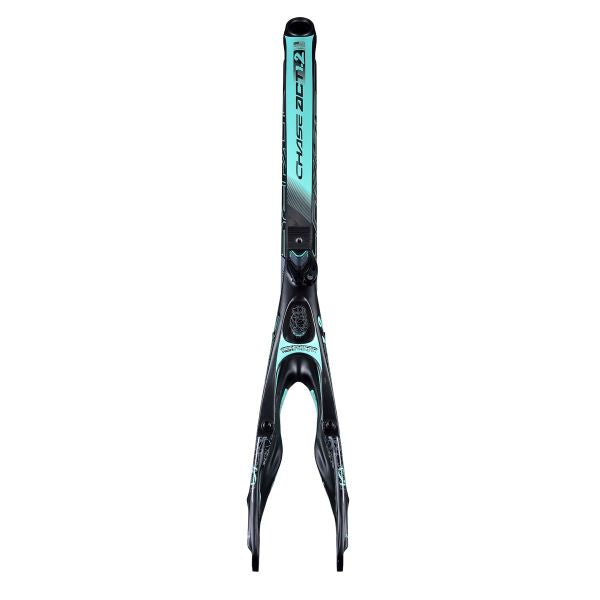

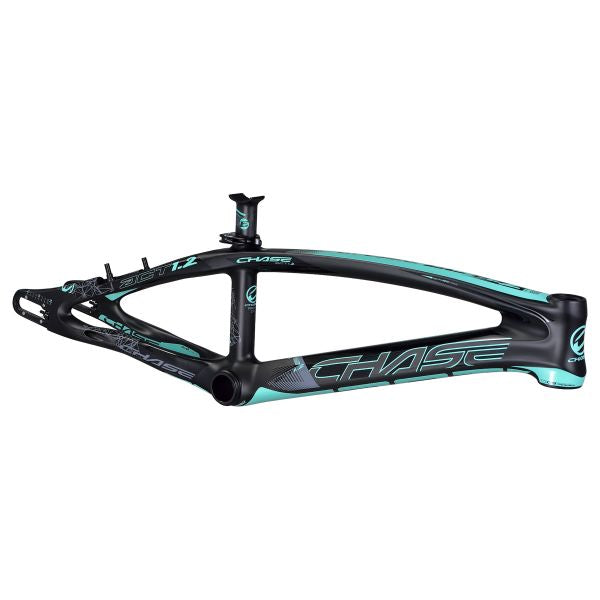

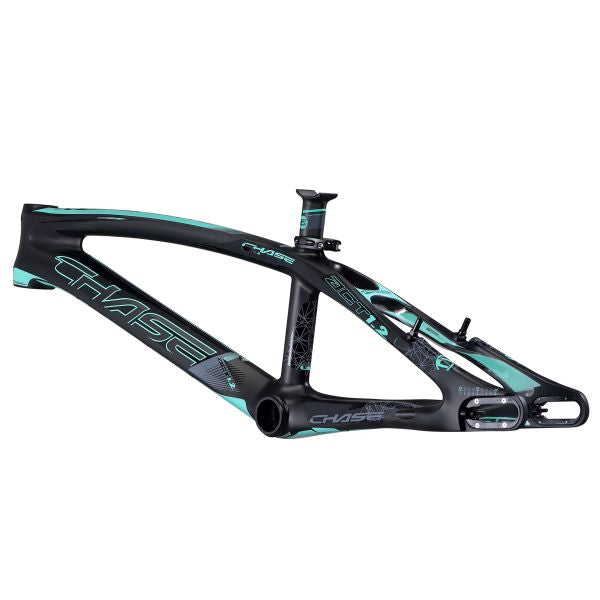

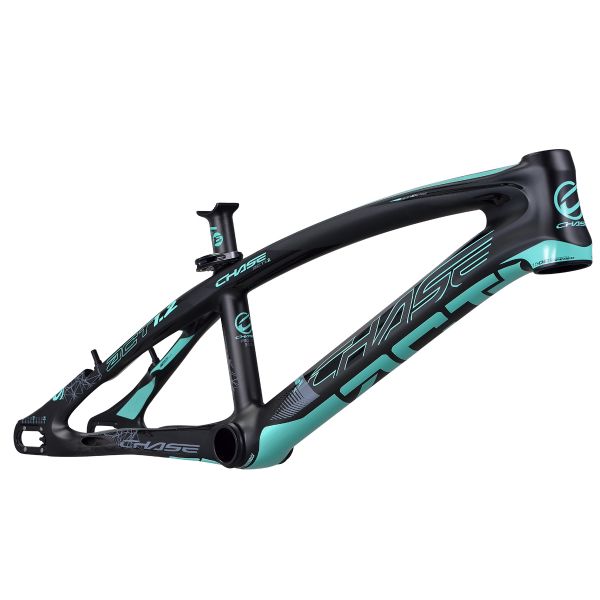

The Chase ACT 1.2 Carbon Frame is a race-focused monocoque carbon fiber frame featuring unidirectional carbon construction, integrated tapered headtube (1.5" to 1-1/8"), and internal brake cable routing. With Press Fit BB86 bottom bracket, reinforced stainless steel 20mm dropouts with built-in tensioners, and integrated aero seatpost clamp, it's designed for elite-level racing with improved chain clearance and disc brake compatibility. Available in six Pro-level sizes.

Key Features

• Carbon monocoque construction with uni-directional carbon – Single-piece carbon layup with directional fiber orientation optimizes strength-to-weight ratio and provides controlled flex characteristics without excessive stiffness

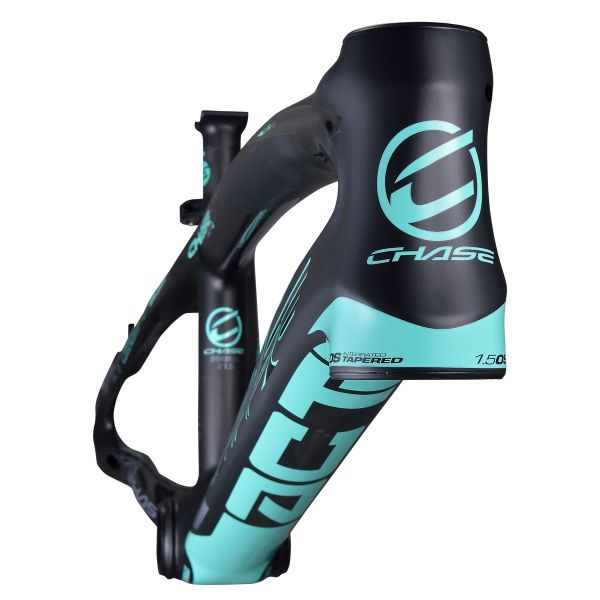

• Integrated tapered headtube (1.5" to 1-1/8") – Tapered headtube increases front-end stiffness and steering precision; integrated design with reinforced alloy cup eliminates pressed headset cups
• Internal brake cable routing with recessed brake bosses – Cable runs internally through the frame for protection and aerodynamics; recessed bosses reduce snag points
• Chase aero seatpost technology with integrated quick-release clamp – Aerodynamic seatpost tube design with built-in QR clamp for tool-free saddle height adjustments
• Press Fit BB86 bottom bracket with reinforced alloy cup – Larger bearing surface improves stiffness and power transfer; reinforced alloy insert protects carbon shell

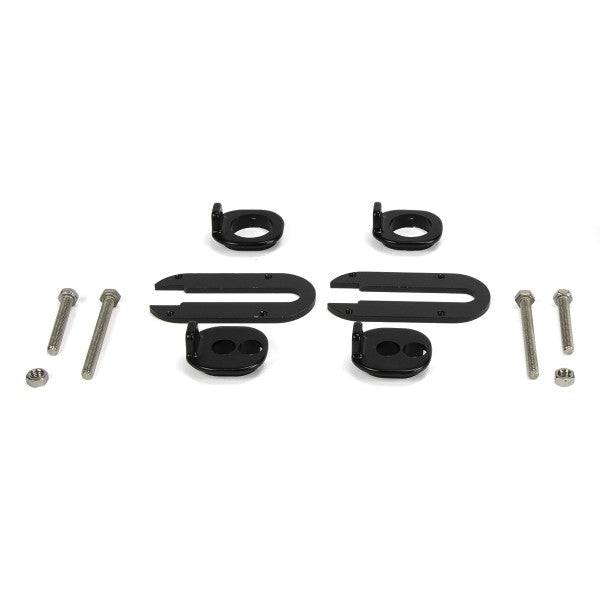

• Reinforced stainless steel 20mm dropouts with built-in tensioners – Extra-length stainless steel dropout inserts provide durability; integrated chain tensioners eliminate separate hardware; includes 10mm (3/8") axle adapter
• Improved chain clearance – Updated design accommodates larger gear ratios for riders using bigger chainring/cog combinations
• Enhanced disc brake caliper clearance – Optimized rear triangle spacing works with more disc brake caliper styles when using optional Elevn disc adapter
• Matte finish with gloss graphics – Updated visual design with durable matte carbon finish and glossy graphic details

Technical Specifications

• Material: Carbon fiber monocoque with uni-directional construction
• Headtube: Integrated tapered 1-1/8" to 1.5" with reinforced alloy cup
• Bottom Bracket: Press Fit BB86 with reinforced alloy cup
• Dropouts: Reinforced stainless steel, 20mm through-axle with built-in chain tensioners
• Brake Compatibility: Disc brake compatible (requires optional Elevn disc adapter); internal cable routing with recessed bosses
• Seatpost: Chase aero seatpost system with integrated quick-release clamp
• Cable Routing: Fully internal brake housing
• Sizes: Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+
• Color: Black/Teal
• Finish: Matte carbon with gloss graphics

Included:

• 10mm (3/8") axle adapter

Not Included (sold separately):

• Aero seatpost
• Disc brake adapter
• Bottom bracket bearings
• Headset bearings

Compatibility and Ideal Use Cases

This frame is designed for elite-level racing and requires tapered forks (1-1/8" to 1.5"), Press Fit BB86 bottom brackets, and 20mm through-axle rear hubs. The built-in axle adapter allows use of standard 10mm (3/8") axles. Internal cable routing is designed for disc brakes; requires optional Elevn disc adapter (post or flat mount). Not compatible with rim brakes, standard 1-1/8" straight forks, threaded bottom brackets, or quick-release rear axles. The aero seatpost system requires a Chase aero seatpost (sold separately). Ideal for competitive racers seeking a UCI World Cup and USA BMX #1 Pro-proven carbon frame with refined geometry, improved chain and brake clearance, and the controlled stiffness characteristics developed with input from Connor Fields and Joris Daudet. The monocoque carbon construction provides a balance of rigidity and compliance that top pros prefer. Available in six Pro-level sizes to accommodate larger riders.

Sizes

CHASE ACT 1.2 Carbon Frames are available in 6 Size Options:
Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL +

Please note: Brake fluid on paint that is not silicone-based can act like a paint thinner and eat away at the coating of your paint, causing it to peel. Due to different types of paints/decals/materials used for BMX parts, do not let the Brake Fluid touch any part of the bike, as there can be significant self infliced damage due to this.

GEOMETRIES:

The Chase ACT 1.0 & RSP 4.0 Frames utilizes the Aero seat post tube, seat post, and seat post clamp into BMX racing. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help.

The Chase ACT 1.0 & RSP 4.0 Frames both use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.

The Chase ACT 1.0 & RSP 4.0 Frames both use a Integrated Headtube. Tapered head tubes offer a combination for the bearing sizes. Our tapered head tubes have a 1 1/8” upper diameter to 1.5” lower diameter. this allows you to run a tapered steer tube fork, or use a full 1 1/8” fork steer tube, with the offered 1.5” lower bearing, when the headset has an optional 1 1/8” to 1.5” fork race option.

The Chase ACT 1.0 and RSP Frames feature Internal Cable Routing thru the top tube, giving you the factory look, as well as providing protection for the brake cable and graphics, since the cable does not rub against the frame.
