Chase Act 1.2 Carbon Frame Black/White
Description

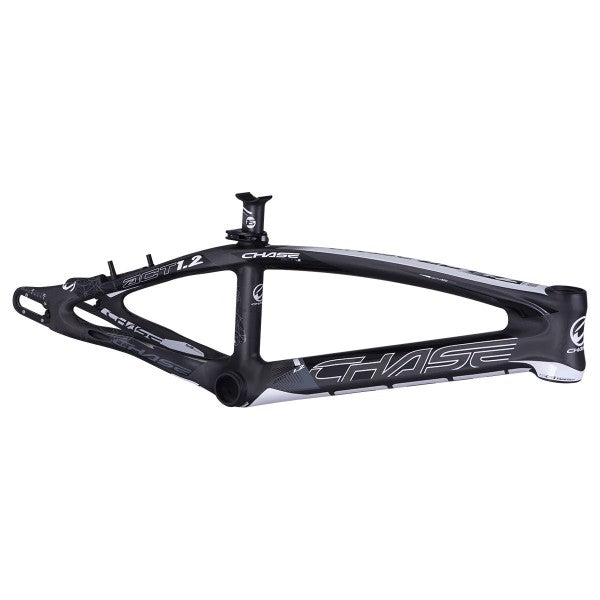

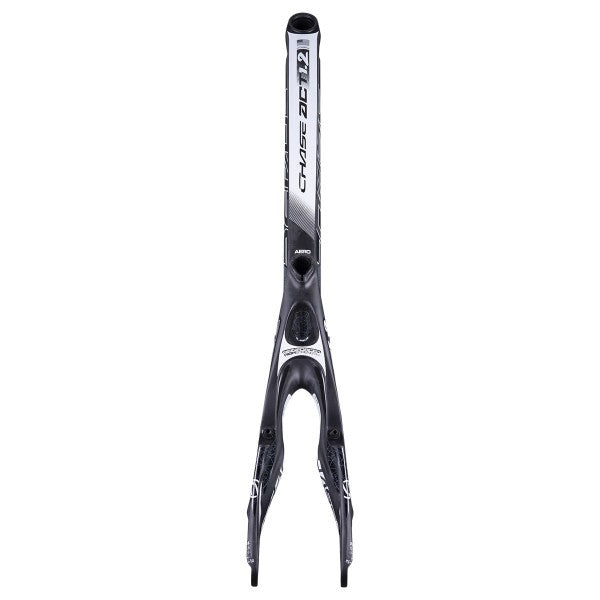

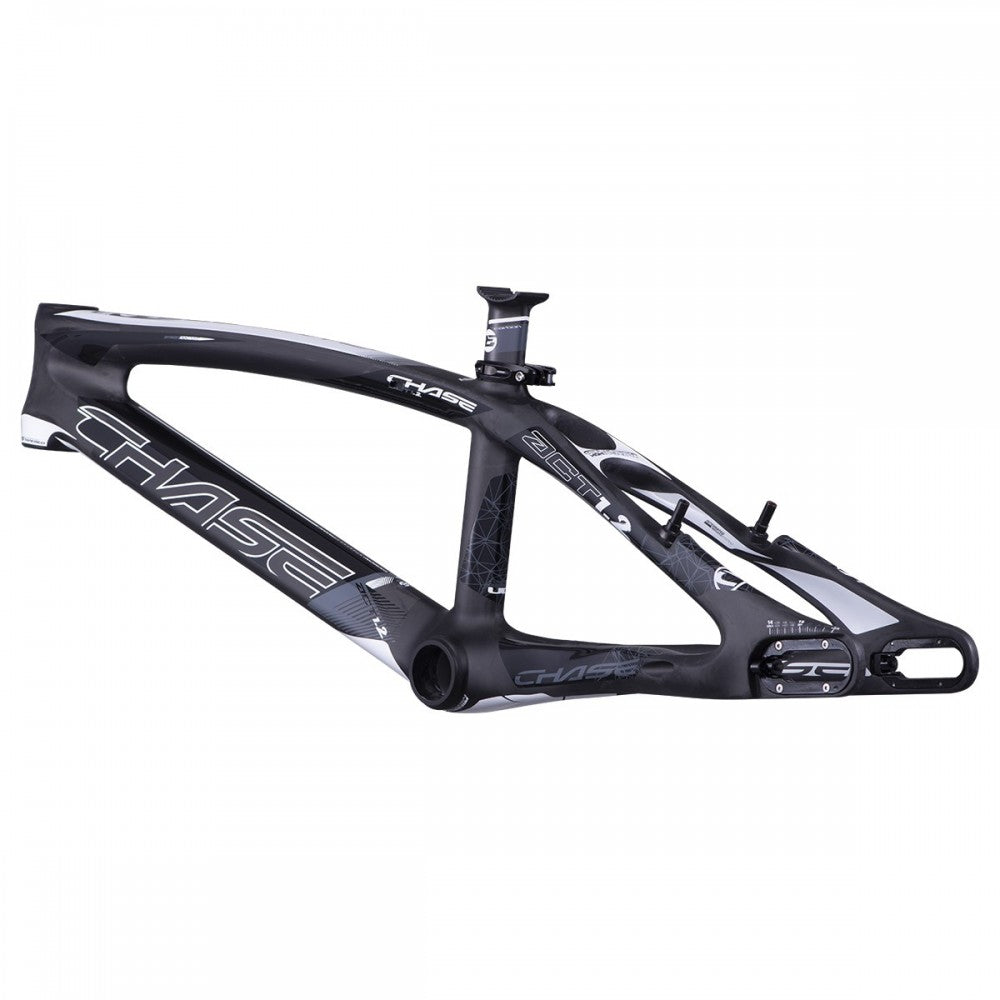

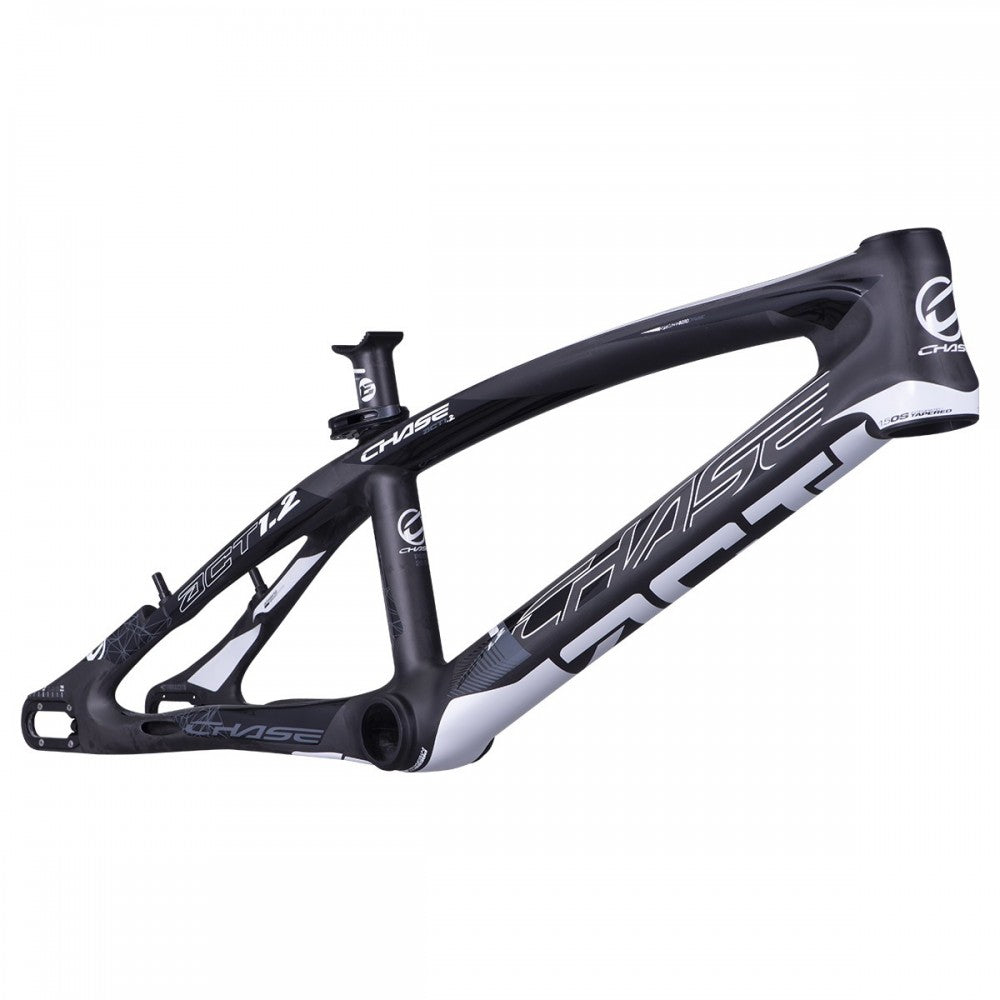

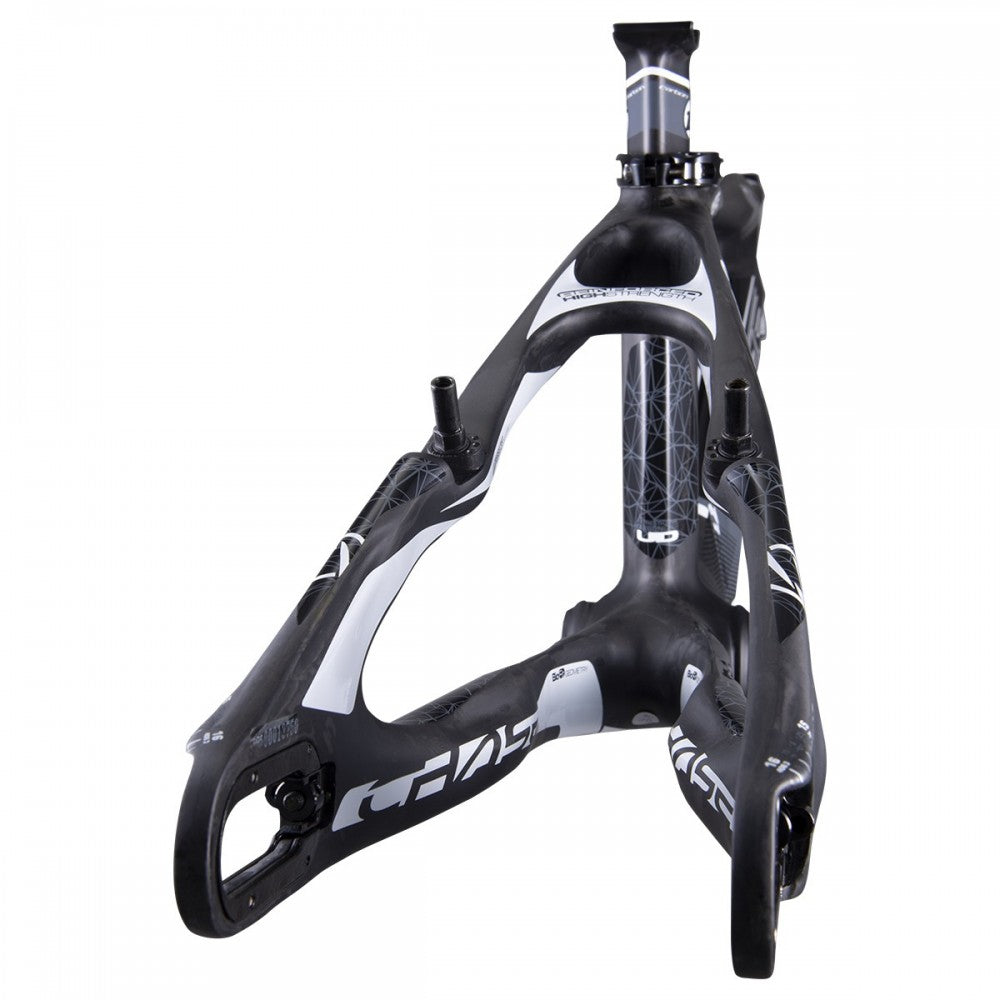

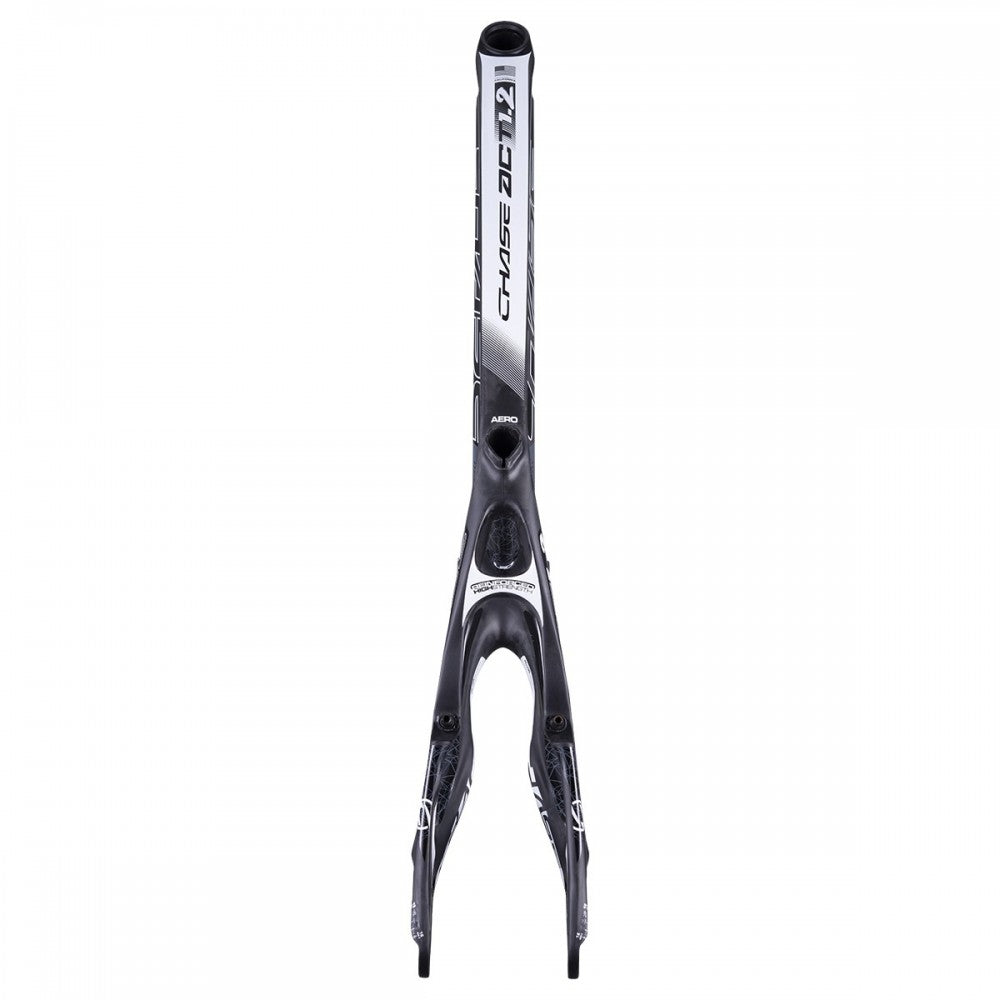

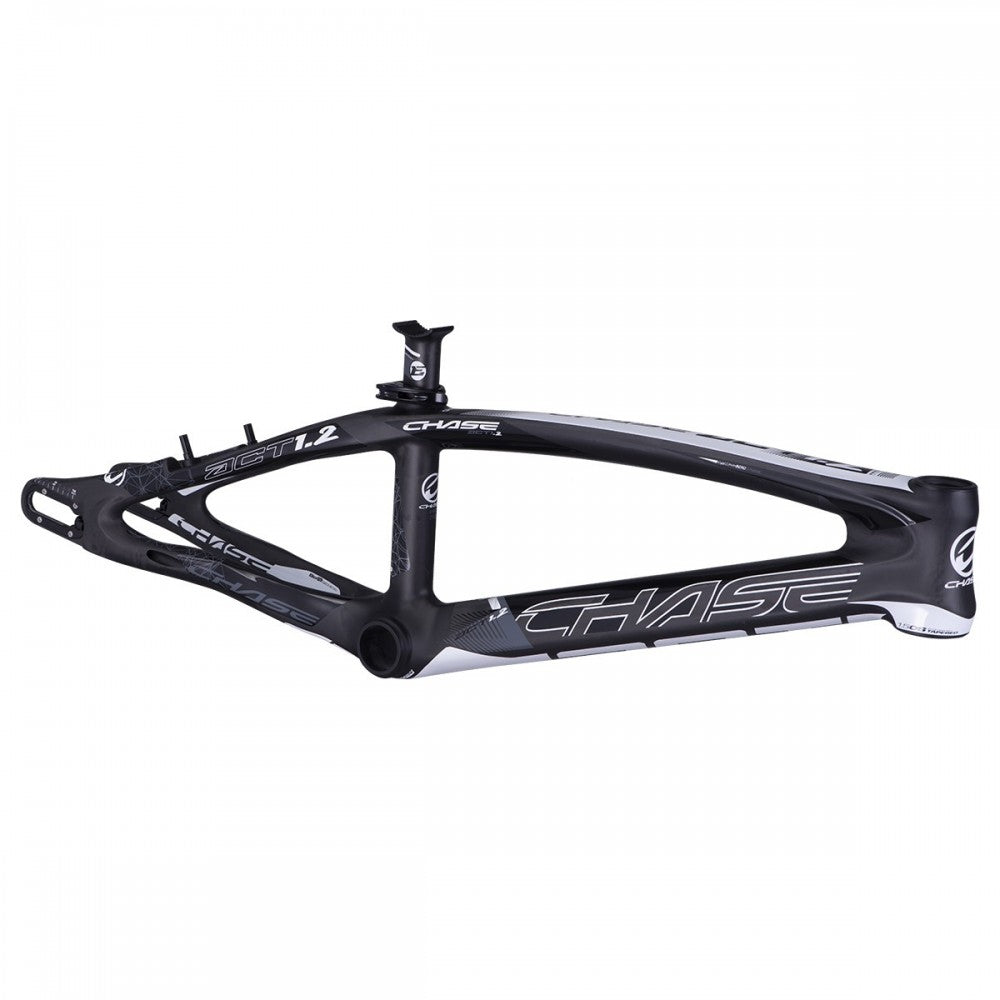

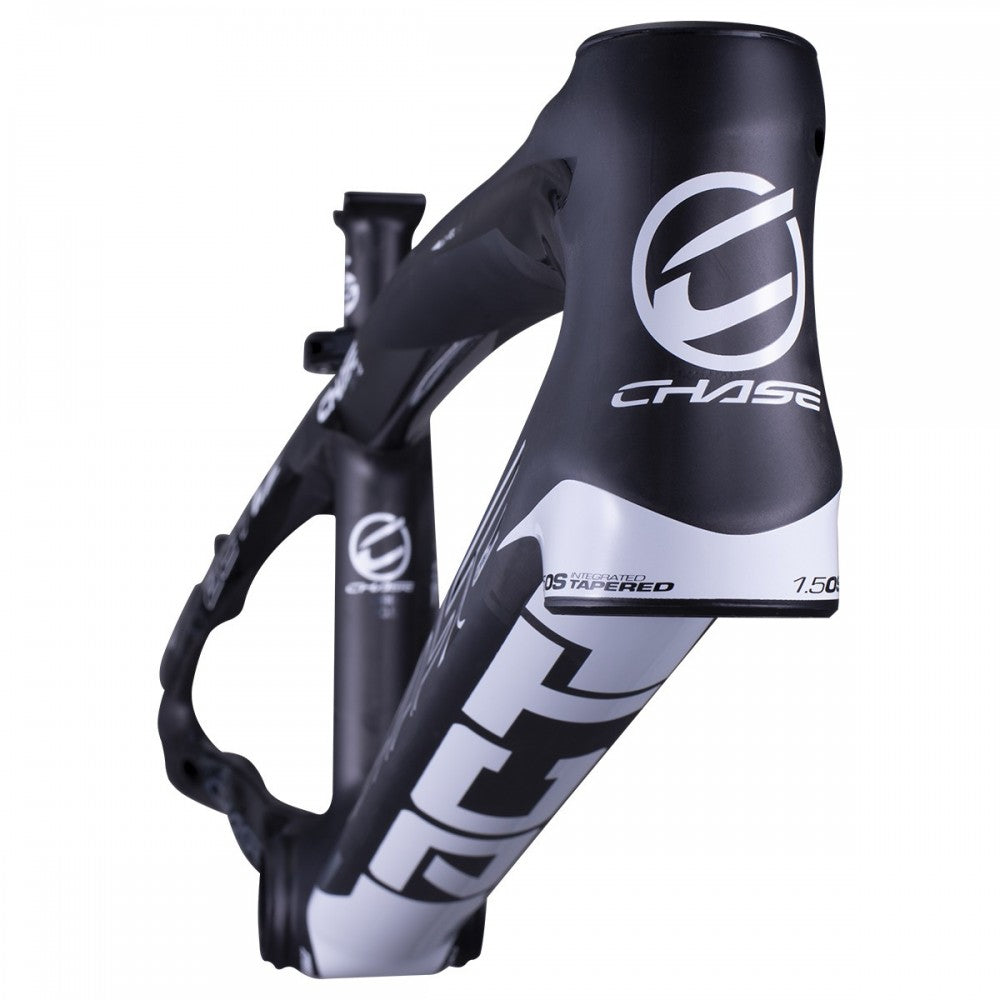

The Chase ACT 1.2 in Black/White is a carbon monocoque BMX racing frame made from uni-directional (UD) carbon fiber, finished in matte black with gloss white graphics. Its geometry was refined through over 10 months of testing by UCI World Cup Champions and USA BMX Elite Pro riders, for the stiffness race starts need without losing ride feel.
Features
- UD carbon fiber, picked for high tensile strength and low weight
- Integrated tapered 1-1/8" to 1.5" headset with reinforced alloy cup
- Press Fit BB86 bottom bracket
- Internal brake cable routing through the top tube
- Aero seat tube with integrated quick release clamp
- 20mm reinforced stainless steel dropouts with built-in alloy chain tensioner; 10mm (3/8") adapter plate included
- 2 chain tensioner systems, internal and external, to use the full dropout length, including with the optional Elevn disc brake adapter
- Enlarged chain clearance for larger gear ratios
Specs
- Head angle: 74°, seat angle: 72.5° (all sizes)
- Top tube: 20.5" (Pro) to 21.75" (Pro XXL+) in 0.25" increments
- Chainstay min: 14.25" (Pro, Pro+, Pro XL), 14.5" (Pro XL+, Pro XXL, Pro XXL+)
- Seat post diameter: 27.2 mm (aero)
- Finish: Matte black with gloss white graphics
- Sizes: 6 options, Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+
Included with each frame
- Elevn monocoque carbon aero seat post, 27.2 diameter, 110mm length, in matching color

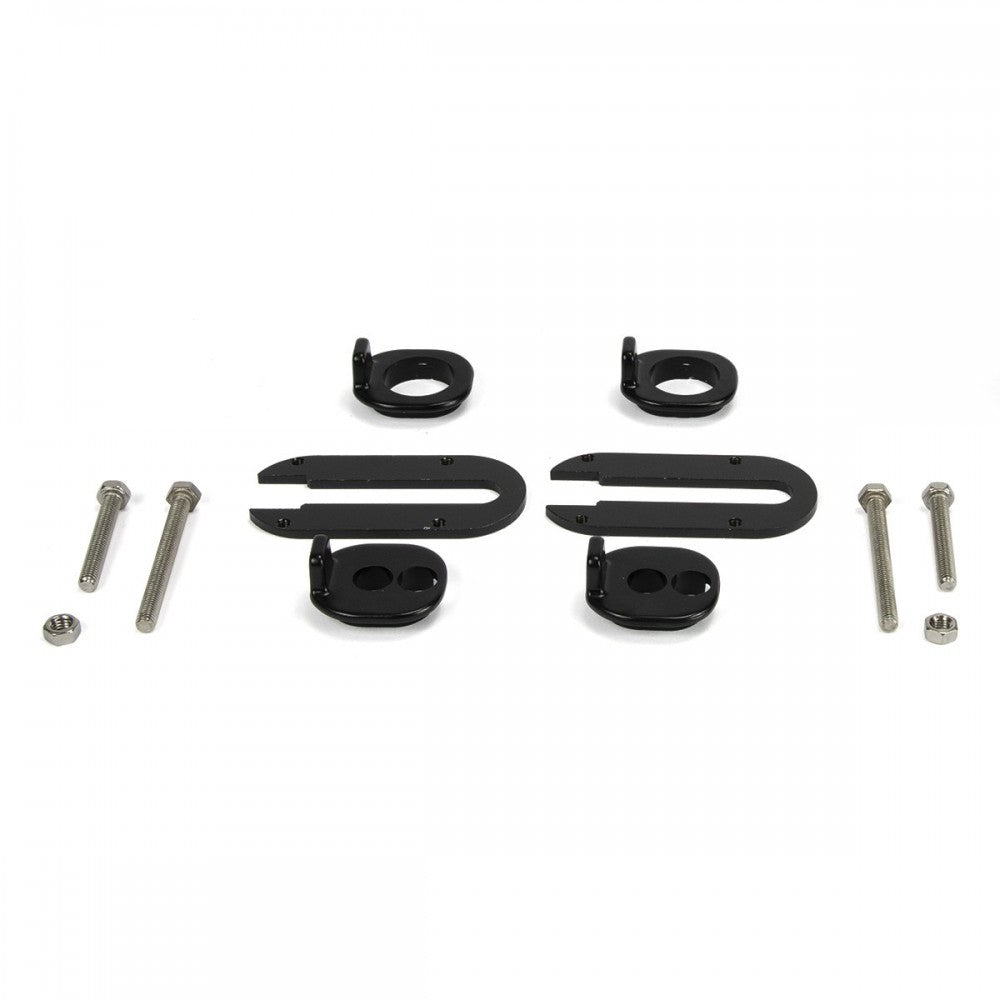

- 20mm dropout frame plates installed, plus a 10mm (3/8″) dropout frame plate set
- 20mm and 10mm (3/8″) chain tensioner blocks; 15mm blocks sold separately in Black Anodized only
- Outer chain tensioner bolts installed, internal chain tensioner bolts included
Geometry
| SIZES | TT | CS min | HA | OD HS | SA | AERO SP | BB | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| Pro | 20,5″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,039 Kg |
| Pro+ | 20,75″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,062 Kg |
| Pro XL | 21″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,085 Kg |
| Pro XL+ | 21,25″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,107 Kg |
| Pro XXL | 21,5″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,130 Kg |
| Pro XXL+ | 21,75″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,153 Kg |
Frame details
Aero seat post: the aero seat tube, post and clamp from the Chase ACT 1.0 and RSP 4.0 frames help gain fractions of a second on the track and give a slightly stiffer feel.
Press Fit bottom bracket: the bottom bracket you supply has bearings in cups that press into the frame, so there are no BB threads to damage as with a traditional Euro BB.
Tapered head tube: 1 1/8" upper to 1.5" lower diameter. Run a tapered steerer fork, or a full 1 1/8" steerer fork with the 1.5" lower bearing when the headset has an optional 1 1/8" to 1.5" fork race.
Internal cable routing: the brake cable runs through the top tube for a factory look, and with no rubbing on the frame, the cable and graphics stay protected.
Videos
ACT frame chain tensioner set up tutorial:
ACT frame disc brake mount tutorial:
Please note: brake fluid that is not silicone-based can act like paint thinner and make paint peel. Do not let brake fluid touch any part of the bike.
