Chase Act 1.2 Carbon Frame Team Limited Edition
Description

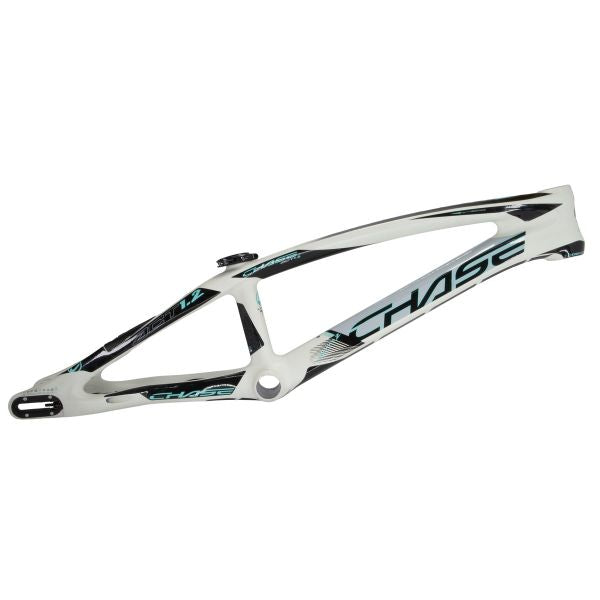

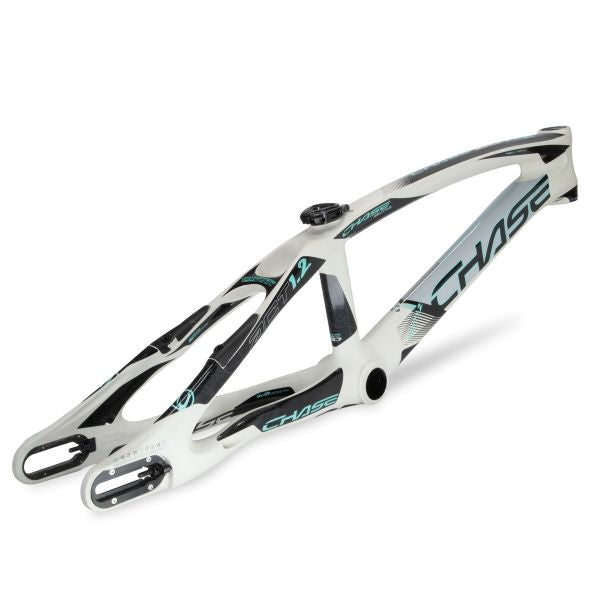

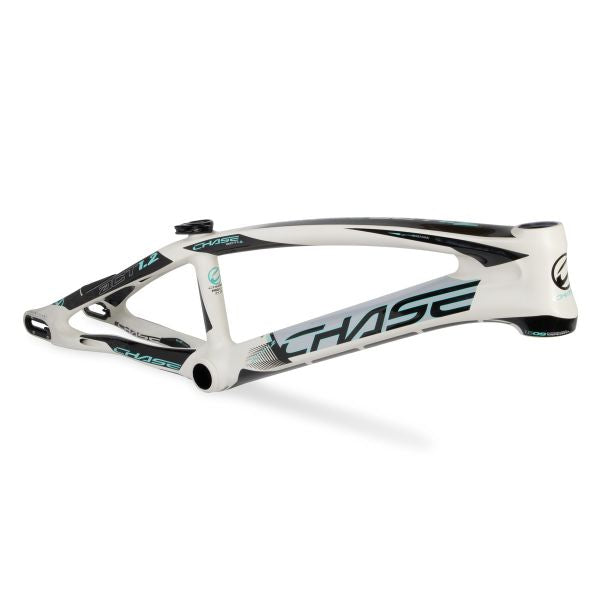

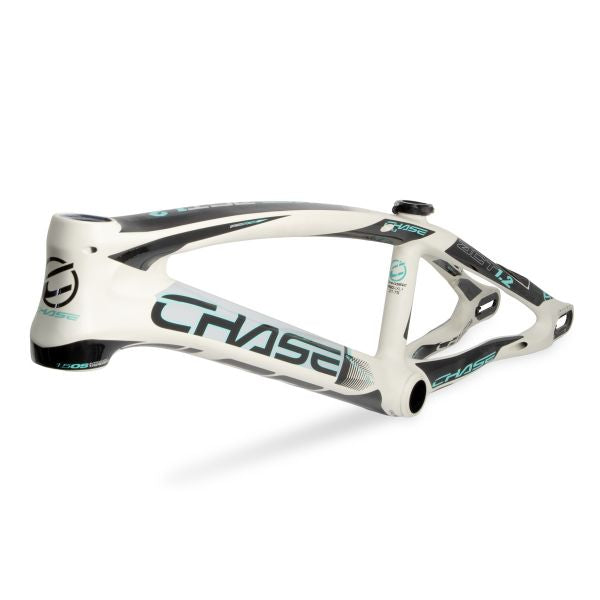

The Chase ACT 1.2 Carbon Frame Team Limited Edition comes in Cement/Teal, offered in Pro XL+, Pro XXL and Pro XXL+. Underneath is the same UD carbon race frame that won UCI World Cup Championships and the USA BMX #1 Pro title: over the past 2 years the ACT has won more UCI and USA BMX Elite Men's Pro races than any other frame, and Connor Fields and Joris Daudet rode the ACT 1.2 for over 10 months before release.
Features
- Carbon monocoque frame featuring uni-directional carbon technology
- Integrated tapered headset, 1.5" OS bottom and 1-1/8" top, with reinforced alloy cup
- Internal brake cable routing and recessed brake bosses
- Chase aero seat post with integrated quick release seat clamp
- Press Fit integrated BB86 bottom bracket with reinforced alloy cup
- Extra length reinforced stainless steel 20mm dropouts with built-in alloy tensioner; 10mm (3/8) axle adapter included
- 2 chain tensioner systems, internal and external, for the entire rear dropout length with the optional Elevn disc brake adapter
- ACT 1.2 updates: more chain clearance for larger gear ratios, clearance for more disc caliper styles with the optional Elevn disc adapter, matte finish with gloss graphics
Included with each frame
- Elevn monocoque carbon aero seat post, 27.2 diameter, 110mm length, in matching color

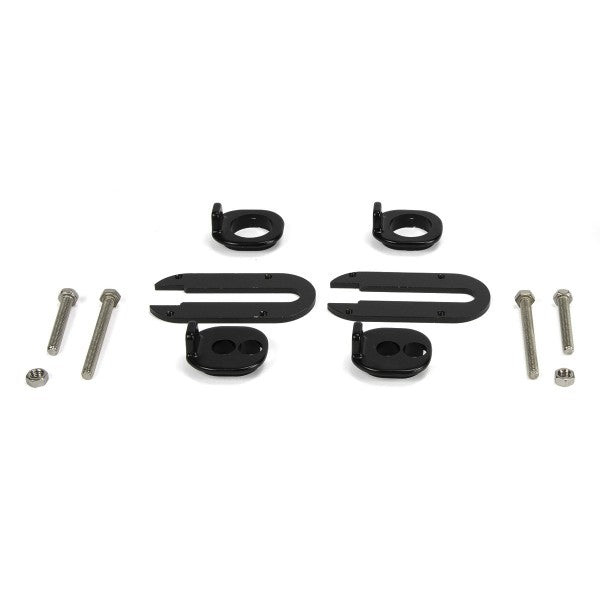

- 20mm dropout frame plates installed, plus a 10mm (3/8″) dropout frame plate set
- 20mm and 10mm (3/8″) chain tensioner blocks; 15mm blocks sold separately in Black Anodized only
- Outer chain tensioner bolts installed, internal chain tensioner bolts included
Geometry
| SIZES | TT | CS min | HA | OD HS | SA | AERO SP | BB | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| Pro | 20,5″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,039 Kg |
| Pro+ | 20,75″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,062 Kg |
| Pro XL | 21″ | 14,25″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,085 Kg |
| Pro XL+ | 21,25″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,107 Kg |
| Pro XXL | 21,5″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,130 Kg |
| Pro XXL+ | 21,75″ | 14,5″ | 74° | Tapered OD 1-1/8″ - 1,5" | 72,5° | 27,2 mm | 11,5″ | 1,153 Kg |
Frame details
Aero seat post: Chase's aero seat tube, post and clamp, also found on the ACT 1.0 and RSP 4.0 frames, help gain fractions of a second on the track and give a slightly stiffer feel.
Press Fit bottom bracket: the bottom bracket you supply has bearings in cups that press into the frame, so there are no BB threads to damage as with a traditional Euro BB.
Tapered head tube: 1 1/8" upper to 1.5" lower diameter, for a tapered steerer fork, or a full 1 1/8" steerer fork with the 1.5" lower bearing when the headset has an optional 1 1/8" to 1.5" fork race.
Internal cable routing: the brake cable runs through the top tube for a factory look and never rubs the frame, which protects the cable and graphics.
Videos
ACT frame chain tensioner set up tutorial:
ACT frame disc brake mount tutorial:
Please note: brake fluid that is not silicone-based can act like paint thinner and make paint peel. Do not let brake fluid touch any part of the bike.
