Chase Edge Expert XL Cr-mo Fork
Description

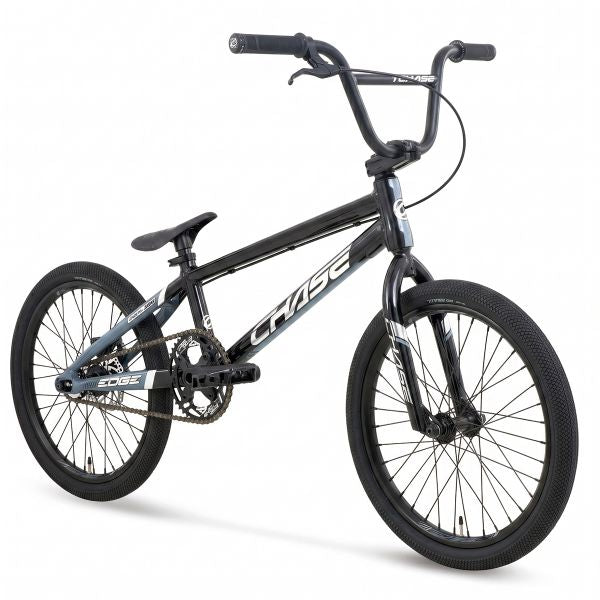

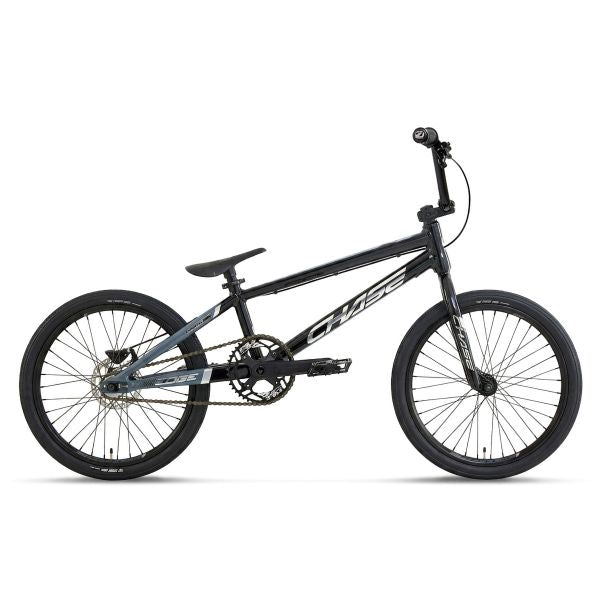

The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.
Already considered a refined machine, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include a 4130 chromoly steel fork and handlebar (on the Micro model), Ikon Carbon fork options on two colorways, double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires. The combination of these components arguably makes the CHASE Edge one of the highest-performing race BMX bikes on the market today.
- FRAME: Chase Edge Expert XL 20" NEW Top Tube With Closed Drop Out, Integrated Chain tensioner system
- FORK: Chase Edge Full Cr-mo, 1-1/8" Steer Tube With Tapered Blades
- STEM: Chase Edge 50mm Alloy
- HANDLEBAR: Chase Edge 6.5″ Chromo
- HEADSET: Integrated Sealed Bearing
- CHAINRING: Insight 39T 4 Bolts BCD 104mm
- CRANKSET: Chase Edge 2 Pieces Alloy 160mm
- HUBS: 36H, Sealed Bearing, 3/8" Bolts Front, ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
- RIMS: Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve Front and Rear
- TIRES: Vee Rubber SpeedSter 20"x1.60" Wire Bead 20″x1.50″ Front and 20″x1.40″ Rear

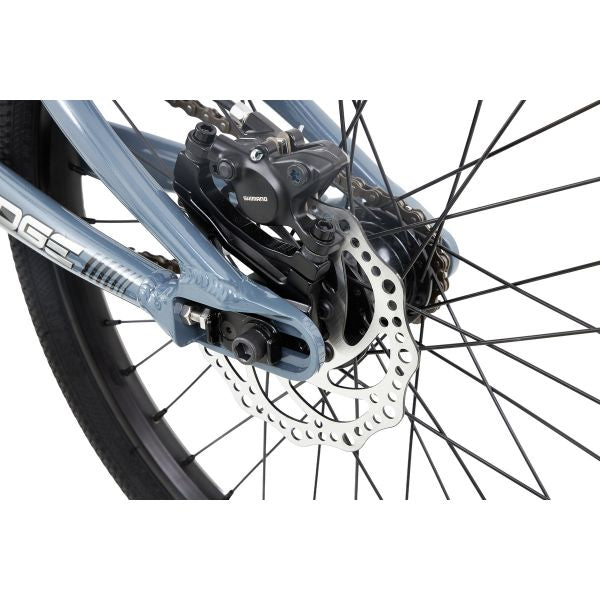

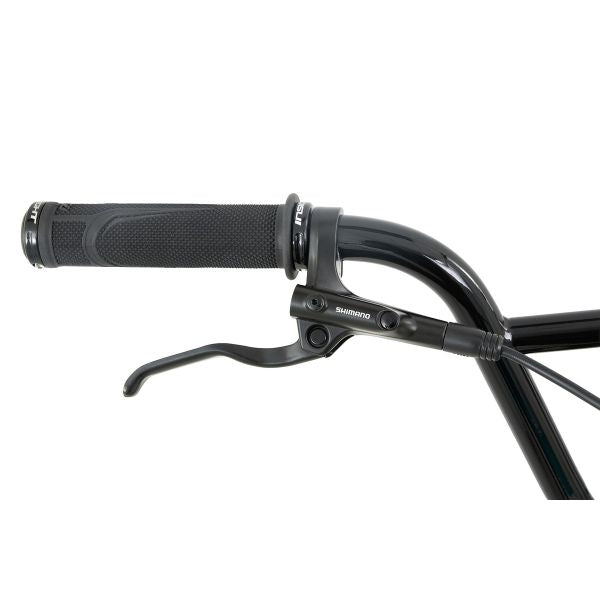

- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm

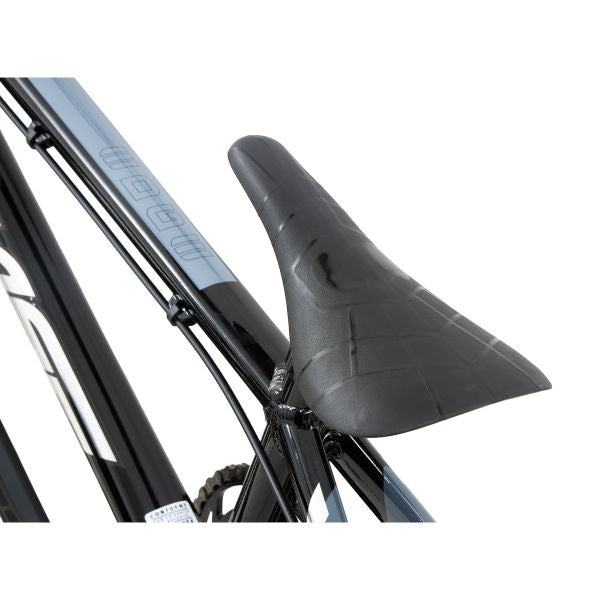

- SEAT: Expert/Pro Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 4′ 8,7″ - 5′ 1″ / 1M44 - 1M55
WEIGHT: 19,5 LBS / 8,85 KG WITHOUT PEDALS
RIDERS SIZES CHART
| SPECIFICATIONS | |
|
FRAME
|
Chase Edge Expert XL 20" NEW Top Tube 6061 T6 Alloy, Closed Drop Out, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Chase Edge Full Cr-mo, 1-1/8" Steer Tube With Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 6.5" Rise, 26" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Edge 1-1/8" Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
|
BOTTOM BRACKET
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 39 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
|
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 160mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDALS
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 Narrow 1/2"x3/32" |
|
COG
|
16 Tooth |
|
FRONT HUB
|
36H, Sealed Bearing, 3/8" Bolts |
|
REAR HUB
|
ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve |
|
FRONT TIRE
|
Vee Rubber SpeedSter 20"x1.60" Wire Bead |
|
REAR TIRE
|
Vee Rubber SpeedSter 20"x1.50" Wire Bead |
|
TUBES
|
20''x1.5"-1.75" Presta Valve |
| BRAKING | Shimano Disc Brake BL-MT200(R) Hydraulic Lever, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
| SEAT | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT POST CLAMP | Chase Edge QR Alloy 31.8mm |
| TENSIONER | Integrated Built-In With New Lock Disc Adaptor |
| GEOMETRIES | ||||||||||
 |
||||||||||
| Sizes | TT | CS min | LR | HA | SA | HT | SPL | BBH | WB | Wheels |
| Micro | 16.25" 412.75 mm |
10.85" 275.6 mm |
1.8" 46 mm |
71° | 69° | 4" 100 mm |
8" 203.5 mm |
10.25" 254 mm |
732 mm | 18x1" |
| Mini | 17.25" 438.15 mm |
12.25" 312 mm |
1.8" 46 mm |
72° | 70° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
800 mm | 20x1-1/8" |
| Junior | 18.75" 476.25 mm |
12.5" 317.5 mm |
1.8" 46 mm |
73° | 72° | 4.33" 110 mm |
8.8" 225 mm |
10.6" 269.2 mm |
859.9 mm | 20x1-1/8" |
| Expert | 19.75" 501.65 mm |
13" 330.2 mm |
1.8" 46 mm |
73° | 72° | 4.33" 110 mm |
8.8" 225 mm |
11" 279.4 mm |
883.8 mm | 20x1-3/8" |
| Expert XL | 20" 508 mm |
13.5" 353 mm |
1.8" 46 mm |
73° | 72° | 4.7" 120 mm |
8.8" 225 mm |
11.5" 292.1 mm |
903 mm | 20x1.50" |
| Pro | 20.5" 520.7 mm |
14" 355.6 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.4" 238 mm |
11" 279.4 mm |
938 mm | 20x1.75" |
| Pro XL | 21" 533.4 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
945.2 mm | 20x1.75" |
| Pro XXL | 21.5" 546.1 mm |
14.15" 359.4 mm |
1.8" 46 mm |
74° | 72° | 4.7" 120 mm |
9.3" 238 mm |
11.5" 292.1 mm |
969.5 mm | 20x1.75" |
| Cruiser | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.8" 46 mm |
74° | 71° | 4.7" 120 mm |
10.6" 270 mm |
12" 304.8 mm |
964.5 mm | 24x1.75" |
Complete bike specifications are subject to change throughout the year due to component upgrades, parts shortages, and modifications made during the production cycle to improve quality. Consequently, actual specifications may differ slightly from those shown in photos or listed.
