Chase Rsp 5.0 Os20 Frame Slate / Red

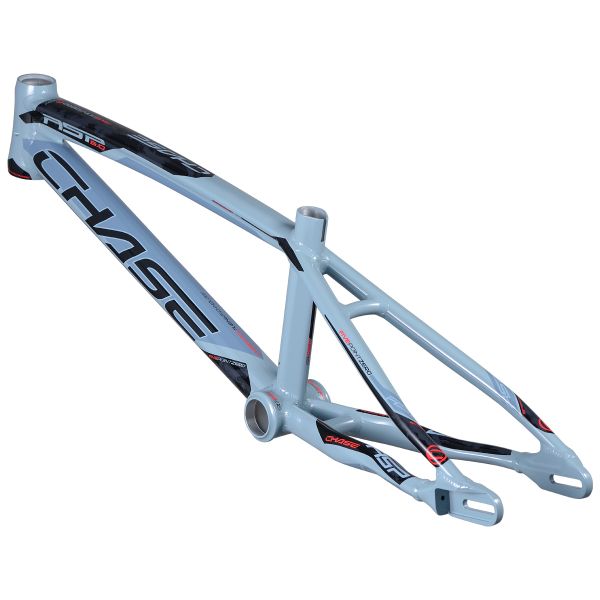

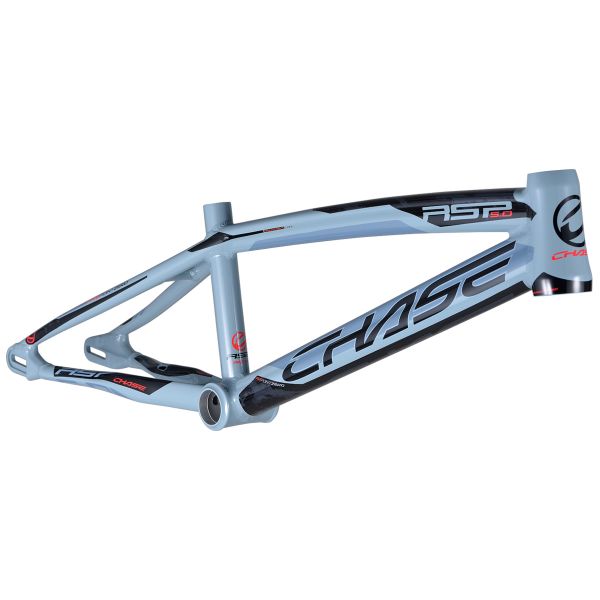

The Chase RSP 5.0 OS20 frame in slate with red accents is a 7005-T6 aluminum BMX race frame for bigger riders running OS20 wheels, forks and tires. Its geometry was refined with feedback from pro riders Connor Fields and Joris Daudet, and it pairs hydroformed, butted tubing with internal brake routing and a disc-brake-only rear end.

Features

• 7005-T6 SpeedLite aluminum, lighter than standard 6061-T6 frames
• Double-butted hydroformed top tube and triple-butted hydroformed down tube; triple butting cuts tube weight by 15% over the previous year's tubes

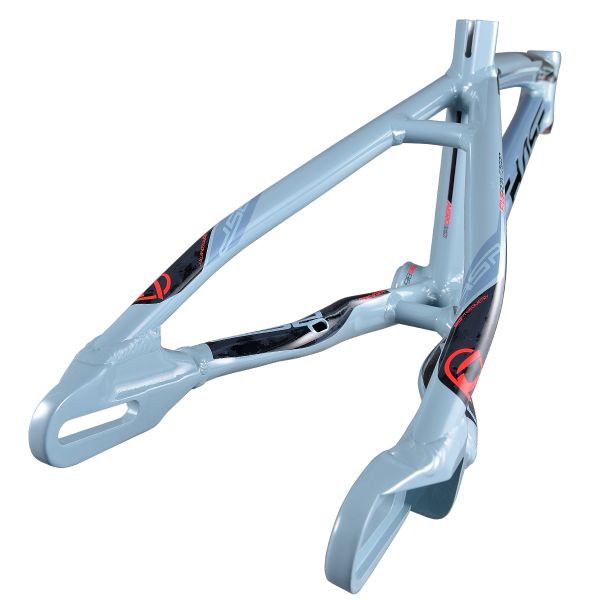

• Muscle-formed chain stays and seat stays for a stiffer rear end
• Internal brake housing routing from the head tube, through the down tube and bottom bracket, exiting the chain stay (bottom of the down tube on small sizes)

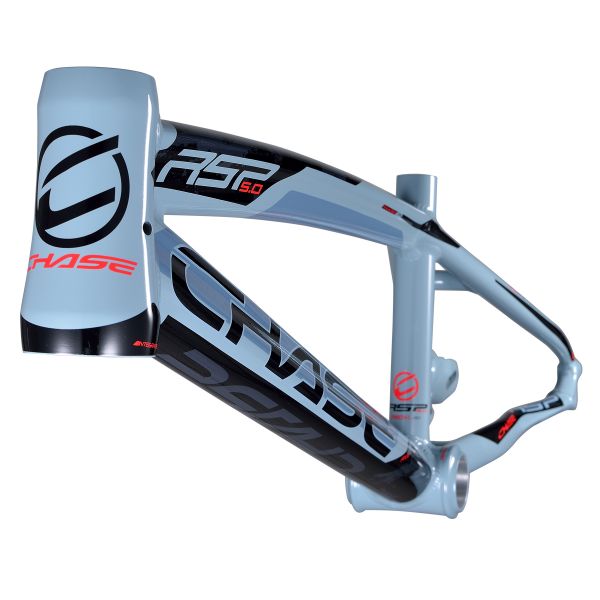

• Integrated tapered head tube, 1-1/8" upper to 1.5" lower (Expert XL and larger); runs a tapered steer tube fork, or a 1-1/8" steer tube with a 1-1/8" to 1.5" fork race
• Press fit BB86 bottom bracket (Expert XL and larger); Mini, Junior and Expert use a 68mm Euro BSA shell
• Fully enclosed 10mm dropouts with an extra long 2.3" (60mm) axle slot and built-in alloy tensioners
• Disc brake only, post mount or flat mount; dropouts restructured for caliper clearance and, like the RSP 4.0, built to take the extra force of a disc brake
• Aero seat post tube for a slightly stiffer feel
• Bio Fit sizing across 20" and 24" frame sizes

Specs

• Material: 7005-T6 aluminum
• Wheel size: OS20
• Color: Slate with red accents
• Sizes in this listing: OS20 Pro XXL, OS20 Pro XXXL
• Rear axle: 3/8" (10mm), enclosed dropouts
• Brake: disc only, post or flat mount, 120/140mm

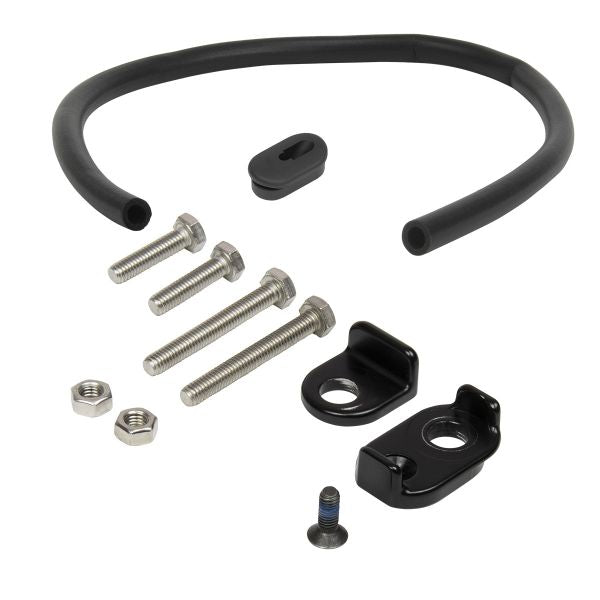

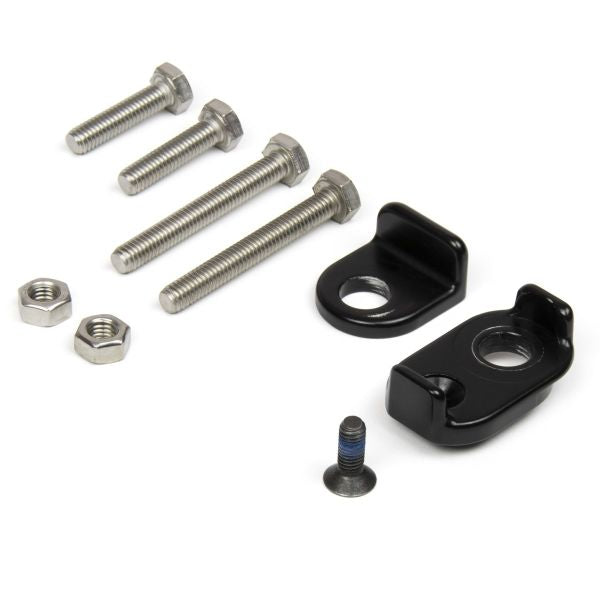

• Included: chain tensioner and bolts, housing damper foam
• Not included: aero seat post, aero seat post clamp, disc brake adapter, brake housing
• Other RSP 5.0 sizes (20"): Mini, Junior, Expert, Expert XL, Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+, Pro XXXL
• Other RSP 5.0 sizes (24"): Pro Cruiser, Pro + Cruiser

Fitment

Built around OS20 wheels and an OS20 fork. Disc brake only, so a post mount or flat mount adapter is needed (sold separately).

Integrated tapered head tube for a stiffer tapered steer tube fork

Integrated cable routing from the head tube to the chain stays

Restructured enclosed dropouts with built-in tensioners and clearance for a wide array of disc brakes

Aero shape for improved aerodynamics and a slightly stiffer feel

Press fit integrated BB86 bottom bracket

Geometry

NOTE: RSP 5.0 frame weights listed are weighed exactly how the frames arrives to you, with paint, decals, & clear coating.

Brake setup

DOWNLOAD RSP 5.0 FRAME BRAKE SETUP NOTICE

Please note: Brake fluid on paint that is not silicone-based can act like a paint thinner and eat away at the coating of your paint, causing it to peel. Do not let brake fluid touch any part of the bike.

Chase RSP 5.0 Hydraulic Brake Housing Routing Visual Guide - Standard Housing

How to insert and route the hydraulic brake housing through the RSP 5.0 frame using an old brake cable, housing and some lube.

Chase RSP 5.0 Hydraulic Brake Housing Routing Visual Guide - Housing with Banjo

How to insert and route hydraulic brake housing with a banjo through the RSP 5.0 frame.
