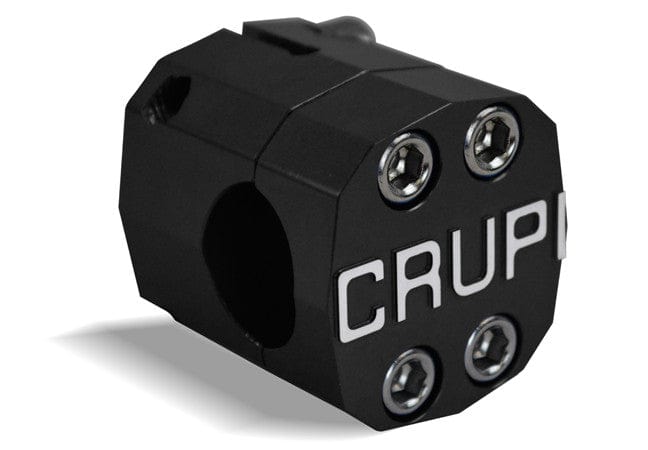

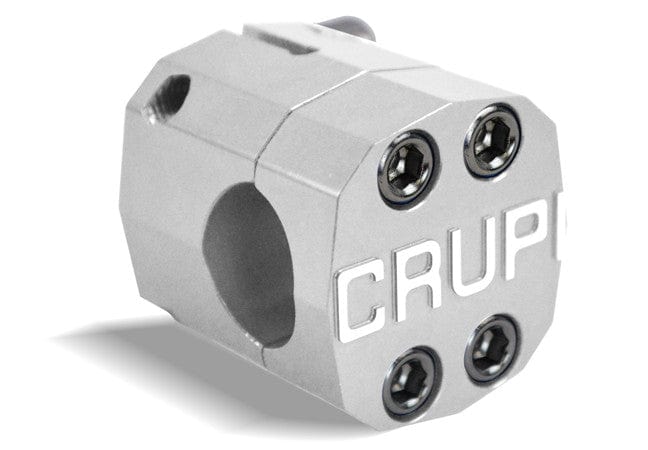

Crupi 0mm I-beam Stems
Description
PRODUCT DETAILS
Crupi's I-Beam stems are CNC machined from 6061-T6 billet aluminum and are amongst the lightest weight stems on the market! The I-Beam features extensive external machining, the design is visually appealing yet stiff and strong. The CNC machined and embossed Crupi logo on the faceplate gives this stem it's unique look.
The Crupi 0mm "No Reach" stem has 0mm of reach which means the stem holds the bars directly above the steer tube making the bikes front-end length shorter. With a rider weight limit of 90lbs, this stem was designed to help really small riders fit their frames even better.
Please Note: When determining overall bar height, keep in mind this stem mounts on the top of the fork and must utilize a Star Nut to install headset. If fork is not cut to size, additional spacers will be necessary.
Stem Spec Sheet
| Size | Clamp Bolts | Pinch Bolts | Stem Bolt Torque | Weight |
|---|---|---|---|---|
| Micro 1" x 0mm | M6 x P0.1 x 20mm x 4 | M6 x P0.1 x 20mm x 2 pcs | 7NM (62 in/lbs) | 4.8oz |
| Micro/Mini 1" x 27mm | M6 x P0.1 x 20mm x 4 pcs | M6 x P0.1 x 18mm x 2 pcs | 7NM (62 in/lbs) | 4.05oz |
| Mini 1" x 35mm | M6 x P0.1 x 20mm x 4 pcs | M6 x P0.1 x 18mm x 2 pcs | 7NM (62 in/lbs) | 4.76oz |
| Expert 1-1/8" x 45mm | M6 x P0.1 x 20mm x 4 pcs | M6 x P0.1 x 18mm x 2 pcs | 7NM (62 in/lbs) | 7.97oz |
| Pro XL 1-1/8" x 52mm | M8 x P1.25 x 22mm x 4 pcs | M8 x P1.25 x 20mm x 2 pcs | 12NM (106 in/lbs) | 9.06oz |
| Pro XXL 1-1/8" x 60mm | M8 x P1.25 x 22mm x 4 pcs | M8 x P1.25 x 20mm x 2 pcs | 12NM (106 in/lbs) | 9.62oz |
