DK Chamberlain Top Load Stem

Product Overview

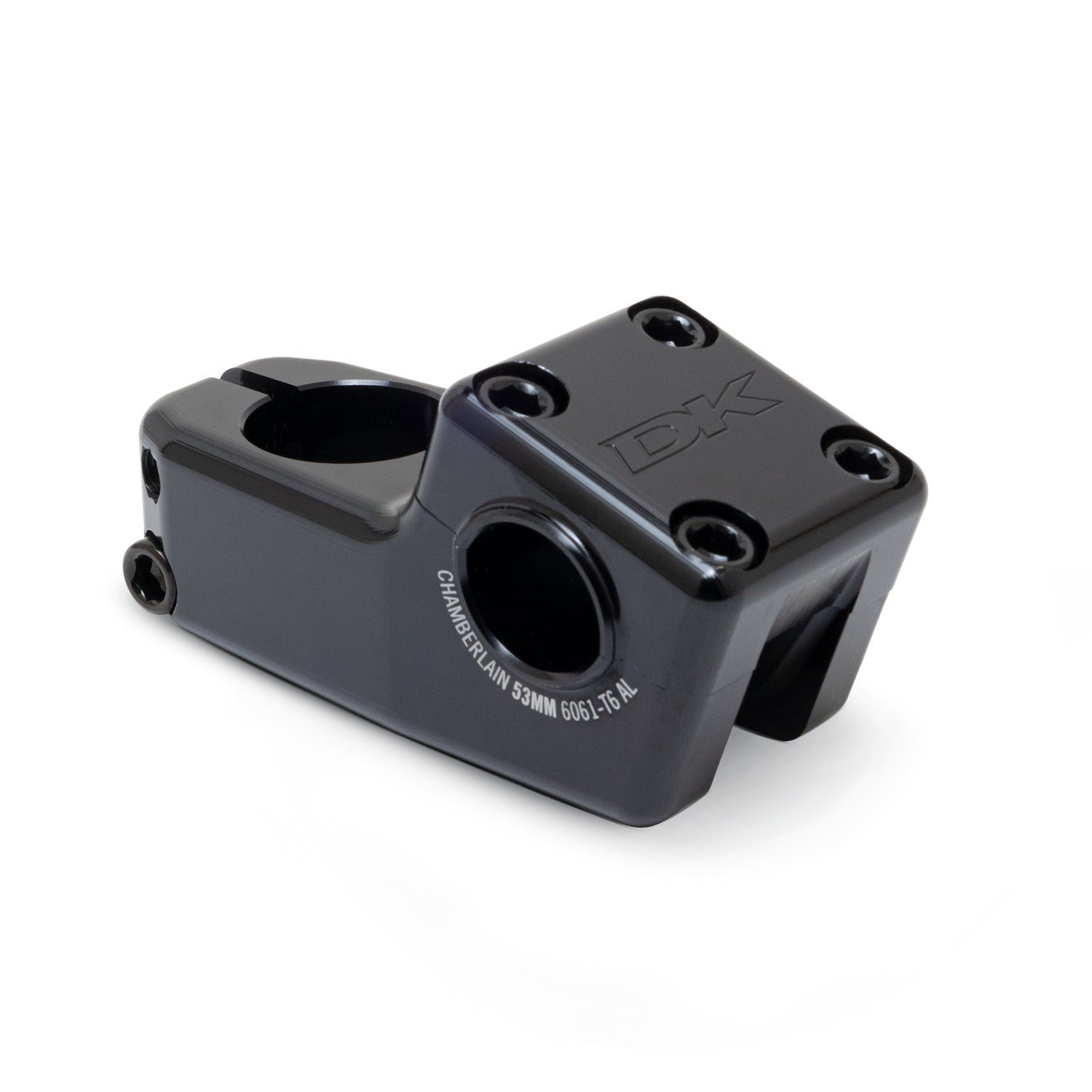

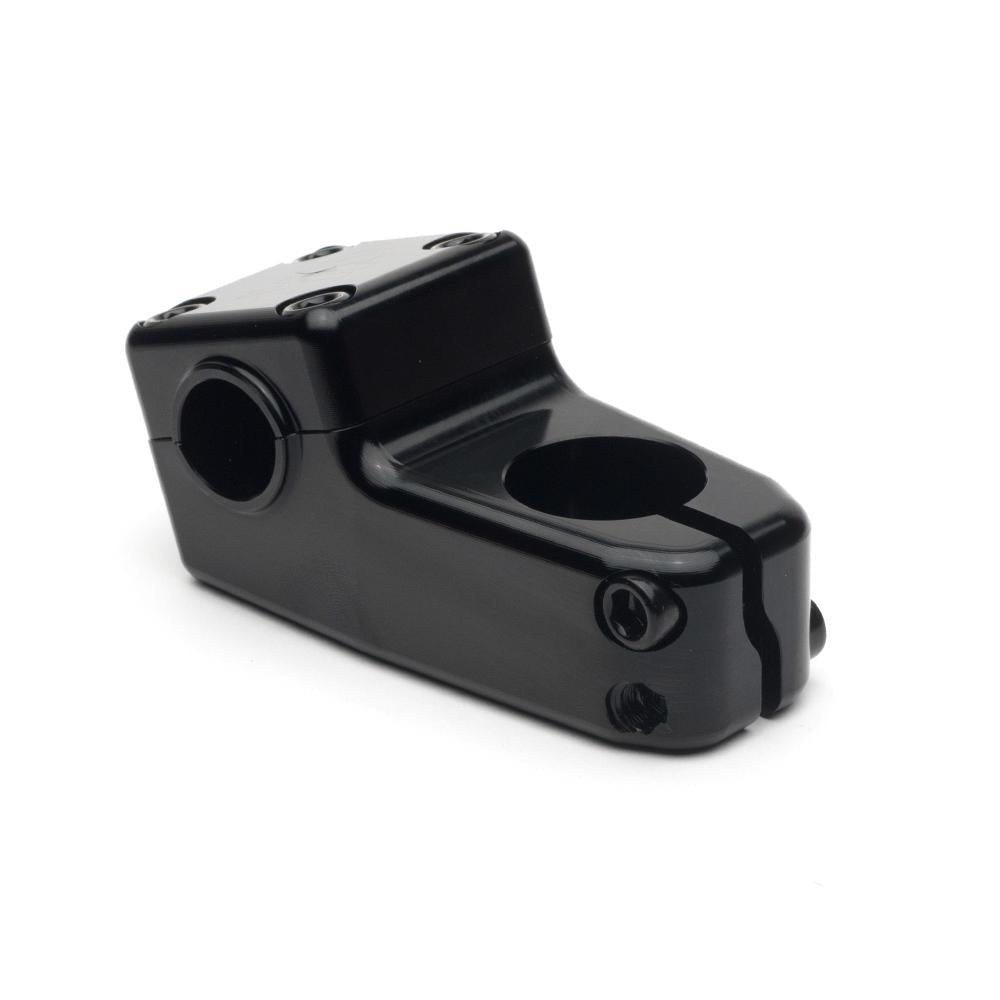

The DK Chamberlain Top Load Stem is a precision CNC-machined stem engineered for responsive front-end control. Built from 6061-T6 aluminum, it features an offset pinch slot and center pilot bore for optimized performance. Available in 53mm or 63mm reach with 31mm rise, it accommodates various frame geometries and rider preferences.

Key Features

• CNC-machined 6061-T6 aluminum construction – Precision machining from aerospace-grade aluminum ensures consistent quality and minimal runout. Superior strength-to-weight ratio provides responsive feel without excess bulk.

• Top-load design – Clamping mechanism from above allows secure bar mounting with clean aesthetics. Top-load geometry positions bolts for minimalist cockpit appearance without side-mounted hardware.

• Offset pinch slot – Asymmetrical positioning of the bar clamp slot allows better cable routing and cleaner cockpit setup. Reduces interference with brake and gyro systems while maximizing bolt thread engagement for secure clamping.

• Center pilot bore – Strategic weight reduction hole in the stem body improves material efficiency. Reduces rotational mass without compromising structural integrity or stiffness.

• Dual reach options (53mm or 63mm) – Extended range accommodates various frame sizes and rider preferences. 53mm suits standard geometry; 63mm provides longer reach for extended front-end positioning.

• 31mm rise – Modest vertical component positions bars at comfortable height for street, park, and freestyle riding. Supports responsive cockpit geometry without excessive elevation.

• Four clamp bolts (8 x 1.25mm) – Distributed clamping force across four points prevents bar rotation and slippage during tricks and aggressive riding.

• Two pinch bolts (8 x 1.25mm) – Dual-bolt pinch design provides additional clamping security and load distribution. Ensures consistent bar position across varied riding conditions.

• Responsive stem design – Optimized geometry and lightweight construction maintain precise bar control and steering feedback for technical tricks and street riding.

Technical Specifications

• Material: CNC-machined 6061-T6 aluminum
• Reach options: 53mm or 63mm
• Rise: 31mm
• Clamp design: Top-load
• Clamp bolts: M8 x 1.25mm (qty. 4)
• Pinch bolts: M8 x 1.25mm (qty. 2)
• Special features: Offset pinch slot, center pilot bore for weight reduction
• Fork bore compatibility: Standard 1-1/8" (28.6mm) tapered steerer tubes
• Bar bore compatibility: 7/8" (22.2mm) standard BMX

Compatibility and Ideal Use Cases

Compatible with:

• BMX forks with 1-1/8" (28.6mm) steerer tubes
• BMX bars with 7/8" (22.2mm) bore
• Standard BMX top cap and headset systems
• All BMX frame styles (street, park, ramp, freestyle)

Ideal for:

• Street, park, and freestyle riders seeking precision-machined stems
• Riders prioritizing clean cockpit aesthetics with top-load design
• Various frame geometries requiring flexible reach options
• Builders preferring responsive, lightweight stem components
• Any BMX discipline benefiting from optimized pinch slot and cable routing
