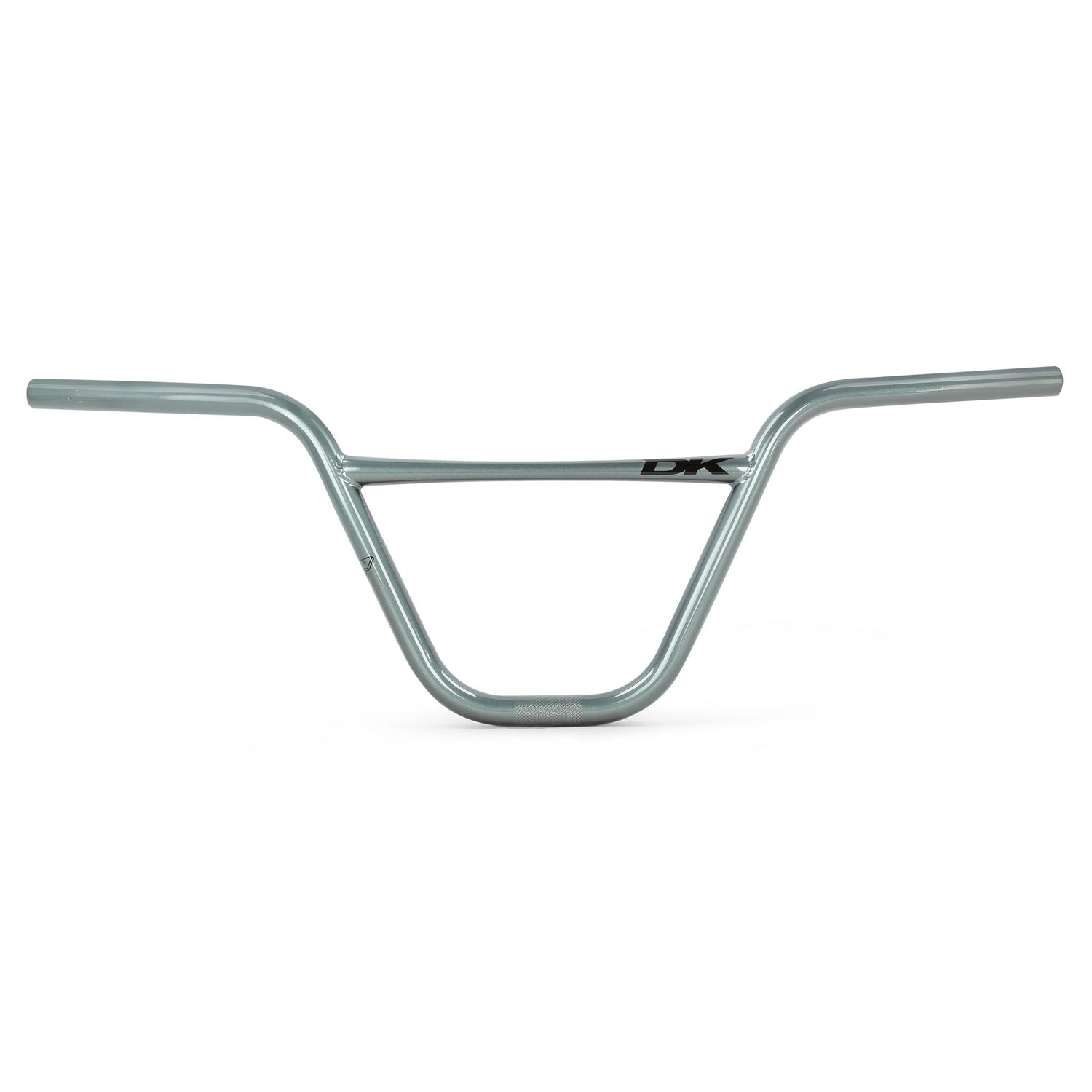

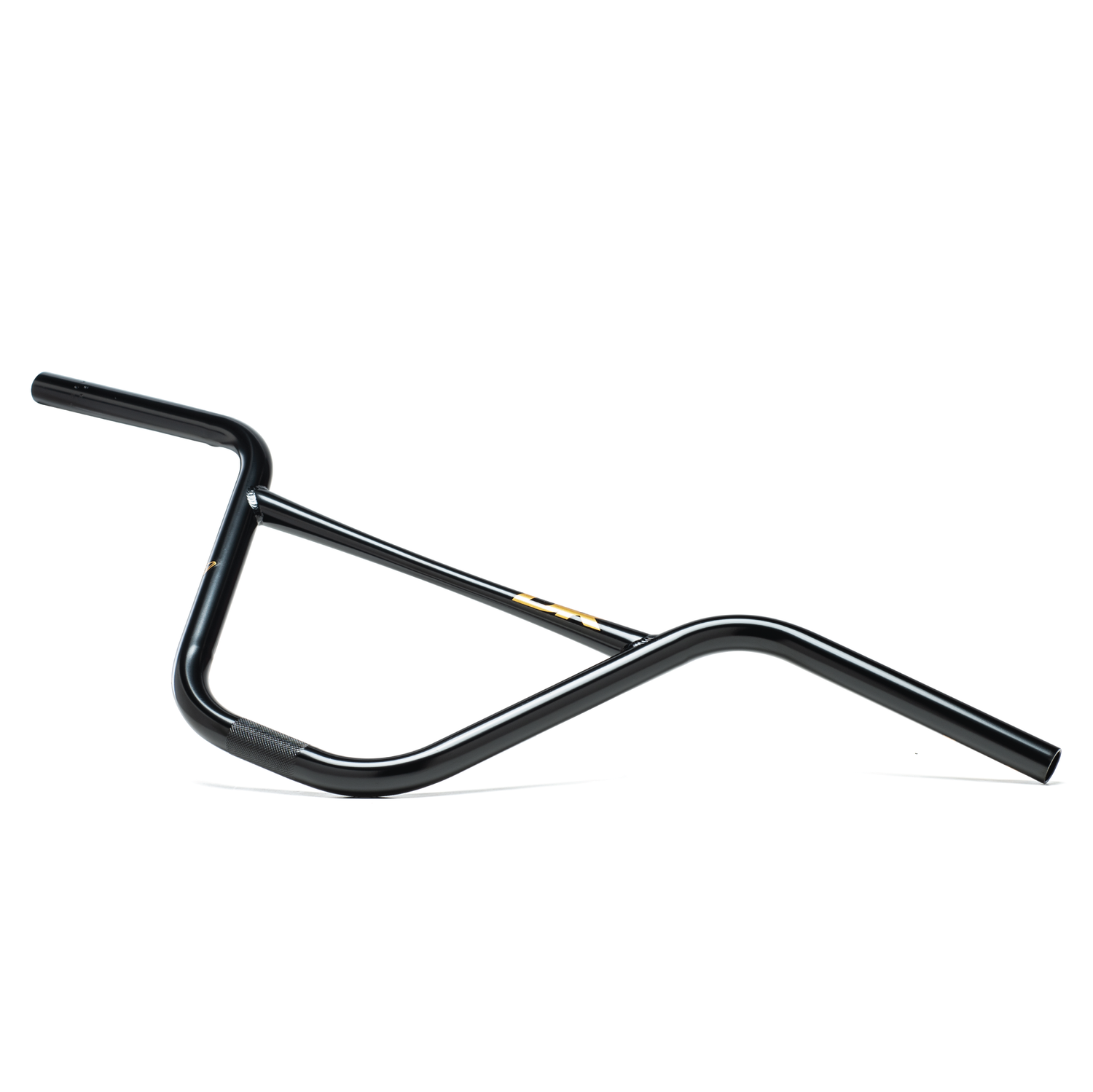

DK Phase Handlebar

Product Overview

The DK Phase Handlebar is a freestyle-focused bar built from post-weld heat-treated chromoly tubing. With proven geometry and multi-butted construction, it delivers responsive control and durability for street, park, and vert riding. The distinctive hourglass crossbar design balances structural strength with minimal weight.

Key Features

• 100% post-weld heat-treated chromoly tubing – Heat treatment applied after welding increases hardness and fatigue resistance throughout the bar, improving durability under repeated impacts and stress cycles. Superior to pre-weld heat-treated bars that lose strength at weld joints.

• Multi-butted tubing construction – Varying wall thickness optimizes strength-to-weight ratio. Thicker material in high-stress areas (near welds, at bends) maintains rigidity, while thinner sections in low-leverage zones reduce unnecessary weight. Improves response and reduces fatigue during extended sessions.

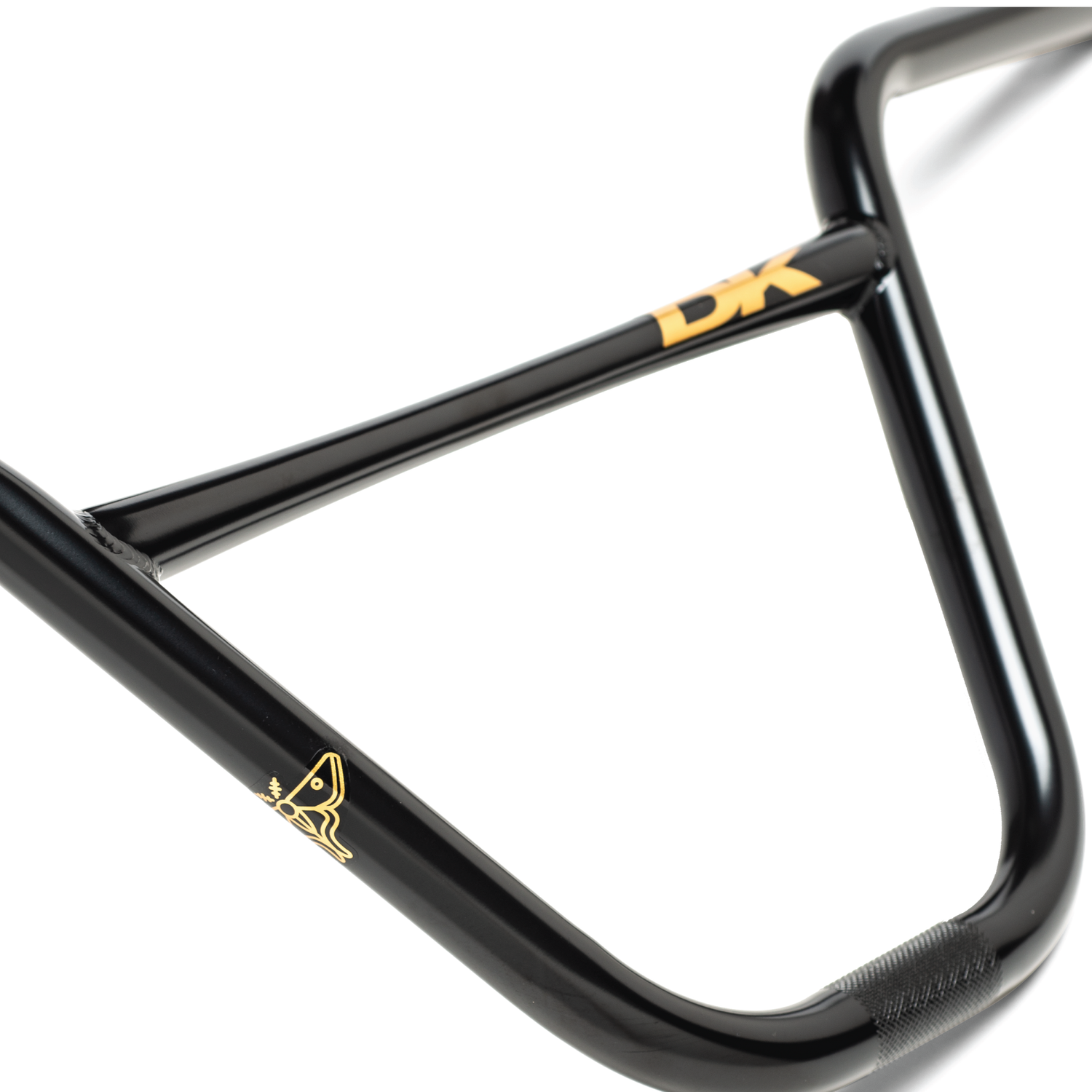

• Hourglass crossbar design – Proprietary cross-tube profile creates visual distinction while improving lateral stiffness and torsional rigidity. The tapered design concentrates material where it's needed most, resisting twisting without added bulk.

• 9" height – Standard rise for all-around freestyle and street riding. Provides adequate clearance and control without excessive leverage against the frame during tricks.

• 29" width – Full-width bar accommodates both hands comfortably. Standard width for most BMX setups without excessive leverage or overhang.

• 11º backsweep – Bars angle slightly rearward, positioning hands naturally and reducing wrist strain during extended riding. Improves comfort and control during technical maneuvers.

• 4º upsweep – Slight upward angle at the grips enhances wrist positioning and reduces arm fatigue. Complements backsweep for ergonomic hand placement.

• Lightweight at 1 lb 13 oz – Minimal rotational mass improves bar responsiveness and reduces overall bike weight. Light bars accelerate quicker and make spin tricks more controllable.

Technical Specifications

• Material: 100% post-weld heat-treated chromoly tubing
• Construction: Multi-butted
• Height: 9"
• Width: 29"
• Backsweep: 11°
• Upsweep: 4°
• Weight: 1 lb 13 oz
• Bar bore: 7/8" (22.2mm) standard BMX
• Crossbar design: Hourglass profile

Compatibility and Ideal Use Cases

Compatible with:

• Standard BMX stems with 7/8" (22.2mm) bar bore
• All BMX frame styles (street, park, ramp, freestyle)
• Any BMX grips and brake systems
• Gyro and free-coaster setups

Ideal for:

• Freestyle and all-around BMX riders
• Street, park, and vert discipline combinations
• Riders seeking responsive, durable bars
• Builders prioritizing premium materials and refined geometry
• Any BMX discipline requiring reliable bar control
