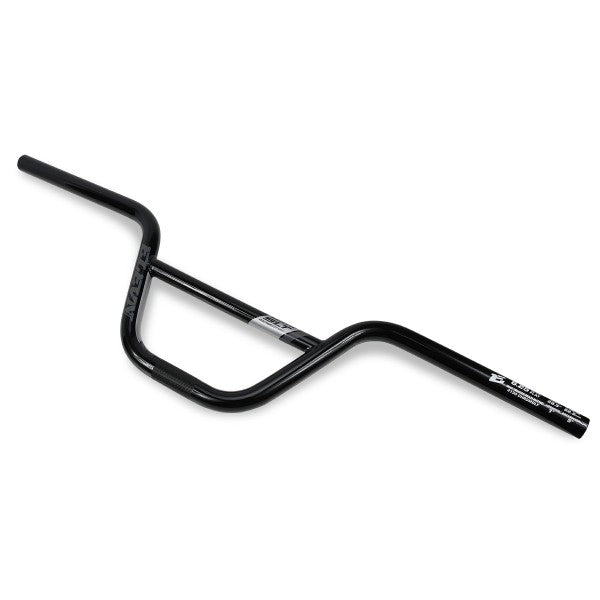

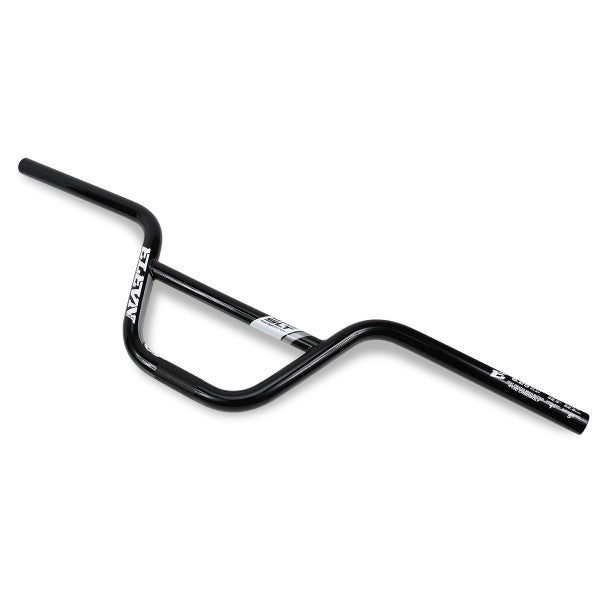

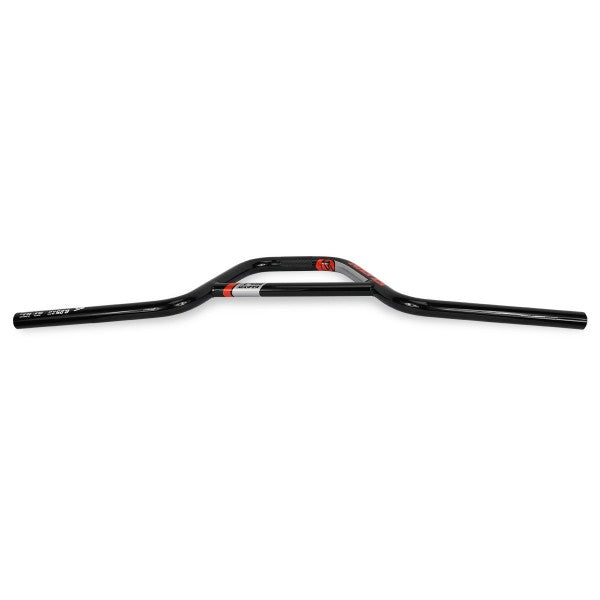

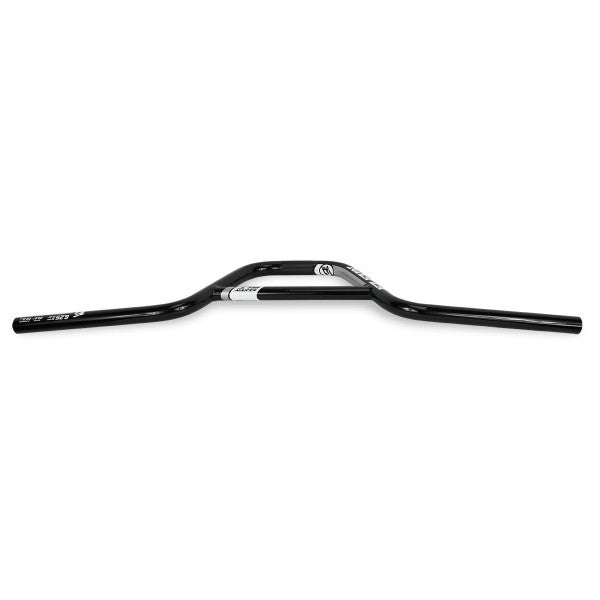

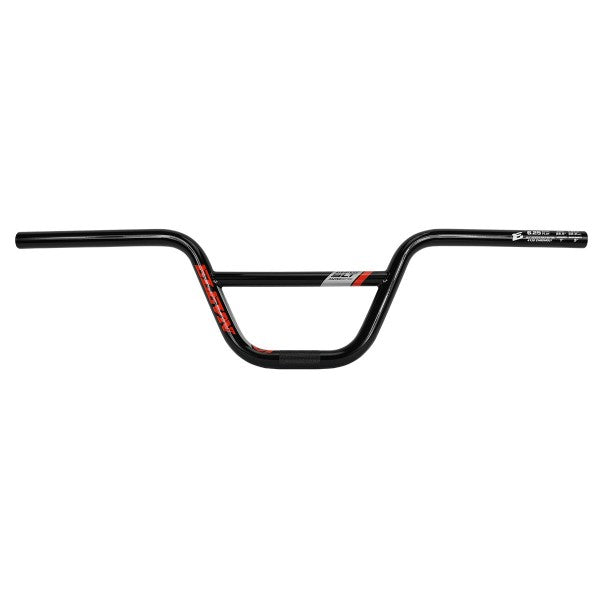

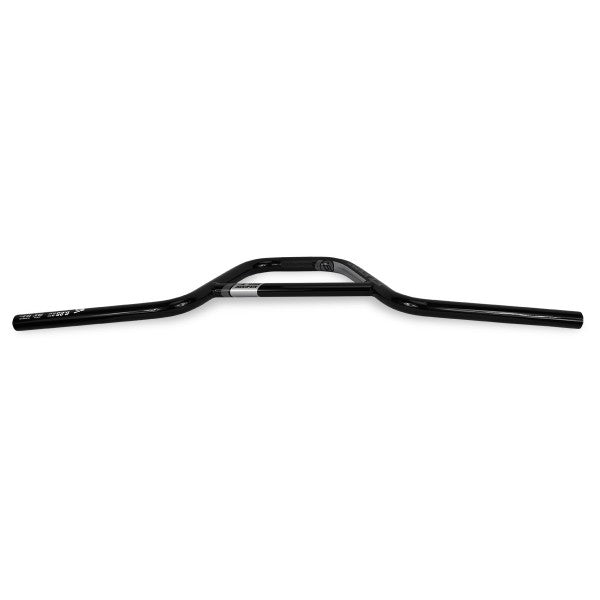

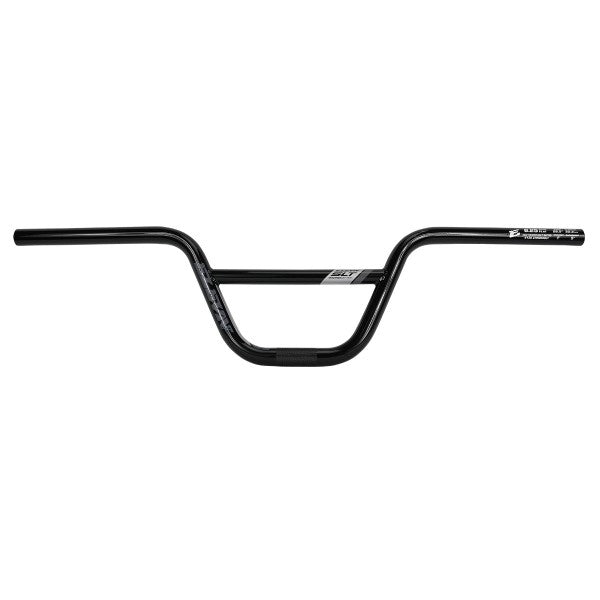

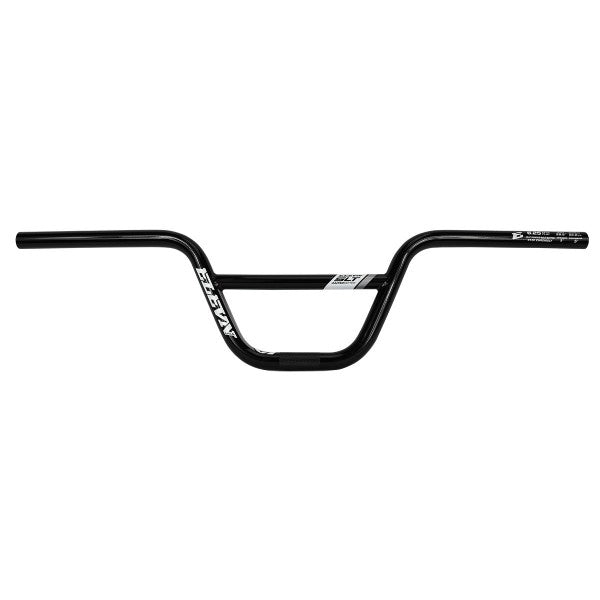

Elevn 22.2 SLT Flat 6.25" Cruiser Handlebars

Product Overview

The Elevn SLT Flat is a 4130 chromoly cruiser handlebar with a flatter sweep geometry designed for BMX gate starts and competitive racing. Built with 13-stage variable butting and minimal back and up sweep angles, it offers a more neutral hand position that improves gate control and comfort during high-intensity racing. The 22.2mm clamp diameter integrates with standard BMX stems for reliable cockpit setup.

Key Features

• 100% 4130 heat-treated chromoly – Aerospace-grade steel tubing provides superior strength, impact resistance, and durability compared to aluminum, ideal for aggressive riding and heavier riders
• 13-stage variable butting – Strategic material thickness throughout the bar length reinforces high-stress zones (clamp and bend areas) while reducing weight where possible
• Flatter sweep geometry – 5° back sweep and 1° up sweep create a more neutral hand position that promotes explosive gate starts and maintains comfort during sustained racing
• Reduced sweep angles – Minimized bends allow for more direct power transfer from your body to the bars during acceleration and gate launches
• 6.25" rise – Taller profile positions your body for optimal leverage during gate starts and maintains control through extended racing sequences
• 28.5" width – Wide stance provides stability and body positioning control throughout gate transitions and racing sections
• 3/4" cross bar – Reinforced center cross bar adds structural rigidity and improves overall bar stiffness for responsive feedback under load
• Alignment helper – Knurled section with Elevn "E" graphic includes a reference line to realign bars with stem for consistent positioning after removal
• Pro-level choice – Selected by elite BMX racers including Joris Daudet, Connor Fields, and Izaac Kennedy for competitive advantage

Technical Specifications

• Material: 4130 heat-treated chromoly steel
• Clamp diameter: 22.2mm
• Rise (height): 6.25" (158.75mm)
• Width: 28.5" (723.9mm)
• Back sweep: 5°
• Up sweep: 1°
• Cross bar diameter: 3/4" (19.05mm)
• Tubing construction: 13-stage variable butting
• Weight: 733g (25.85 oz)
• Available colors: Black with blue, red, white, or neon yellow graphics

Compatibility & Ideal Use Cases

This bar fits any 22.2mm clamp stem and is designed for competitive BMX racing and gate-focused training. The flatter sweep geometry is optimized for explosive gate starts and maintains performance through rhythm and jumping sections. The chromoly construction makes it ideal for heavier riders and those demanding maximum durability during high-impact racing. Best suited for racers prioritizing gate control and acceleration over comfort; the minimal sweep angles translate rider input directly to bar movement. Compatible with all standard 22.2mm stems and clamps.

• Material: 100% 4130 heat treated Cro-mo
• Butted: 13 (variable thickness)
• Features:
• Rise: 6.25’’ / 158.75 mm
• Width: 28.5’’ / 723.9 mm
• Sweep: 5° / Up Sweep: 1°
• Cross Bar: 3/4’’ / 19.05mm
• Weight: 25.85 Oz / 733g

Colors: Black with blue, red, white, and Neon Yellow graphics, with white specification graphics on bar grip area.

Bar Location Helper: In the Elevn “E” graphic located to the left of the Knurled area, there is a line to help you line your bars with your stem for ease to get back to your desired position after removal.
