Elevn 22.2 SLT Flat 7.0" Handlebar

Product Overview

The Elevn SLT Flat 7.0" is a chromoly handlebar designed for elite BMX racing. Heat-treated and butted from 4130 chromoly steel with reduced sweep angles (5-degree back, 1-degree up), it provides a flatter hand position preferred by top pro riders for improved gate starts and control. Features 7-inch rise with 26-inch width for full-size Pro and Pro XL riders.

Key Features

• Heat-treated 4130 chromoly construction – Chromoly steel provides increased strength and durability compared to aluminum, with heat treatment enhancing material properties for race applications

• 13-gauge butted tubing – Variable wall thickness removes material in low-stress areas while maintaining strength at critical clamp and grip zones, reducing weight compared to straight-gauge chromoly

• Flatter sweep geometry – 5-degree back sweep and 1-degree up sweep create more neutral wrist position and forward hand placement, preferred by elite riders for explosive gate starts and aggressive positioning

• Pro rider geometry – Sweep angles chosen by world-class racers including Joris Daudet, Connor Fields, and Izaac Kennedy for competitive advantage in gate performance and overall control

• Alignment reference mark – Engraved line in the "E" graphic near knurled area provides visual reference for repeatable stem alignment after handlebar removal

• Knurled center section – Textured surface at stem clamp area prevents handlebar rotation under clamping force

• 3/4-inch crossbar – 19.05mm diameter crossbar provides structural support for taller handlebars while maintaining handlebar stiffness

Technical Specifications

• Weight: 727 g (25.64 oz)
• Material: 4130 chromoly steel, heat-treated
• Clamp diameter: 22.2mm (standard)
• Handlebar height (rise): 7.0" (177.8mm)
• Handlebar width: 26" (660mm)
• Back sweep: 5 degrees
• Up sweep: 1 degree
• Construction: 13-gauge butted with 3/4" (19.05mm) crossbar

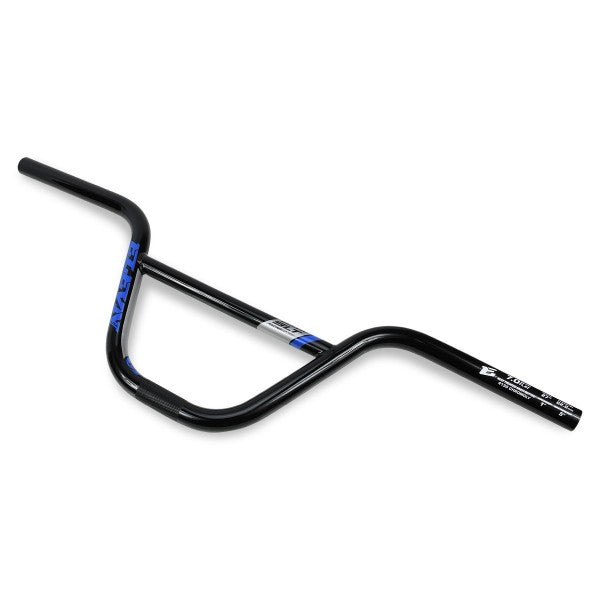

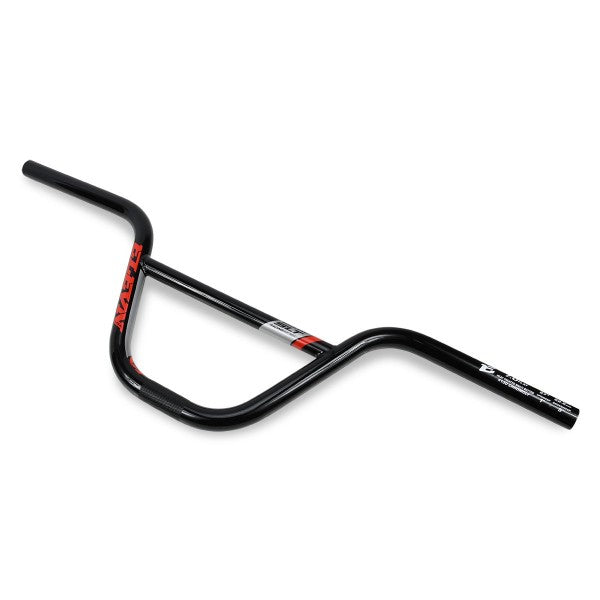

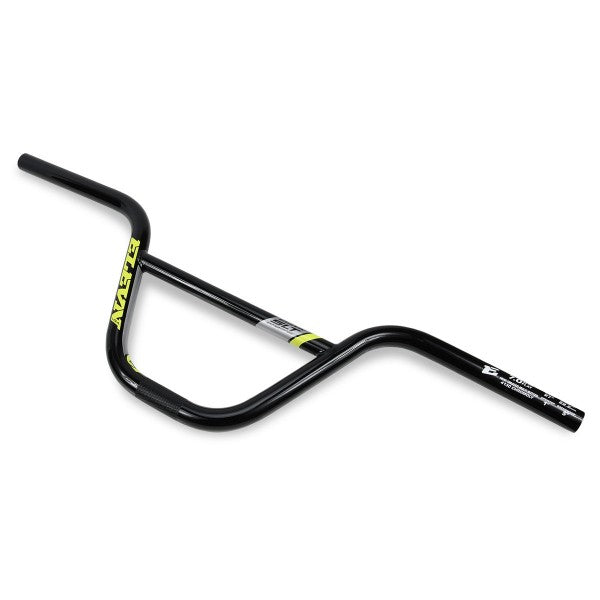

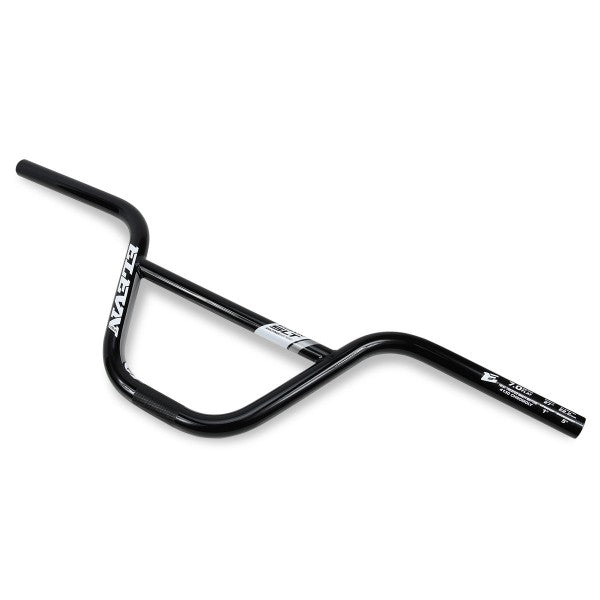

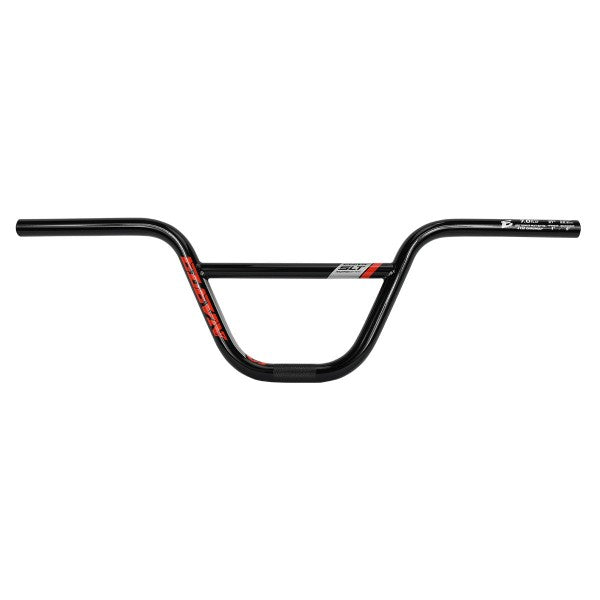

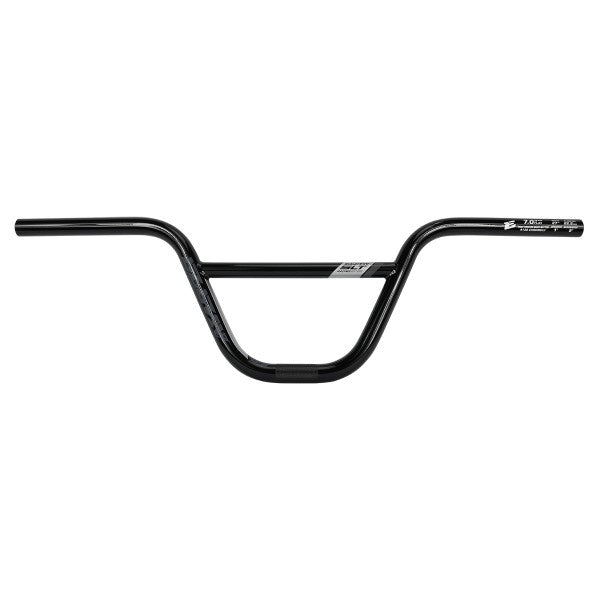

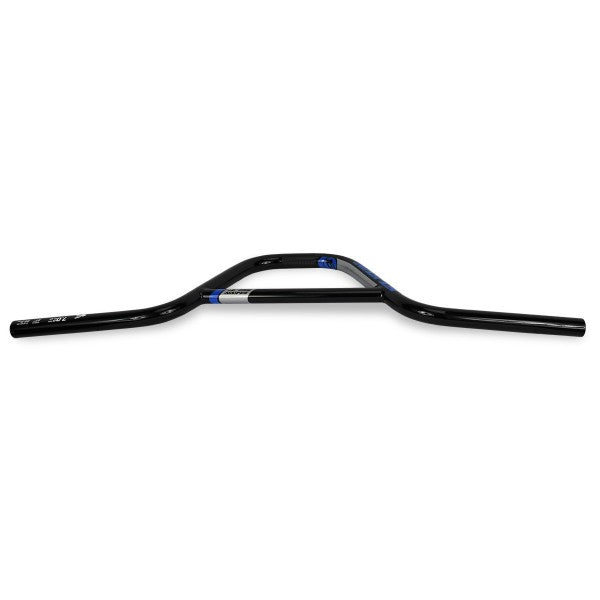

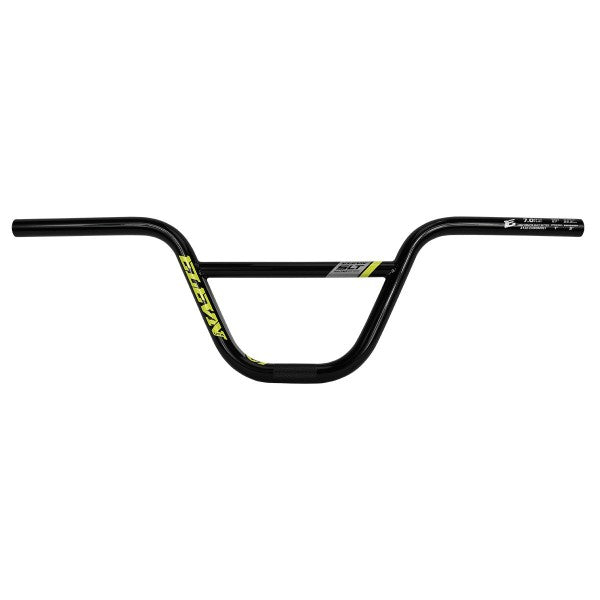

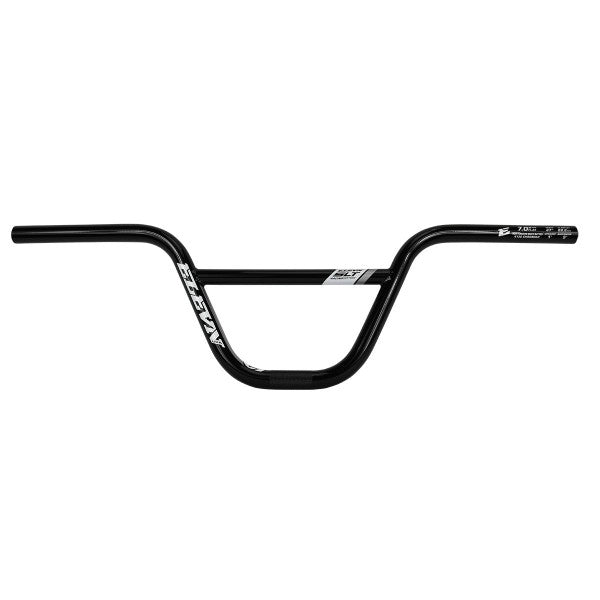

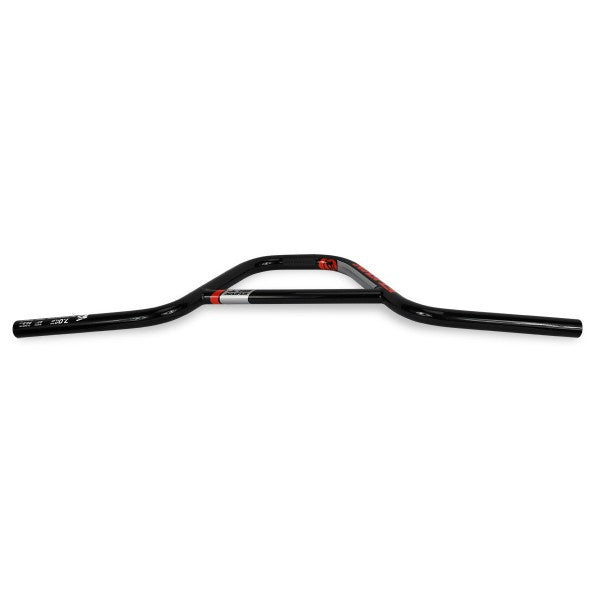

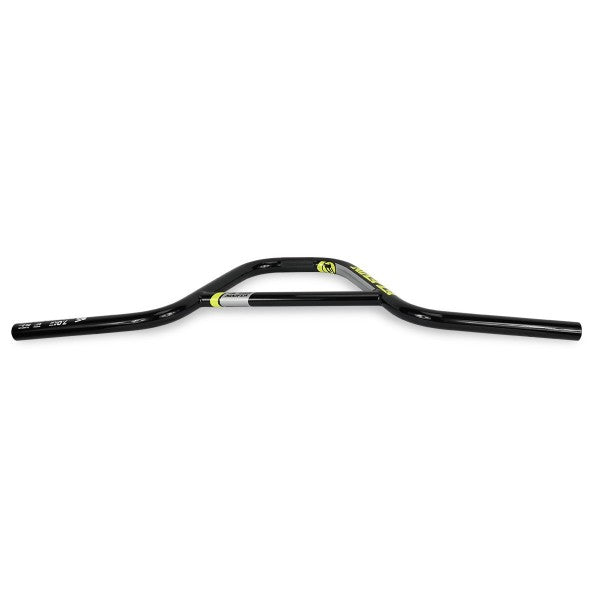

• Color options: Black with blue, red, white, or neon yellow graphics; white specification graphics on grip area

Compatibility and Ideal Use Cases

Designed for BMX race bikes with standard 22.2mm stem clamps. Best suited for Pro and Pro XL class racing where elite riders prefer flatter sweep angles for more aggressive hand positioning and forward weight distribution during gate starts. The reduced back sweep (5 degrees vs. typical 8 degrees) and minimal up sweep (1 degree vs. typical 2 degrees) create a flatter, more neutral wrist angle that some riders find advantageous for explosive gate performance. 7-inch rise accommodates taller Pro riders requiring upright positioning. Chromoly construction provides durability for high-level competition. Alignment reference mark simplifies handlebar reinstallation. Not compatible with 31.8mm oversize stem clamps—verify stem clamp diameter is 22.2mm before ordering.

Colors: Black with blue, red, white, and Neon Yellow graphics, with white specification graphics on bar grip area.

Bar Location Helper: In the Elevn “E” graphic located to the left of the Knurled area, there is a line to help you line your bars with your stem for ease to get back to your desired position after removal.
